Been searching for hours for a picture or answer to my question on door strikers for some earlier front half doors I bought.
They didn't come with any hardware and I thought I had gathered all the parts to put them together when it warms up.I bought strikers for the b pillars and the paddle handles.Now I'm seeing glimpses of a part that mounts on the side of the door itself.
I can't find a good picture of it or the proper name of the part, has anyone dealt with this issue with the strikers. Thanks in advance.



[Splangy]

What year?



[Living in the Past]

Paddle handles sounds like something aftermarket. Post a picture of your half doors.



[curtislow]

What year?

I'm not sure of the year doors ,early seventies I think. I'm going to use them on a 77 with aqualu tub.I see two holes on the side of the door but don't have the part.I'm guessing the strikers are two peices now.



[curtislow]

I'm not sure of the year doors ,early seventies I think. I'm going to use them on a 77 with aqualu tub.I see two holes on the side of the door but don't have the part.I'm guessing the strikers are two peices now.

I don't use a smartphone and have'nt posted any pics yet.I have to figure out how,sorry.They look just like the ones I had on my 73.



[curtislow]

I don't use a smartphone and have'nt posted any pics yet.I have to figure out how,sorry.They look just like the ones I had on my 73.

Just went and took some pictures and hopefully I can post them here soon



[curtislow]

Just went and took some pictures and hopefully I can post them here soon



[curtislow]

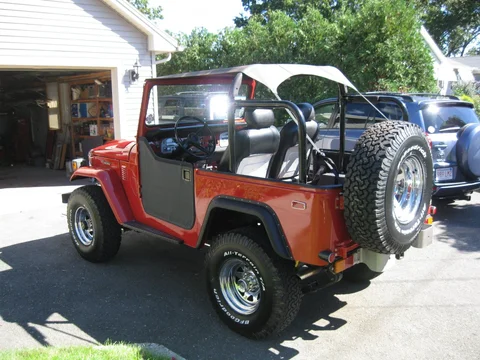

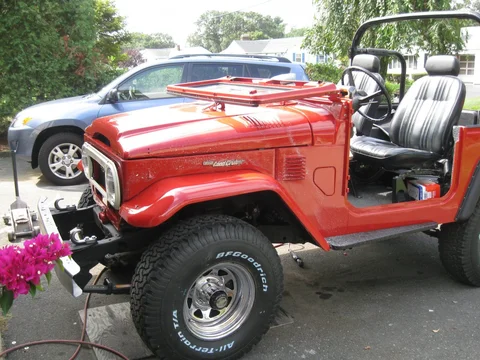

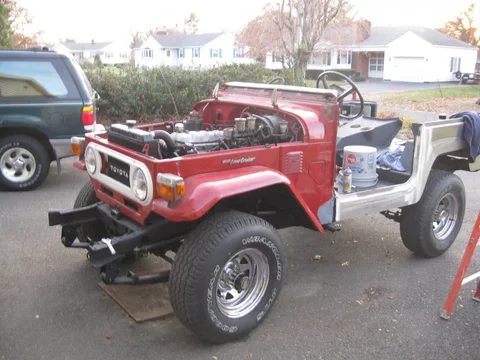

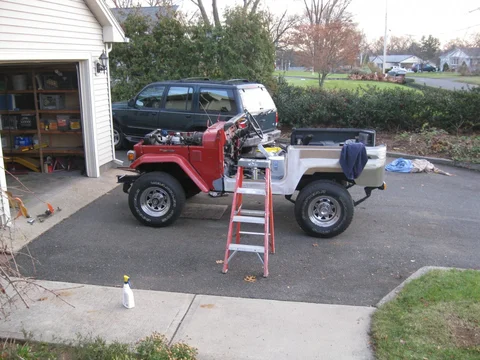

View attachment 1423776 View attachment 1423776 View attachment 1423777 View attachment 1423778 View attachment 1423780



[curtislow]

View attachment 1423796 View attachment 1423788 View attachment 1423796 View attachment 1423800 View attachment 1423801 View attachment 1423788

After finally figuring out how to post a picture I got carried away.



[Xpnsv72fj]

Not sure if this is what you need but these are from my 72

Let me know if you need another shot and I will try to dig one up for you.

Josh



[curtislow]

Not sure if this is what you need but these are from my 72

View attachment 1423860 View attachment 1423861 View attachment 1423862 View attachment 1423863

Let me know if you need another shot and I will try to dig one up for you.

Josh

Thanks Josh, i guess that part slides into the striker I bought to mount to the b pillar.Any idea what they call it,because I'm not seein it at sor or any of the other vendors sites in thier pictures.



[Xpnsv72fj]

I don't know what they are called but I might have an extra pair. If I do I will be more than happy to send them to you. I will let you know if I can track them down.

Josh



[brian]

The doors aren't going to work on the later tub without modifying the area where the striker mounts.



[curtislow]

The doors aren't going to work on the later tub without modifying the area where the striker mounts.

By modifying do you mean just placement of the striker on the b pillar or having to add something else?



[curtislow]

Thanks Josh.

Kevin



[brian]

By modifying do you mean just placement of the striker on the b pillar or having to add something else?

Yes the earlier strikers mount much closer to the outside of the tub than the later strikers.



[73FJ40]

Toyota Part No.: 69405-90300
STOPPER SUB-ASSY, DO

• FJ40

• • Production Date: 07/1972-01/1975
  • Fitting Vehicle Options: FJ40



[curtislow]

Yes the earlier strikers mount much closer to the outside of the tub than the later strikers.

Ya scared me for a minute there.Doesn't sound like to big a deal.

View attachment 1424397


Toyota Part No.: 69405-90300
STOPPER SUB-ASSY, DO

Thanks, thats the picture and number I needed. Was that from SOR?

• FJ40

• • Production Date: 07/1972-01/1975
  • Fitting Vehicle Options: FJ40

View attachment 1424397


Toyota Part No.: 69405-90300
STOPPER SUB-ASSY, DO

• FJ40

• • Production Date: 07/1972-01/1975
  • Fitting Vehicle Options: FJ40



[curtislow]

Ya scared me for a minute there.Doesn't sound like to big a deal.

Thanks , thats the pic I was looking for

View attachment 1424397


Toyota Part No.: 69405-90300
STOPPER SUB-ASSY, DO

• FJ40

• • Production Date: 07/1972-01/1975
  • Fitting Vehicle Options: FJ40

Thanks, thats the pic I was looking for

View attachment 1424397


Toyota Part No.: 69405-90300
STOPPER SUB-ASSY, DO

• FJ40

• • Production Date: 07/1972-01/1975
  • Fitting Vehicle Options: FJ40

Thanks, thats the pic I was looking for.Was that from SOR site?
