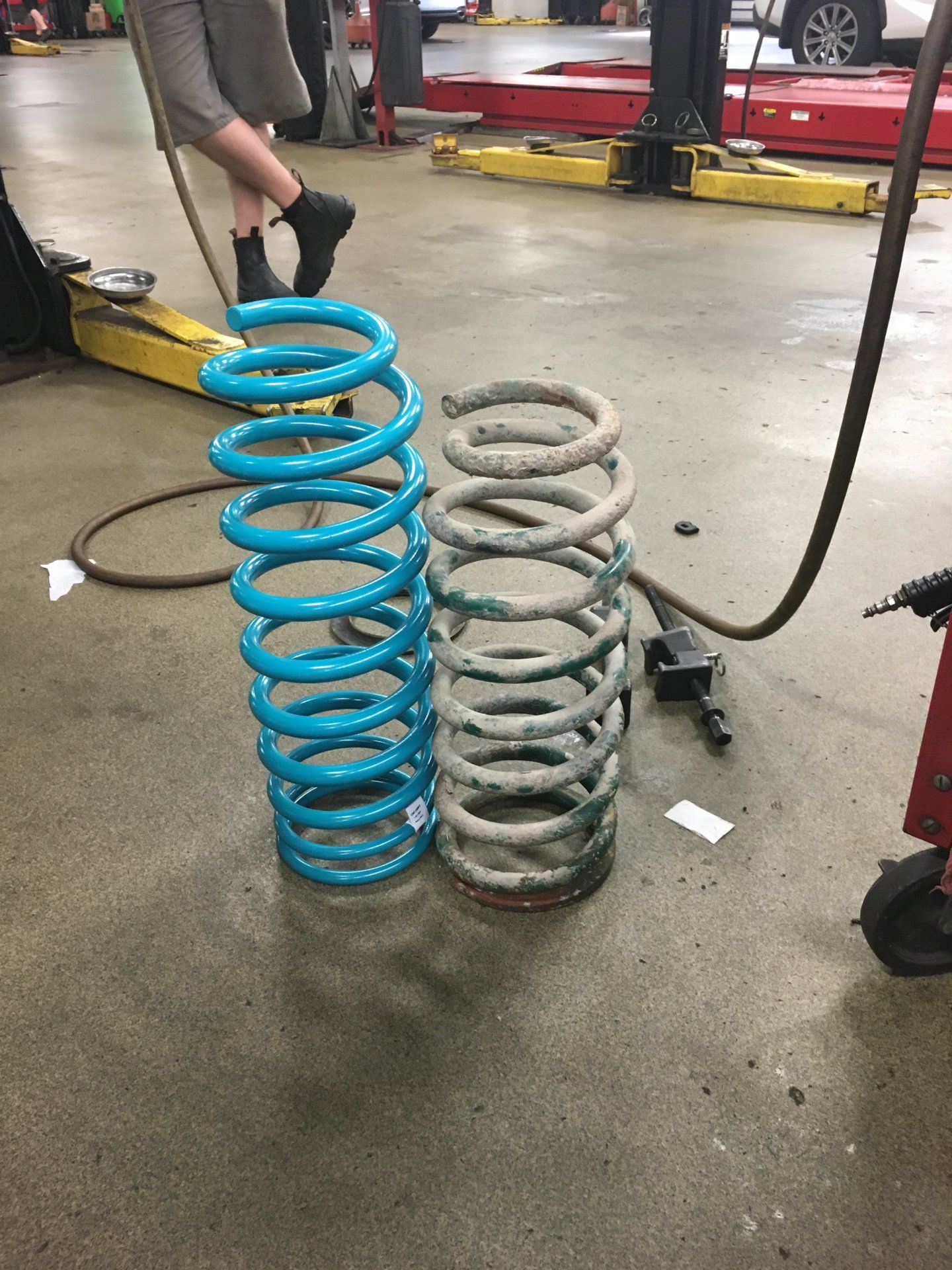

    image.jpeg Installed the Dobinson 3" heavy rear tapered springs. I thought I had 3-4" Dobinson springs already that came on my HDJ81 from Japan but once I put the springs side by side the color didn't really match so I don't know. Lift in the rear stayed about the same at hub to flare at 24"

    crikeymike likes this.
  2. Box Rocket

    Box Rocket SILVER Star

    Messages:
    3,746
    Media:
    10
    Albums:
    1
    Likes Received:
    5,247
    Joined:
    Jan 2, 2003
    Location:
    Syracuse, Utah
    Hmm those darker green ones don't look like Dobs to me. They could be. Could they have been painted?

    crikeymike likes this.
  3. vwluv10338

    vwluv10338

    Messages:
    558
    Media:
    2
    Likes Received:
    130
    Joined:
    Nov 14, 2010
    Location:
    Annapolis MD USA
    @Box Rocket

    My initial thought was the color was much closer till I had them side by side. I guess they could have been painted but who knows. I'll get another pic with some mud cleaned off. Whatever they were they were not bad but since the truck had 2" spacers and longer shocks they would come loose at droop since I removed the spacers. These springs are long enough that they do not.

    Box Rocket likes this.
  4. FJhammer

    FJhammer

    Messages:
    34
    Media:
    10
    Albums:
    2
    Likes Received:
    22
    Joined:
    Jun 29, 2010
    Location:
    Commifornia
    Overall, I'm very happy with the set up. There's a few things I have left to do to finish it off like the caster correction bushings, LSPV, and possibly the adjustable panhard bars.
    Huge improvement in the ride and handling, minus the caster issue. Ride is firm but absorbs very well.
    Mike at Dobinsons was great to work with! Would definitely purchase this combo again.
    I'll repost after the next install happens with my final impressions and answer anyone's questions if needed.

    crikeymike, Tapage and David Otero like this.
  5. GW Nugget

    GW Nugget There's nothing funnier thn dyslexic perfectionist

    Messages:
    2,782
    Media:
    7
    Albums:
    1
    Likes Received:
    2,487
    Joined:
    Jul 25, 2014
    Location:
    Coalinga, CA

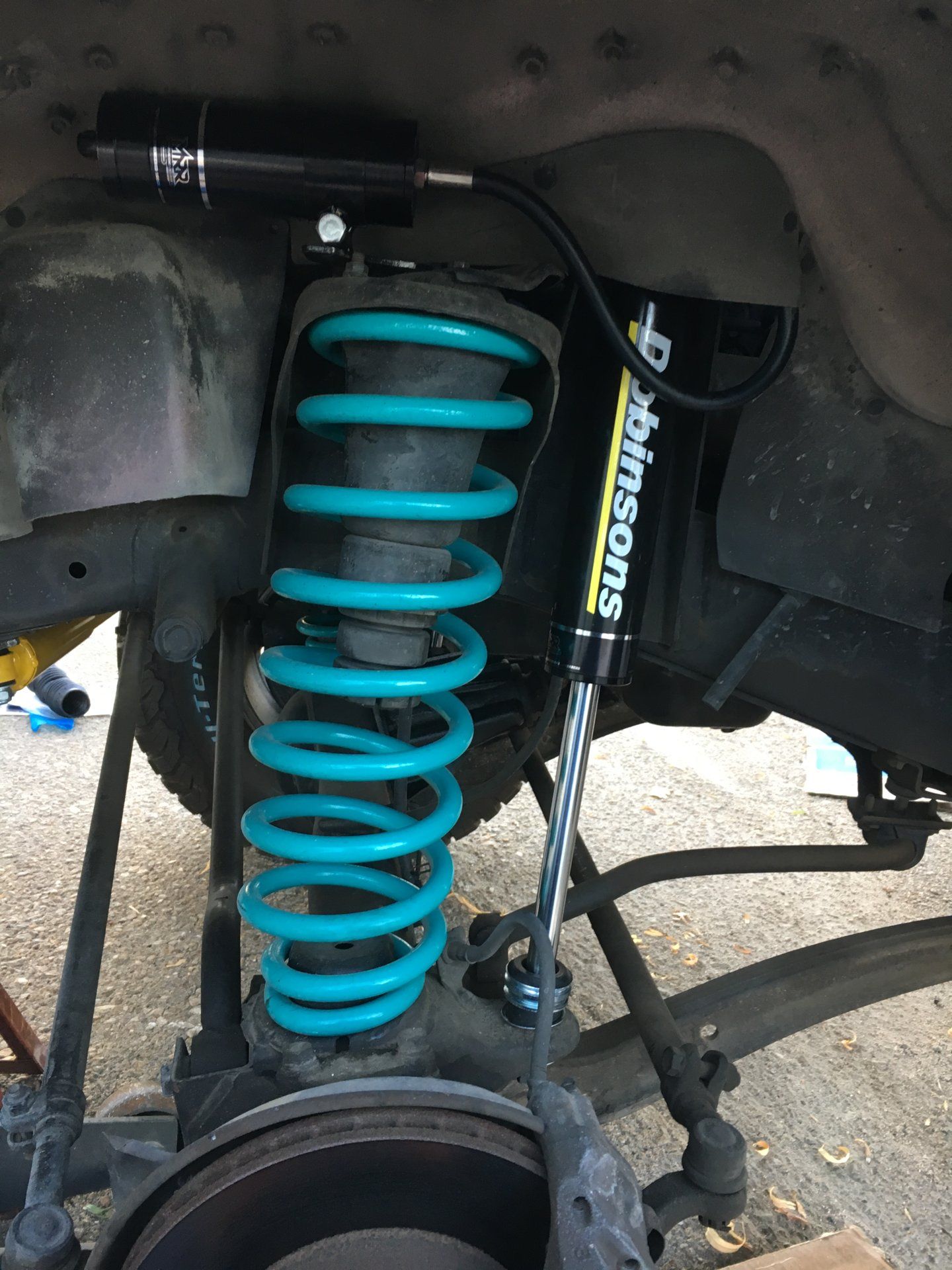

    Do you have any specs to add to this spec thread. Free height, wire diameter, turns.... shocks exstension & compression etc.

  6. FJhammer

    FJhammer

    Messages:
    34
    Media:
    10
    Albums:
    2
    Likes Received:
    22
    Joined:
    Jun 29, 2010
    Location:
    Commifornia
    Yeah, that would probably be helpful wouldn't it.

    Springs
    Front: C59-166 - 19.5" Free height / 10.125 Turns / .67 Wire diameter / Spring Rate 220
    Rear: C59-167 - 19" Free height / 8.3 Turns / .70" Wire diameter / Spring Rate 210

    Shocks
    Front: MR59-60682 - 2.5" Shock body / 1" Piston rod / Progressive valving / Remote res.
    Rear: MR59-60683 - 2.5" Shock body / 1" Piston rod / Progressive valving / Remote res.

    I forgot to measure full extension/compression of the shocks before putting them in (got too excited). I'll find a spot where I get full articulation, measure it, and edit it in.

    Qball and GW Nugget like this.
  7. Chrisw023

    Chrisw023

    Messages:
    30
    Likes Received:
    32
    Joined:
    Mar 22, 2018
    Location:
    Seattle
    Did you get 2.5" of lift or did it end up being more?

  8. FJhammer

    FJhammer

    Messages:
    34
    Media:
    10
    Albums:
    2
    Likes Received:
    22
    Joined:
    Jun 29, 2010
    Location:
    Commifornia
    It's not a full 2.5", according to Dobinsons it's a 60mm lift which translates to 2.36". Measurements from hub to bottom of the fender come out to:
    Front: 22.5" with 2.1" of lift from the 20.4" stock height.
    Rear: 23" with 2.4" of lift of lift over the 20.6" stock height.

    So it appears to be pretty close to the stated 2.36" with the exception of the front, however as you can see from the pictures the front springs have a slight curvature do to the caster being off and so they are not pushing straight up. I don't have a picture of them compressed but it became much more apparent once the weight was added. So I reckon that once I get the caster corrected and the springs straightened out it, that additional .25" will most likely be a pleasant outcome.

    crikeymike and Chrisw023 like this.
  9. bryson

    bryson I do stuff. SILVER Star

    Messages:
    907
    Likes Received:
    820
    Joined:
    Jan 3, 2008
    Location:
    West Jordan, Utah
    Since it seems the Old Man Emu BP-51s have been neglected in this thread so far.


    I think it should also be noted that of all shocks listed in this thread so far, the OME BP-51s are the ONLY bolt-in bypass option for an 80 at this point. Some others are adjustable, but are not actual bypass shocks.

    More info here thanks to @cruiseroutfit

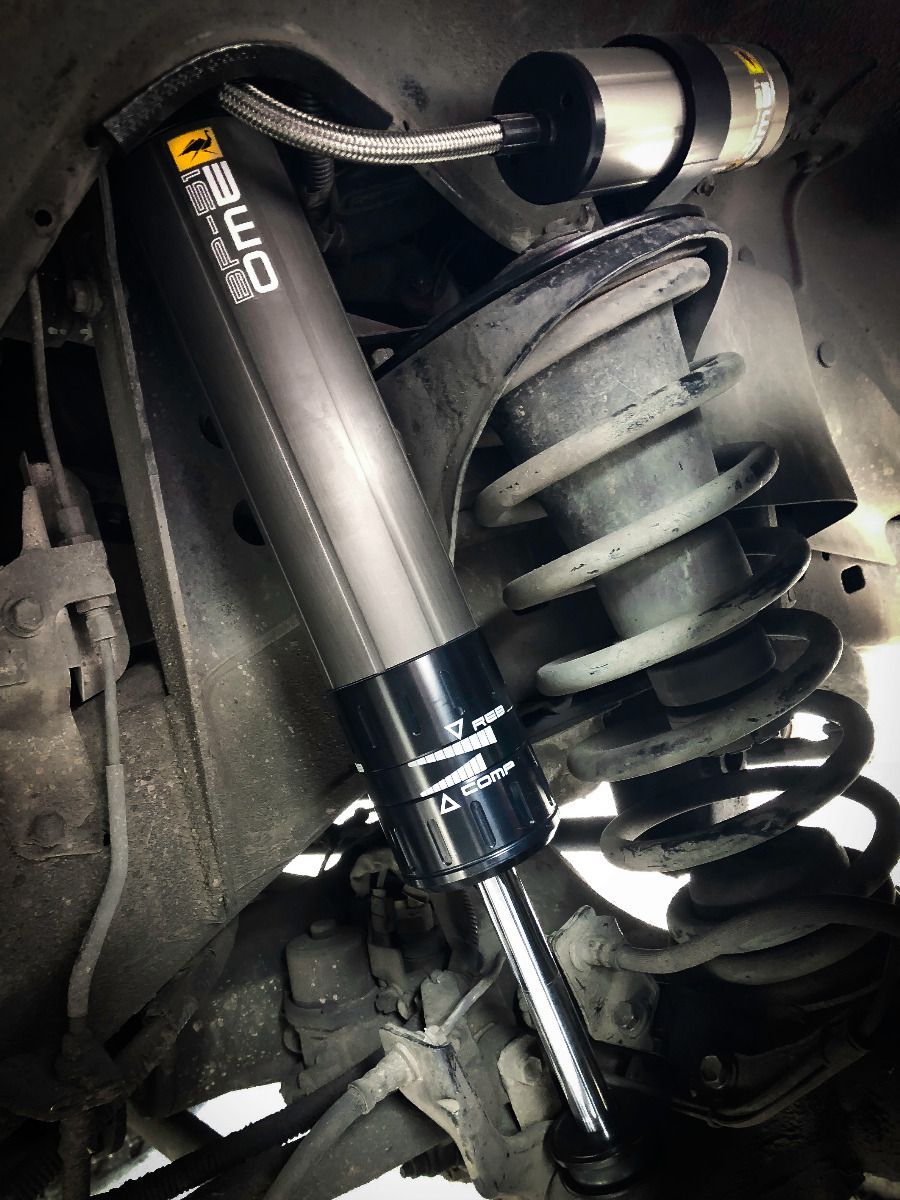

    The pics below are of the longer front and rear shocks, with OME 850J front coils, and 863 rear coils.

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Last edited: Sep 29, 2018
    Shoredreamer and cruiseroutfit like this.
  10. crikeymike

    crikeymike Dobinsons Spring & Suspension USA

    Messages:
    561
    Likes Received:
    466
    Joined:
    Jun 6, 2005
    Location:
    Miami, Florida
    That face you make when someone installs BP-51's in an 80!! hahahaha

    bp51 face.JPG

  11. Qball

    Qball

    Messages:
    4,235
    Likes Received:
    3,052
    Joined:
    Jul 26, 2012
    Location:
    SacTown!

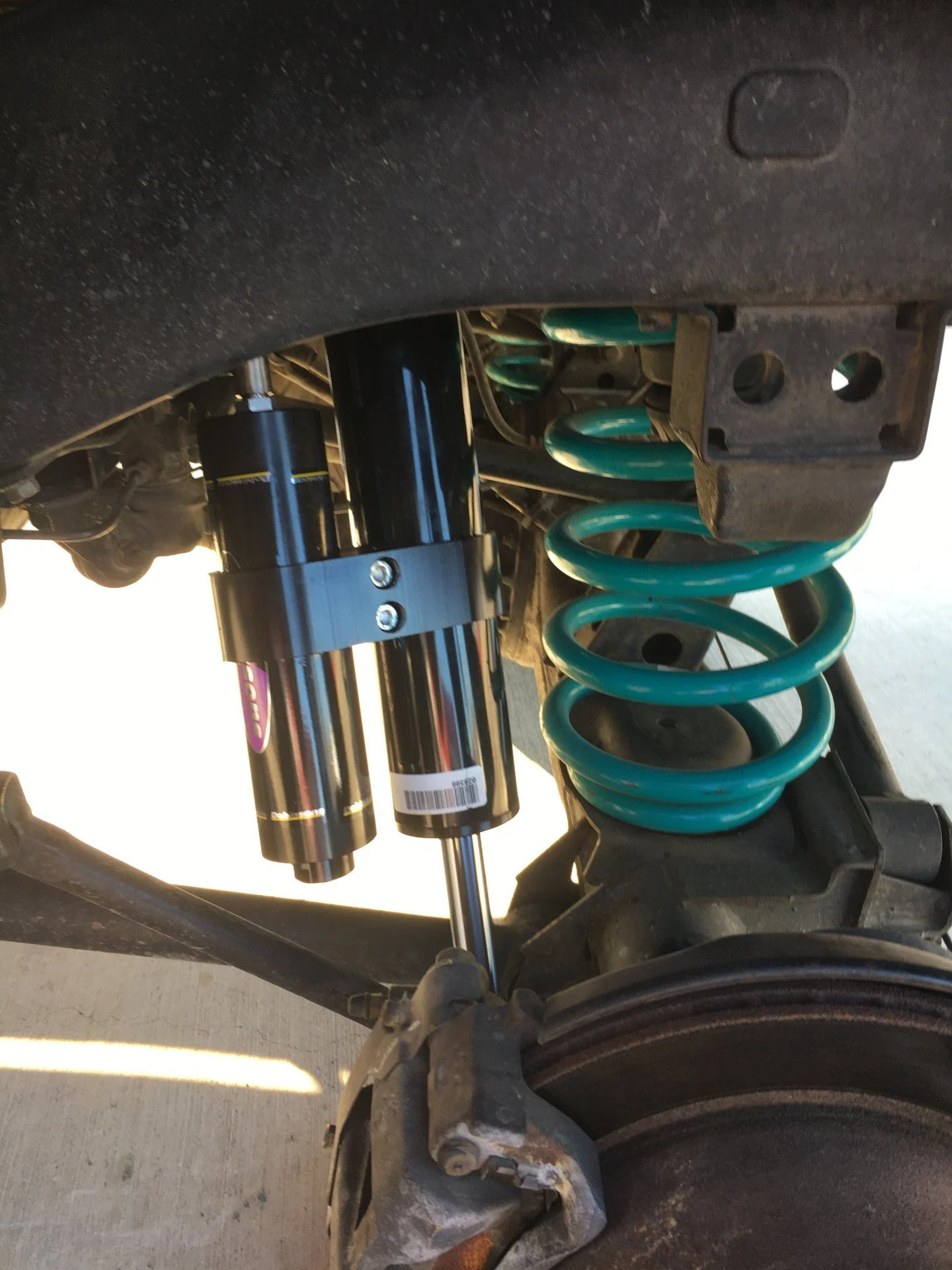

    Is it me or the shock stention guard is awedulky close to the resi on the rear?

    Box Rocket likes this.
  12. bryson

    bryson I do stuff. SILVER Star

    Messages:
    907
    Likes Received:
    820
    Joined:
    Jan 3, 2008
    Location:
    West Jordan, Utah
    Ha ha that is awesome! Never even noticed that until now.

    I'm not quite sure what you're asking (maybe you aren't either?:flipoff2:) but everything clears just fine. They are a tight fit, but ARB did their homework. Probably the angle of the photo? Or, there is a chance that the guard hadn't been fully seated when the pic was taken.

  13. cavboy78

    cavboy78

    Messages:
    203
    Media:
    2
    Likes Received:
    188
    Joined:
    Mar 25, 2012
    Location:
    Colorado Springs
    i just wanted to add my feedback from my 2" Dobinson tapered coil install the other week. All measurements are center of hub to bottom of wheel flare.

    OME 861/862 Ride Height Measurements: Front bumper: Slee & winch; Rear bumper: 4x4 Labs; No other armor.
    Spacers: 1" Front and 10mm rear.
    Driver Front: 21"
    Pass Front: 21 5/8"
    Driver Rear: 20.5
    Pass Rear: 21 1/2"

    Dobinson 2" Tapered Ride Height Measurements: Added white knuckle sliders, land shark drawers, and trail tailor belly skid
    Spacers: 5/8" spacer on Driver Front and 10mm rear.
    Driver Front: 22 5/8"
    Pass Front: 22 5/8"
    Driver Rear: 23 1/4"
    Pass Rear: 23 1/4"

    My drivers side was lower with the old OME springs. With the new Dobs, it was just low at Drivers Front, so i added a spacer. A spacer was not needed on Pass Front.

    I have the icon stage 1 shocks for the 0-2" lift. With the new lift, they were about 2" too short, at least, to take full advantage of the down travel. that will be next on the hit list.

    edit: i just realized i can only upload 5 pics per post...so the last post of mine has the other 5 pics of the coils.






    Last edited: Oct 5, 2018
    GW Nugget likes this.
  14. cavboy78

    cavboy78

    Messages:
    203
    Media:
    2
    Likes Received:
    188
    Joined:
    Mar 25, 2012
    Location:
    Colorado Springs

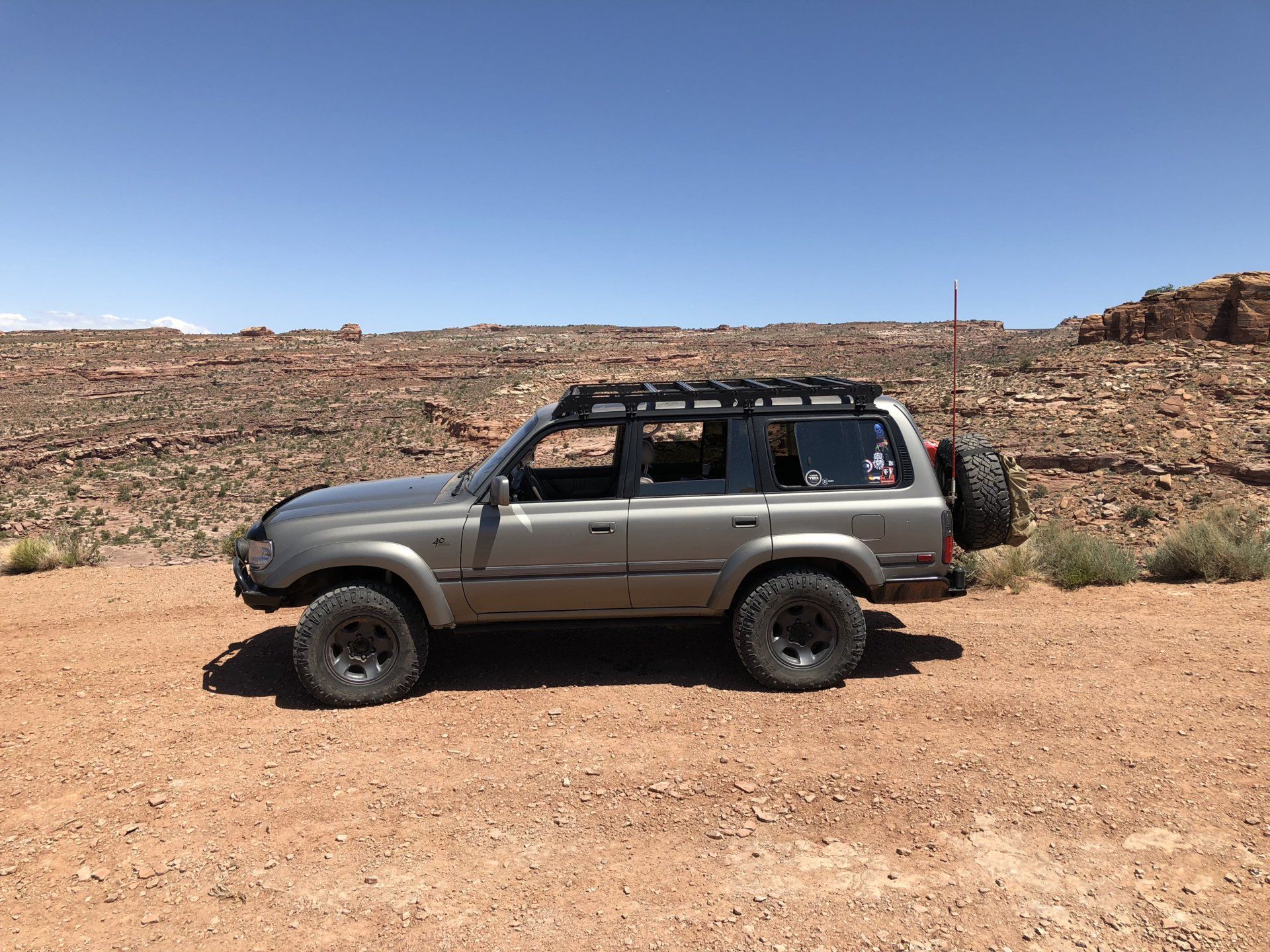

    with OME stock Height and 33s



    GW Nugget likes this.
  15. cavboy78

    cavboy78

    Messages:
    203
    Media:
    2
    Likes Received:
    188
    Joined:
    Mar 25, 2012
    Location:
    Colorado Springs

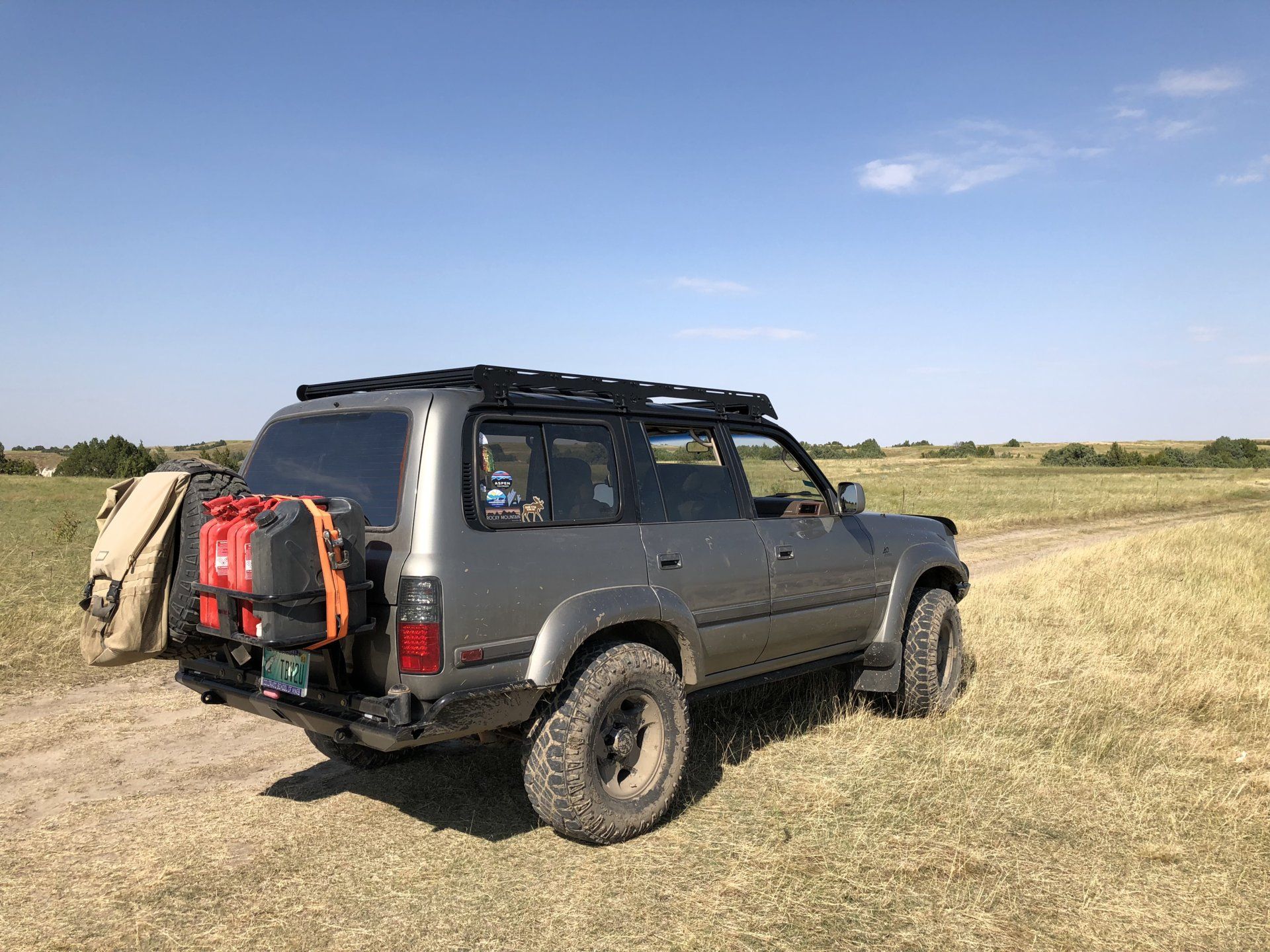

    on 2" Dobinson tapered coil and 35s



  16. cavboy78

    cavboy78

    Messages:
    203
    Media:
    2
    Likes Received:
    188
    Joined:
    Mar 25, 2012
    Location:
    Colorado Springs
    Impressions with the Dobinson:
    While driven unloaded, was very stable and maintained similar road mannerisms to when i was on stock height OMEs. I view this is a win, when i can lift a vehicle and it drives the same.
    When loaded, was much more stable than with OMEs and did not sag in the rear nearly as much.

    I was at Cruise Moab in May with the old set up and was there last week with the new setup, running some of the same trails. This included a Kokopelli Run (minus Rose Garden) and Top of the World both times. I know i was unable to take full advantage of the down travel and i did have the added bonus of 35s, but i felt much more confident on the fast dirt and washboard sections. I'll update once i get new shocks.

    Also, i do need to adjust my bumpstops in the front as i did have some rubbing, but i also run 1.25" spacers...

    Matt






    GW Nugget and NateMob like this.
  17. half k cruiser

    half k cruiser

    Messages:
    5,738
    Likes Received:
    2,503
    Joined:
    Jun 12, 2011
    Location:
    Kansas
  18. cavboy78

    cavboy78

    Messages:
    203
    Media:
    2
    Likes Received:
    188
    Joined:
    Mar 25, 2012
    Location:
    Colorado Springs
    Yes, 1" spacers in the front and the 10mm spacers in the rear. it is not sagging too bad in the pics because it's empty inside. When fully loaded, it def did sag quite a bit. i'll see if i can find a fully loaded pic with the OMEs

    half k cruiser likes this.
  19. cavboy78

    cavboy78

    Messages:
    203
    Media:
    2
    Likes Received:
    188
    Joined:
    Mar 25, 2012
    Location:
    Colorado Springs
    These pics probably best shows the bulldogging...especially when compared to the other pics. It actually brings up the front end and the back dropped at least 2-3 inches...and i'm not that heavy of a packer. Same load and the dobs only minimally deflected (not pictured here).

    DSC02806 2.JPG


    Last edited: Oct 6, 2018
    GW Nugget and NateMob like this.
