Another LS Swap: L92 & 6l80e into a '94 LC

Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
I have completed the swap. I bought an L92 & 6l80e from the local junkyard. Was pulled from a 2007 Yukon Denali. Everything functions as it should. There have been no modifications to the interior of the rig that would indicate the change. Gauges work, trans shifts as it should (with sport/tow mode and tap shifting, etc). I’ve put about 5k miles on it since the swap and I’m now comfortable saying all the bugs have been worked out. This won't be a true step by step instruction guide but it should be pretty darn close if you take the above motor/trans from a 2007 Yukon Denali and put it into a ’94 LC.

I made some changes along the way that aren’t critical to the build. For example, I didn’t have room to put the York compressor back in (after pulling the 1FZFE) so I set up an electric compressor. I added a second fuel tank that I could change over to on the fly so the wiring for that was roughed in at the time of the swap. I also changed the brakes to hydroboost (huge improvement).

A couple of disclaimers... I leaned on my friends to make it happen. I couldn't have done it without them. Everything from making fuse block labels to rewiring the Toyota cruise control lever to run the GM cruise.

You’ll need some basic skills. I'm not a professional welder but can stick metal together. Don't know how a guy could do this swap without a little metal fabrication know how. The other thing we absolutely needed was the FSM with a vehicle EWD. I had the Toyota FSM and bought the GM one on ebay.

A couple of additional pieces of information… The Landcruiser had a 4” lift and with 35” tires prior to the swap. I had also regeared it from 4:10’s to 4:88’s. If I had known this swap was coming I would not have regeared it. Not necessary with the power I have now. Prior to the swap I was getting about 10mpg. I’m now at about 11mpg. At 70mph I’m just under 2200 rpm. Total cost of the swap was about 11K without any money going toward labor. For a shop to charge 30k for this job is not unreasonable. Probably pencils out to about $4 per hour. I started it in October 2020 and had it driveable by spring 2021. By October 2021 I finally had every last detail ironed out.

Finally, I feel a debt to the many who have gone before me and posted their build on this website. I couldn’t have done it without you. I’m not one who typically posts stuff so I’m sorry in advance if I screw up the posts. The posts will come in pieces. We’ll start with prepping for the swap…

Last edited:
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
Before embarking on this, I spent hours going through different forums and looking at what other guys had done. Most made sense to me, but there were certain things I didn't understand until I was deep into it. It became clear that I needed a way to organize and reference the information if it was going to be of any use to me when the build started. I created an index of sorts. Because this was done prior to the build there are likely new threads that would be of use to someone starting this project. Would be worth some more looking.


Key: A15 A = Forum 15 = Posting number



A 8x Series V8 Swaps - https://forum.ih8mud.com/threads/8x-series-v8-swaps.948869/

B Builds - Another Texas LS1 Swap - https://forum.ih8mud.com/threads/another-texas-ls1-swap.403256/

C Builds - 1994 FZJ80 5.3l and 4L60e swap - https://forum.ih8mud.com/threads/1994-fzj80-5-3l-and-4l60e-swap.541352/

D Builds - V8 Swap Project Begins! - https://forum.ih8mud.com/threads/v8-swap-project-begins.71271/

E Builds - V8 Swap Project Begins! Again with LS2 - https://forum.ih8mud.com/threads/v8-swap-project-begins-again-with-ls2.399302/

F Builds - 1996 LX450 5.3L swap let the fun begin!! - https://forum.ih8mud.com/threads/1996-lx450-5-3l-swap-let-the-fun-begin.492740/

G Builds - A 1994 80 Series gets an LQ9 GM V8 - https://forum.ih8mud.com/threads/a-1994-80-series-gets-an-lq9-gm-v8.805130/

H 1992 FJ80 6.0 Vortec Engine Swap - https://forum.ih8mud.com/threads/1992-fj80-6-0-vortec-engine-swap.758110/

I Builds - 400HP 6.2L LS with 6 Speed auto swap....no lift. Plug 'n play swap kit in development - https://forum.ih8mud.com/threads/400hp-6-2l-ls-with-6-speed-auto-swap-no-lift-plug-n-play-swap-kit-in-development.825225/

J 1995 5.3L w/o lift kit - https://forum.ih8mud.com/threads/1995-5-3l-w-o-lift-kit.892388/

K Builds - Mark's LX450 build - https://forum.ih8mud.com/threads/marks-lx450-build.884217/

L 97 LX gets a v8 and more! - https://forum.ih8mud.com/threads/97-lx-gets-a-v8-and-more.899687/

M Impending Vortec Swap - https://forum.ih8mud.com/threads/impending-vortec-swap.904826/page-14#post-10531731

N Dakota Digital SGI-8e LS swap - https://forum.ih8mud.com/threads/dakota-digital-sgi-8e-ls-swap.1109089/



MOTOR MOUNTS

A120, A164, A167, A702-704, A721, A943, A997, A999, A1121, A1217, A1220, D115-117, G25-6,

H256, I159-61, K13, K16, L73

OIL PAN / COOLER

A150-153, A155-157, A160, A228, A283, A290, A306, A309, A447 & 448, A450, A490, A593,

A731, A937, A1661-1670, A1676, C93, E70, I1, I105

AIR INTAKE

A17, A83, A267, A378, A540, A541, A545, A772, A1009, A1161, A1165, A1172, A1322-1329,

E142-3, E153-4, E158, H286, H300

TRANSMISSION 6L80e

GENERAL

A119, A812, A1718, A1949, B450

COOLING

A847-862, A871

SHIFT LINKAGE

A16, A18, A95, A175-178, A226, A273, A491, A492, A1065 - 1067, A1070, A1072, C114,

C115, E128, G63-66, G75

REBUILD: A735, A770

PARK/NEUTRAL SWITCH

A95

REVERSE

A226

TRANSFER CASE

A482, A986, A987, A995

AIR CONDITIONING

A600-604, A756, A1183, A1202-1210, A1271-1273, A1657, B447, C15

Air Conditioning after a vortec swap - https://forum.ih8mud.com/threads/air-conditioning-after-a-vortec-swap.605779/

POWER STEERING

A65-69, A310-313, A591-593, A1347-1351

ALTERNATOR

A65, A317, A324, A334-336, A518, A534, A535, A585, A681, A682, A1083, A1088, C242

COOLING SYSTEM

FAN

A20, A97, A526, A528-529, A545, A557-560, A585-587, A613, A620, A639, A1106,

A1549, A1652, A1843-1848, B495, B504, C120, C245-8, D108

“Fan blades need to be halfway in the shroud”

HEATER / BYPASS

A649, A655, A656, A658, A720, A722-730, A1049, A1051, A1113, A1335, A1406

GENERAL

A929-931, A1016 – 1034, A1037, A1038, A1040, A1741-1744, D140

HOSES WITH OEM TOYOTA RAD

A2129-2132

FUEL SYSTEM

PEDAL

A240, A468, C125, K38

LINES

A737-739, A1505

making returnless on lq4/L92 build - PerformanceTrucks.net Forums - https://www.performancetrucks.net/forums/fuel-systems-210/making-returnless-lq4-l92-build-528624/

PUMP

A138, A1396, C181, C189, C193, D184

WIRING

A131, A555, A913-915, A918, A919, A1253-1256, A1696, A2194, C197, G201

EVAP / CANISTER

A902-907

GENERAL

A746, A750, A751

EXHAUST

MANIFOLD

A183-4, A444, A663, A665, I78&80, I87, I154, I294-9, K38, B144, C98, E21, F152-3, G227,

G241



ROUTING/MUFFLER

A168, A171-173, A203, A247, A605-607, A668, A673, A752, A800, A959-962, A1566,

B438, C148, C188, D131-2, E104, E110-113, G233

FITTING CROSSMEMBER / MOTOR / TRANS PAN

A201, A367, A372, A386-388, A407, A409, A411, A1220, A1601, A1602, L73

WIRING

GENERAL

A23, A128, A131, A356, A358, A417, A461, A467, A473, A497-498, A508, A545, A567,

A897, A898, A1004, A1200, A1236, A1781, A1878, B213, B224, E14

PIN OUT SHEETS

E38 ECM Connector Pinouts - http://lt1swap.com/E38%20ECM%20Connector%20Pinouts.htm

Vortec Swap - Pin Out Sheets - https://forum.ih8mud.com/threads/vortec-swap-pin-out-sheets.944939/

CRUISE CONTROL

A9, A10, A16, A385, A815, A973-979, A1318, A1340, 1341, B368, B440

LS SWAP - DBW - Cruise Control - https://forum.ih8mud.com/threads/ls-swap-dbw-cruise-control.908517/

TACHOMETER

A48, A100, A188-191, A302, A1047, A1048, A1053-1060, A1131-1135, A1140, A1154-

1160, A1161, A1260, A1537, C167, C252, F33, I203, K41, N16, N20

DASH INDICATOR LIGHTS

A198, A1699, K42

Gear Range Selector Adapter:

LS Swap– Gear Range Selector adapter - https://forum.ih8mud.com/threads/ls-swap-gear-range-selector-adapter.908575/

FLASHING / HARNESS

A147, A718, A2244-2246

“You will need to get the computer set to a mechanical fan”

BCM

A366, A507, A809, A813

BRAKE LIGHT SWITCH

M261,

GUAGES (H334)

AFTERMARKET

E175, E178, E186

ENGINE TEMP

A41, A43, A58, A123, A553, A1300, A1302-1307, A1864-1869, C164, C264-282, E159-

161, G173, G176-7, J34

https://www.marks4wd.com/catalogsearch/result/?cat=0&q=M12+x+1.5+-+M16+x+1.5

OIL SENDER

A41, A42, A45, A73, A187, A386, A389-405, A407, A415 & 416, A421-427, A1362-1373,

C164, J34

TOW / HAUL

A583, C231, C236

TUNING

A561, A565, A576, M77,

PARTS

MARK’S ADAPTER

A101, A287

PARTS LIST

A86, A455

Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
Below is a part's list. I wasn't in a hurry so I kept the receipts and added it all up. Tried to include links to things I bought online.

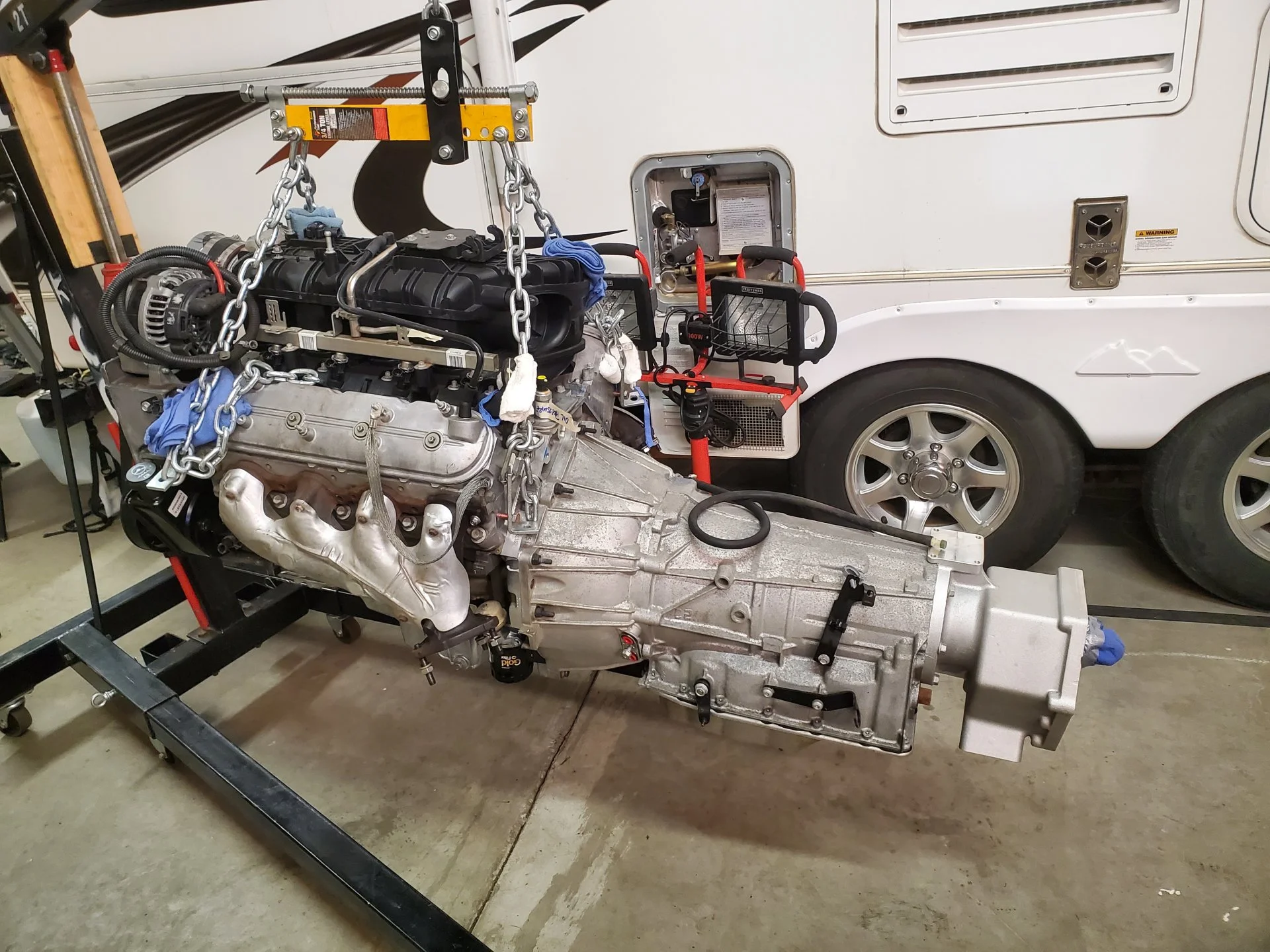

Engine & Transmission$5,500.00Auto Salvage
Rear Main Seal$30.49Local Auto Parts Store

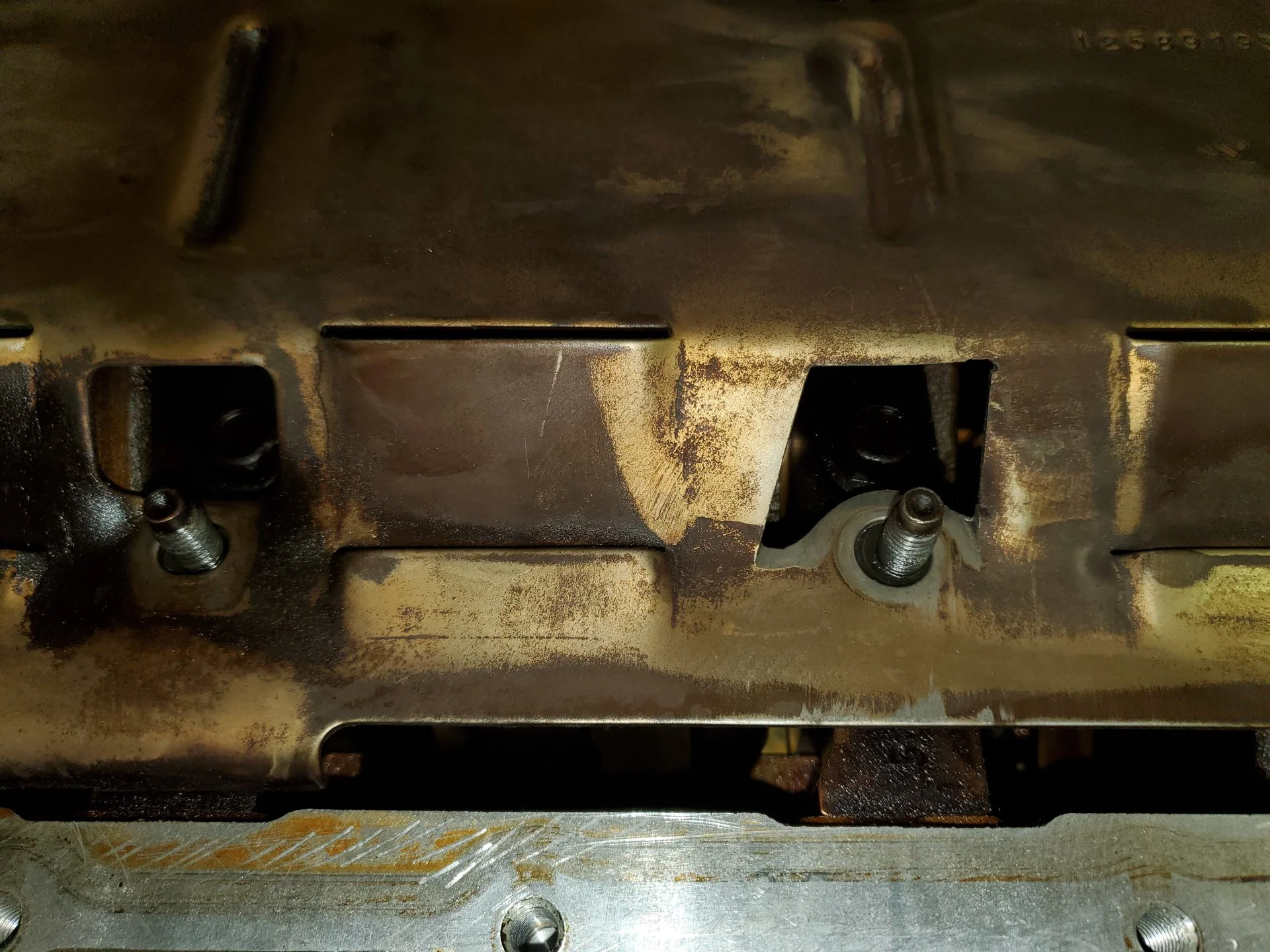

F-Body Oil Pan$110.99
Oil Pan Gasket$49.00Local Auto Parts Store
Spark Plug Wires$79.99Local Auto Parts Store

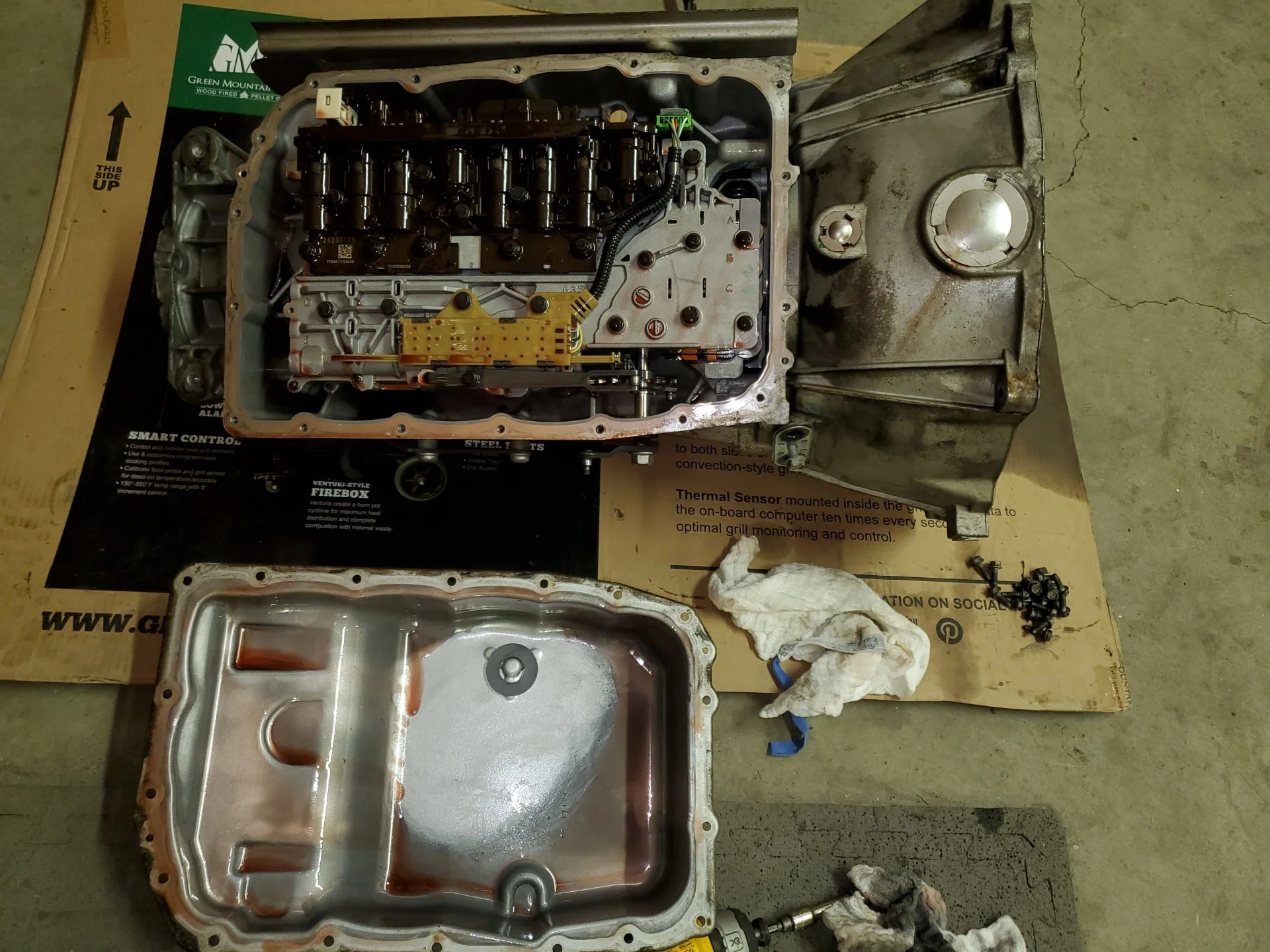

Transmission Filter & Gasket$23.31Local Auto Parts Store
Serpentine Belt$32.99Local Auto Parts Store
AC Belt$20.99Local Auto Parts Store
Spark Plugs$63.96Local Auto Parts Store
Valve Cover Gaskets & Gromets$29.99Local Auto Parts Store
Front Main Seal$22.98Local Auto Parts Store
Thermostat & Gasket$29.99Local Auto Parts Store
Water Pump Seals / Front Main Seal / Timing Cover Seal$42.99Local Auto Parts Store
F-Body Oil Pickup$49.31
OBDII plug and misc electronic connectors$22.64Mouser Electronics

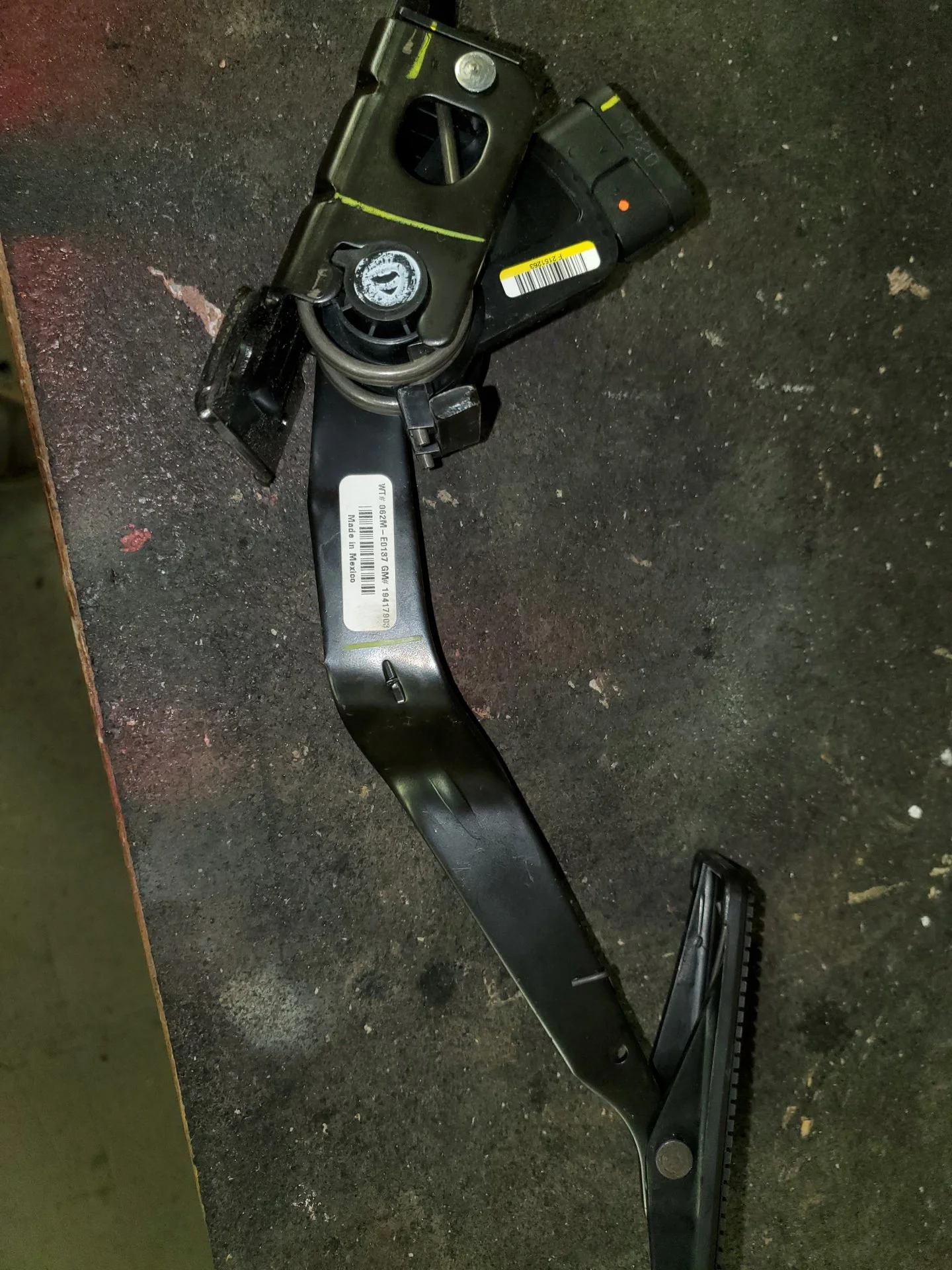

Corvette throttle pedal (PN 25835421)$89.18
Exhaust header bolts$14.99
Corvette C5 fuel filter/regulator (AN-6 fittings)$64.99
1/4" Silicone cap (block vacuum from purge)$3.80Ebay
Hydroboost from GMC Safari$35.00Auto Salvage
Exhaust manifold gasket kit$29.71Local Auto Parts Store
1/2" Silicone cap (block vacuum from brake assist)$8.95Ebay
3/8 NPT weld-on steel bung & 3/8 barb to 3/8 NPT elbow for PS return$16.59
Hooker LS cast iron exhaust maifolds (8501HKR)$340.95Purchased from Summit Racing
Fuel line, fittings (see tab below for specifics)$184.09
Dakota Digital SGI-100BT unit for tachometer$109.95Purchased from Dakota Digital
10ga wire$36.95Amazon product
8-Pin electrical connecors$10.99Amazon product
3/8 wire loom 50'$9.45https://smile.amazon.com/gp/product/B07RJ2G6QH/ref=ppx_yo_dt_b_asin_title_o06_s01?ie=UTF8&psc=1
Shrink tubing$9.49https://smile.amazon.com/gp/product/B07QM8249H/ref=ppx_yo_dt_b_asin_title_o06_s01?ie=UTF8&psc=1
18g wire spools$31.98https://smile.amazon.com/gp/product/B01LH1FQJ0/ref=ppx_yo_dt_b_asin_title_o06_s01?ie=UTF8&psc=1
10g 12v two-pin weatherproof plug (fuel tank power)$12.99https://smile.amazon.com/gp/product/B07Y67FT7G/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1
Polyurethane bushings for engine mounts ('Energy Suspension')$18.73https://smile.amazon.com/gp/product/B000CN95VA/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Metal for motor mounts (tubing & flat bar)$11.00Local Steel Shop
Differential Vent (for fuel line that used to go to charoal can)$5.38Local Auto Parts Store
Mechanical fan & clutch (picked from chevy express van)$35.00Local Junkyard
6-pack of microswitches for shift lever$6.99https://smile.amazon.com/gp/product/B07D9C2B6J/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1
Shift linkage bushing kit NAPA 615-1433 (broke it on donor vehicle while pulling)$12.24Local Auto Parts Store
Misc hardware to mount microswitches at shifter$11.25Local Hardware Store
Hardware for engine mounts (Grade 8 9/16 x 4 1/2" bolts, lock washers, nuts)$15.47Local Hardware Store
Studs for manifold flanges$20.96Local Auto Parts Store
Manifold outlet gasket$30.26Local Auto Parts Store
Enclosure for Tow/Haul module$6.99https://smile.amazon.com/gp/product/B089K3H27V/ref=ox_sc_act_title_1?smid=A2WO5FNI6I91SW&psc=1
12V Relays (need one for Tow/Haul module)$10.99https://smile.amazon.com/gp/product/B0874MG2ZZ/ref=ox_sc_act_title_2?smid=AON9H44N0KDA1&psc=1
4" auminum pipe with 120 degree bend for intake$78.45https://smile.amazon.com/gp/product/B07G4Q1CQ2/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Fuse relay block$19.95https://smile.amazon.com/gp/product/B07MR64XK1/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Relays for block$13.50https://smile.amazon.com/gp/product/B01KVZ2KEM/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Power steering lines (crimp x3, 16" of line)$82.64Oxarc
Additional Landcruiser fuse block to rob terminals & relays$30.00Local Junkyard
6 spools of 20g wire (to run pedal wires through firewall to ecu)$13.99https://smile.amazon.com/gp/product/B07G2GLKMP/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
OBD2 Bluetooth connector$49.95https://smile.amazon.com/gp/product/B00H9S71LW/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
More wire$10.98Local Hardware Store
GM FSM (need wiring diagram for BCM)$12.95https://www.ebay.com/itm/124483368842
Replace Front Drive Shaft with a DC shaft that has smaller joints$439.00Tom Wood's Drive Shafts
More wire$20.97Local Hardware Store
1" wire loom$10.99https://smile.amazon.com/gp/product/B07TDBF299/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Wire, battery cable lug & ring terminals$31.94Local Auto Parts Store
Bus Bars$24.95https://smile.amazon.com/Distribution-Terminal-Negative-Positive-Insulated/dp/B087QW968F/ref=sr_1_2?dchild=1&keywords=4"+grount/power+distribution+terminal+block+batter+bus+bar+set&qid=1608561835&sr=8-2&th=1
Air Filter - K&N Part: RF1020$62.99Local Auto Parts Store
More wire$21.96Local Hardware Store
Wire loom & hardware to mount bus bars$12.51Local Hardware Store
2 gauge cable for starter with 1/2" loom (10 feet) & battery lugs$56.95Local Auto Parts Store
Additional Machined Toyota Coolant Temp Sensor$28.66https://www.ebay.com/itm/GENUINE-OEM-TOYOTA-4RUNNER-SUPRA-LEXUS-GS300-WATER-TEMPERATURE-GAUGE-83420-16040/202803735784?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649
Military Battery Terminal Connector$14.99
Heat reflective tape for wire loom$19.95https://smile.amazon.com/Z-Flex-Self-Adhesive-Heat-Reflective-Tape/dp/B07JMHWCPG/ref=sr_1_2?dchild=1&keywords=heat+reflective+tape+wire&qid=1609309292&sr=8-2&th=1
Adapters for ATF sensor$82.01See separate tab below
More wire$34.95Local Hardware Store
Electrical tape$2.97Local Hardware Store
Brake line (for ATF cooler lines) - 3/8 OD x 4' long (x2)$17.98Local Auto Parts Store
O2 sensors - Denso 2344337 (x2) - Fit a 2007 6.2L Denali$82.77https://www.rockauto.com/en/moreinfo.php?pk=1607632&cc=1433256
Inverse flare coupler for transmission cooler lines$6.99https://smile.amazon.com/Inverted-Flare-Brake-Union-threads/dp/B01KNGVHZ2/ref=sr_1_4?dchild=1&keywords=5/8-18+inverted+flare+nut+coupler&qid=1609634827&sr=8-4
Inverse flare to hose barb for transmission cooler lines (x2)$27.64https://smile.amazon.com/Tompkins-4305-06-06-Fitting-Inverted-Female/dp/B01MT6MEAT/ref=sr_1_2?crid=89OQUUXE6KAH&dchild=1&keywords=5/8-18+inverted+flare+to+3/8+hose+barb&qid=1609634877&sprefix=5/8+18+inverted+flare+,aps,287&sr=8-2
28 Inch double pass aluminum radiator$179.99https://www.speedwaymotors.com/Speedway-Double-Pass-Aluminum-Radiator-Chevy,23864.html?sku=917340-28
90 degree intake elbow$23.95
AC Hose compression fitting$25.95Oxarc
Weld On Oxygen Sensor Bungs (2)$13.00https://smile.amazon.com/Oxygen-Sen...rds=oxygen+sensor+bung&qid=1609999173&sr=8-15
1/8 NPT x 1/4" barb 90 degree elbow (to coolant res and upper rad hose to steam vent)$19.99https://smile.amazon.com/LTWFITTING-Degree-Stainless-Fitting-4-Inch/dp/B08HYTJ8ZC/ref=sr_1_6?dchild=1&keywords=1/8+NPT+1/4+barb+stainless+90&qid=1611549784&sr=8-6
31" Universal Fan Shroud Kit$68.29https://www.speedwaymotors.com/Alum...31-Inch-Radiator-Engine-Driven-Fan,66530.html
Radiator Cap$9.99https://www.speedwaymotors.com/Stant-10231-Steel-Radiator-Cap,316099.html
4" to 3.75" Silicone intake coupler/reducer$19.98https://smile.amazon.com/Silicone-R...take+coupler+4+to+3.75&qid=1610692160&sr=8-29
Exhaust pipe adapter 2 1/4" to 3" (x2)$25.58https://smile.amazon.com/yjracing-Universal-Exhaust-Connector-Stainless/dp/B07G97MD57/ref=sr_1_5?dchild=1&keywords=exhaust+pipe+adapter+2+1/4&qid=1610587411&sr=8-5
3" Exhaust pipe kit$164.99https://smile.amazon.com/Custom-Exhaust-Mandrel-Straight-Universal/dp/B088NL5FJP/ref=sr_1_4?dchild=1&keywords=3"+Exhaust+pipe+kit&qid=1610587508&sr=8-4
Fiberglass exhaust pipe insulation wrap$22.99https://www.speedwaymotors.com/DEi-...ocking-Ties-Kit-2-In-x-25-Ft-Black,71021.html
Metal for intake box$11.58Local Hardware Store
Aluminum 3/8 weld on barb for air intake$8.99https://smile.amazon.com/Aluminum-Weld-Barb-Weldable-AN617-06/dp/B06XS34LX9/ref=sr_1_4?dchild=1&keywords=3/8+aluminum+barb&qid=1610855164&sr=8-4
1" Weather stripping for intake box$9.99https://smile.amazon.com/Insulation-Stripping-Soundproofing-Weatherstrip-Conditioning/dp/B086YH7B4T/ref=sr_1_19?dchild=1&keywords=1/2"+black+silicone+self+adhesive&qid=1610905377&sr=8-19
Aluminum 1/4" x 2" bar stock to build brackets (weld on) for radiator mounting$18.08Local Metal Shop
More 18g wire$22.95https://smile.amazon.com/Automotive...ld=1&keywords=18g+wire&qid=1611112889&sr=8-14
Lower radiator hose (radiator side) NAPA #9530$31.04Local Auto Parts Store
1 1/2 - 1 3/4 ICT Billet for lower radiator hose$7.99https://www.amazon.com/ICT-Billet-I...t=&hvlocphy=9033212&hvtargid=pla-902590868295
Lower radiator hose (engine side) NAPA #9761$26.28Local Auto Parts Store
Upper radiator hose (radiator side) NAPA #7364$22.22Local Auto Parts Store
1 1/4 to 1 1/2 ICT Billet with 1/8 NPT port for upper radiator hose$14.99https://www.amazon.com/ICT-Billet-Crossover-Manufactured-AN627-21X125/dp/B084KJXL75/ref=sr_1_13?dchild=1&keywords=ICT+Billet+1-1/2&qid=1610476551&s=automotive&sr=1-13
Upper radiator hose (engine side) NAPA #8965$30.08Local Auto Parts Store
T Bolt Clamps (Coolant hose clamps)$29.40Oxarc
Heater Hose$17.50Local Auto Parts Store
5/8 to 5/8 barb for heater hose$5.99https://smile.amazon.com/gp/product/B07G3K8L45/ref=ox_sc_act_title_2?smid=A1TNMI4LHV0ZX&psc=1
5/8 to 3/4 barb for heater hose$5.99https://smile.amazon.com/gp/product/B07G3HT7CJ/ref=ox_sc_act_title_1?smid=A1TNMI4LHV0ZX&psc=1
ECU tuning hardware and service (Black Bear Performance$659.00
Hose clamps for heater hose$7.16Oxarc
Muffler: MagnaFlow 12289$126.60https://smile.amazon.com/MagnaFlow-...w+12289&qid=1611887750&sr=8-1#customerReviews
3" SS exhaust clamps (6)$56.97https://smile.amazon.com/EVIL-ENERGY-Exhaust-Sleeve-Stainless/dp/B07YDFL859/ref=sr_1_6?dchild=1&keywords=3"+exhaust+clamp&qid=1611892741&sr=8-6
Fuel Pump - high volume for FJ80 / LS swaps$105.00https://www.thelandcruisershop.com/product/replacement-in-tank-fuel-pump-for-fzj80-ls-v8-swaps/
Section of 2 1/4" exhaust pipe and 5 insulators/hangers$25.00Local exhaust shop
Tail pipe$28.99https://smile.amazon.com/Exhaust-Un...jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==
Inline fuse for fuel pump wiring$6.29Local Auto Parts Store
Hose clamps for exhaust wrap$11.92Local Hardware Store
Power steering pump for hydroboost$40.00Local Junkyard
Fan clutch for 2015 GMC Sierra 2500 6.0L$61.99Local Auto Parts Store
Charging A/C System$100.00Local Auto Shop
Zero Gravity Performance (Additional trans tuning - TUTD, correct shift gates)$350.00Zero Gravity Performance (6l80e shop in Mesa, AZ)
ATF (to replace fluid lost pulling TCM)$67.92Local Auto Parts Store
Female T43 pin to add tap shifting without BCM$10.00Zero Gravity Performance (6l80e shop in Mesa, AZ)
Cruise Control Module (Dakota Digital CRC-2000)$399.00https://www.summitracing.com/parts/...yVafHRcX5q12LidwhlpPH4mRn7ycQ1n4aAkyFEALw_wcB
$11,512.12


EDIT: Looks like I forgot to include Mark's Adapter. Kind of a wash when you look at recovered costs. Still cost about $11k.


Last edited:
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
A few more parts lists. These prices are included above but contain more detail that may be helpful...

FUEL
FittingPart #Price
Use existing hard line to engine
Hard line to AN Fitting, Female Invert Flare To Male AN Adapter
Female AN at hard lineSUM-250690B
$11.99​
Female An at Reg inSUM-250690B
$11.99​
Femal AN at reg outSUM-250690B
$11.99​
Female AN at Hard line transitionSUM-250690B
$11.99​
Hard line to AN Fitting, Female Invert Flare To Male AN AdapterRussell 640600
$11.10​
Hard line to AN Fitting, Female Invert Flare To Male AN AdapterRussell 640600
$11.10​
Female AN at fuel RailSUM-250690B
$11.99​
Female AN hose end at hard line transitionSUM-250690B
$11.99​
Fuel rail quick connectRussell 640853
$14.99​
Hard line to Russell 6406005/16 Inverted flare nut 10-pack
$7.99​
PTFE braided line -6 ~10 feet
$32.88​
90 (at fuel rail) PTFE to Female 6AN
$9.69​
Return Side
Hard line to AN FittingEarls AT165064ERL Ano-Tuff Adapter
$12.41​
Female AN at regulatorSUM-250690B
$11.99​
Braided PTFE hose -6

Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
On to the mechanical stuff...

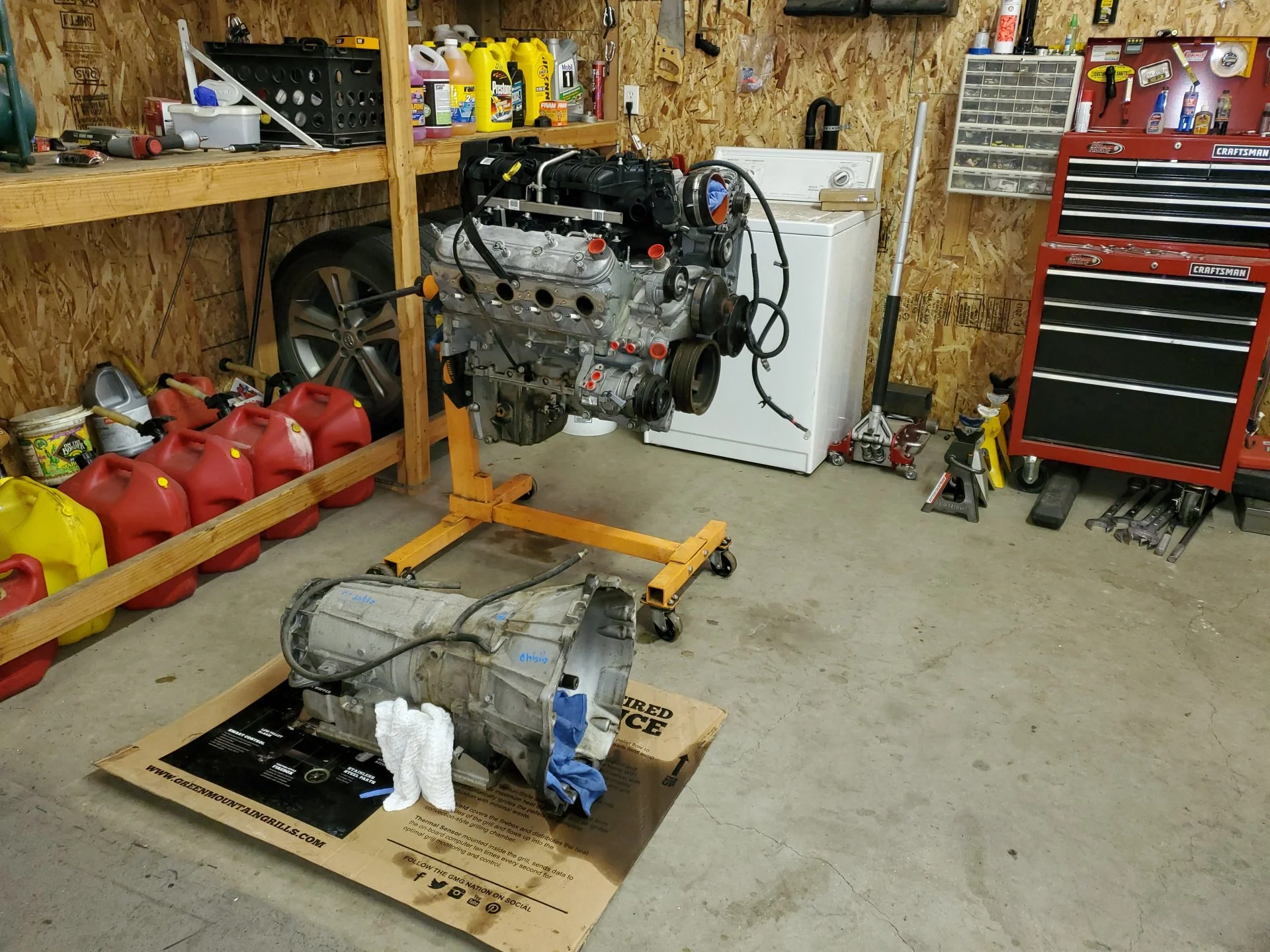

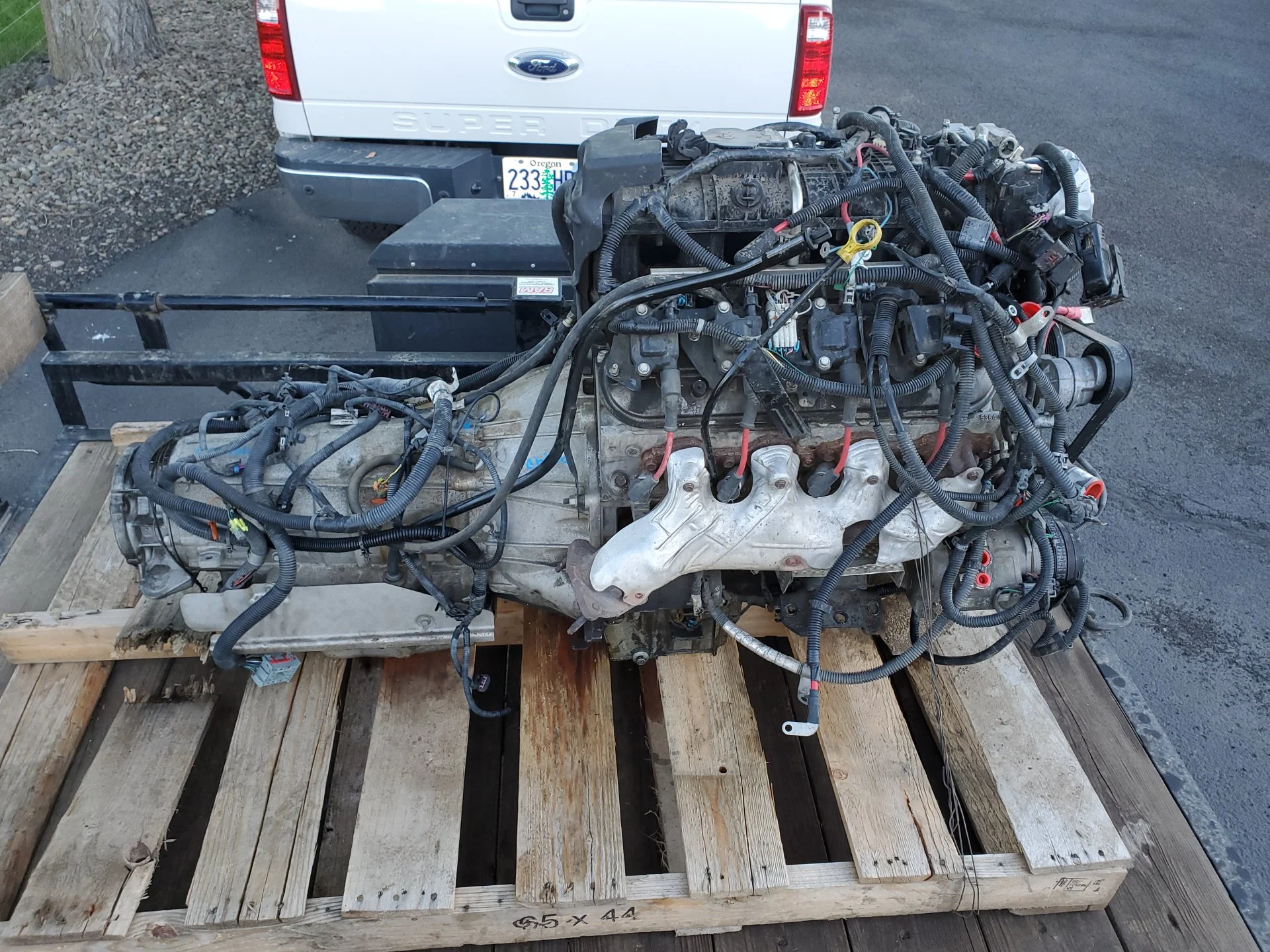

I let the local junkyard know what I was looking for and a year or so later got a call that they had an L92 & 6l80e in a 2007 Yukon Denali with 90k miles. I picked up the motor, tranny, and other components. I figured I'd get as much done as I could before disabling the Landcruiser. To the donor motor...


Last edited:
Joined
Mar 6, 2009
Messages
2,112
Location
Between pixels

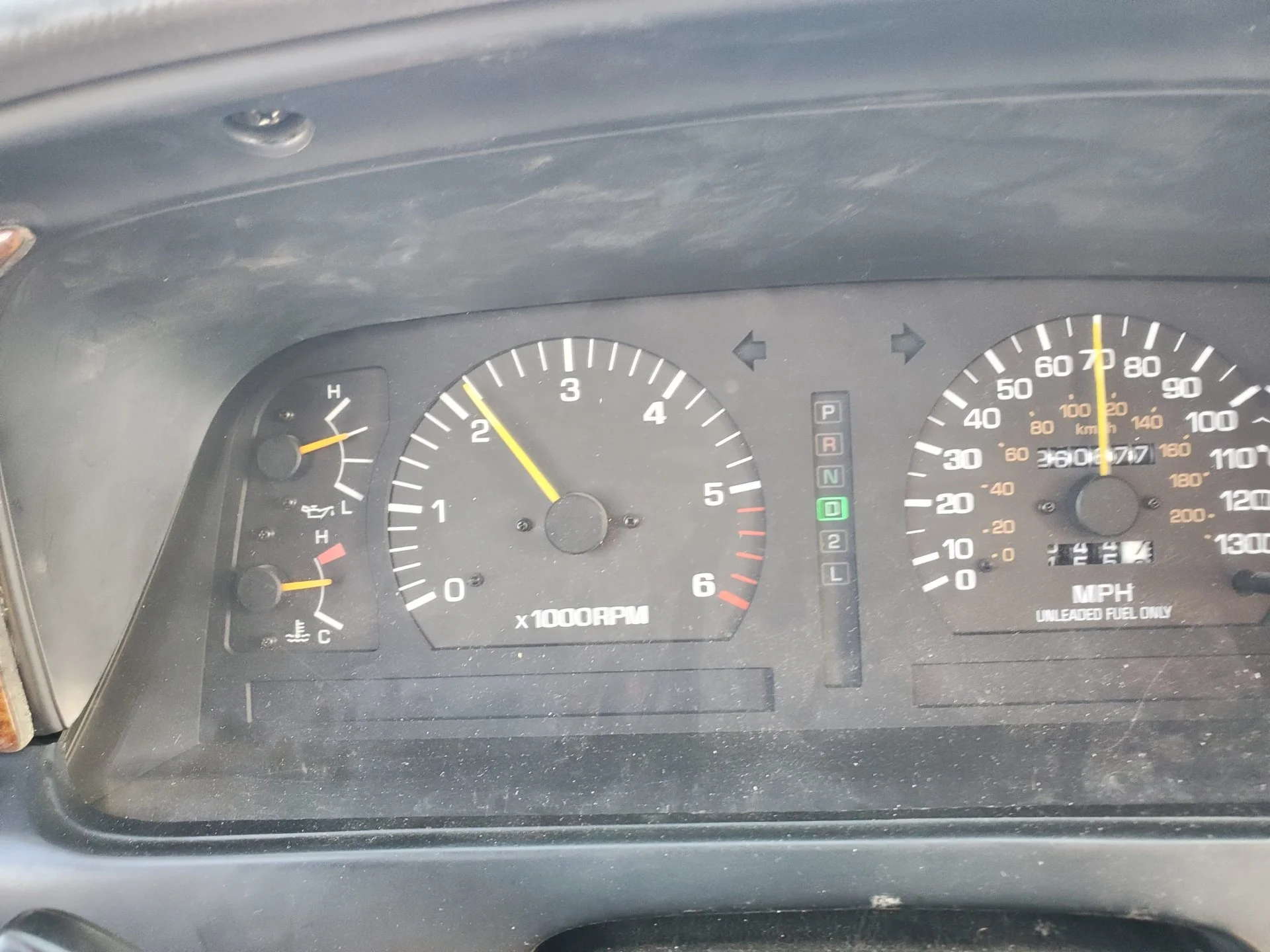

Wow! Excellent summary! I’m leaning more towards a 5.3 swap down the road. I was getting 11 mpg on my 315 Toyo Open Country MTs.

Joined
Jun 26, 2004
Messages
2,345
Location
east coast Canada
I guess the main gain is power?

Economy does not seem to be part of this equation? Or is the 11mpg because of the 4:88’s?

Cheers

Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
There were a couple of reasons for the swap. At 260k miles, I knew that either a swap or rebuild was in the future. Friend of mine had successfully swapped a 5.3 into a Scout II and was willing to help me through it. Finally, I developed an oil leak between the motor and trans. It was either a rear main leak or an upper pan arch leak. Either way, the trans had to come out and the engine may have needed to be lifted a few inches (if it was the pan arch). I decided if I had to go to that trouble, I wasn't going to put 30-year-old technology back in.

Yes, the power is nice. Went from roughly 200 hp to 400hp. Much more enjoyable to drive. I don't think the poor fuel economy is a result of the gearing. The 6l80e likes to keep it in a higher gear and I don't spend hardly any time on the freeway at 70mph. Most driving is only on local pavement until I can get into the hills.


Last edited:
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
The truck oil pain that came with the motor had to be swapped for an F-body pan. The F-body pan is more shallow. The truck pan simply will not fit in the LC engine bay if you want to be able to close the hood. Replaced the oil pickup with an F-body pickup. This required some modification of the windage tray.

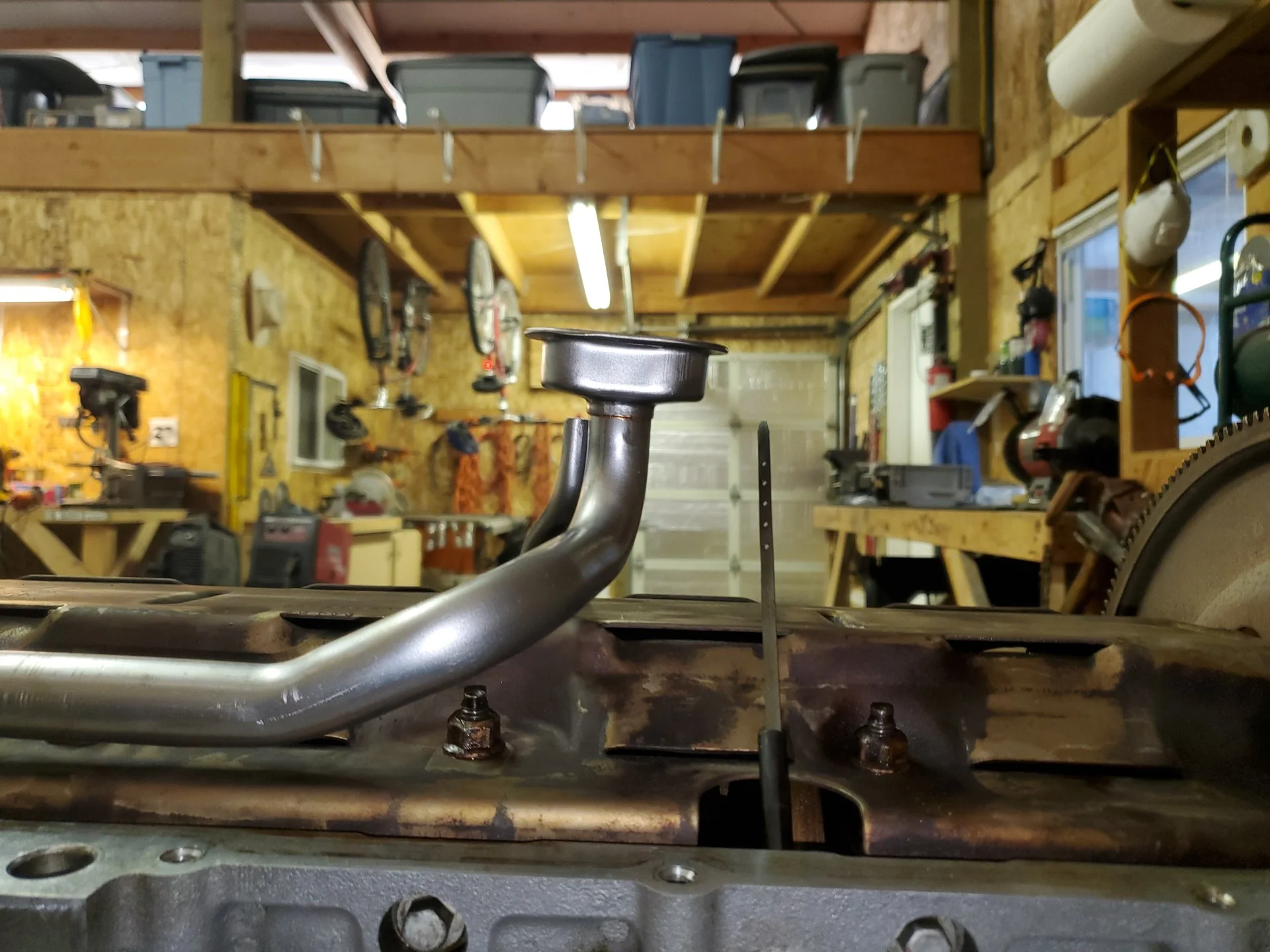

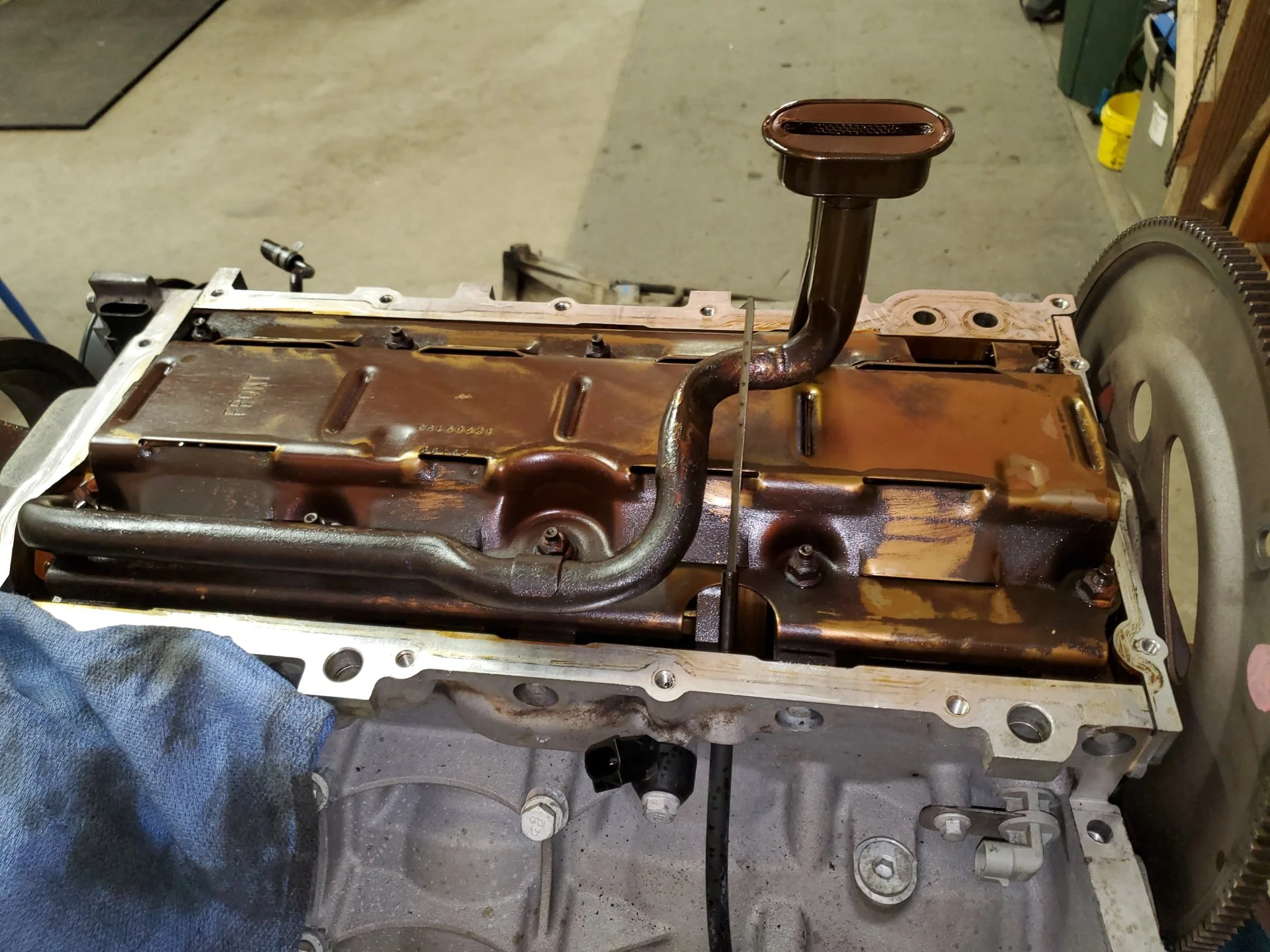

ORIGINAL PICKUP


F-BODY PICKUP

Last edited:
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
This link will get you to the instructions to go to an F-body pan: https://documents.holley.com/199r10566rev8.pdf

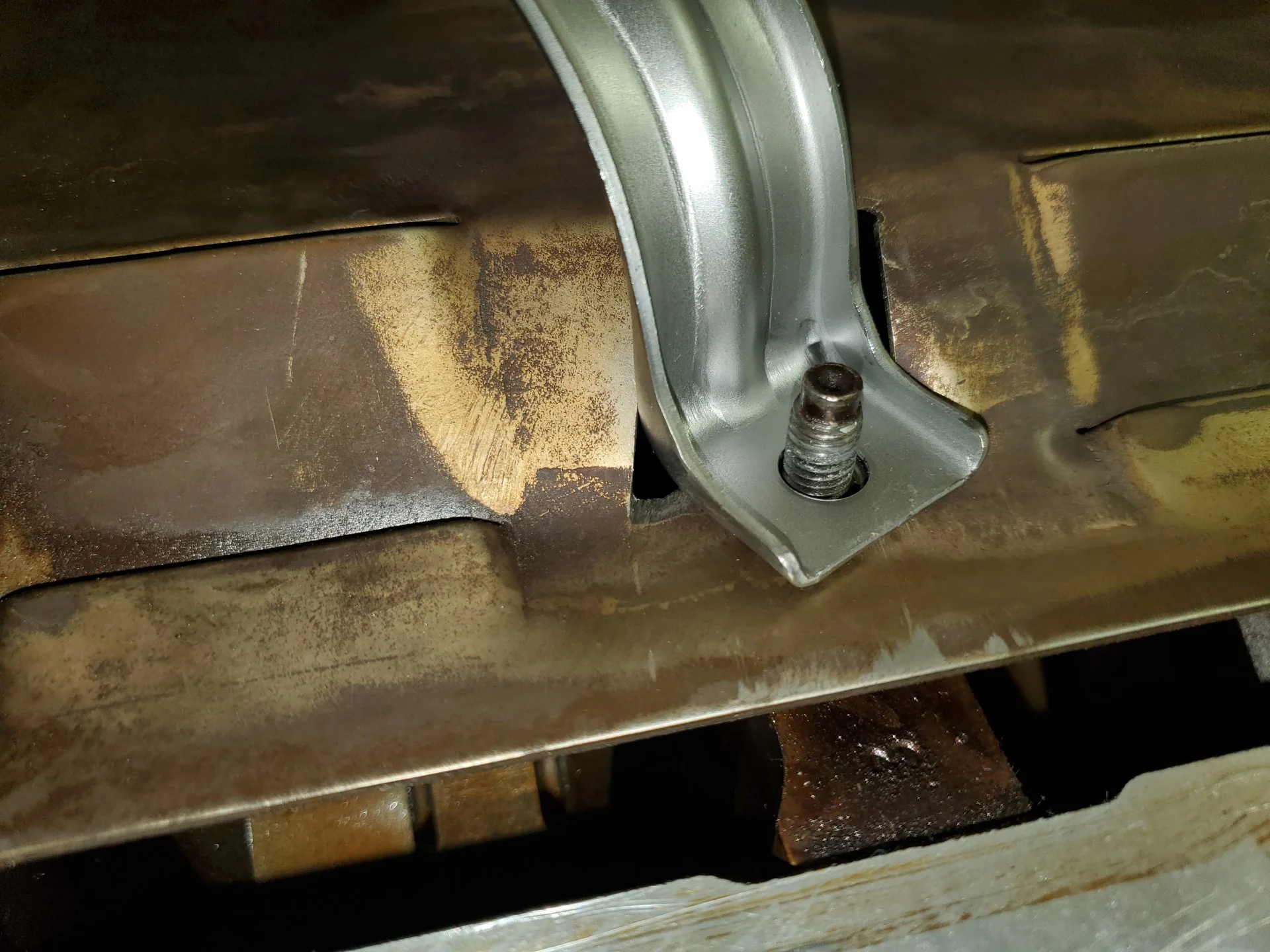

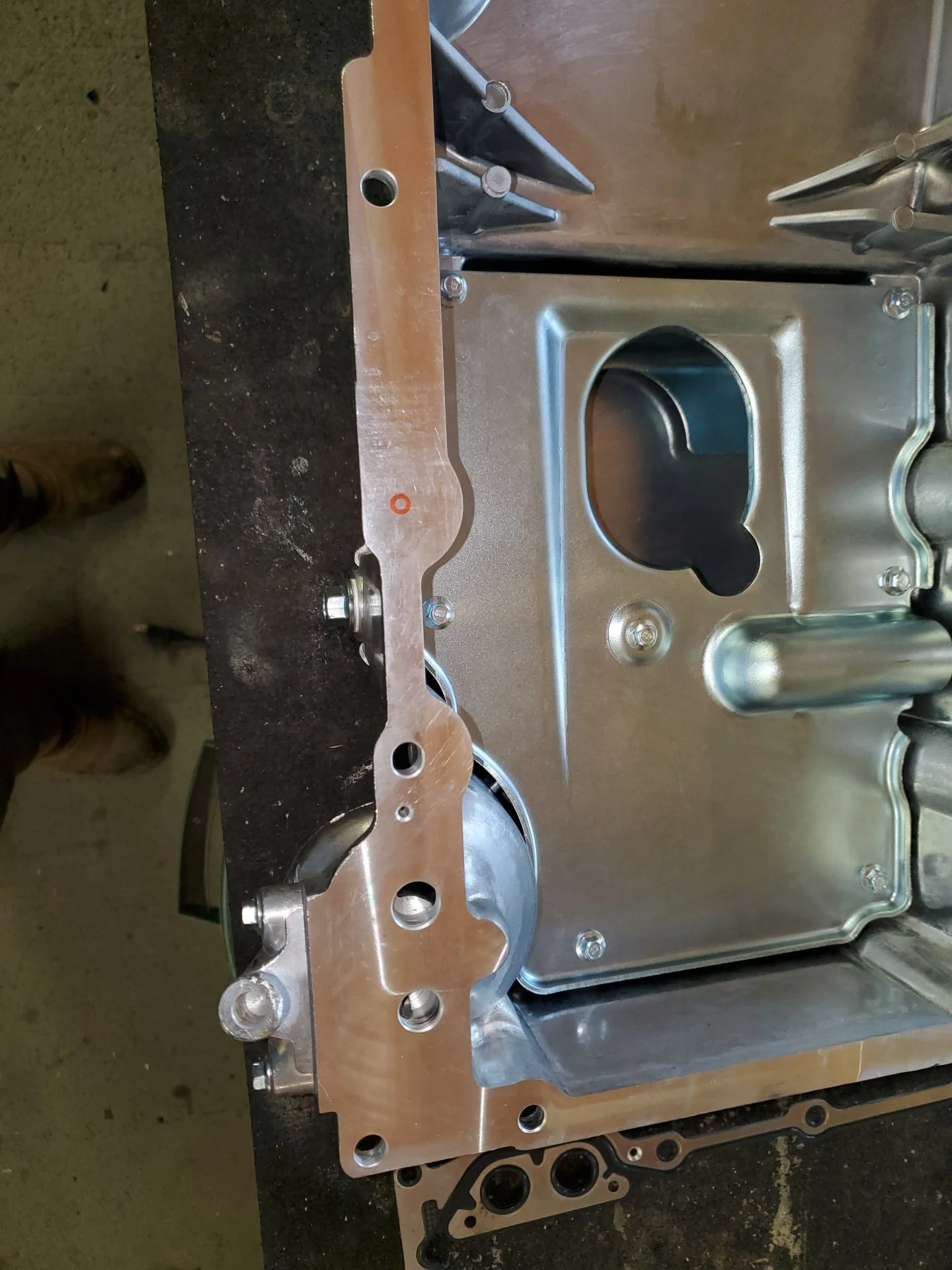

I didn't have to cut out the quarter round. I did need to drill an additional hole in the F-body pan. Wasn't a big deal. Used the gasket as a template:

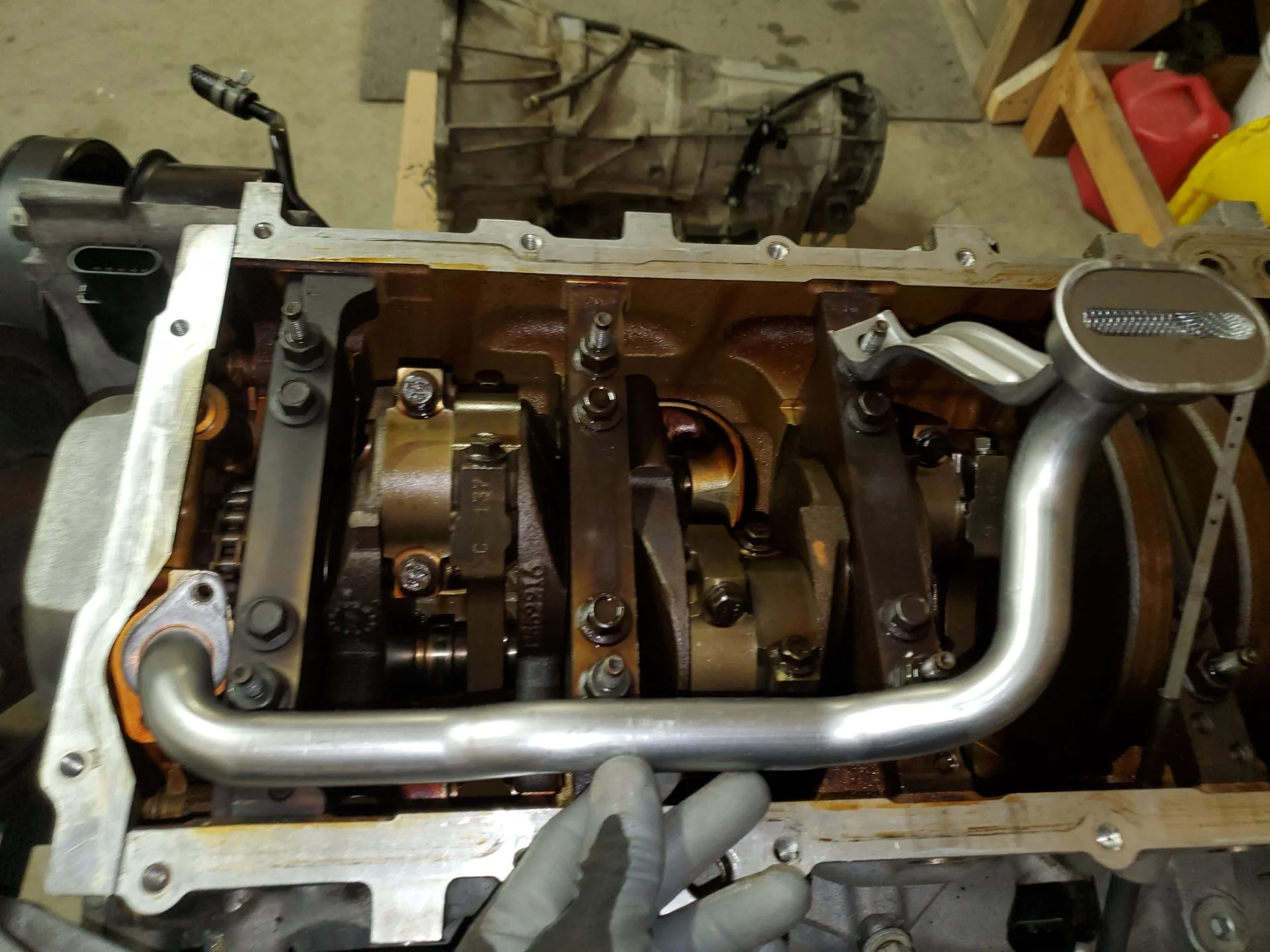

F-BODY PICKUP - NOTICE BEHIND THE PICKUP IS A BRACKET. THE WINDAGE TRAY HAS TO BE MODIFIED FOR THE BRACKET TO MOUNT.





DRILLING THE ADDITIONAL HOLE

Last edited:
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
At this point I moved to the gas pedal. A corvette pedal will fit (see parts list for the part number). Absolutely no way the yukon pedal was going in there. I have a hand throttle control and wanted to retain this feature (sometimes use it when winching). For this reason, I cut the corvette pedal off the assembly and welded a portion of the LC pedal onto it.

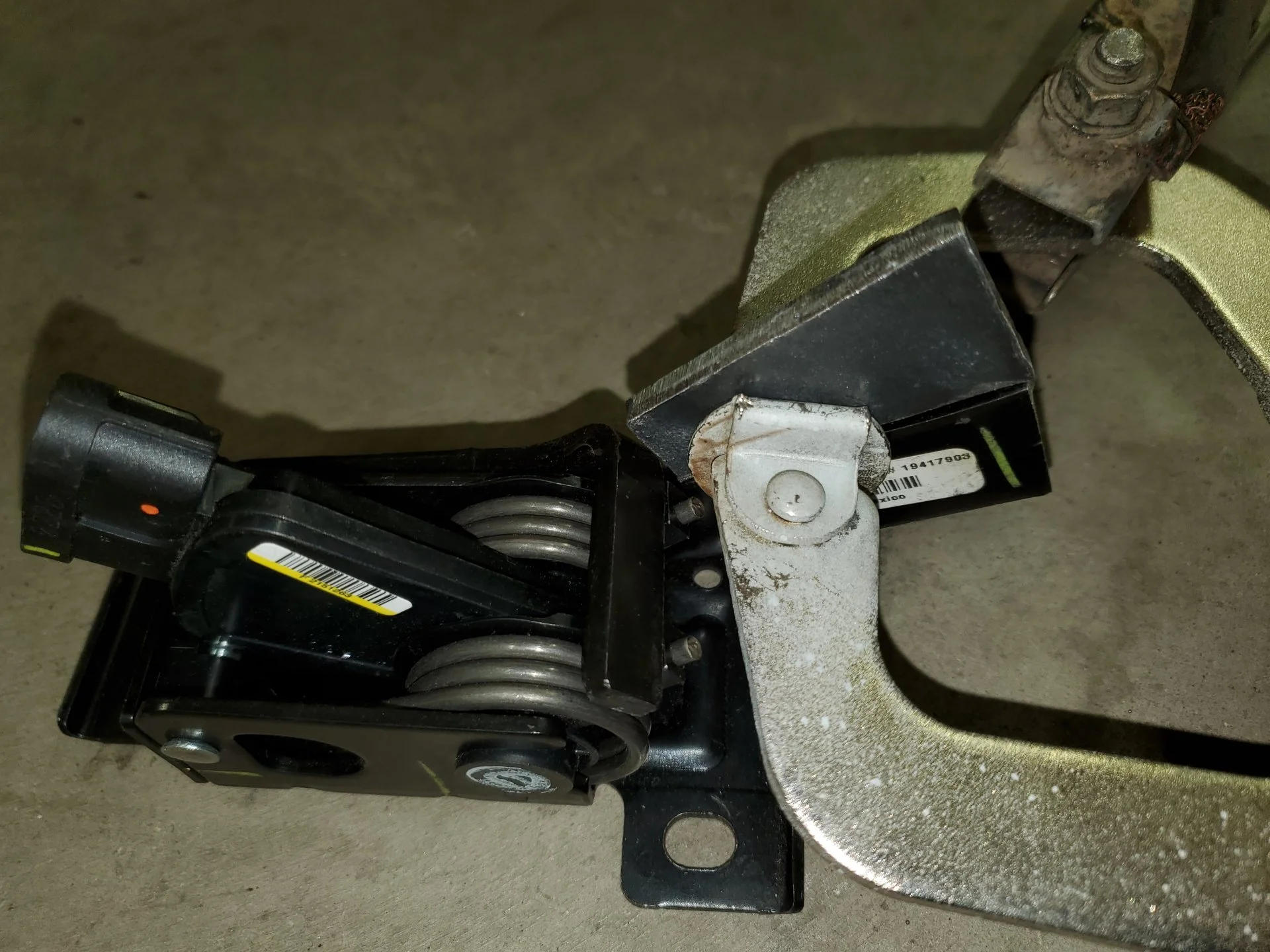

ORIGINAL CORVETTE PEDAL:

Last edited:
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR

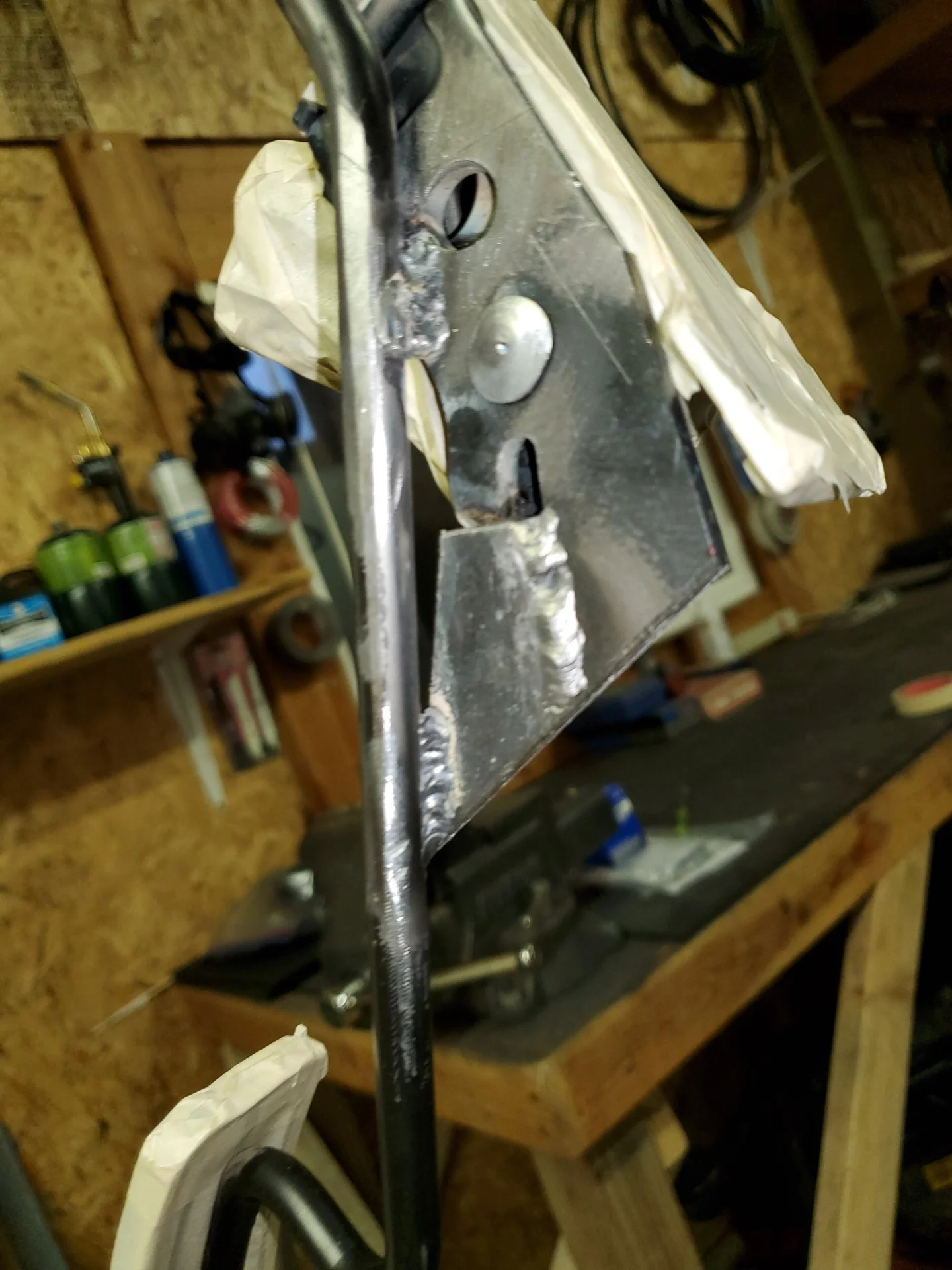

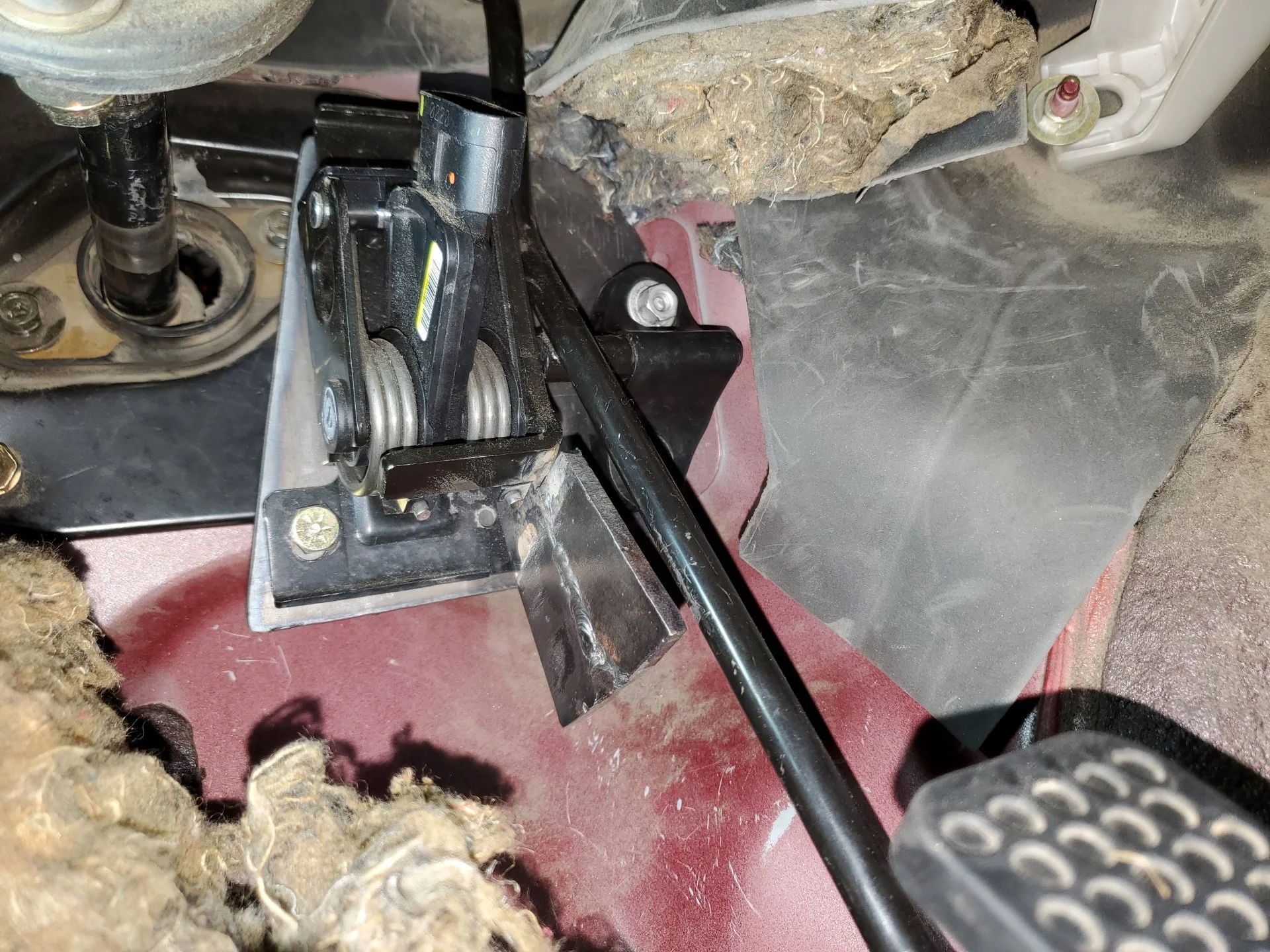

Pedal modification:



As you can see, it was bolted to a plate I could mount to the firewall. Old pedal attached:


This allowed me to continue to drive the LC. When I was ready, I just disconnected the throttle cable from the pedal. Hand throttle cable remained attached to the LC pedal.

One more thing on the pedal. Because it's a vette pedal, pins D&F in the pigtail to the pedal were switched.

(And for the particularly observant, I did replace the gasket around the steering column as it goes through the firewall)

Last edited:
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR
Last thing before pulling the LC motor and trans was to bolt Mark's adapter to the 6l80e. If I remember correctly, there was a short piece of tail housing on the transmission that I removed. It was pretty much plug & play. Mark's is great to work with and it didn't take long from when I placed the order until I had it on my doorstep. They send an instruction sheet with the adapter that's easy to follow.


Last edited:
Joined
Nov 13, 2010
Messages
92
Location
La Grande, OR

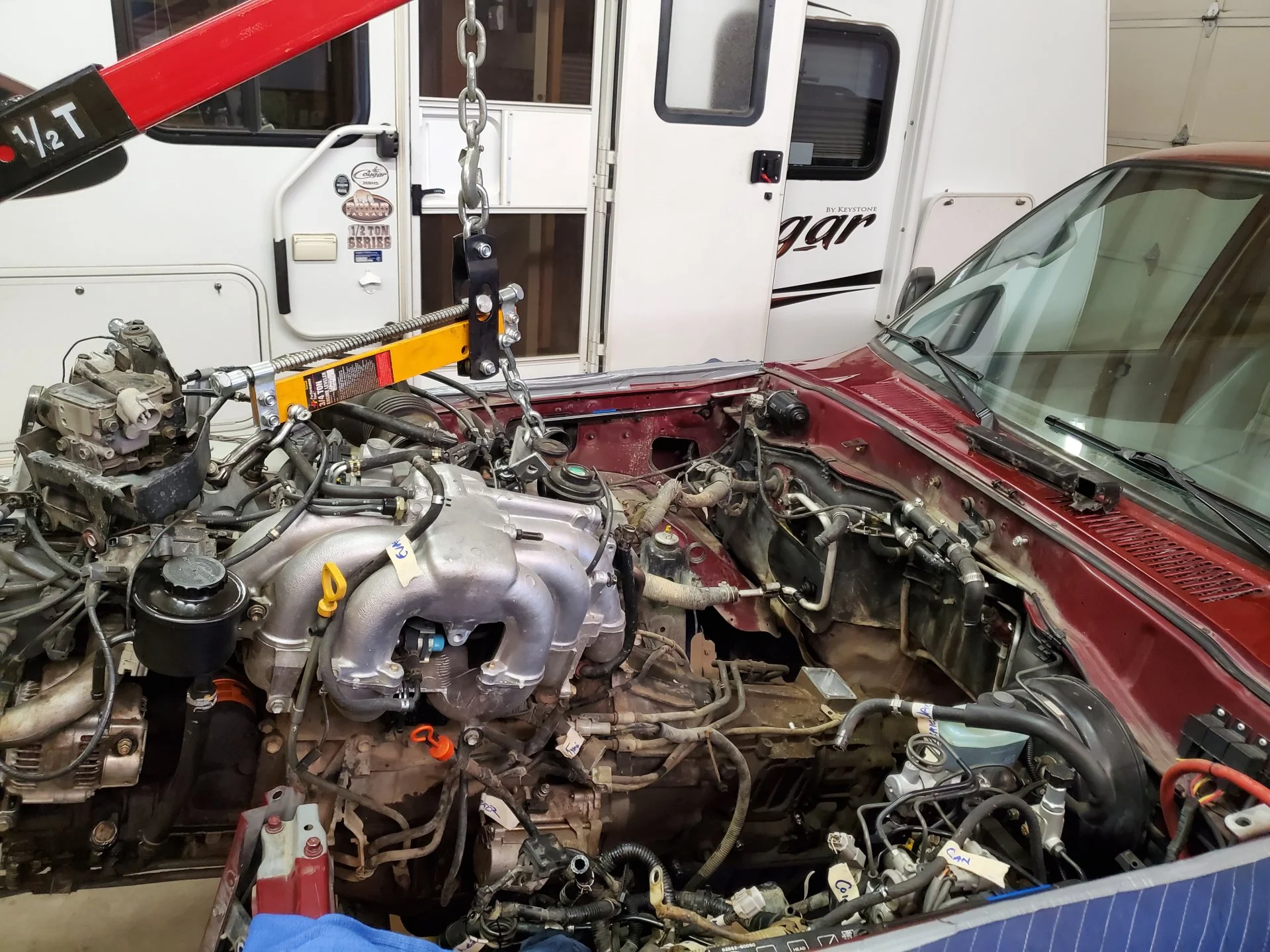

LC motor and trans came out. Just slowly started disconnecting things until it was free. Front bumper/grill etc were removed. Was a little daunting initially but just kept picking away at it and eventually all was free.

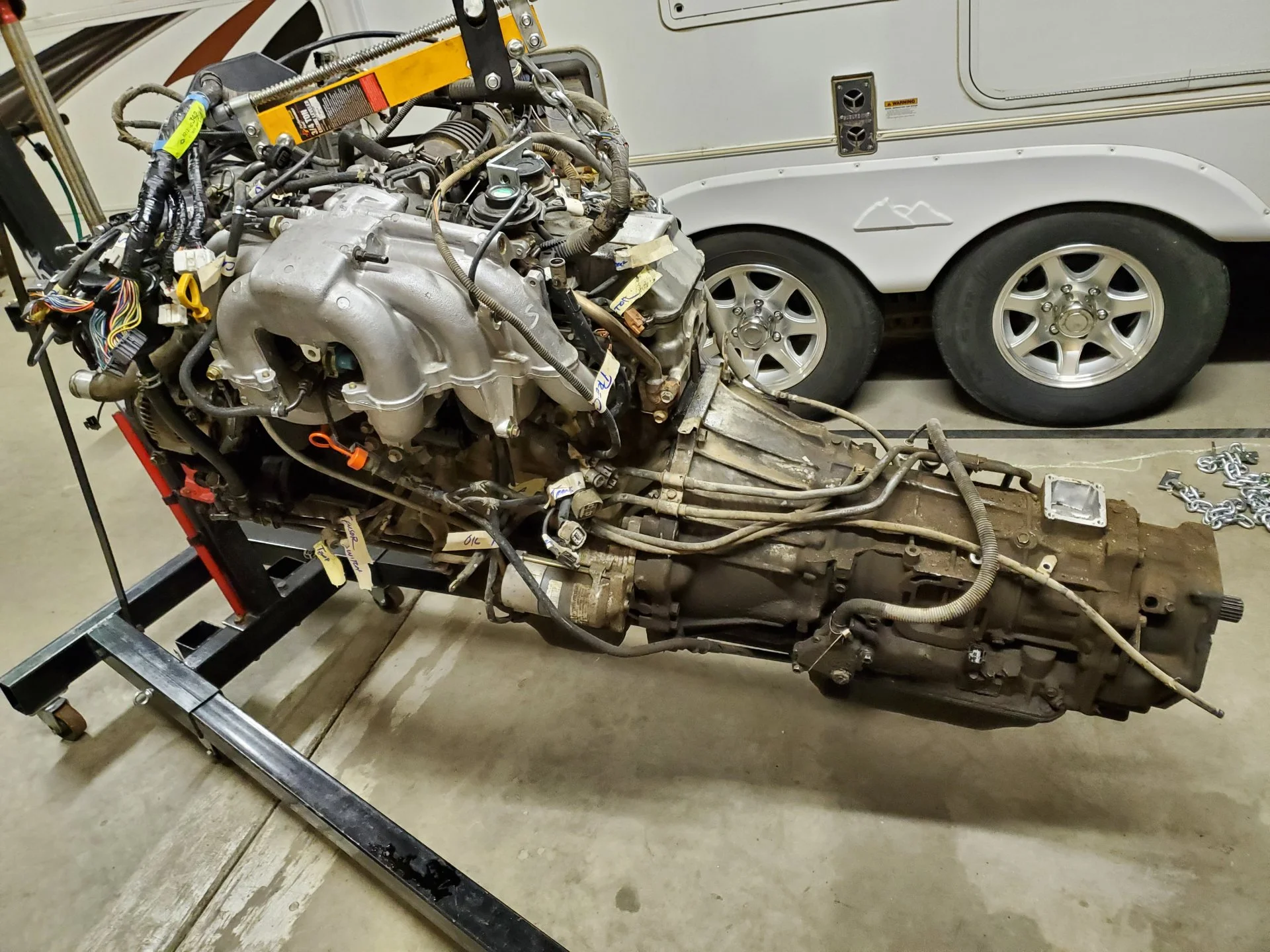

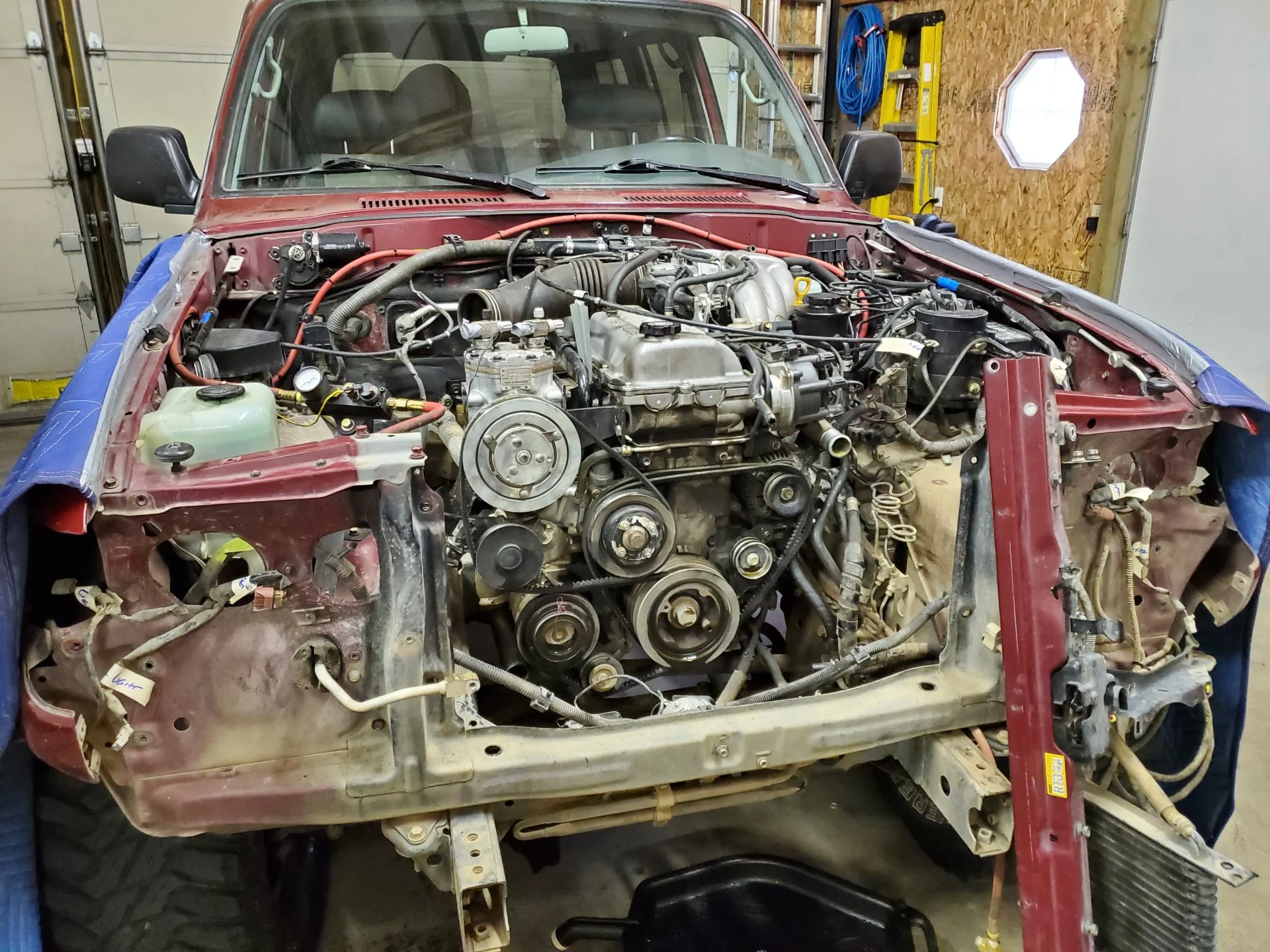

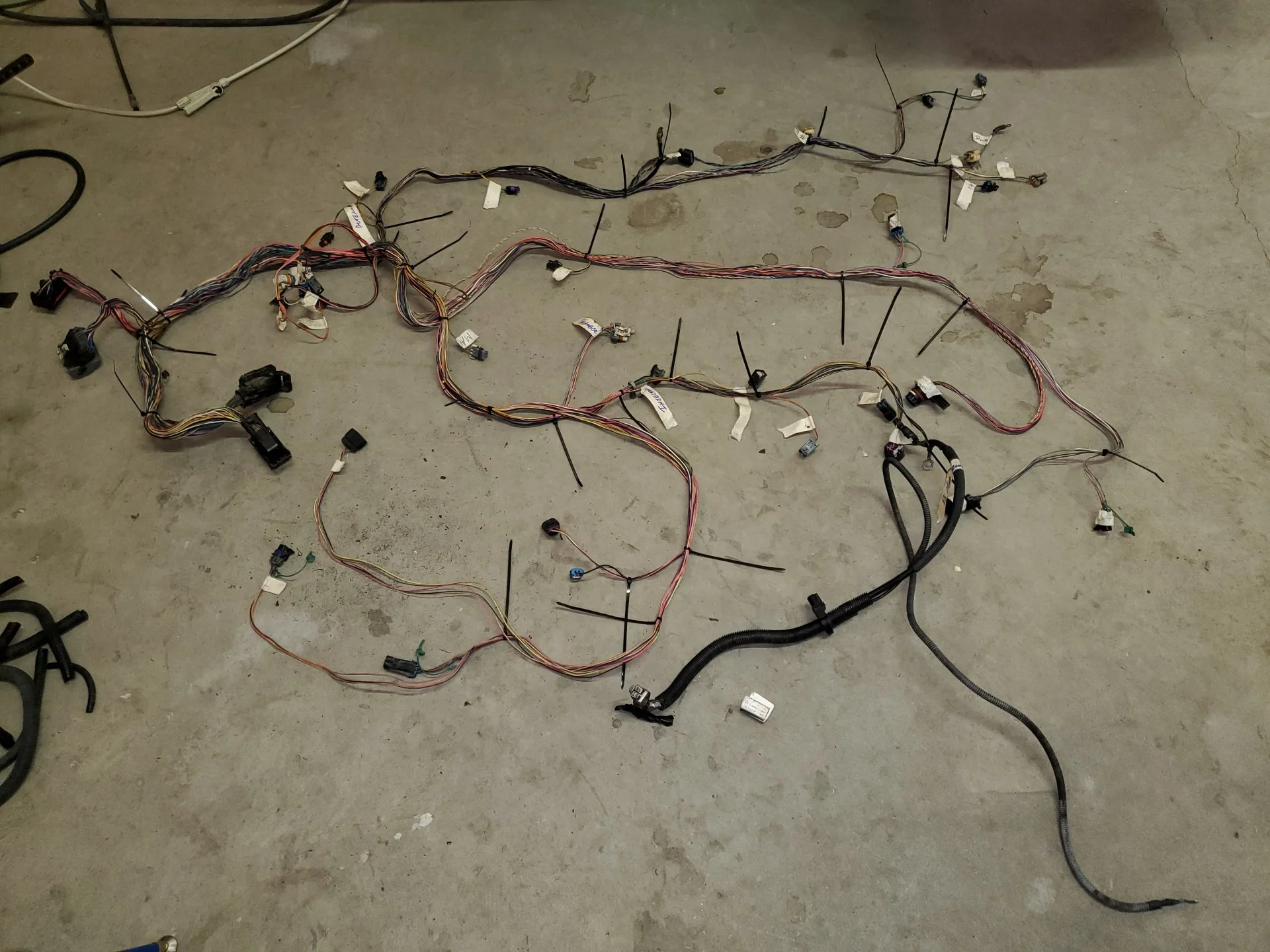

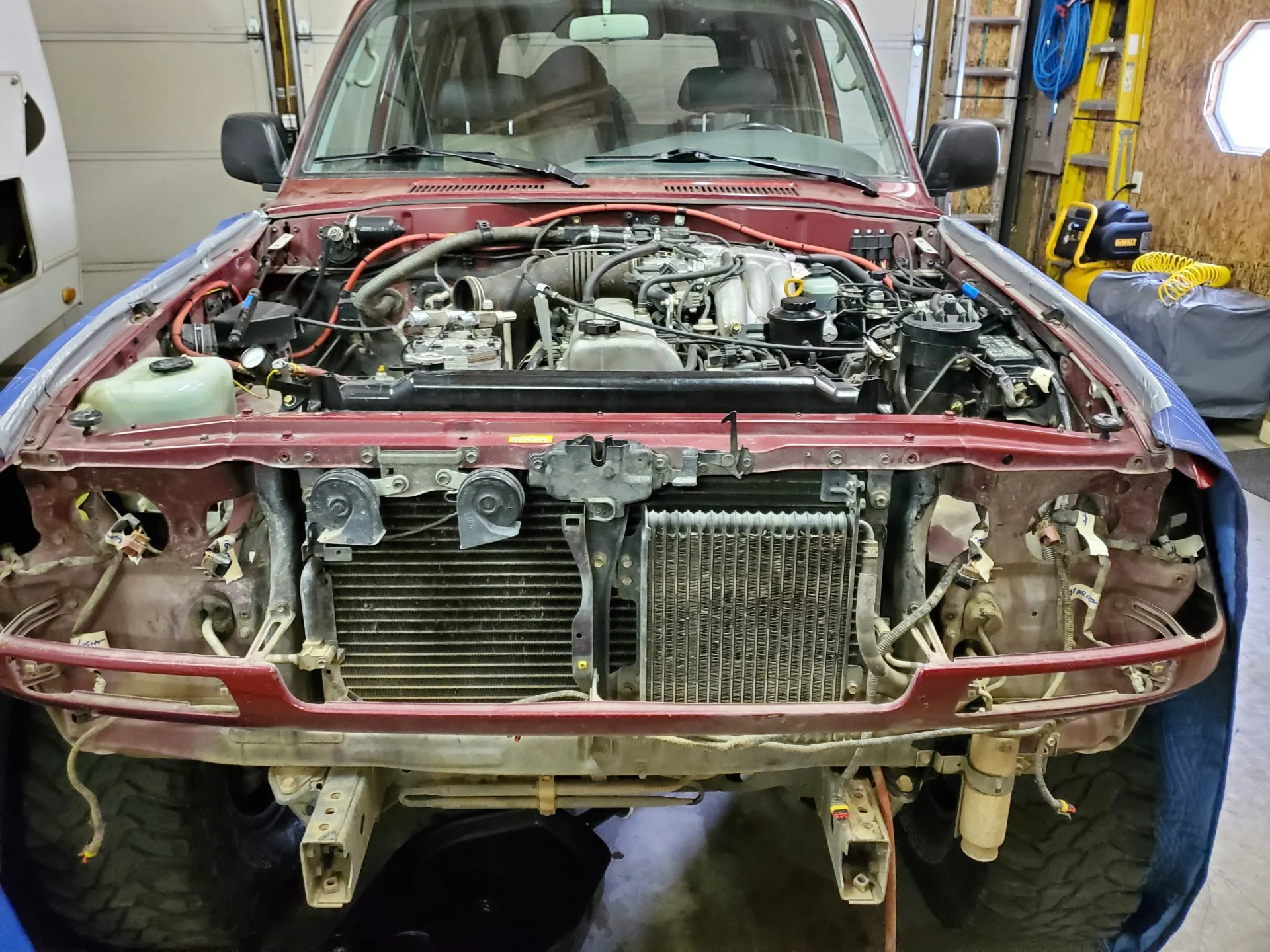

Once pulled, I rolled the rig outside and pressure washed the engine bay. I carefully removed the wiring harness from the Toyota engine/trans. The throttle body had to come off the 1FZFE to accomplish this. Harness was set aside. Motor and trans were sold when the swap was complete. Kept the temp sender & oil pressure sender.

Last edited:

Users who are viewing this thread

Top Bottom
