40 series Engine Bay Reference

[woytovich]

I am looking for detailed pics of stock engine compartments. I would like to be able to see where everything belongs in stock form, including stock components as well as the routing of hoses and wires.

Please post up as many pics as necessary and include the build month and year. Include info on any modifications or deviations from stock that you know of.

I hope this will be a valuable reference for us all.

THANKS!

Mark



[akeyzoo]

Subscribed.



[woytovich]

Here is some fodder to get this started. From my archives... I have no model year details...

Red one: 1979-1980 (according to Spangly)



[woytovich]

And a couple more... (these are a little small to be of much use)

These three: 1979-1980 (according to Spangly)



[lostmarbles]

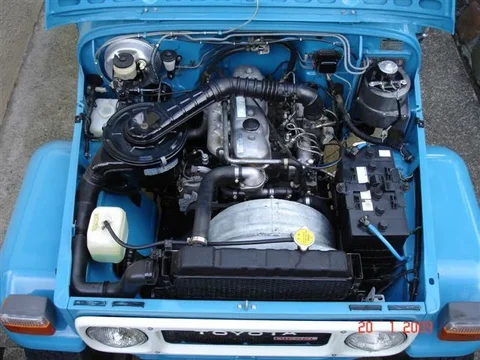

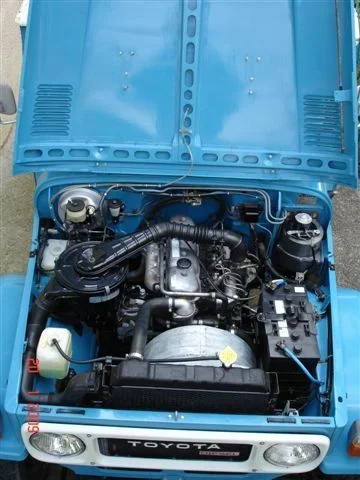

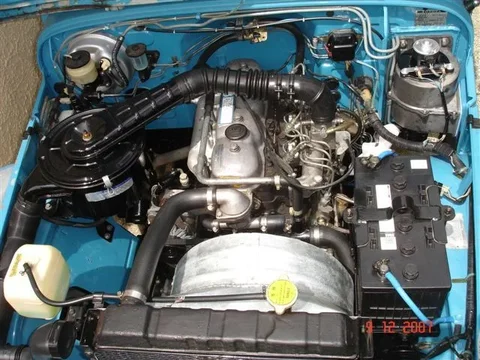

1979 BJ40 (mine)



[lostmarbles]

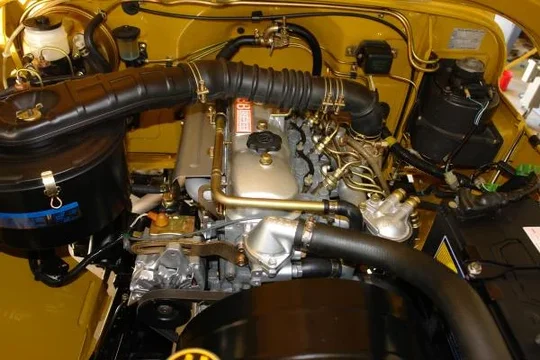

BJ42 (ex filmpilot & originally from NZ)



[Splangy]

The first pic (red 40) is a 1979-1980. The three little pics (olive brown) also appear to be from a 1979-1980.



[woytovich]

The first pic (red 40) is a 1979-1980. The three little pics (olive brown) also appear to be from a 1979-1980.

What is the "tell" that these are 79-80 (other than the square bezel on the red one)



[Eshu Elegua]

from Puerto Rico Toyota Museum.



[Splangy]

What is the "tell" that these are 79-80 (other than the square bezel on the red one)

The carburetors.



[ccasteel]

Unmodified Blank

If it's of any help, here,s a picture of an unmodified cowl from a 3/76.



[lostmarbles]

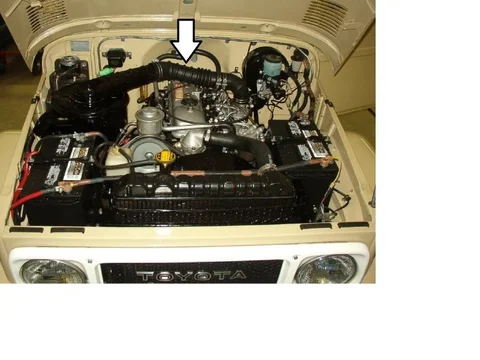

Errr. Sorry for all the diesels .... but here's another BJ42 (from this thread https://forum.ih8mud.com/diesel-tec...1981-bj42-restoration-information-thread.html ... where I think Dallas stole it from the CCOT site.





And sorry for the big arrow there..... I think Dallas was pointing to something or other LOL.



[SHUSH]

Subscribed!



[subzali]

Here is some fodder to get this started. From my archives... I have no model year details...

Red one: 1979-1980 (according to Spangly)

Mark,

I agree with Splangy on the first one (red) and the three little pics in the second post (brown). The vacuum operated HAI and temperature sensor on the top of the thermostat are indications.

I think the second pic (brown) is a '77. It looks a lot like mine (vacuum tank on driver's side fender, carb configuration). However, it has CCOT power steering and air conditioning, with extra hoses and wires associated with that, so it's not a perfect example.

I think the third pic (mustard) is a '78. Carb cooling fan mounted on fender, emissions box on driver's fender are indications.



[bsevans]

Fed Spec 8/78 with the following external modifications:
HEI DUI
Mean Green 200 Amp Alternator
mid 80's FJ 80 Master Cylinder
GM Powersteering pump with custom hub running FJ40 waterpump pulley (not shown in photo, will post another photo showing the dual pulley)
4x4 Mini truck powersteering box
Silicone (red) and Viton (brown) vacuum hoses
Painless headlight wiring harness
Hella Horns



[bsevans]

Photos of the dual powersteering pulley



[nickswan]

any chance we can get some f motors in here, im working on putting a 72' back together and would love a reference point. thanks



[Darkwing58]

Here is my 1972 F motor.

Has F2 alternator mounting bracket, power steering bump bracket mod and twin groove water pump pully and crank pulley.



[Lance 80 FJ]

Here are some engine pics from a 1978 US Spec with 18K original miles. Never touched.



[RedOx]

Here is some fodder to get this started. From my archives... I have no model year details...

Red one: 1979-1980 (according to Spangly)
View attachment 544188View attachment 544189View attachment 544190

What is the giant canister device in the upper left? I'm rebuilding mine and labels have worn off. Looks like some hoses got to it. Please be patient with me. Learning as I go.
