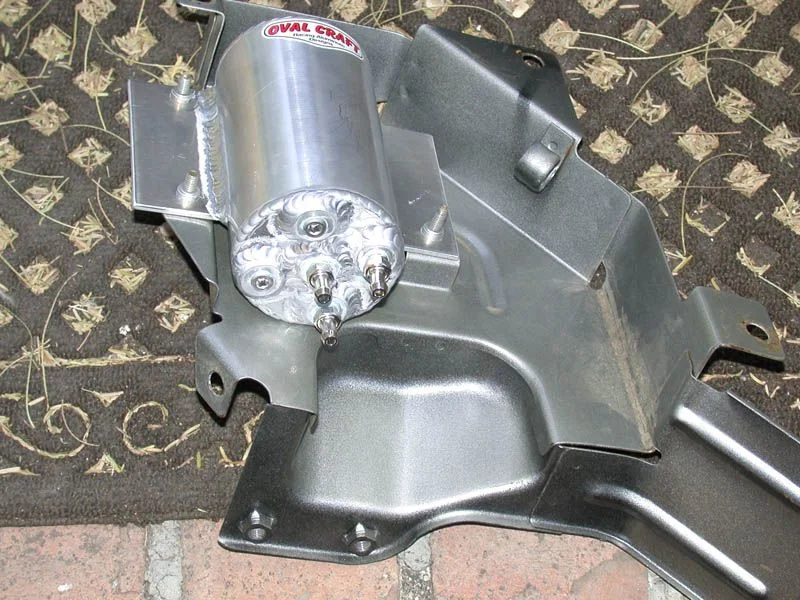

Vapor Recovery Tank, Replacement

I've had to replace two of these tanks because the tube on the plastic tank cracked over time due to vibration or whatever. I decided that this time I would see if an Aluminum recovery tank could be used. All the Aluminum fabricators that I talked with said their standard tank was made from 3" OD tubing. With that said, I designed a tank that I was sure would fit in the space on my 78 FJ40. The pictures pretty much speak for themselves. If anyone wants the drawings, let me know.
Attached Images



__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 03-14-08, 04:01 PM   #2 (permalink)
Focus on the Journey


bsevans's Avatar

Join Date: Jun 2005
Location: Southern Arizona
TLCA# 16217
Posts: 1,417

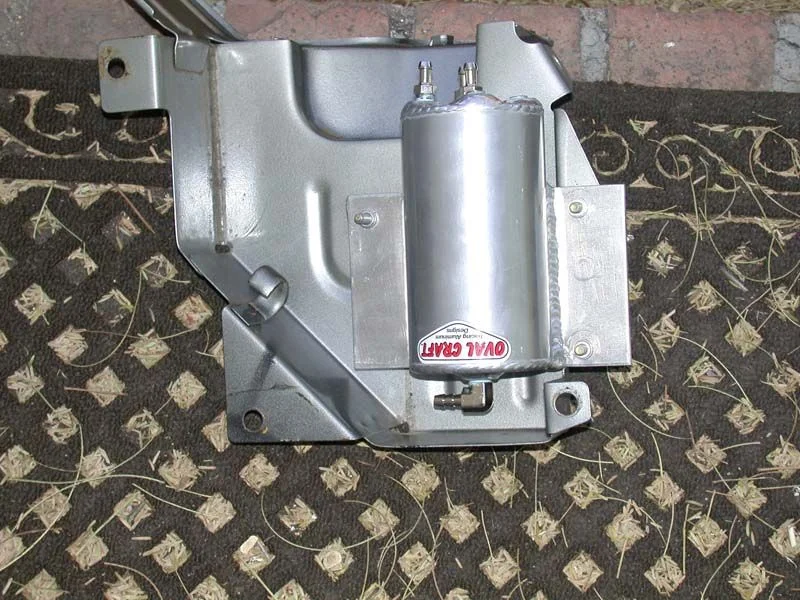

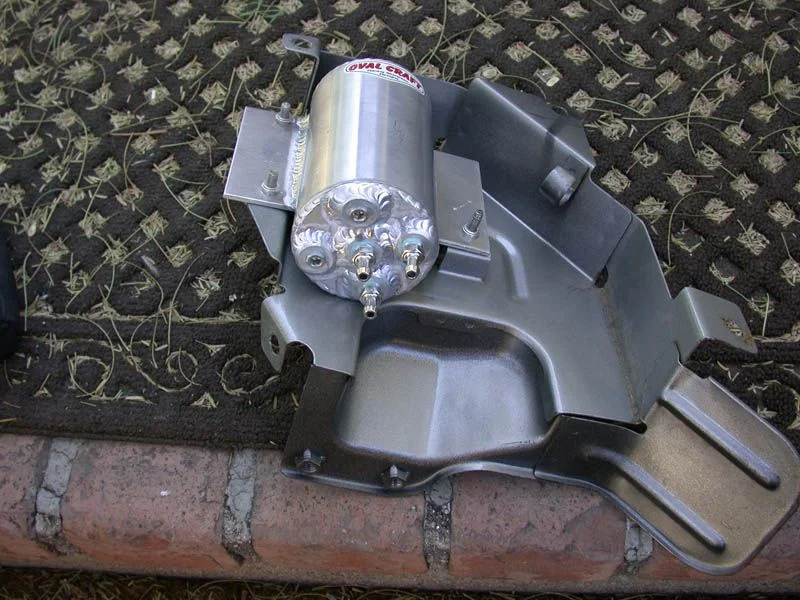

Additional photos
Attached Images


__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 03-14-08, 04:02 PM   #3 (permalink)
Focus on the Journey


bsevans's Avatar

Join Date: Jun 2005
Location: Southern Arizona
TLCA# 16217
Posts: 1,417

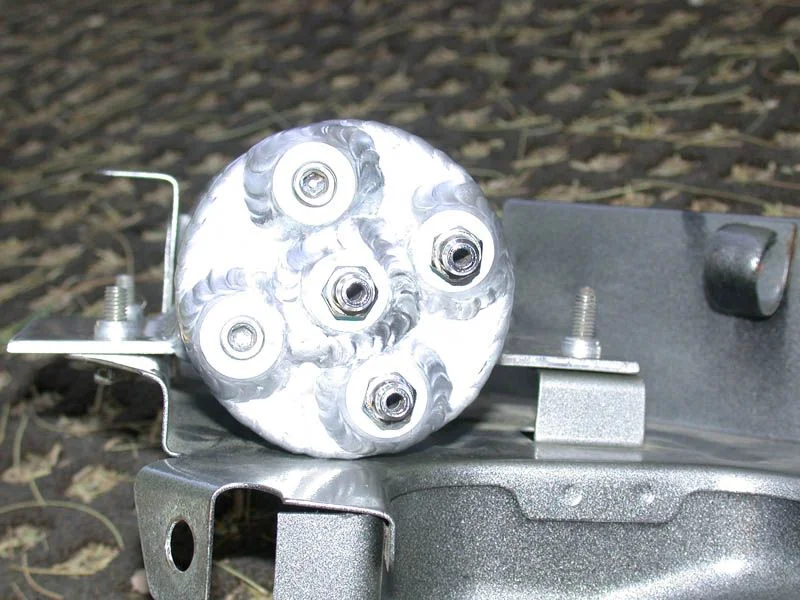

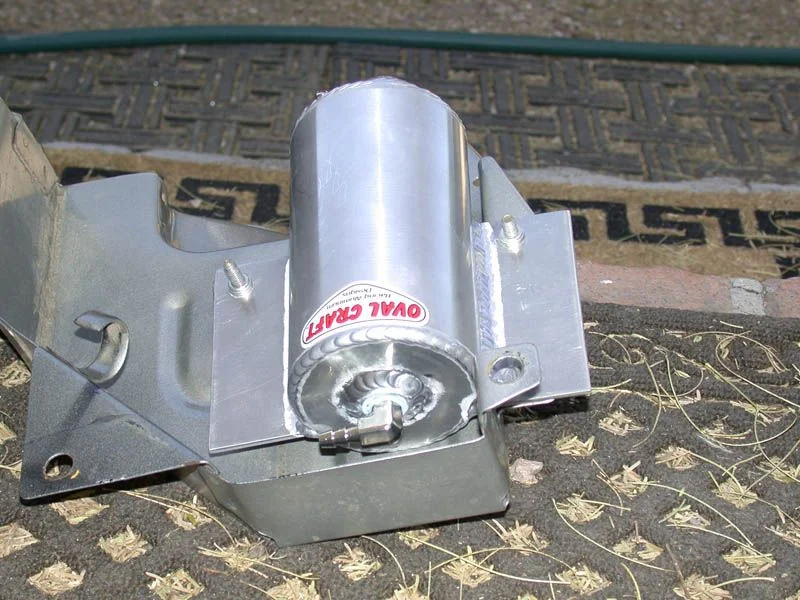

and more
Attached Images


__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 03-14-08, 04:07 PM   #4 (permalink)
Focus on the Journey


bsevans's Avatar

Join Date: Jun 2005
Location: Southern Arizona
TLCA# 16217
Posts: 1,417

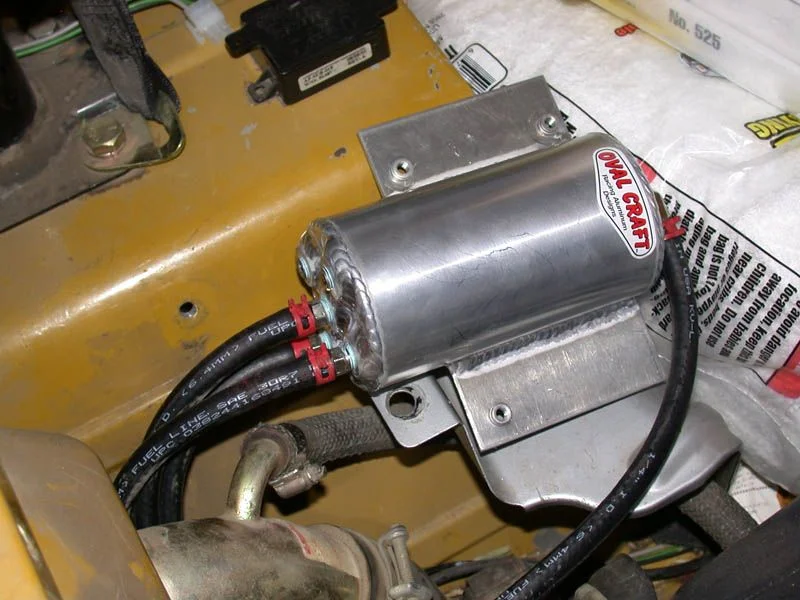

As you can see from the last photo, the mounting tab had about .5" of overlap. When I had the unit made, I told them I would install the mounting inserts. I thought about trimming the excess. My table saw had my H-Frame hydraulic press on it and just did not feel like moving it.
I used a small C clamp to mount the new tank so I could find the "sweet spot" for clearance. I marked the holes and drilled and installed the inserts.

__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 03-14-08, 04:50 PM   #5 (permalink)
250+ Club


Join Date: Sep 2005
Location: edmond,oklahoma
TLCA# n/a
Posts: 397
Man,that is sweet.This must be one of those twilight zone things because I just pulled in the garage and saw I had left a trail of fuel.It's coming from theTube that appears to be a vent that is hard ine and tucks in to the formed peice of the tub.
74fjsemistock is offline   Reply With Quote
Old 03-14-08, 05:12 PM   #6 (permalink)
250+ Club


madoc1's Avatar

Join Date: May 2005
Location: spicewood,tx.
TLCA# 17509
Posts: 387
vent

[quote=74fjsemistock;3133469]Man,that is sweet.This must be one of those twilight zone things because I just pulled in the garage and saw I had left a trail of fuel.It's coming from theTube that appears to be a vent that is hard ine and tucks in to the formed peice of the tub


.[/quote

the laws must be really tuff in oz.. good luck jim

__________________
jim-almost stock 75/40 -sbc, jeez, let me think
madoc1 is offline   Reply With Quote
Old 03-14-08, 06:02 PM   #7 (permalink)
250+ Club


Join Date: Sep 2005
Location: edmond,oklahoma
TLCA# n/a
Posts: 397
I'm confused...I'm in Oklahoma.Up here...we consider you "Down Under".And I'm still confused...
74fjsemistock is offline   Reply With Quote
Old 03-14-08, 08:11 PM   #8 (permalink)
Site Addict


Mr. Toad's Avatar

Join Date: Feb 2005
TLCA# 2950
Posts: 1,138
Nice work! Most people don't think it's important to keep the evaporative emissions system, especially when they de-smog.

Anyway, for a good-looking fix for an out-of production part.
Mr. Toad is offline   Reply With Quote
Old 03-15-08, 07:19 AM   #9 (permalink)
Focus on the Journey


bsevans's Avatar

Join Date: Jun 2005
Location: Southern Arizona
TLCA# 16217
Posts: 1,417
Quote:
Originally Posted by Mr. Toad View Post
Nice work! Most people don't think it's important to keep the evaporative emissions system, especially when they de-smog.

Anyway, for a good-looking fix for an out-of production part.
Here in Tucson, AZ you cannot desmog a 78 FJ40 because you will fail the visual inspection (EGR, Air Rail, etc). I'm not sure what impact removing the smog equipment has on emissions testing.

__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 03-15-08, 09:33 AM   #10 (permalink)
250+ Club


Join Date: Sep 2005
Location: Forest Falls, CA.
Posts: 559
Did you do the tig work? Nice bead.
El Cazador is offline   Reply With Quote
Old 03-15-08, 12:12 PM   #11 (permalink)
Focus on the Journey


bsevans's Avatar

Join Date: Jun 2005
Location: Southern Arizona
TLCA# 16217
Posts: 1,417
Quote:
Originally Posted by El Cazador View Post
Did you do the tig work? Nice bead.
Nope. Oval Craft in Georgia made it to my print. They did not meet the tolerances in two places, but it did not affect the usability.

__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 03-15-08, 01:25 PM   #12 (permalink)
250+ Club


voyager:01's Avatar

Join Date: Mar 2008
Location: Roslindale, MA
Posts: 405
Really great idea.. i need a new vapor recovery tank for my '74 and this system looks killer.. how much did it cost you?
voyager:01 is offline   Reply With Quote
Old 03-15-08, 03:51 PM   #13 (permalink)
Focus on the Journey


bsevans's Avatar

Join Date: Jun 2005
Location: Southern Arizona
TLCA# 16217
Posts: 1,417
Quote:
Originally Posted by voyager:01 View Post
Really great idea.. i need a new vapor recovery tank for my '74 and this system looks killer.. how much did it cost you?
$78

__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 03-15-08, 04:44 PM   #14 (permalink)
Forum Regular


hedgehog23's Avatar

Join Date: Feb 2008
Location: Ontario Canada
Posts: 41
good price for a nice looking product. nice mustard color of your cruiser.
hedgehog23 is offline   Reply With Quote
Old 10-13-08, 05:16 PM   #15 (permalink)
250+ Club


alkarich's Avatar

Join Date: Mar 2002
Location: Duluth, MN
TLCA# 4157
Posts: 933
Another great idea. Could one tie in an auxillary tank into this? I also at times get overflow from my extra tank, I believe it is due to expansion.

__________________
Troopy shirts: http://forum.ih8mud.com/clothing-cor...-t-shirts.html
alkarich is offline   Reply With Quote
Old 10-13-08, 09:38 PM   #16 (permalink)
Forum Regular


Join Date: Jul 2005
Location: Chandler, AZ
Posts: 81
Quote:
Originally Posted by bsevans View Post
Here in Tucson, AZ you cannot desmog a 78 FJ40 because you will fail the visual inspection (EGR, Air Rail, etc). I'm not sure what impact removing the smog equipment has on emissions testing.
What smog EQ are you running with? I'm only running with a charcoal canister I have not problem passing my 78.

Todd
350-78LandCruiser is offline   Reply With Quote
Old 10-14-08, 09:32 PM   #17 (permalink)
Focus on the Journey


bsevans's Avatar

Join Date: Jun 2005
Location: Southern Arizona
TLCA# 16217
Posts: 1,417
Quote:
Originally Posted by 350-78LandCruiser View Post
What smog EQ are you running with? I'm only running with a charcoal canister I have not problem passing my 78.

Todd
I have the Fed Spec smog equipment that came on the 8/78 FJ40. I have never failed emission testing (I’ve been close a number of years). I have 21 years worth of emission test records. This year was the first that the 40 was tested with the new vapor recovery tank. The vehicle passed the first idle test with readings so low that I did not have to re-test at 50mph. Initial idle test readings were; HC, 29ppm out of a limit of 250ppm and CO, 0.07% out of a limit of 2.00%. These are the lowest readings for HC and CO that have been measured at initial idle since I’ve owned my 40. The air filter, plugs and timing were not touched from last year’s tune-up for the 2007 emission testing. I did change from Castrol 20W-50 to Chevron Delo 400 LE (API CJ-4) 15W-40 which I also run in my turbo diesel. I did rebuild the carb a number of years ago, except for the primary jets which are larger, everything else is to factory specs for gaps and angles.

__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 10-20-08, 01:35 AM   #18 (permalink)
Focus on the Journey


bsevans's Avatar

Join Date: Jun 2005
Location: Southern Arizona
TLCA# 16217
Posts: 1,417
Quote:
Originally Posted by alkarich View Post
Another great idea. Could one tie in an auxillary tank into this? I also at times get overflow from my extra tank, I believe it is due to expansion.
I have my aux tank tied into the bleed line coming out of the top of the recovery tank. In order to eliminate any liquid fuel in the line I have another custom aluminum recovery tank, shorter in length, in the rear wheel well above the aux tank that lets only the gaseous fuel pressure bleed off to the charcoal canister and factory tank. It has a ¼” fuel line coming out of the top to the vent line in the front vapor recovery tank and a ½” fuel line on the bottom of the rear recovery tank that drains into the ½” vent line on the rear aux fill tube. This has reduced the pressure buildup in the rear tank and still meets the emission test requirements. The use of a gas cap that vents is illegal and will fail the yearly inspection as they test your fuel cap to see how well it seals.

__________________
78 FJ40
ARB's F&R, Rear Disks, DUI HEI, 200 Amp Alt, OME 2.5, 33x10.50, PS, RE8000, Stout Rear Bumper, 4+Plus Sliders/U-Bolt Flip Kit/Tie & Relay Rods/Anti-Inversion Shackles, Dual Tanks, BTB Dash Box, Tuned Ceramic Coated Headers, Extended Axle Vents, BrakeQuip Custom Certified SS Brake & Clutch Flex Lines

ROTW My Yoda|HD Skid Plate|Recovery & Windshield Washer Tanks|Toyota Pulley on GM Pump|Bypass Hose|Vapor Recovery Tank
bsevans is offline   Reply With Quote
Old 10-20-08, 06:16 AM   #19 (permalink)
THC


Trollhole's Avatar

Join Date: Mar 2005
Location: Mauldin, SC
TLCA# 15077
Posts: 10,949
Garage
I need to make a habbit of always opening any of your threads you post. I'm always amazed at every single one of them. Very nice work.

__________________

Trollhole's Crazy Forum
Marshall
Upstate Cruisers
Old North State Cruisers
Southern Four Wheel Drive Association
TLCA


New F and 2F carbs and distributors

The Great Cruiser Part Links Thread

RIP Andrew Farmer

"What fits your busy schedule better, exercising 1 hour a day or being dead 24 hours a day?"
Trollhole is offline   Reply With Quote
Old 10-20-08, 06:48 AM   #20 (permalink)
Forum Lifer


Texx's Avatar

Join Date: Feb 2002
Posts: 2,593
Nice work, for sure. Extreme overkill, maybe. I along with probably a few dozen others have posted these pieces for sale on ebay with no bids with a one dollar start. Supply and demand? Apparently not much...no slight on your work, not at all, it's super nice.

__________________
world's cleanest 89 FJ-62, and a few parts... 85 xcab hilux 4x4 resto'ed, 67 XKE, 1500 Vulcan, 80 Fj40 restored SOLD:( 03 Tacoma TRD SR5, Suzuki DR350 Sold :(
Texx is offline   Reply With Quote
