Sticky Odometer and Trip Odometer finally fixed on my FZJ80

Joined
Jul 27, 2011
Messages
4
Location
Evensville, TN
I bought my first Toyota Land Cruiser, well first Toyota really, about a year ago. I have had a few little things that have bugged me on and off sense I've bought it. I guess little problems are to be expected in a vehicle with 281,000 miles. Today I tackled the P0402 code (fixed it but I've given myself a P0401 now) and a sticky odometer/trip odometer. I was told that the odometer would stick when I bought the truck. I was also told that a quick push of the trip reset plunger would take care of the problem. At first the odometer would stick about every 100-200 miles. Here recently I noticed that it was sticking every time I would roll to 19.9 miles on the trip odometer. So I had an idea where to start looking. I just needed to get my hands on the trip odometer.

There are a few threads out there for the removal of the instrument cluster, so I won't bother you with the photos of that. Once you have finagled the cluster out of the dash. you will need to split the cluster so that you can get your hands on the odometer dials. Here are a few photos of the disassembly and the problem I found.

There are 9 clips that will need to be depressed in order to separate the two pieces of the cluster. On the back of the cluster are 4 screws holding the speedometer gauge in the housing. This will allow the removal of the speedometer/odometer gauge from the housing.

1927573

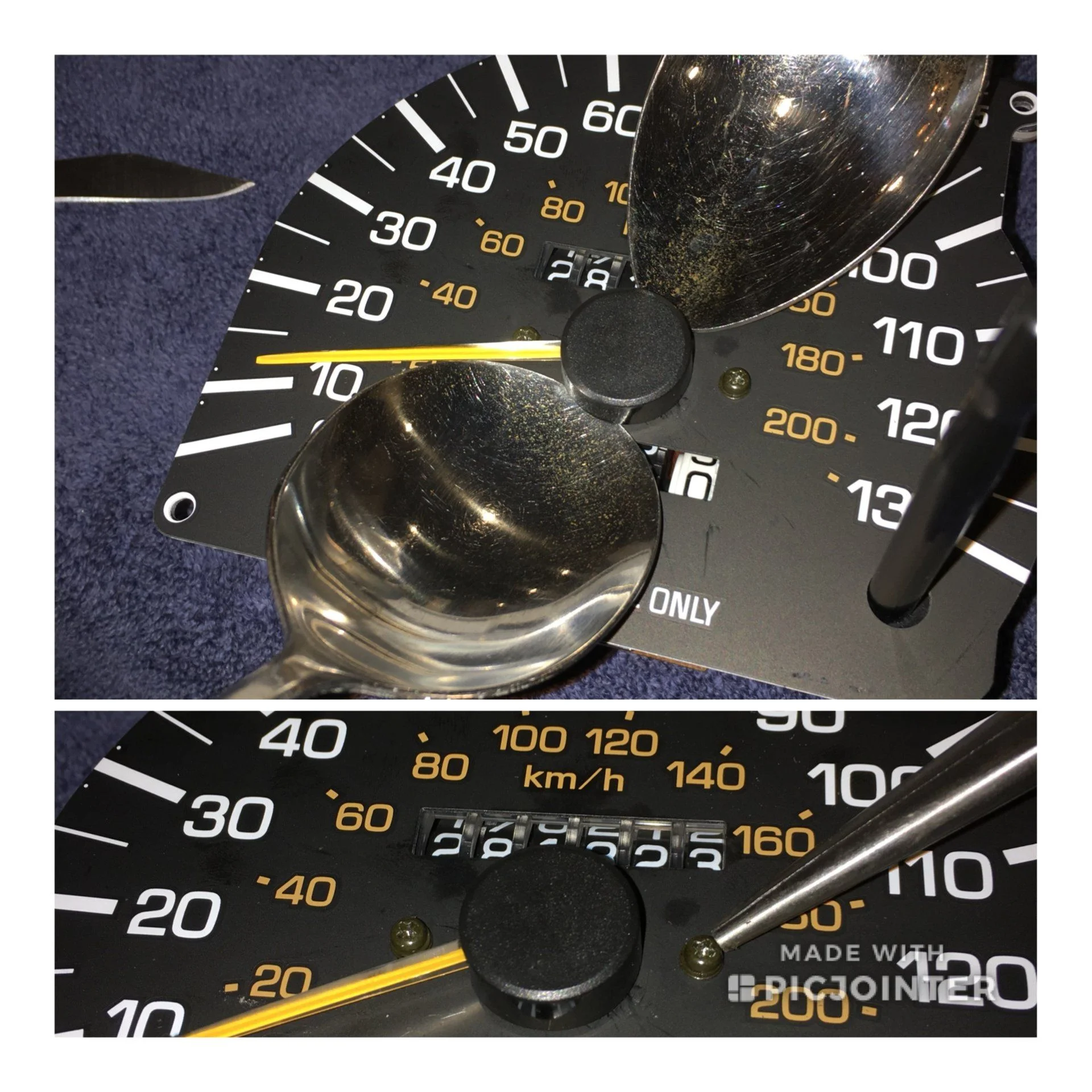

I had to then take the speedometer needle off and the screws on either side of the needle. This will allow the gauge face to come off granting access to the internals. Use two spoons on opposing sides of the needle and apply light force to the handles of the spoon. The needle should come off easy. Be careful as the pin that the needle is on is very fragile.

1927578

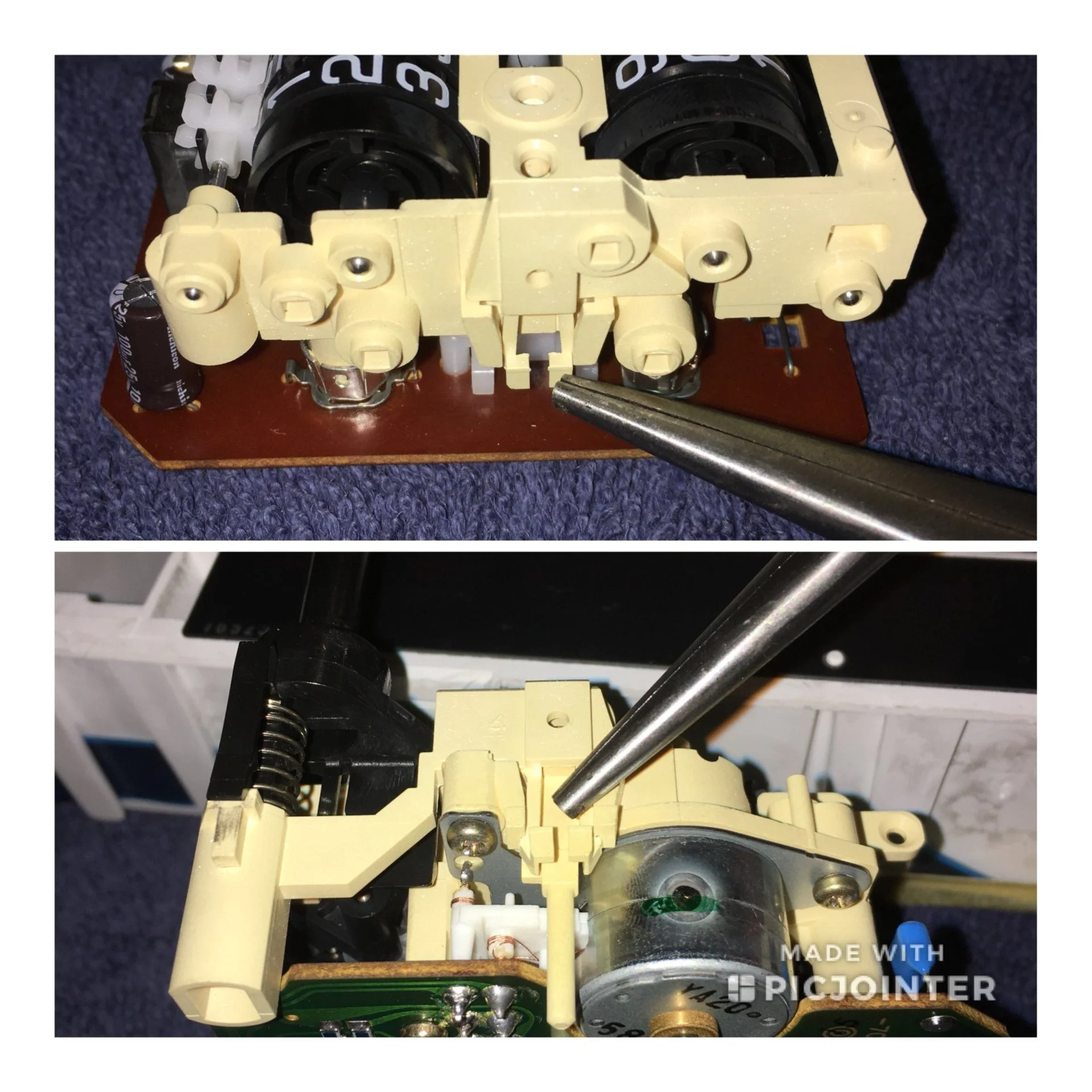

Now I had access to the trip dials and the internals. Be carful once the face is off due to the fragile nature of the wiring behind the gauge face. Next was to separate the trip odometer from the odometer and speedometer. This is done by holding two clips on either side of the assembly and lightly pulling up while you hold the clips together.

1927586

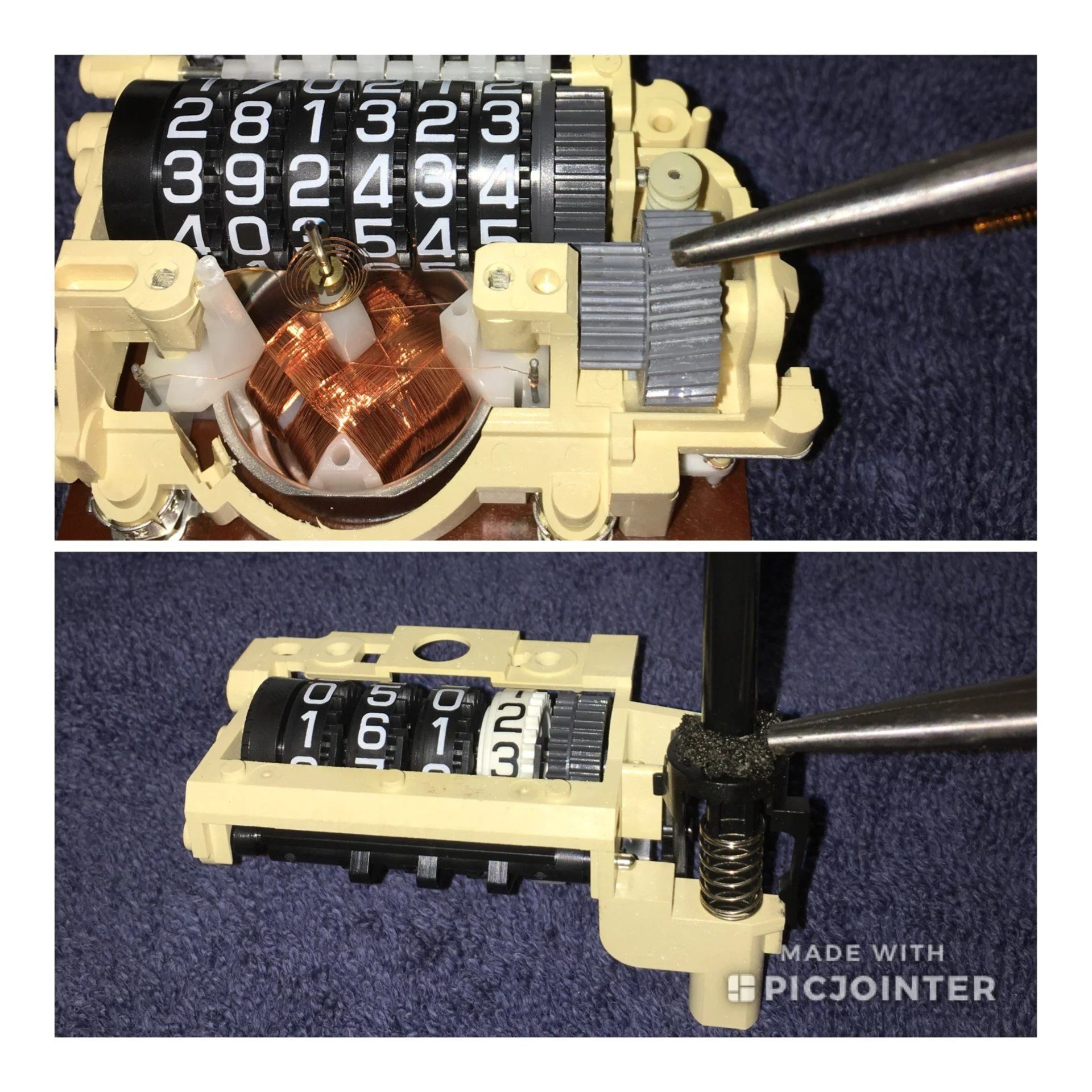

Now that they are separated I was able to clean the gears and inspect them for damage. I did not find any broken gears or anything visible blocking the drive motor preventing rotation. I checked this by unscrewing the two screws holding the motor to the board. Then positioned the motor in a way that would allow me to turn it without the worm gear being in contact with the drive gears. I then focused my attention on the trip odometer. I held the reset plunger in allowing me to rotate the barrel of numbers noticing that every time I passed the 9.9, 19.9 29.9, 39.9....... it would have resistance. I exercised the dials for about 2 minutes and noticed that I had black foam falling out of the gears as I would spin them. I then hit it with some compressed air and found a piece of foam had come dislodged from the gears. I was able to pull it out and now the barrel rotated freely. looking around I found the culprit! It was the dust seal on the reset plunger . It appears it had degraded and a peace of the foam had found its way into the tens position of the trip odometer. Every time the dial would try to rotate 10s,20s,30s....... it would create enough resistance that the motor could not over come it anymore.

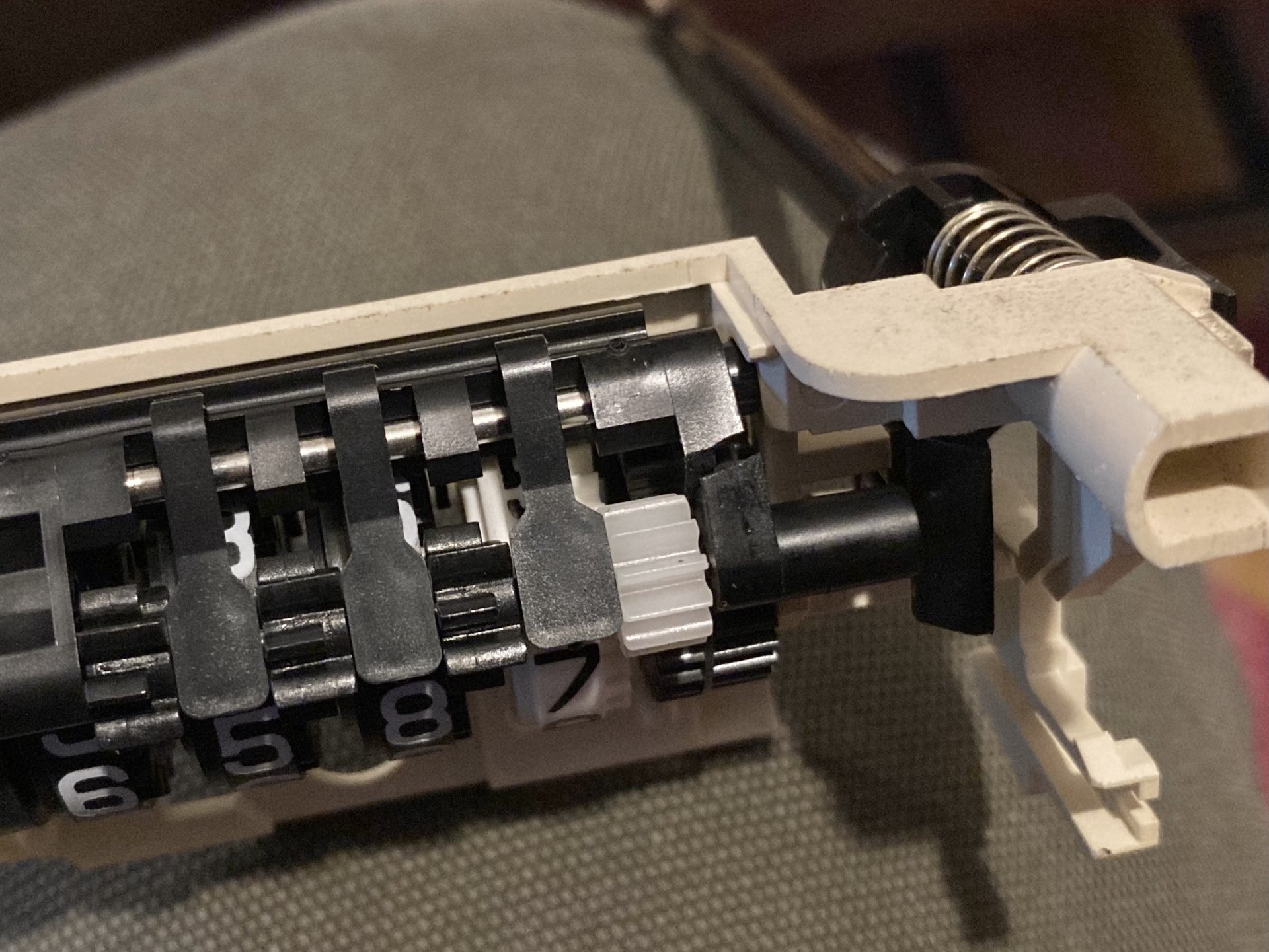

1927593


Now off to chase the P0401 code..........

Last edited:

80t0ylc

Hill & Gully Rider
SILVER Star

Joined
Sep 24, 2008
Messages
2,822
Location
Canyon City, OR
Wow, thanks for the detailed write up! I need to fix my trip odometer and this will give me a good reference to work from. Being an old fart, my hands shake more than they used to and the eyes aren't quite as sharp, but I'd like to have my trip meter back. Put this on the list of things to fix. After it gets a little warmer outside. Good luck with the P0401!

Joined
Jul 27, 2011
Messages
4
Location
Evensville, TN
One thing to remember when putting the speedometer needle back on, make sure that you do not press the needle to far onto the pin. This will cause friction between the gauge face and needle body, not allowing the needle to "spring return" to 0mph. You should be able to raise the needle and it fall smoothly back to 0mph.

Joined
Dec 29, 2016
Messages
314
Location
Lawrence KS
My trip odometer has a broken piece of plastic that the reset button connects to. I have tried to use plastic epoxy to repair it a few times and it continues to break.. Any idea where I could find just the trip odometer to replace? It really is annoying not to have it.. And thanks for the great write up..


Box Rocket

SILVER Star


Joined
Jan 2, 2003
Messages
4,118
Location
Syracuse, Utah
Excellent! Thank you for documenting this so nicely. I've had a similar issue with my trip odometer and this gives me a good place to start.

Joined
Jul 27, 2011
Messages
4
Location
Evensville, TN
My trip odometer has a broken piece of plastic that the reset button connects to. I have tried to use plastic epoxy to repair it a few times and it continues to break.. Any idea where I could find just the trip odometer to replace? It really is annoying not to have it.. And thanks for the great write up..
I would find someone who is parting out their LC here on the Classifieds. Or if you are on Facebook you can join a Local/US LC club/group page. Here in the South East we have a few good pages with plenty of helpful people that would ship you a Speedometer.

Joined
May 12, 2015
Messages
255
Location
Ca
My trip odometer has a broken piece of plastic that the reset button connects to. I have tried to use plastic epoxy to repair it a few times and it continues to break.. Any idea where I could find just the trip odometer to replace? It really is annoying not to have it.. And thanks for the great write up..
Mine did the same thing and I had to end up buying a full cluster to pull the unit from.


Inukshuk

SILVER Star

Joined
May 2, 2006
Messages
155
Location
Denver
Thank you for the specific pictures on removing the needle!

I just pulled apart the spare I bought and found where the trip ODO was also broken. I'll post more after I get another.
