Red Line- Customers 45LV Resto Mod Build " Pope's rig" (3 Viewers)

[RLMS]

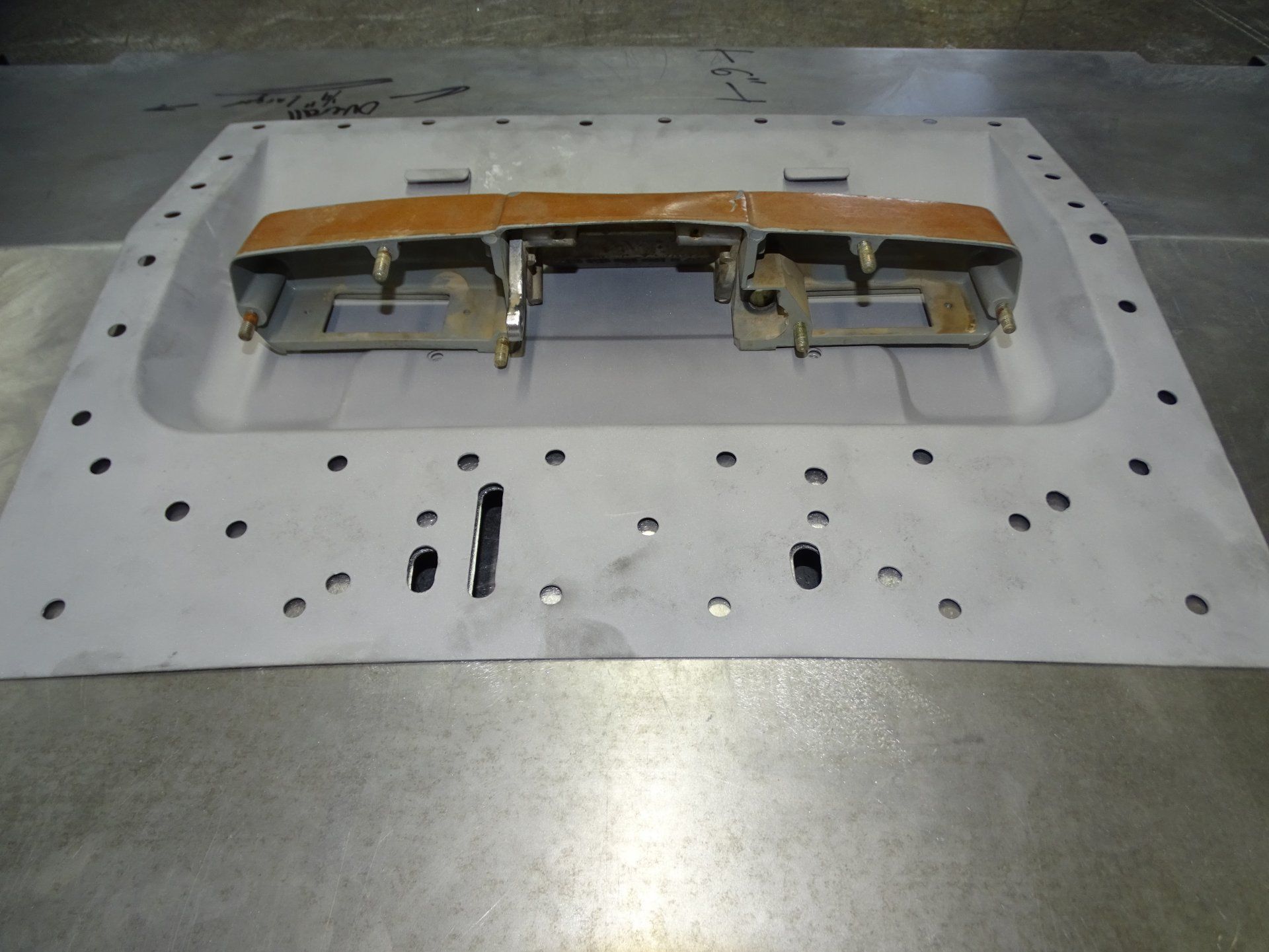

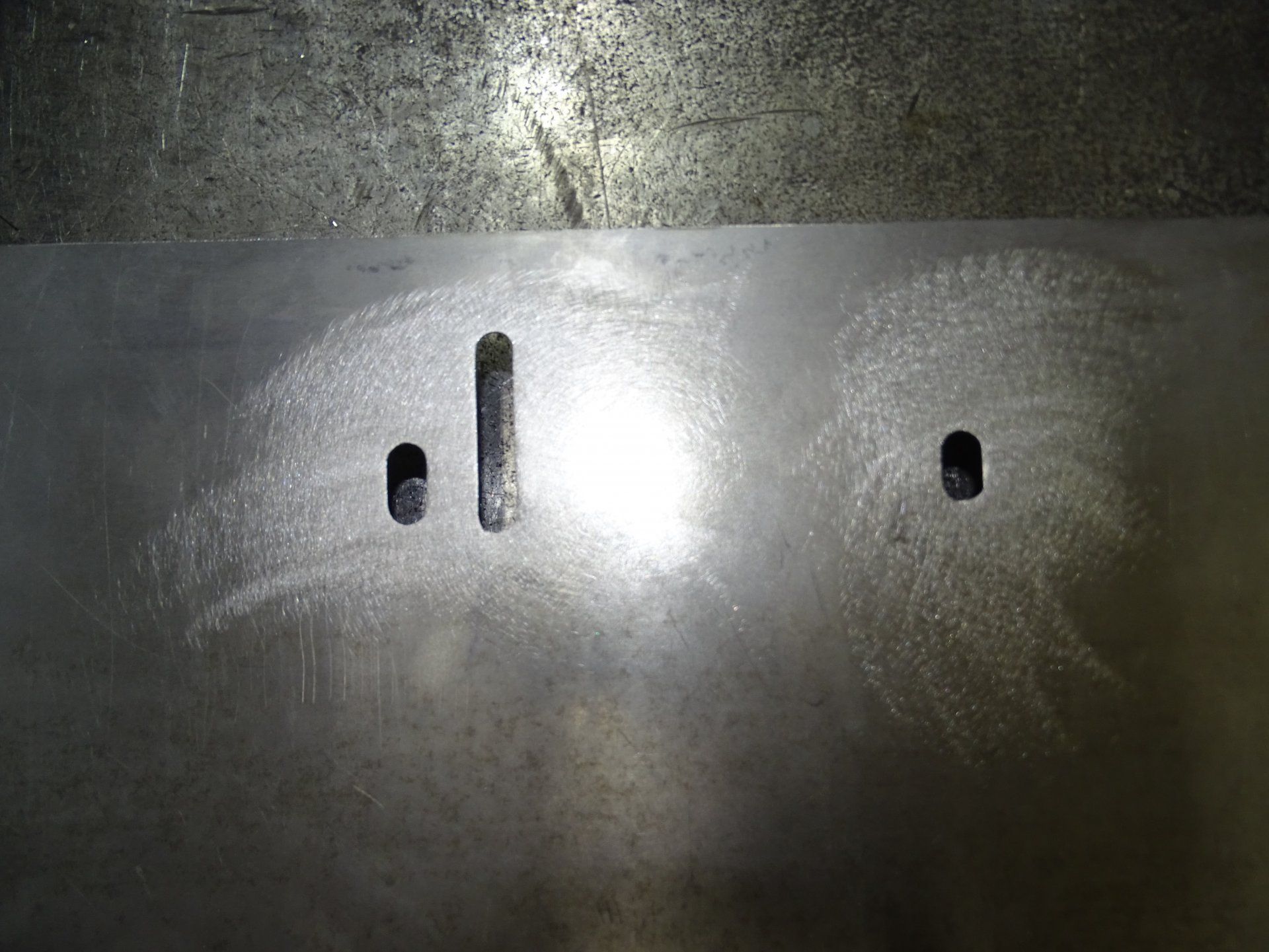

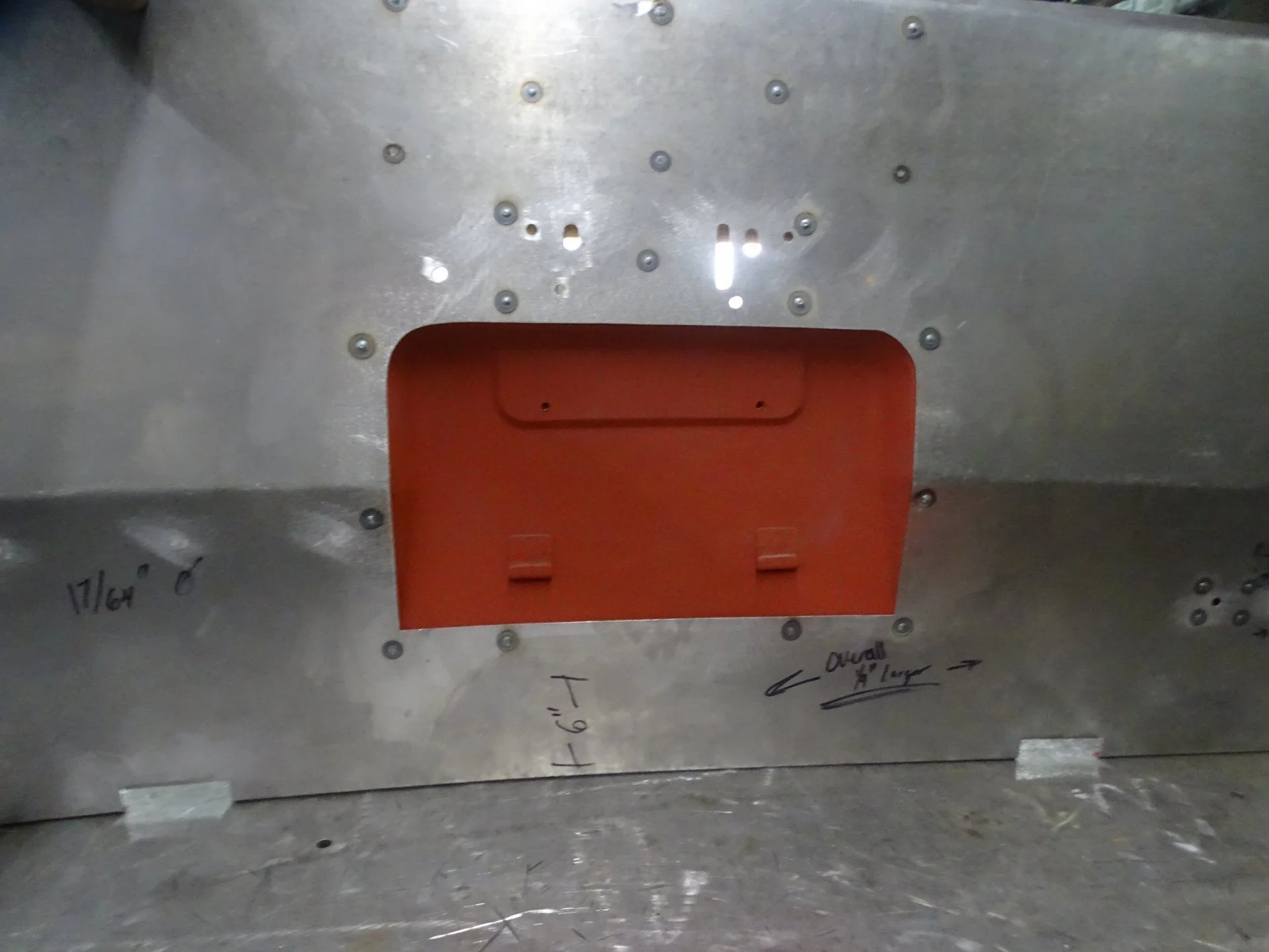

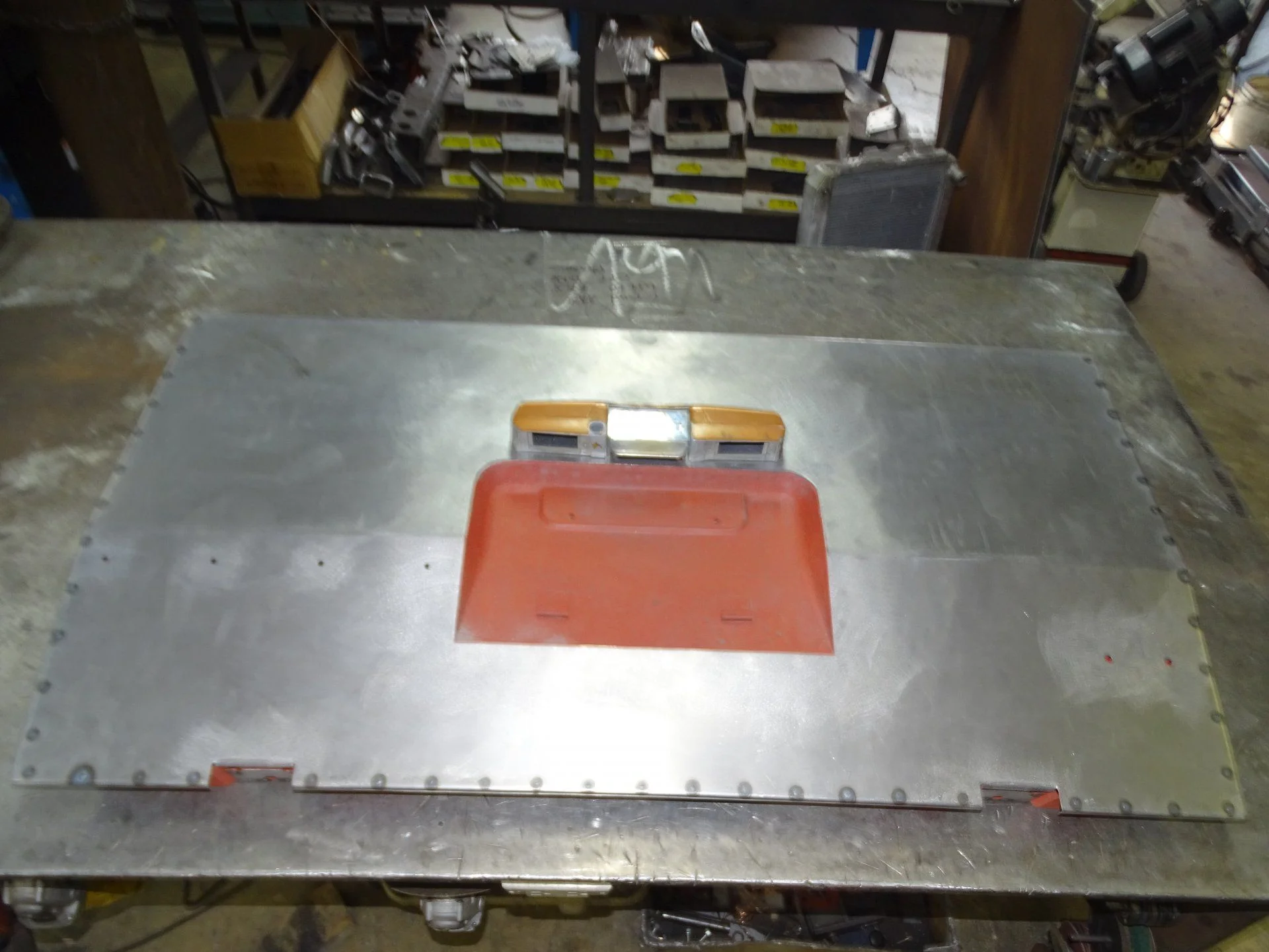

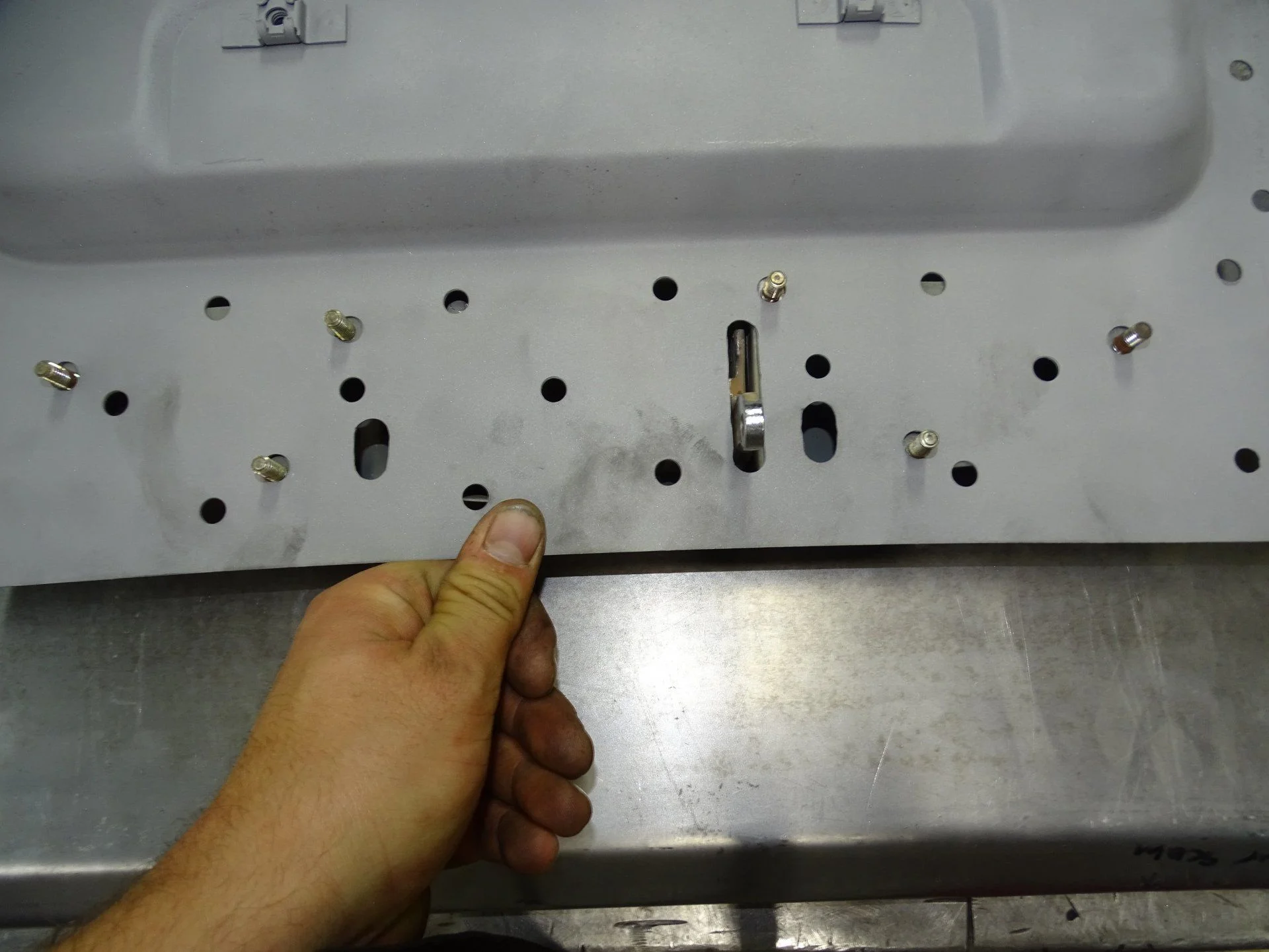

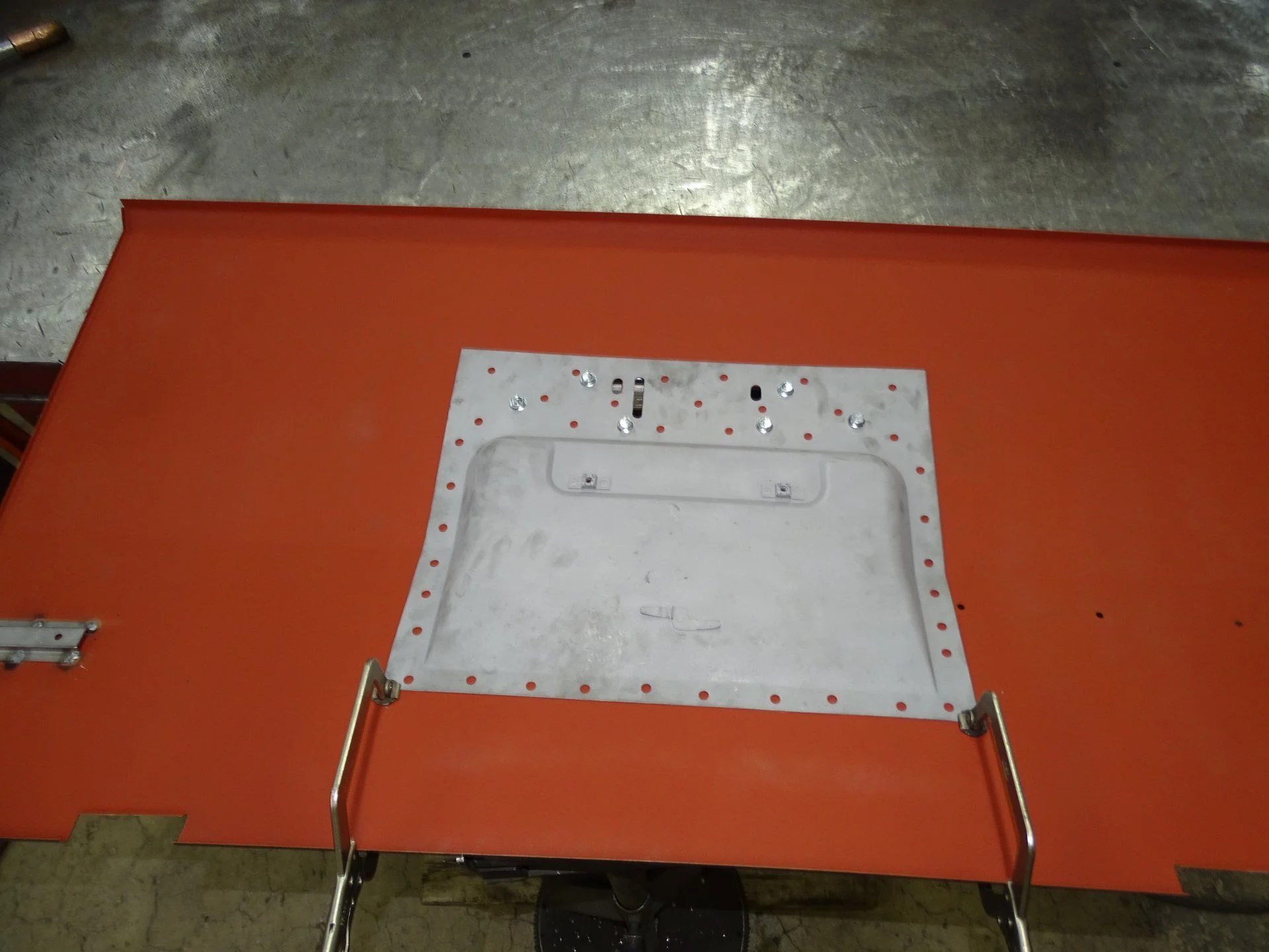

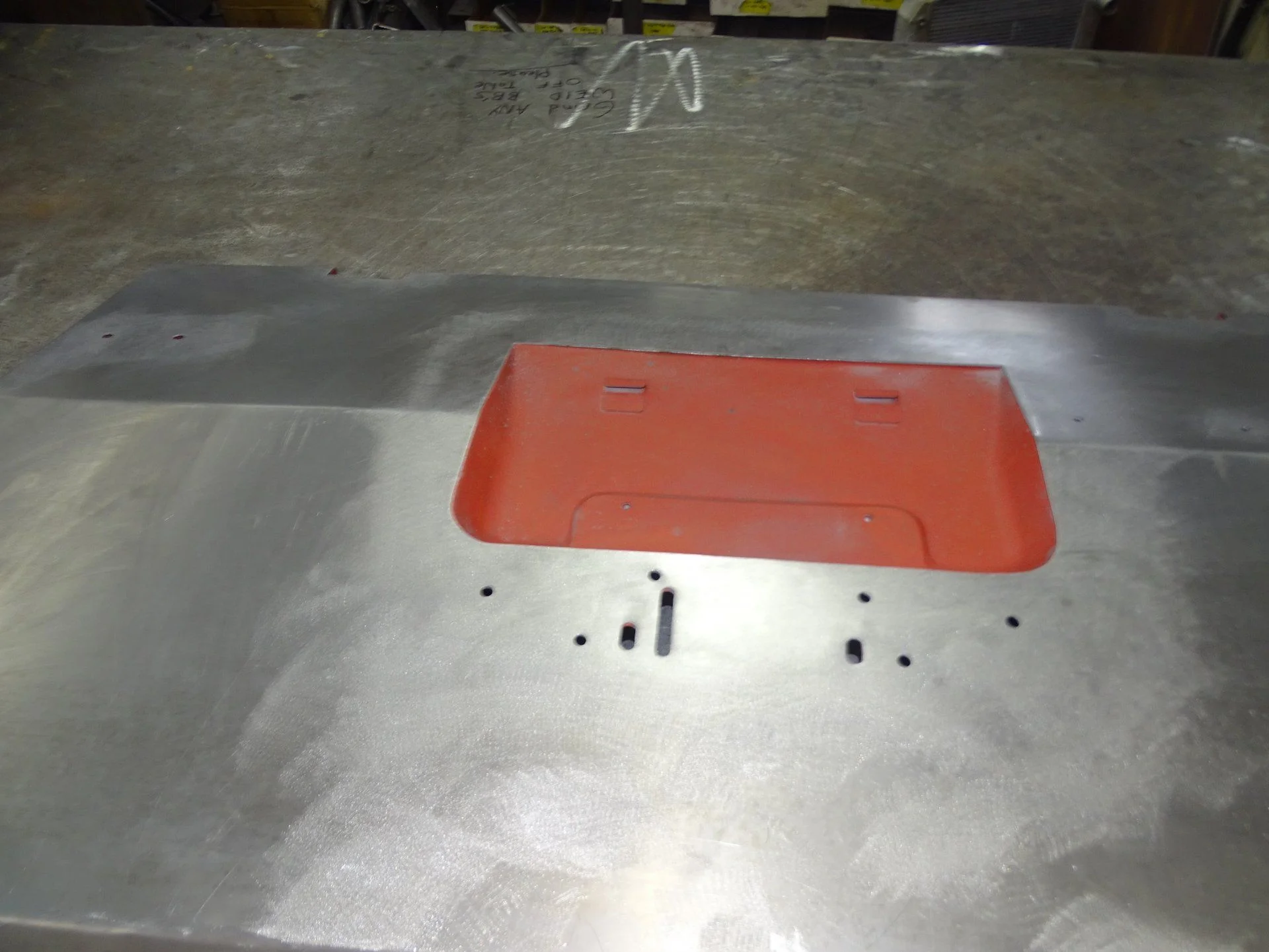

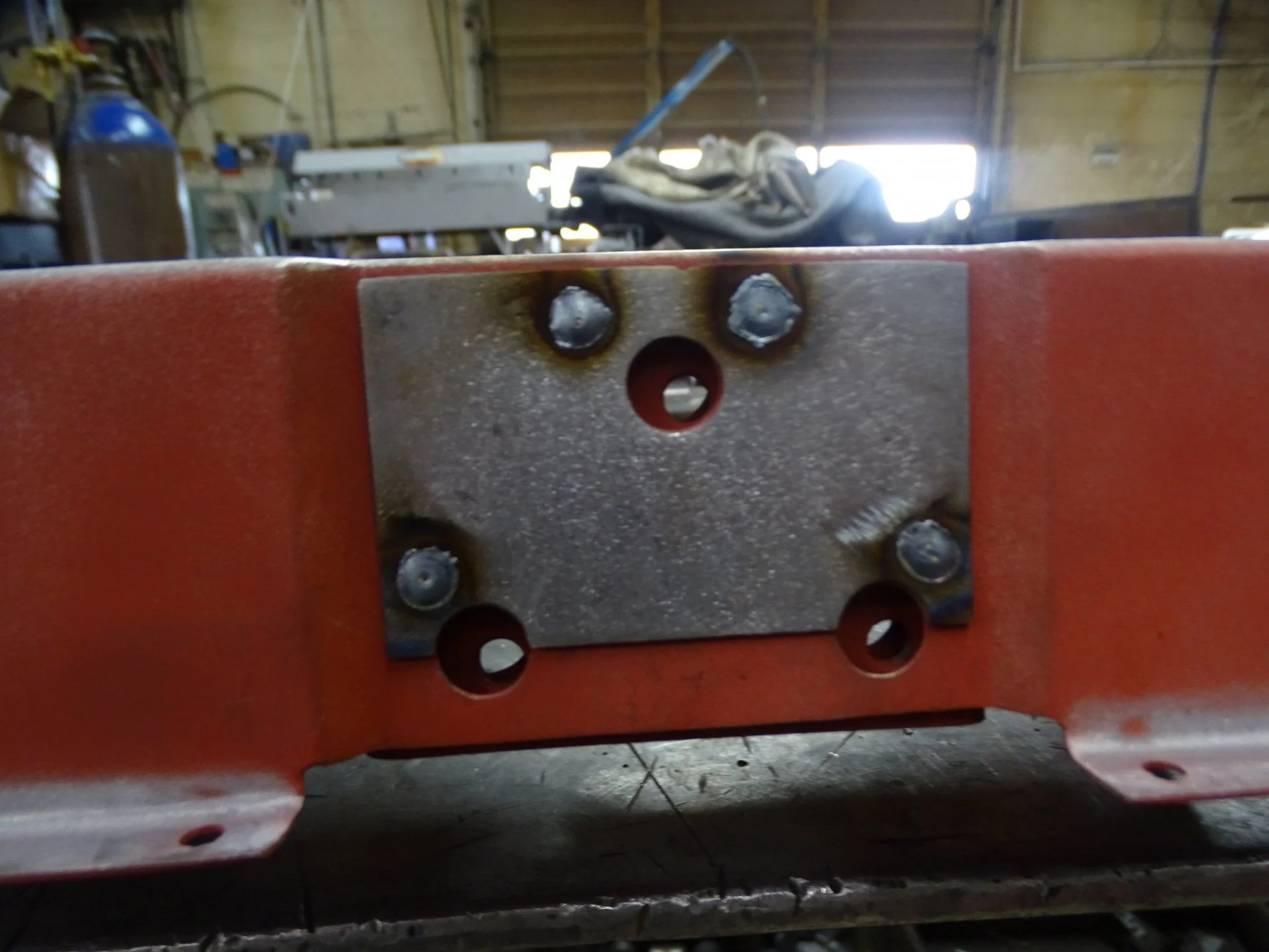

Checking fitment of the LP plate with the handle



[RLMS]

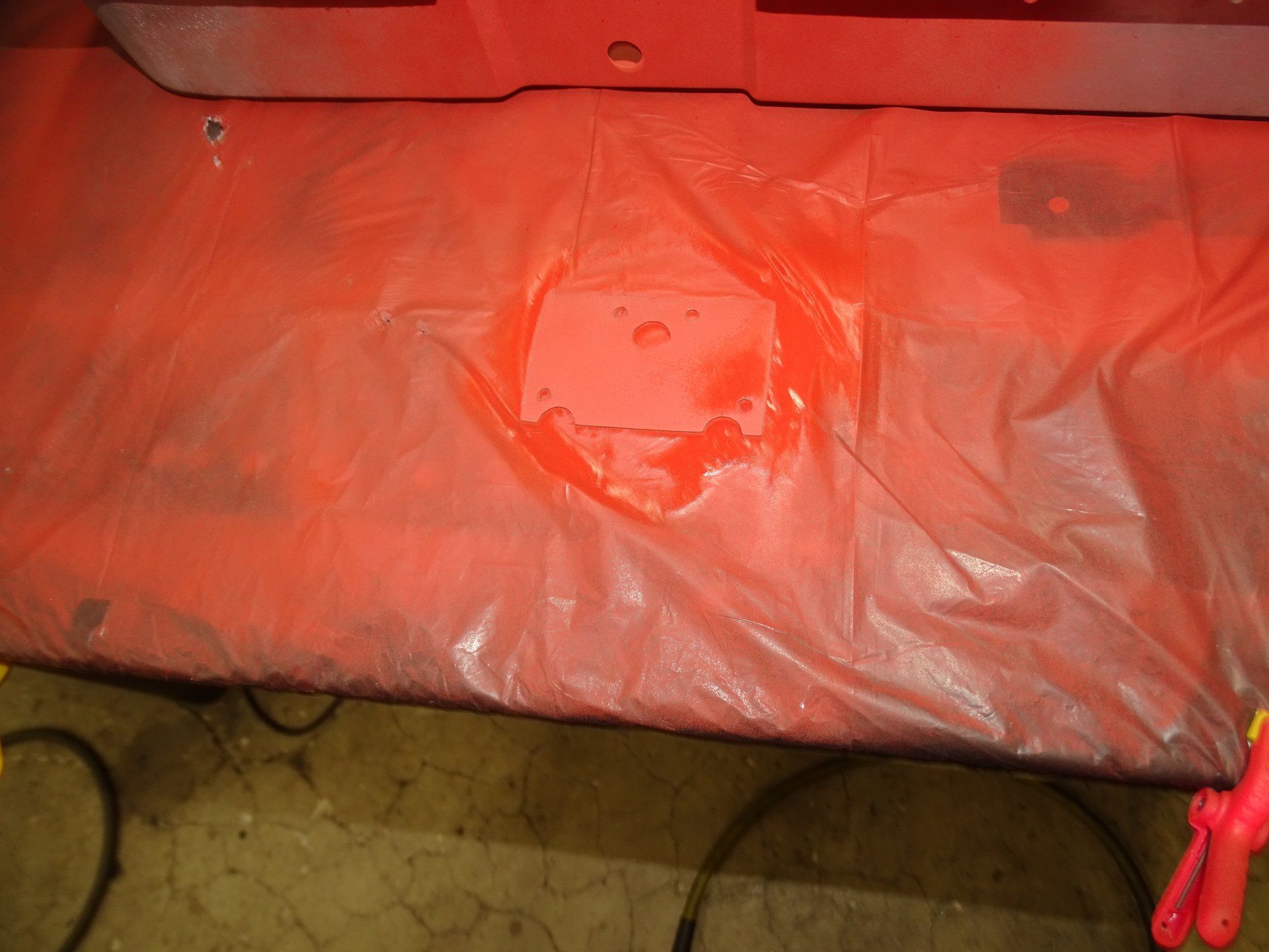

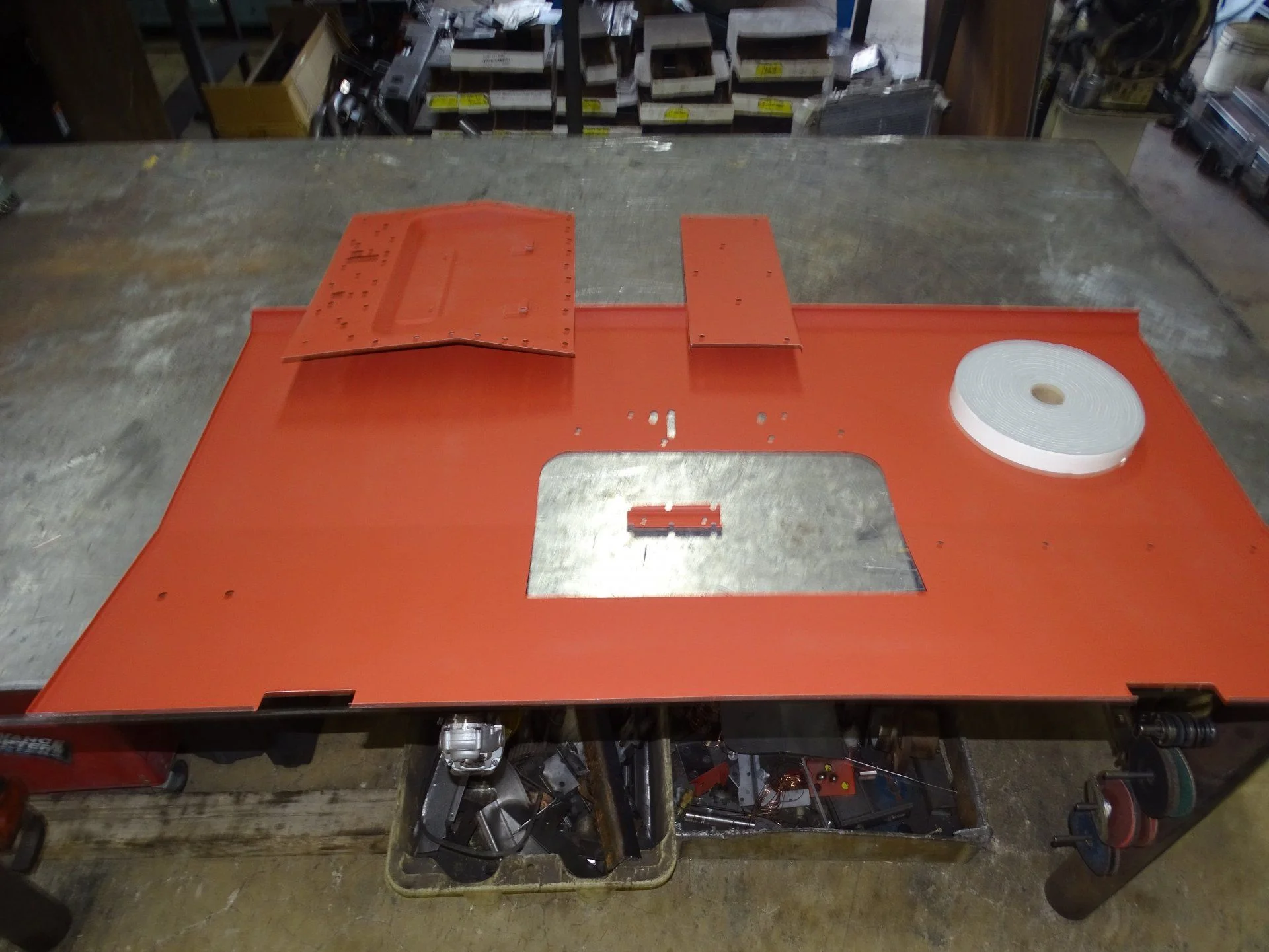

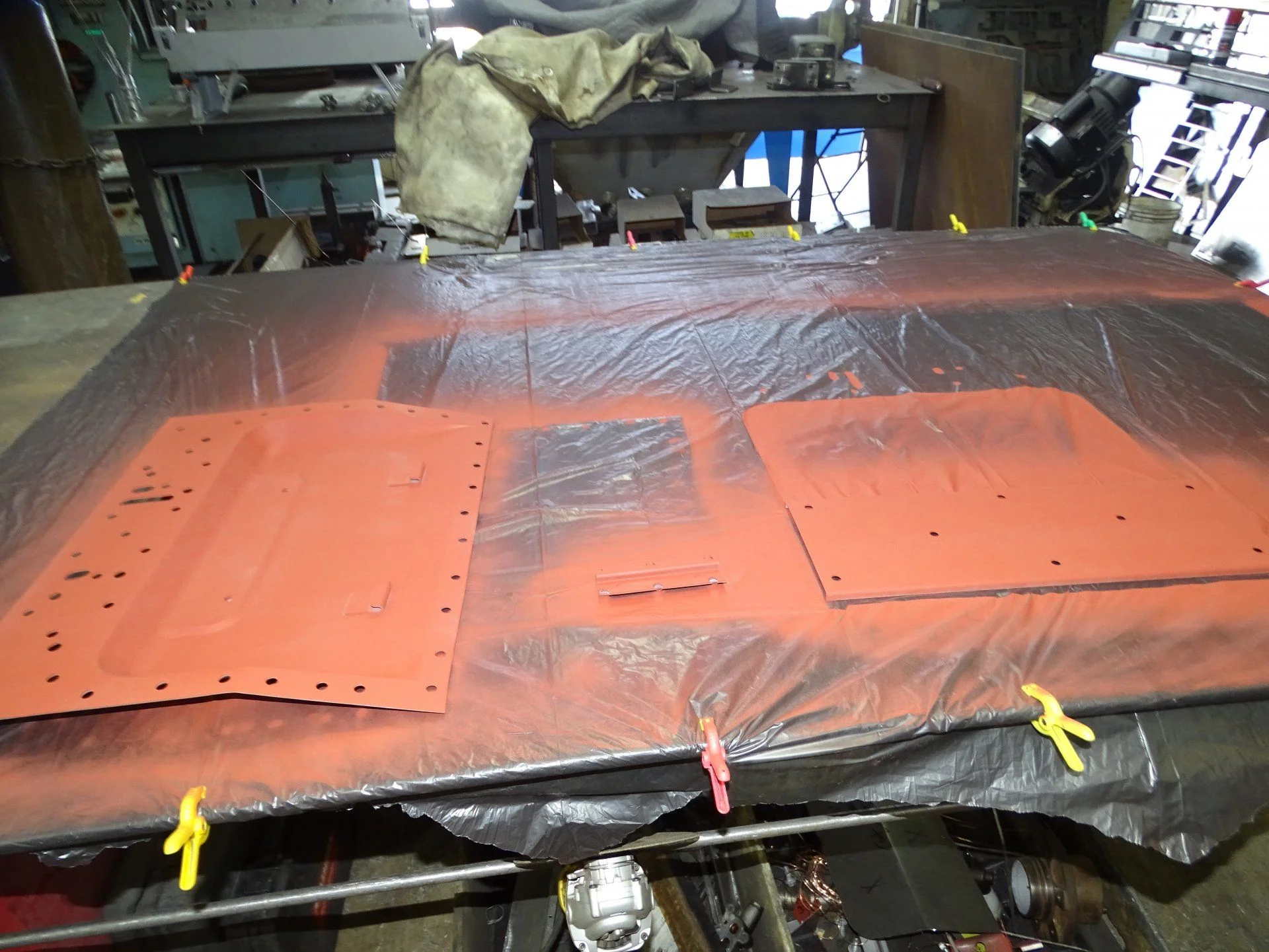

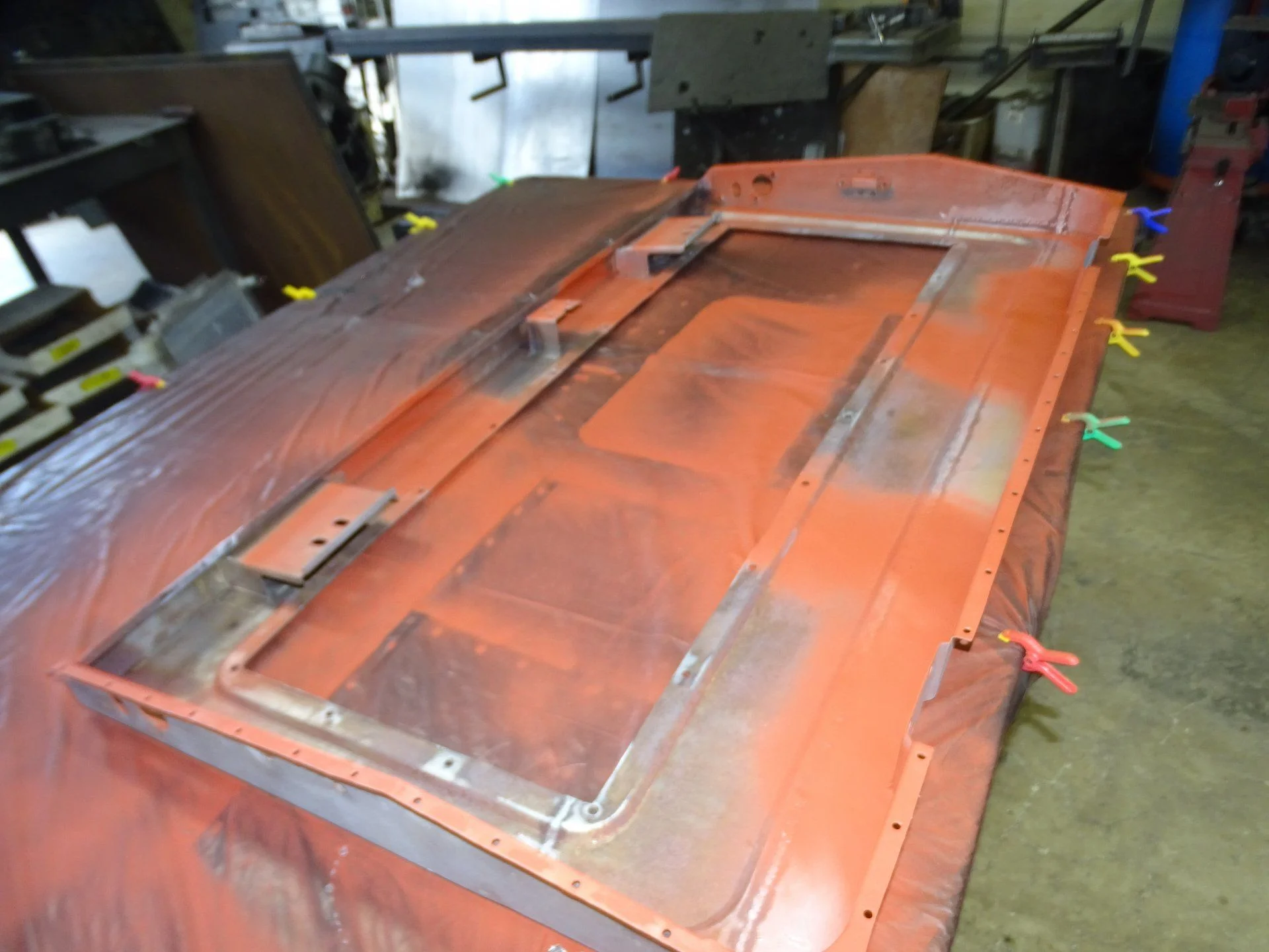

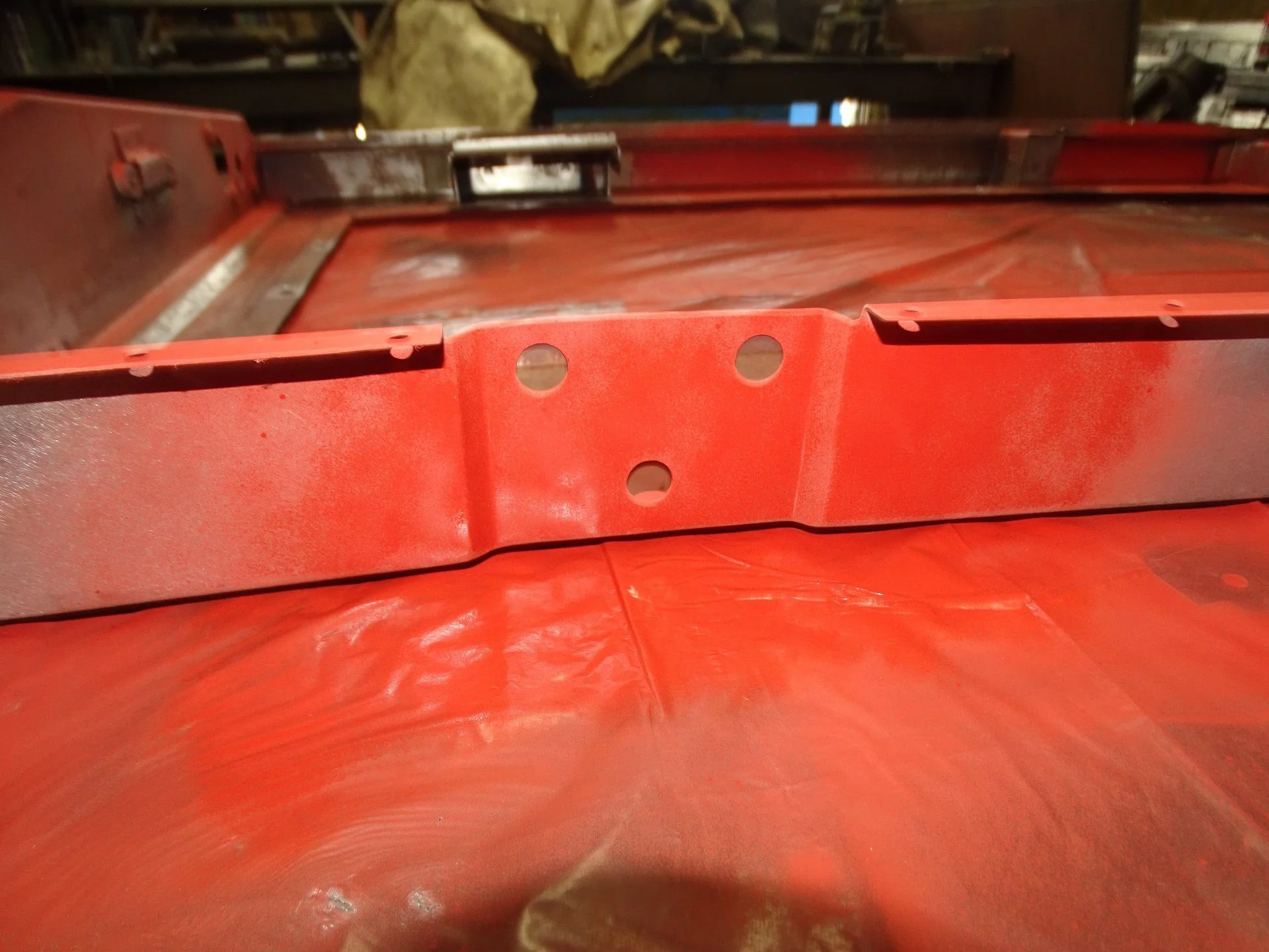

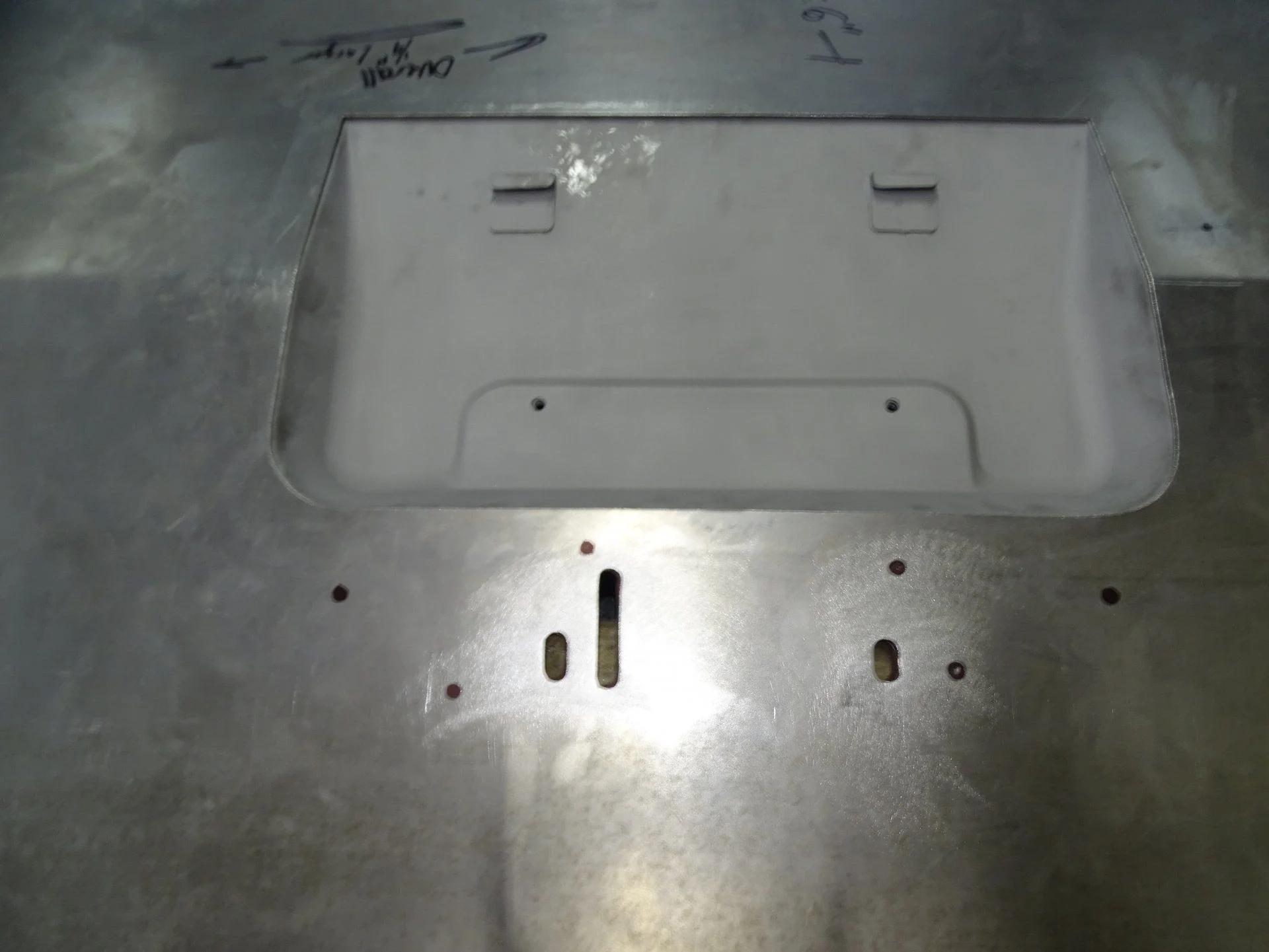

SEM Primer does not require a paint booth so It got a little" dusty" in the air for a bit



[RLMS]

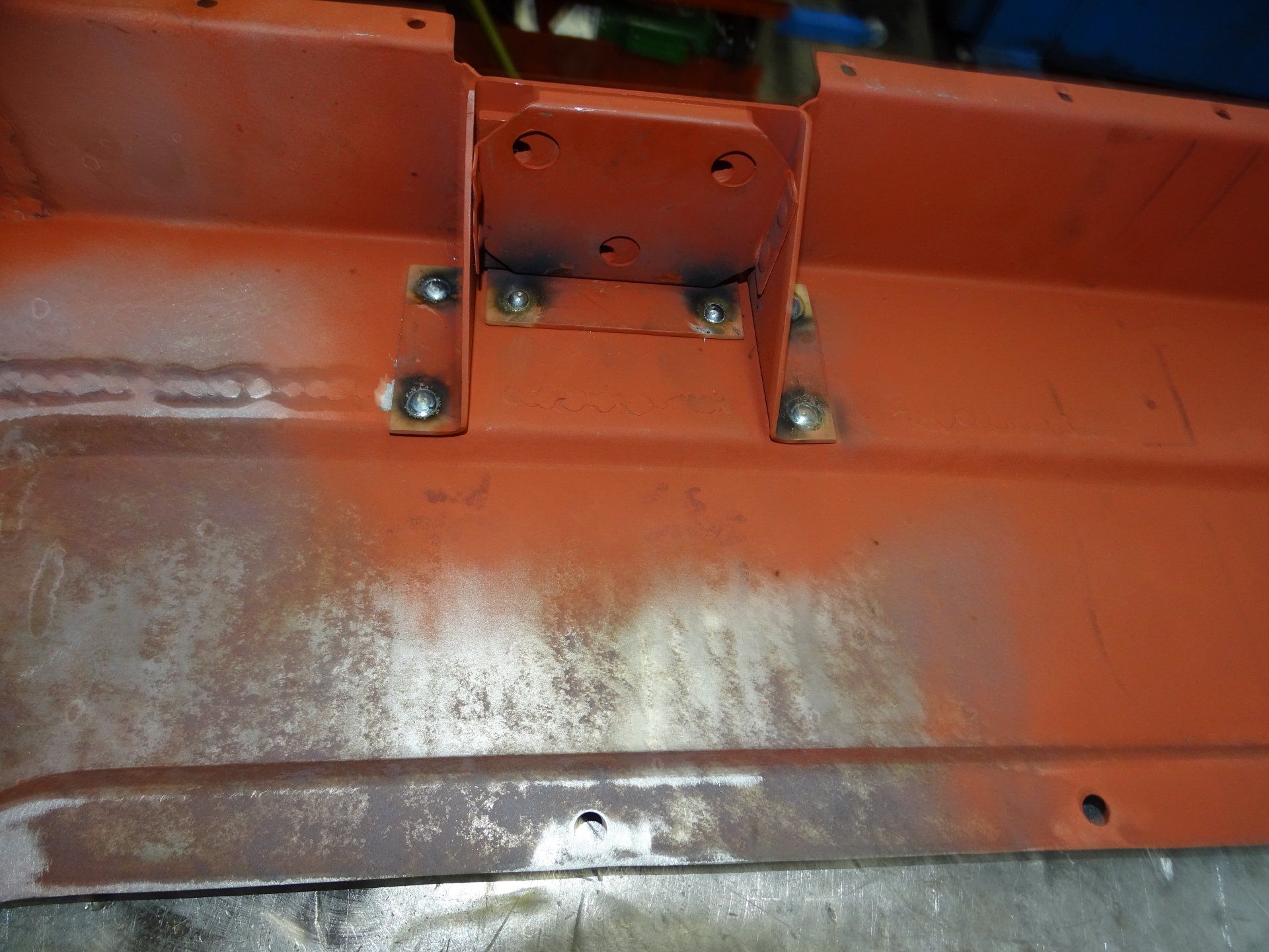

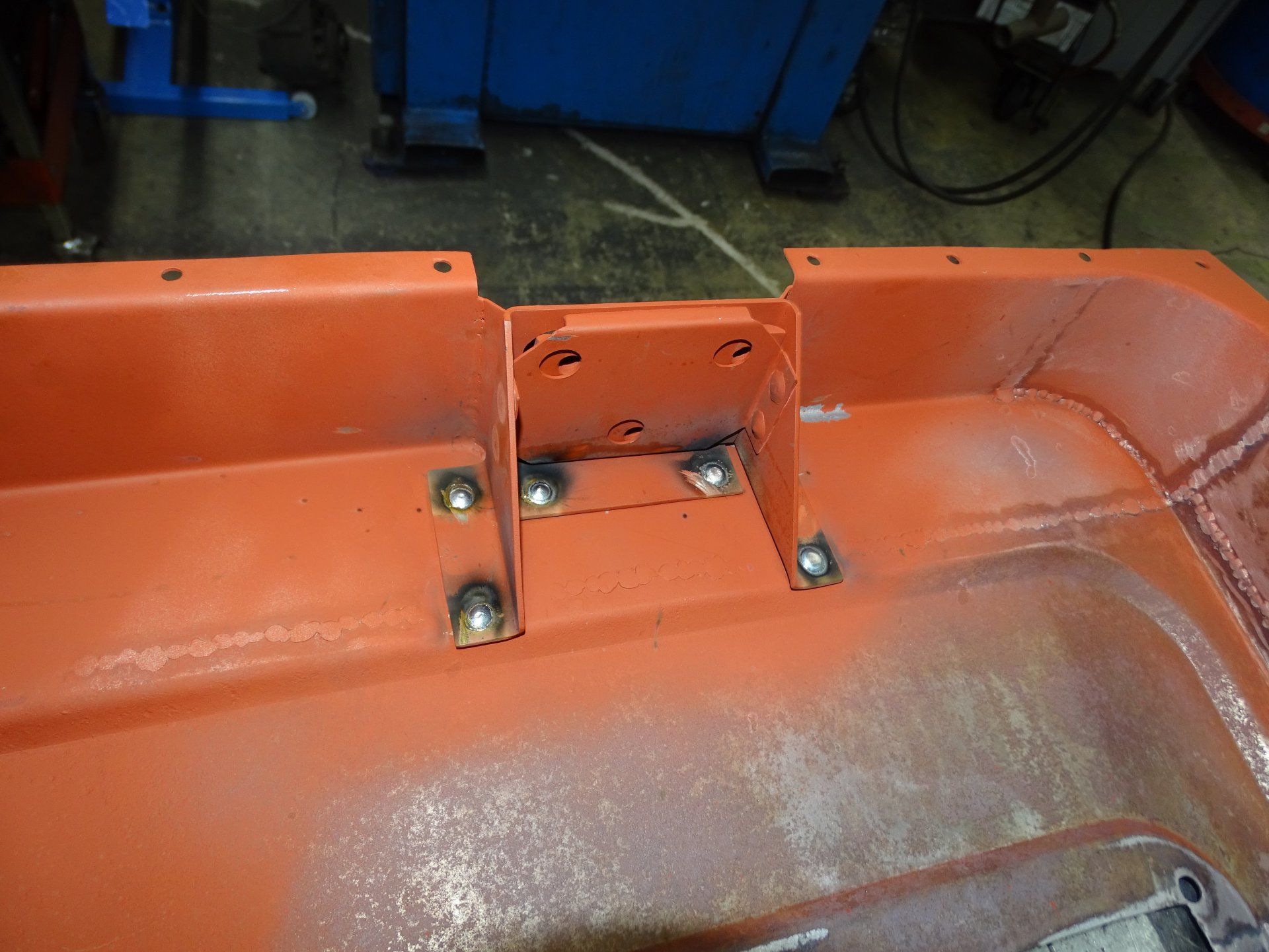

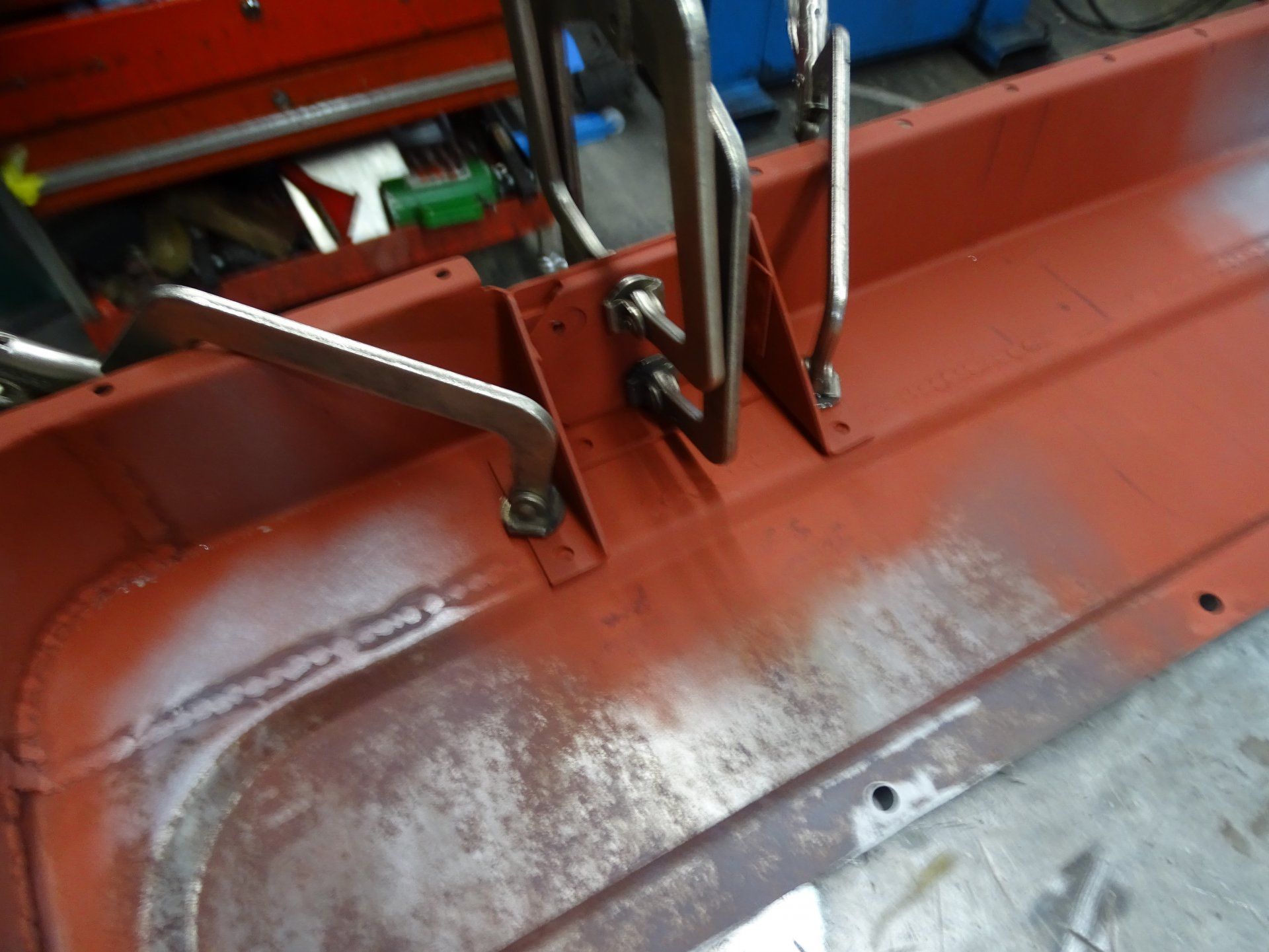

It welds right through very well with no voracity!



[47coeman]

It welds right through very well with no voracity!

View attachment 2548175

View attachment 2548176

View attachment 2548177

View attachment 2548178

View attachment 2548179

Where is this product available, need to get some.



[scrapdaddy]

I just ordered some, too...

Amazon product ASIN B00B3I1TTE



[RLMS]

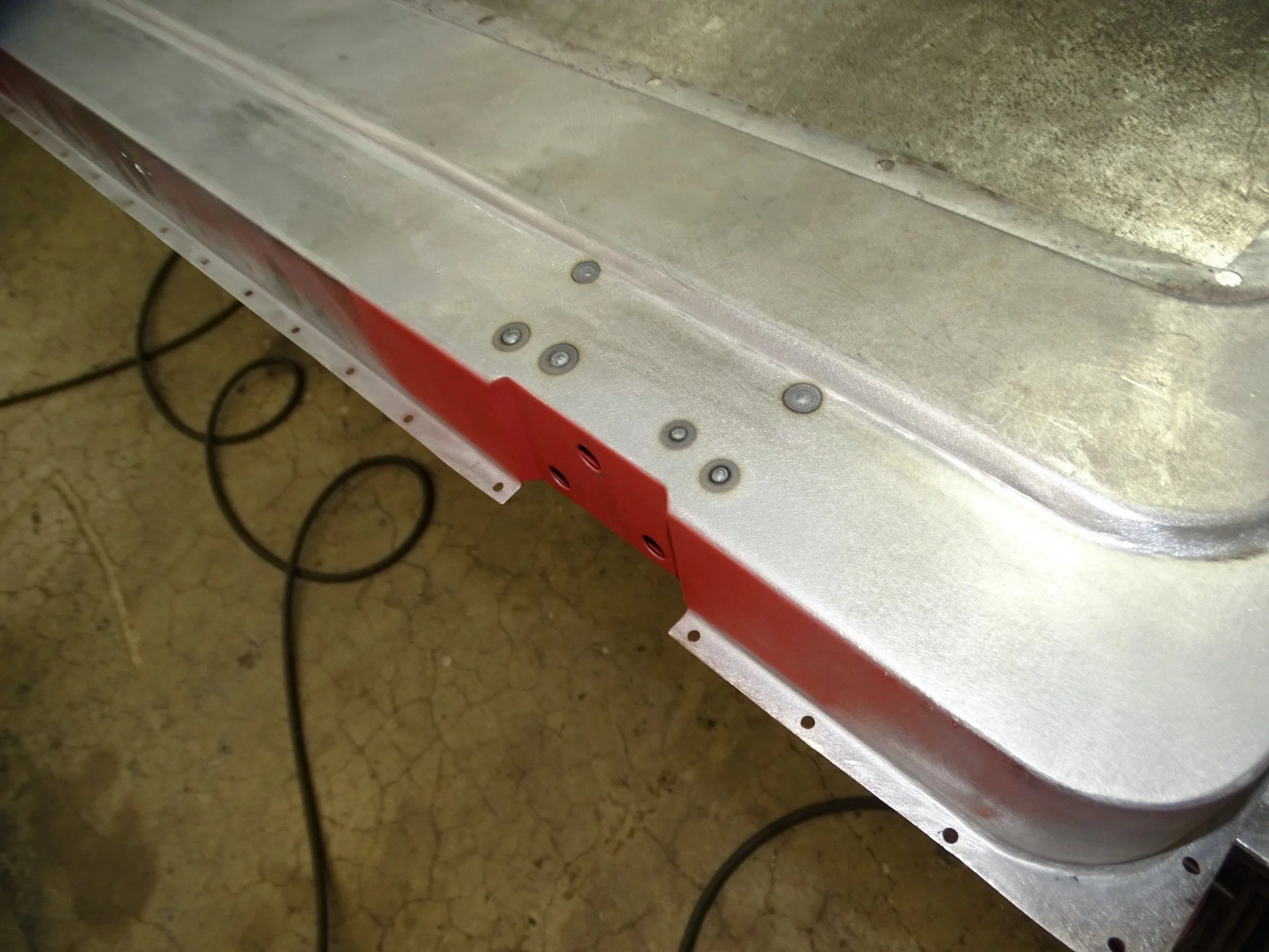

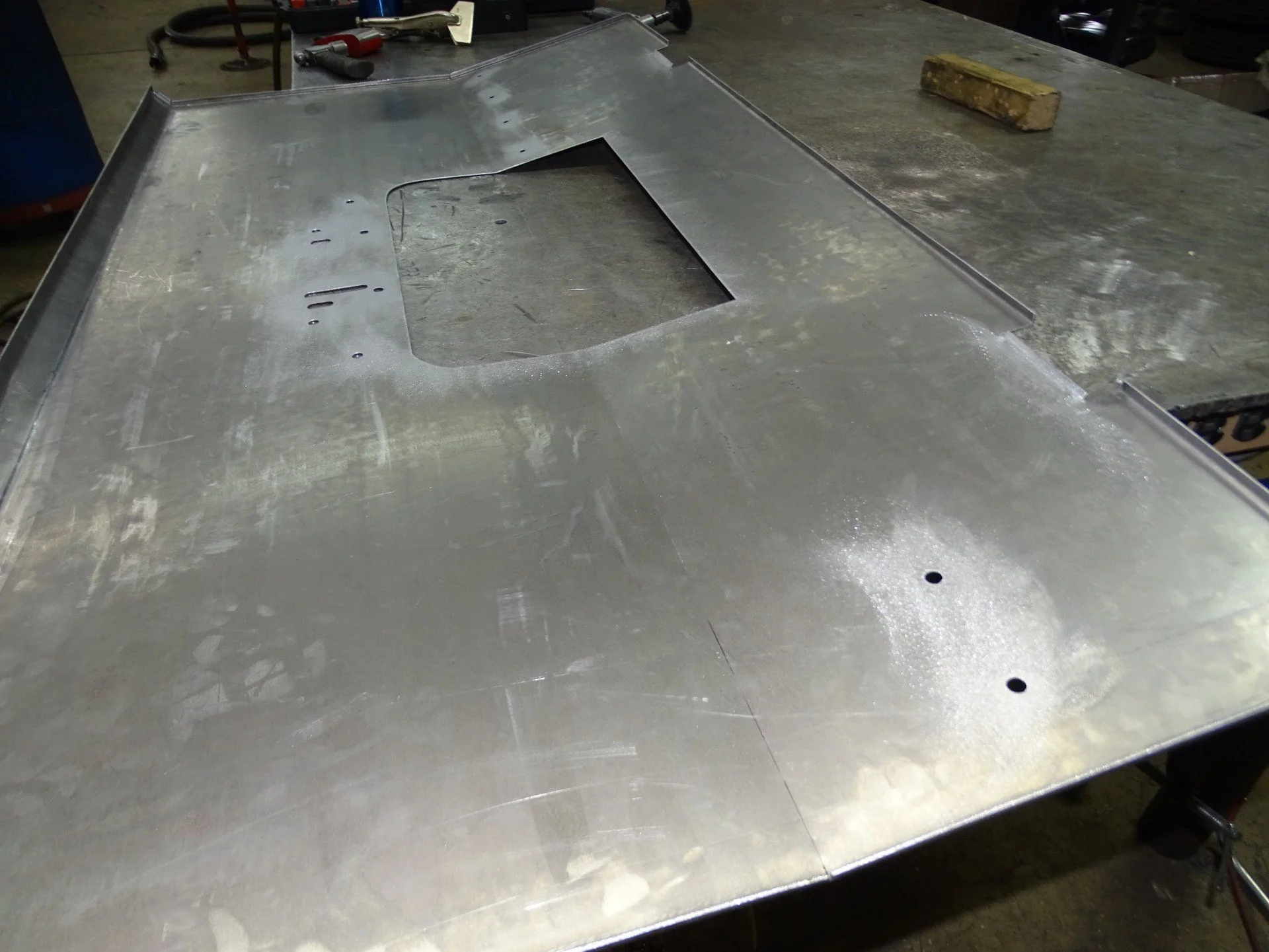

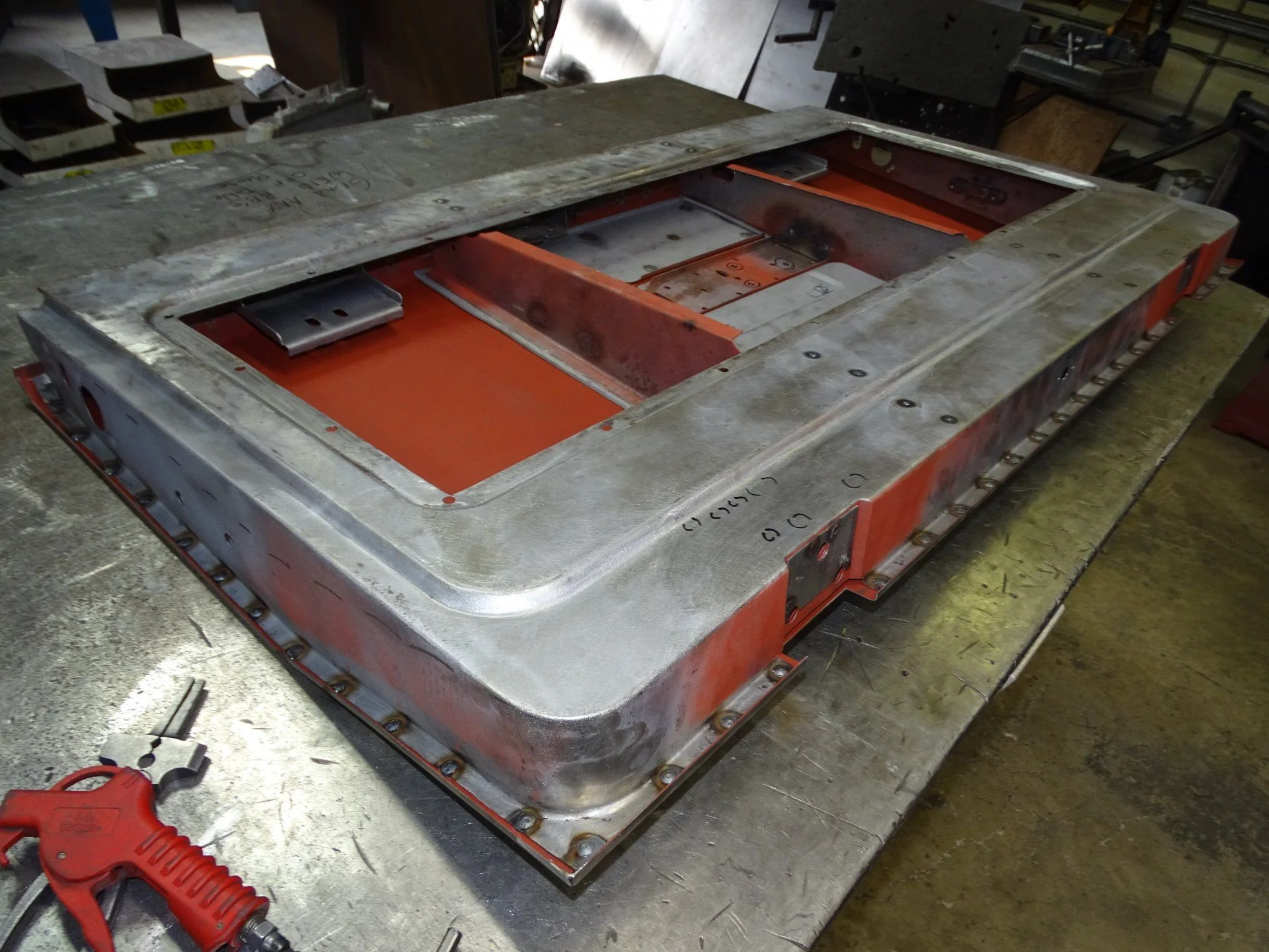

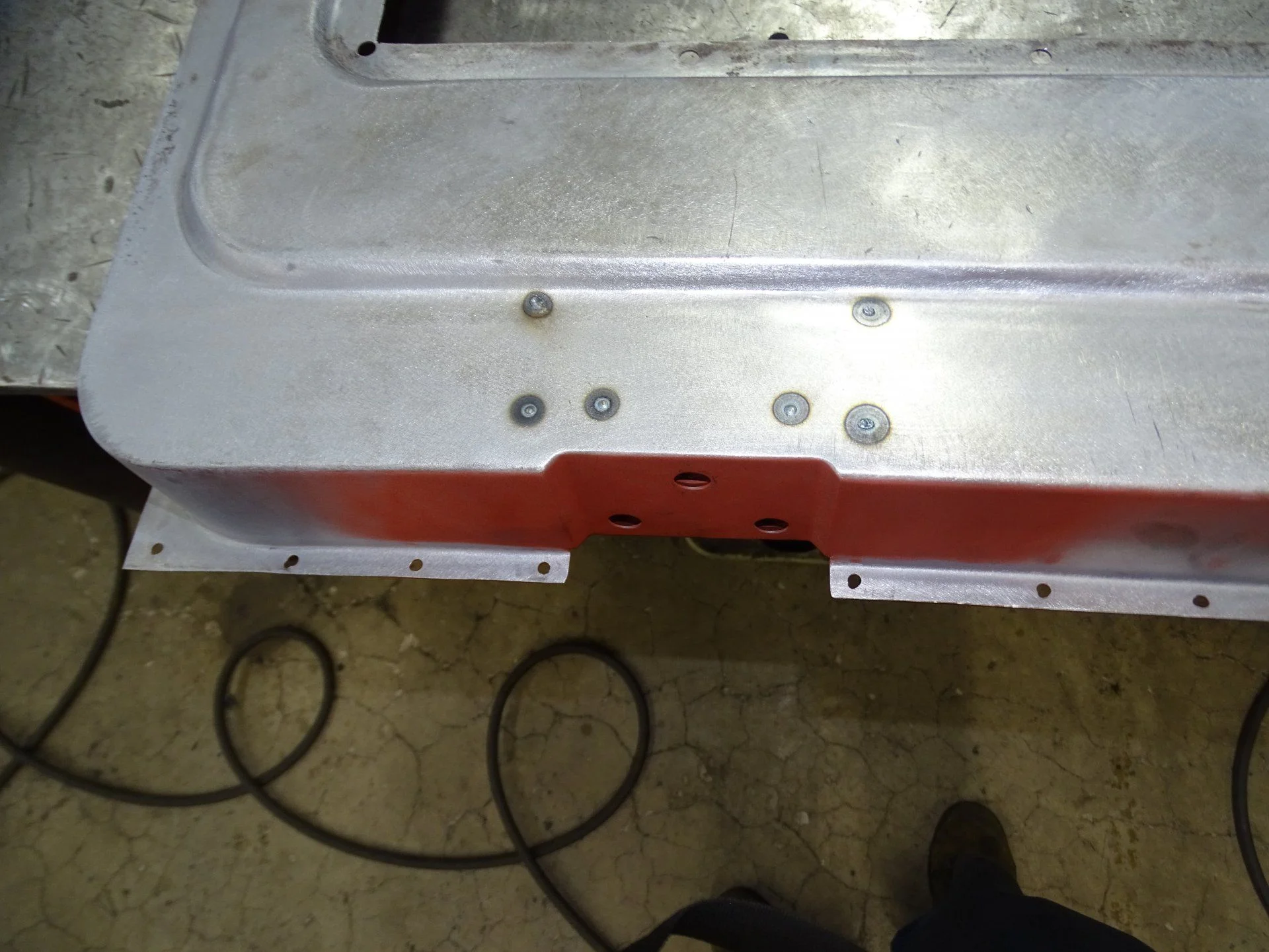

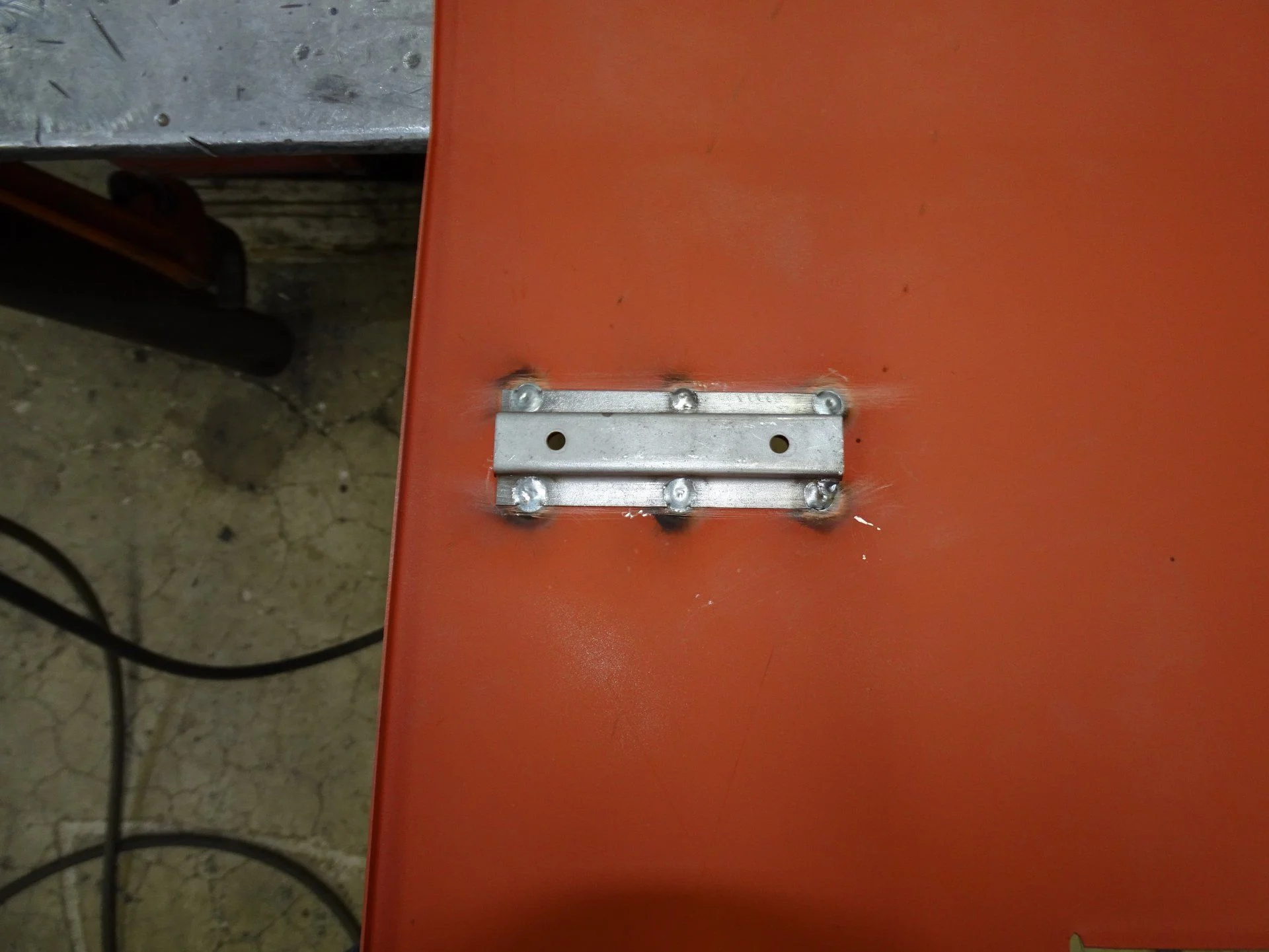

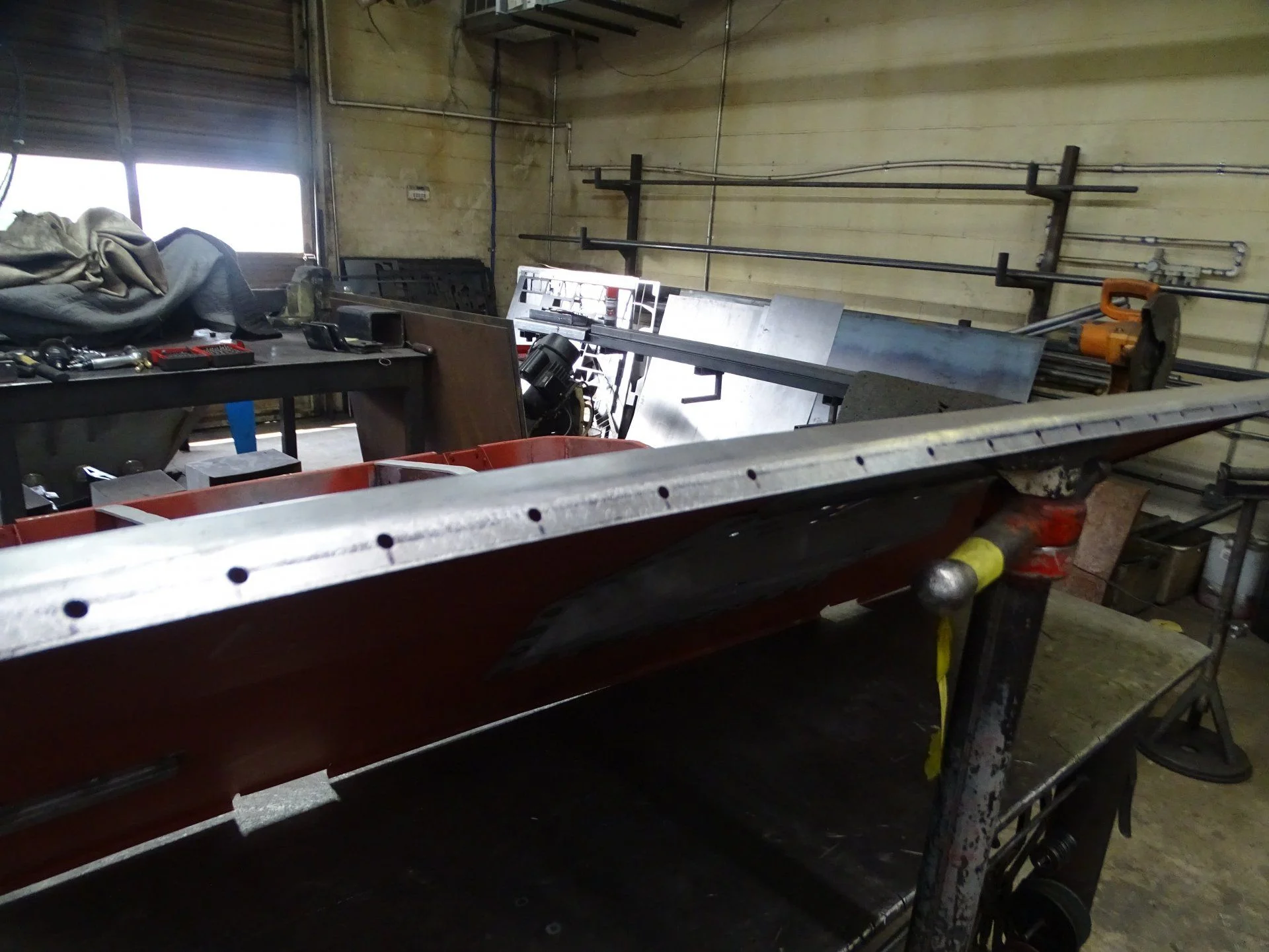

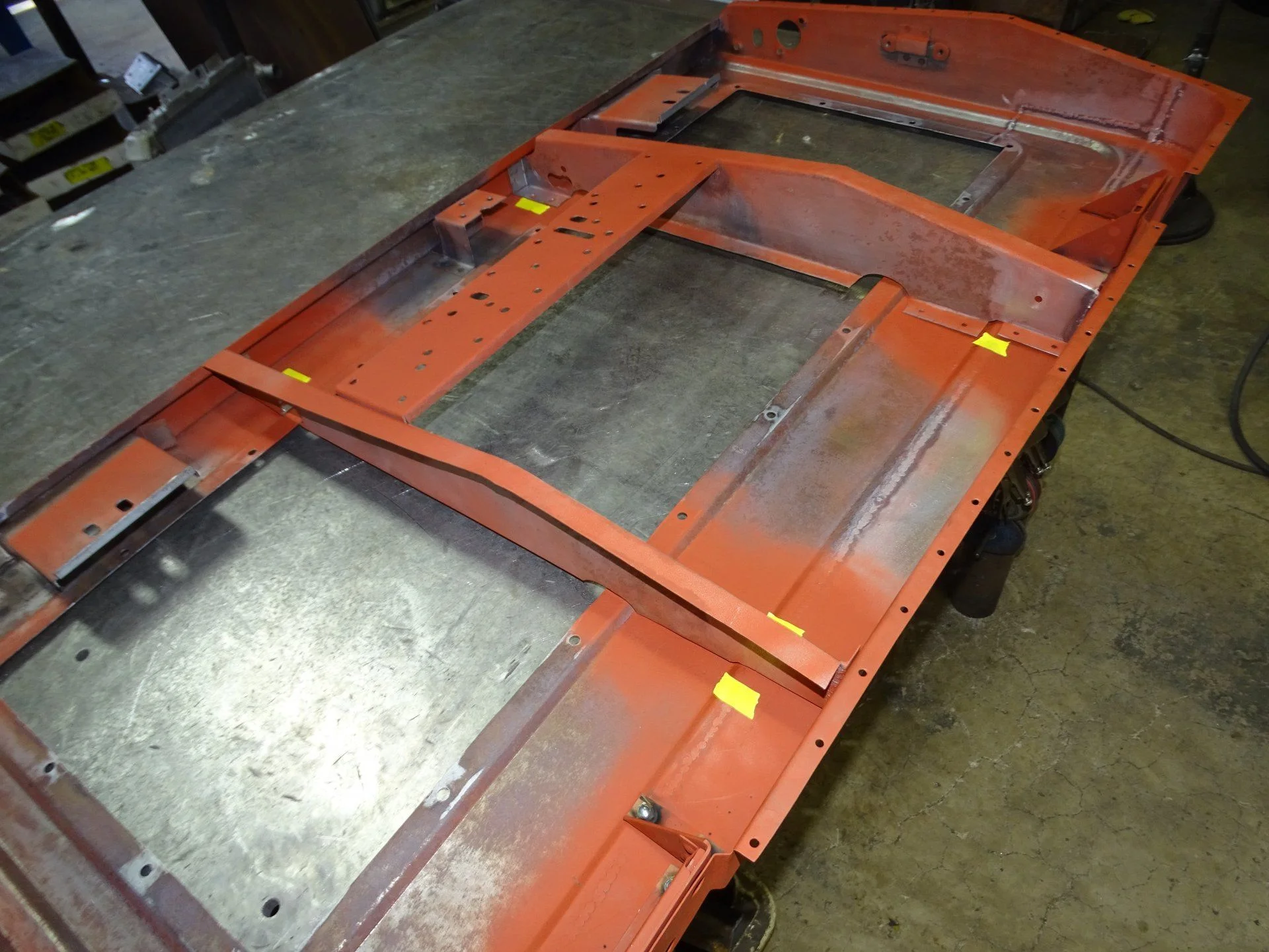

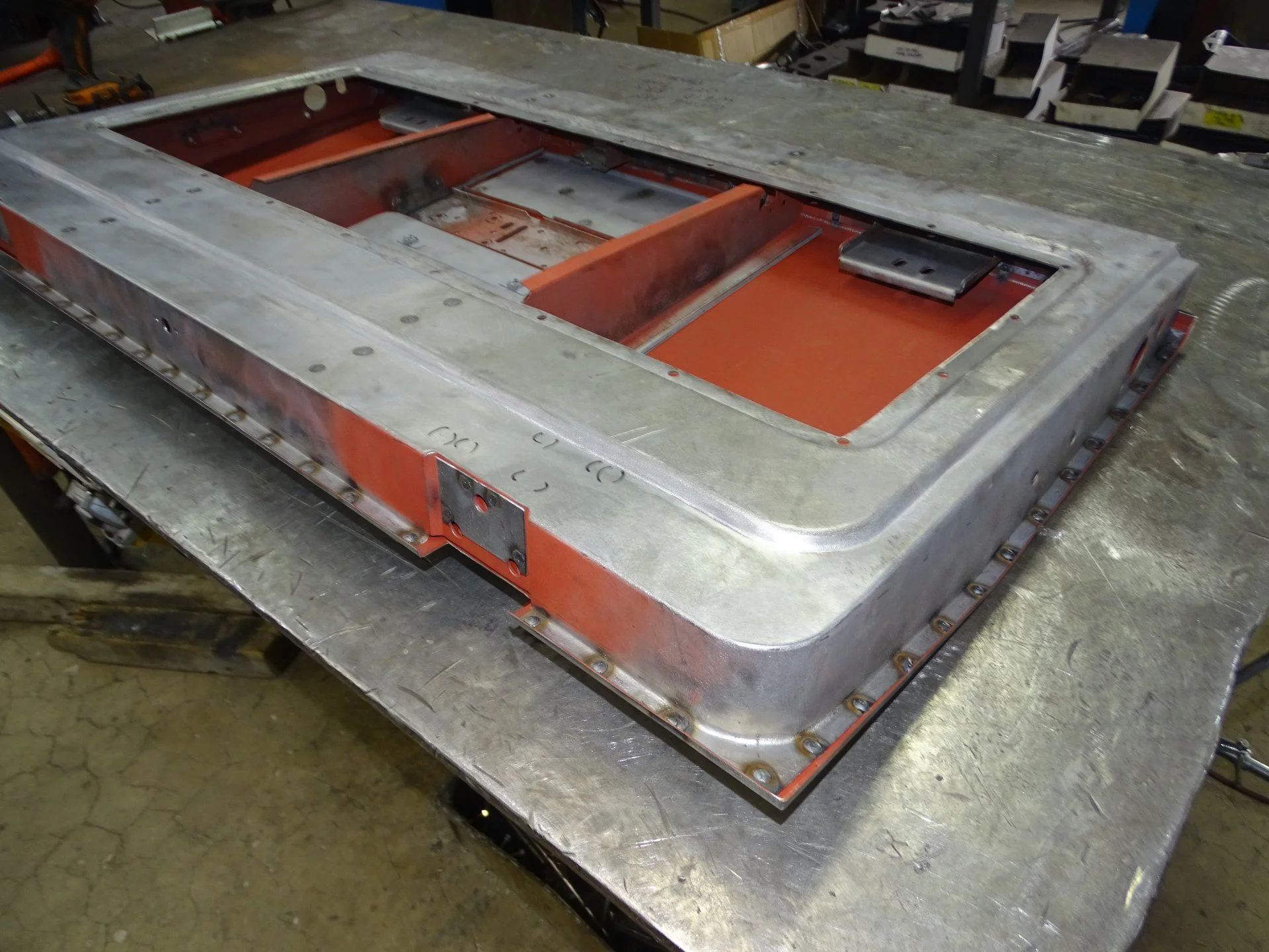

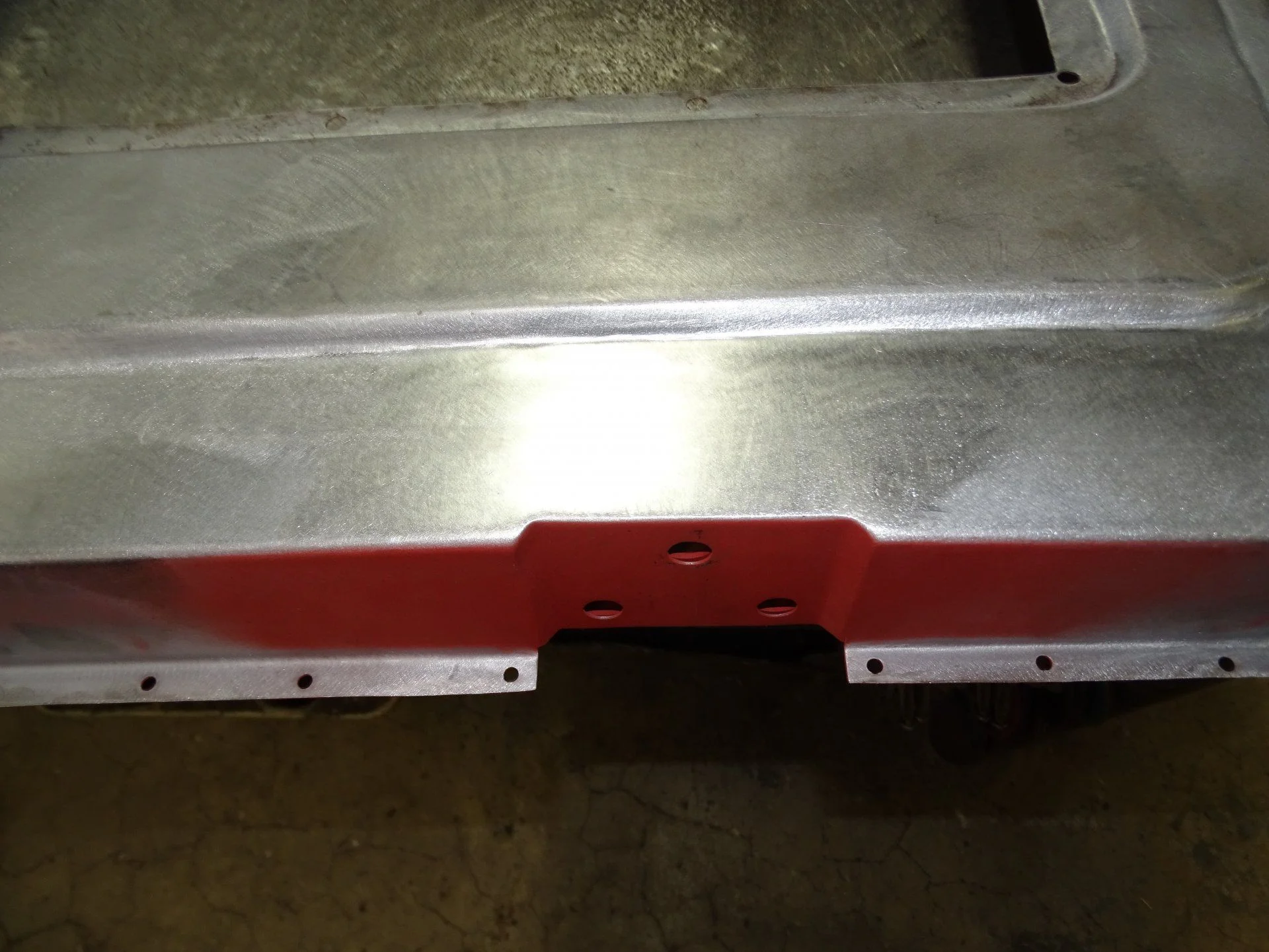

"spot welding" clean up and the main structure is getting ready for the outer skin!



[RLMS]

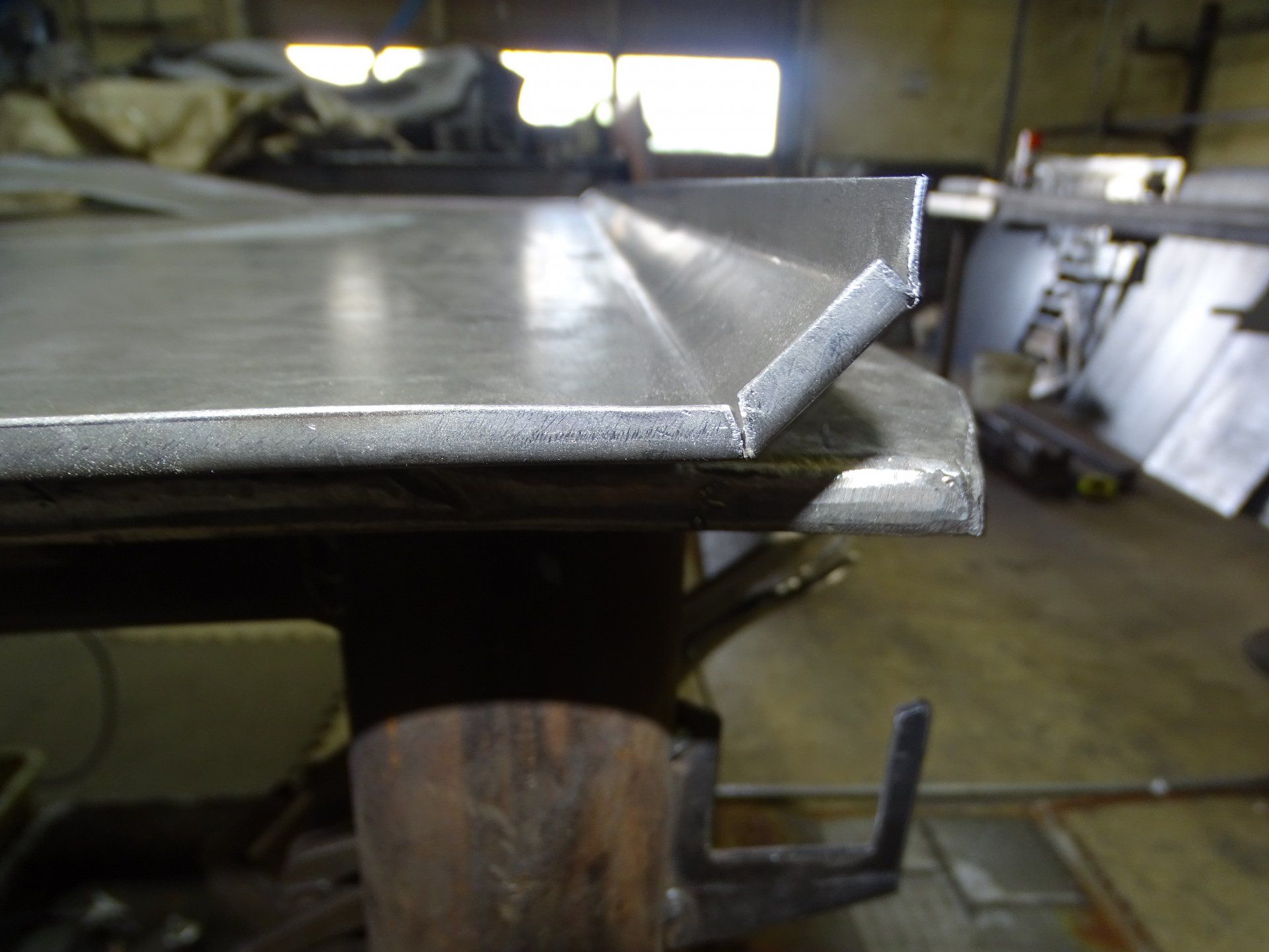

Nearing the end!



[RLMS]

Oh baby....



[RLMS]

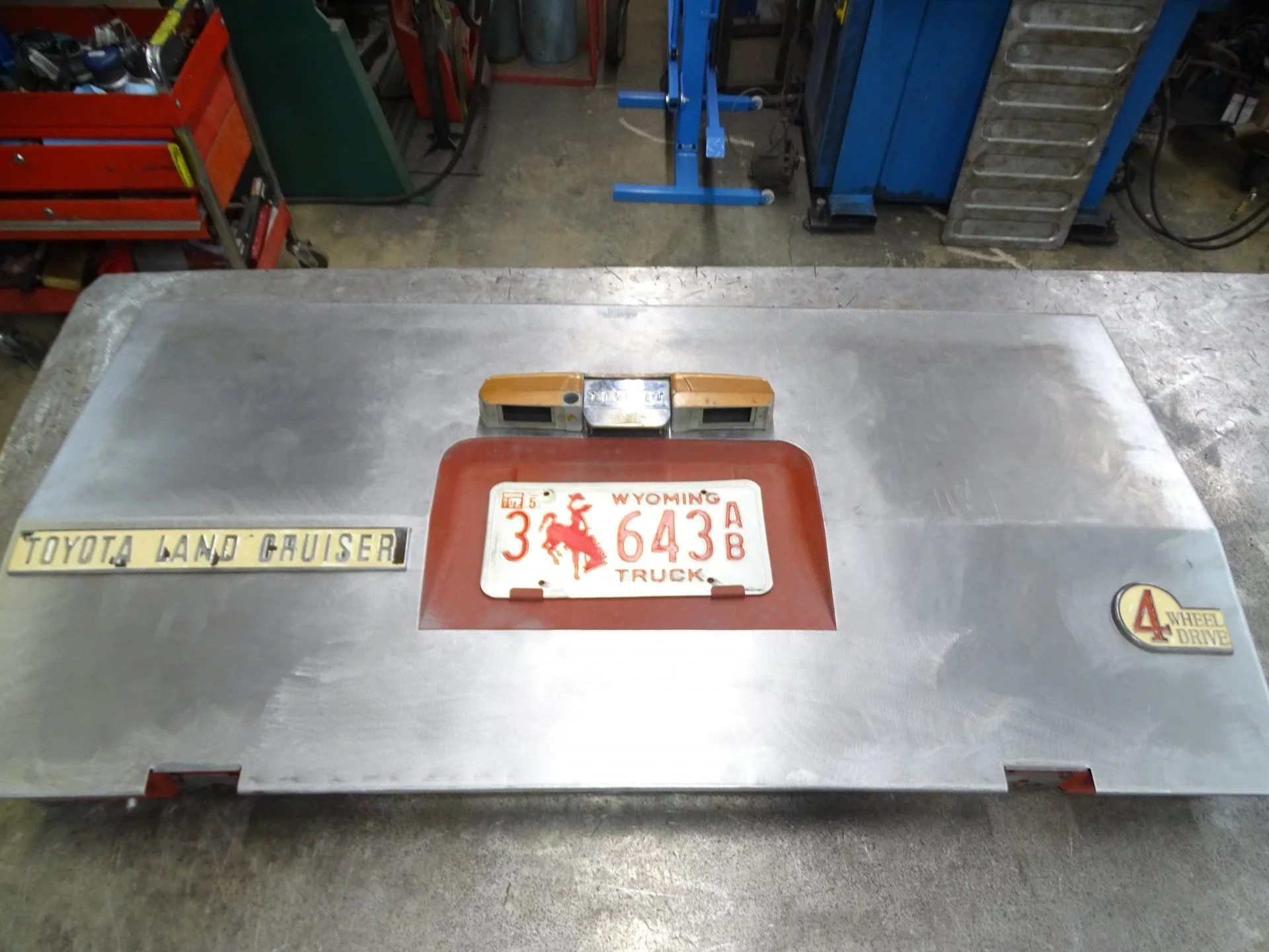

Done for now. What a chore, LOL. I'm happy with it!



[cruiserdan]

So, how many hours in that gate? Or, were you too afraid to keep track?

That is a piece of art.



[Owyhee Jackass]

That is a piece of art.

About a hundred and twenty five pound work of art. I love that LC emblem. I bought an entire LV out of a junkyard once, mostly for that badge...



[RLMS]

So, how many hours in that gate? Or, were you too afraid to keep track?

That is a piece of art.

It took 3 weeks solid.
Thanks Dan



[RLMS]

About a hundred and twenty five pound work of art. I love that LC emblem. I bought an entire LV out of a junkyard once, mostly for that badge...

Now That's dedication!



[RLMS]

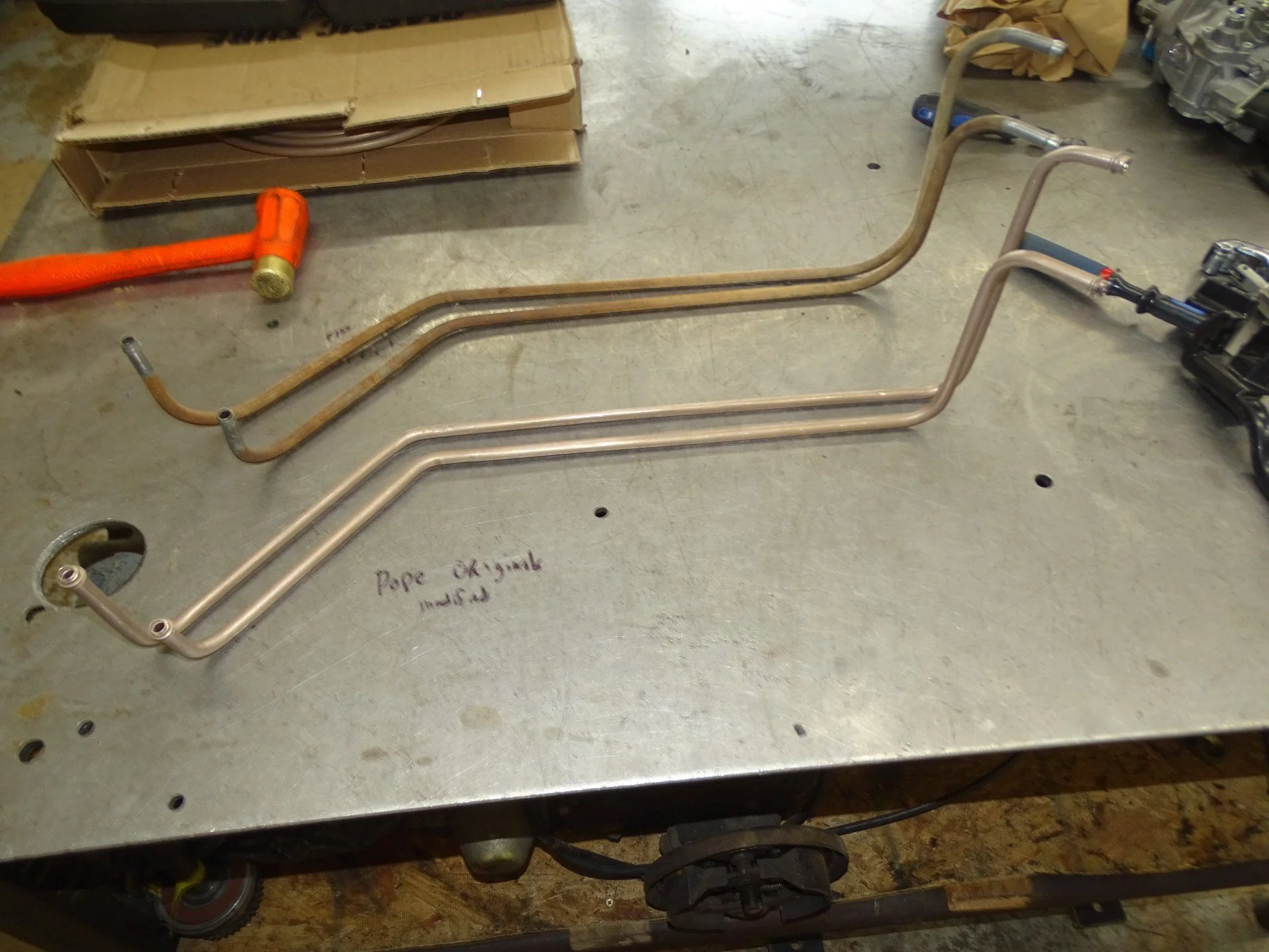

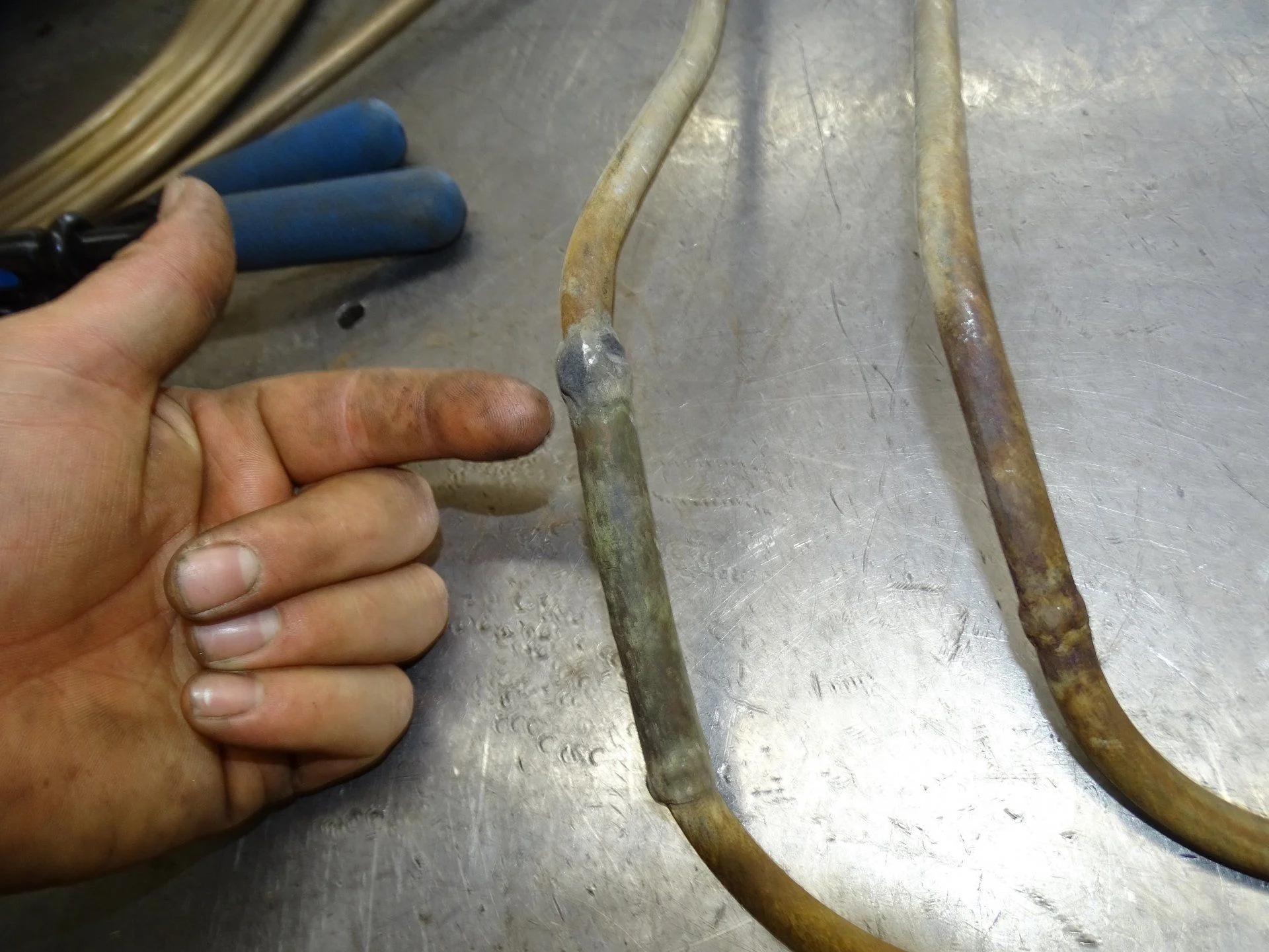

After the tailgate, something easy had to get done, so the 4WD vacuum hard lines were an easy target.



[RLMS]

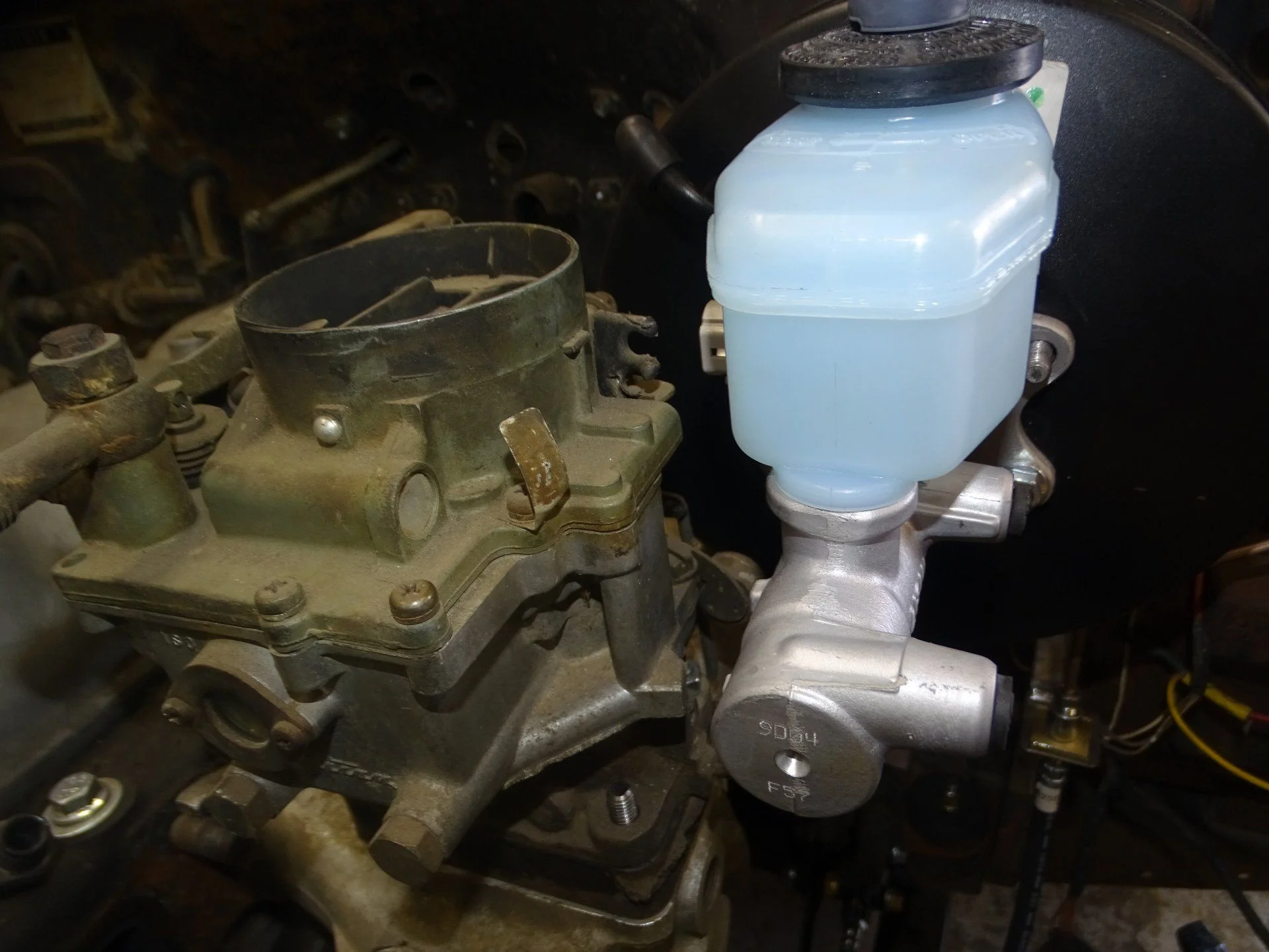

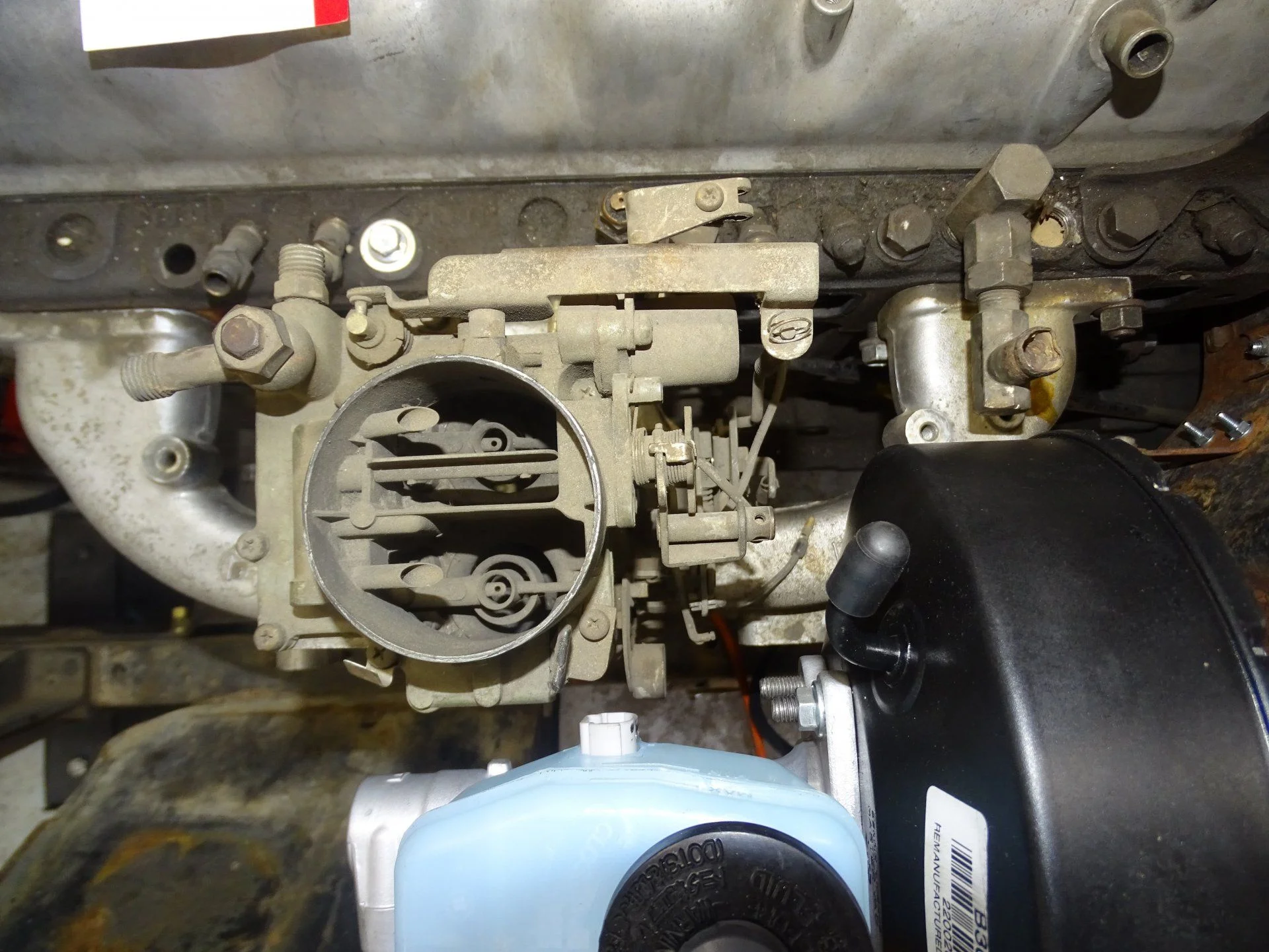

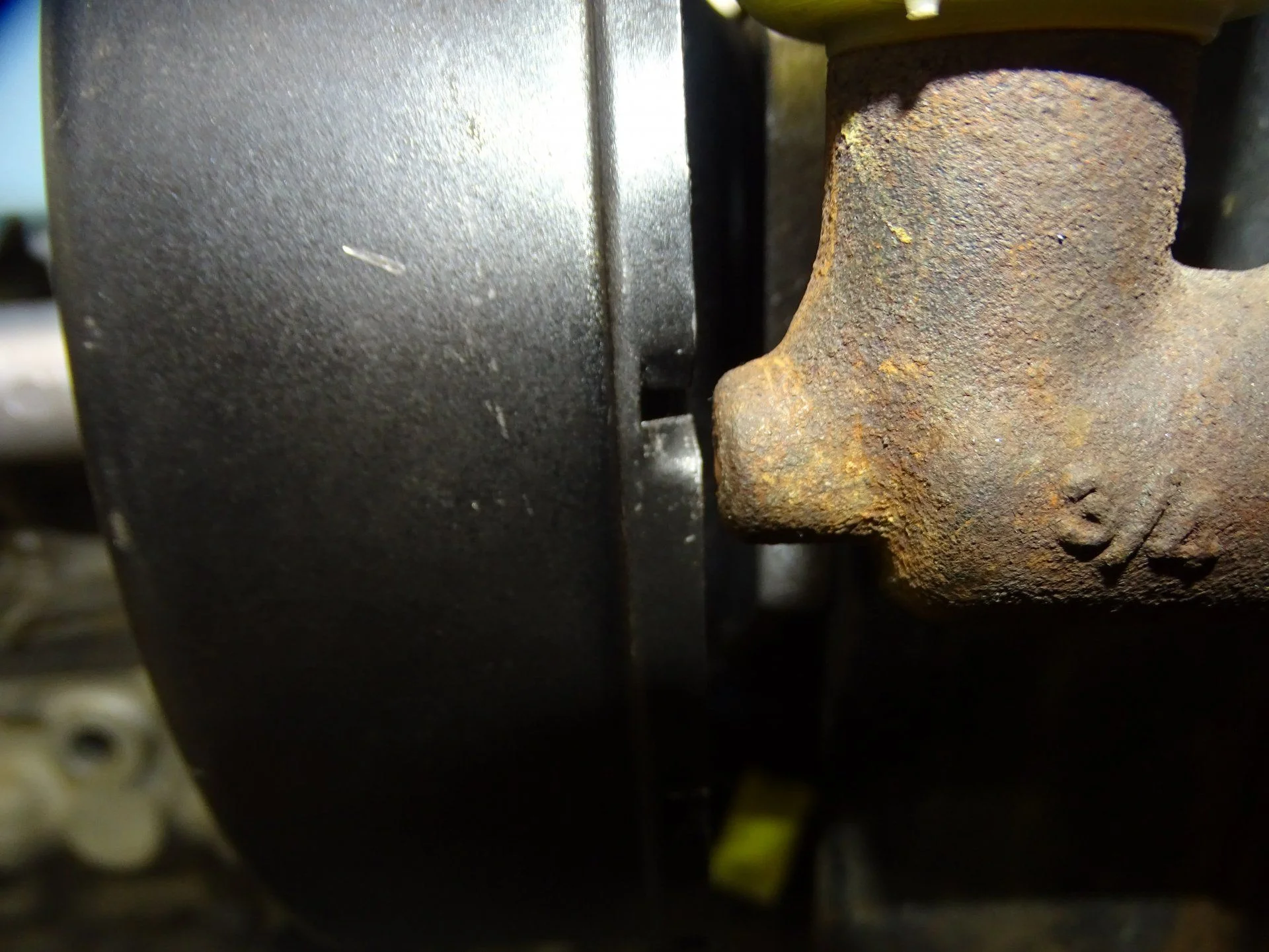

Made a adapter to fit exactly how we wanted it. We needed it to clear the Clutch master. Also using a 2wd Min truck booster to keep the brake master out of the carb. I tried the longer correct master ( disc/drum) 7/8" with the late vac. 2ndaries to no avail. We had both masters get into the side of the late carb so we are opting for a fuel return 1974 1F carb that will have Jimc work some magic on. I will be putting in a 2F A/C idle up main shaft in with the corresponding 1972 throttle cable set up, At least that's the plan. The fuel return carb set up is getting used so we can hopefully keep the fuel smell down in the clients garage. We will also have to mount a OEM fuel vapor separator with check valve and modify the LV tank to accept 3 pressure ports!
We all know the master is a disc/disc, so with that said Ill be putting on a rear brake bias valve. I'm also thinking about PC'ing the master. It's new aluminum finish is way out of place



[RLMS]

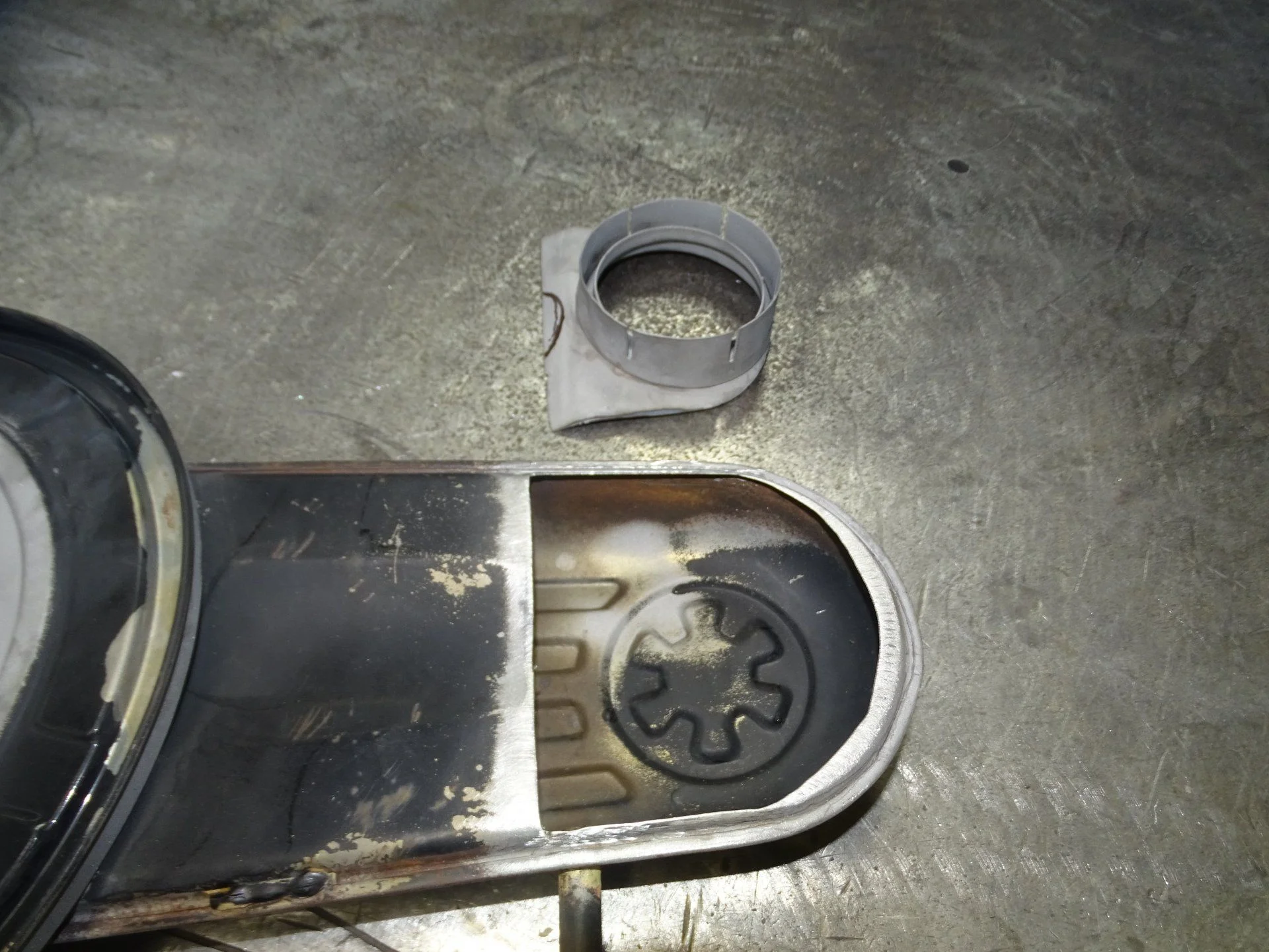

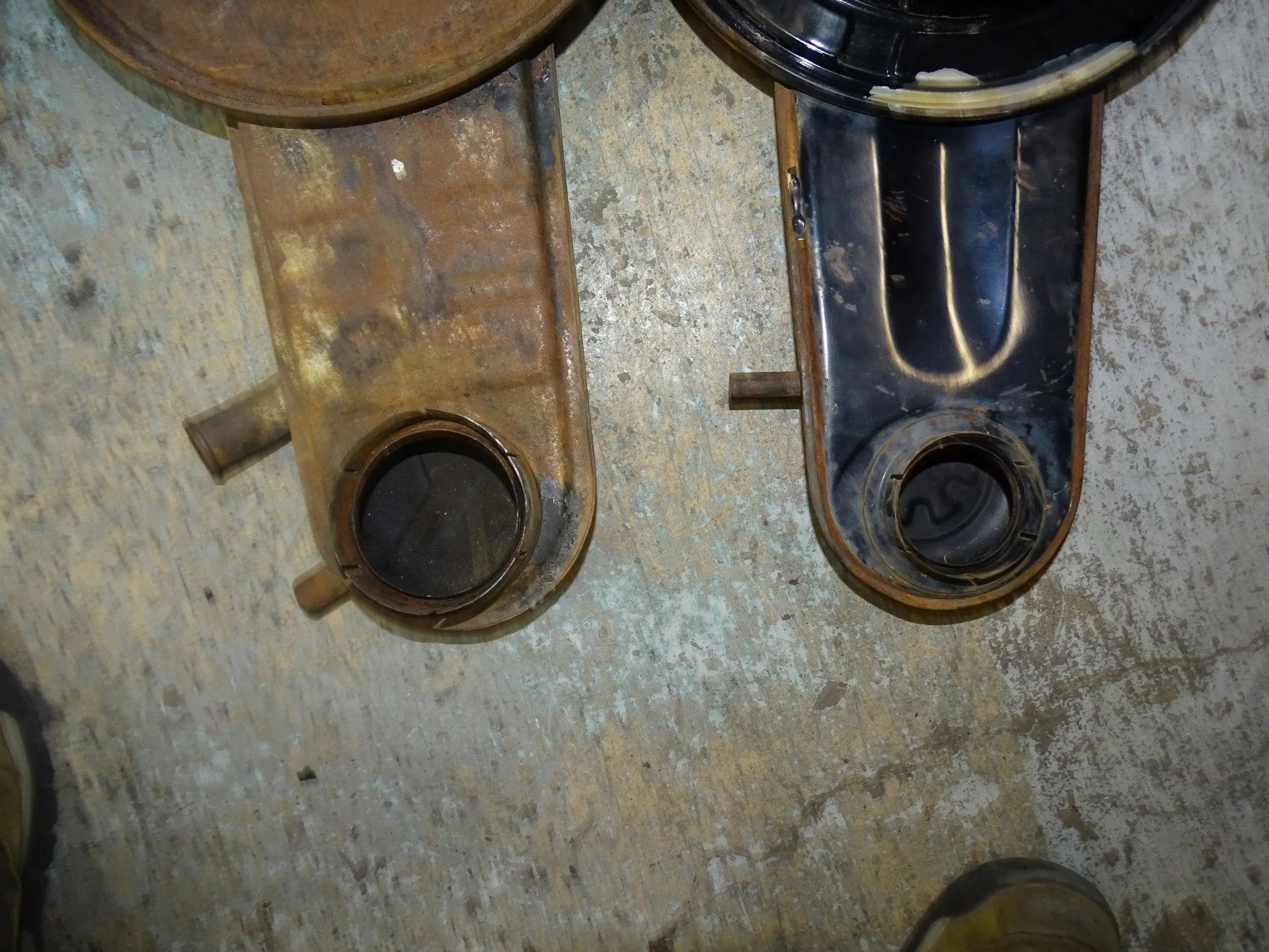

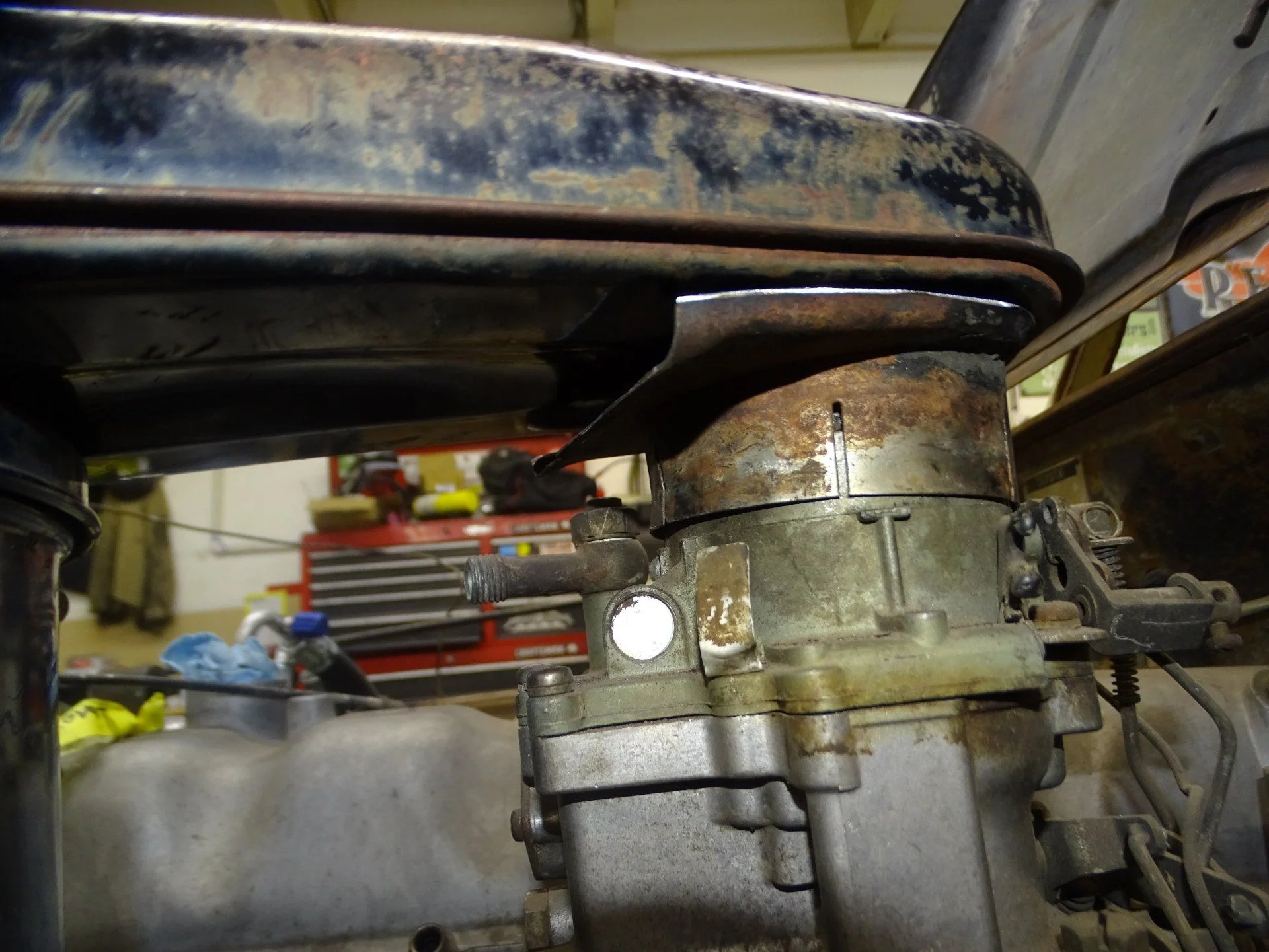

Next on the agenda for a bit, is going to be the air cleaner, fuel lines, steering shaft, and brake lines. So first is the air cleaner. The thought is to keep the F135 air cleaner. We all know it wont work on the late F carb, so it's time to chop, graft and see what comes out!



[RLMS]

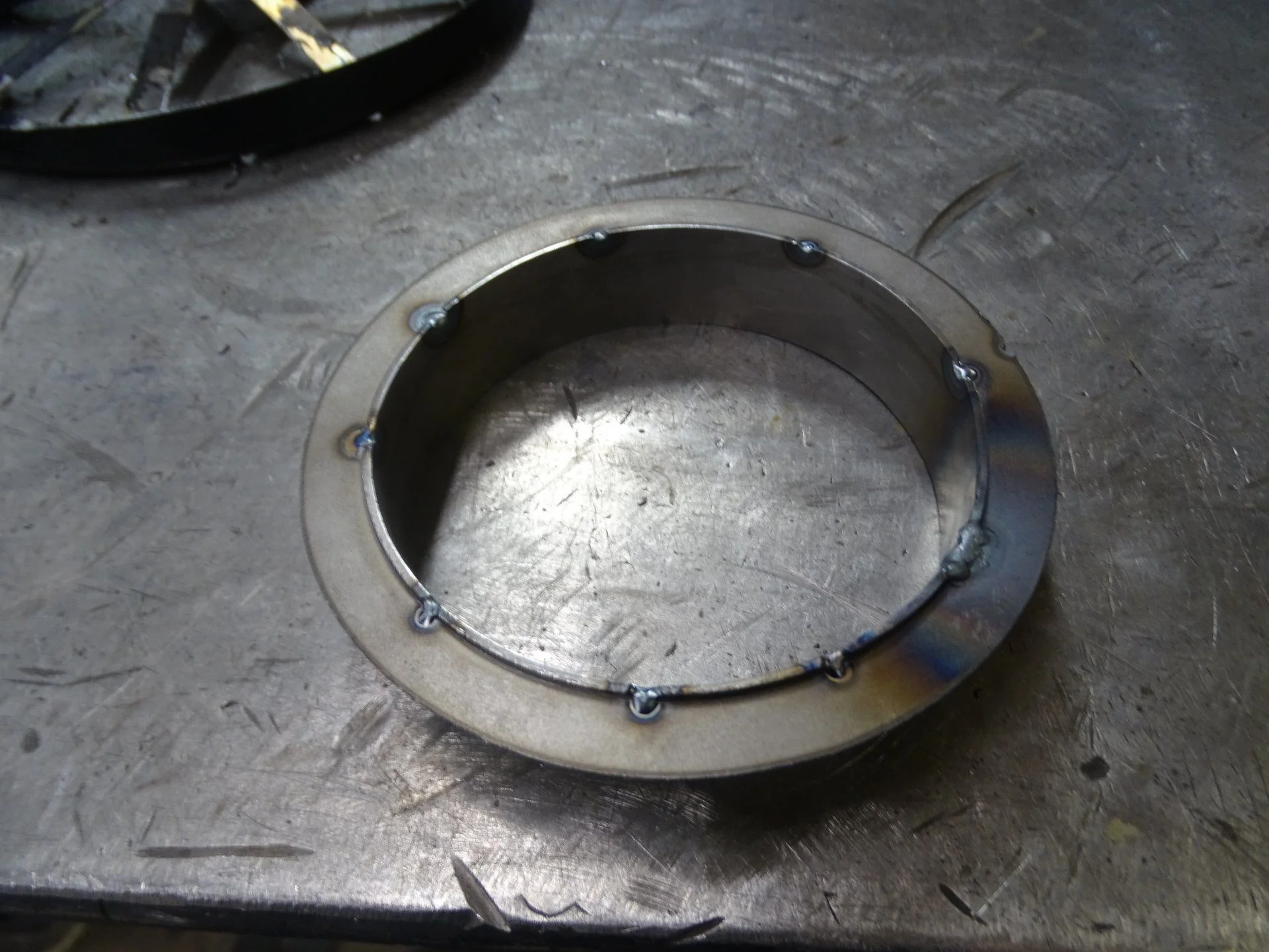

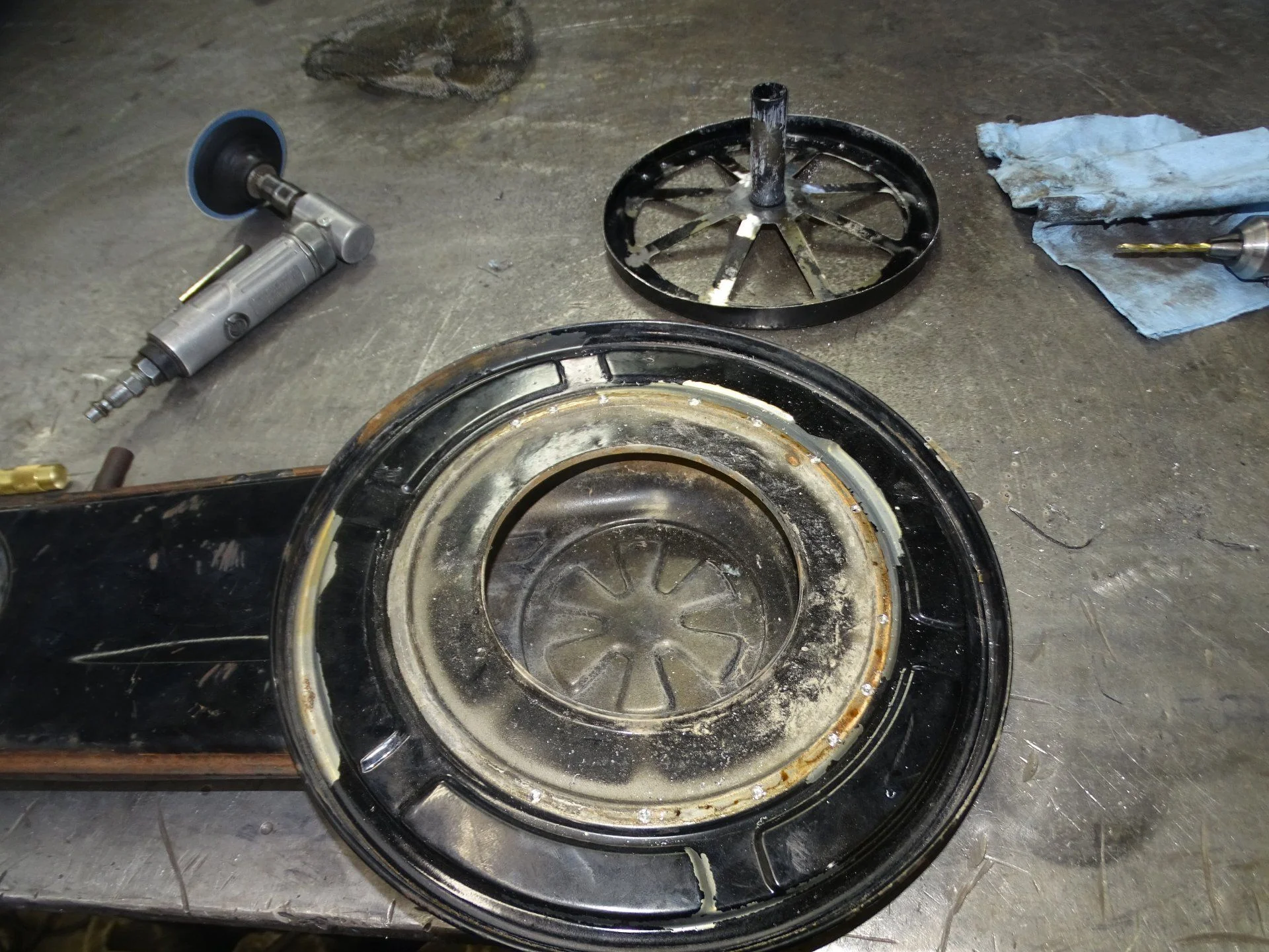

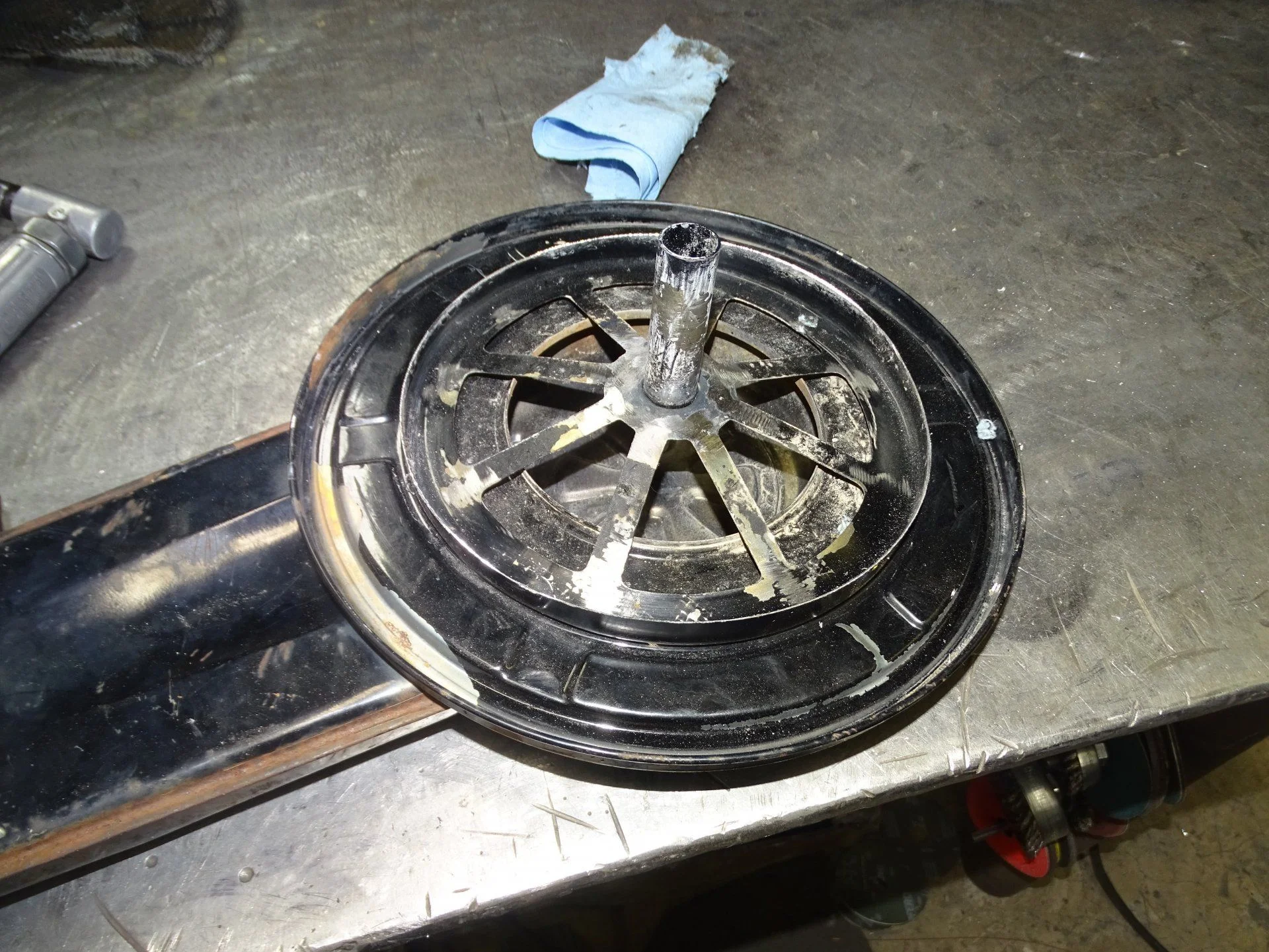

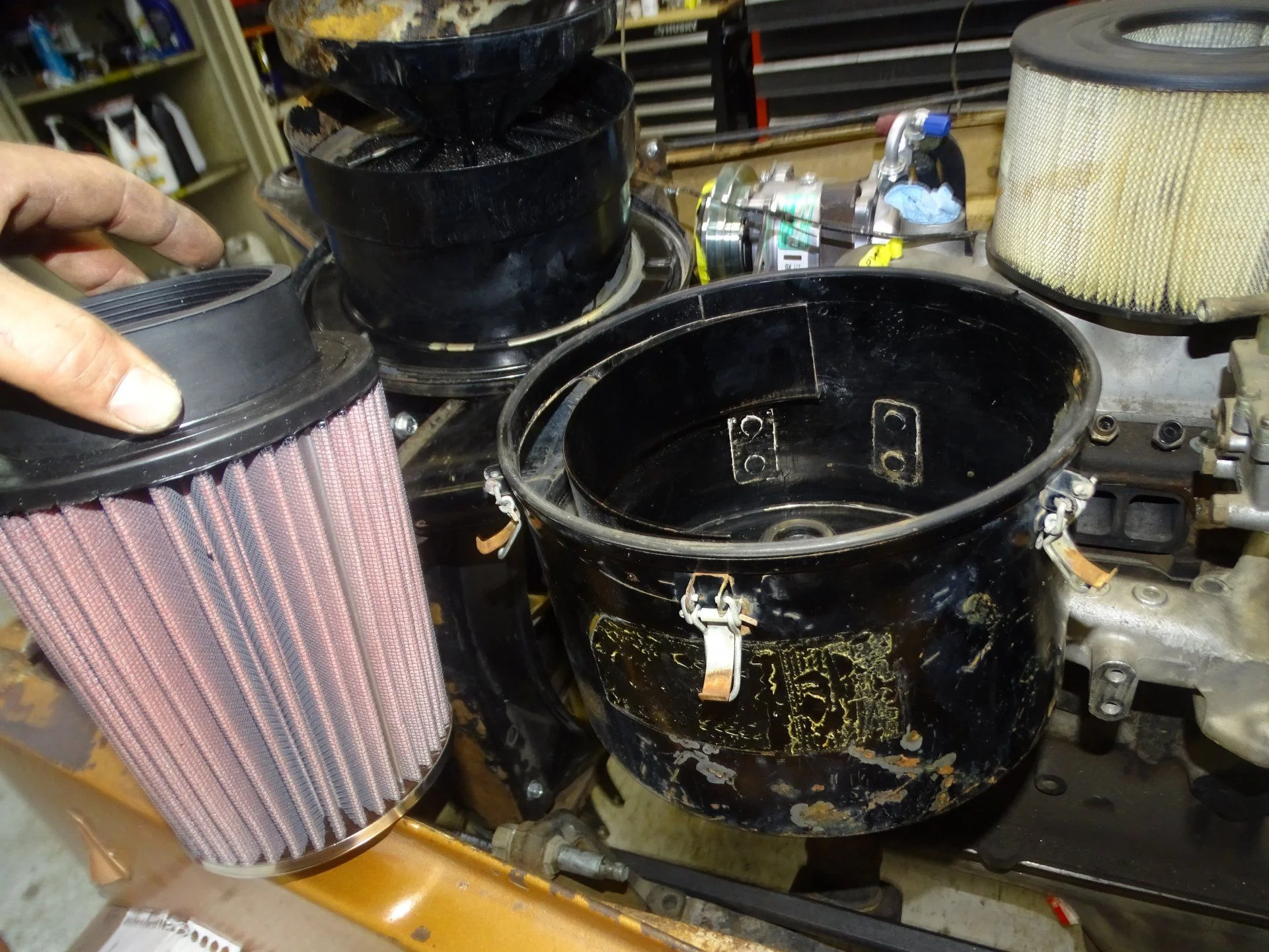

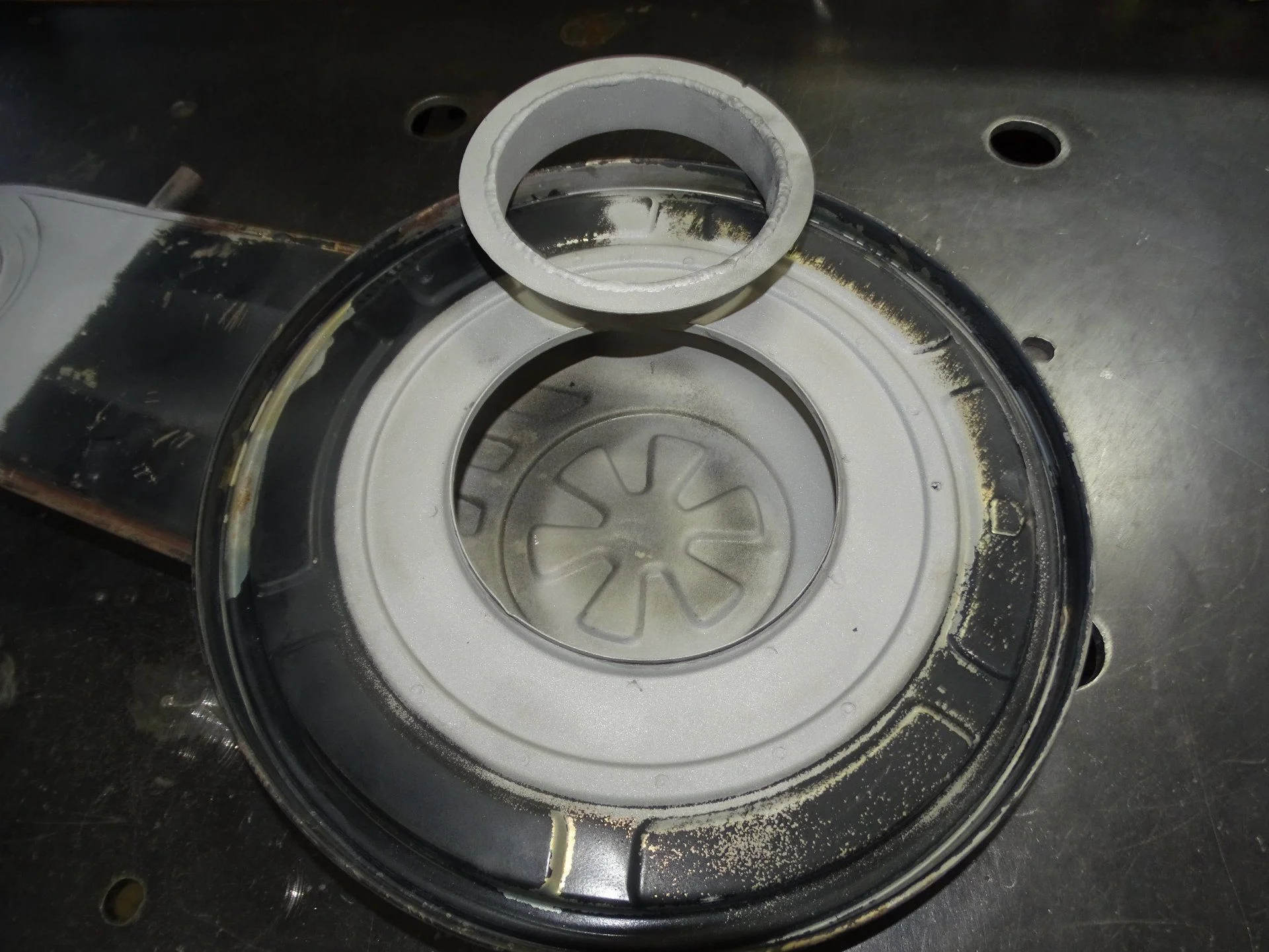

Gutting the oil bath section and making a new ring for the new paper element



[xtremeVA]

Great idea for the air cleaner. It looks like you are using a K&N filter. Any idea of an "off the shelf" filter that could be used for this application? It would be nice to be able to walk into an auto parts store and just buy a Fram element off the shelf.



[RLMS]

Great idea for the air cleaner. It looks like you are using a K&N filter. Any idea of an "off the shelf" filter that could be used for this application? It would be nice to be able to walk into an auto parts store and just buy a Fram element off the shelf.

We tried the "off the shelf" normal paper elements" to no avail. So we had to opt to the k/n. It was actually on the shelf. Weird I know. part number B0059JH9C4



[RLMS]

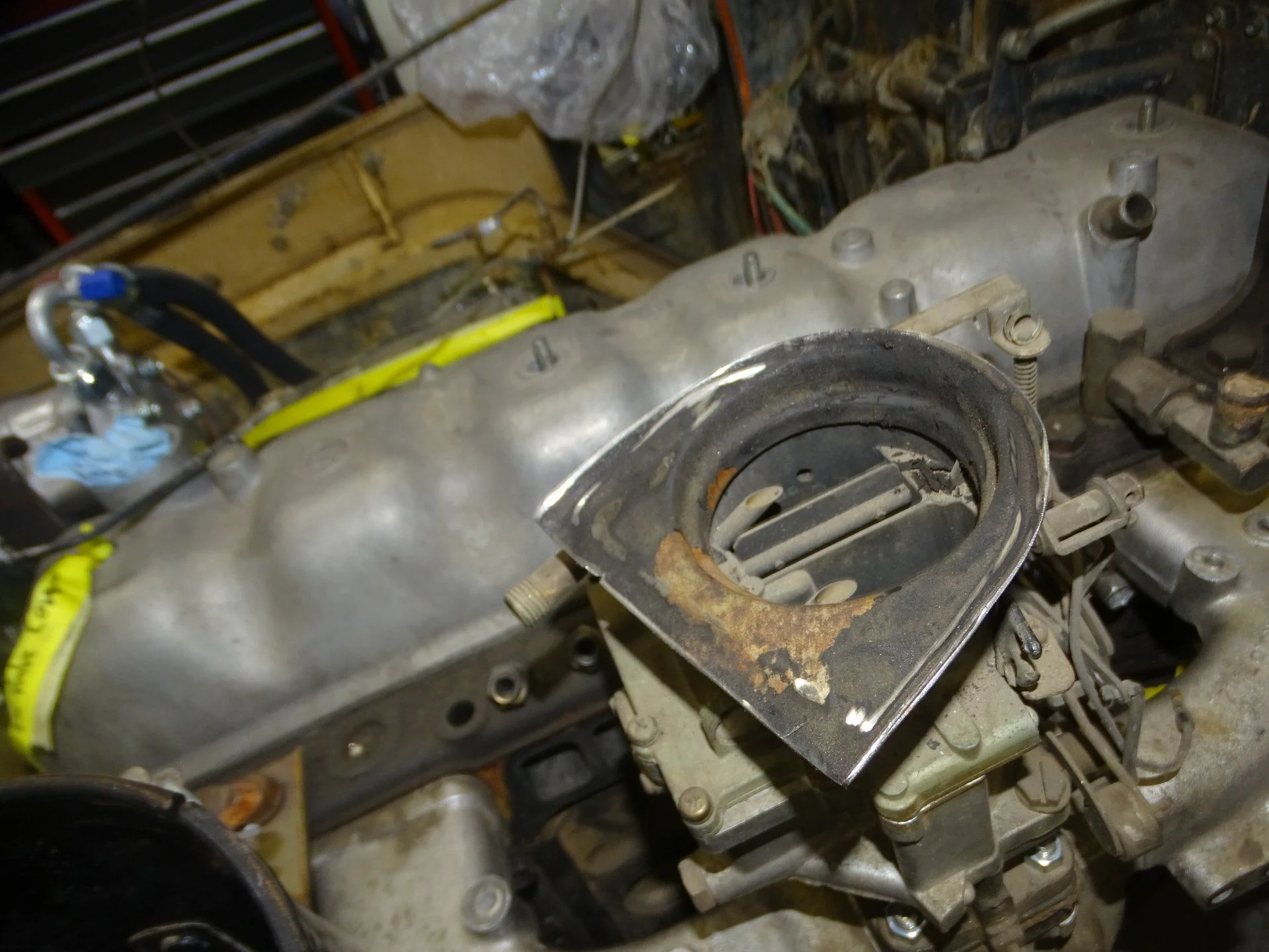

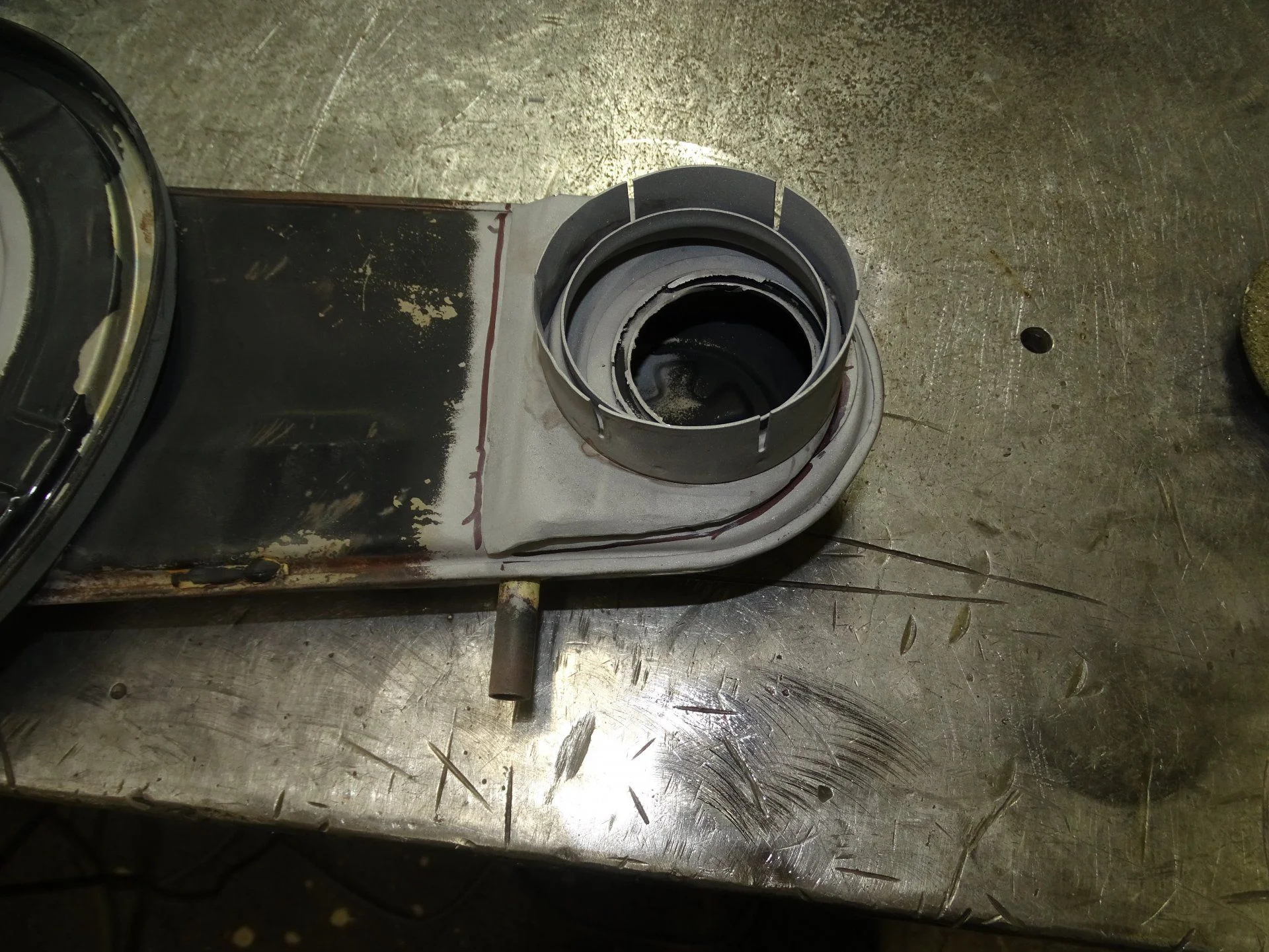

Dry element conversion is done. The carb side, is getting the doctors knife
