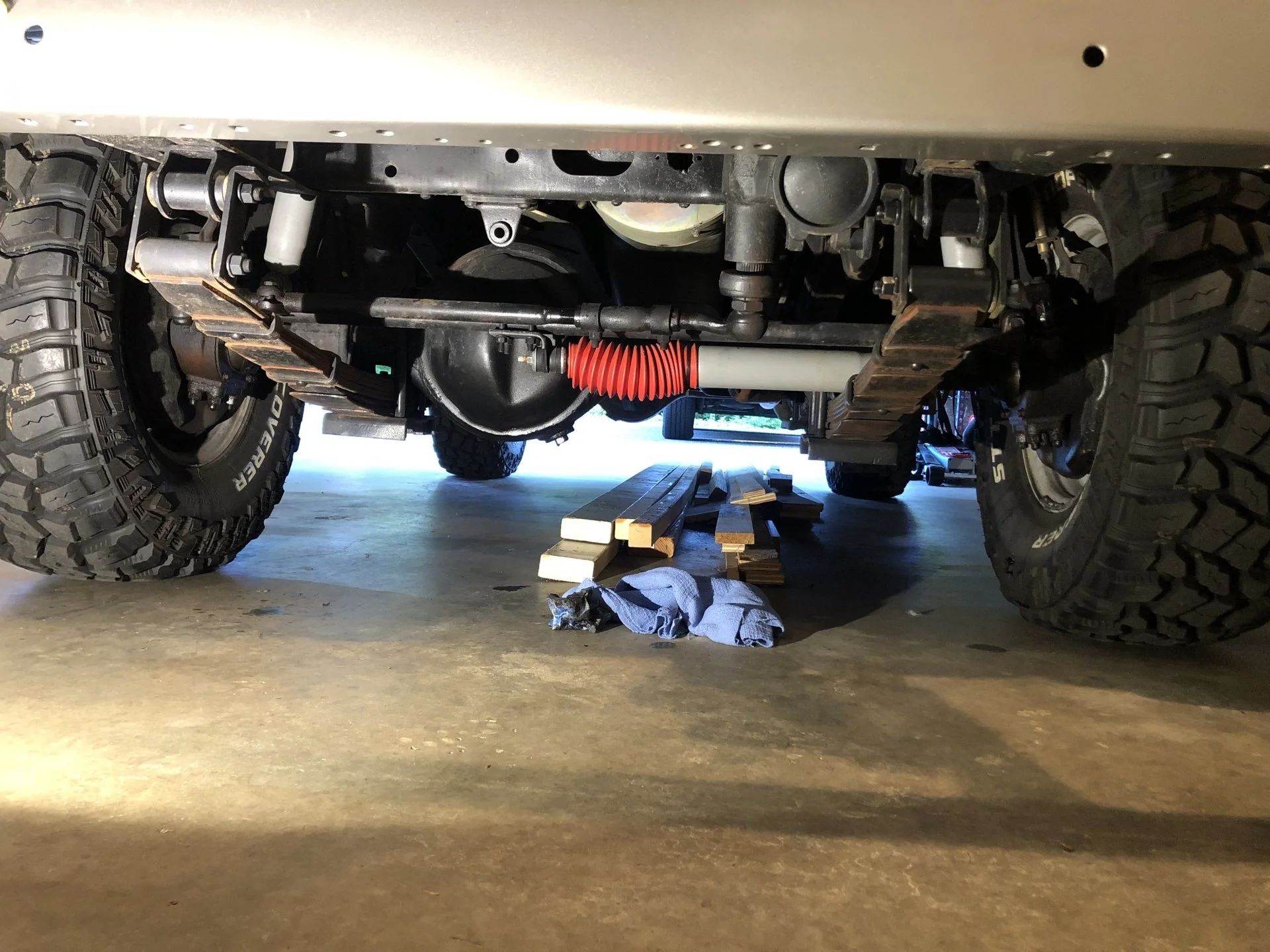

Bought a '75 FJ40 a little over a year ago (Finally!) :D. It has a Saginaw power steering conversion that was done by a PO to the PO, supposedly years ago by a shop in Portland, OR area. Don't know any details beyond that, but the steering has a lot of play now. R/H rod end to the pitman arm is shot, so i figure I start with replacing all the rod ends, and go from there if it needs more work. I'm having a little trouble identifying what I have here to get the replacement parts, my rod ends are not really resembling any 40 series kits I've come across, more like maybe a combo of 40 and 60 series? Also noted the angle of the steering box is steeper than I've seen in photos of other conversions. Thought I'd post photos and see if anyone can help identify, or just offer advice in general on how to proceed. Thanks!



3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
14,973
Location
Helena MT

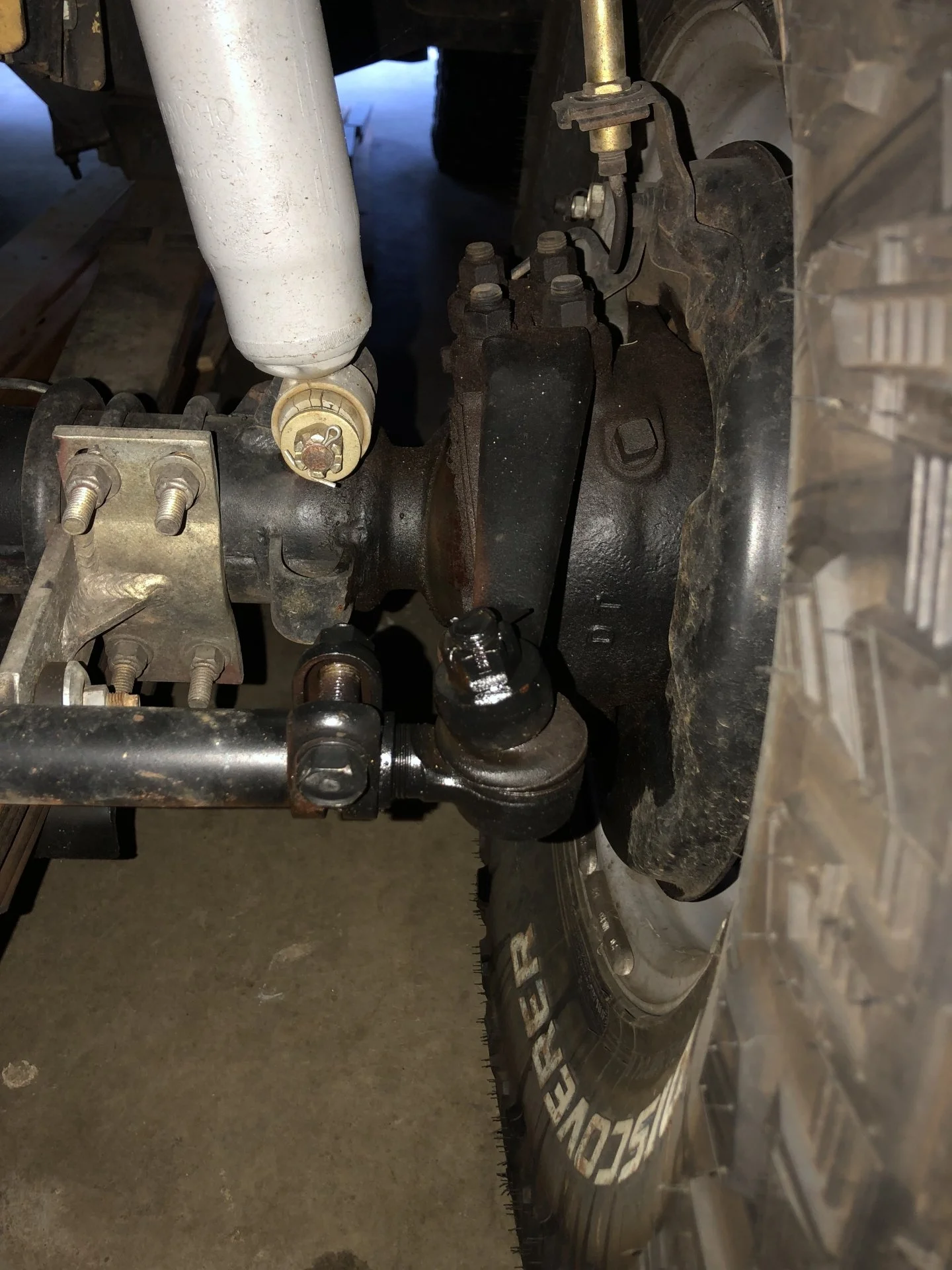

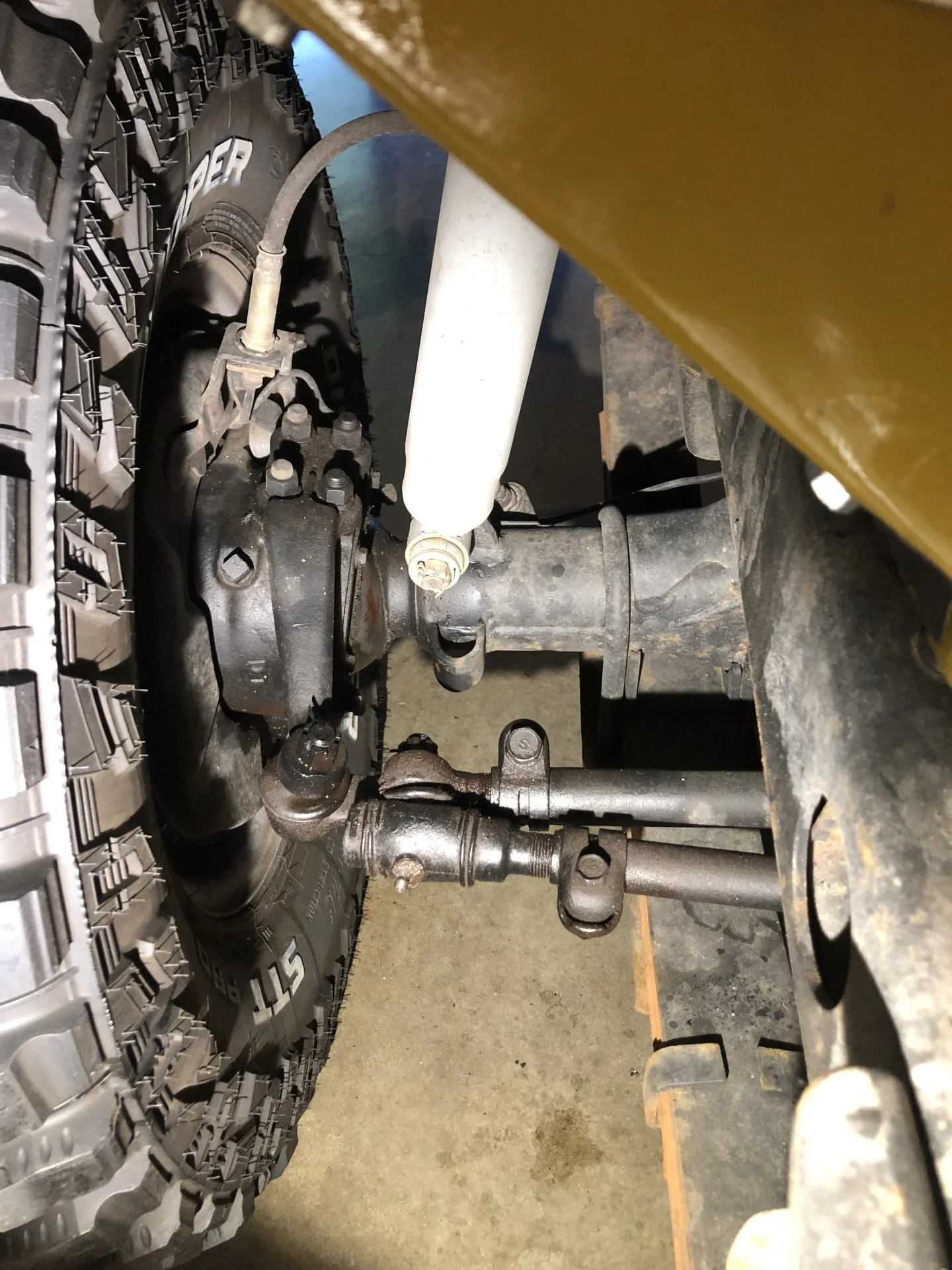

the steering arms are on the wrong side, left is right and right is left.

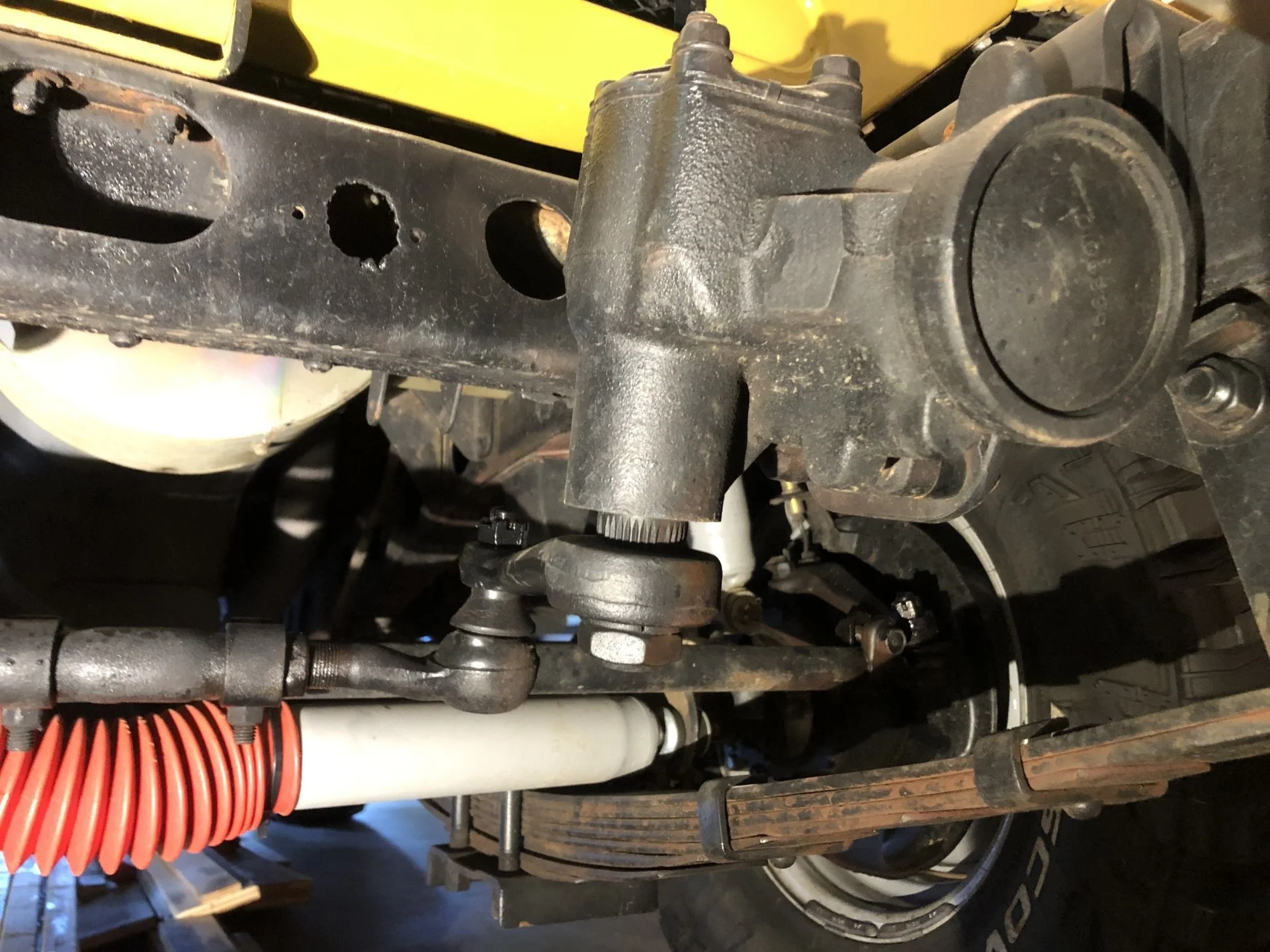

looks like 60 series knuckles with 60 tie rod ends and an adaptor piece to go from 60 relay rod to Chevy? tie rod at the steering box.

that entire setup should be redone properly.


65swb45

Elder Statesman
Supporting Vendor
Joined
Apr 14, 2004
Messages
29,713
Location
818-953-9230
Knuckle arms definitely backwards. Wouldn’t be surprised if there were tire interference issues with the arms in their correct positions.

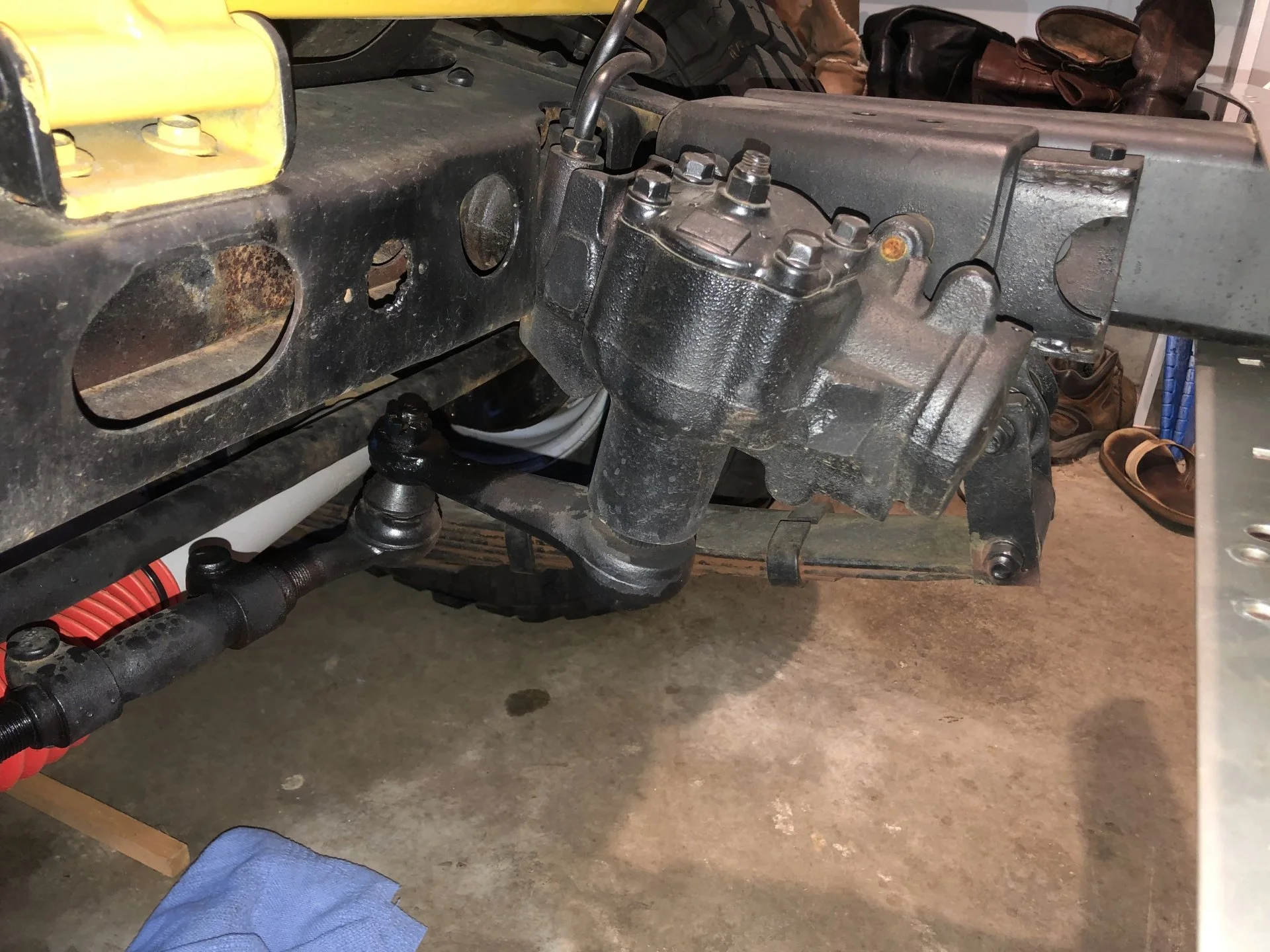

Also, it looks like, from the last photo, the trajectory for the main steering rod is right into the pitman arm on full compression (going downhill)

As @3_puppies said, time for do-overs.

Do not drive this.


pjohnson

SILVER Star
Joined
Jan 15, 2003
Messages
2,500
Location
Idaho
I don't see any welding of the box mount to the frame, is it welded on or just using the bolts? Need better pics.

I would remove the box and remount it with a current mounting plate design from a vendor here.

Joined
Oct 29, 2019
Messages
4
Location
Seattle

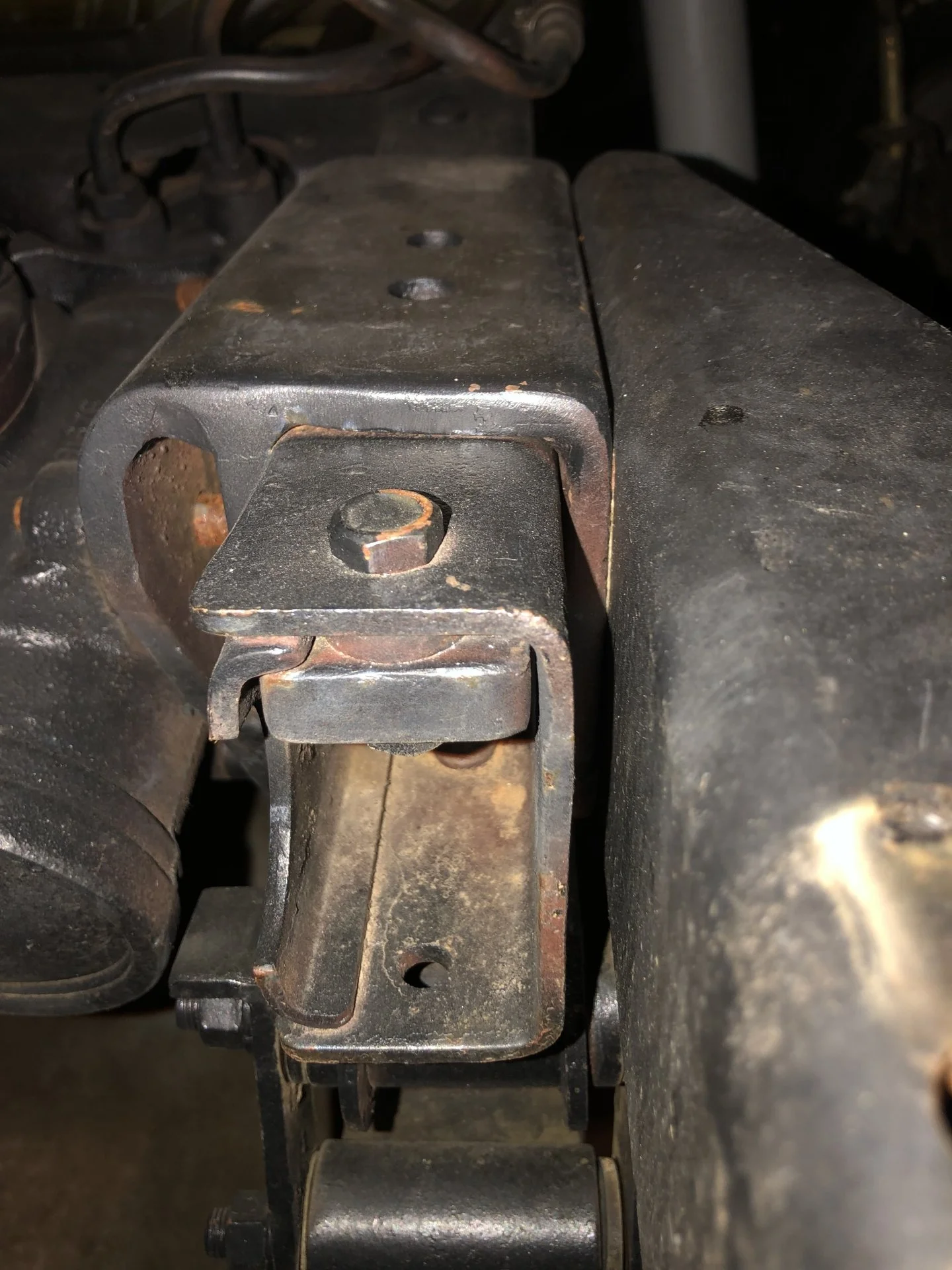

Hmmm... nothing like having your suspicions of bad news confirmed. No welding of the mounting plate to the frame, I've attached a few more photos. Looks like a gusset was installed in the frame rail to make a tube and the mounting plate is on a U-bracket that nests over the frame, and then through-bolted. Either way, looks like I'm in for my first project. Thanks for the feedback! Any recommendations for a kit or link to a standout thread for an install would be appreciated



3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
14,973
Location
Helena MT
how many bolts are holding the box to the frame?

the crossmember probably needs to be sleeved or reinforced

I hope a shop didn't do this work


pjohnson

SILVER Star
Joined
Jan 15, 2003
Messages
2,500
Location
Idaho
I'm in for my first project
Lots of good info to help you. Starting with the FAQs.

Pics of 4x4 Labs kit installed. I personally like this kit.


cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
10,068
Location
Orlando Florida
How well does it drive with anti-ackermann?? Your steering arms are on the wrong sides. Like the others said time for some serious revisions.

Joined
Oct 29, 2019
Messages
4
Location
Seattle
How well does it drive with anti-ackermann?? Your steering arms are on the wrong sides. Like the others said time for some serious revisions.
Yeah, got that. It's so obvious now, but to the untrained eye if you don't know what to look for.... It actually doesn't seem terrible aside from the play in the steering, I initially thought my big issue was the TREs, but as you and other have said, time for serious revision. Thanks for the input
