FJ40 shackle angle/ Do I need new springs?

Krondor

SILVER Star
Joined
Mar 26, 2017
Messages
540
Location
Greenville, SC
Hey guys,

I currently have what I believe to be a 4" lift kit from a previous owner. I have no idea what it is but it is more than a 2.5".

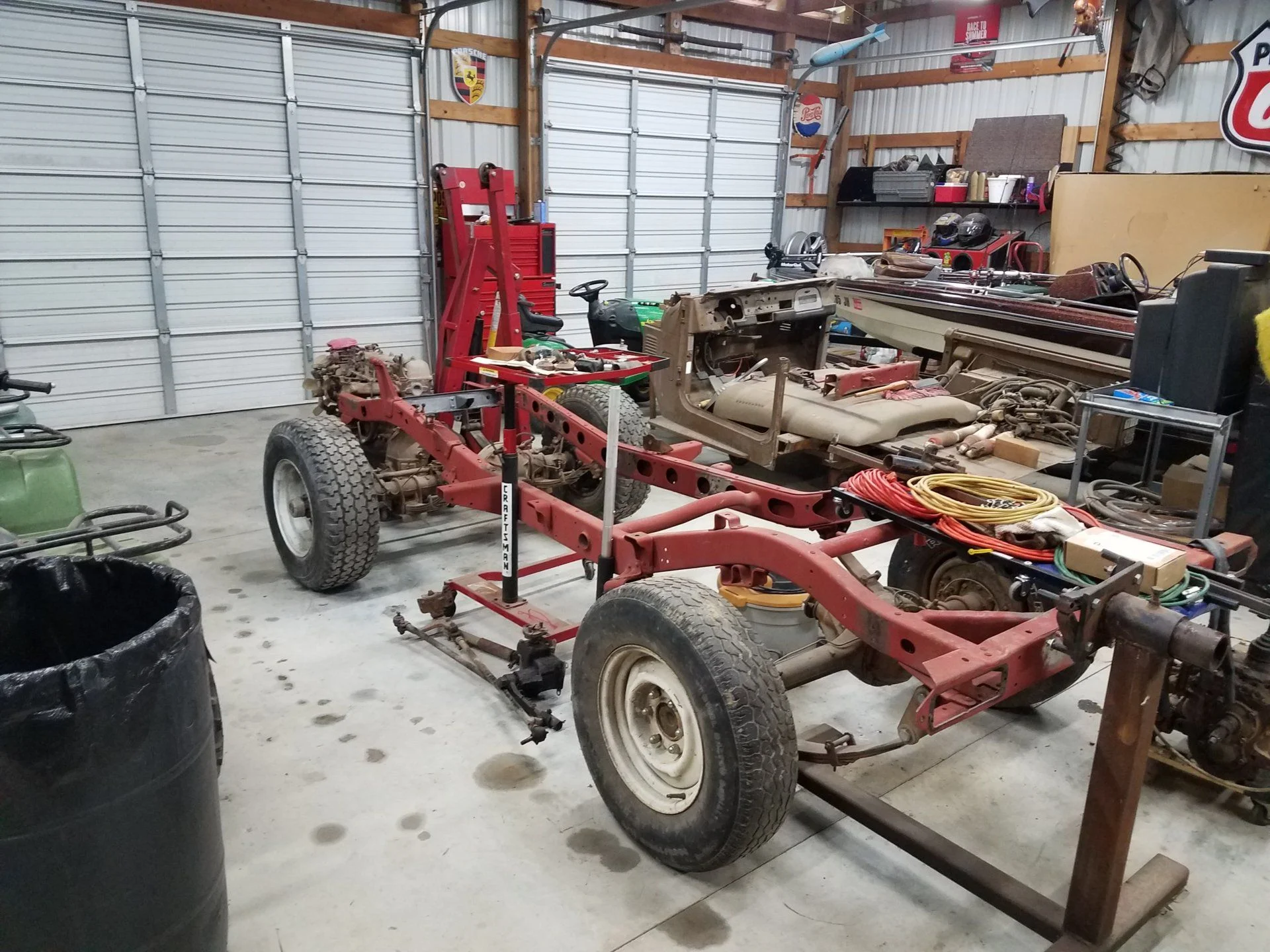

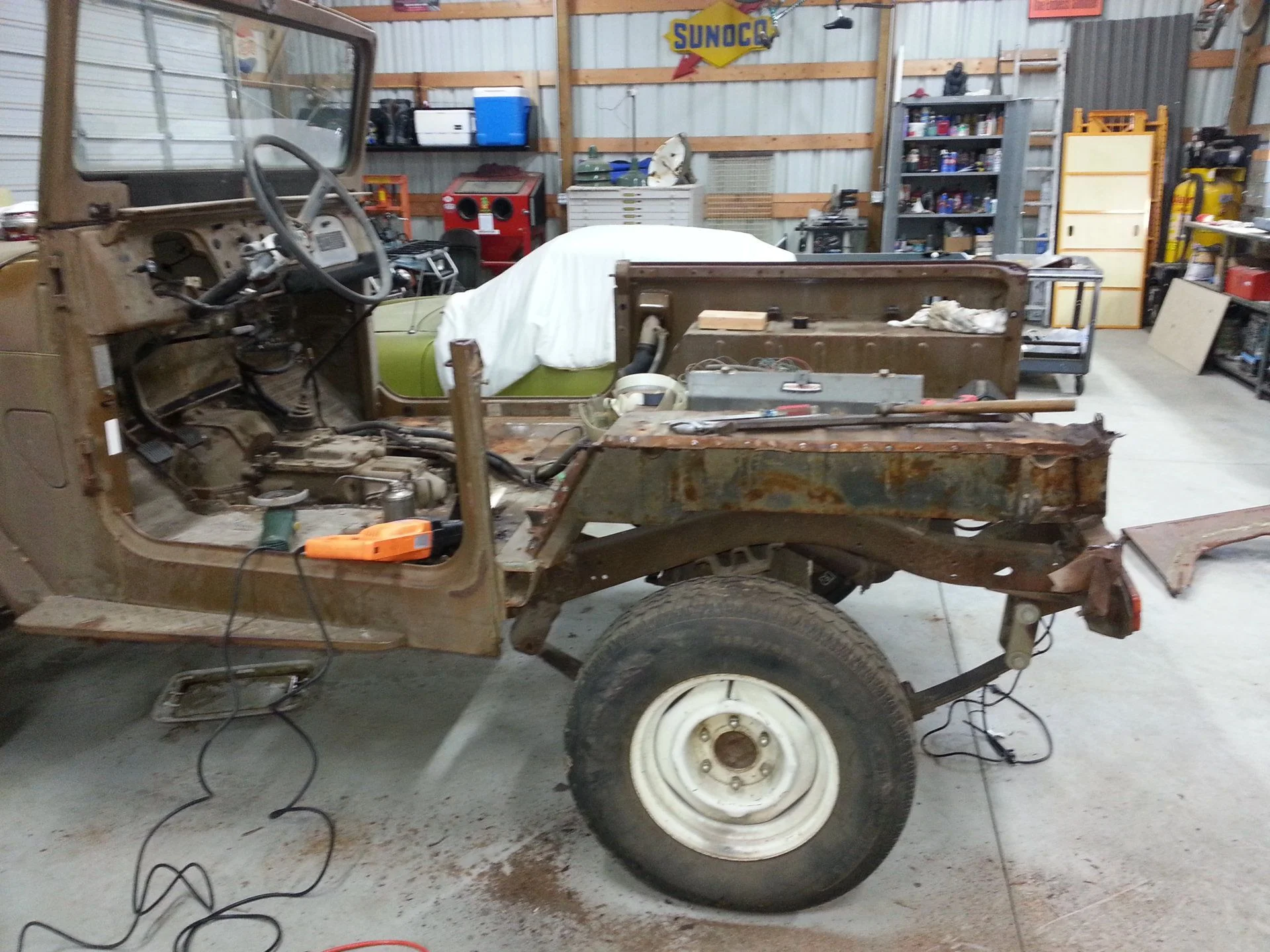

I am having some problems with shackle angle. Here is what I have at the moment.
The front gets slightly better once the hood/fenders are added. I am planning on going with a soft top, so the rear will not really receive any more weight.

Does anyone have any suggestions? Do I need to get new springs? Can I remove a leaf and see if that will fix things?







Joined
Nov 10, 2011
Messages
402
Location
Minnesota
I don't think you can check shackle angle until you have all the weight on it. And I would put a couple miles on it to make sure everything settles in. After that, if you choose to remove a spring that would be the time to make that decision. Hope that helps.


Lil'John

SILVER Star

Joined
Mar 24, 2006
Messages
5,782
Location
Nor Cal in the garage with a Cruiser
The rear will invert the shackle.

Do you know who's lift springs they are? I forget the company but one brand was short for their 4" lift.

The front doesn't look "bad" but isn't great either. Basically, same as stock angle. It should settle when you add more weight and a little use. You could also try 'extreme weighting' the front to force some settling.

The "ideal" shackle angle is exact reverse of where the rear shackle is going... basically 40ish degrees from vertical.


Krondor

SILVER Star
Joined
Mar 26, 2017
Messages
540
Location
Greenville, SC
The soft top/ bows/bench seats will maybe add 100 ish lbs. With 200lbs on the back end (me sitting on it) The rear shackle angle doesn't change much.

I have no idea who's lift springs they are and no way to contact the previous owner.

Do you think taking a leaf out will fix either the front or rear?


JohnnyC

Long ago TLCA# 2231
SILVER Star

Joined
Jun 17, 2005
Messages
16,554
Location
Nys

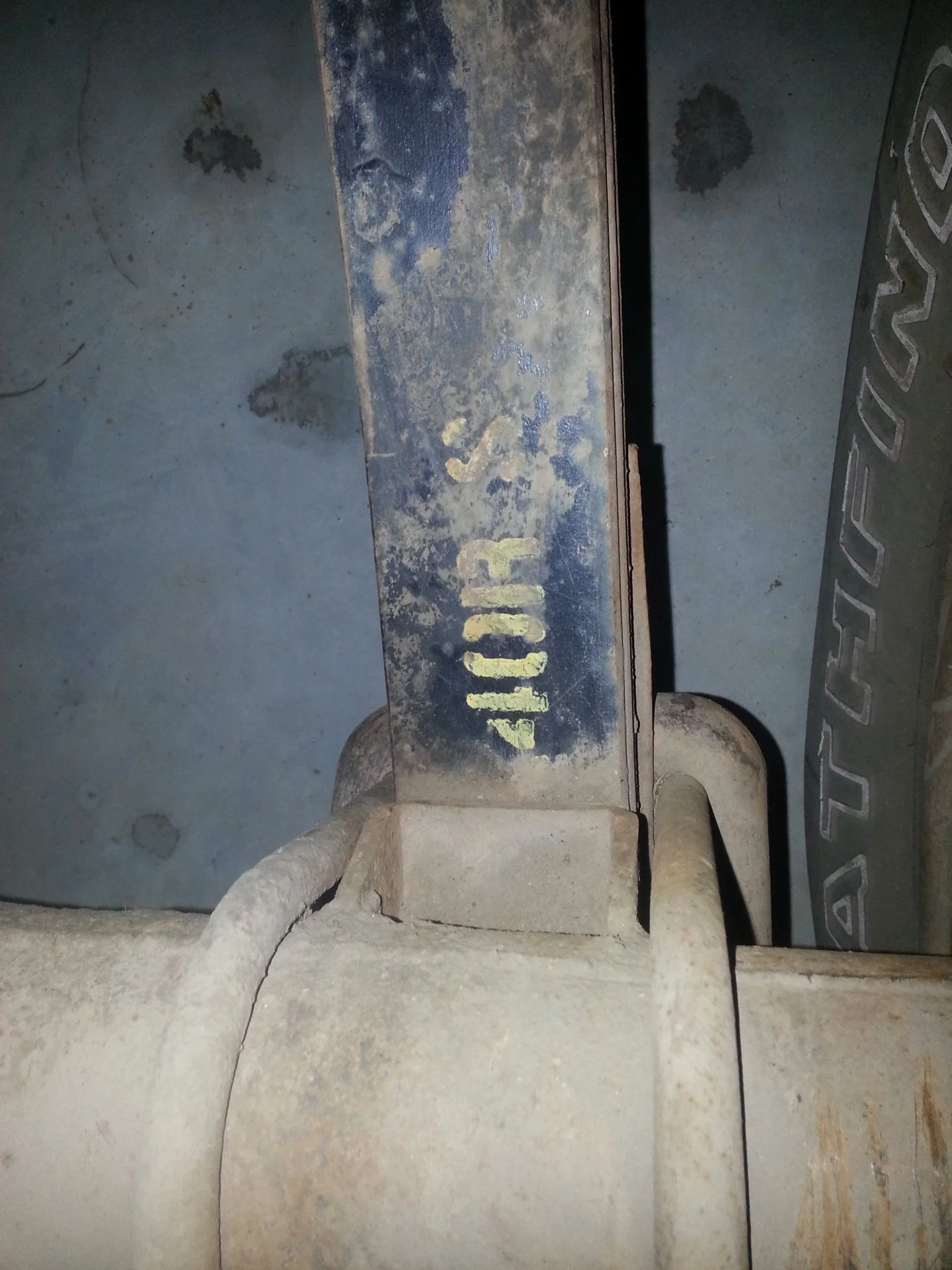

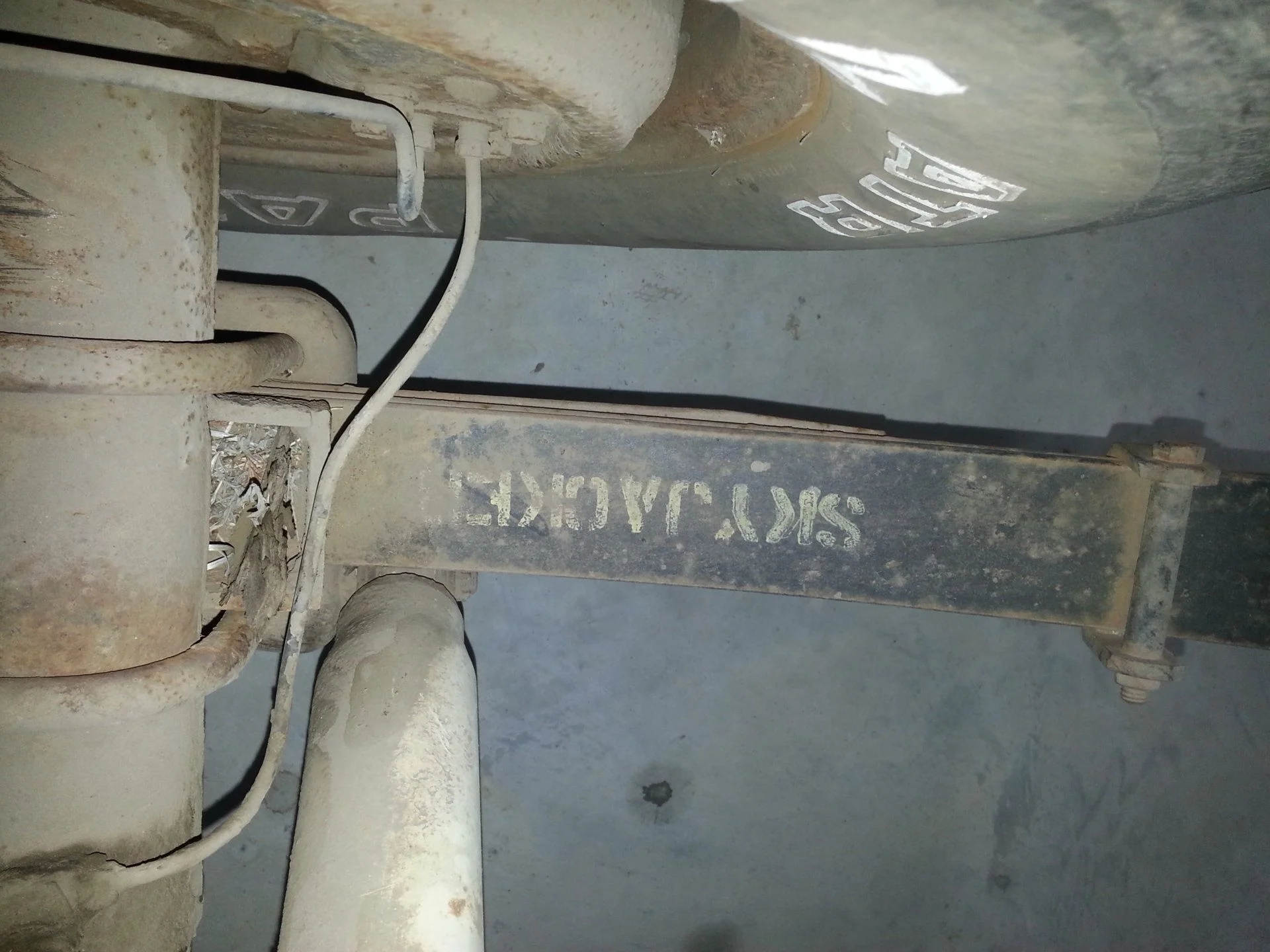

you have skyjacker springs

you will need a longer rear shackles .... skyjackers arch has always been tight like that... you will get alot more weight on the back besides 100 lbs... spare tire carrier.... spare.... needless junk... people... and its the overall weight as well... they will settle a bit as well

make sure shackles are not tight either

I have had my skyjackers for over 20 years with maybe 200,000 miles on them... its a VERY nice soft ride now


Krondor

SILVER Star
Joined
Mar 26, 2017
Messages
540
Location
Greenville, SC
How much longer of rear shackles do you recommend?

That's good to know about the skyjacker springs. If the extra weights doesn't fix the spring angle enough, Is it safe to drive with inverted shackles? Would that just make it a stiffer ride?

Joined
Sep 16, 2012
Messages
135
Location
North of Tulsa
I agree with JohnnyC. I have 6" lift Skyjackers. You can see the angle change quite a lot. under various load conditions.

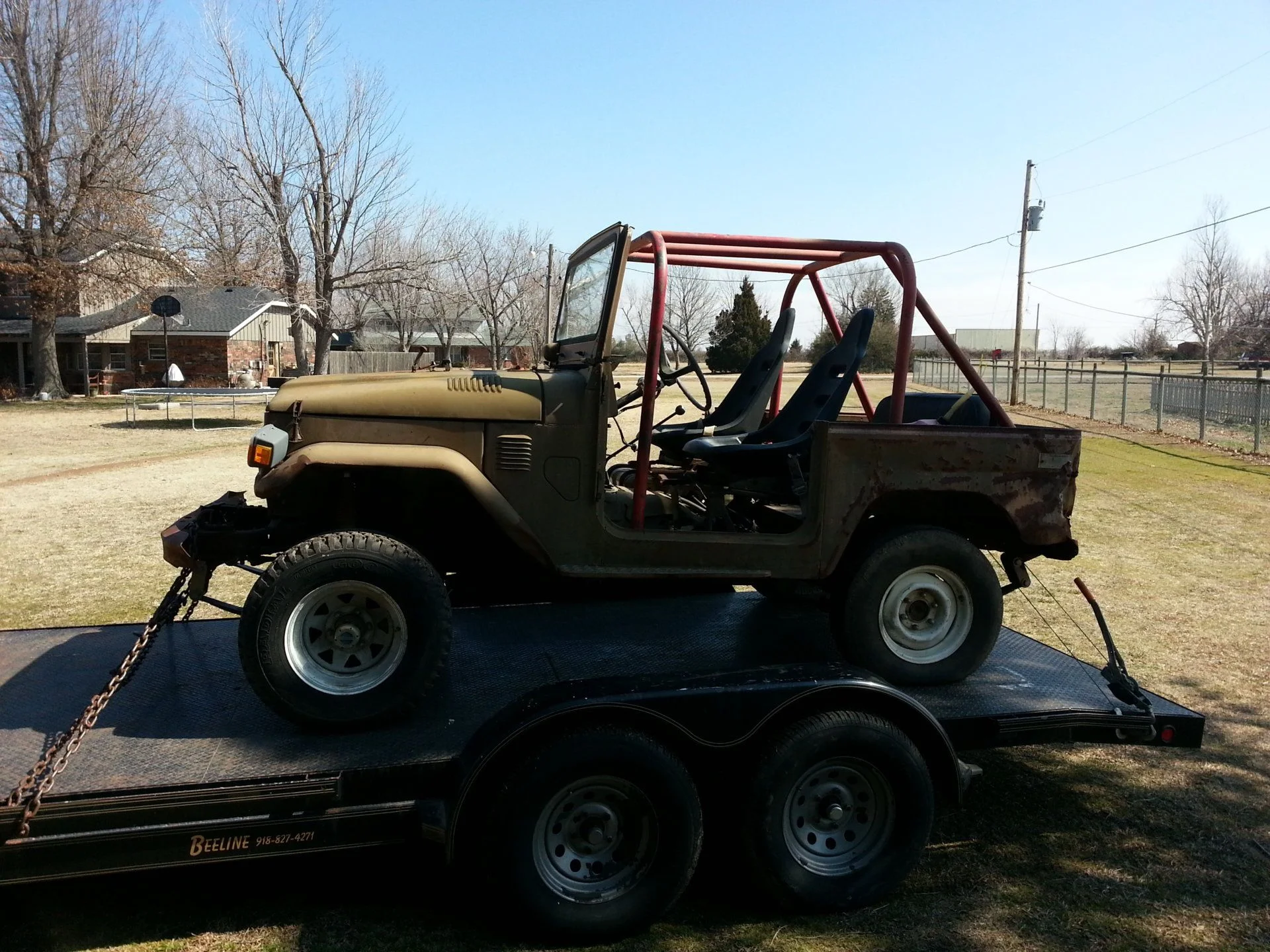

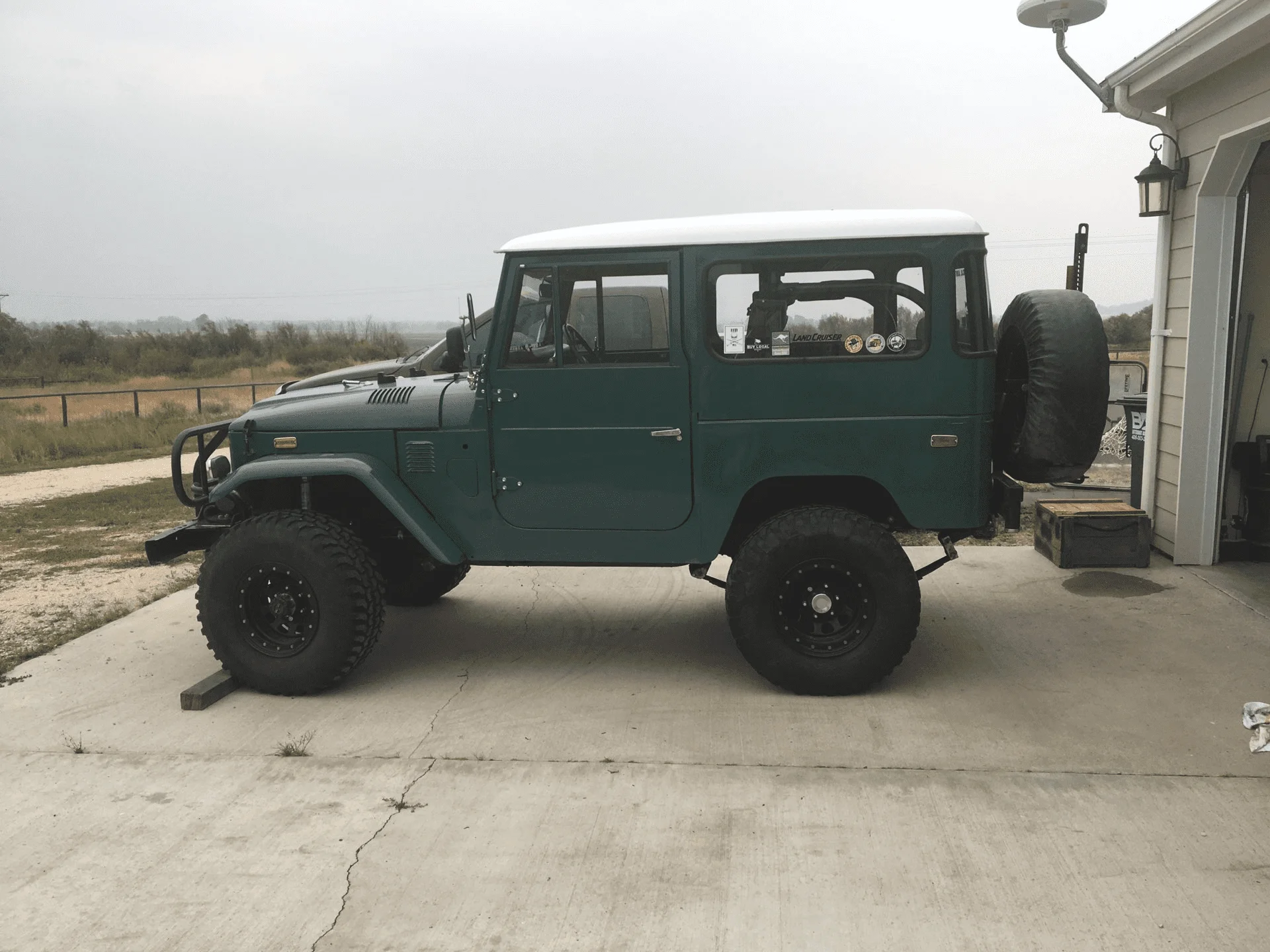

Very little weight

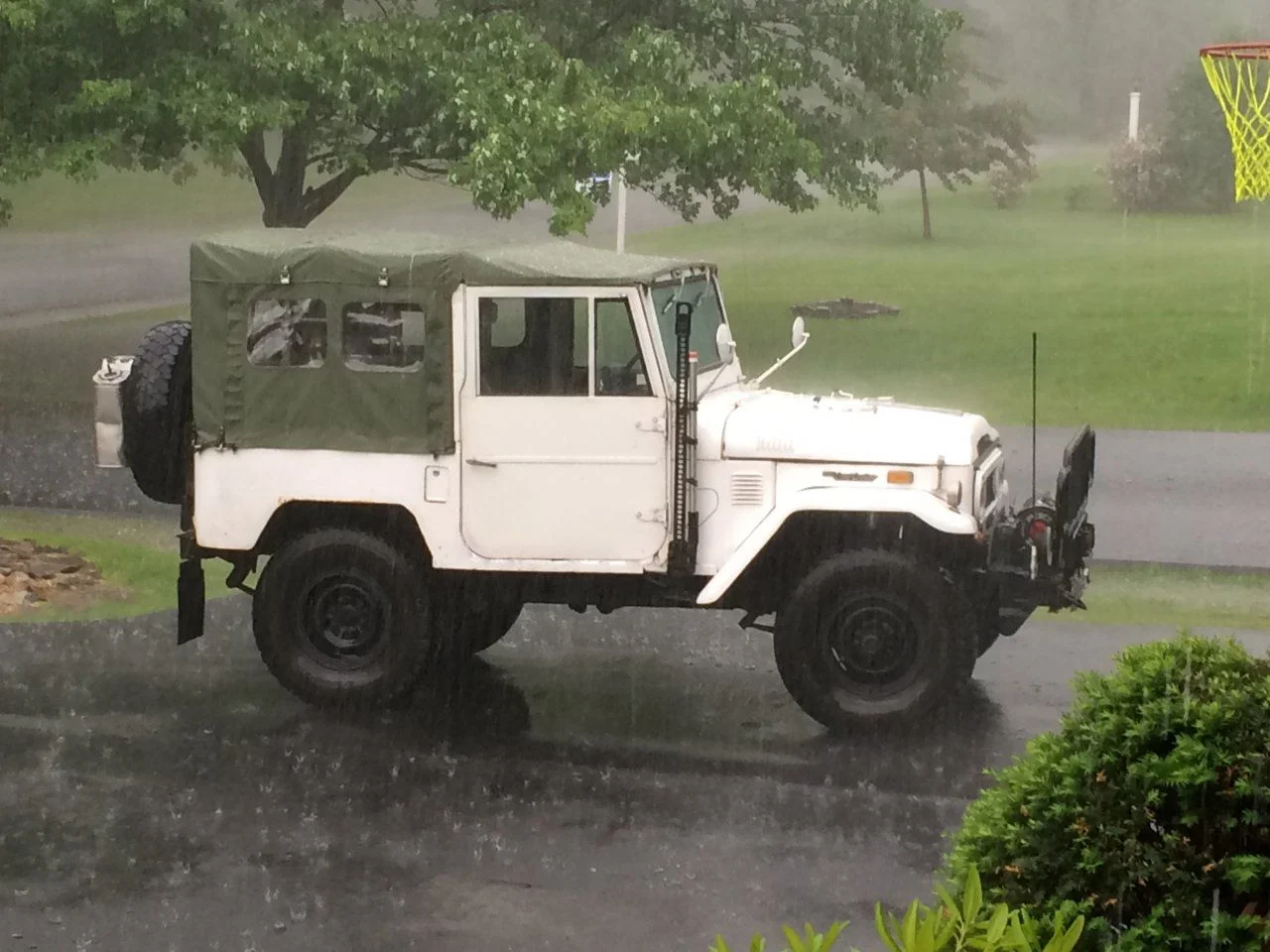

Even less weight

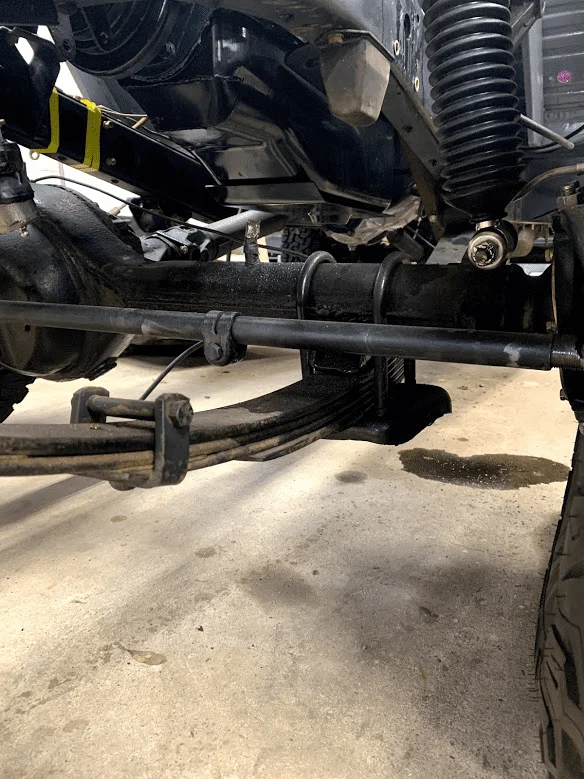

Mild compression on trailer







Krondor

SILVER Star
Joined
Mar 26, 2017
Messages
540
Location
Greenville, SC
Those pictures are pretty impressive. It is crazy how much they change with just a little added weight.


Krondor

SILVER Star
Joined
Mar 26, 2017
Messages
540
Location
Greenville, SC
The springs look to be coated in paint/chassis saver. The PO went happy with coating the frame/suspension/axles.


JohnnyC

Long ago TLCA# 2231
SILVER Star

Joined
Jun 17, 2005
Messages
16,554
Location
Nys
Since you have 4” on both f and r ... just put the same shackle as the fronts ... your fronts are longer btw


thecrazygreek

SILVER Star

Joined
Sep 26, 2005
Messages
4,146
Location
Oregon
I have seen folks (me included) do an opposite wheel lift to get springs to break in quicker.
Basically its two wheel / car ramps that you place in front of one front wheel, and the opposite side rear wheel then drive up on them. Doing this overnight, and alternating everyday will help break those springs in...


Krondor

SILVER Star
Joined
Mar 26, 2017
Messages
540
Location
Greenville, SC
Since you have 4” on both f and r ... just put the same shackle as the fronts ... your fronts are longer btw
Yeah the fronts have a center to center distance of 4.5" while the rear are sitting at 2.75". That would make a difference I'm sure.


Krondor

SILVER Star
Joined
Mar 26, 2017
Messages
540
Location
Greenville, SC

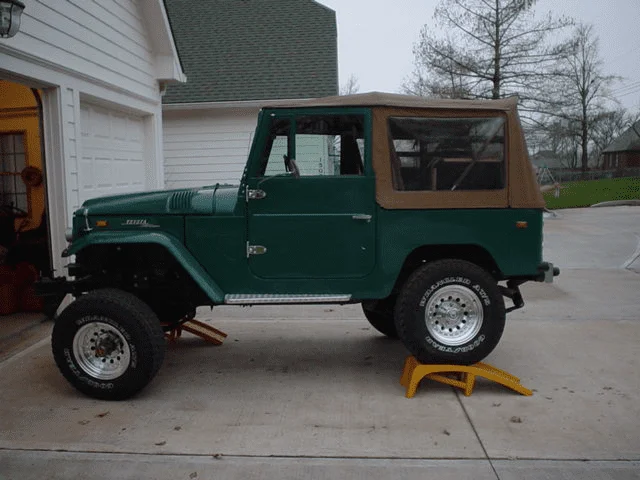

Googled what you were saying and found this mud thread:




thecrazygreek

SILVER Star

Joined
Sep 26, 2005
Messages
4,146
Location
Oregon
Googled what you were saying and found this mud thread:


View attachment 2177760
Exactly!!


jim land

SILVER Star

Joined
Aug 6, 2007
Messages
1,608
Location
scott quebec
I have 4 " skyjacker on my 40 since 2003, at first it was on stock shackles, after 6 months of driving i build new one from 2"x3/8 flat bar, 4" centre to center, trouble with stock 2.75" shackles is they are too short and hit the hanger on the frame before the spring get flat when flexing , also the risk to invert .
Those springs keep their arch for very long time , i flex them alots for the past 17 years and still have the rear end a little high .

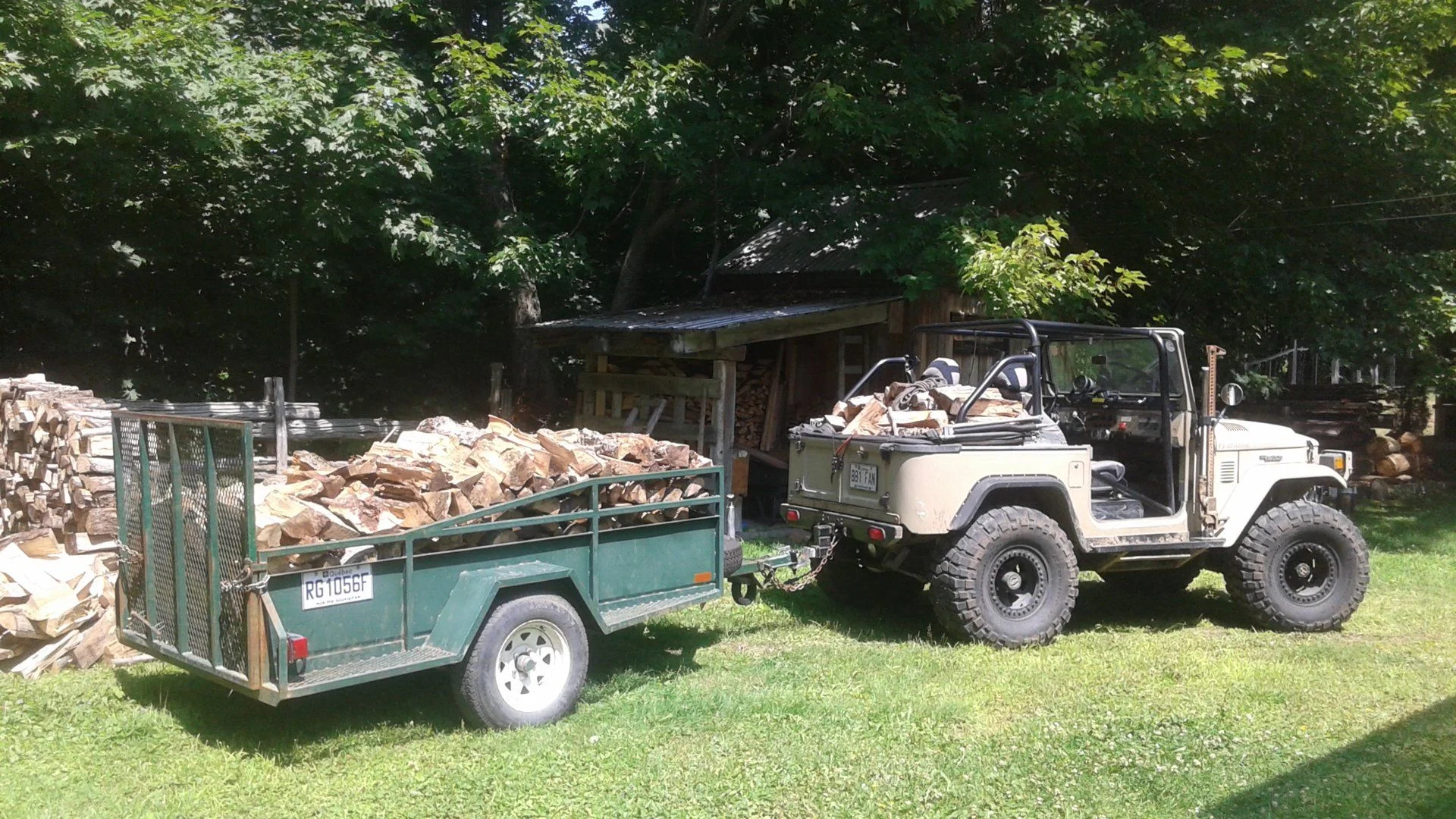

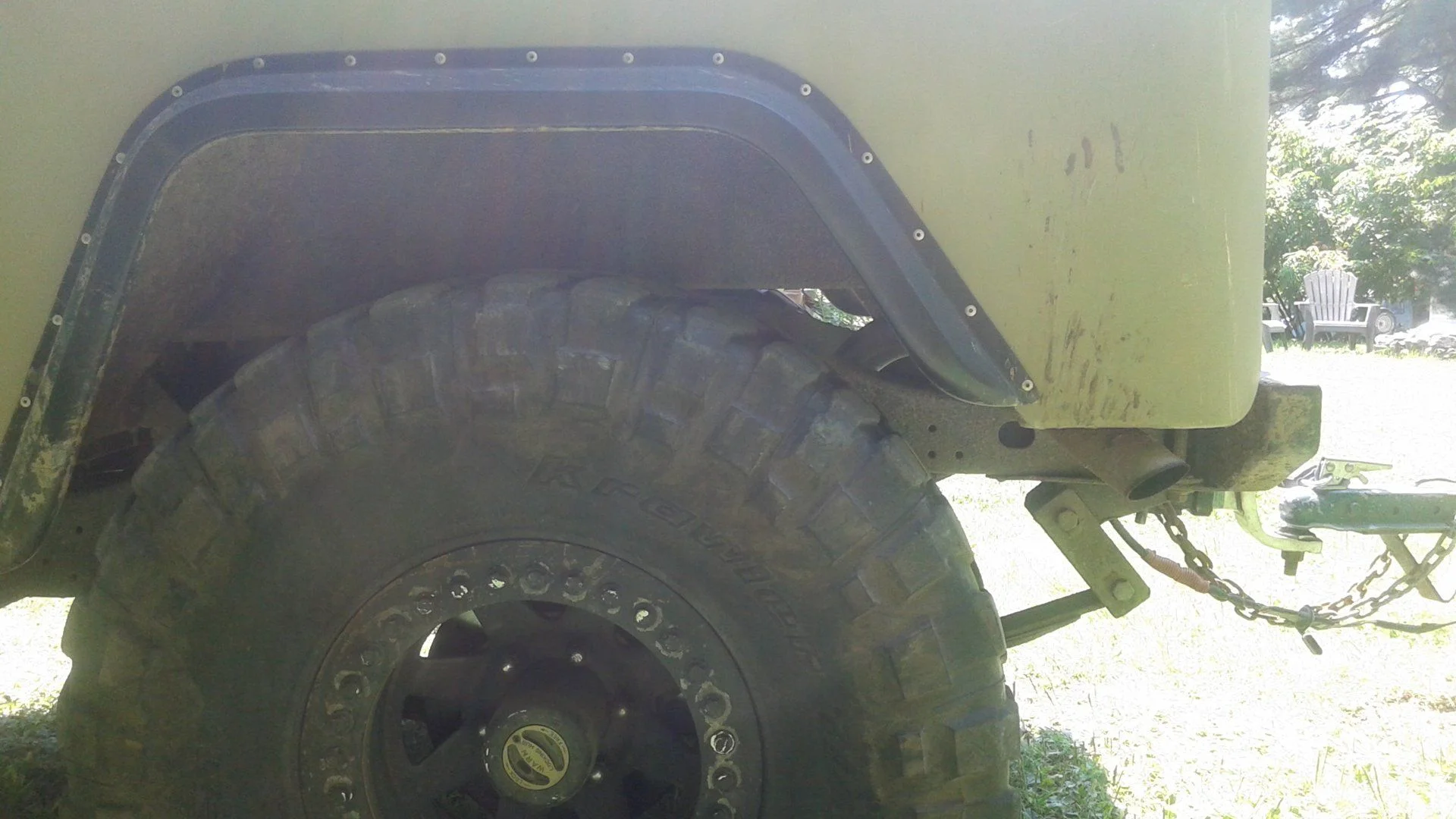

With a load of fire wood it get better
