Builds Do I have your attention.... I call it VERA. (1 Viewer)

2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

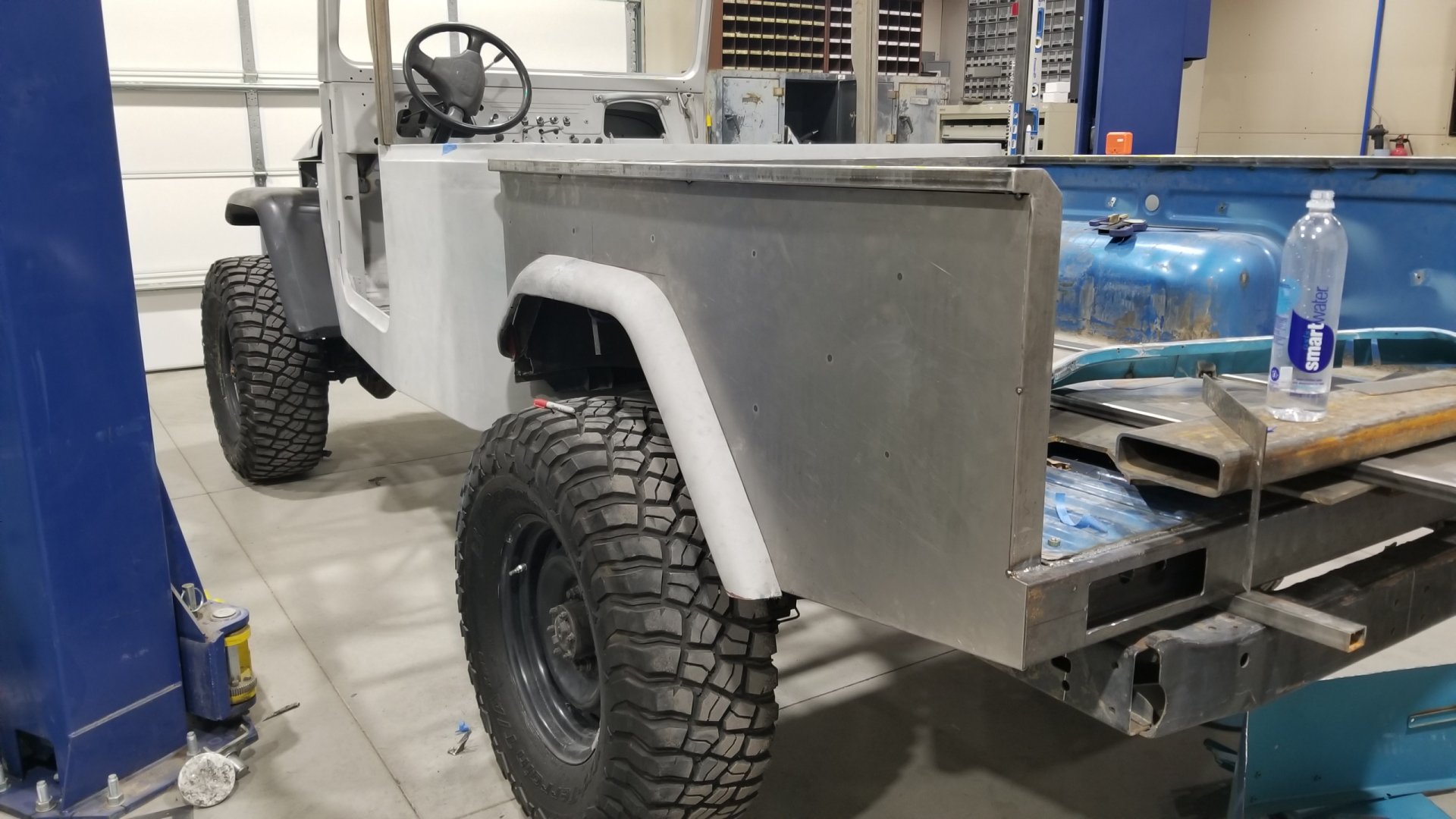

Mocked up a second size flare…. Here is the first one.. kind of the minimum for the tires, but I thought it might look better a little larger.... more like what @waiting for time did.... actually with the tire down, it may look better to have one like the sandal dude was making..


so here is CAD version 2....








Last edited:
Joined
May 25, 2010
Messages
3,813
Location
The Netherlands, In the Market Garden area
I would increase the angle up to 45 ish and make it wider. Best look at it with the full image not just the top part, the lack of height above it is misleading.


47coeman

Love those 45's
Joined
Jan 2, 2012
Messages
1,776
Location
Nor Cal, Richvale,Ca
Tnx for coming over to my page and reminding me of your progress. Great work on your bed and your process is very similar to mine construction wise. Yes it is a labor of love slicing and dicing to get the fit up on the placement of the fender skins and your proportions look just fine. I don’t know if you noticed but i chose to replicate most if not all of the bed pieces commercially and was able find a metal fab company to do the work with computer aided benders for the floors, headboard, top rail and standard metal pieces purchased locally for the inner structures pieces. From the original bed’s i used the wheel wells tail gate and bed sides which were in pretty rough shape but cutting up and welding them back to the needed shape eliminated most of the rust so you see the finished product in my most recent pic’s on my blog here. It is exciting to be in your space of completion now you can see the light at the end of the tunnel.


2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

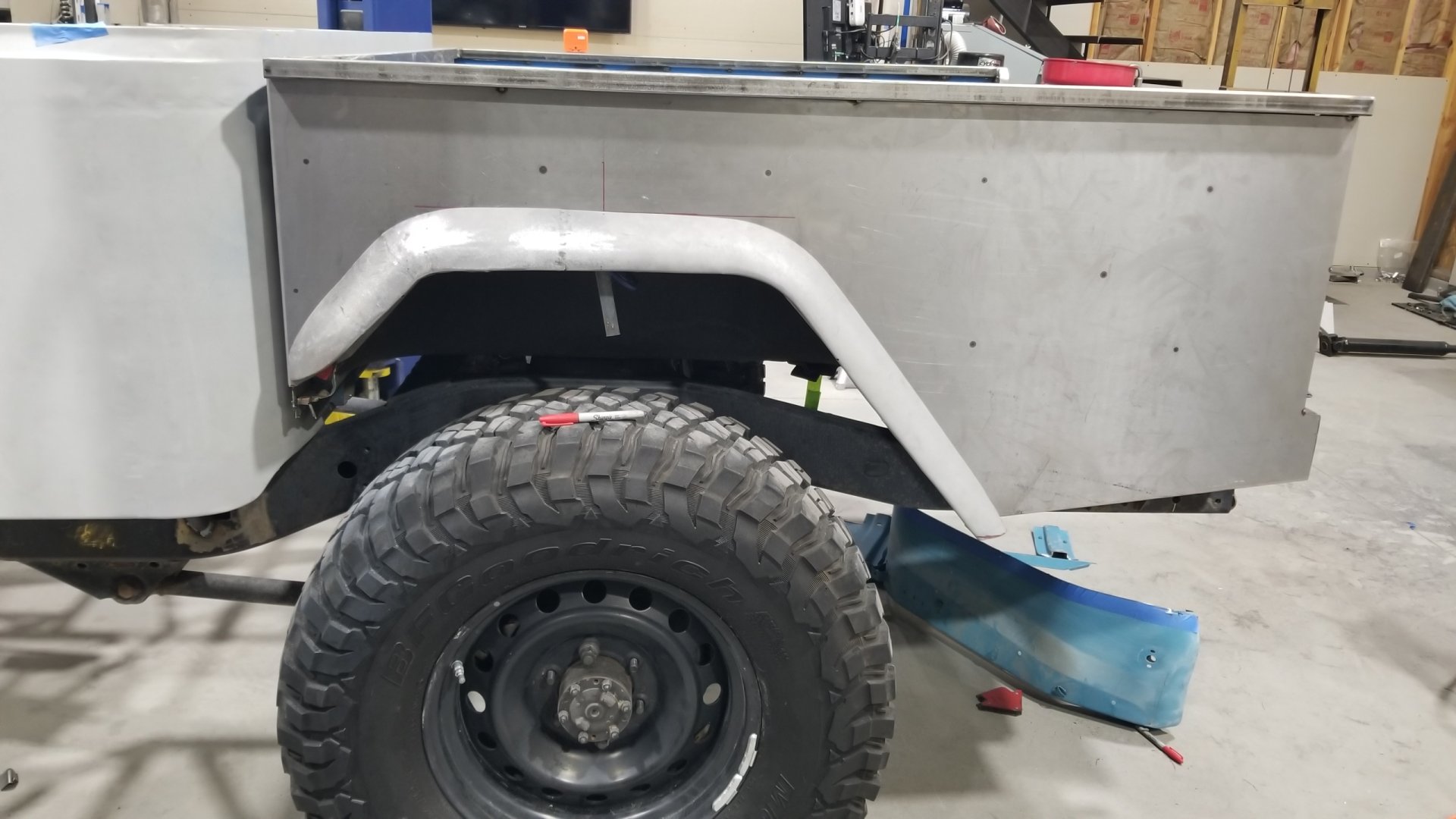

I wanted to cross post your build as it is amazing if anyone is looking for motivation and ideas.....



2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

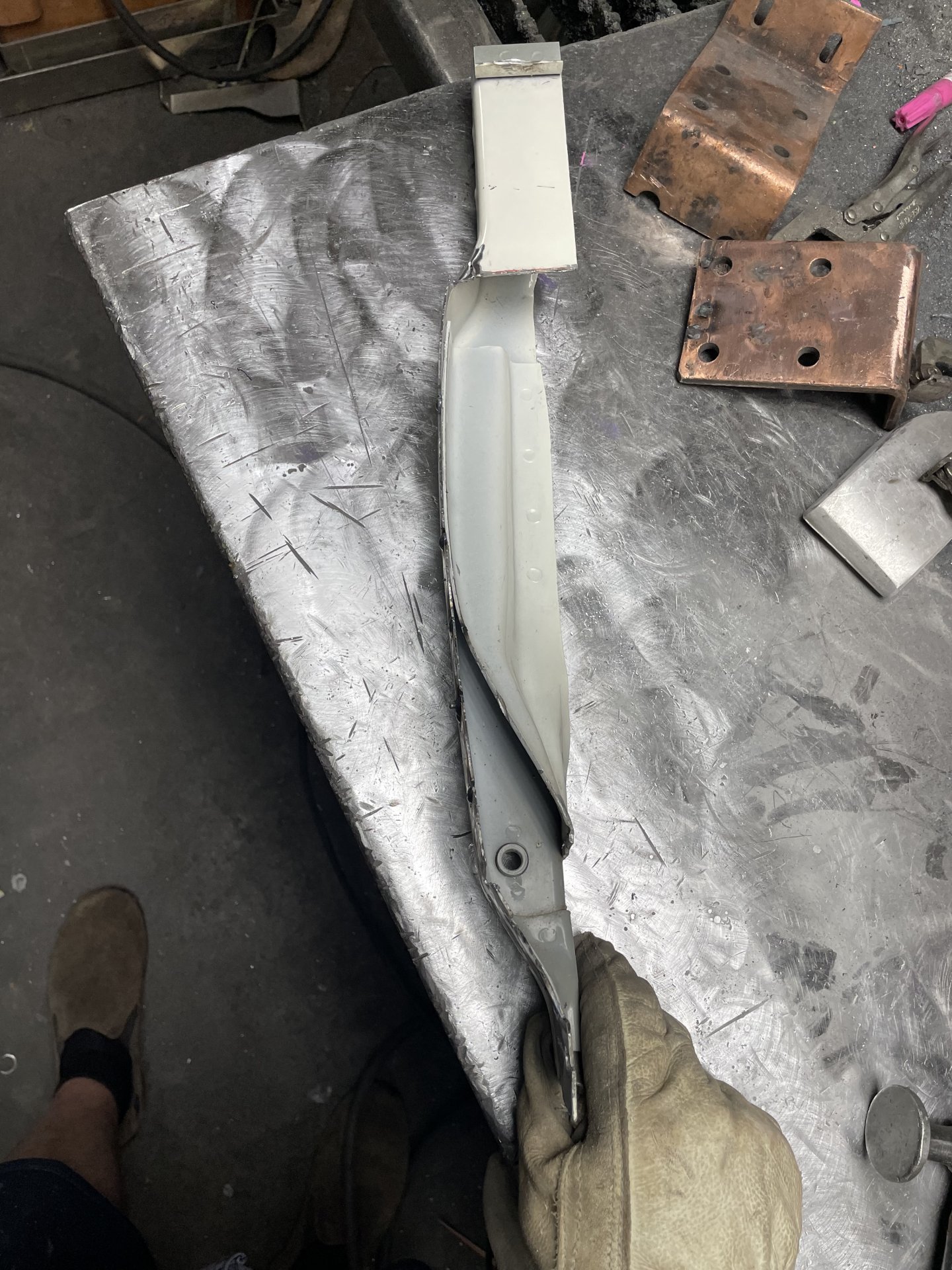

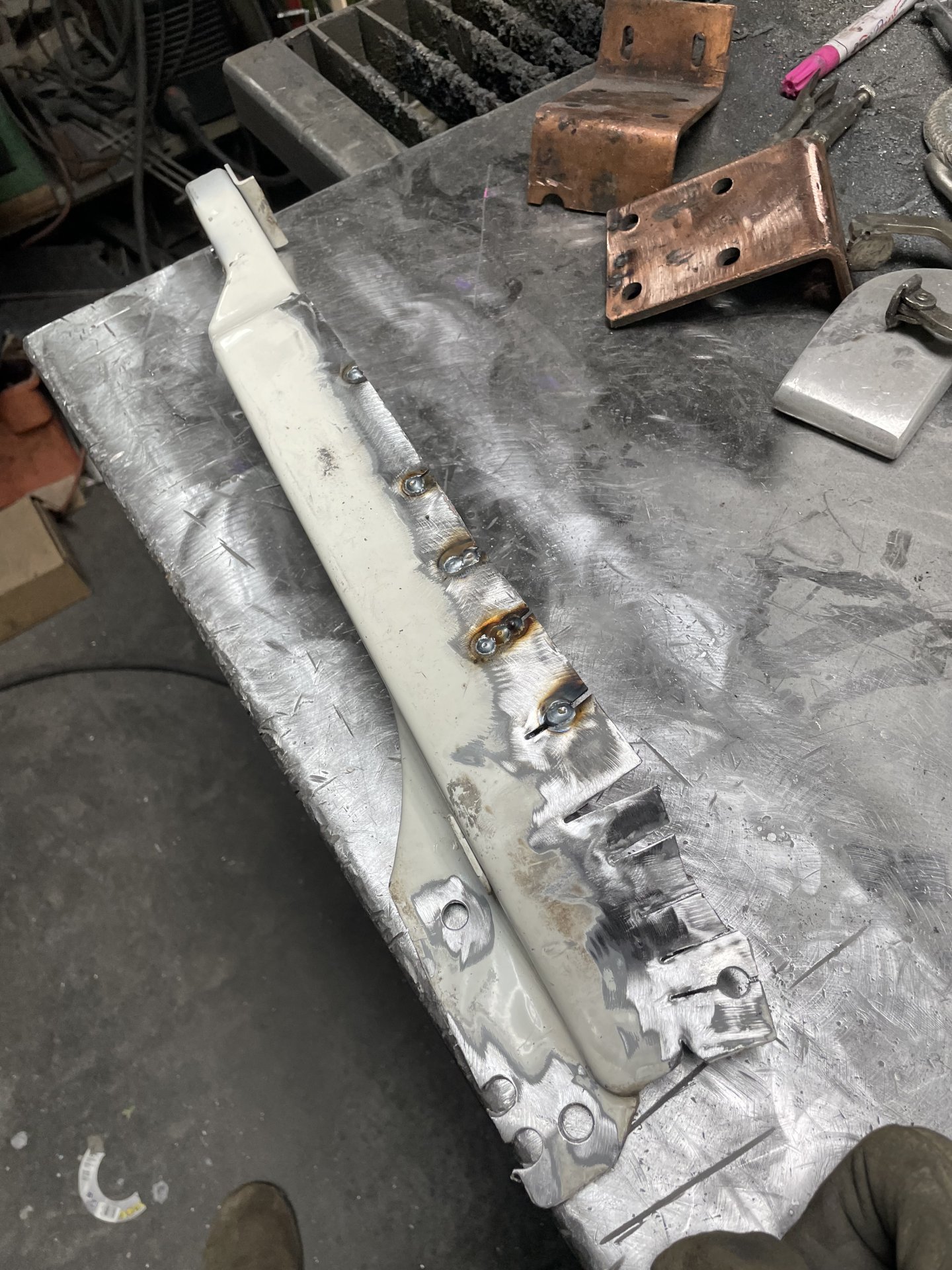

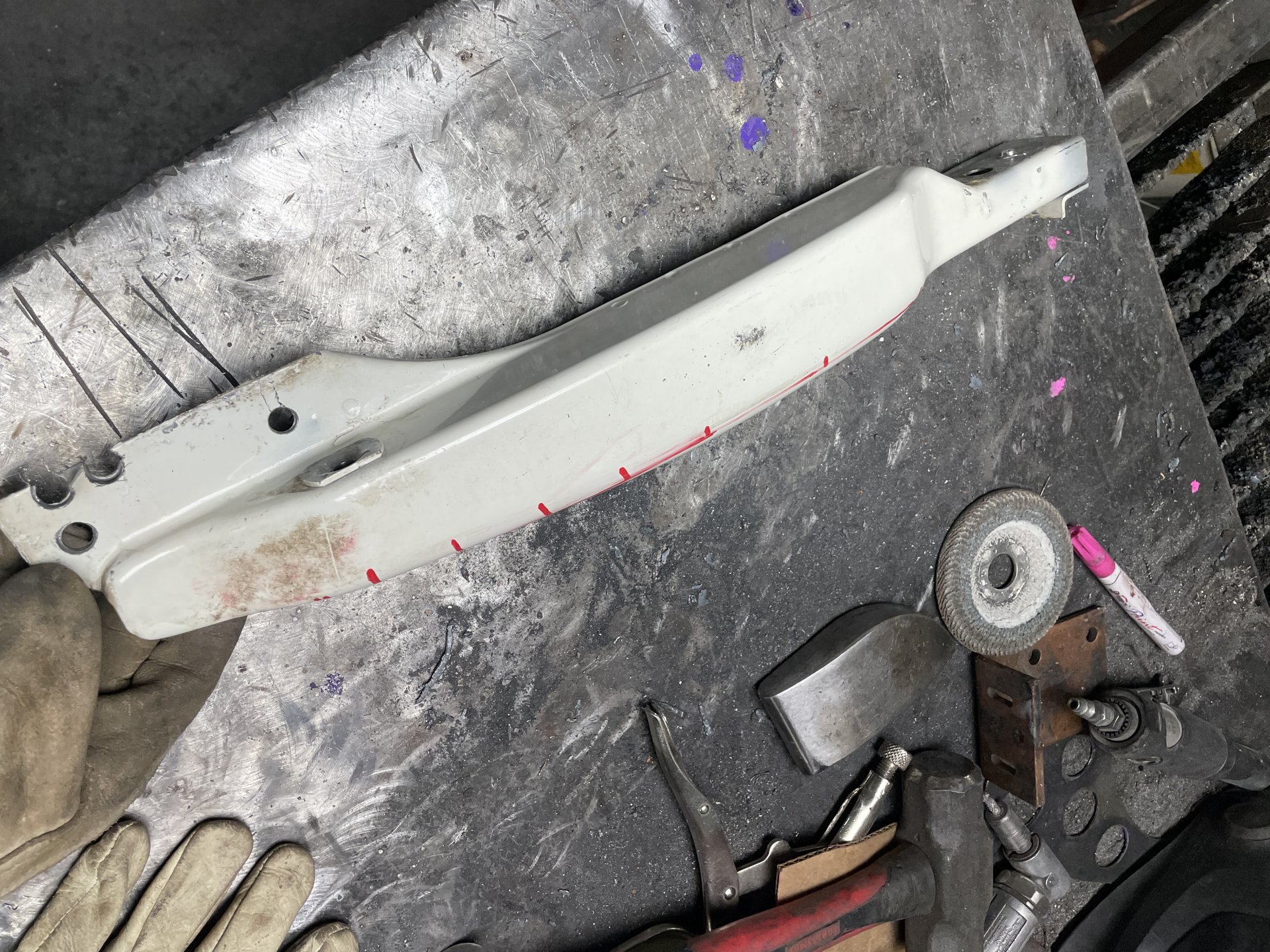

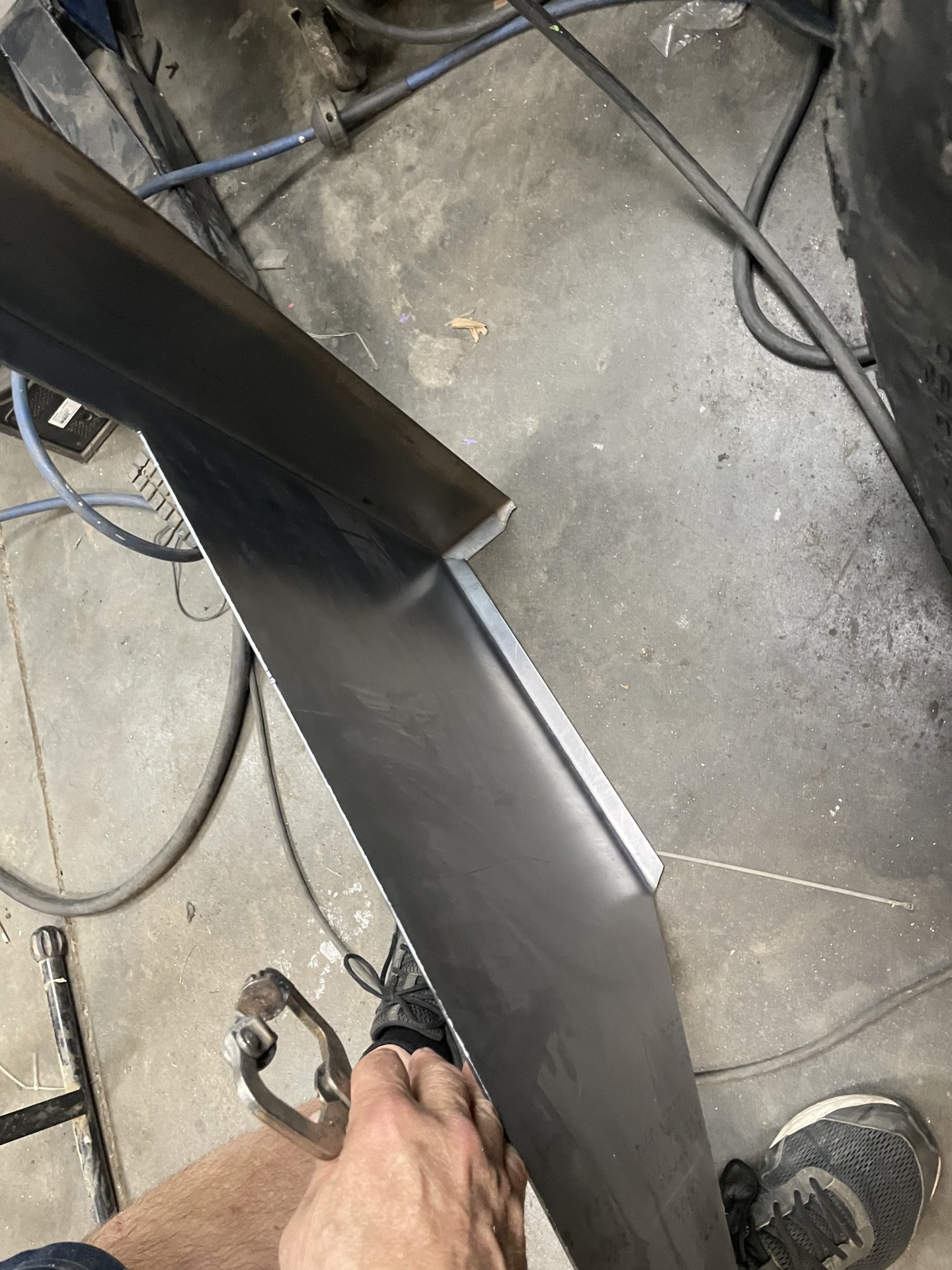

Here we go… started with the corners…. Going to keep the rear profile for the tailgate but the side will be straight.











2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

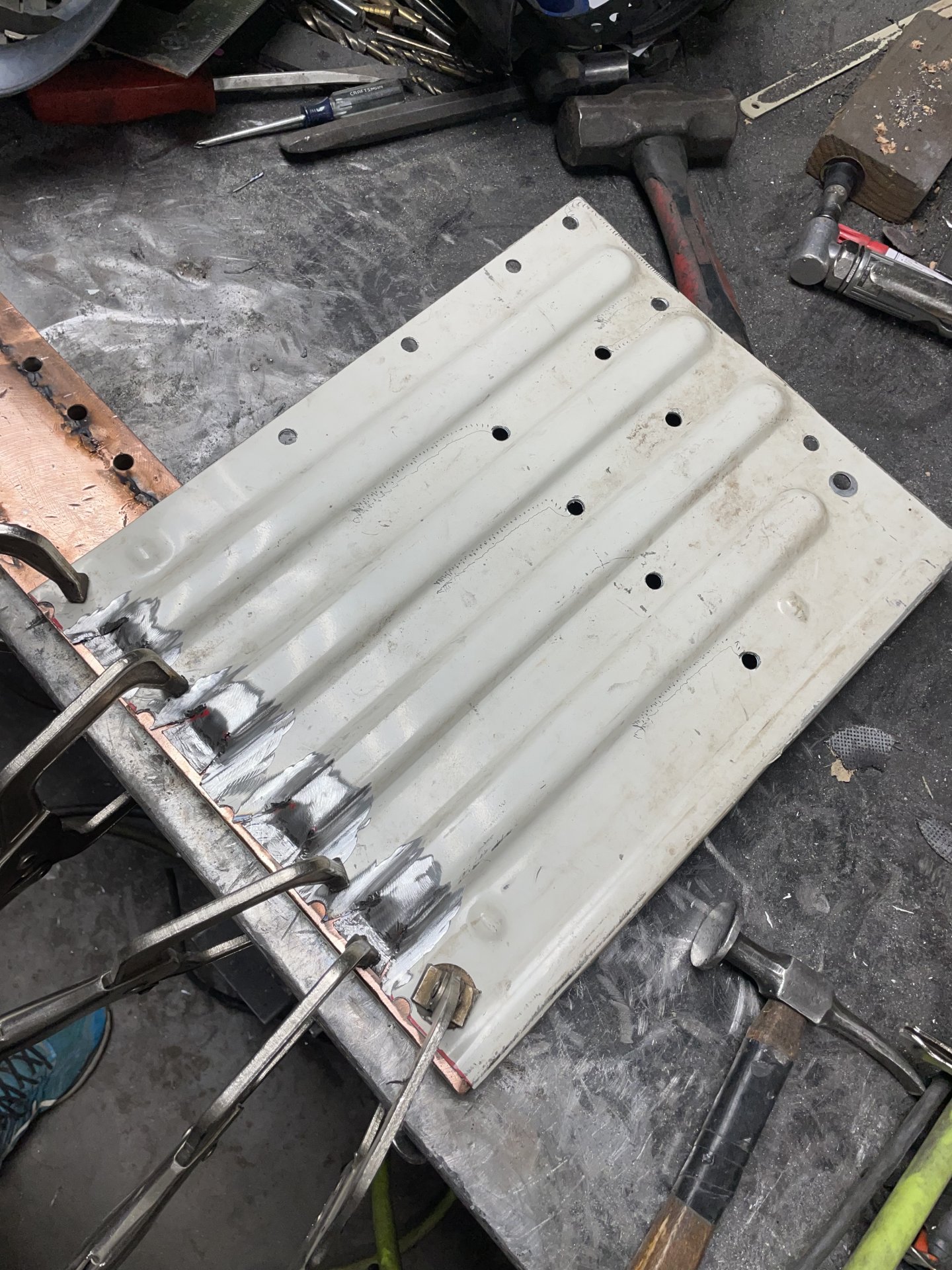

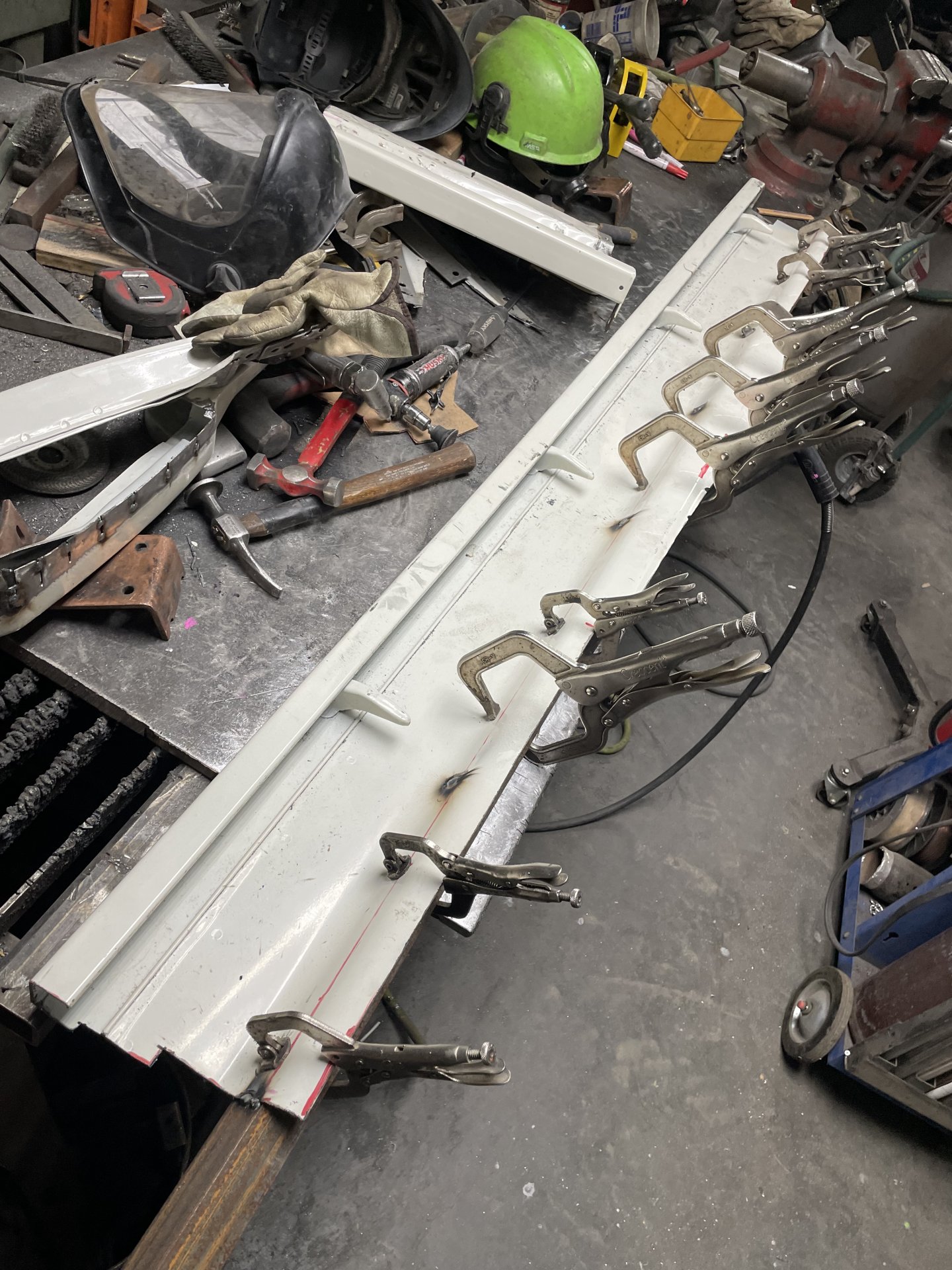

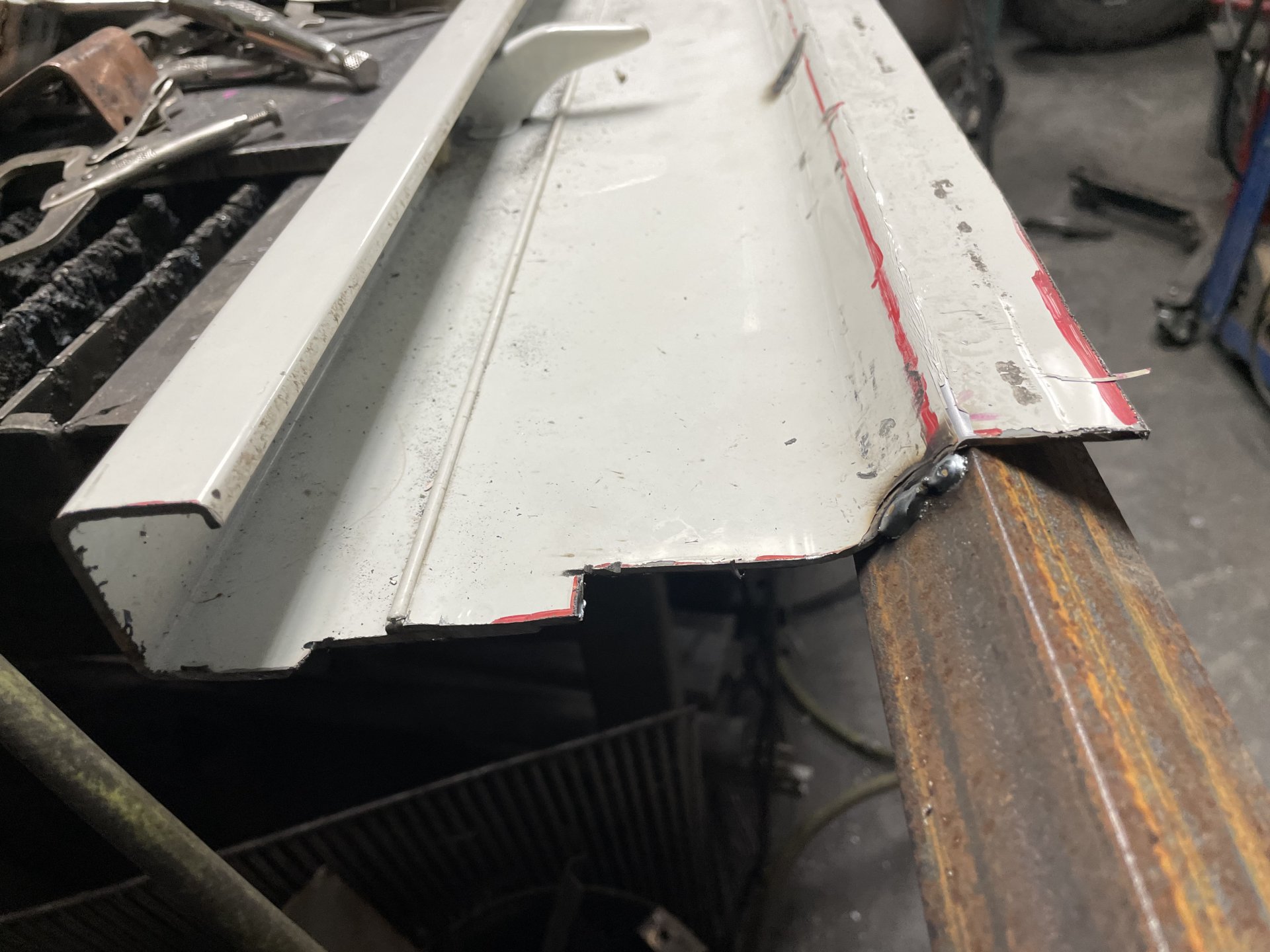

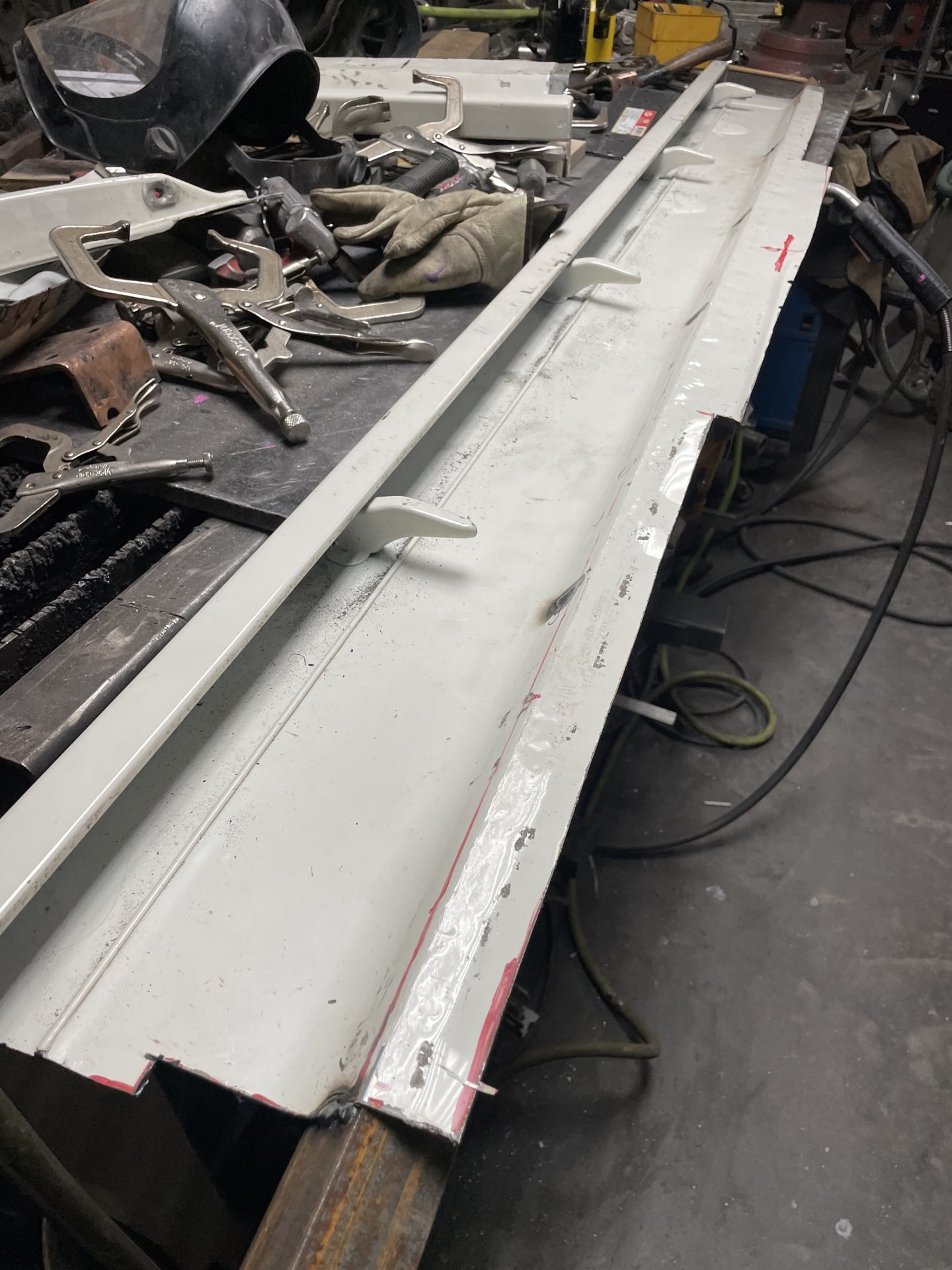

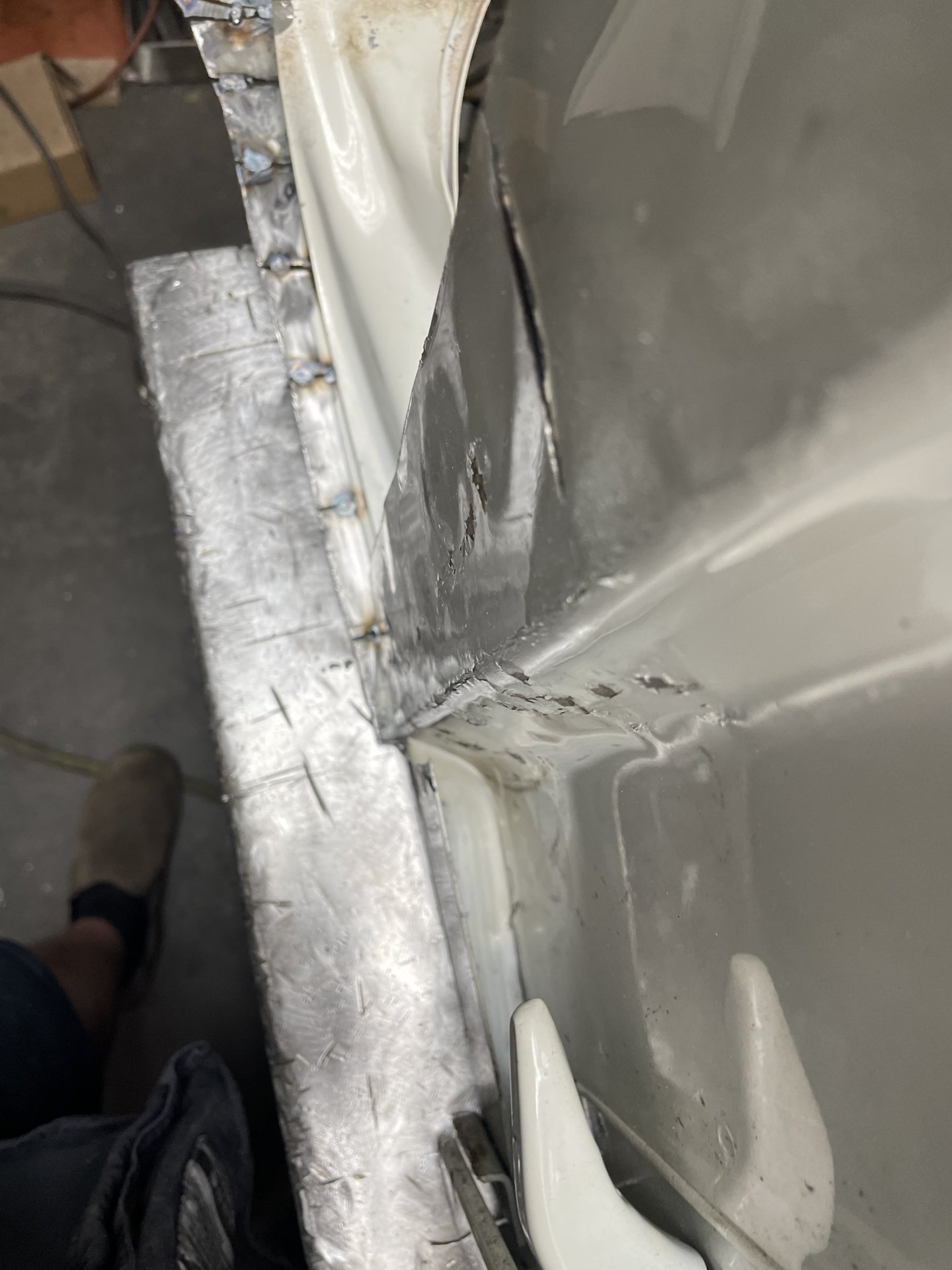

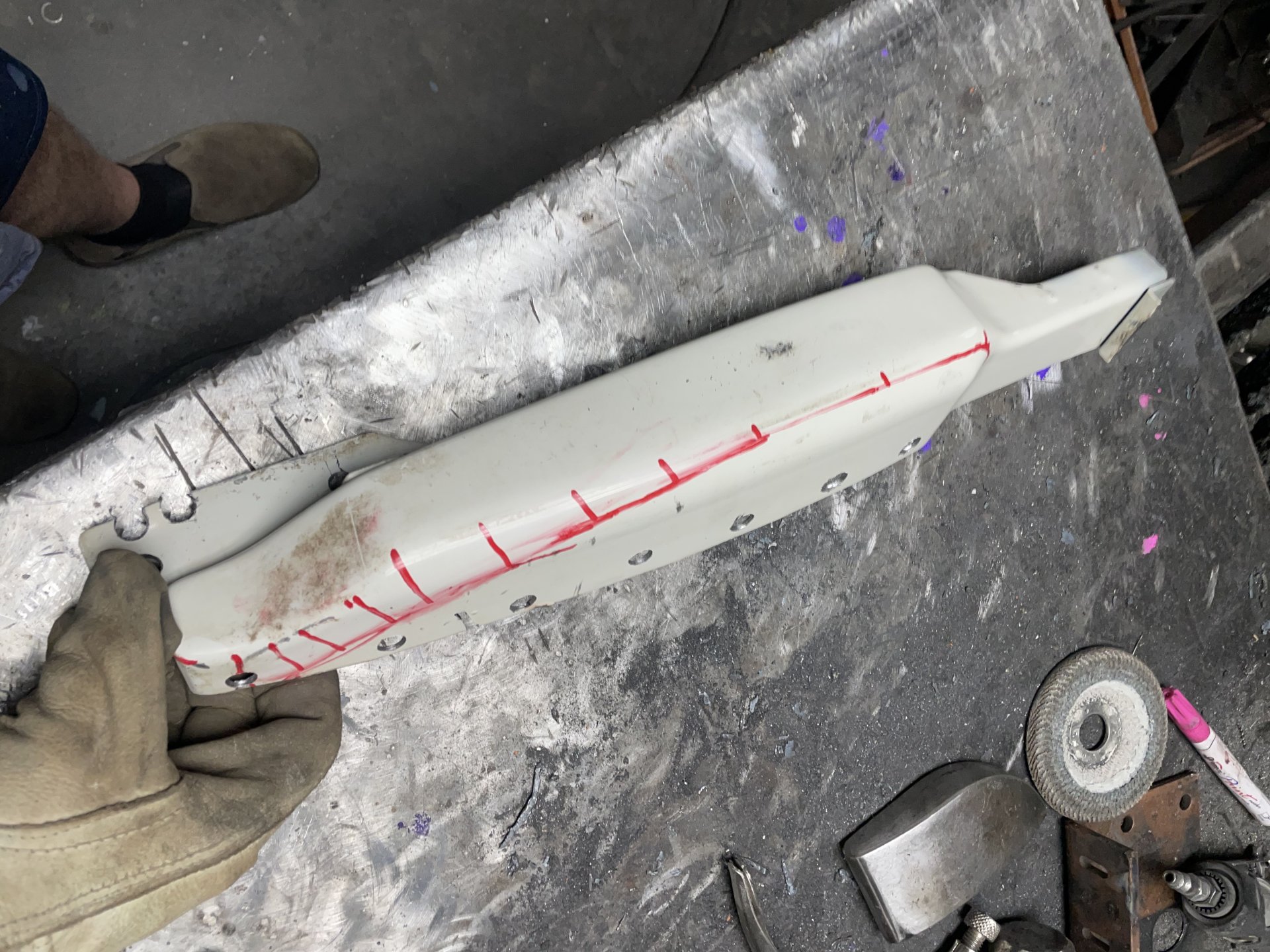

First tested on a scrap then went all out and did the whole section clamping and welding The piece to angle iron and beating with a body hammer for 15 minutes…. I think this might work.









2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

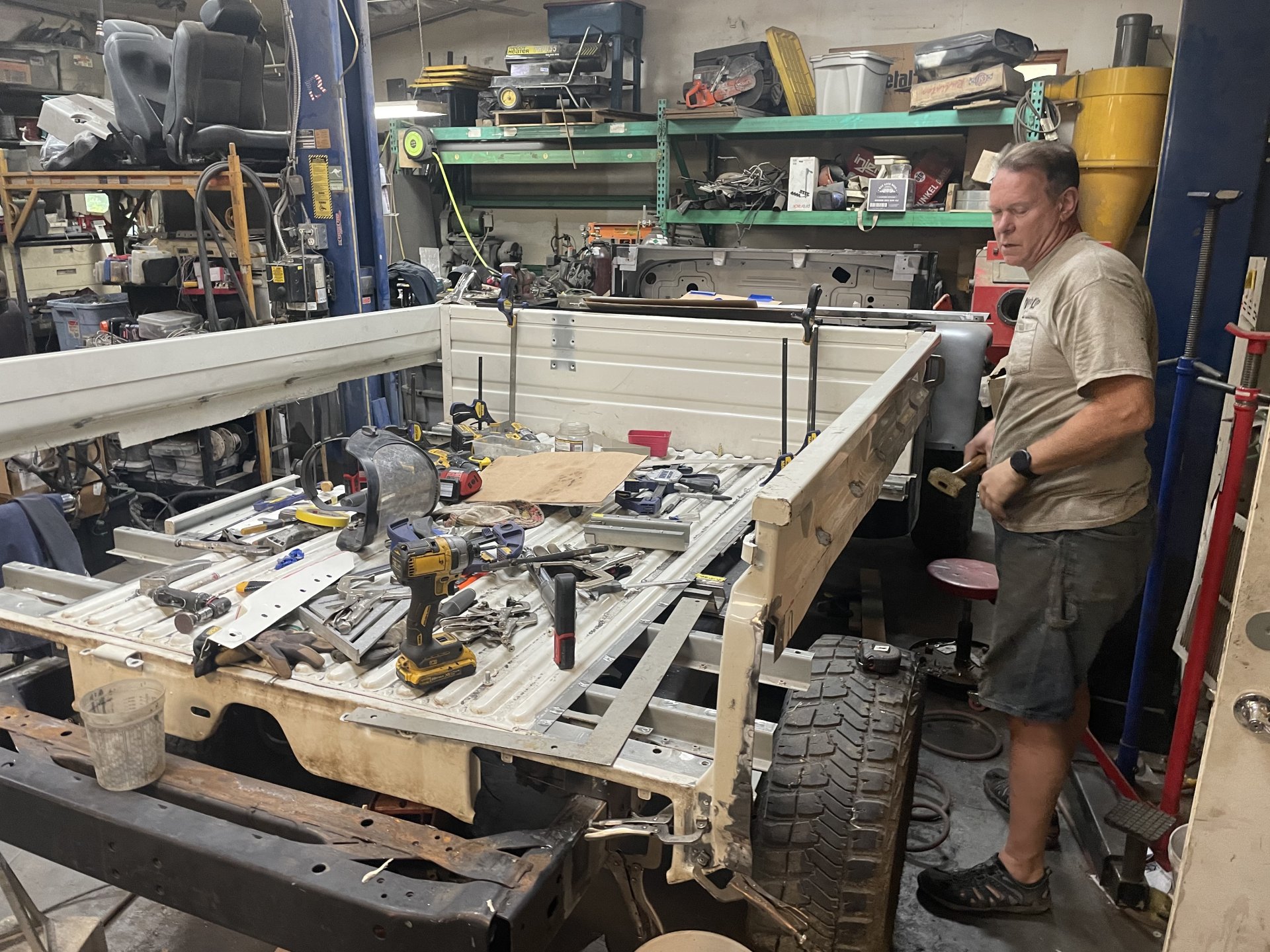

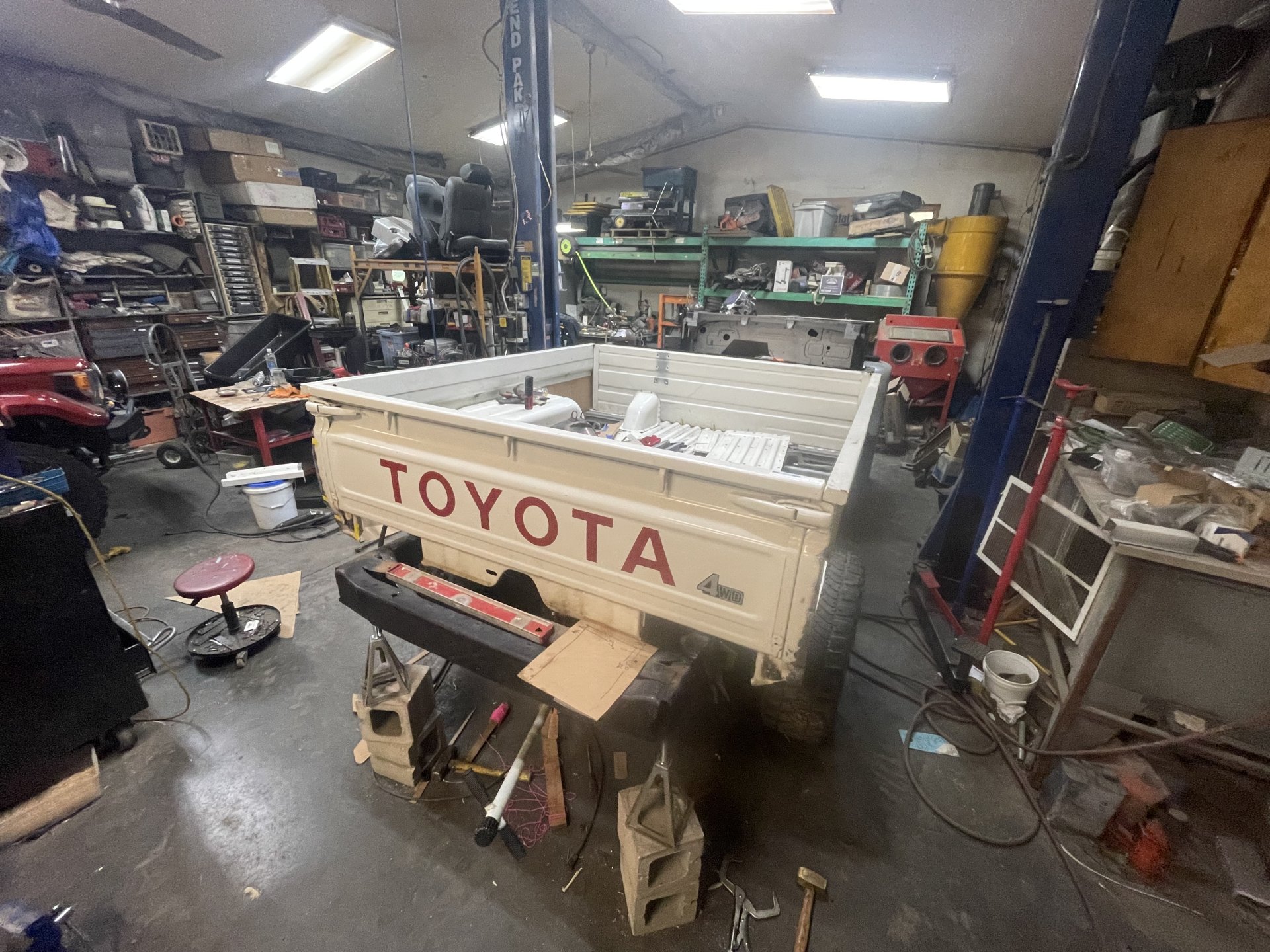

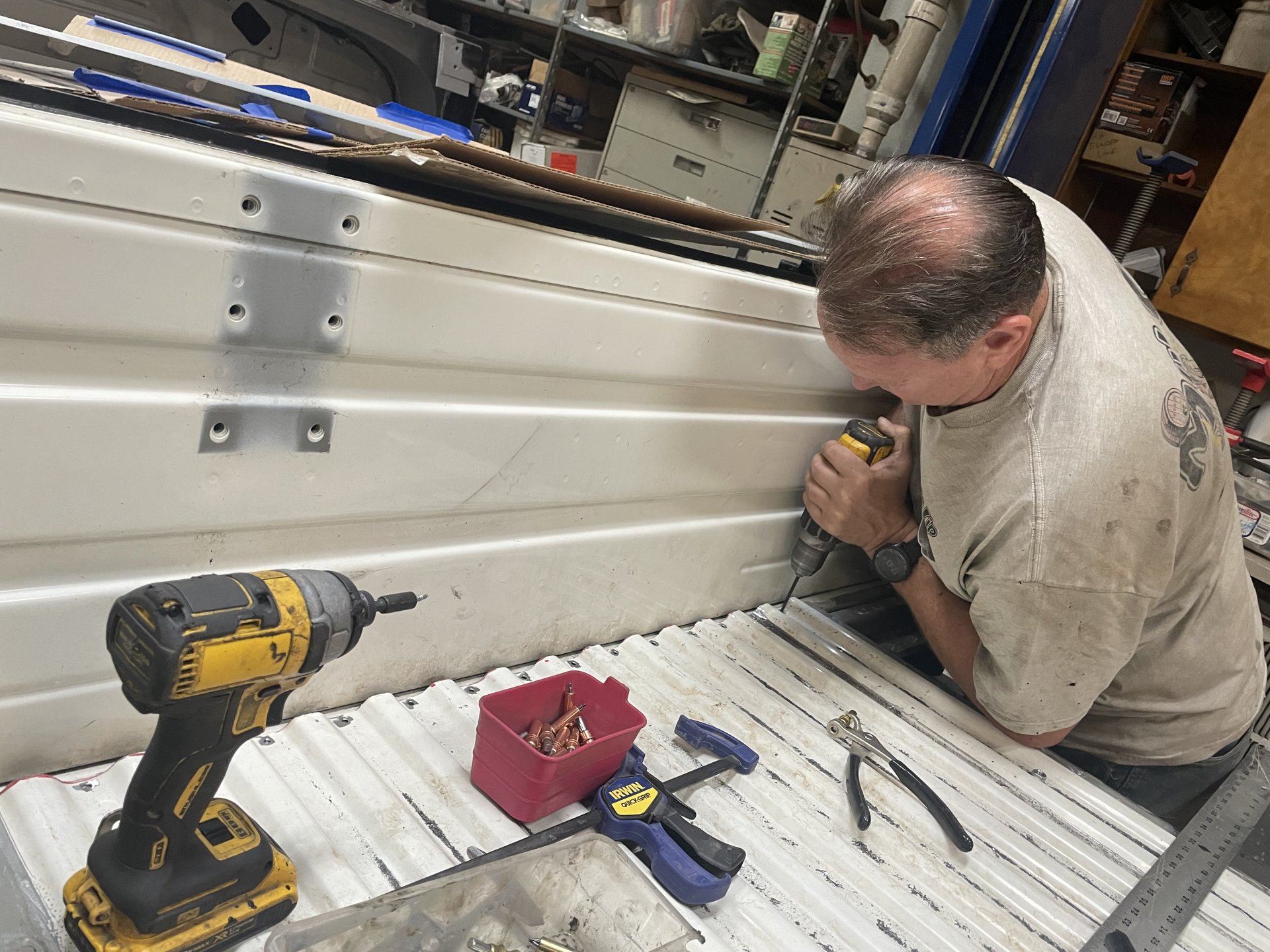

With the expertise of @kc_chevota got the bed going back together….











2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

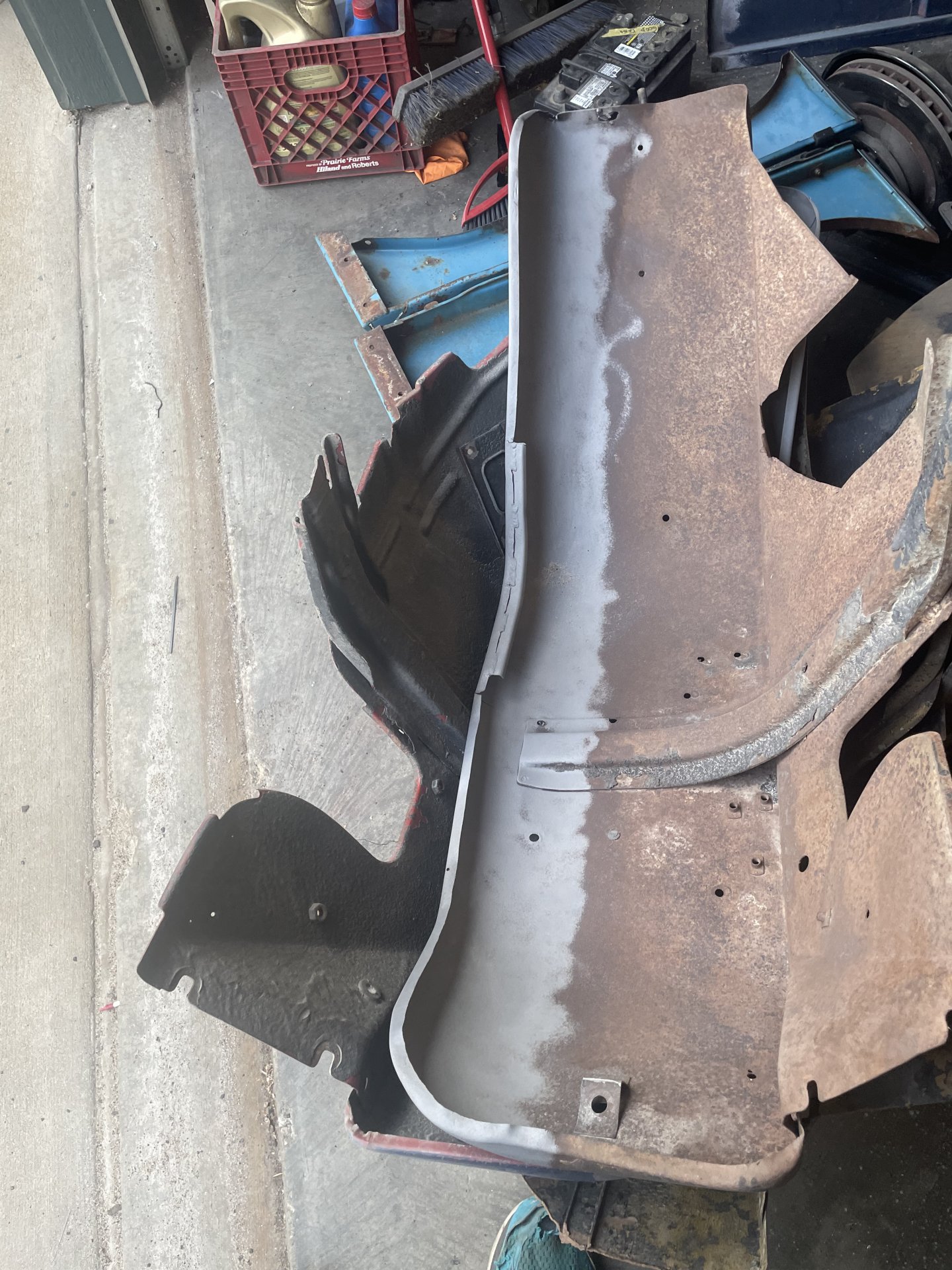

Just saw a picture of that @UZJ40 posted up of his rig with 37‘s…. And realized he used front fenders to make the flares…. Darn, they look good…. Time to go digging in the barn to see what old fenders I have.





UZJ40

OEM(ish)
SILVER Star
Joined
Aug 8, 2011
Messages
2,316
Location
LV, NV
They were definitely a lot of work... Might have almost been easier to make some from scratch than modify those to work. I like how they turned out though.


2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

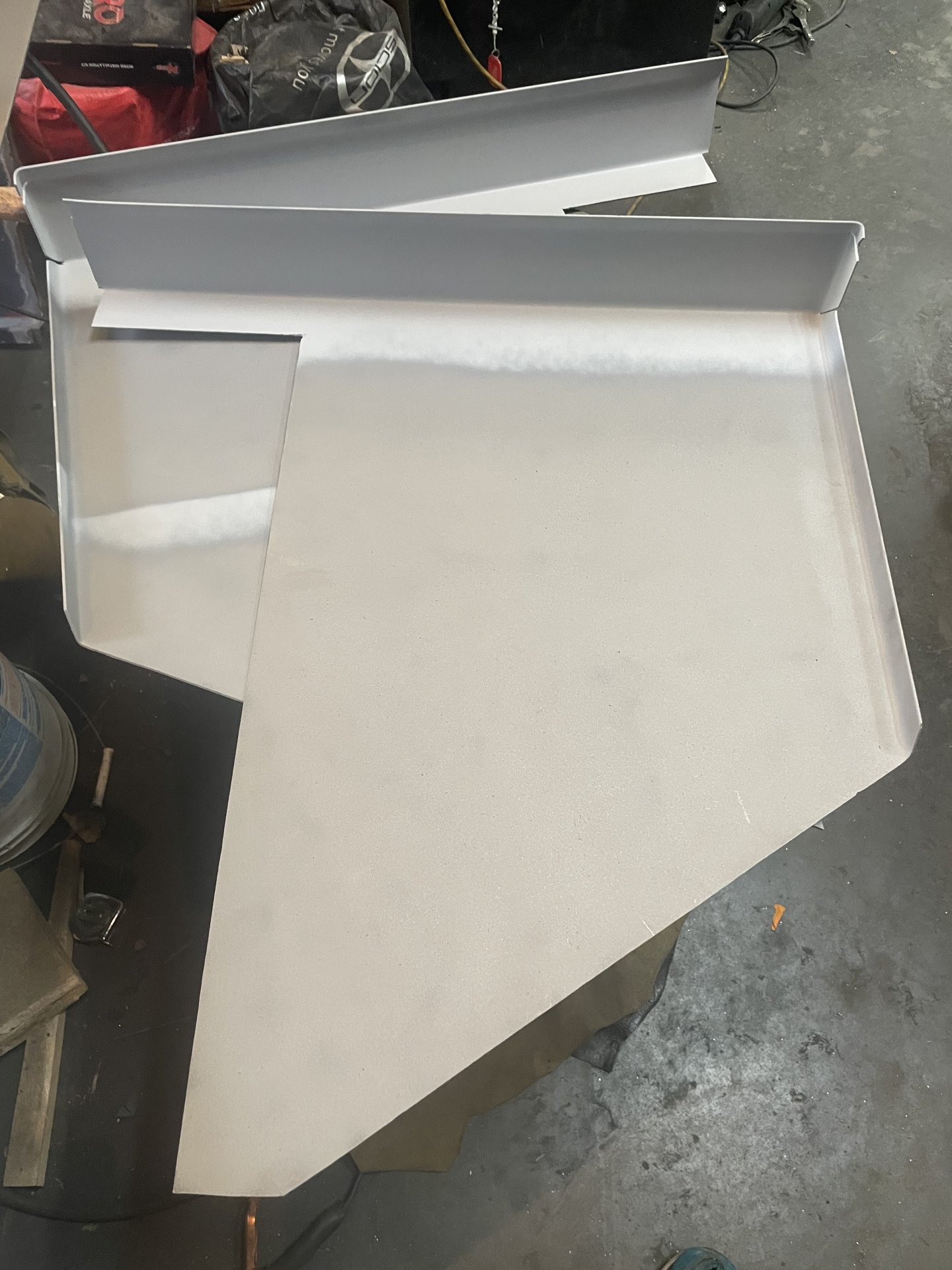

Bent Some 14 gauge.











2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

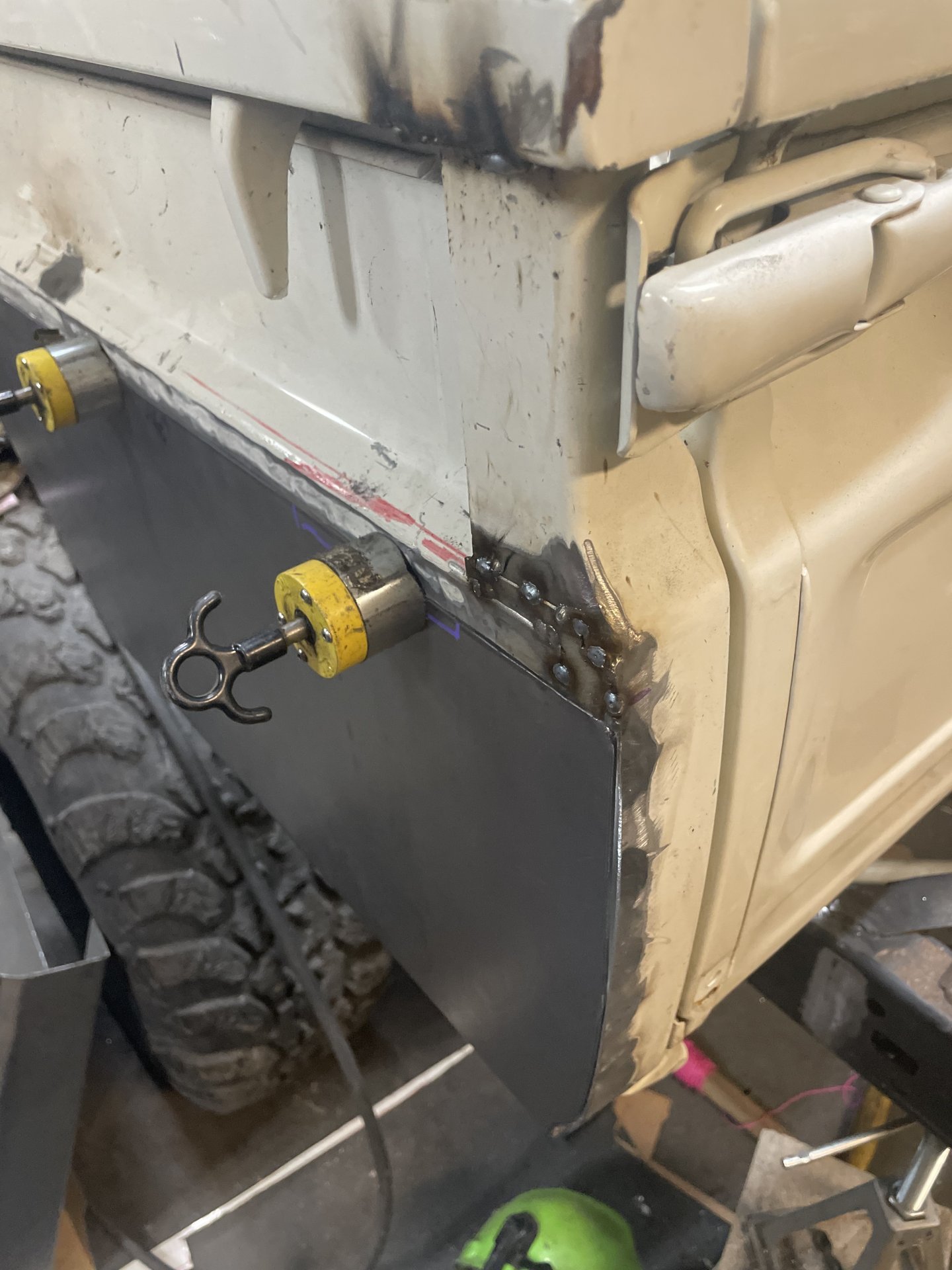

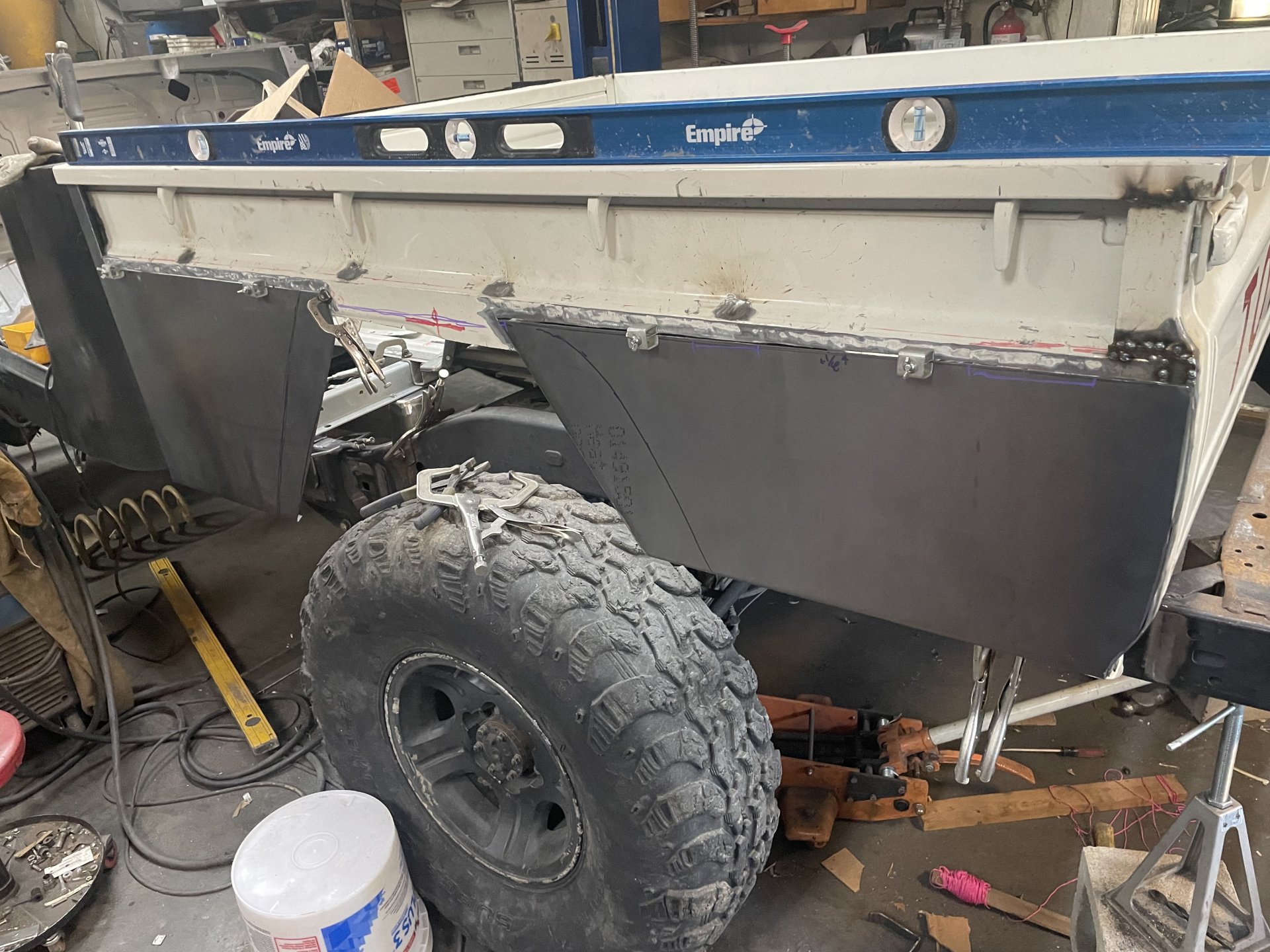

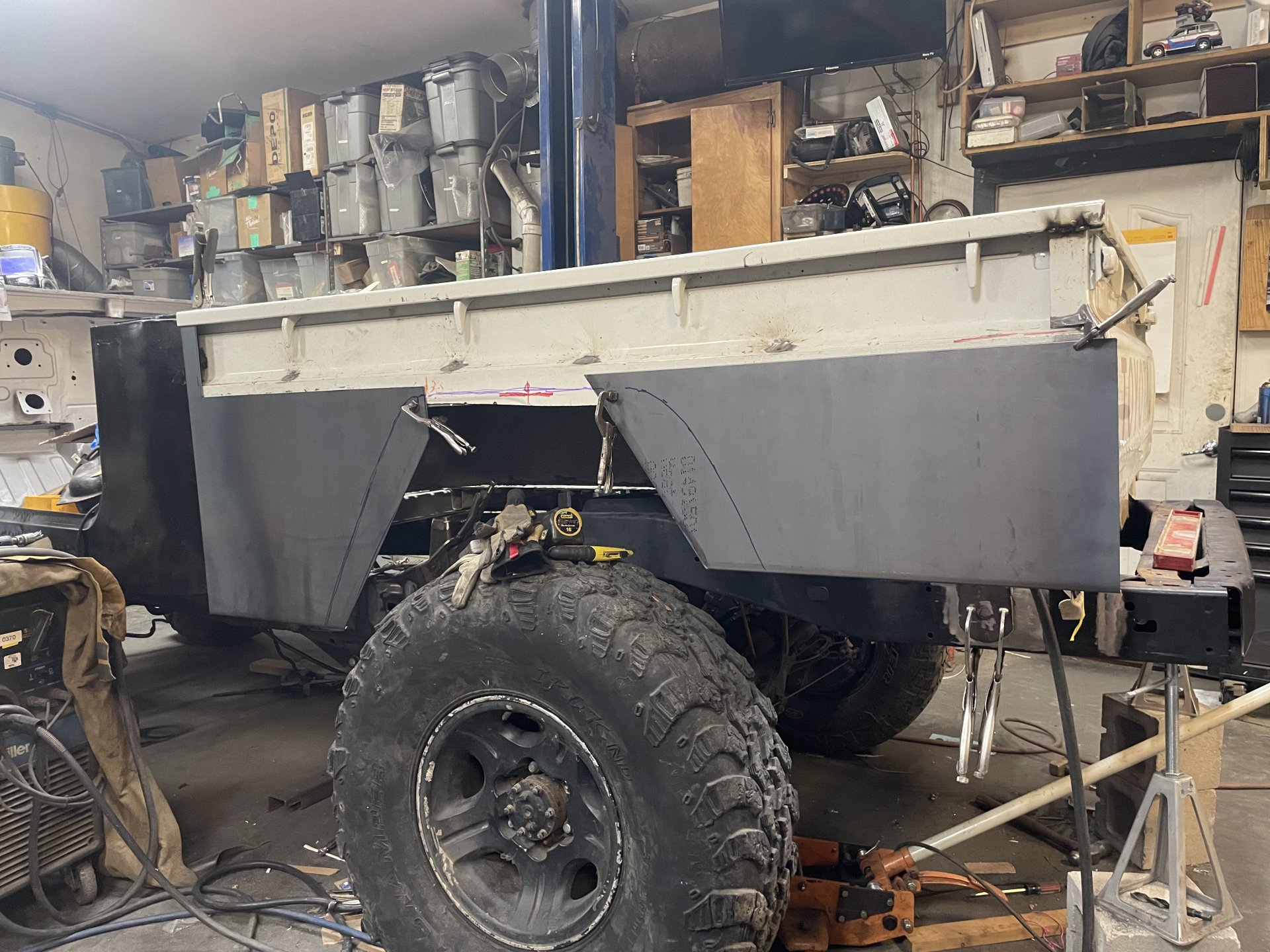

Got the drivers side panels ready to weld in. I just ordered some weld through primer, so will be a few days…. Going wheeling this weekend anyway… My plan is to sandblast the sections that I will be unable to get to later to remove the scale, either use the weld through primer if I’m going to weld or use por 15 to cover those sections before I start welding at all together.

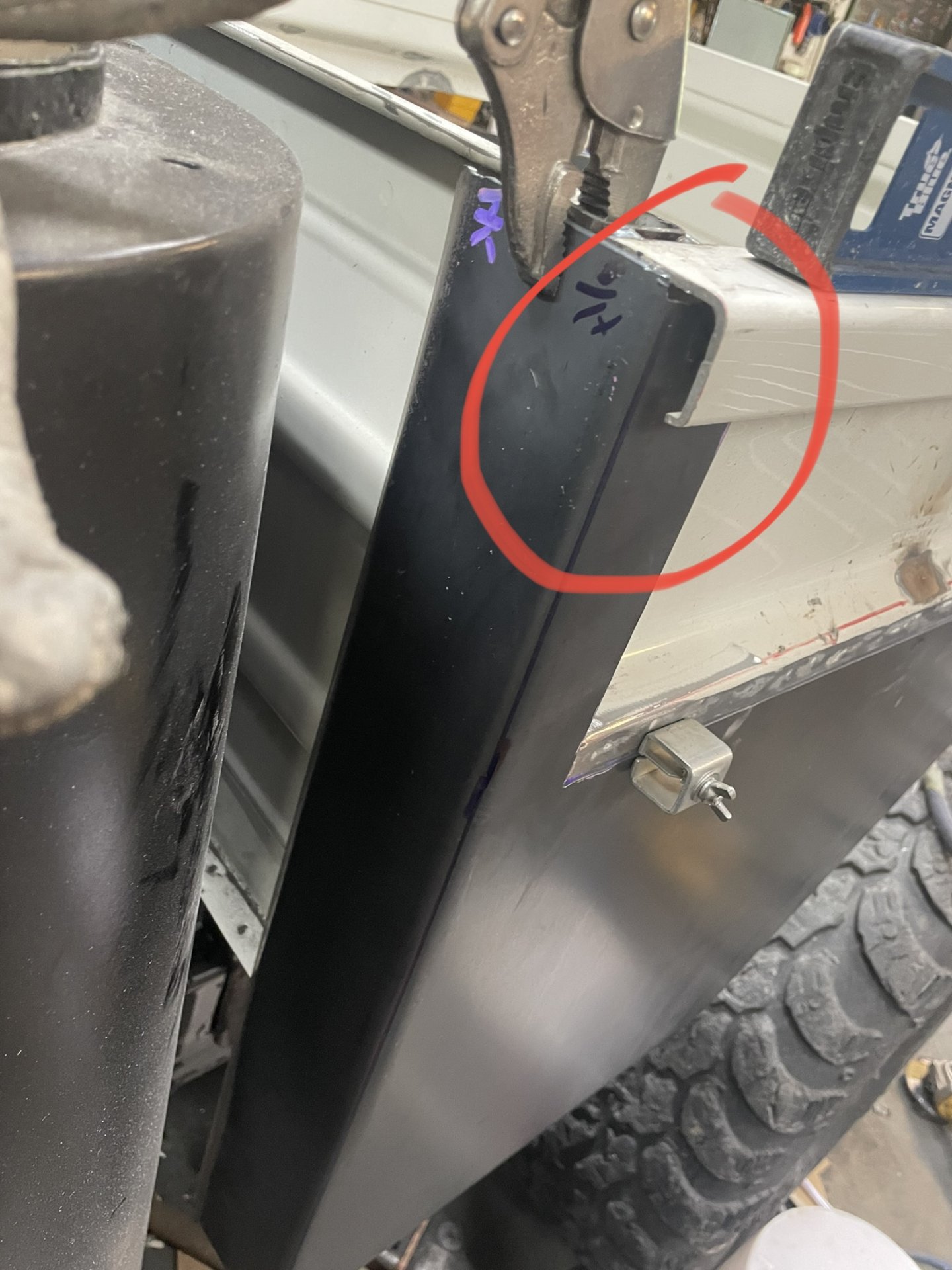

On this corner, once I tack the front on, I will weld from the back a good bit so I can do a slight roundover on the corner.

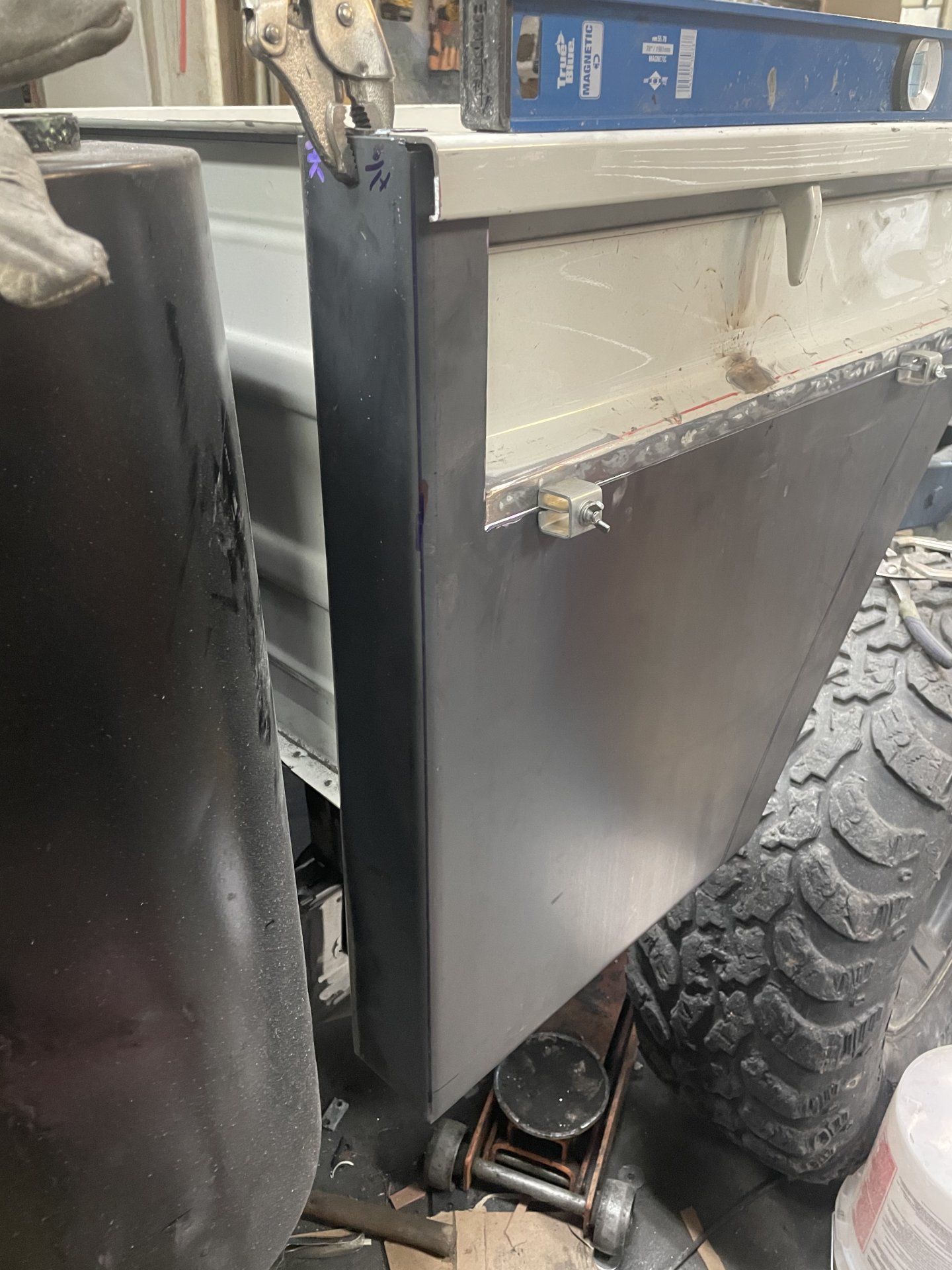

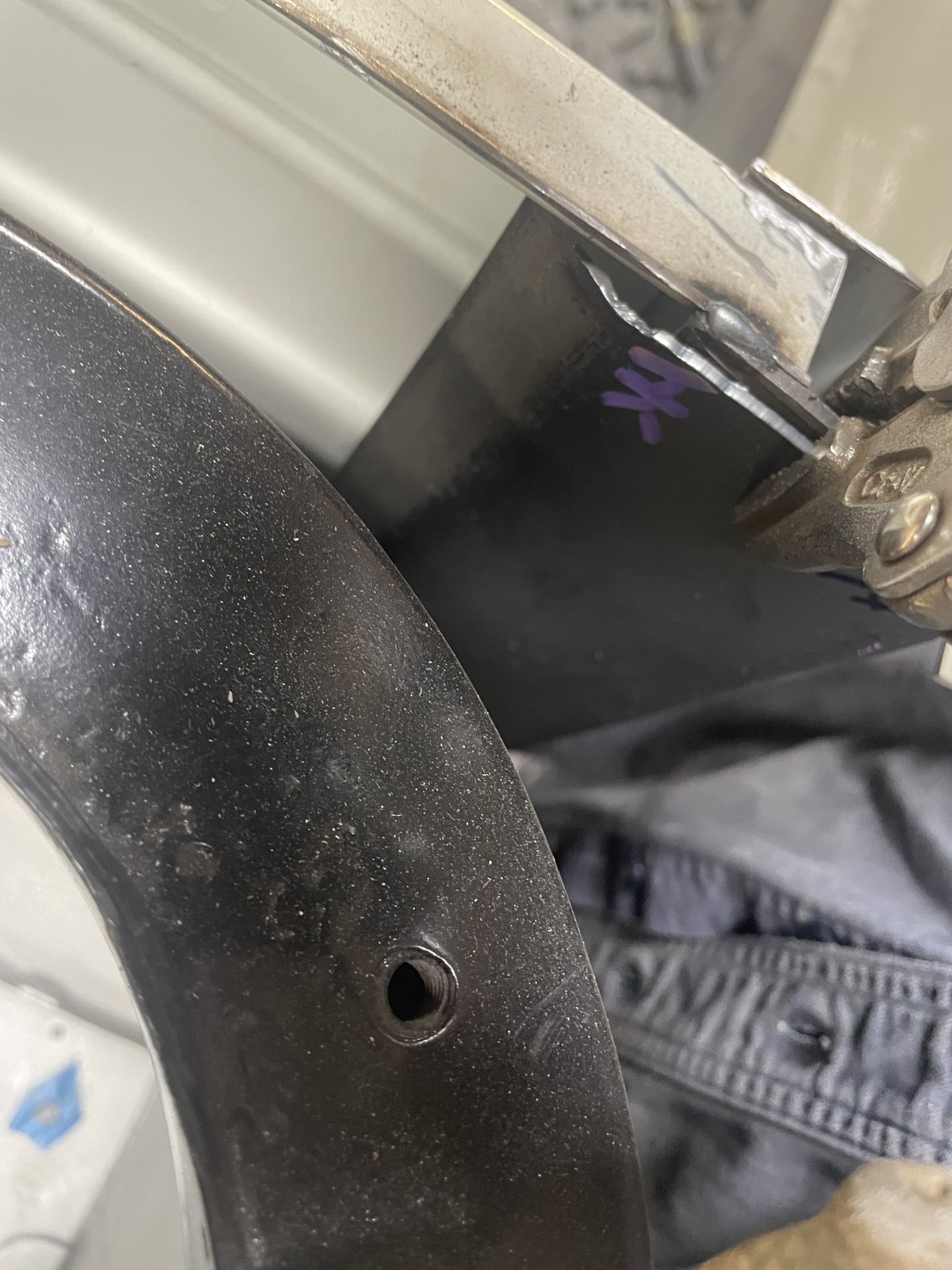

Here is how I did the front corner, mimicking the rear corner..



I added the 30 degree bend on the front side to give it a more finished look.

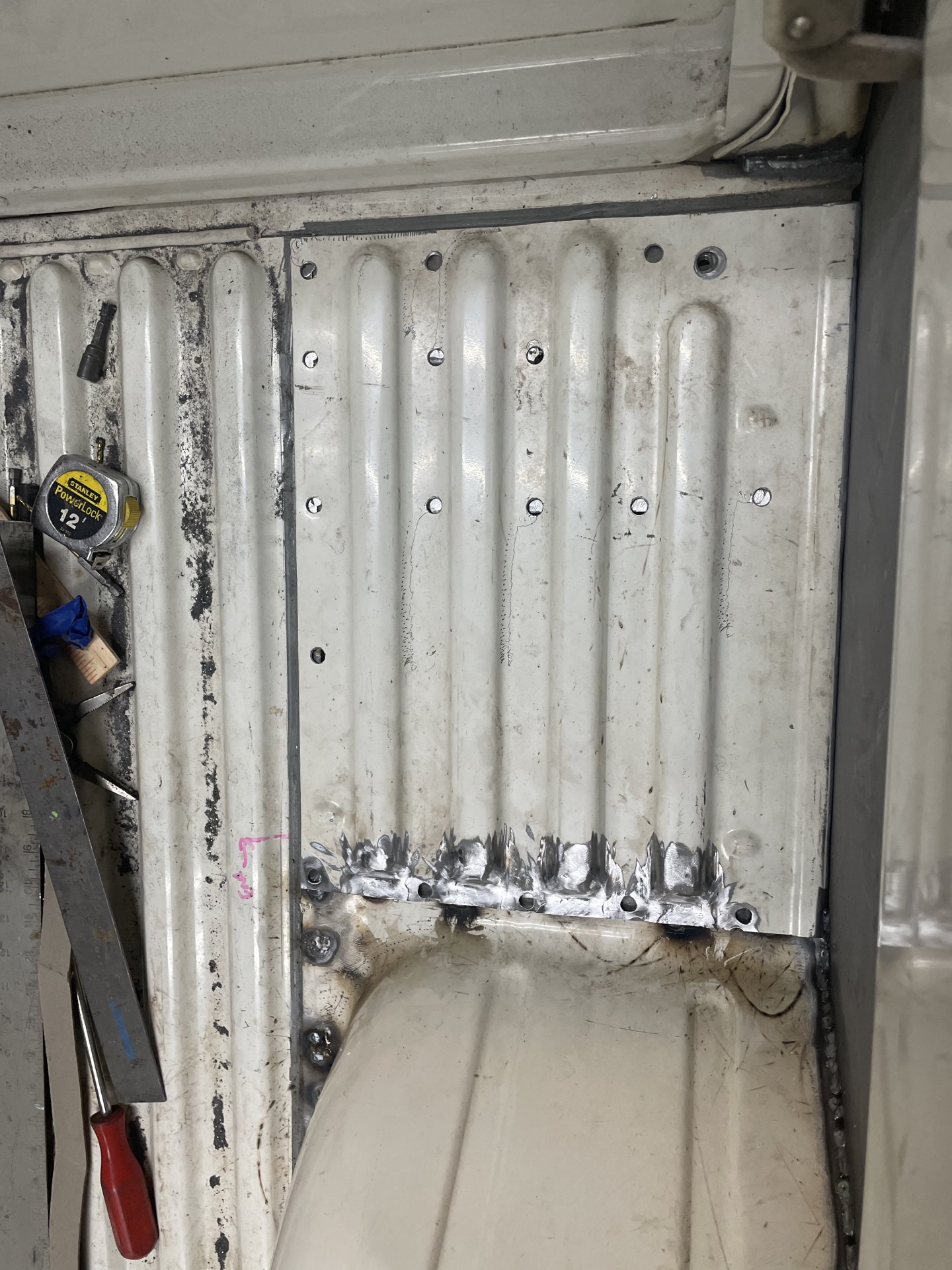

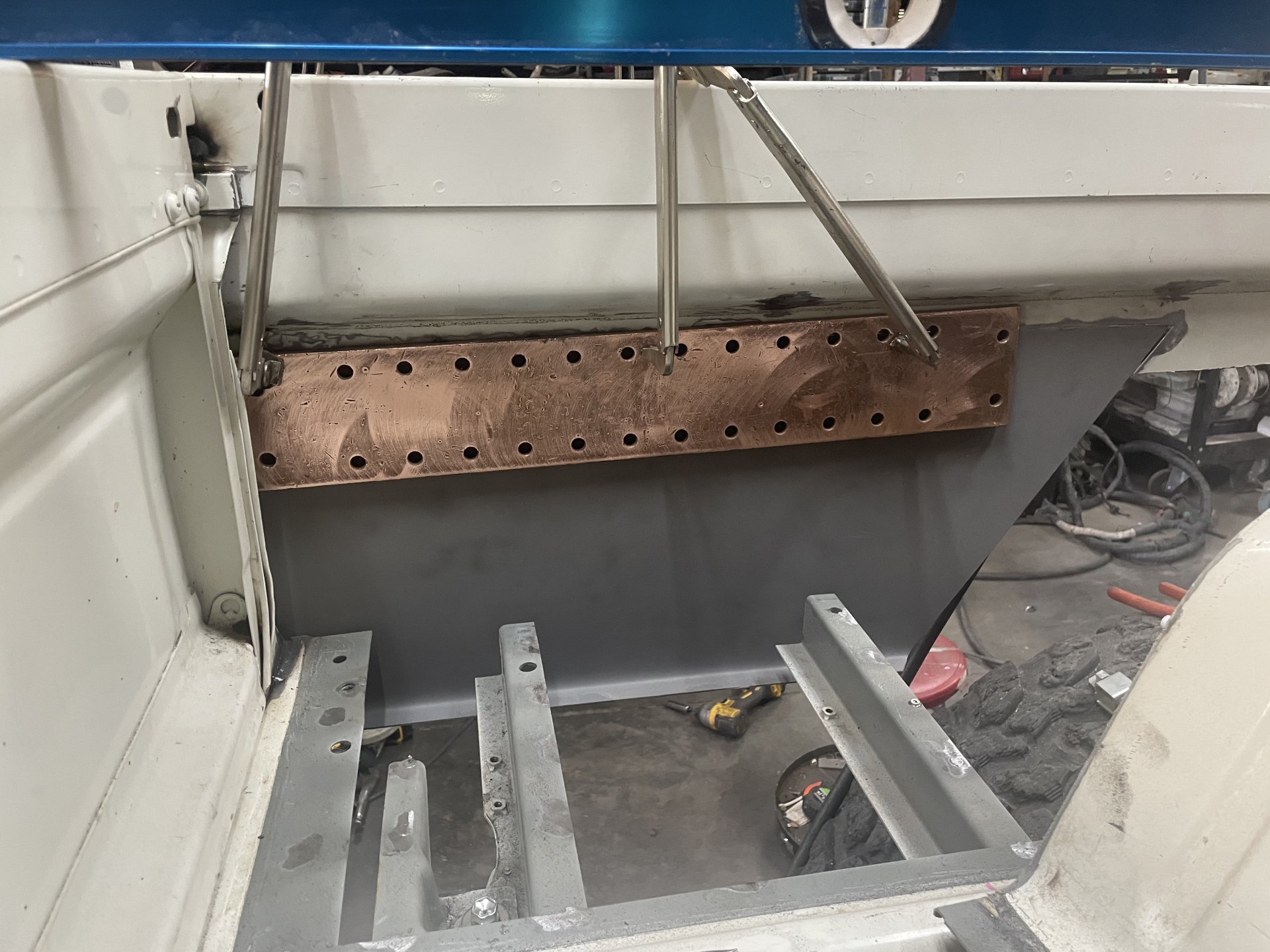

I think I will fill this section. The original 79 bed had a larger plate that welded there to support the rack -- that I am not going to use.


Last edited:

Vossie

#thecrazycruiserman
Joined
Sep 9, 2013
Messages
1,208
Location
Harare, Zimbabwe
Website
www.instagram.com
Looking awesome. Wish I has your ability, my load tray would be way better if I did!


2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

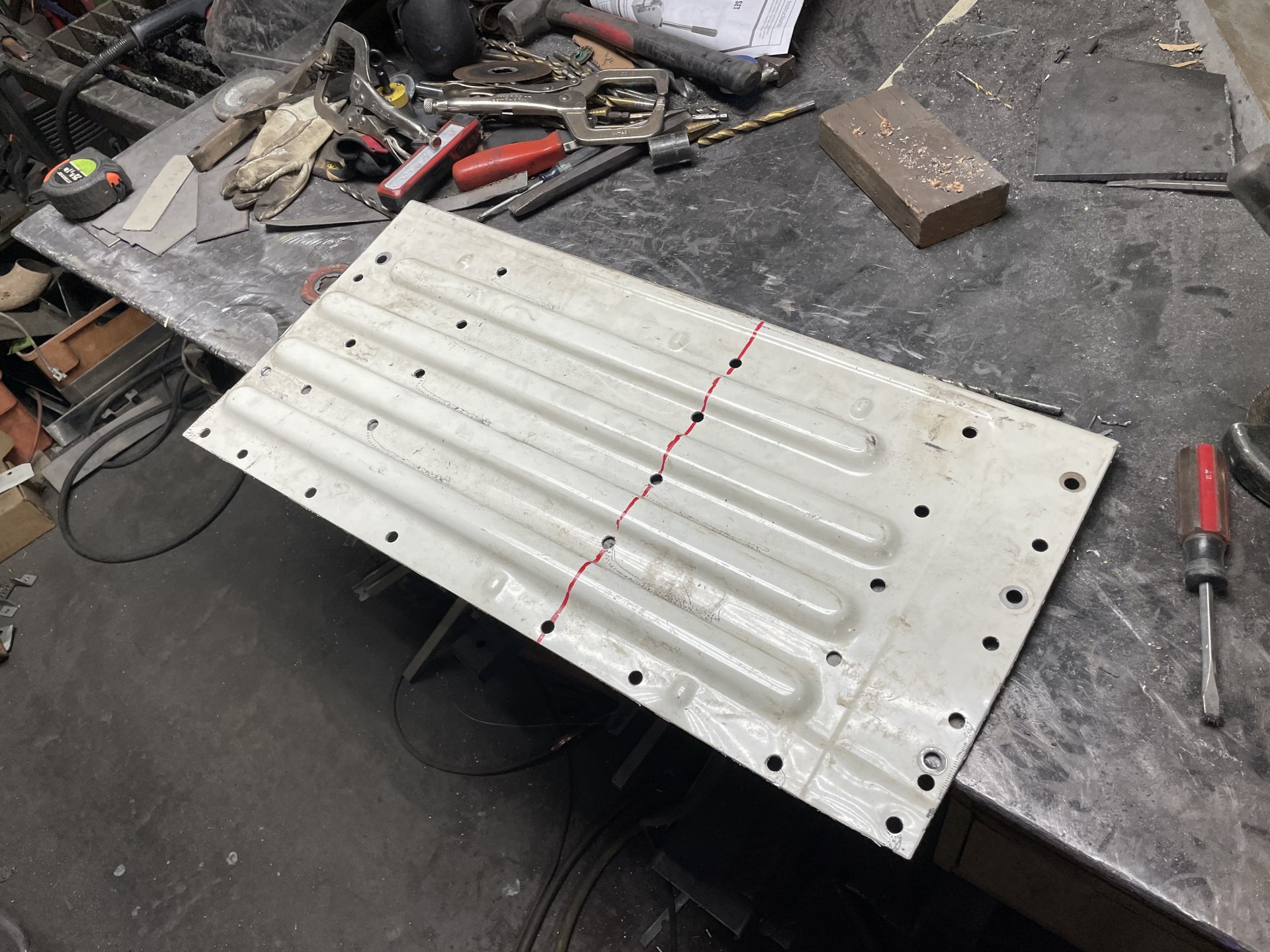

Progress… Got all the pieces sandblasted to get rid of the mill scale ..as well as the fender edges. Put weld through primer on the back of sections that I can’t get to later. Started welding things back together..











2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks

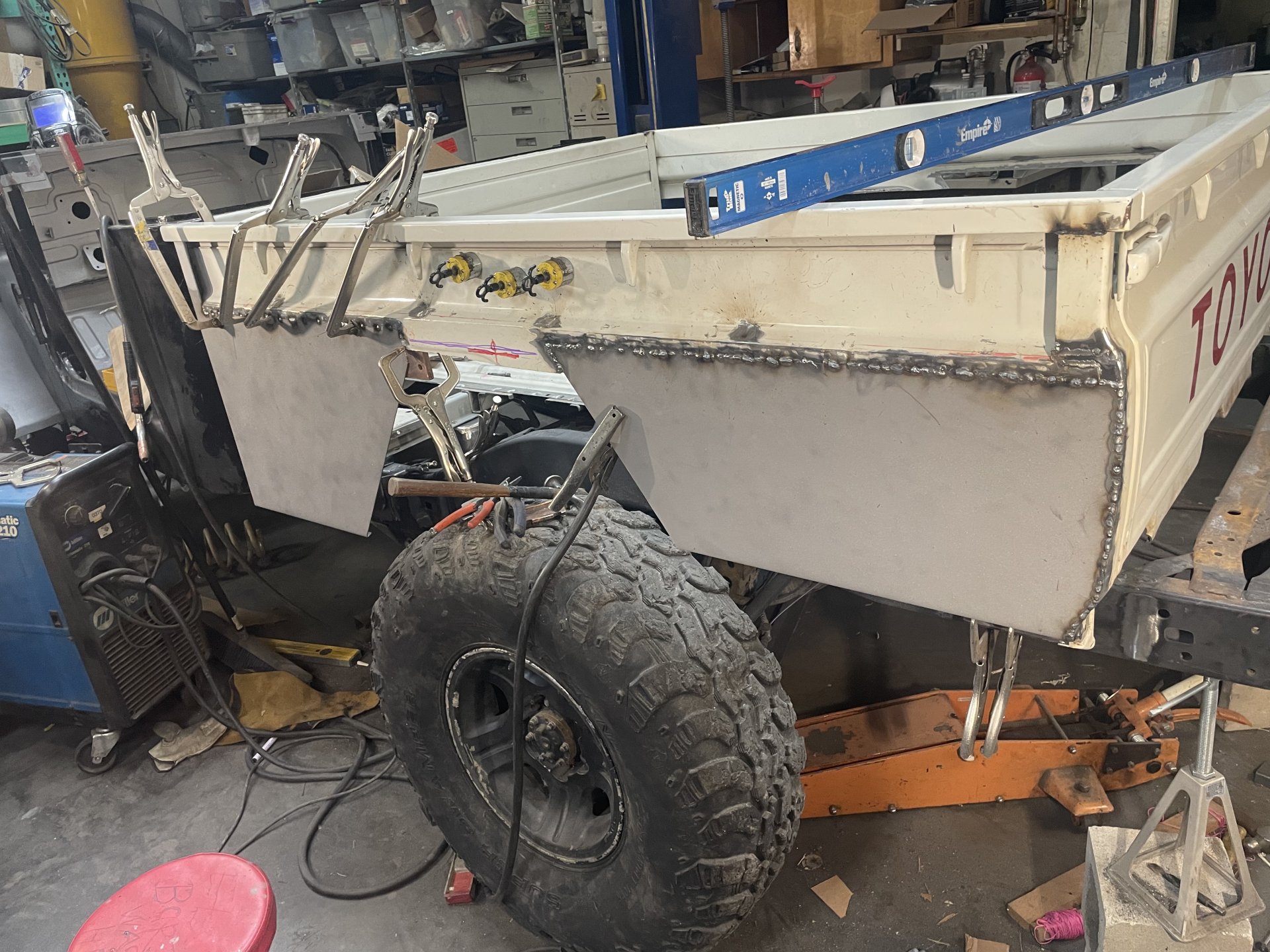

More time… more progress…











Tank5

SILVER Star
Joined
Nov 15, 2009
Messages
3,771
Looking good, that is a bunch of work and it will look so much better for it.


2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks
Looking good, that is a bunch of work and it will look so much better for it.

Thanks... it has been a bunch of time; however, been fun to be welding things back on the rig.


47coeman

Love those 45's
Joined
Jan 2, 2012
Messages
1,776
Location
Nor Cal, Richvale,Ca
I remember the time it took for me to weld all the pieces back together, thought i would never finish mating the new to the old ones but low and behold i kept at it and you will get there. You have a plan and it shows.


2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,860
Location
lenexa, ks
Let's not jump to any conclusions about me knowing what I am doing..... seat of my pants is how I fly...
