Howdy forumers,

I'm new here...
I've spent some time on looking around this forum and have prepared a table of common stock and popular swap diesel engine specs for 60 series LandCruiesers. I know that all this information is available here, but I haven't seen a comprehensive table... so I made one.



All information is sited from the Toyota Engines List on wikipedia, here:
List of Toyota engines - Wikipedia, the free encyclopedia
And the Cummins information comes from here:
Cummins Diesel Specs | 5.9L & 6.7L Cummins Turbodiesel Resource


klinetime574

Positive Vibes
SILVER Star

Joined
Jul 23, 2006
Messages
5,514
Location
Chicagoland, IL
Thank you @klinetime574, for the additions.
I'll add them to the table.
What market are these mills sold in? I haven't seen these in my research so I'm not familiar with them.
Wikipedia said:
  • The 4BD1T is a turbocharged version of the 3.9 L 4BD1, it was produced from 1985 and was fitted to Isuzu NPR trucks from 1986 and sold in the US. OEM diesel in Australian specifications Land Rover Perentie 6X6 models from 1989 to 1992. Different versions feature power ratings ranging from 90 to 100 kW (120-135 PS), peak torque ranges from 314 to 330 Nm at 1,800 rpm, also use in jeepneys built in Batangas.
  • The 4BD2T is an indirect injection version of the 4BD1T that was also intercooled, it replaced the 4BD1T in the US market until 1998.


Godwin

Resident Herpetologist
SILVER Star

Joined
Dec 4, 2004
Messages
4,891
Location
Alabama
I think it would be interesting, just for comparison, to add in the 2F and 3FE and to give a frame of reference that most are more familiar with.


Tapage

Club 4X4 Panamá
SILVER Star


Joined
Apr 4, 2003
Messages
23,612
Location
Panamá
I would pull from that list 2L and 2LT .. not go in a 60 ..


doug720


Joined
Sep 27, 2008
Messages
3,256
Location
El Segundo or Gardnerville!!!

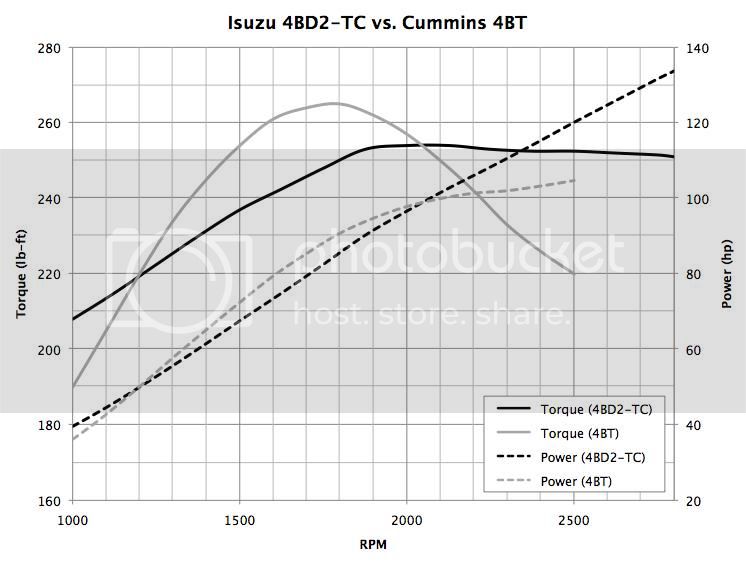

Some Isuzu 4BD1/2 info and comparison to a Cummins 4BT

4BD1

Cylinders: 4
Injection: direct
Injection pump: Bosch/Zexel type A inline pump on RHS (drivers perspective)
Bore: 4.0157in
Stroke 4.6457in
Valves: 8
Inlet manifold seperate casting RHS (drivers perspective).
Exhaust LHS (drivers perspective).
Weight: Approx 770lbs turbo. 744lbs NA (source Isuzu spec sheet from 1988)
Dimensions NA: 31.3in long x 27.8in wide x 29.7in tall.
Bellhousings: SAE #3 automotive (rare), SAE #3 industrial (rare), Landrover LT85/95 (rare), Isuzu truck pattern (most common).
Starting aids: Glowplugs and excess fuel.
Electrical: 12v in US market, 24v in rest of the world.
Turbochargers: IHI RHB6 (early), Garrett T25 wastegated (early), Garrett T25 freefloat with T3 flange or Garrett T25 wastegated with T3 flange.
Alternator: 12v or 24v depending on market, vacuum pump on rear. Located high on LHS (drivers perspective).
AC Compressor: if fitted below alternator on LHS (drivers perspective).

Power output NA: Varies but up to 104.6hp @ 3200rpm.
Torque output NA: Varies but up to 194ftlbs @ 1900rpm.

Power output Turbo: varies but up to 140.8hp @ approx 3000rpm.

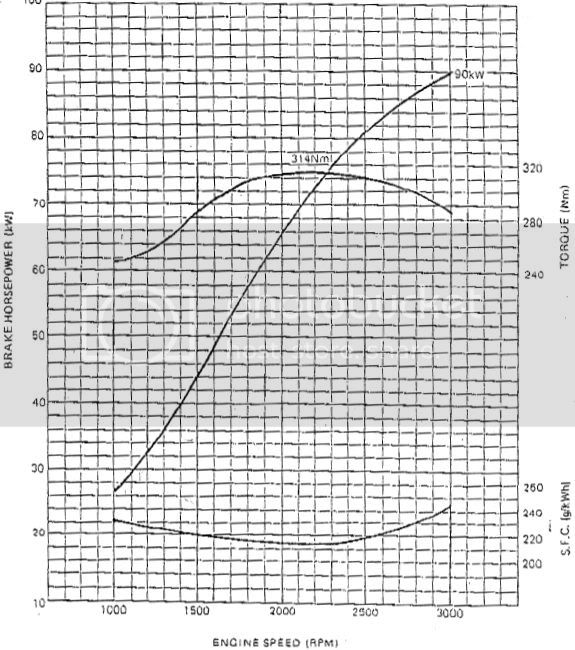

Torque output Turbo: Varies but up to 243.4ftlbs @ approx 1800rpm.

Boost: Approx 13psi stock.





This is from 4BTswaps Isuzu section and made by Dougal

STICKY: Isuzu 4BD1T/4BD2T Reference
This is a compilation of threads of interest on 4BTswaps.com and elsewhere on the internet.
If there is something you'd like added, then post it up below. I will edit them in and then delete your post to keep this thread short and tidy.

Cheers
Dougal.

Introduction:
Isuzu 4BD1T Introduction.

Offical Power & Torque Figures
http://www.4btswaps.com/forum/showth...-Torque-Curves.
Turbo Sizing with Potential Power & Torque Figures
http://www.4btswaps.com/forum/showth...nce-Prediction.

Isuzu NPR Years and Engines (US)
2003 4bd2r?

Gearboxes & Bellhousings:
List of Isuzu gearboxes and applications
Isuzu Gearboxes.
4BD1T & 4BD2T Bellhousings:
Isuzu 4BD1 Bell-housings.
4BD1T & 6BD1 Bellhousings:
http://www.4btswaps.com/forum/showth...s-and-Housings
Isuzudieselswapper Adaptor System:
Site Disabled - FreeServers
4BD Conversions Adapter System for NV4500:
GaBiodiesel - BioDiesel processor kits and instructional videos
700R4 TV cable setup:
Isuzu 3.9L and the 700R4??

List of Isuzu Engines:
Other Isuzu B series engines.

4BD1T & 4BD2T Turbochargers:
4BD1T Turbo Sizing and Performance Prediction
http://www.4btswaps.com/forum/showth...nce-Prediction.
Factory Turbochargers, IHI & Garrett
4BD1T & 4BD2T Turbos.
Garrett T25
T25 Turbo.
Discussion
Which turbo to use?
Holset HE221W (Cummins ISB turbocharger)
http://www.4btswaps.com/forum/showth...sults&p=188703
Garrett GT2259 (Hino) turbo:
http://www.4btswaps.com/forum/showth...p?24268-Gt2259

Part Numbers:
http://www.4btswaps.com/forum/showth...-Number-Thread
Bolting Torque:
4BD1T Bolting Torque.
ARP Head Stud Part Numbers:
http://www.4btswaps.com/forum/showpo...29&postcount=4
Piston and Liner Grades
http://www.4btswaps.com/forum/showth...-4BD1T-Pistons

Factory Service Manuals
4BD1T
4BD1T FSM now available
4BD2T
Bauchan.org
Isuzu NKR truck manuals
http://www.weatherproof-windows.co.u...repair_manual/

Other Forums & Threads
IH8MUD 4BD1T landcruiser thread
https://forum.ih8mud.com/diesel-tech-...bd1t-swap.html
AULRO The Isuzu Landrover Enthusiasts Section (TILES)
http://www.aulro.com/afvb/isuzu-land...iasts-section/

Fuel Injection Pump & Tuning
Injection Pump Removal, Refit and Timing
http://www.4btswaps.com/forum/showth...IP-incl-Timing
Injection Pump & Governor Indentification
http://www.4btswaps.com/forum/showth...mp-Governor-ID
Bosch Type A injection Pump
http://www.4btswaps.com/forum/showth...Injection-Pump
Bosch RLD Governor
http://www.4btswaps.com/forum/showth...h-RLD-Governor
More Power thread
more power from a 4bt1t/2t
The MORE POWER screw
http://www.4btswaps.com/forum/showpo...4&postcount=27
Fuel Pump Cables 4BD1T
Mystery Cable?
Fuel Shutoff/Enrichment 4BD2T
http://www.4btswaps.com/forum/showthread.php?t=3331
Shutoff Solenoid Wiring
http://www.4btswaps.com/forum/showth...ed=1#post31959
Boost & Altitude Compensators (Aneroids)
http://www.4btswaps.com/forum/showthread.php?22082
http://www.4btswaps.com/forum/showthread.php?t=7576
4BD2T setting of Injection Timing
http://www.4btswaps.com/forum/showth...setting-timing
Tuning and Problem solving (timing, turbos, boost compensators etc):
http://www.4btswaps.com/forum/showth...Turbo-Question

Parts Wanted and Sourced
http://www.4btswaps.com/forum/showthread.php?t=2981

Notable Swaps:
Dieselbuggies Rail
http://www.4btswaps.com/forum/showthread.php?t=7435
Carcrafters twin turbo 4BD1T
http://www.4btswaps.com/forum/showthread.php?t=3300

Starter Motor Cross Reference:
http://www.4btswaps.com/forum/showth...u-Starter-Info
Starter Motor Clocking:
http://www.4btswaps.com/forum/showth...839#post125839

Tachometer fitment:
6BD1 mechanical tacho drive
http://www.4btswaps.com/forum/showth...cal-Tach-Drive
4BD2 Block Heater Install
http://www.4btswaps.com/forum/showth...eater-Write-up
Oil Drain Thread:
http://www.4btswaps.com/forum/showth...an-bolt-thread
Thermostat Housing Threads for Water Temp Sensors
http://www.4btswaps.com/forum/showth...ousing-Threads


mcguirejohnson

SILVER Star
Joined
Oct 16, 2011
Messages
1,296
Location
Colorado
I think it would be interesting, just for comparison, to add in the 2F and 3FE and to give a frame of reference that most are more familiar with.
In my opinion the 2f would compare to the 2H and a 3fe would be like a 2H with a mild turbo. Basically MP (mule power) instead of HP haha.
