AVAILABLE 7X SERIES PARTS--USA MARKET

Discussion in '70-Series Tech' started by beno, Apr 15, 2015.

  1. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO
    Normal US part number. Nothing special about it.

    But good info for the later filler necks.

    This cap WILL NOT fit on 1980's era filler necks.

    Last edited: Apr 23, 2017
  2. FJ73Texas

    FJ73Texas

    Messages:
    610
    Media:
    8
    Albums:
    1
    Likes Received:
    435
    Joined:
    Aug 16, 2015
    Location:
    San Antonio
    Yeah, that cap would not work on my 1986 FJ73. The one I have is metal.

    beno likes this.
  3. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO

    Correct. The earlier caps for diesel applications: 77310-35061 Available through normal Toyota procurement lines in the US market.

  4. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO
    Available through normal US Toyota procurement lines:

    Door panel clips:


    Door check/limiter pins (these are basically destroyed to remove them)... Interestingly enough it uses a 6x suffix part number vs a generic numerical suffix or a 7x specific 90K00 part number. Cool.

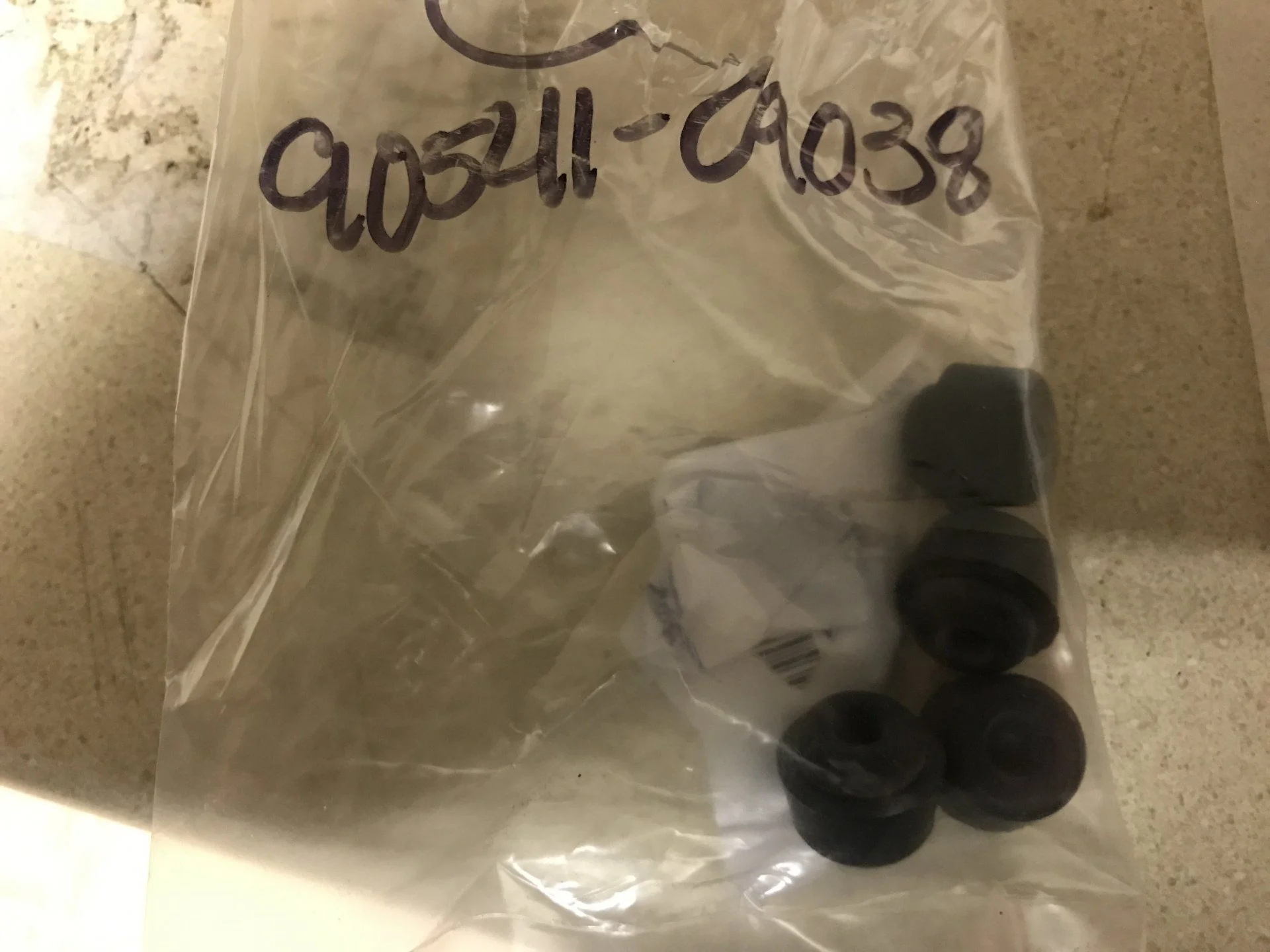

    Door bumpers (these cushion the door against the body of the vehicle):

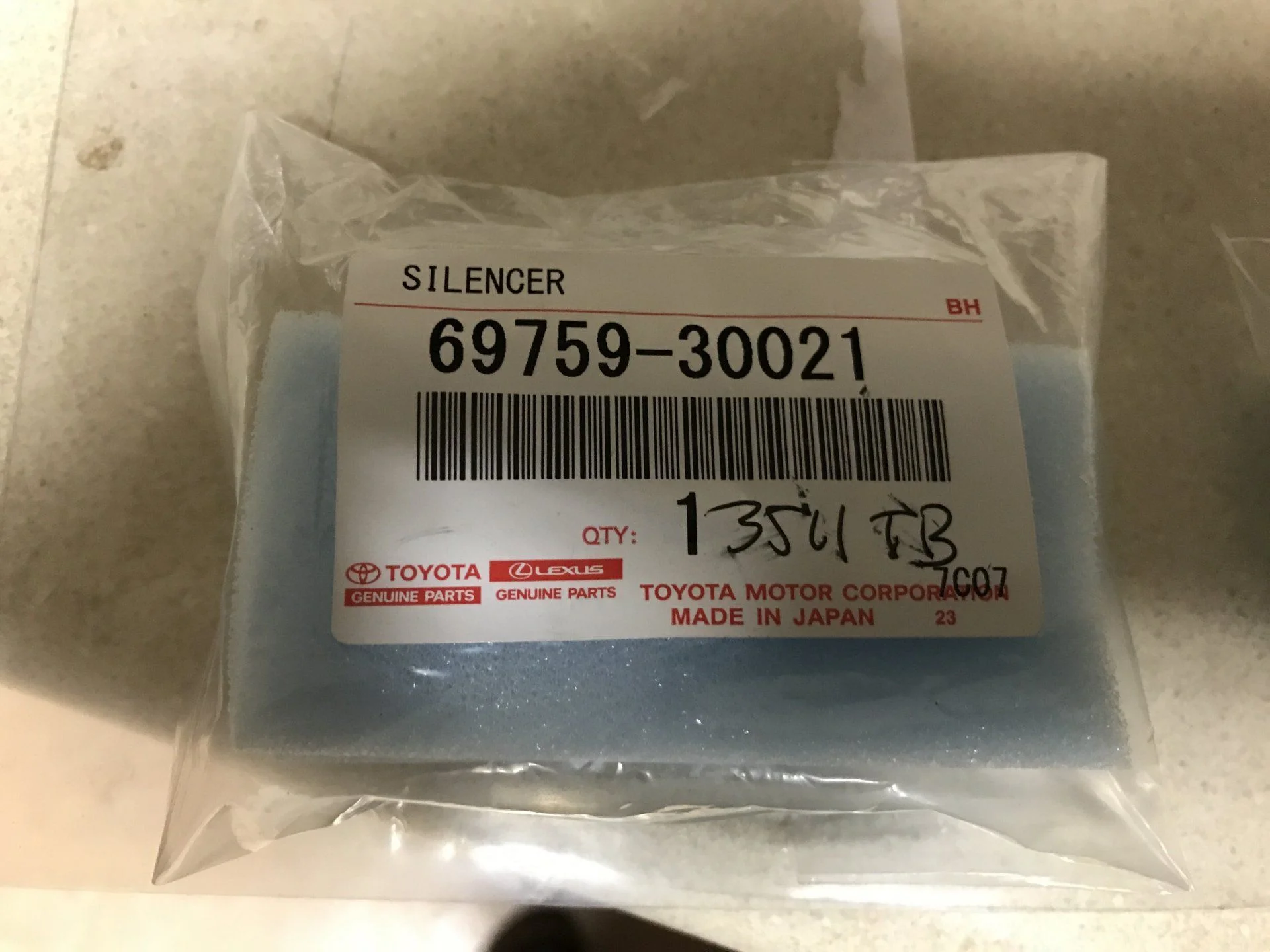

    Silencer: These are used underneath the door panels and attach to the door lock to handle rods to make sure they don't rattle against the metal since the rod goes from the inside of the superstructure to the outside through an access hole.


    wongtsenhin and jblueridge like this.
  5. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO

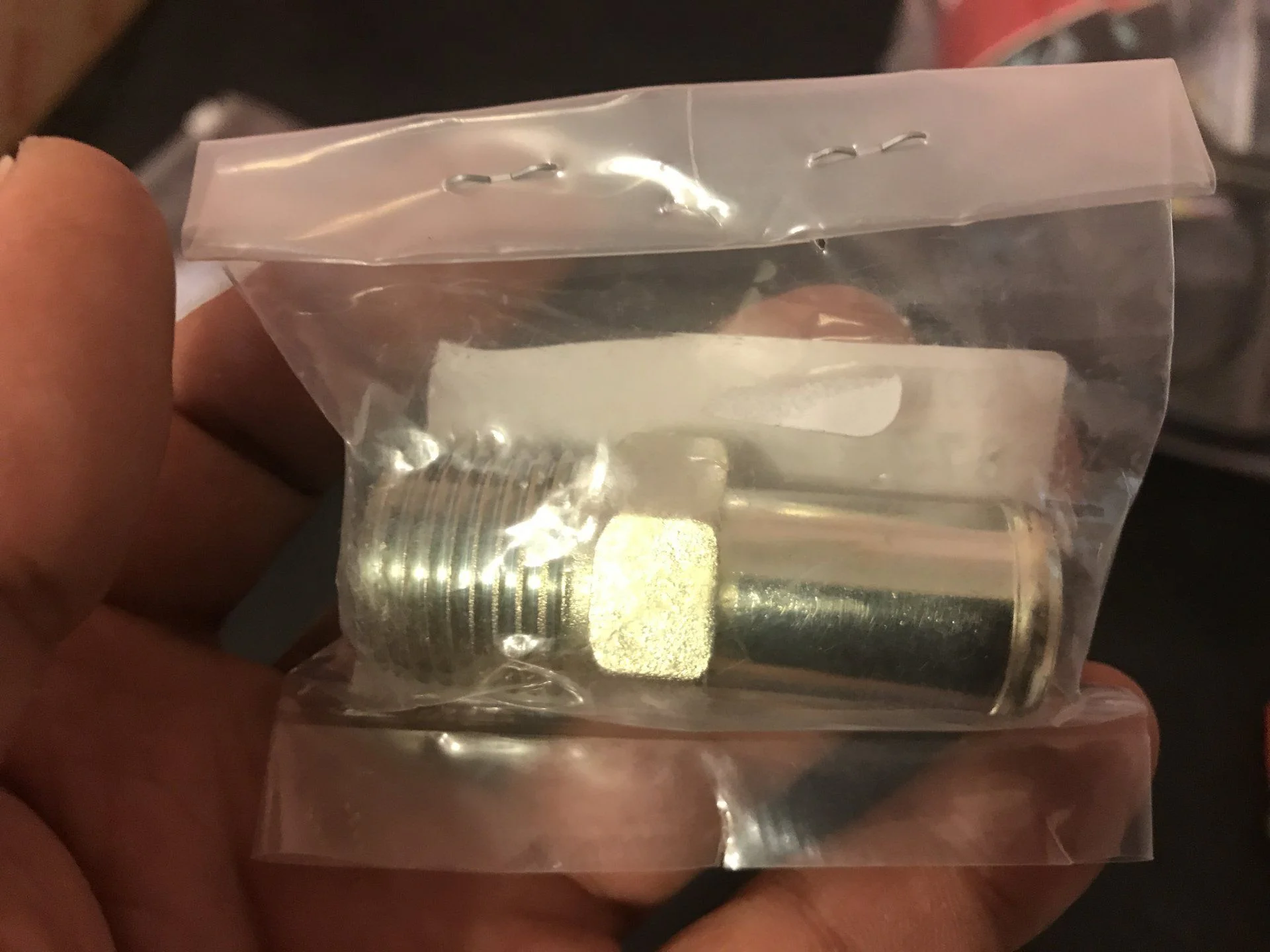

    Water outlet union that goes on the top of 3B/13B-T water pumps as well as at the rear of the head on the LH side and the front of the head on the RH side if you decide to delete the rear heater system.

    IMG_2623.JPG IMG_2625.JPG

    80jay and wongtsenhin like this.
  6. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO

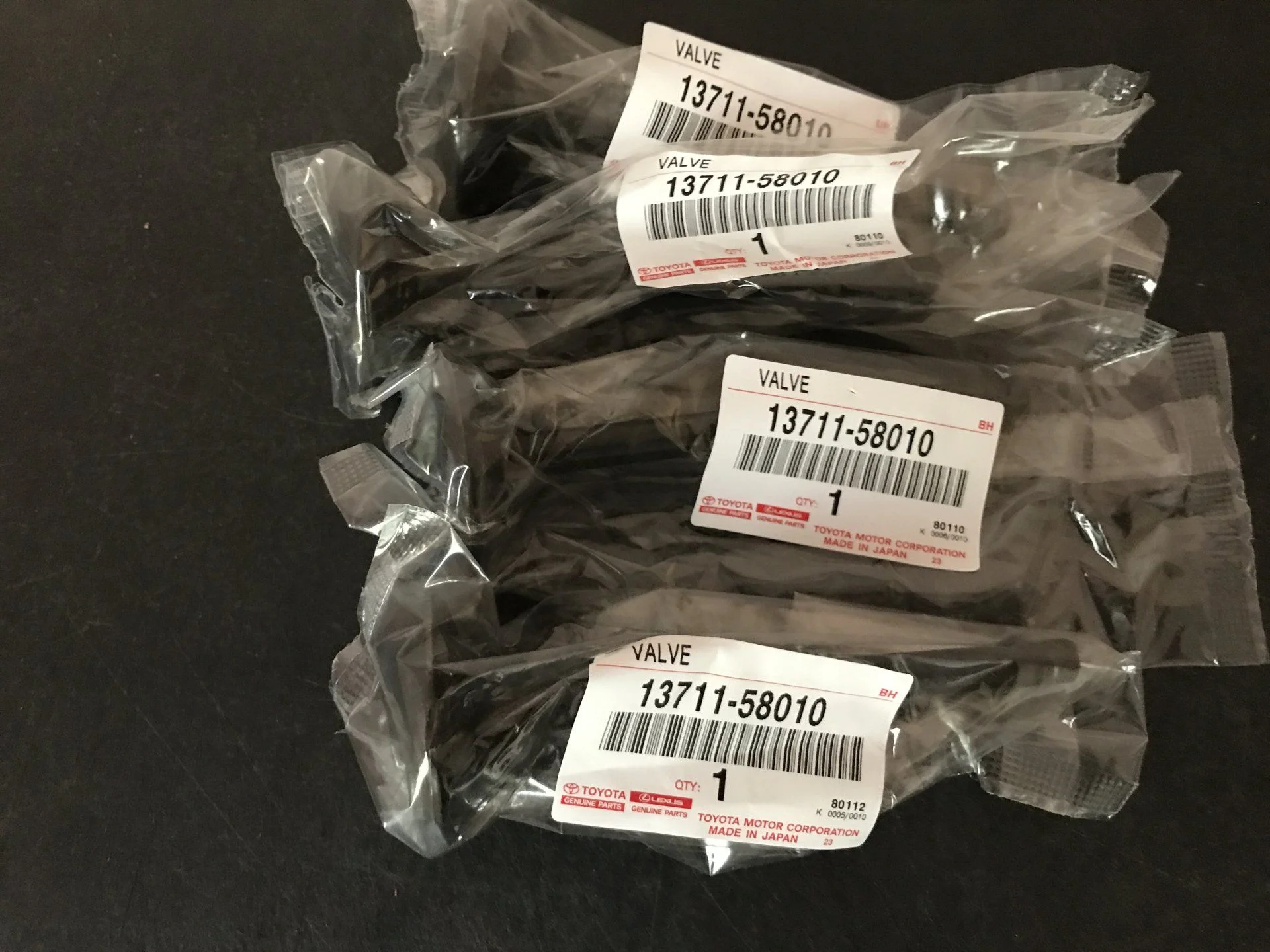

    3B/13B-T Intake valves:


    unfortunately, mattv94 and jblueridge like this.
  7. VajaFJ70

    VajaFJ70

    Messages:
    226
    Media:
    5
    Albums:
    1
    Likes Received:
    2,860
    Joined:
    Feb 19, 2009
    Location:
    Tbilisi Georgia
    Hello

    Im looking for CLUTCH BOOSTER repair kit 04318-60020

    order will be sent to US address

    Last edited: Jun 8, 2017
  8. jblueridge

    jblueridge SILVER Star

    Messages:
    1,290
    Likes Received:
    242
    Joined:
    Aug 12, 2014
    Location:
    Near Charlottesville, VA
    Good lord, I really need those.
    Thanks for posting Beno!

  9. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO
    Discontinued from Toyota.

  10. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO
    Not available in NA, but still available from Toyota which is a good thing.

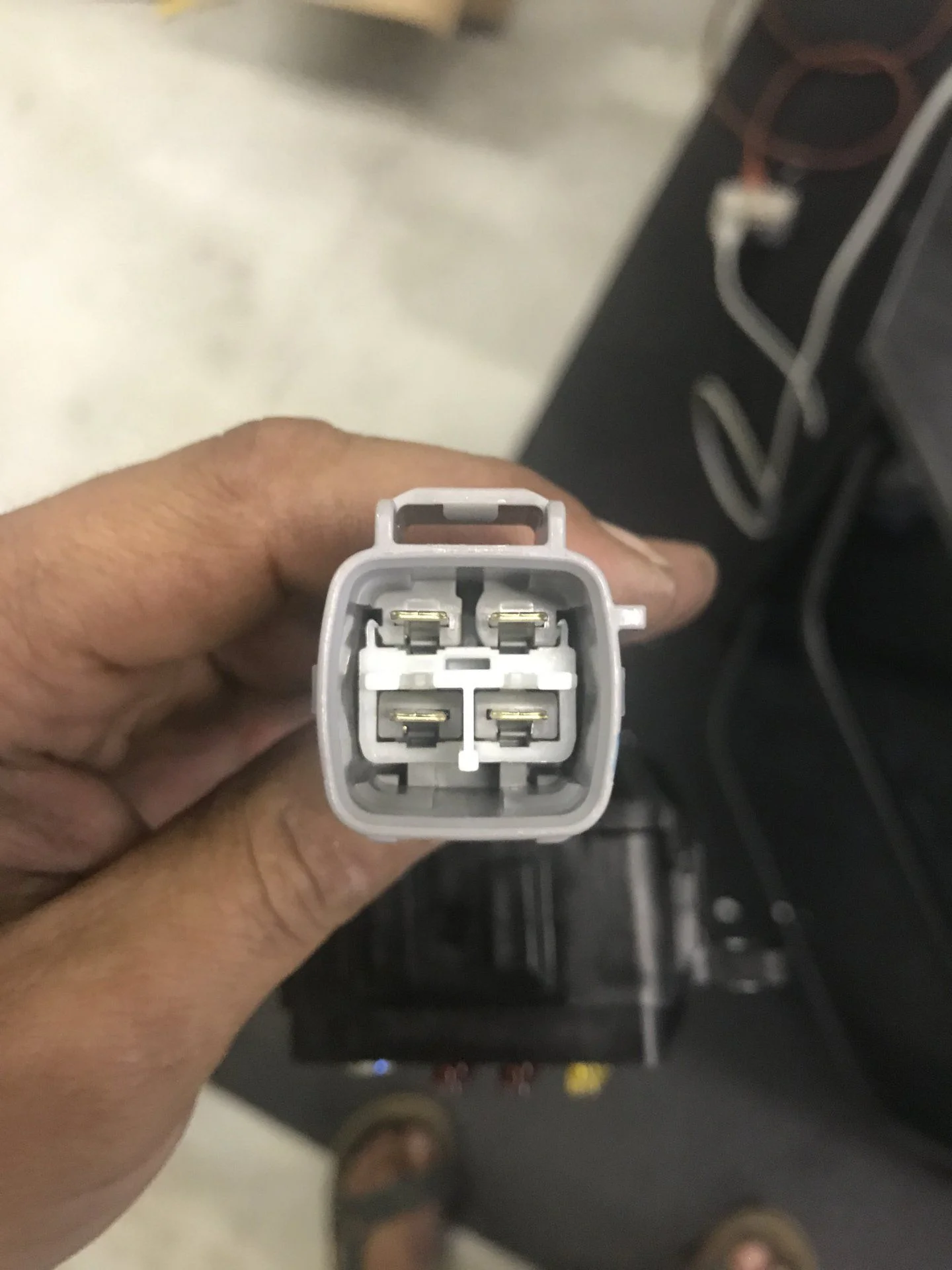

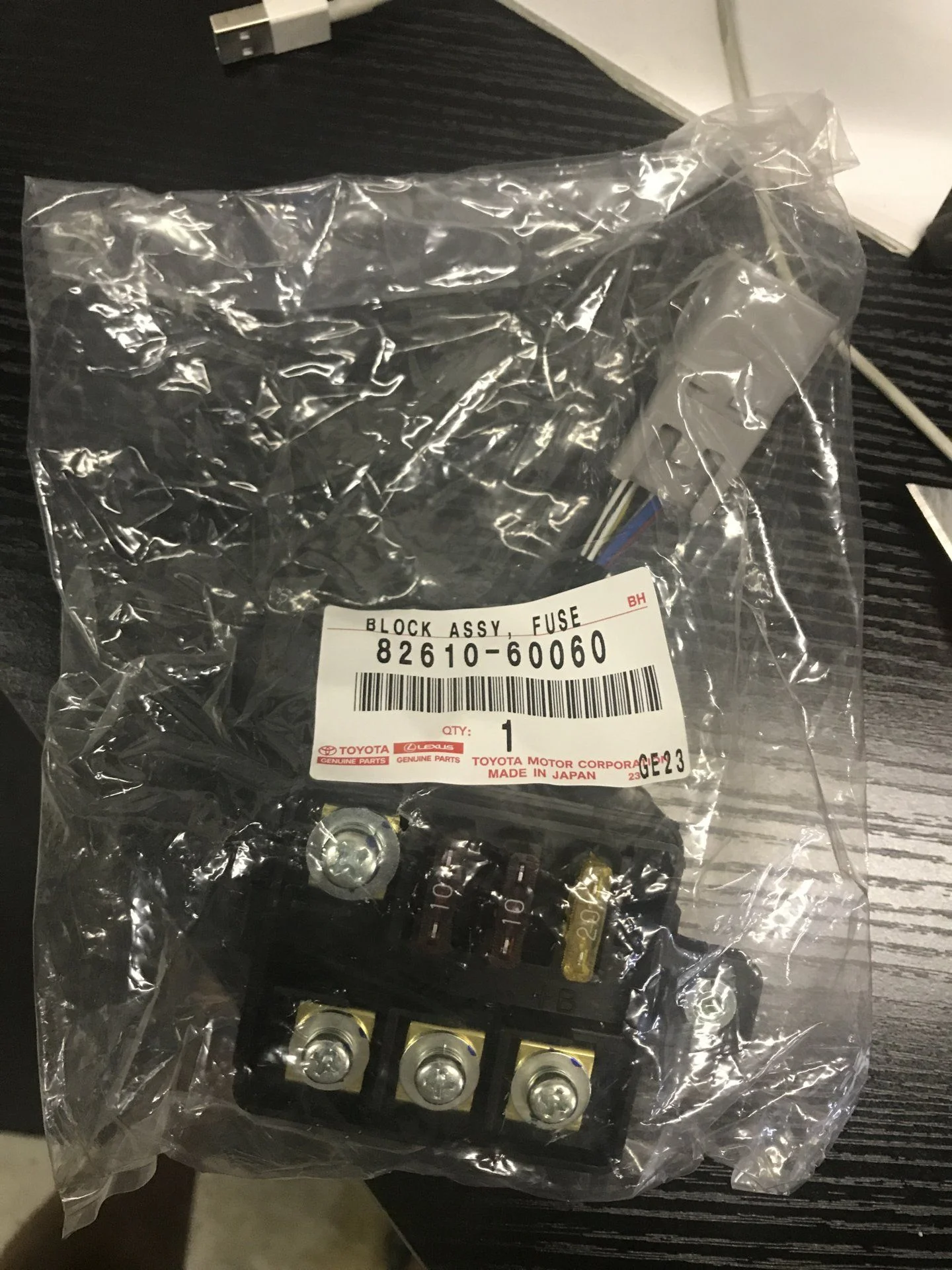

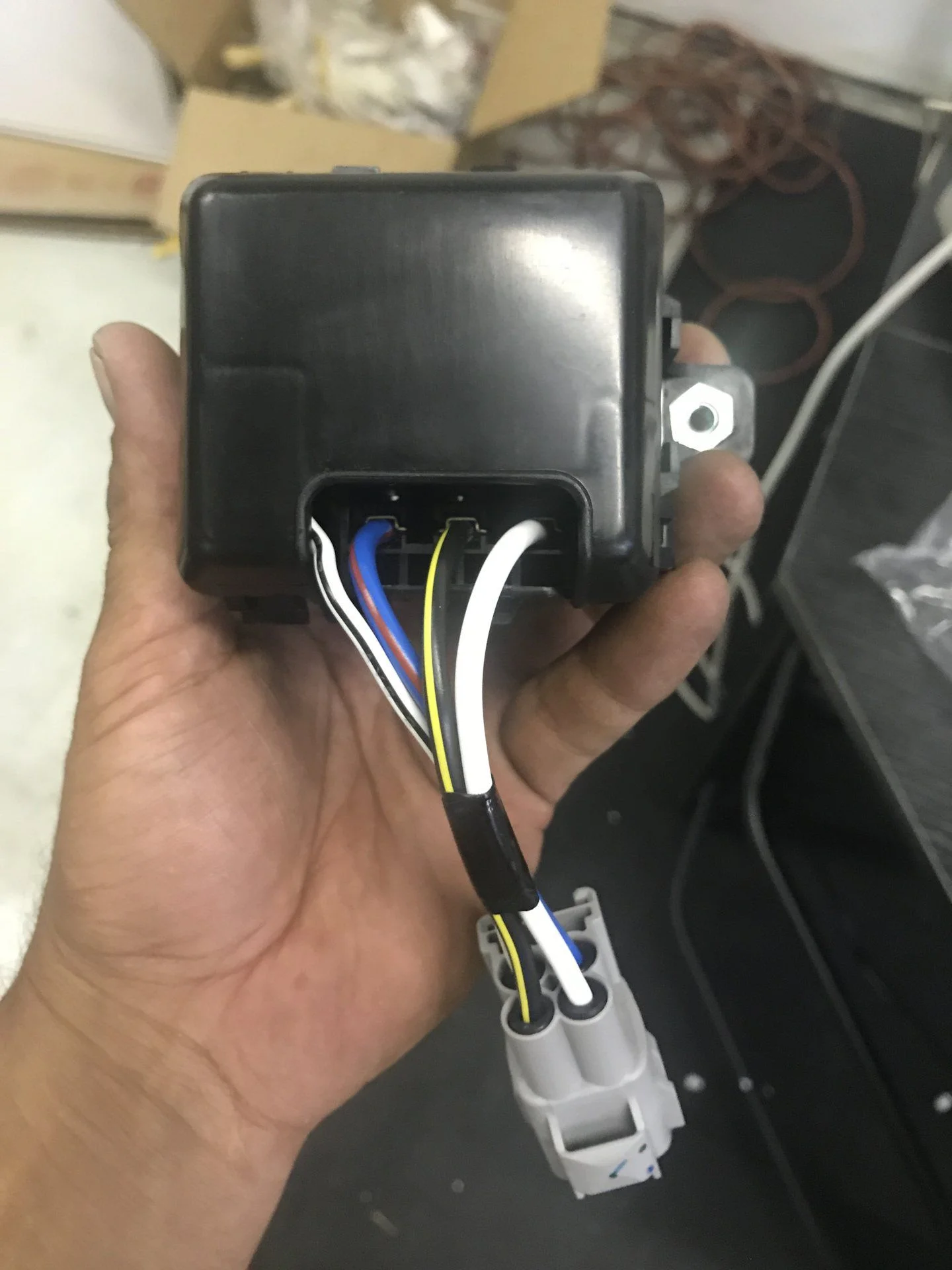

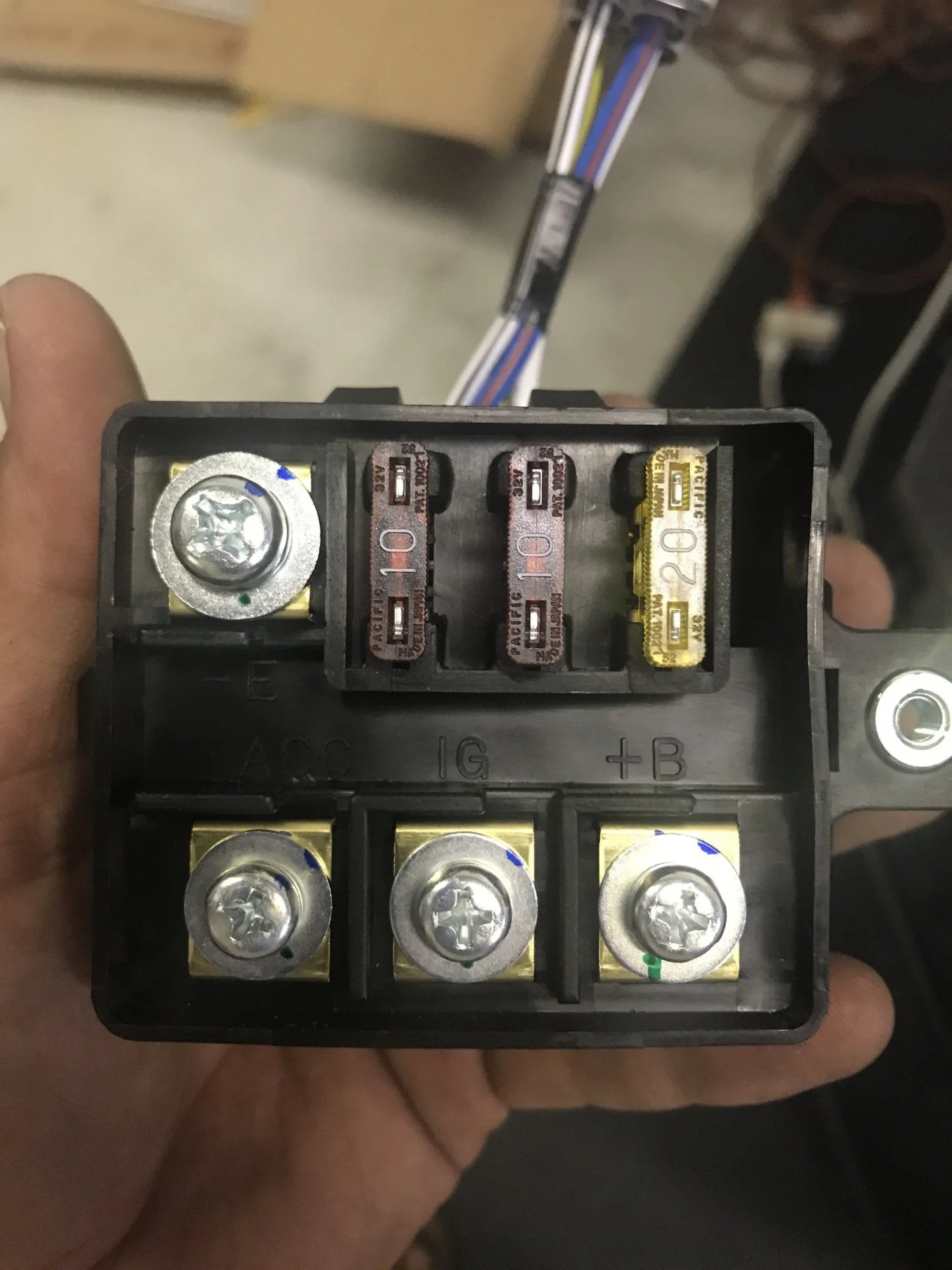

    This is a 12V fuse box in the engine bay:

    IMG_4232.JPG IMG_4233.JPG IMG_4234.JPG IMG_4235.JPG

    wongtsenhin likes this.
  11. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO

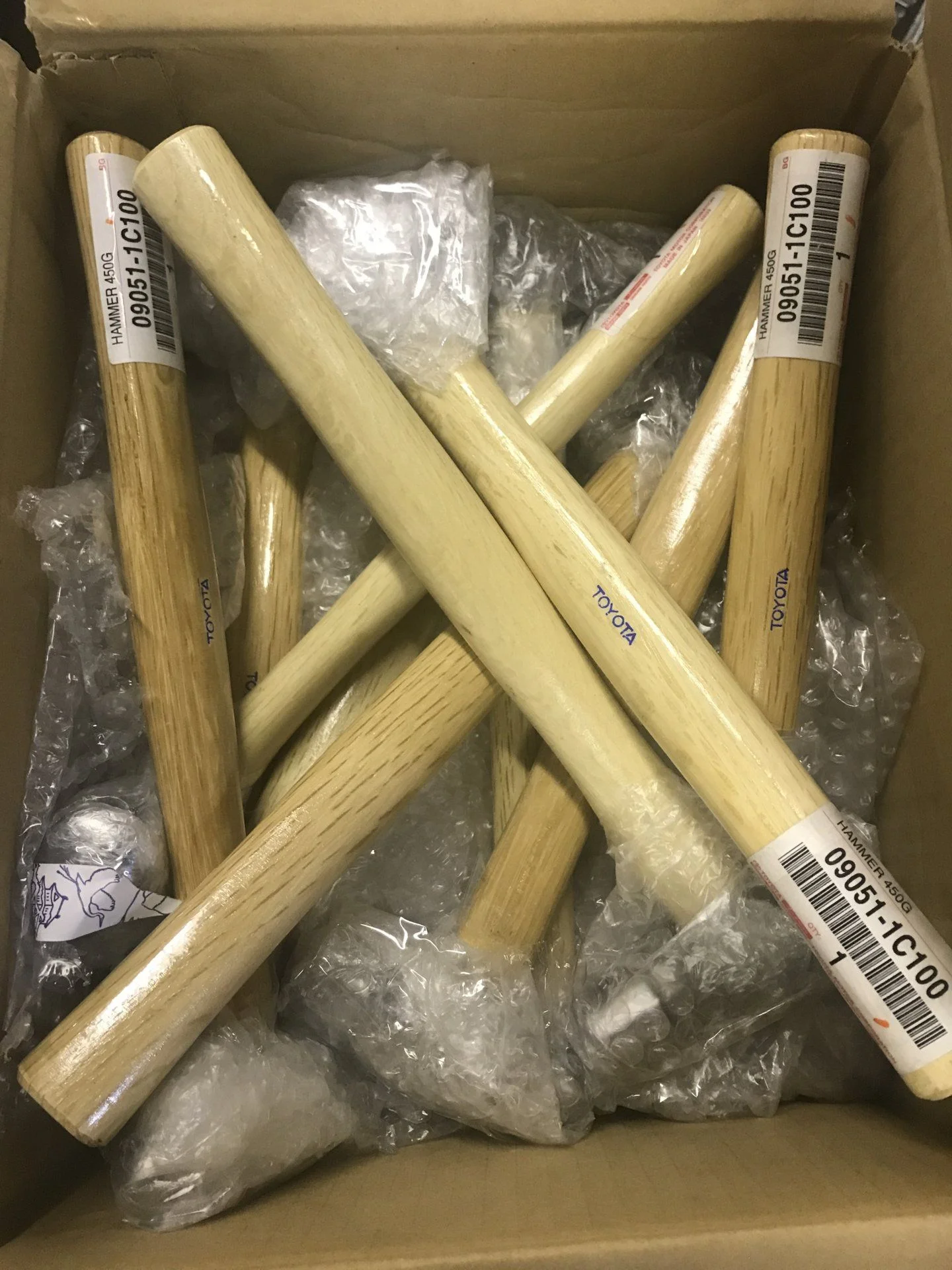

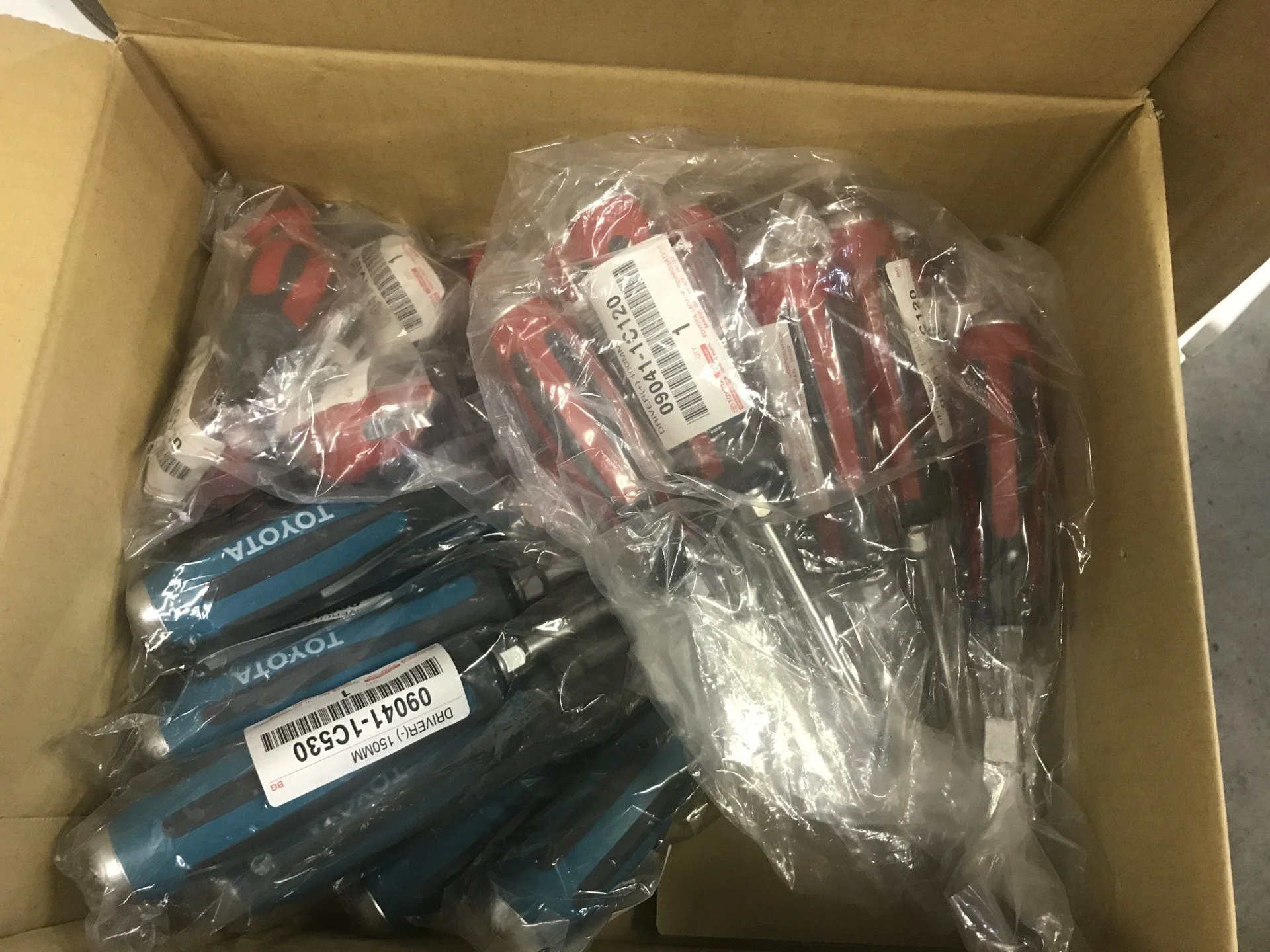

    These aren't available either in the US market but they are small tokens of my appreciation for the support I receive from my North American clients:

    IMG_4236.JPG IMG_4237.JPG

    These all used to be available in the US market back in the day.

    @cruiserdan

    Tapage, mmcinnis, ca18sean and 6 others like this.
  12. mmcinnis

    mmcinnis

    Messages:
    582
    Likes Received:
    271
    Joined:
    Oct 16, 2005
    Location:
    Santa Rosa Bch. Florida
    How do i get the toools!! Nice

  13. RMP&O

    RMP&O OCD Supporting Vendor

    Messages:
    2,596
    Albums:
    1
    Likes Received:
    1,050
    Joined:
    Sep 9, 2004
    Location:
    Cruiser hunting
    Just an FYI, I have been told by the guys at Amayama that if a parts come back NLA try submitting the inquiry again in 1, 2, 4 or even up to 6 months later. They told me this is because some things are produced in limited quantities and batches are only made every 1, 2, 6 months or whatever. I have had excellent results buying from Amayama in the past.

    Cheers

  14. FJ73Texas

    FJ73Texas

    Messages:
    610
    Media:
    8
    Albums:
    1
    Likes Received:
    435
    Joined:
    Aug 16, 2015
    Location:
    San Antonio
    Unlike ordering Amayama, ordering from @beno is like those crackerjack boxes. Almost always a special prize inside.

    [​IMG]

  15. RMP&O

    RMP&O OCD Supporting Vendor

    Messages:
    2,596
    Albums:
    1
    Likes Received:
    1,050
    Joined:
    Sep 9, 2004
    Location:
    Cruiser hunting
    That has not been my experience or with Cruiserdan but I have done very limited business with both. I am not saying anything bad about either, they both are big supporters of this community and forum for a long time. However, the only people I ever got "bonus" items from has been Ward & Georg. I wear my Valley Hybrids shirt at least two days a week! :)

    Also, I am just sharing what I have found to be an extremely good parts resource. I secured items today via Amayama others have told me are NLA. I have had the same experience with Amayama for years. Robert Willox who runs Amayama has been very good to work with for me, super fast response rates and always on the ball. If I have any questions, he gets back to me in under 24hrs and he is on the other side of the planet. More than once I have secured things through him and Amayama that I have been told right here on the forum are NLA. For FJ60/62's, 80-series and old classic Nissan Patrols. Not to mention, I have received standard post boxes from Japan via Amayama in 5 days. It is pretty cool too to get boxes with Japanese writing on them. :)

    My only complaint about Amayama is that they don't have parts diagrams with the EPC but I guess that is pretty standard across the board.

    People can do whatever they like, I was-am just sharing one the best parts sources I have ever found worldwide and I been digging for parts for two decades.

    Cheers

  16. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,973
    Media:
    382
    Albums:
    29
    Likes Received:
    16,598
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO
    You do know that Robert Willox is a pseudonym for an algorithm right? Amayama is almost entirely automated. Except for the fulfillment section or if you go and pick up your parts from their depots.

    Almost all interactions are canned responses based on heuristic learning.

    Anyway, try calling Robert. ;)

    eman375 and unfortunately like this.
  17. Gun Runner 5

    Gun Runner 5 SILVER Star

    Messages:
    13,095
    Media:
    8
    Likes Received:
    4,826
    Joined:
    Oct 22, 2009
    Location:
    Thomasville, GA
    @RMP&O ..... "That has not been my experience or with Cruiserdan but I have done very limited business with both. I am not saying anything bad about either, they both are big supporters of this community and forum for a long time. However, the only people I ever got "bonus" items from has been Ward & Georg. I wear my Valley Hybrids shirt at least two days a week! :)
    ---------------------------------------------------------------------------------------------------------------------------------
    When I would call Dan (@cruiserdan) to order parts he would act like taking my call was the most important thing he would do all day. This "Human interaction" is what separates him from most others. I would agree that Ward also has this concept down pat. :)

  18. ca18sean

    ca18sean

    Messages:
    250
    Likes Received:
    211
    Joined:
    Jul 22, 2015
    Location:
    Tampa, FL
    Back on topic, hard brake lines for a HJ75 front axle. Available? One of mine is kinda smooshed, but is still working. Wondering if it's worth it (or even possible) to get an OEM replacement or if I should just bend one up with tube from NAPA...

    beno likes this.
  19. RMP&O

    RMP&O OCD Supporting Vendor

    Messages:
    2,596
    Albums:
    1
    Likes Received:
    1,050
    Joined:
    Sep 9, 2004
    Location:
    Cruiser hunting
    Odd that automated responses answer very specific questions. No worries though and I will take your word for it.

    Cheers

  20. Owyhee Jackass

    Owyhee Jackass

    Messages:
    2,041
    Likes Received:
    282
    Joined:
    Apr 1, 2004
    Location:
    Boise, Id

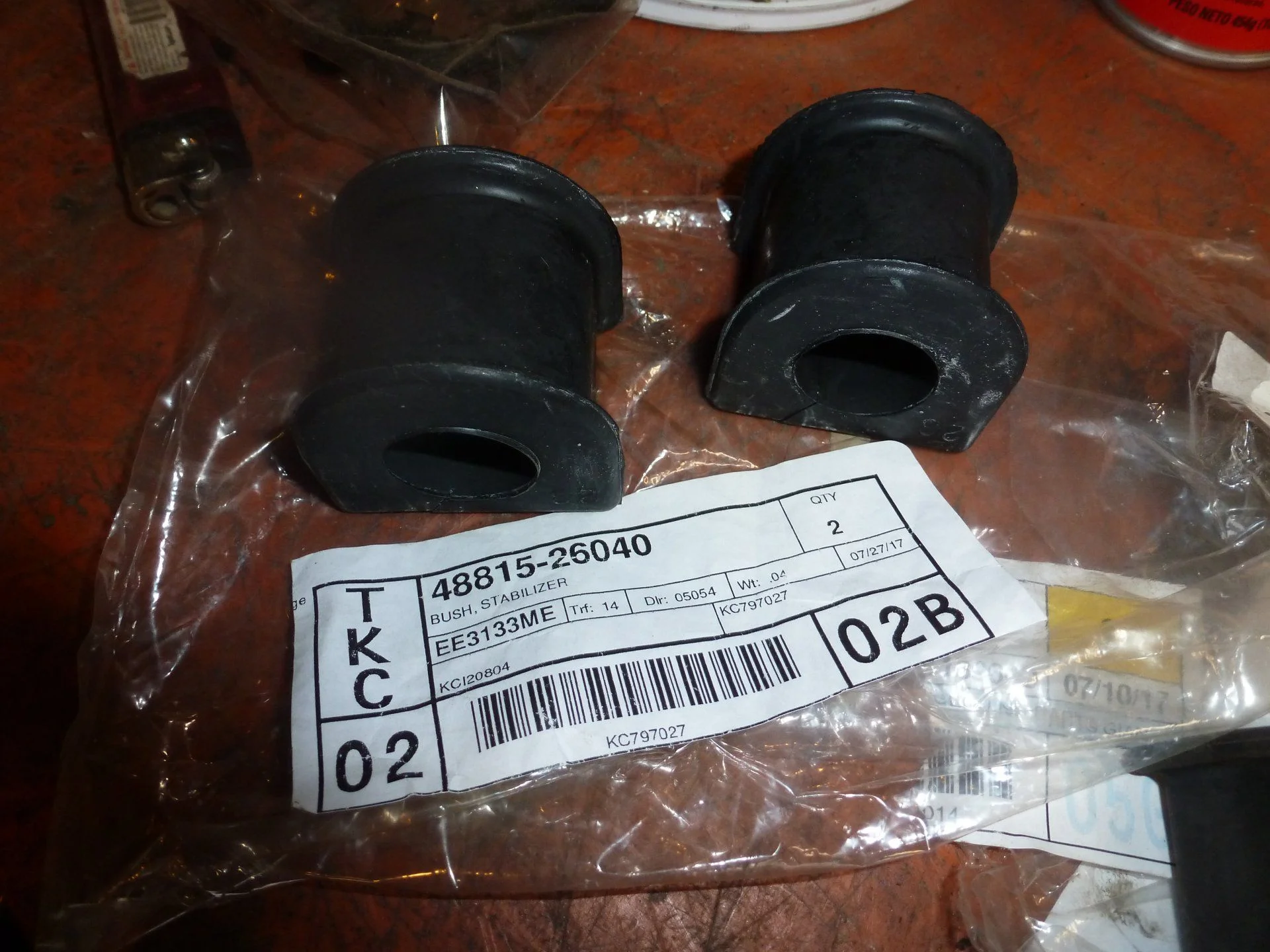

    Front stabilizer bushing 48815-26040 - Troopy (need two of these)

    Cushings 48817-30010 (need 8 of these) P1050648.JPG

    Retainer, Cushion 90948-02032 (need 8 of these) P1050650.JPG

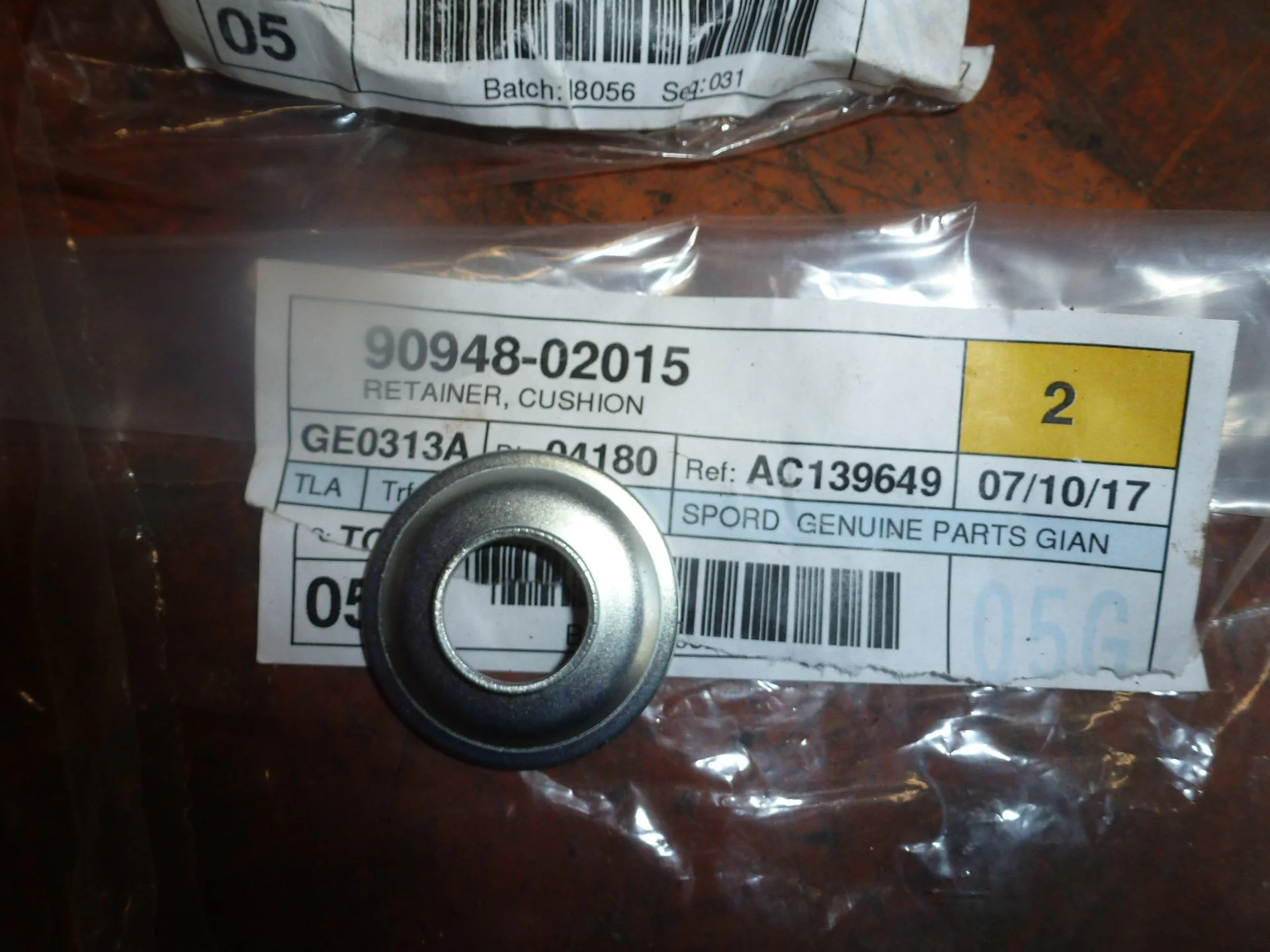

    Retainer, Cushion 90948-02015 (need 2 of these) P1050649.JPG

    ca18sean, cruiseroutfit and beno like this.
