AVAILABLE 7X SERIES PARTS--USA MARKET

[OGBeno]

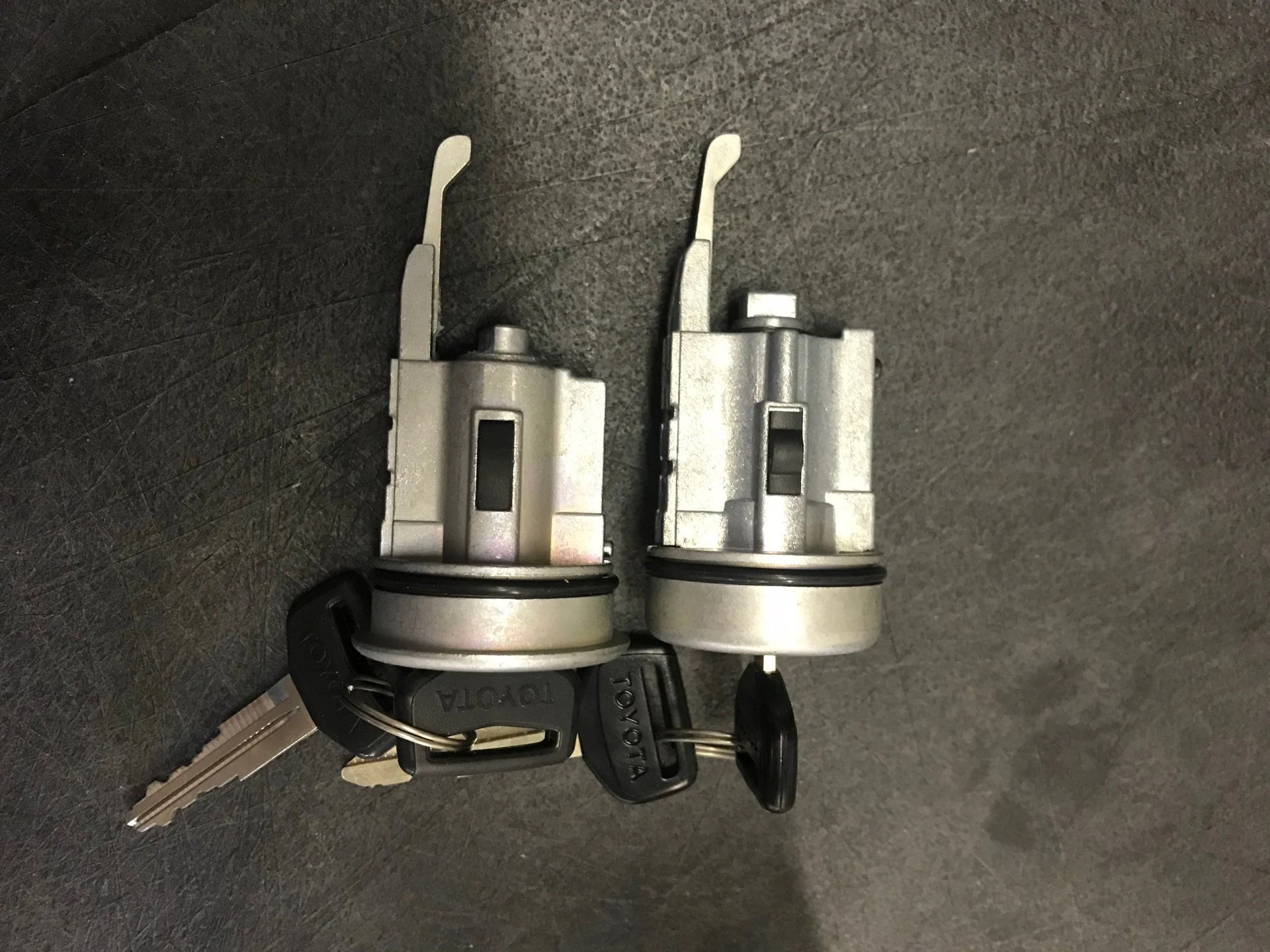

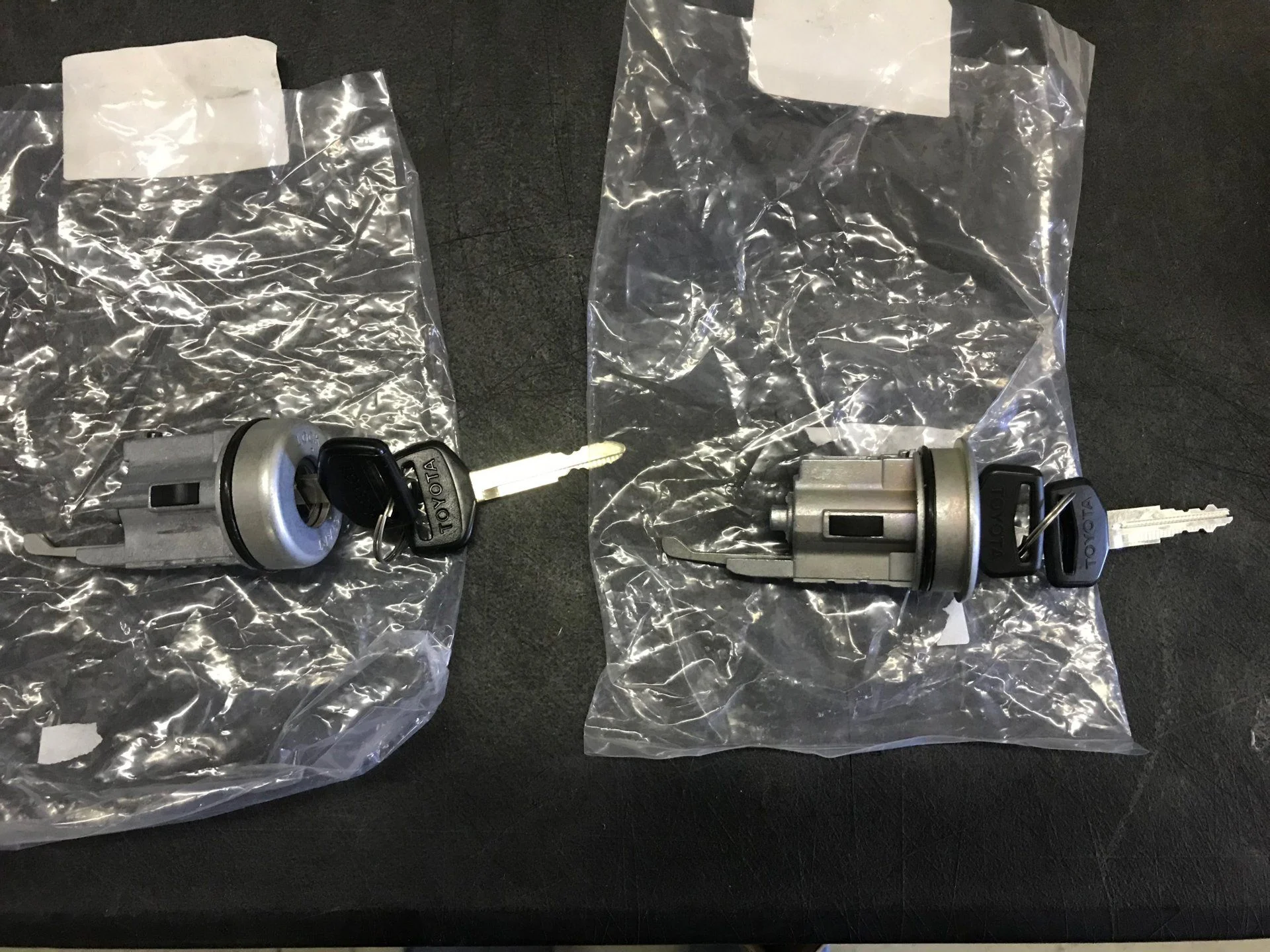

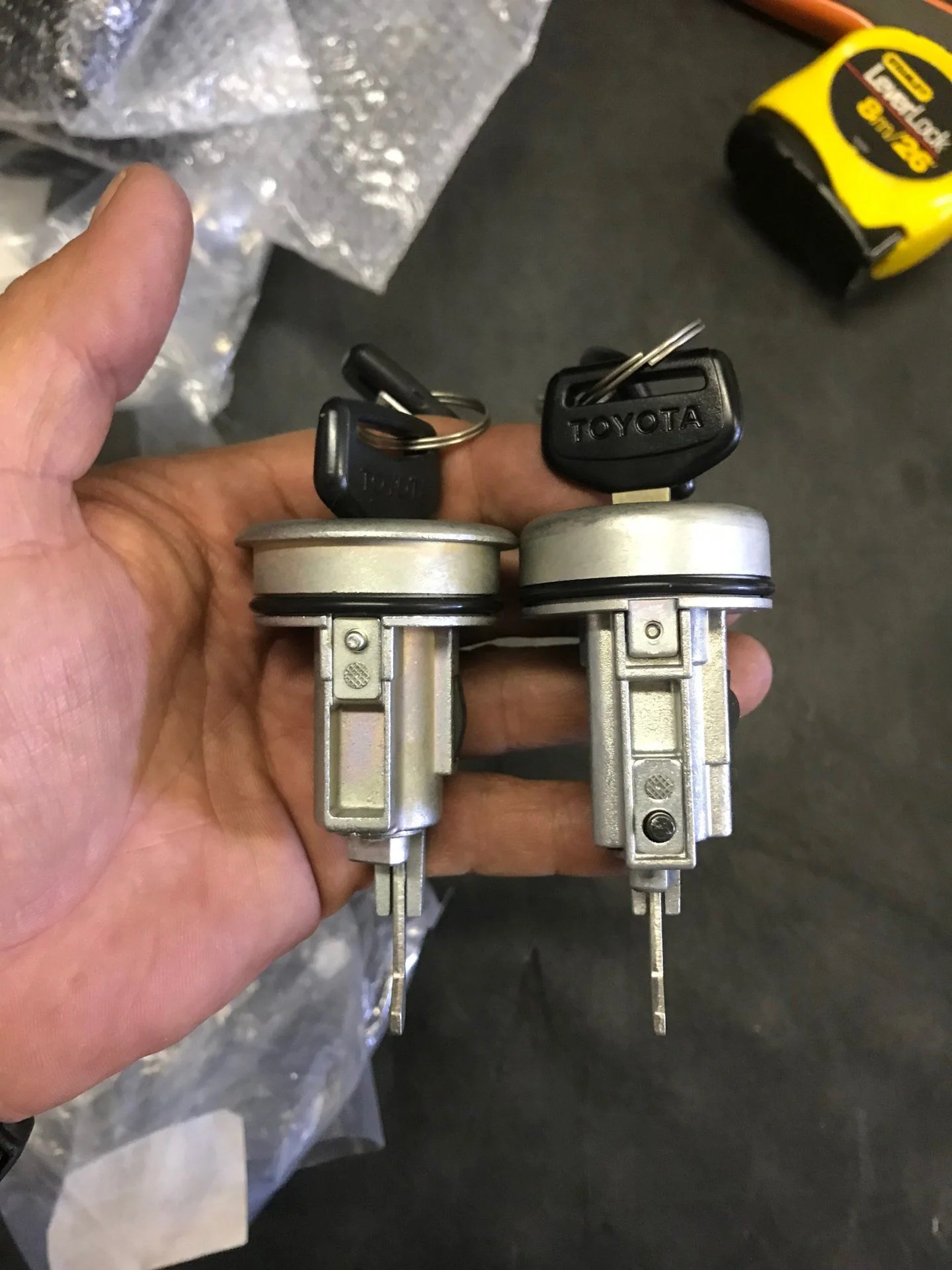

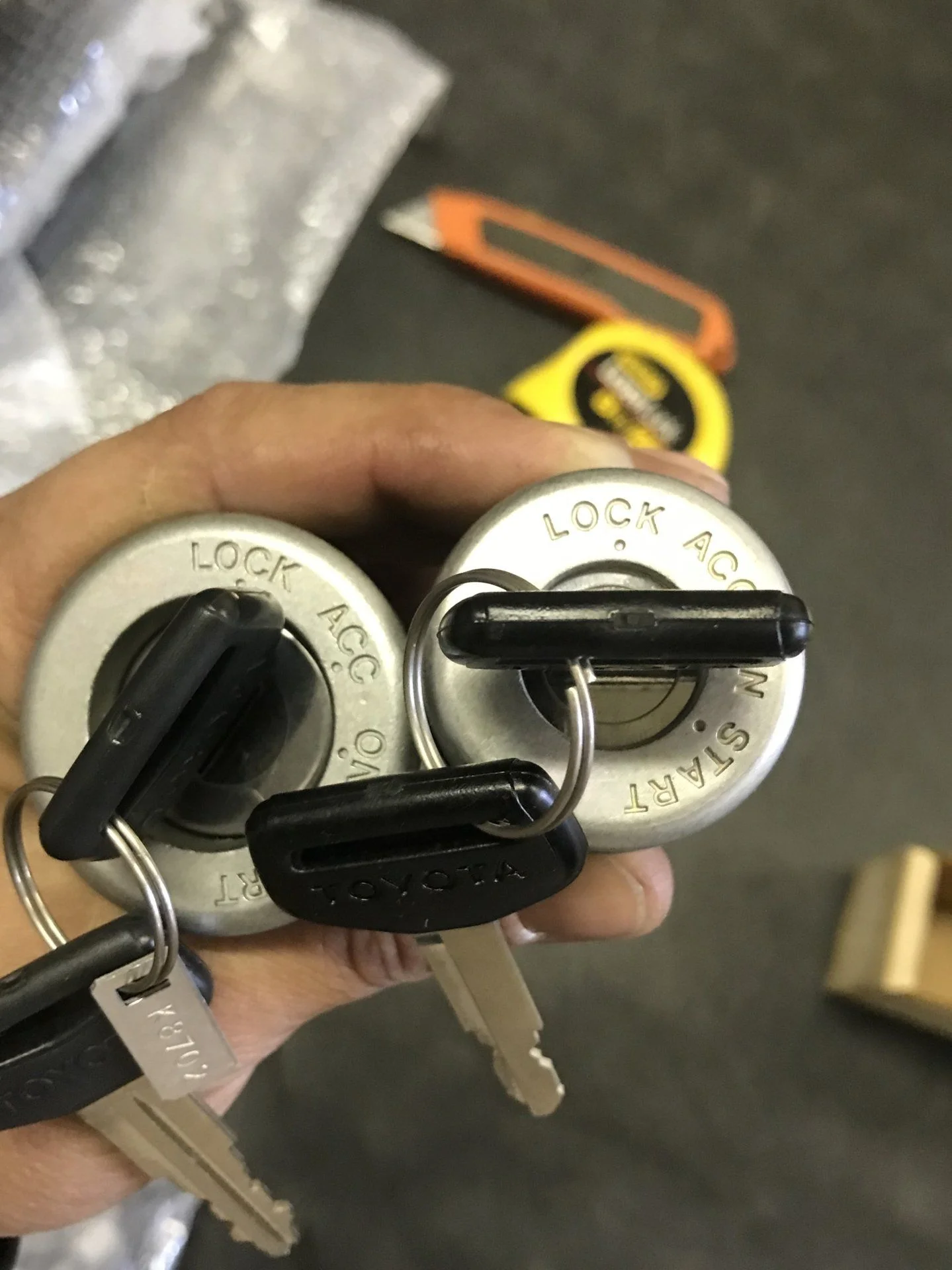

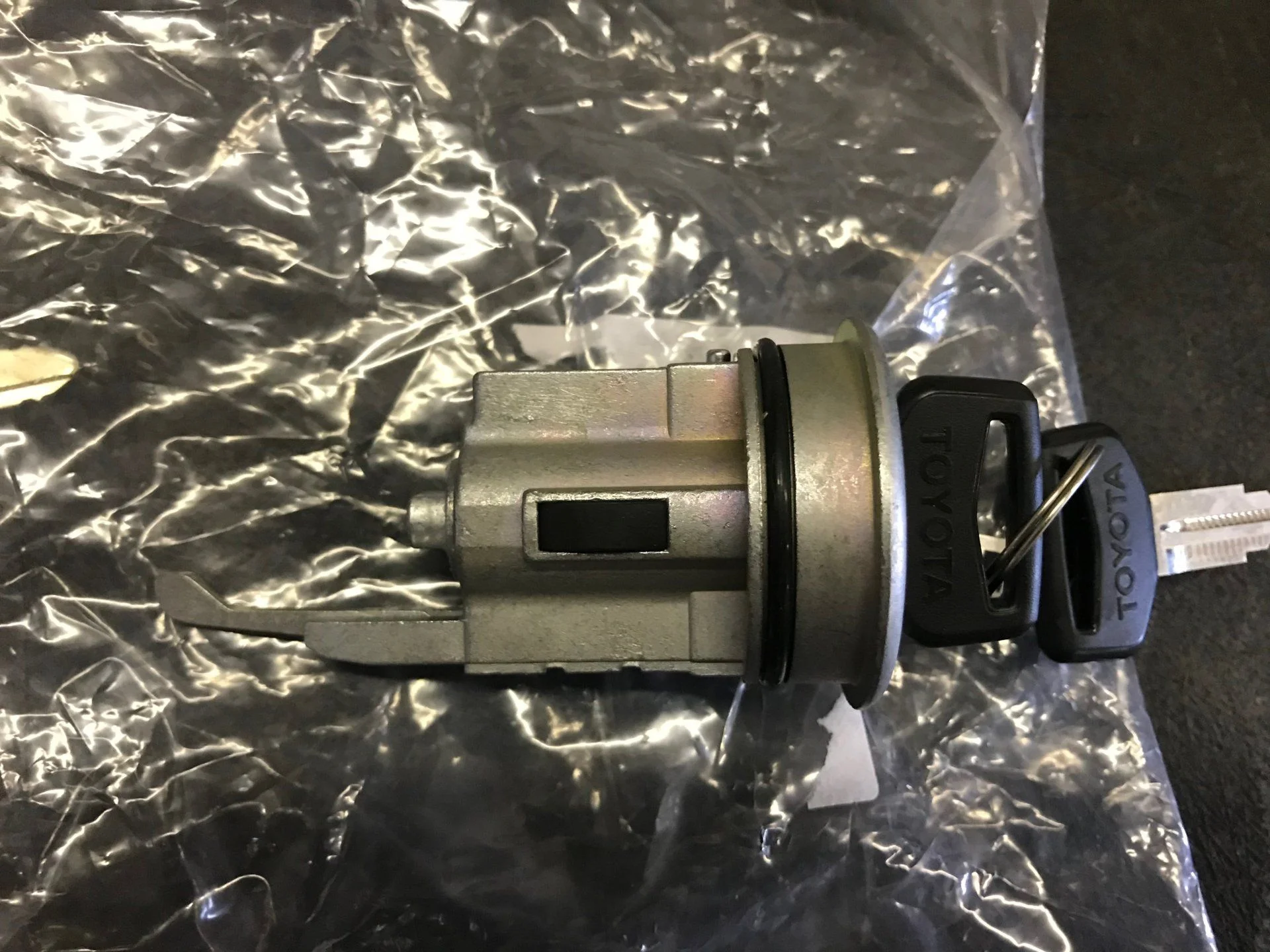

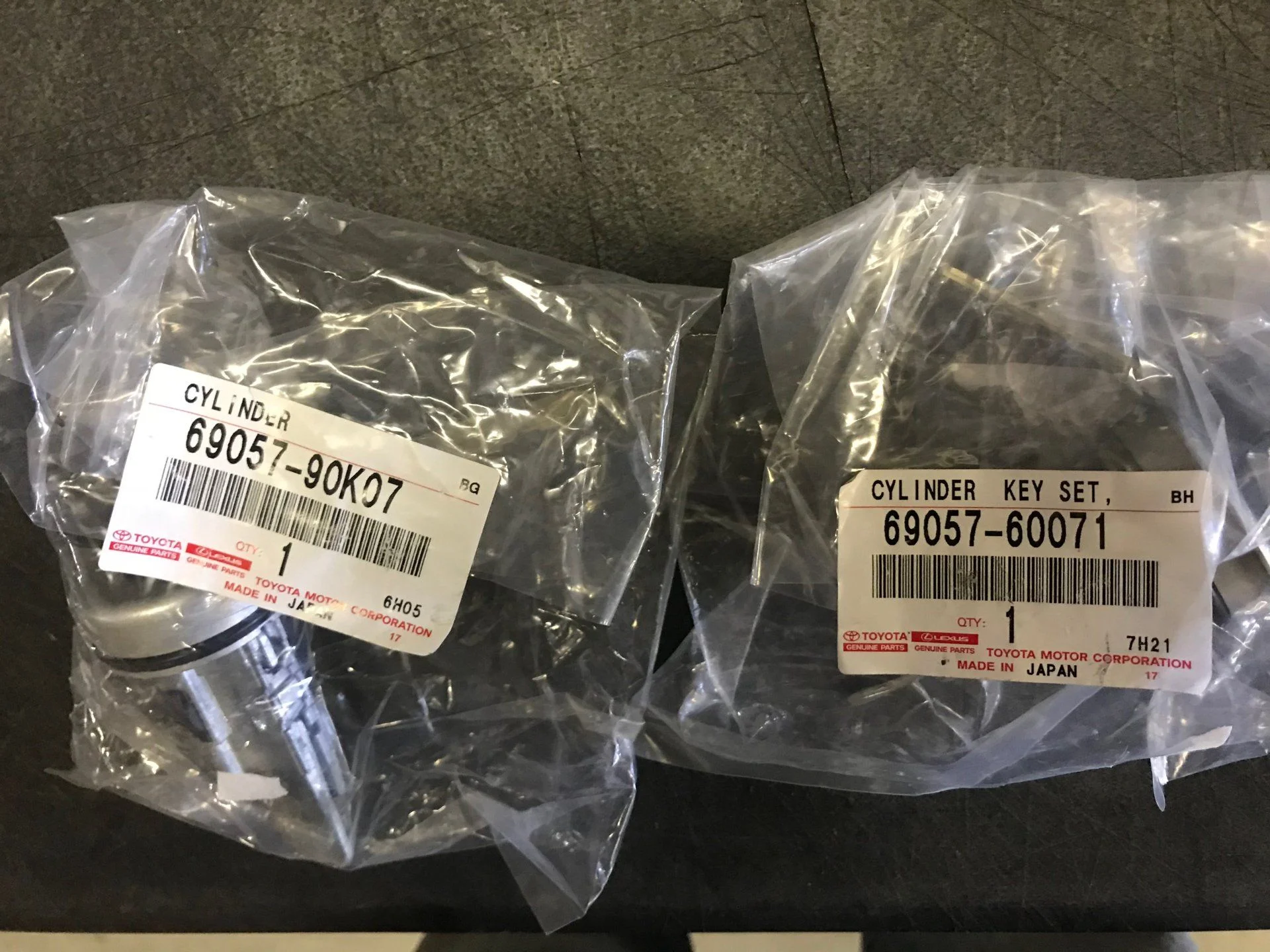

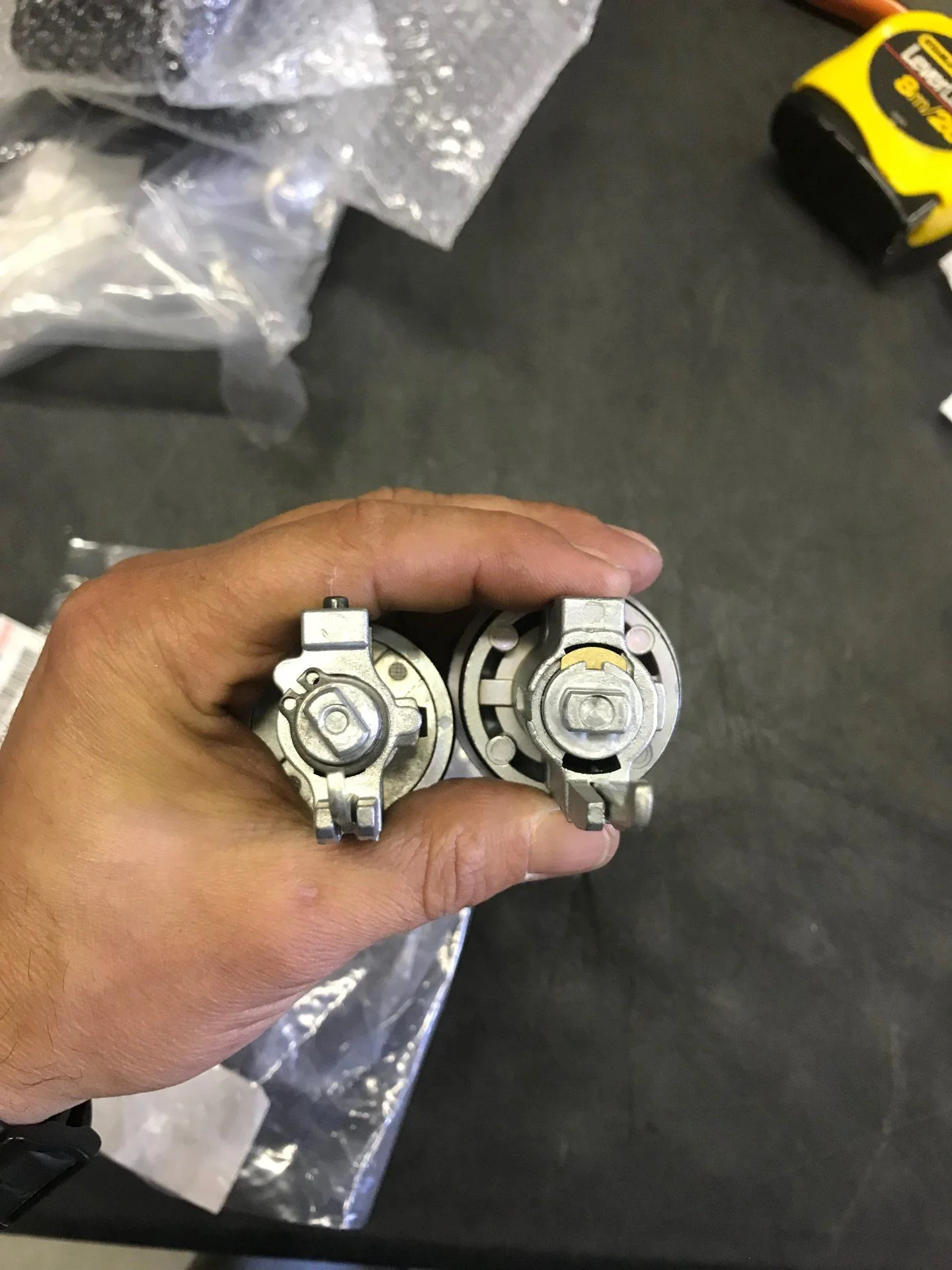

Some key cylinder differences:

-90K07 is the earlier cylinder and key set (key code is etched into spare key)
-60071 is the later cylinder and kye (key code is on tag)



[OGBeno]

And some more pictorial documentation:

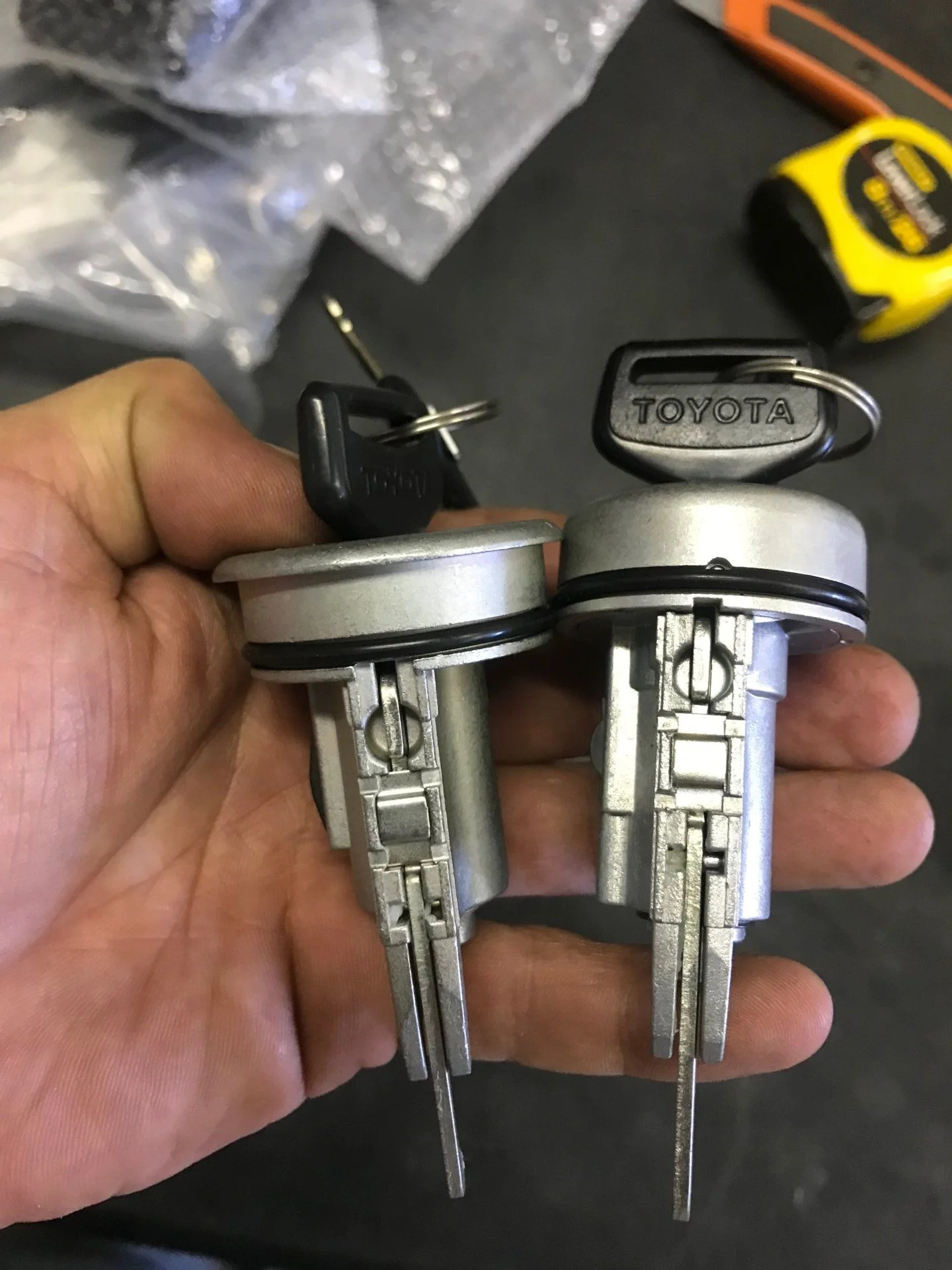

You can see the detent pin below is key once you see the bracket assy:



[OGBeno]

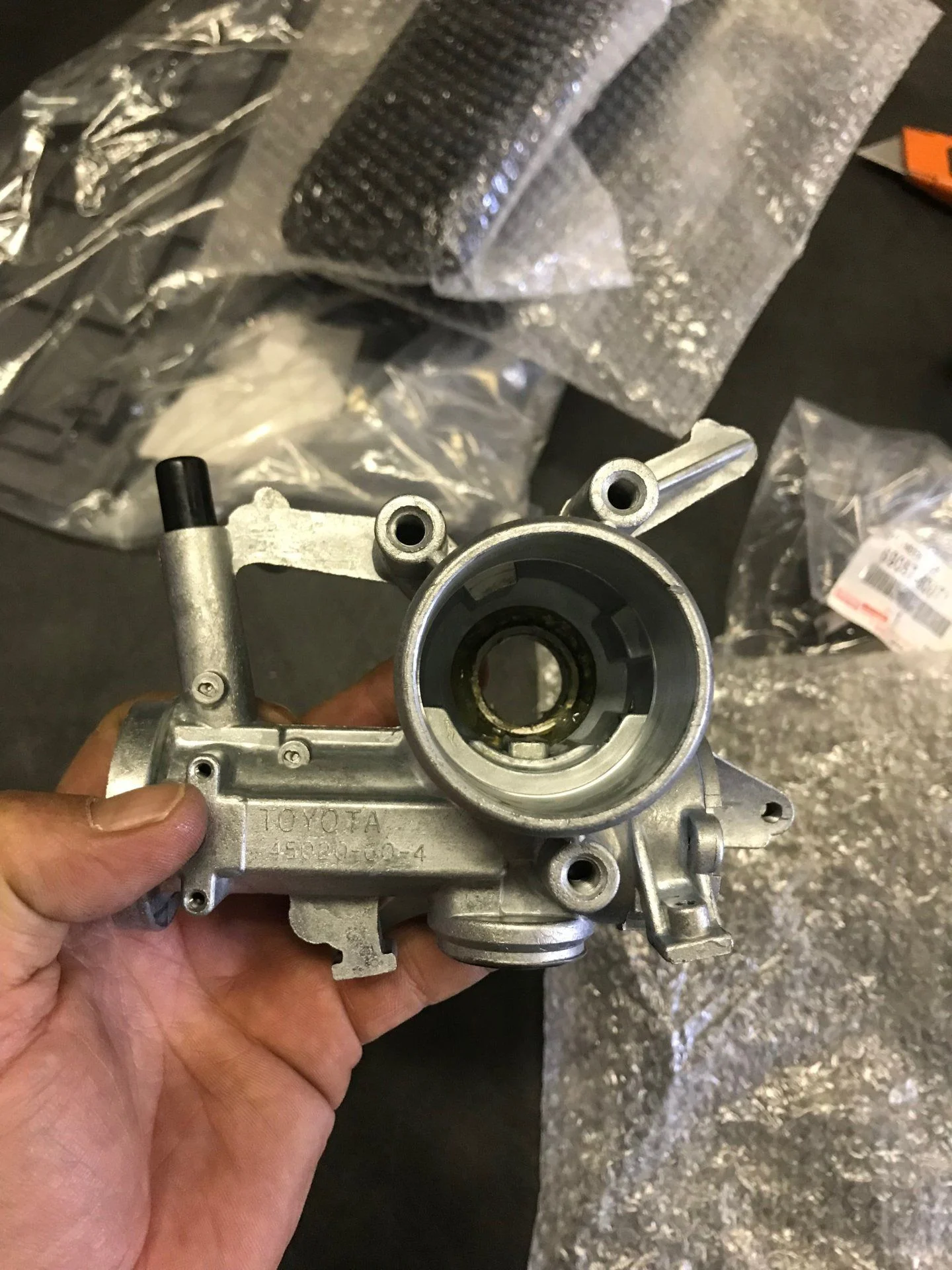

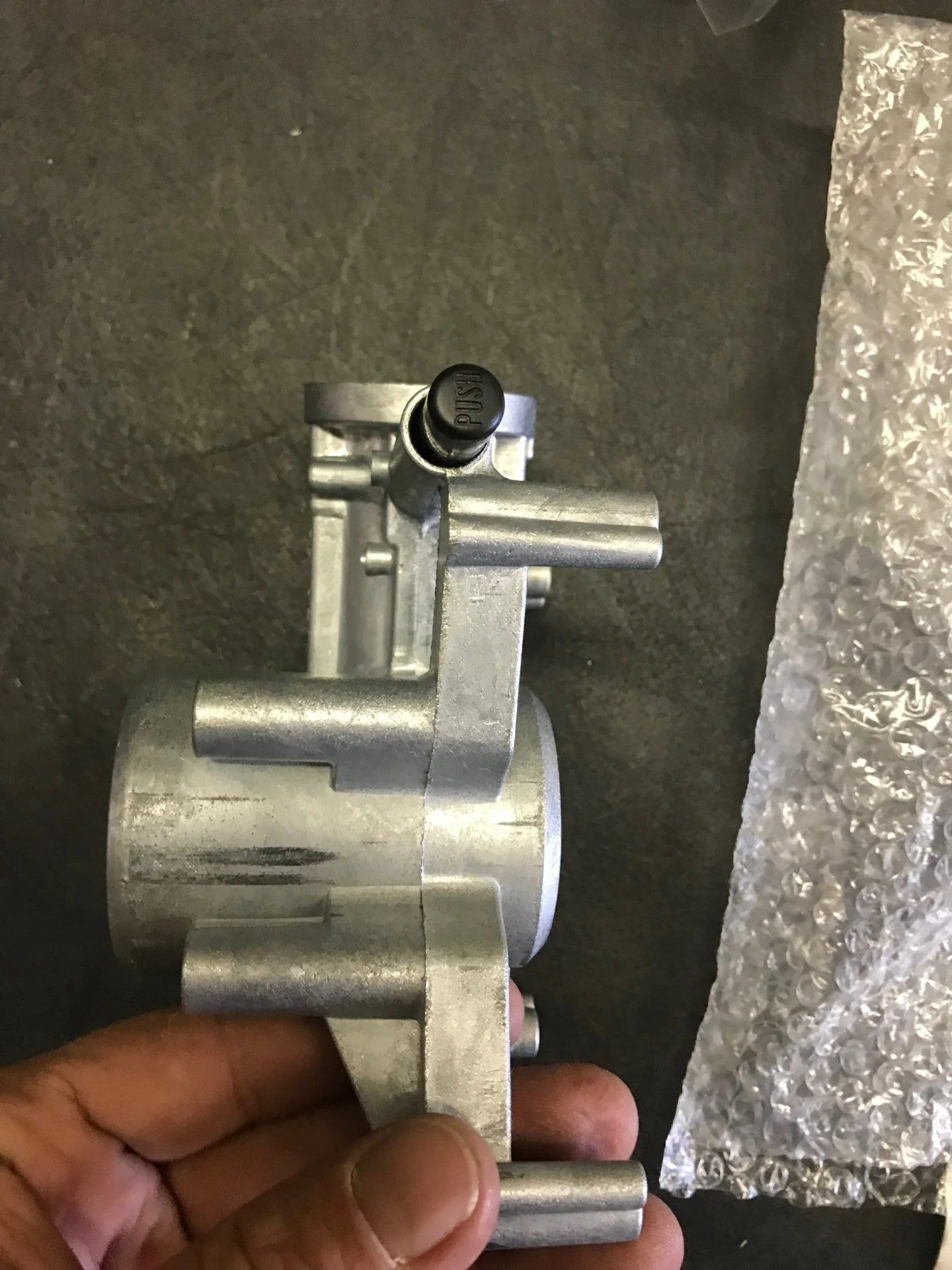

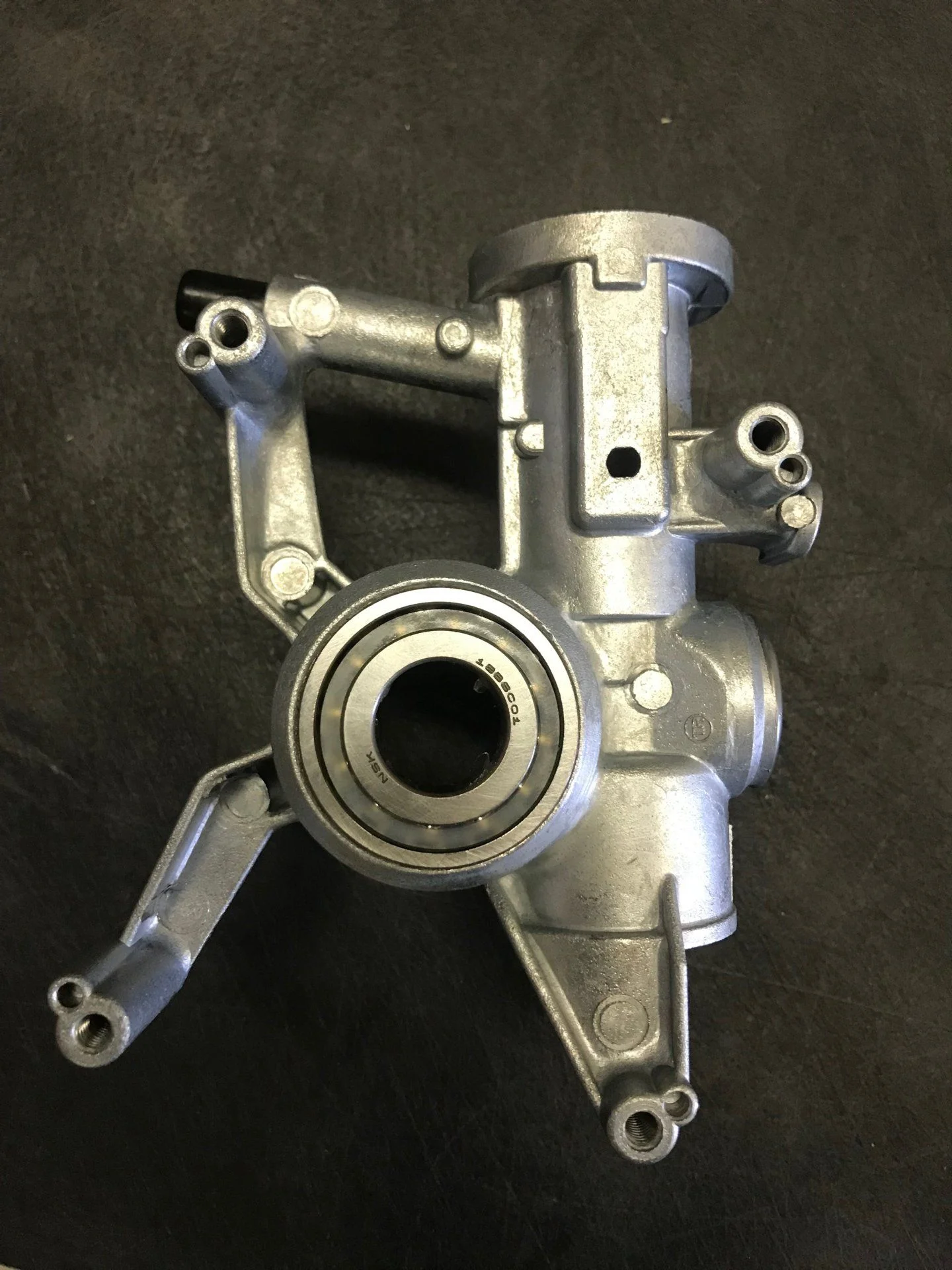

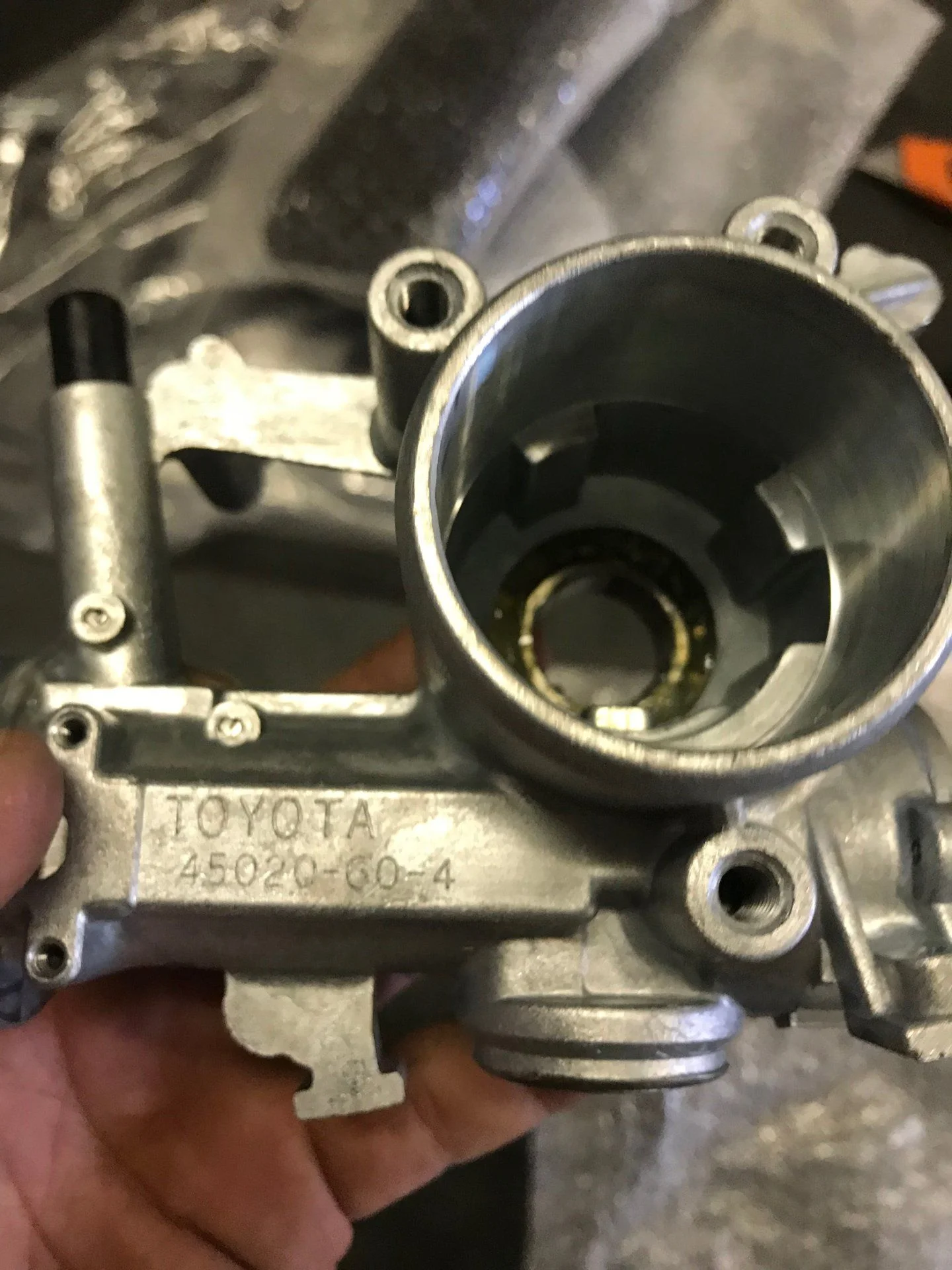

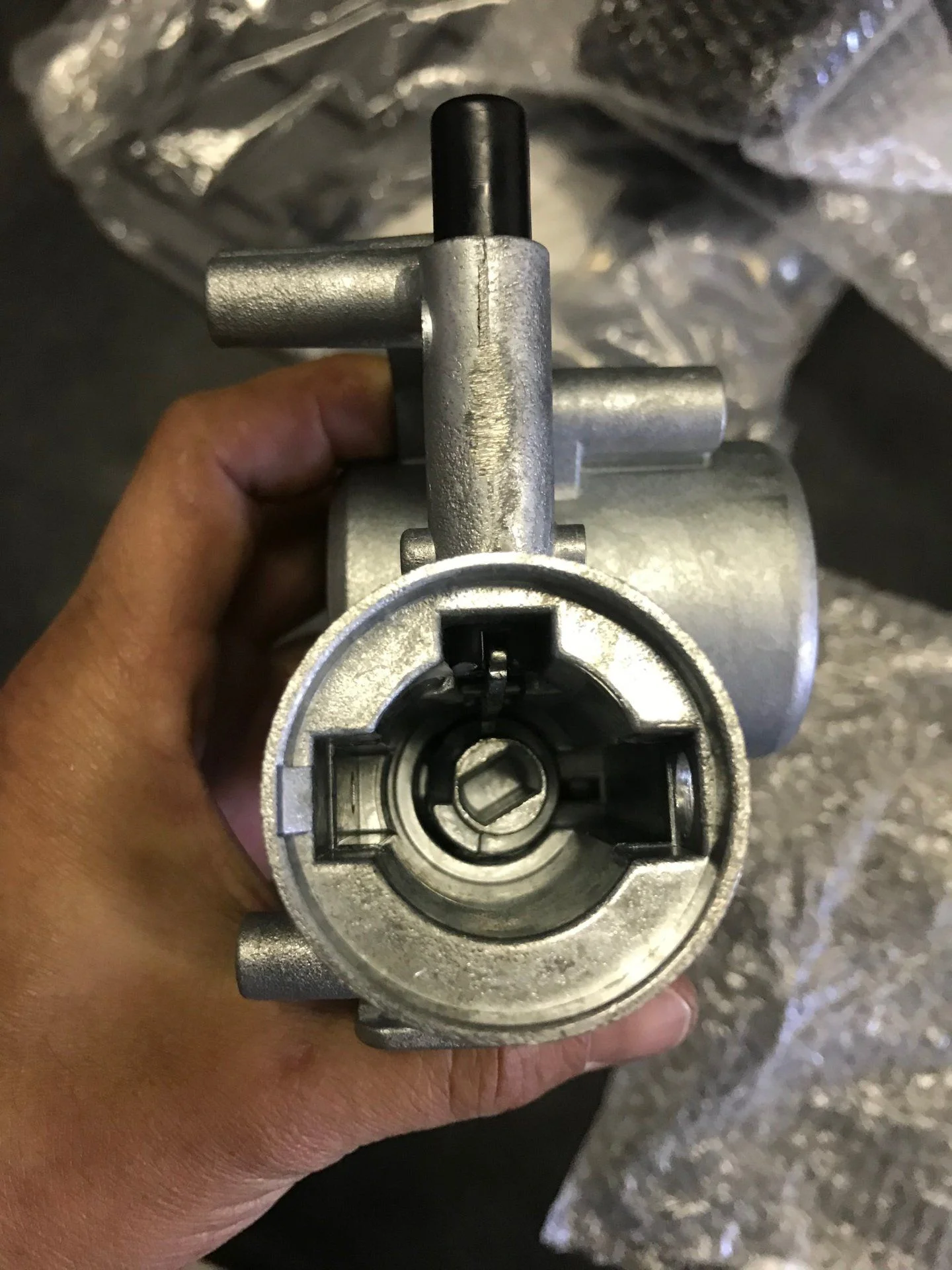

And you can see the bracket here that the cylinder slides into:

You can see the hole below where the detent pin slides into. The pin as to be depressed upon insertion.



[OGBeno]

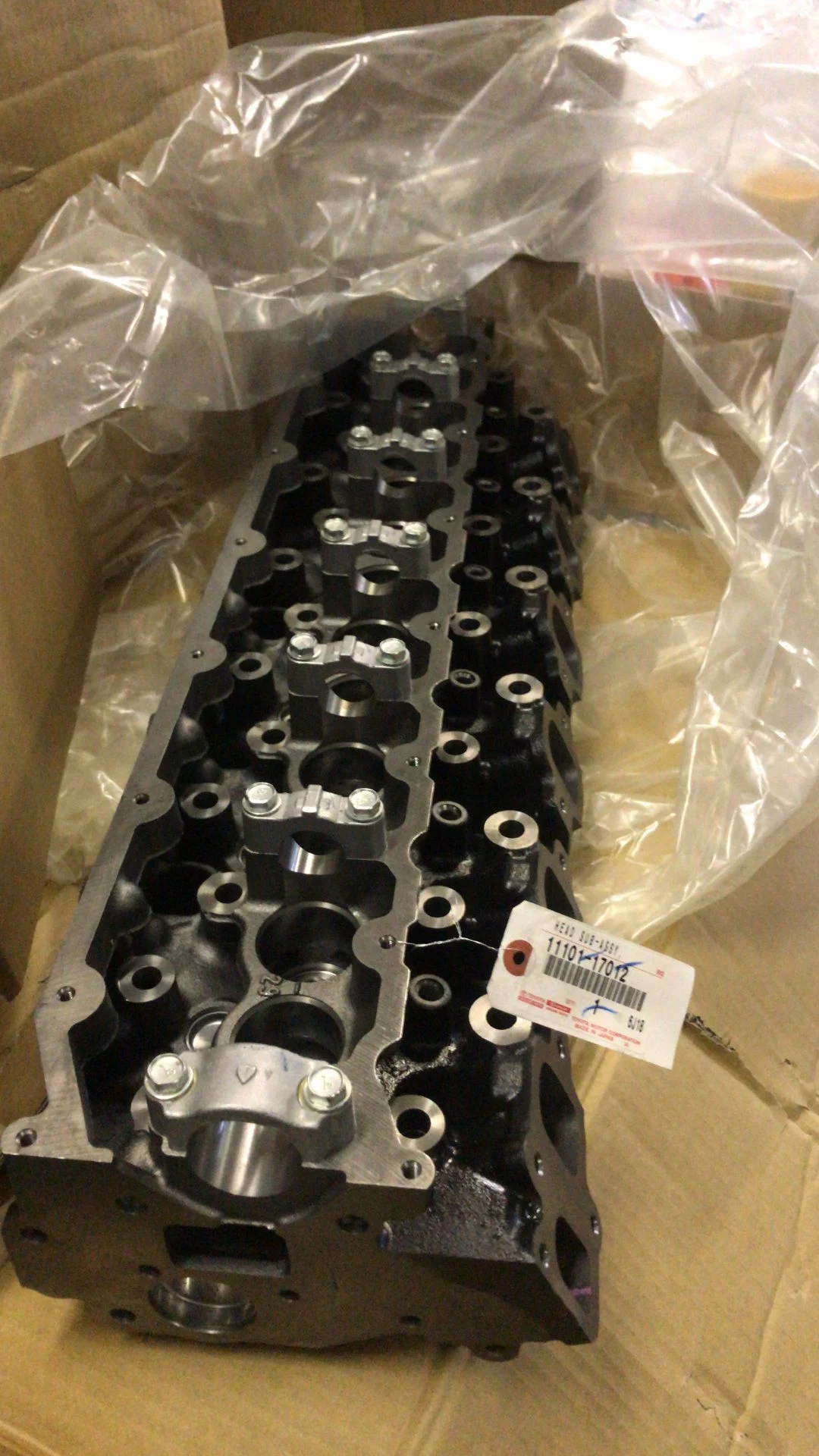

1HZ/1HD-T heads are alive and well and available still in the US.

Took about 10 days to get. Manufacturing information placed it at about 1 year old.

About 100lbs shipped.

Beautiful piece of Aichi Steel. No Kobe s*** here.

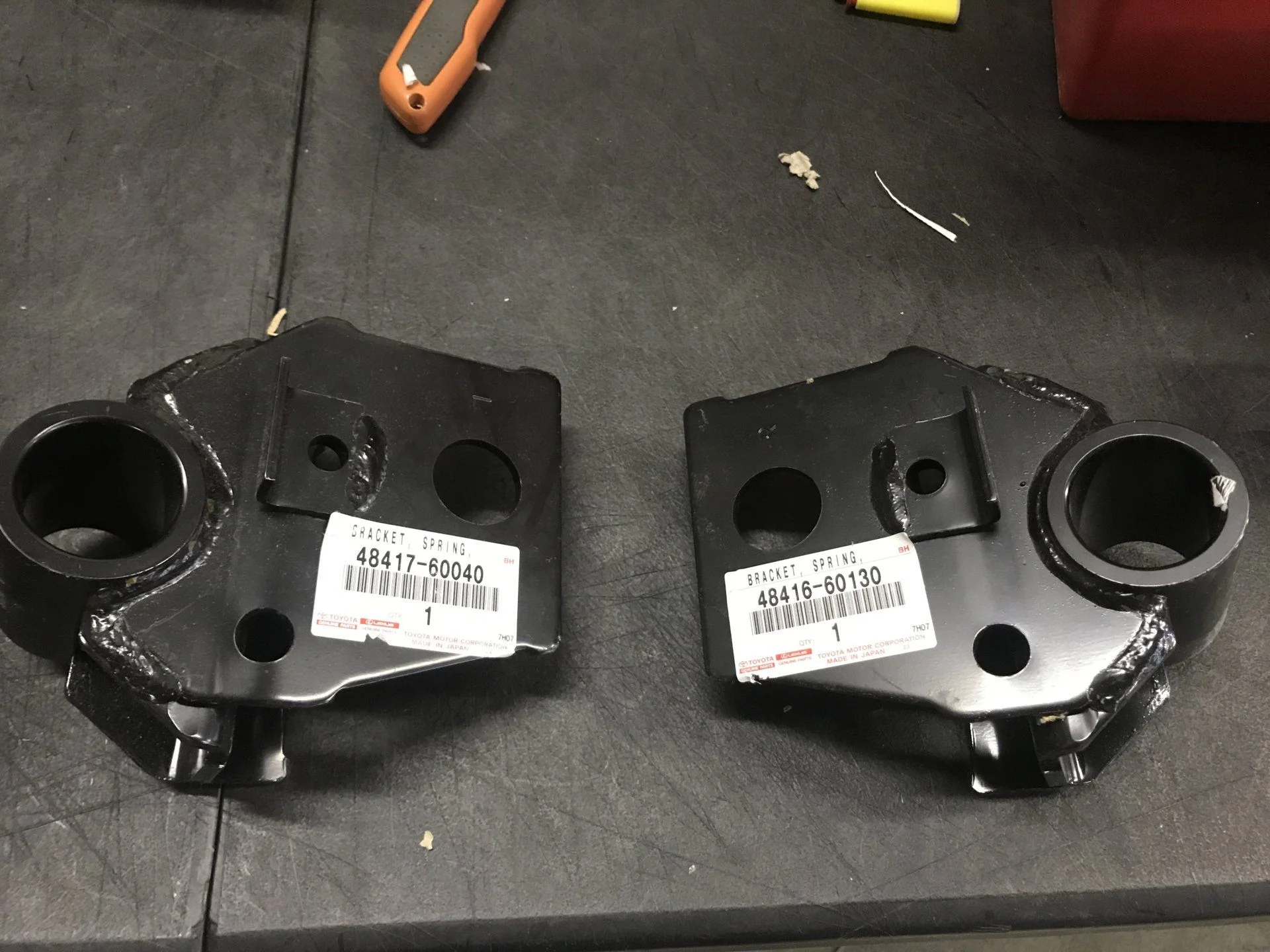

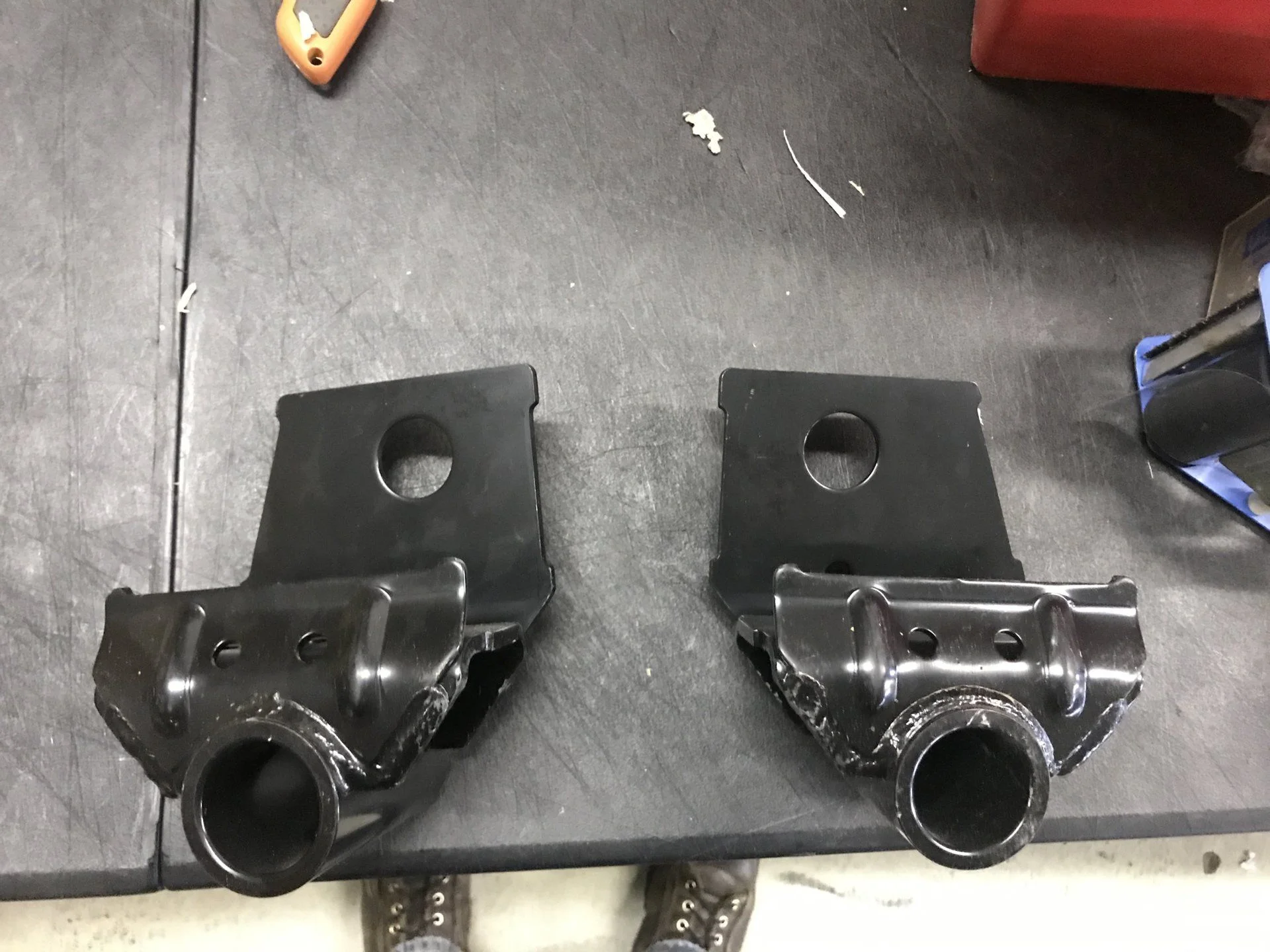

These are the rear frame mounts for the rear leaf springs of a 7x.

Numerous part numbers that were really oddly convoluted.

Required a bunch of time to figure out if these will work with older trucks. We shall find out. They look pretty damn close.



[OGBeno]

So happy these are still around:

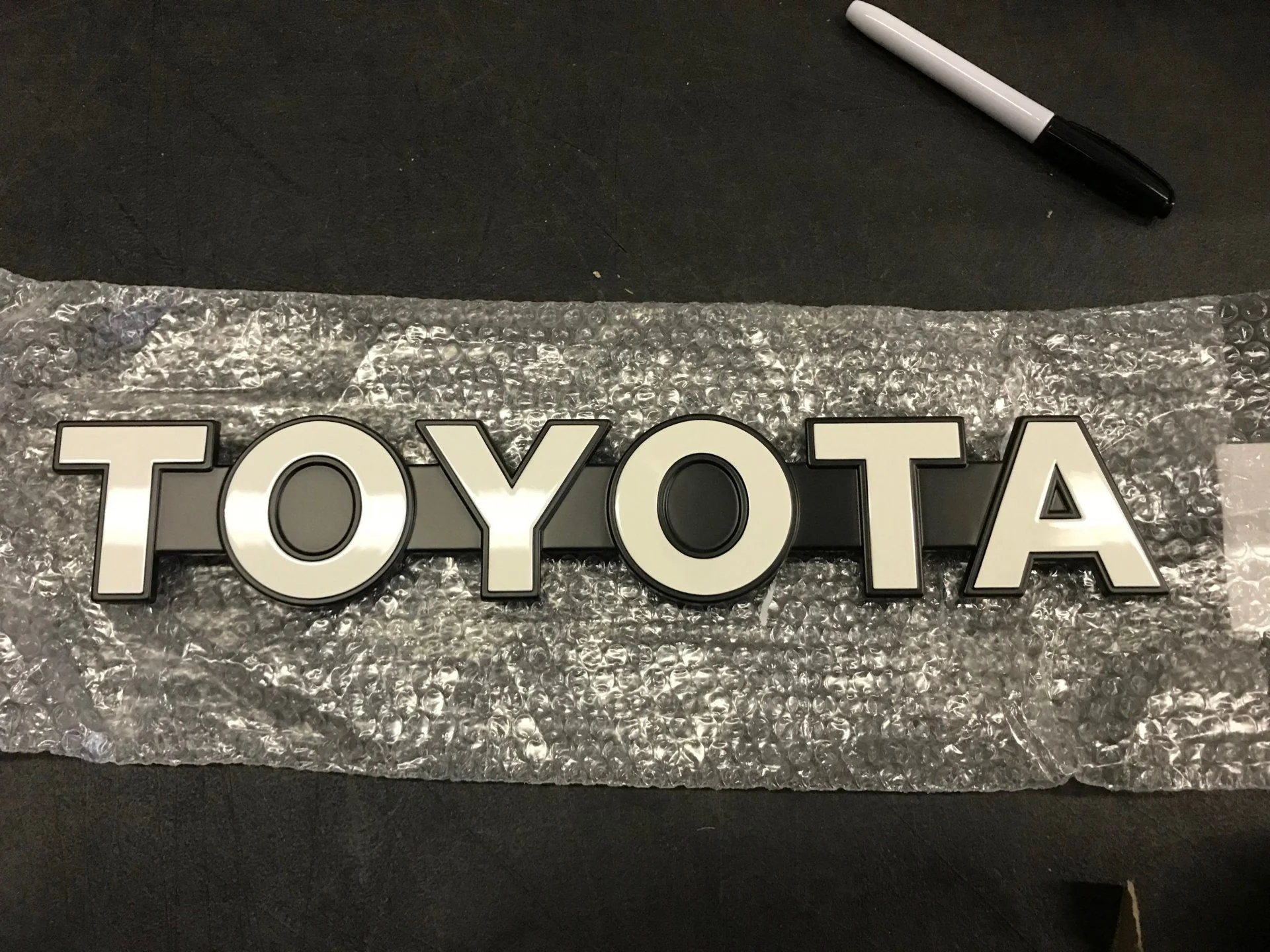

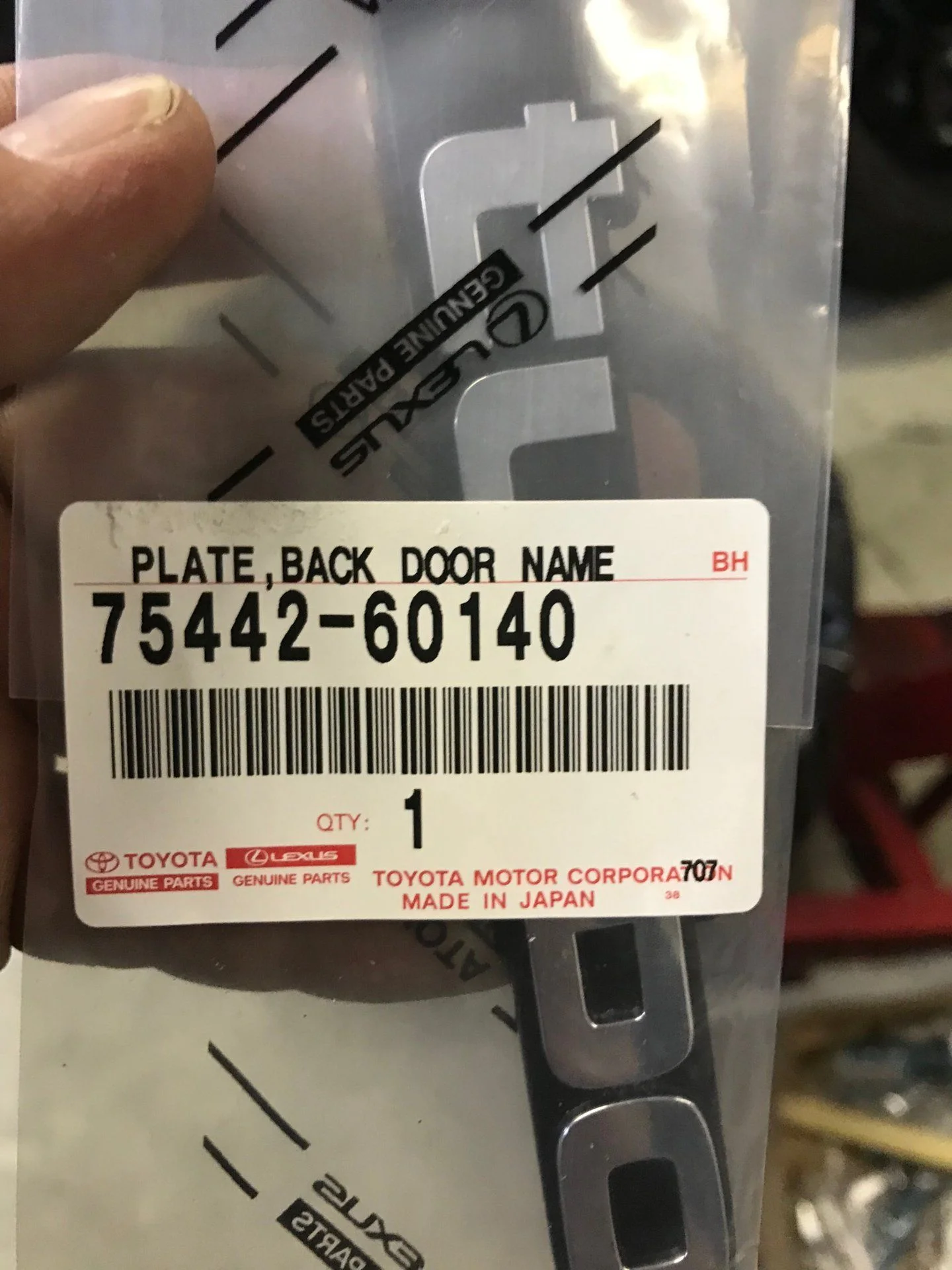

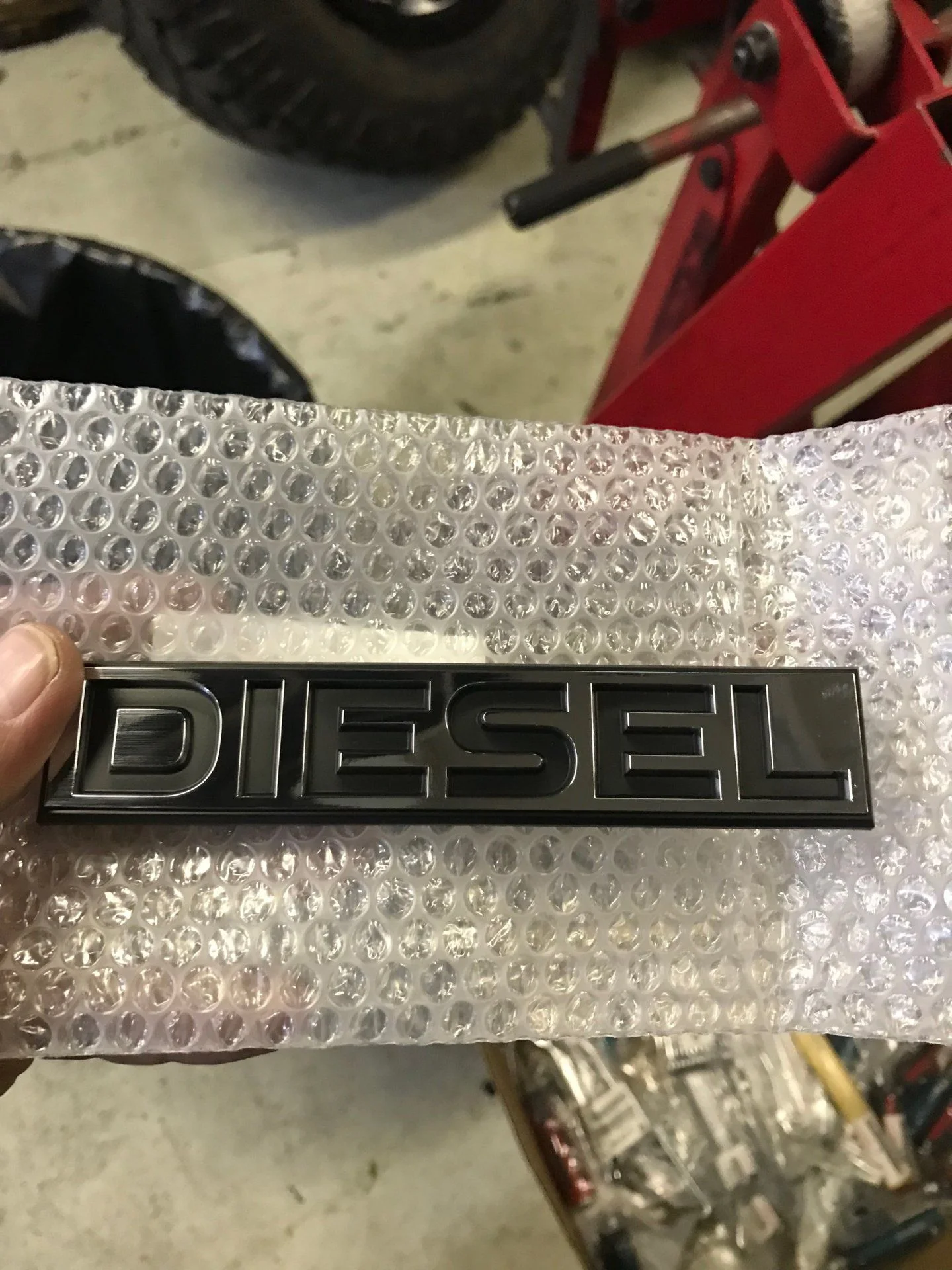

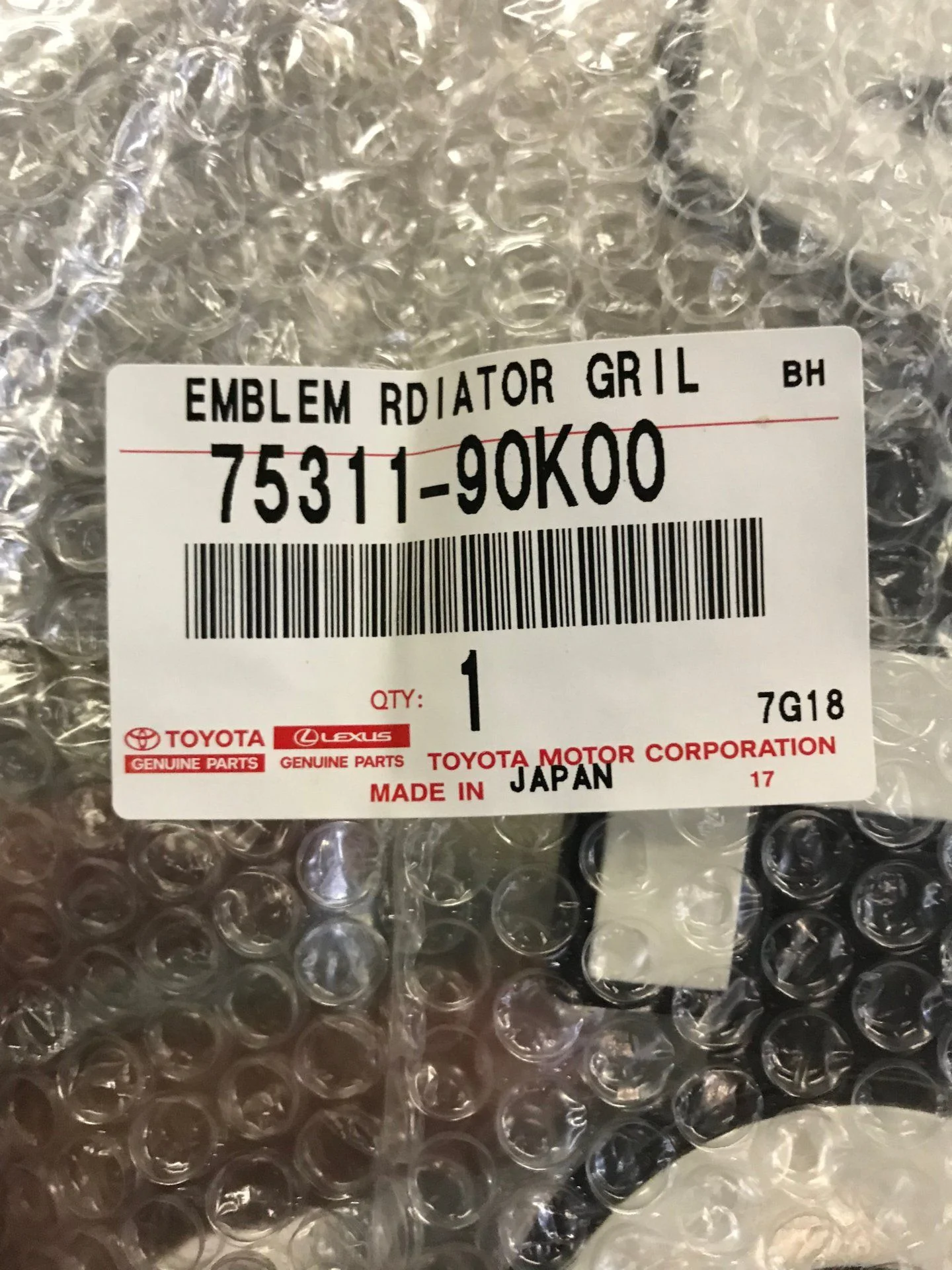

Emblem for the early 7x series trucks:

I was able to score one of these. Long discontinued:

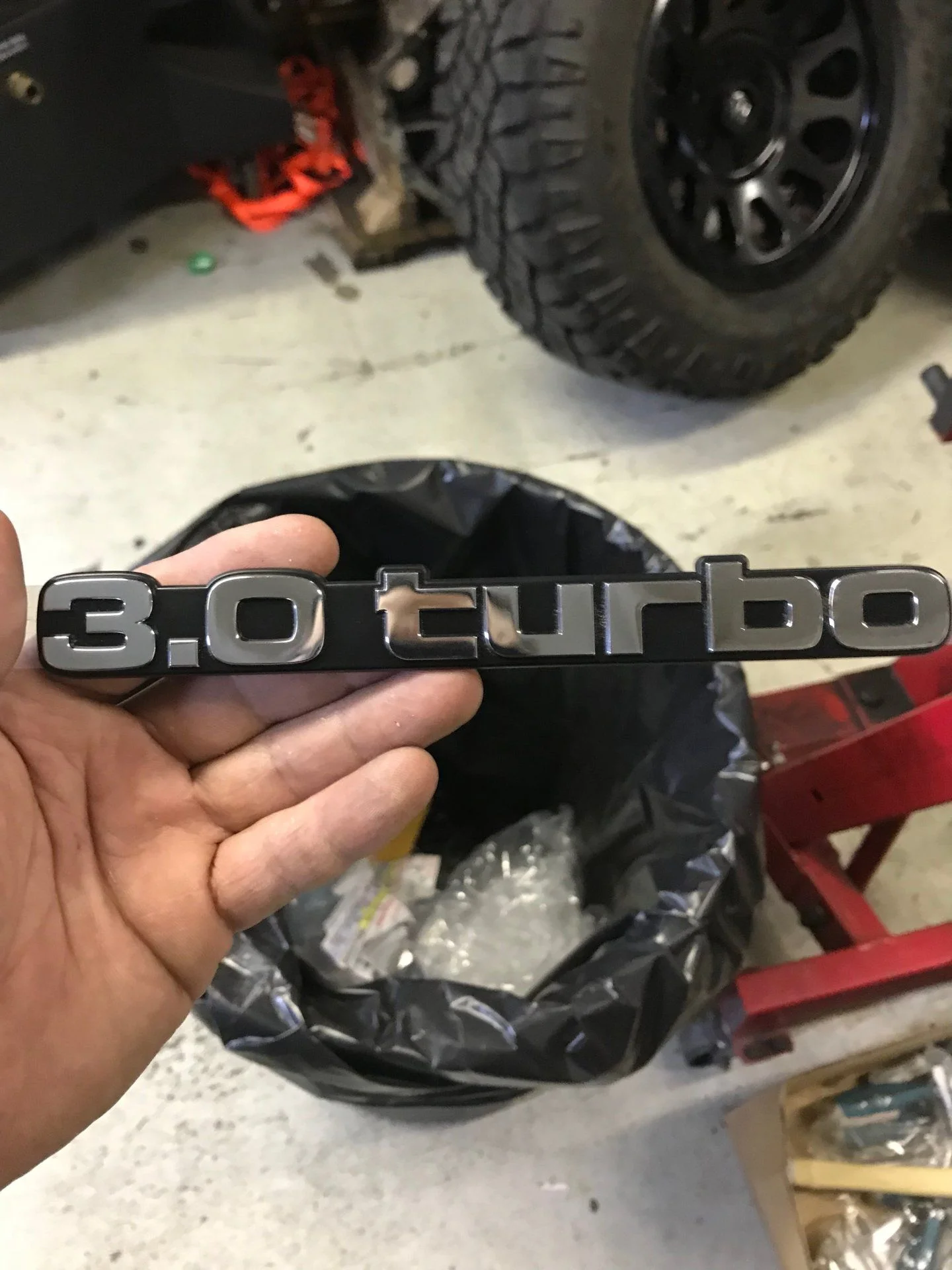

This emblem is actually from a non-US LJ Prado. I am going to take the 3.0 off and use the "turbo" portion for the front grille.



[OGBeno]

HZJ73:

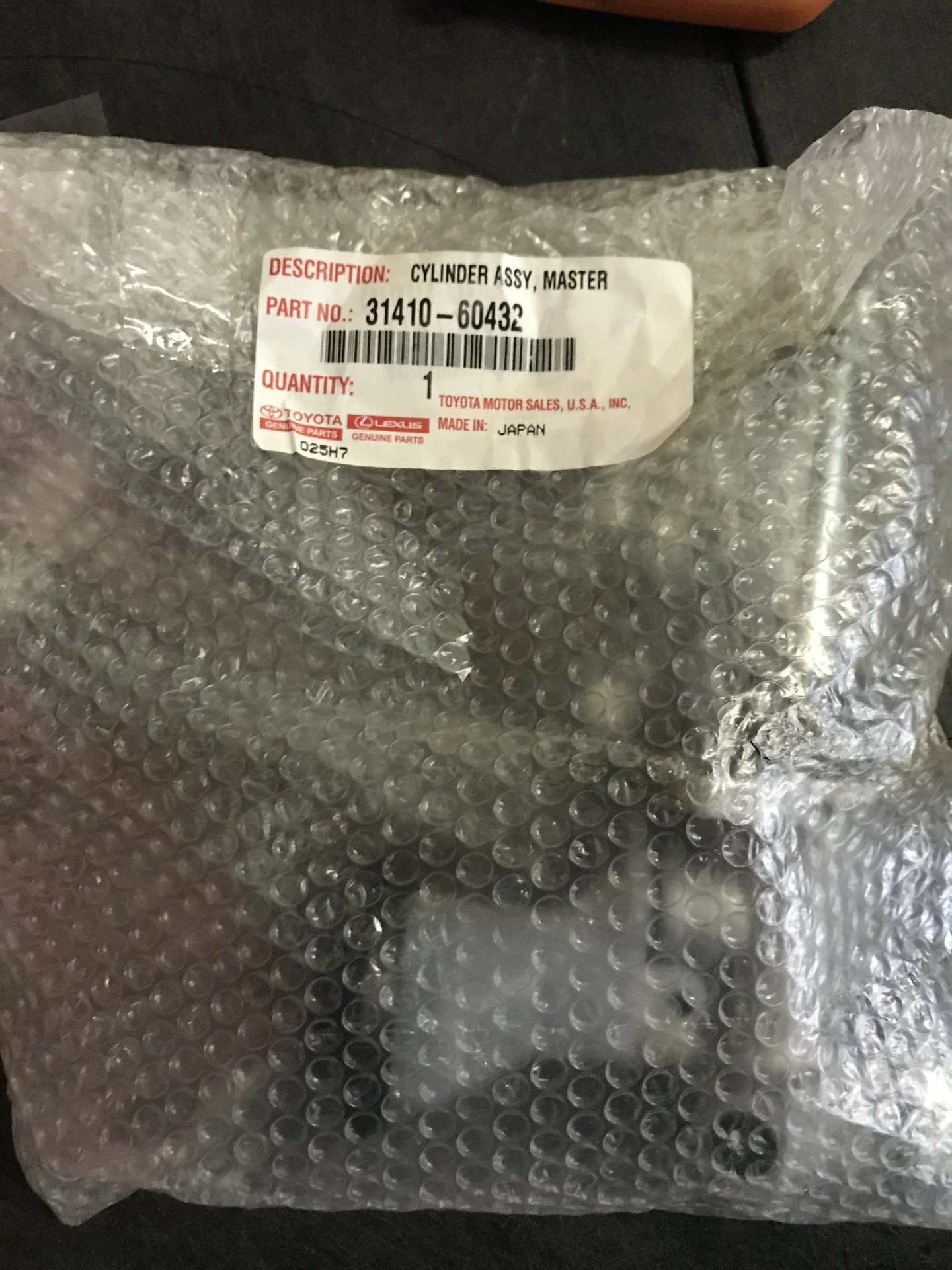

Clutch master cylinder:

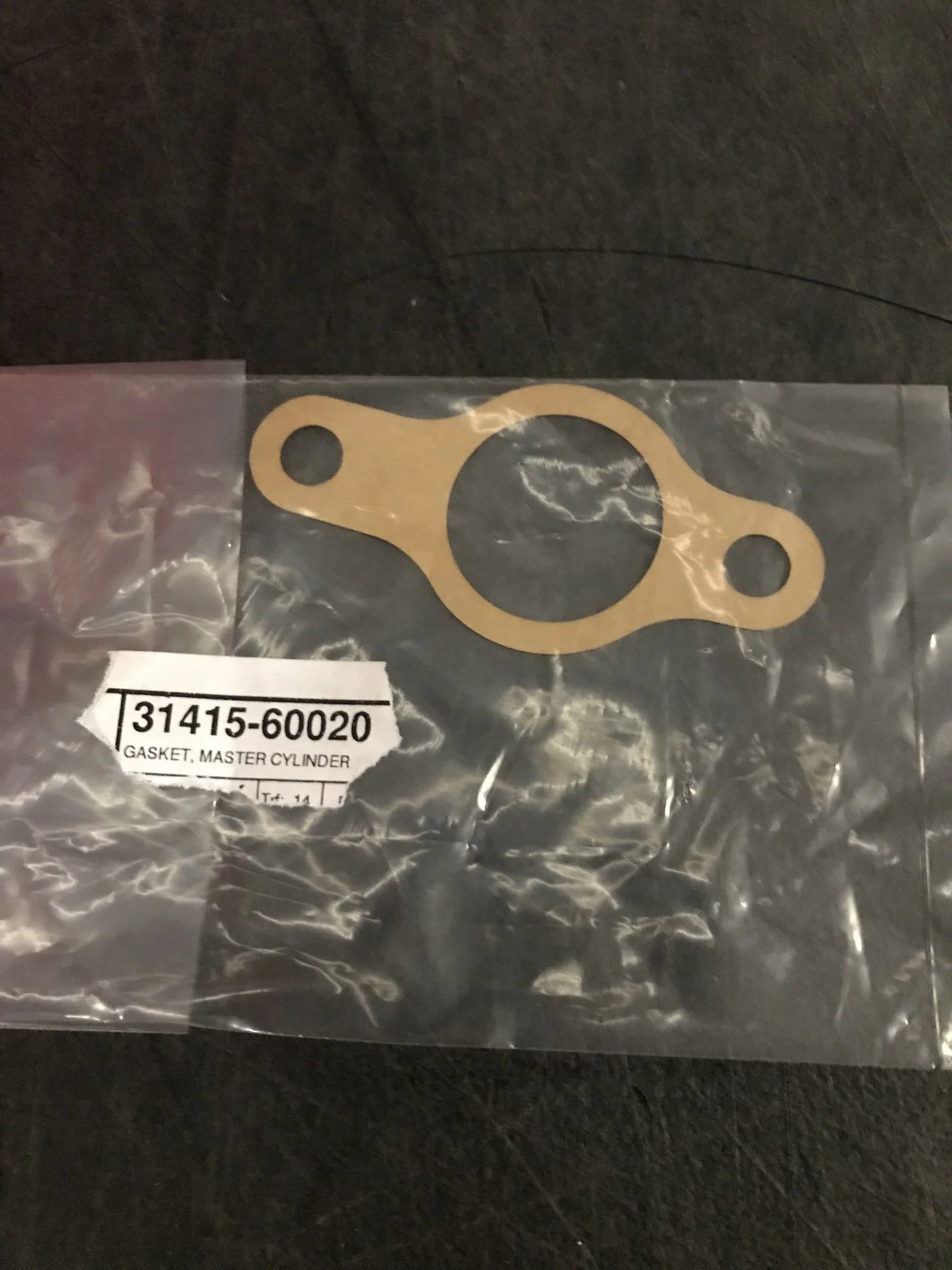

And Gasket:

These are applicable to trucks from Europe.

The JDM iteration is NOT available in the US market.



[OGBeno]

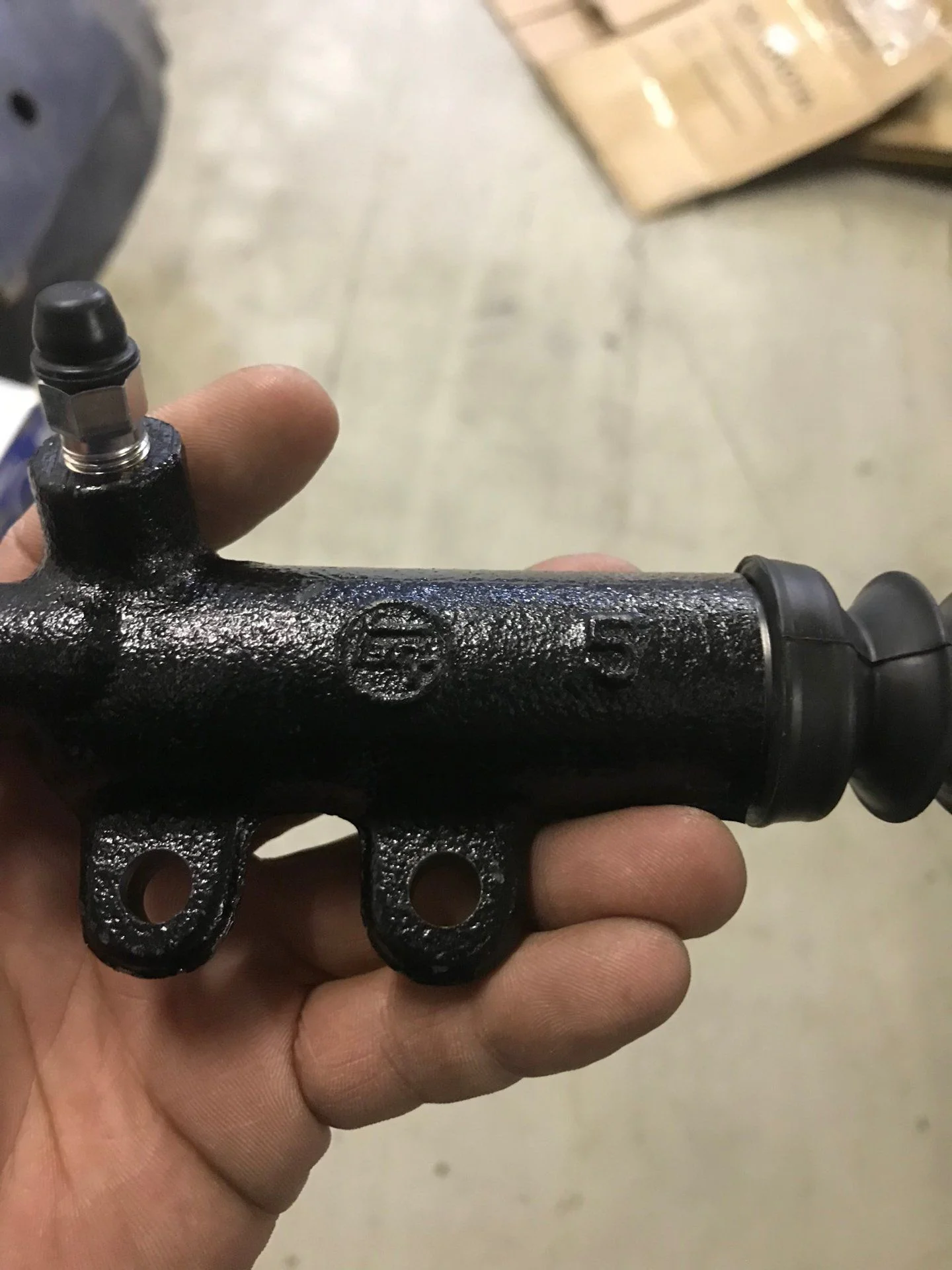

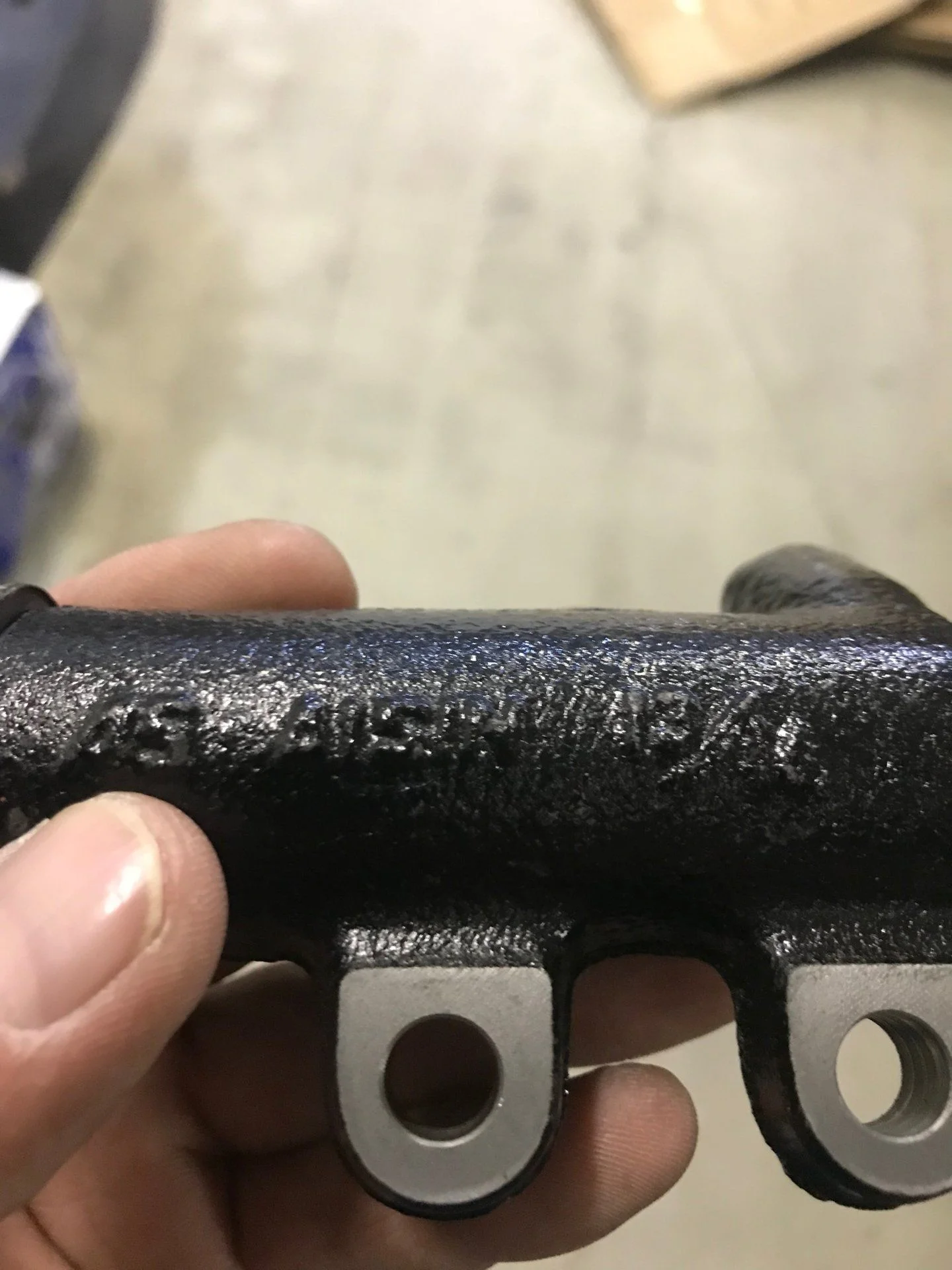

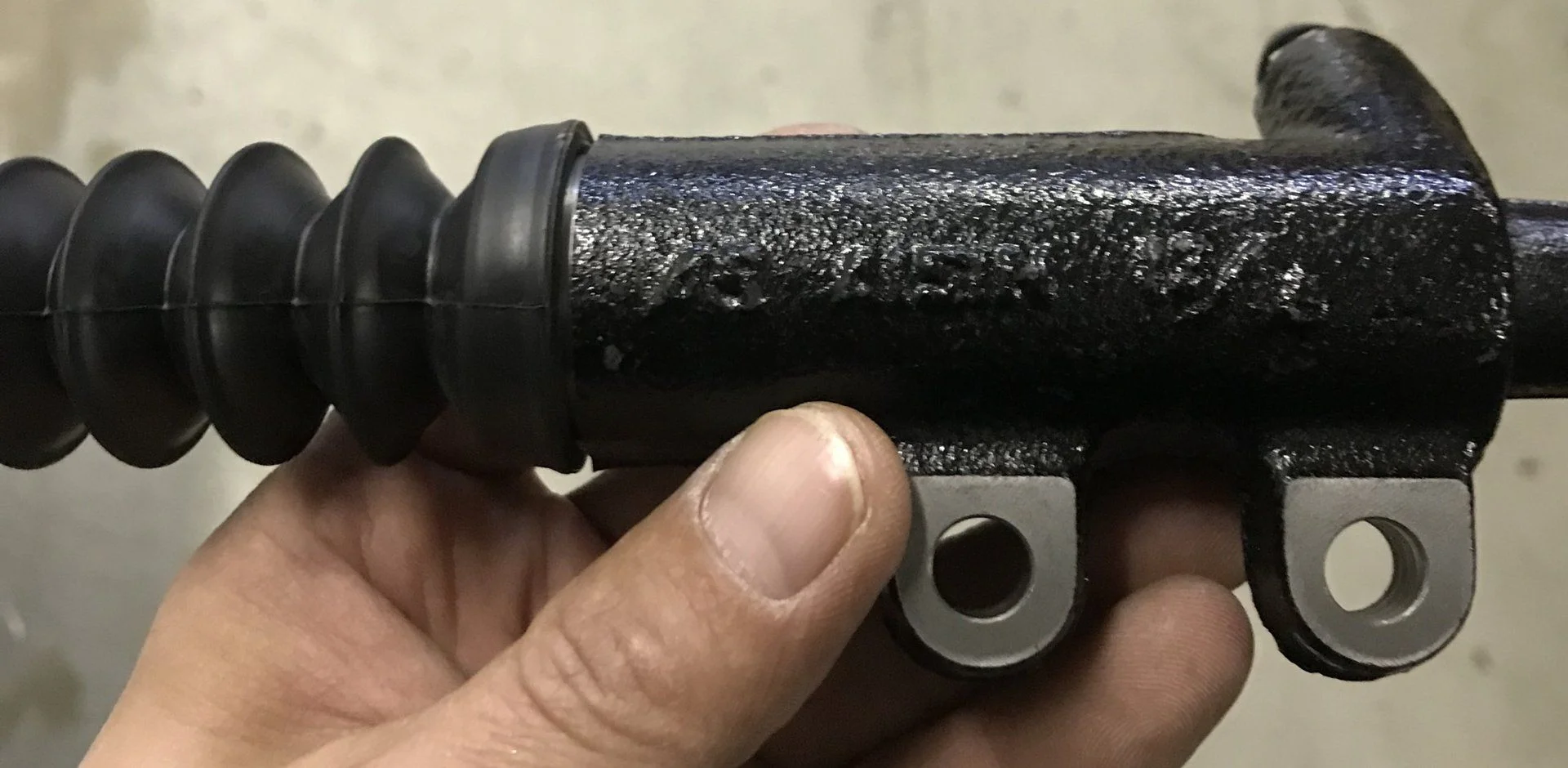

Clutch slave cylinder: HZJ7x vehicles. JDM/LHD and General markets. Available in the US market.



[OGBeno]

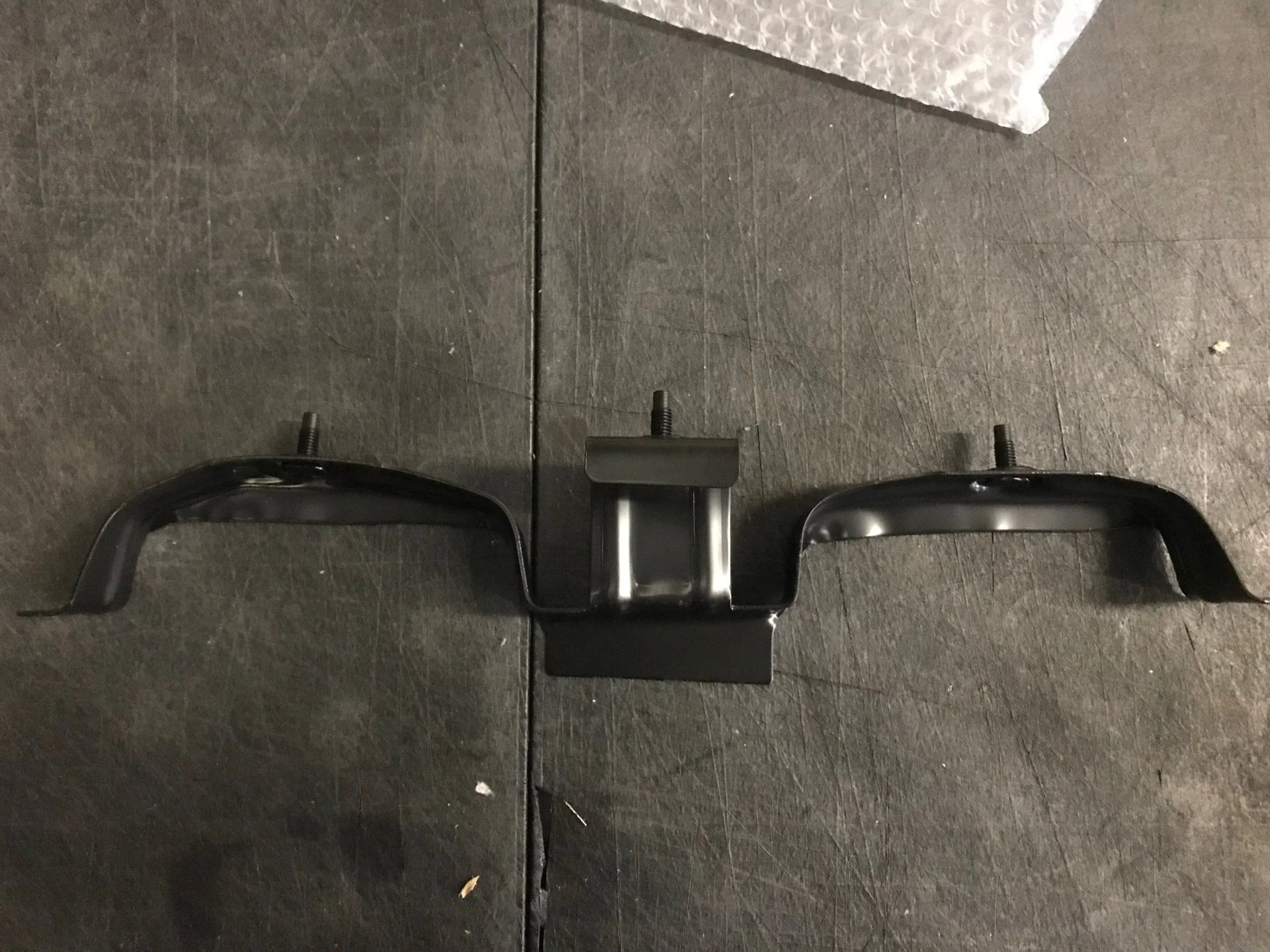

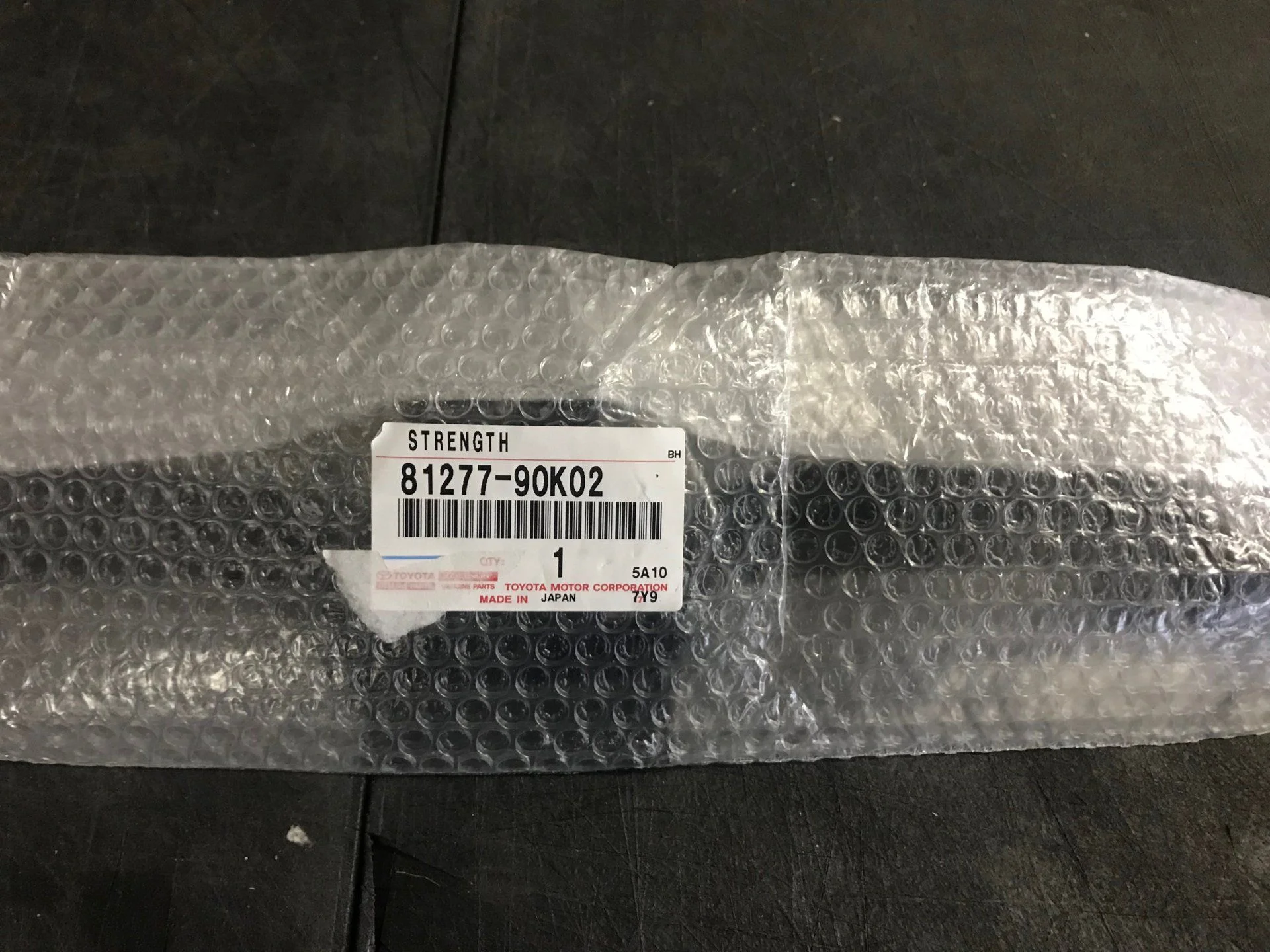

7x series rear license plate support bar. These rust out often unfortunately. Funny part name that Toyota has "translated".



[OGBeno]

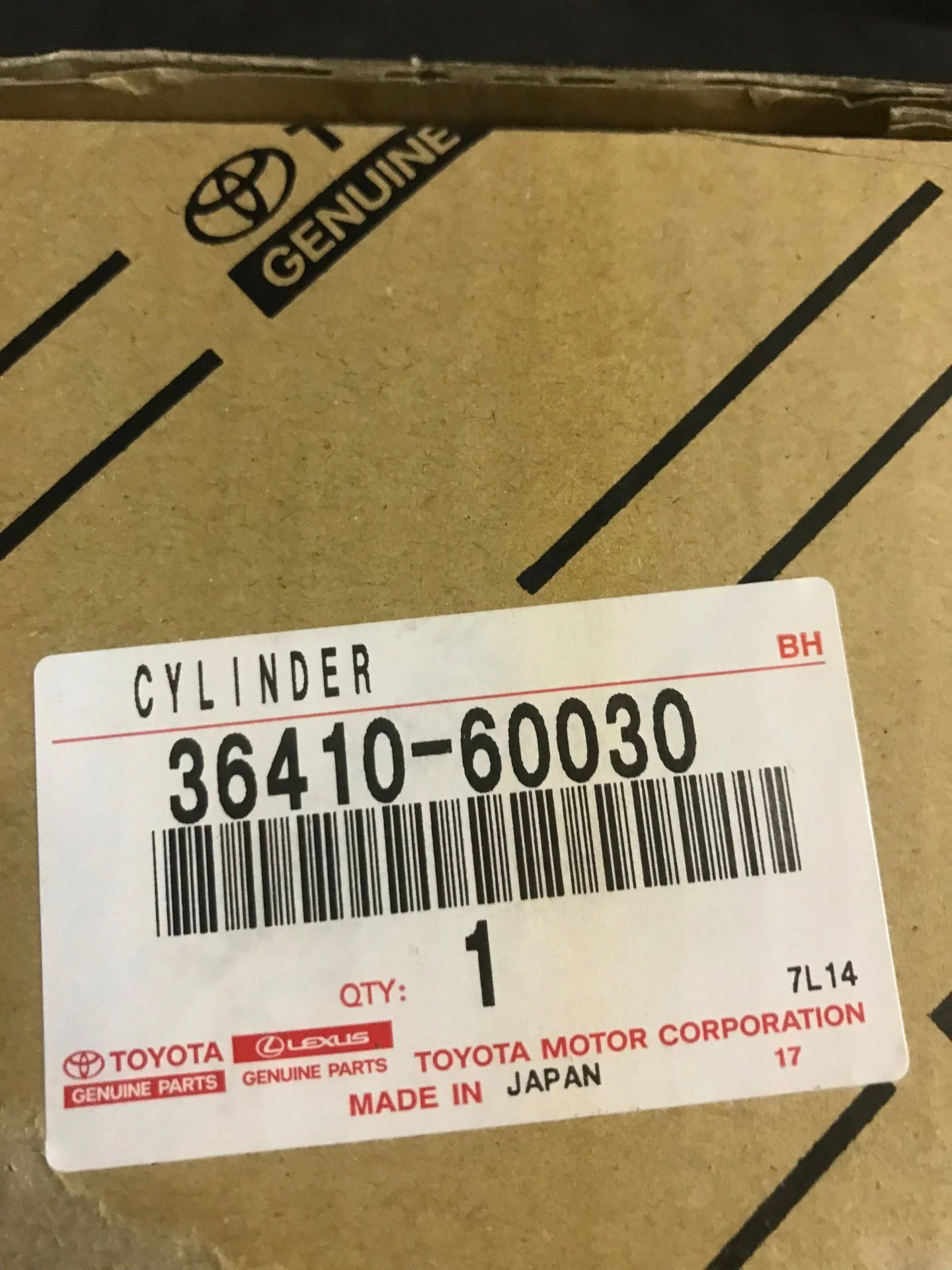

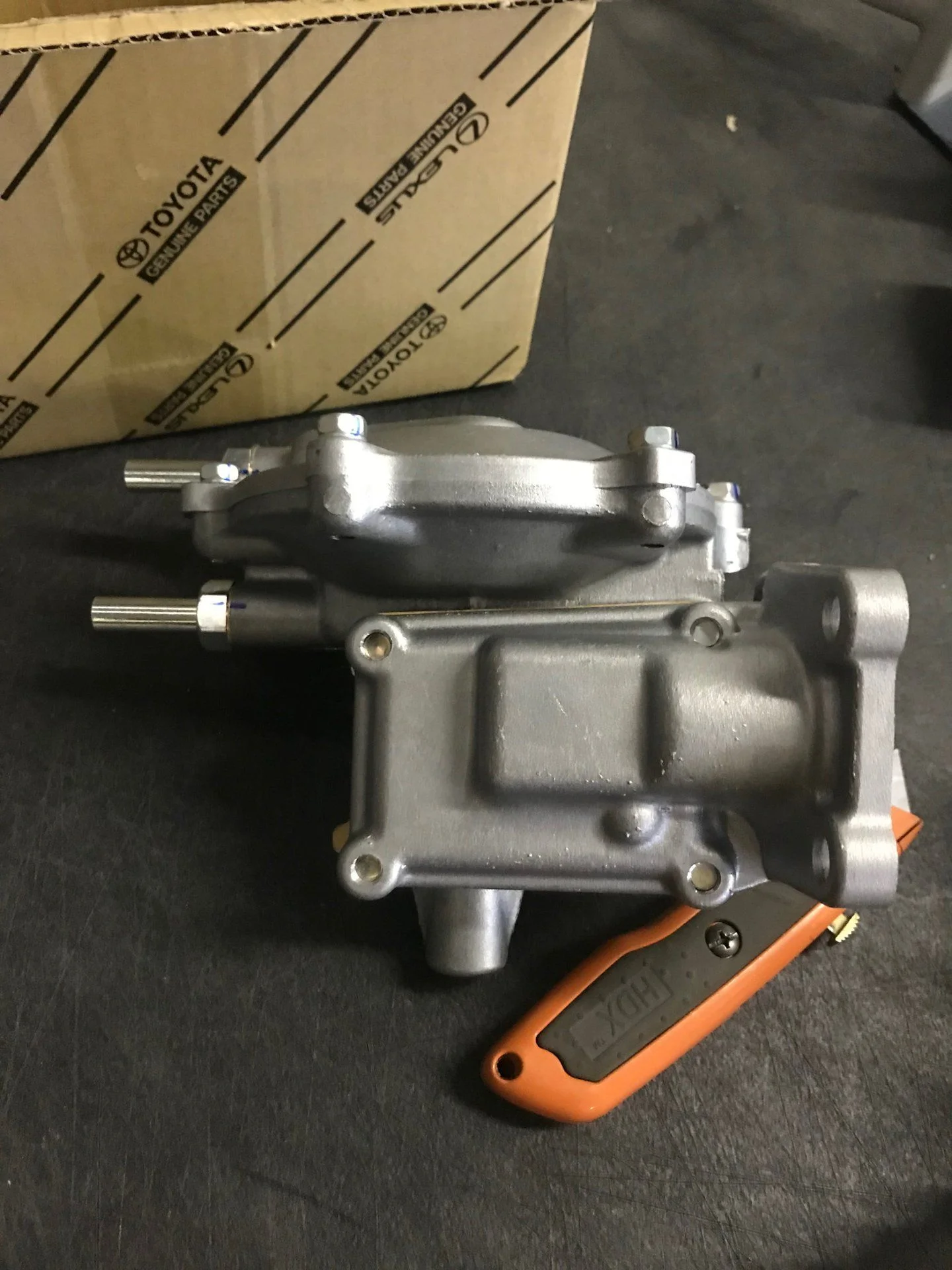

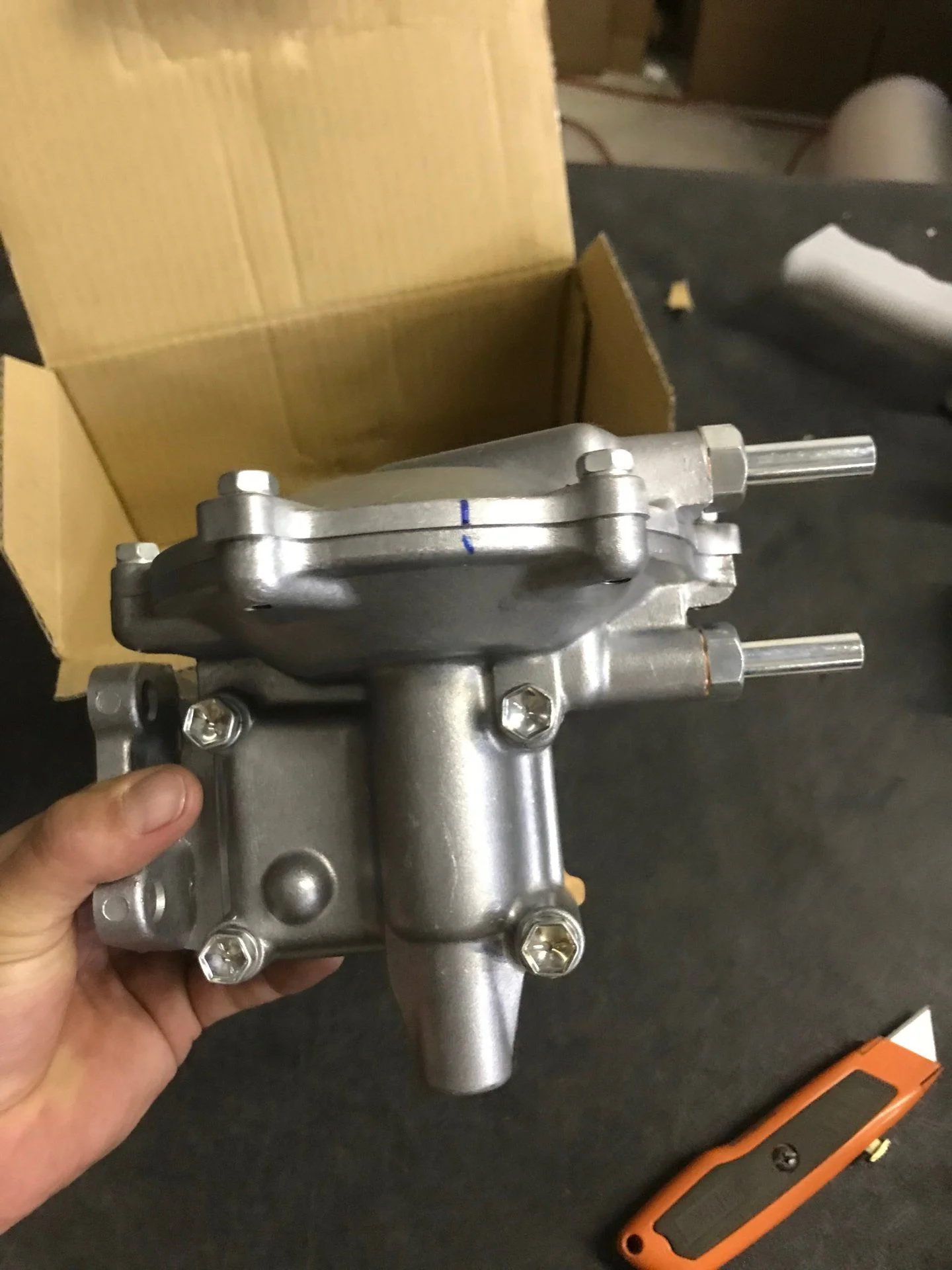

An important part in the grand scheme of things if you have a vacuum actuated split case (BF1A).



[OGBeno]

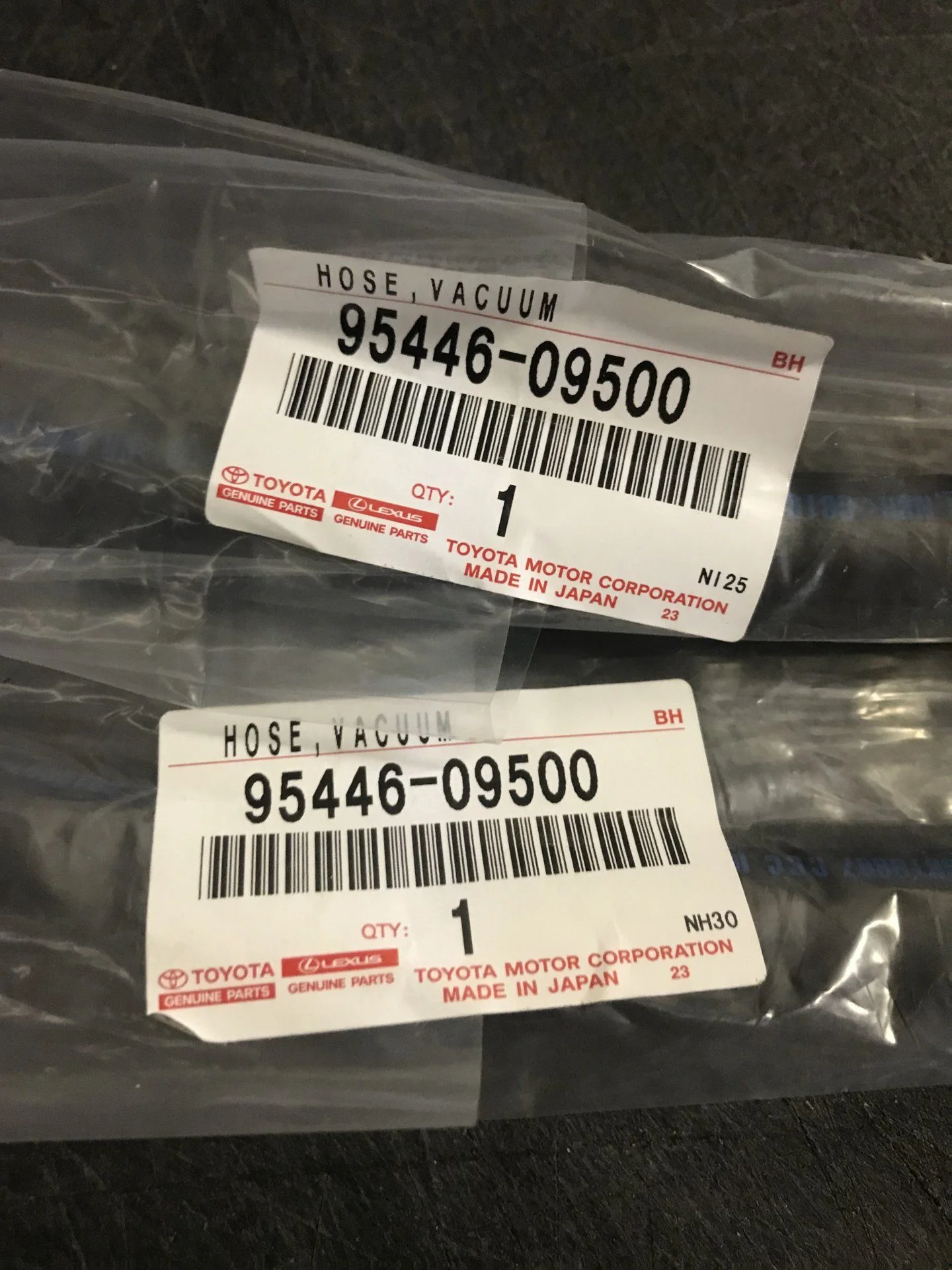

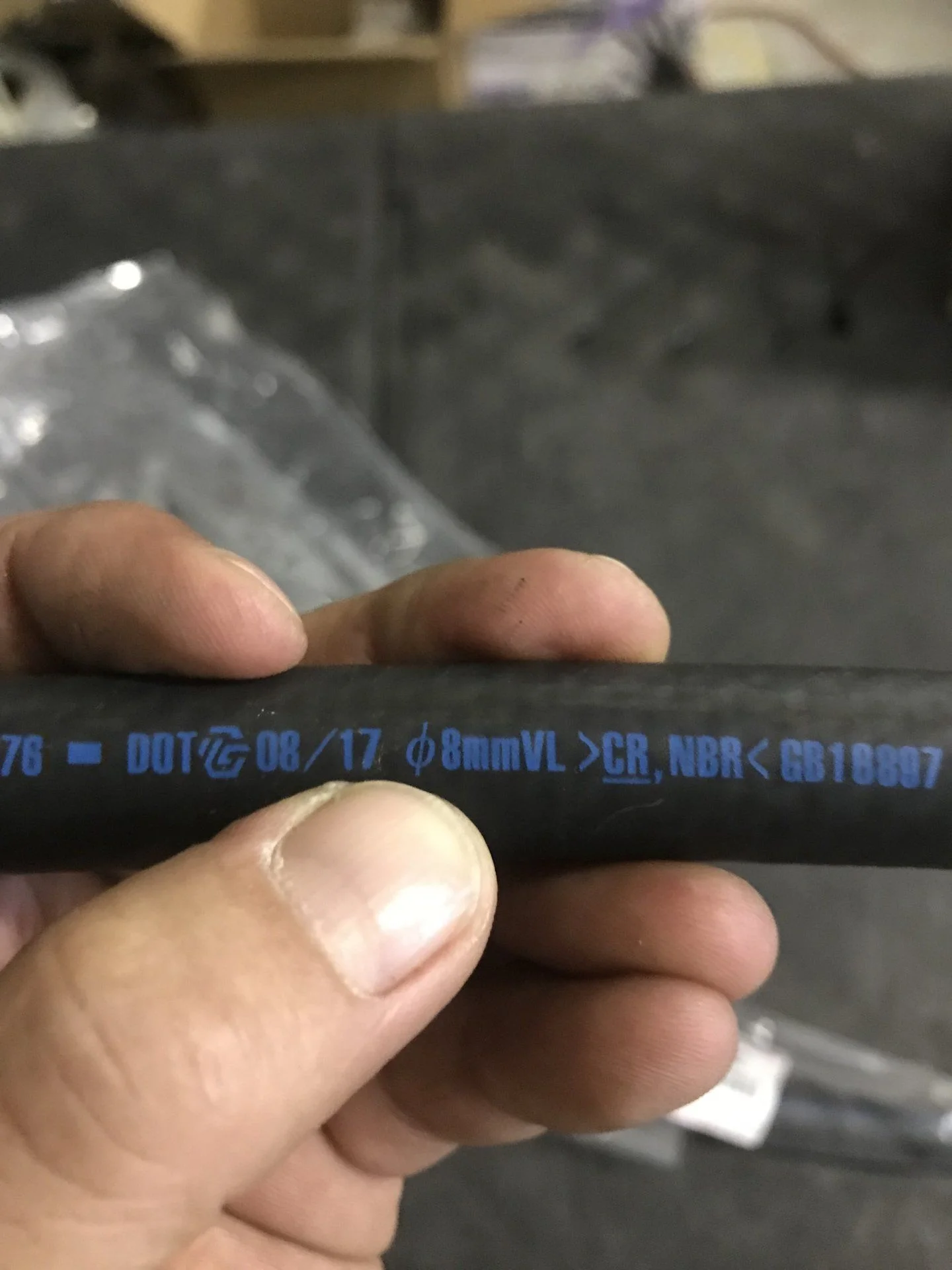

And of course, the necessary large diameter (8mm ID) vacuum hose. Thick suckers. Nice Toyoda Gosei hose.



[cruiseroutfit]

Clutch slave cylinder: HZJ7x vehicles. JDM/LHD and General markets. Available in the US market.

If you run across a need for more of the 31470-60161 and can spec OE AISIN, I've got a few dozen here as part of that bulk buy we did. We've sold one That said we do need to get them assigned in the computer and on the site. LMK



[OGBeno]

If you run across a need for more of the 31470-60161 and can spec OE AISIN, I've got a few dozen here as part of that bulk buy we did. We've sold one That said we do need to get them assigned in the computer and on the site. LMK

I guess we can discuss around the campfire on Saturday.



[cruiseroutfit]

I guess we can discuss around the campfire on Saturday.

Ah yeah boooooy!



[cruiserdan]



[OGBeno]

Your skid plate has been safely loaded into the 70.



[OGBeno]

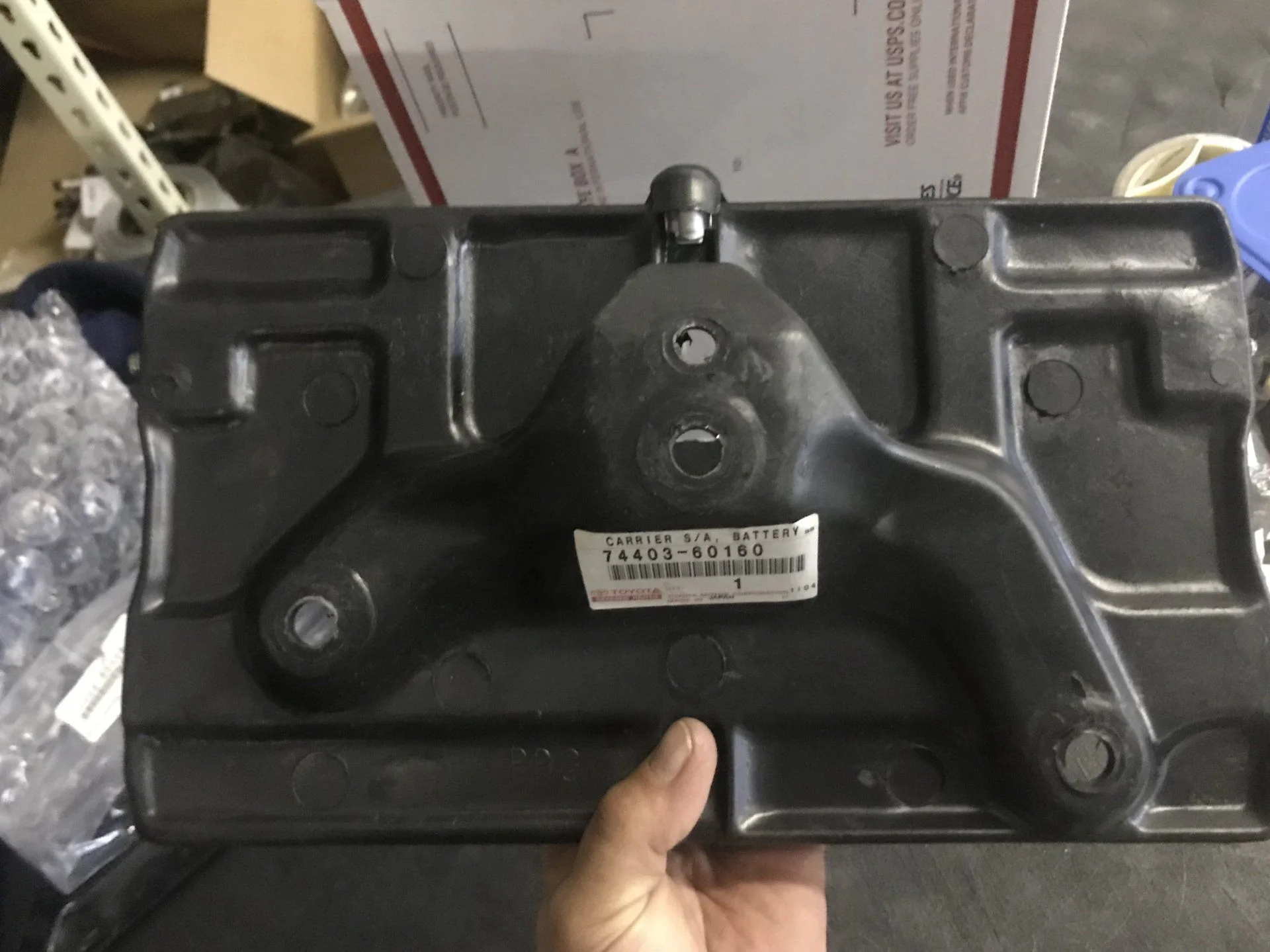

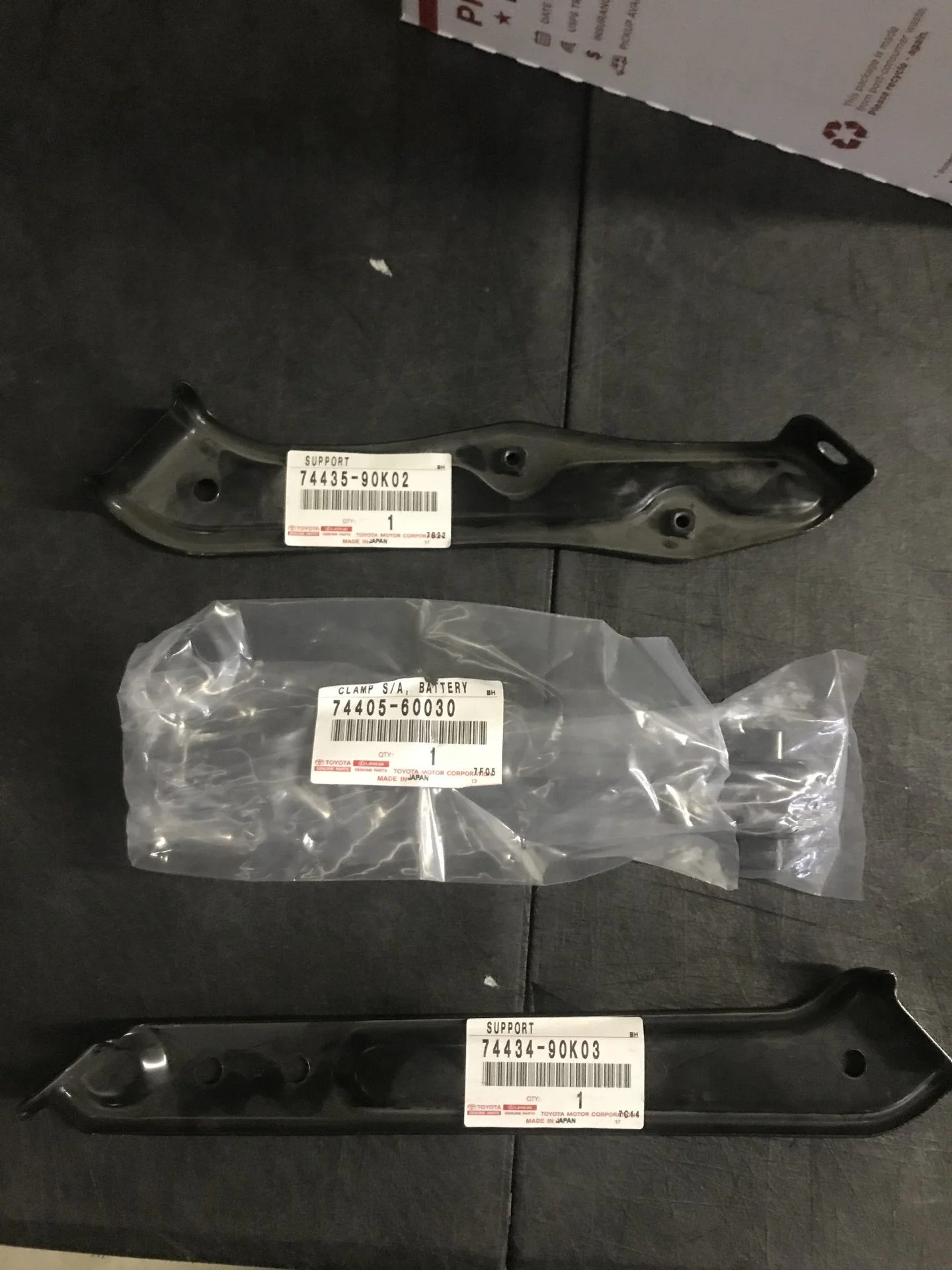

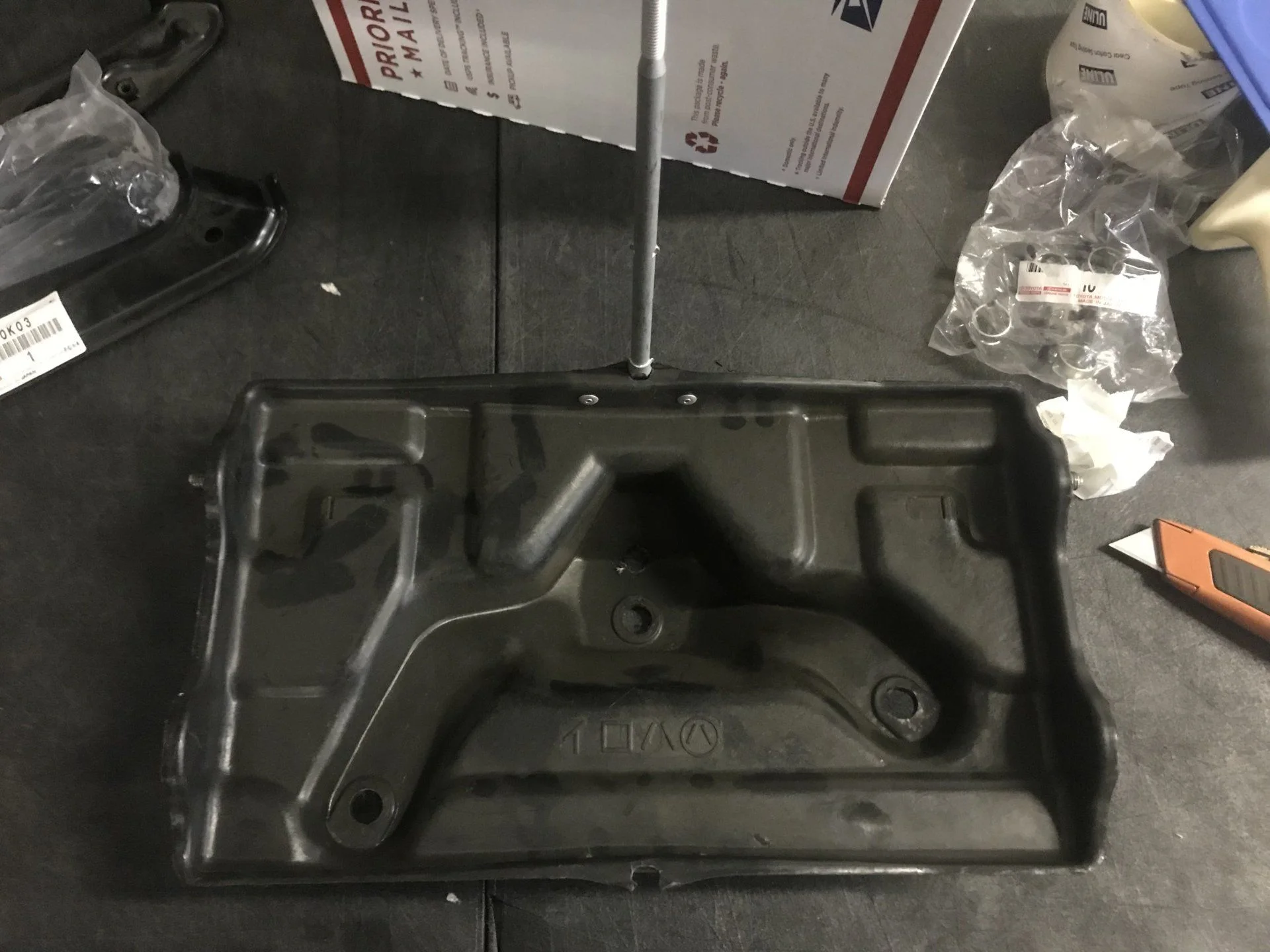

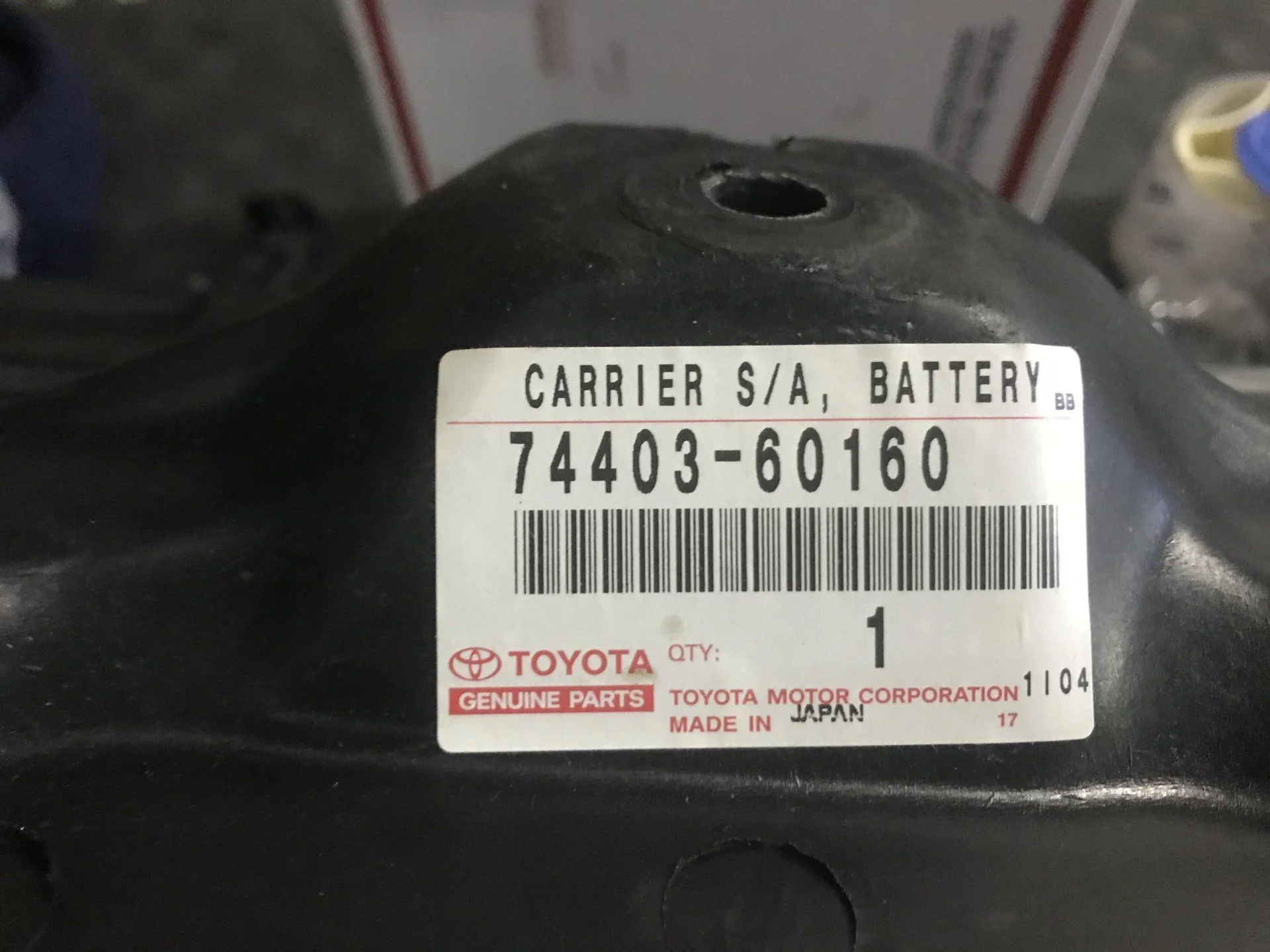

This would be on the LH side of single battery 7x trucks. This would also be in the front position not the firewall side battery.

Or this would work for dual battery trucks as well in the front position if you already have one there.

Of course there is hardware too but the major components are alive and well.



[decoco]

I guess we can discuss around the campfire on Saturday.

seems like you're doing a bit better. glad to hear !



[cruiseroutfit]

I guess we can discuss around the campfire on Saturday.

FYI on the 31470-60161

Massive Liquidation of AISIN Water Pumps, Slave and Master Cylinders



[kash]

Sure is. Available through any Toyota dealer in the US. The actual element itself is 23303-56031-- also available from any Toyota dealer in the US.

This filter is applicable to any Canadian or US 3B engine during the 1980's.

Also applicable to 3B powered 4x/6x vehicles from the early 1980's (1980-1982) in the JDM.

Also applicable to B and 3B powered trucks for the European market in the 1980's.

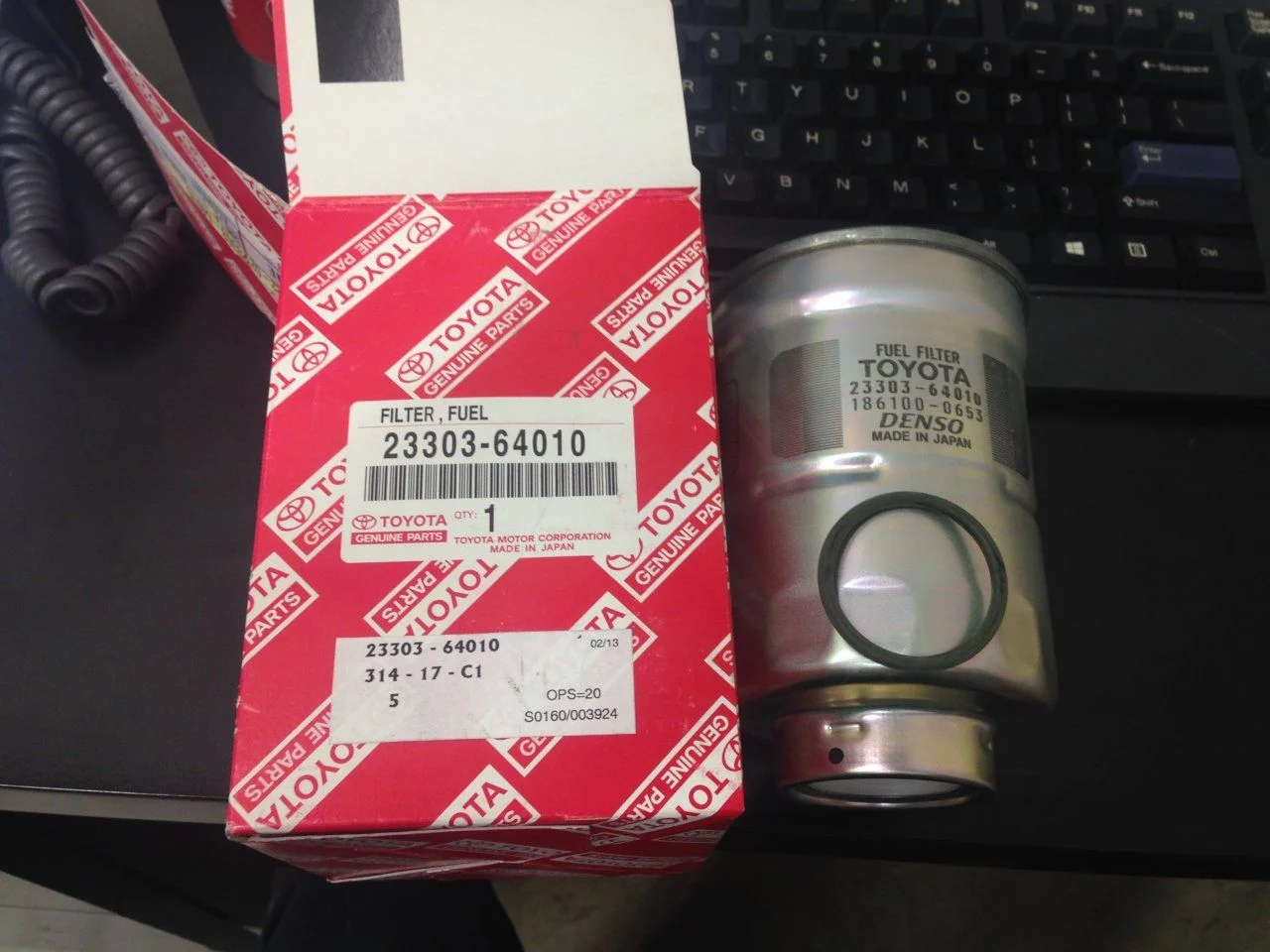

Another good one which has a much wider application: 23303-64010 which is just the element itself. Again, available in the US market, but you will need a valid VIN to get this released from TMS, USA. Also, a parts guy willing to do the leg work to get this part. The whole assy (as pictured above): 23300-64080 and is not available in the US market.

View attachment 1062223

Would you know the Part number for a Diesel Fuel Filter for a 2LTE Engine (LJ70 - 1990 Toyota Landcruiser Prado)



[OGBeno]

Yes.
