4.5LV build

[Gumby]

Are there options for the w/s wiper motor? I seem to remember buckroseau's being small and under the dash. Mine is huge and sticks through the firewall. My problem is the 1FZ is within about 1/4" of the motor with the spark plug cover off. I don't think it'll fit back on. I had to jack up the body to get the motor in. I think I'll have to do it again to get the spark plug wire back on #6.



[tornadoalleycruiser]

One out of a wagon or 55 perhaps? Pic of what your working with toyota stuff is pretty interchangeable



[fogblanket]

mine is on the cab side as are all stock lv's. granted mine came with two seperate motors from a 50's chevy not sure why they were swapped out. anyway your linkage should all be under the dash.I swapped in a fj62 motor and a fj47 switch and have variable speed wipers and intermittent as well attachedto my stock linkage. I have pics ofit all in my build thread someplace.
jaon



[Gumby]

I'm not sure mine is stock. There are parts of it that are certainly not.



[Gumby]

I checked it out a bit more after looking at some other threads.

The w/s motor looks to be a GM multi-speed motor that someone made work.

I'll put a 60 series one in there under the dash.



[Gumby]

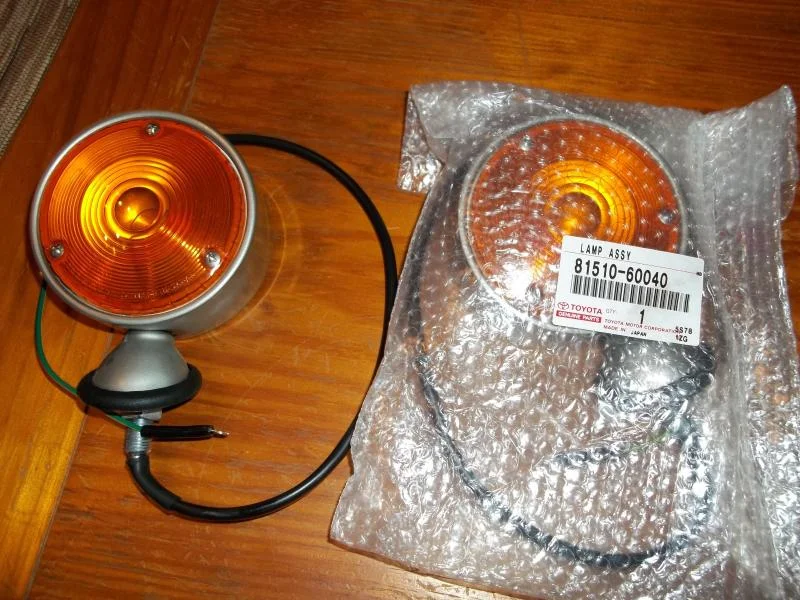

Beno gave me a semi when I got home.



[whitey45]

Original owner installed that motor back in the 70's, I believe it was a gm car wiper motor,cant remember,its almost been 20 years!!! Rig is comming together nice!



[Gumby]

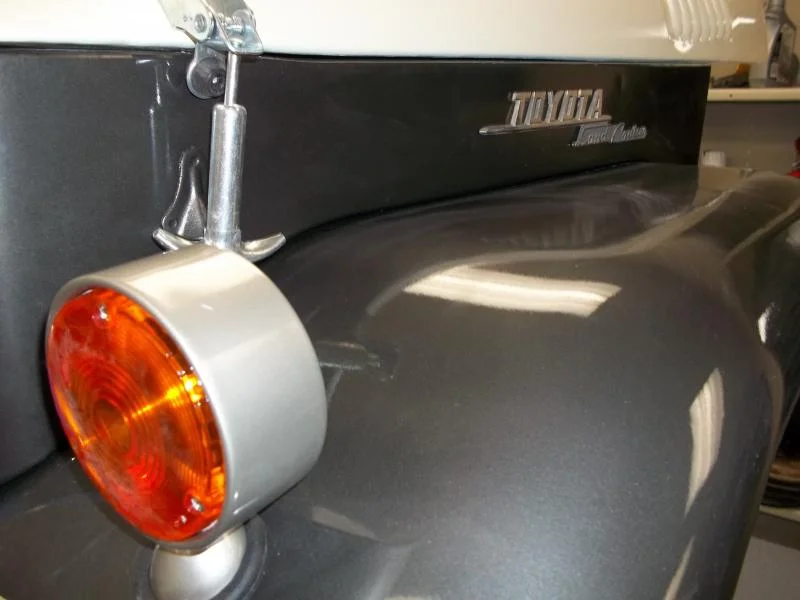

mmm. Warm and fuzzy feelings.



[Gumby]

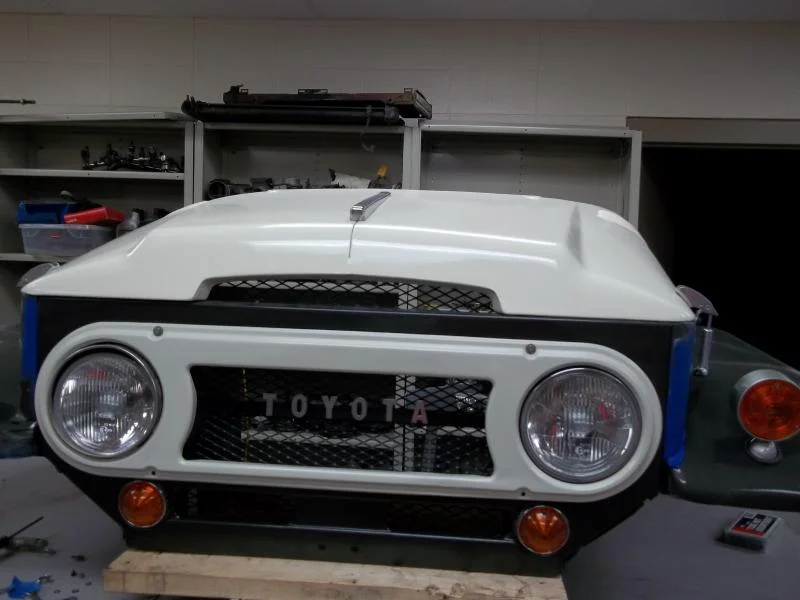

All three colors



[Gumby]

I got out the underdash wiring harness today.

Mating a 97 harness to the 64 harness may make my brain explode.

If this is my last post - you know what happened.



[Gumby]

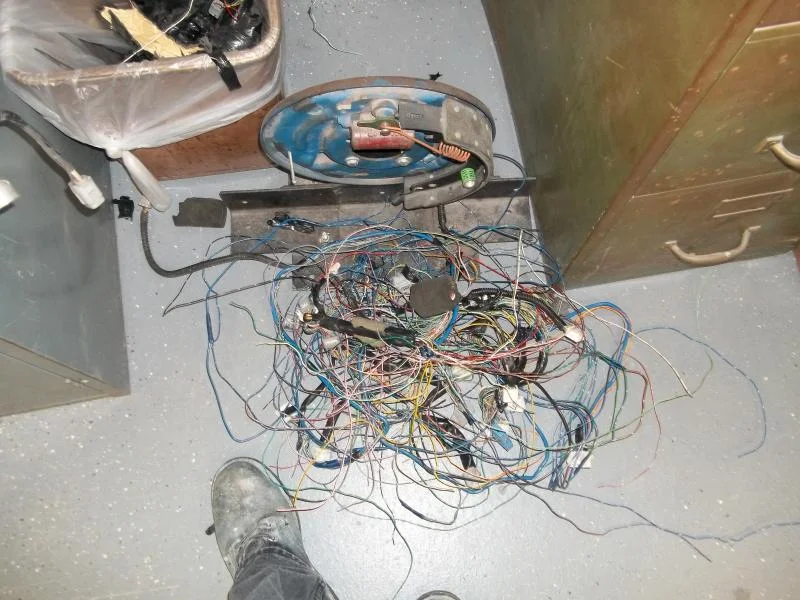

Moving along. Got the w/s wiper, ABS, radio, and air bag systems cut out.



[GLTHFJ60]

Jesus man, good luck with that.



[4rnr]

yikes.



[Gumby]

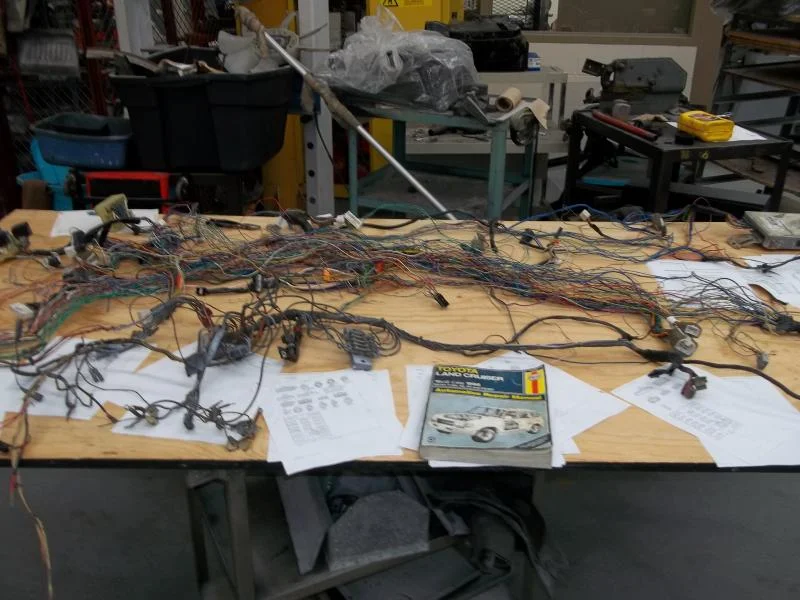

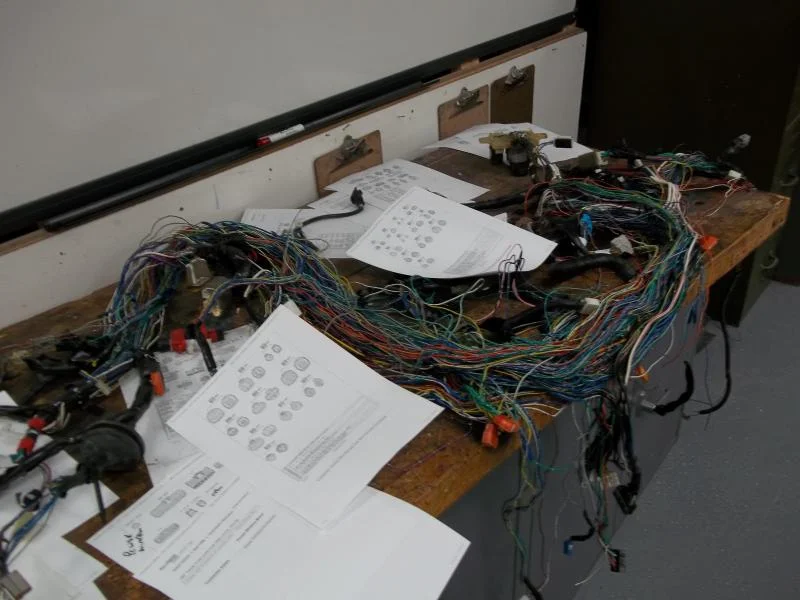

It's way worse than the pics. It's a mess. So far I've pulled up the connector views and printed them, then pulled up the diagrams for a system and matched the labeled connectors to a system, then cut out what I don't want.

It's moving along, but it's tedious. I have a 4x8 sheet of plywood to string the harness out on once I get it down to what I want so I can tie it into the 64 harness and switches.

FOrtunately the engine and trans harnesses are pretty self contained. Why the trans shift module is on the left kick panel and the ECM is on the right I have no idea.



[mderrick]

Why the trans shift module is on the left kick panel and the ECM is on the right I have no idea.

It keeps a better center of gravity and has good fung shoey? maybe?



[Trollhole]

I sure would like to know what you could cut out, what you had to ground or terminate in order for the ECU to think there isn't anything wrong.



[Gumby]

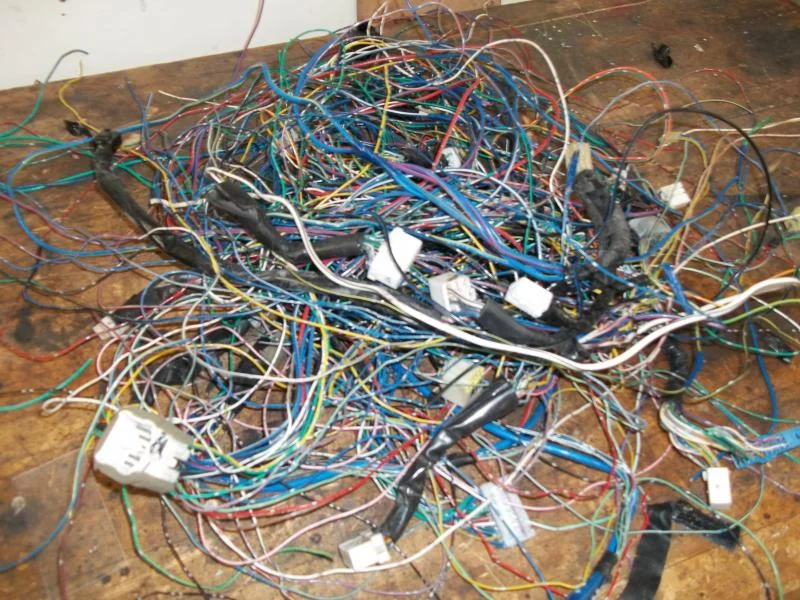

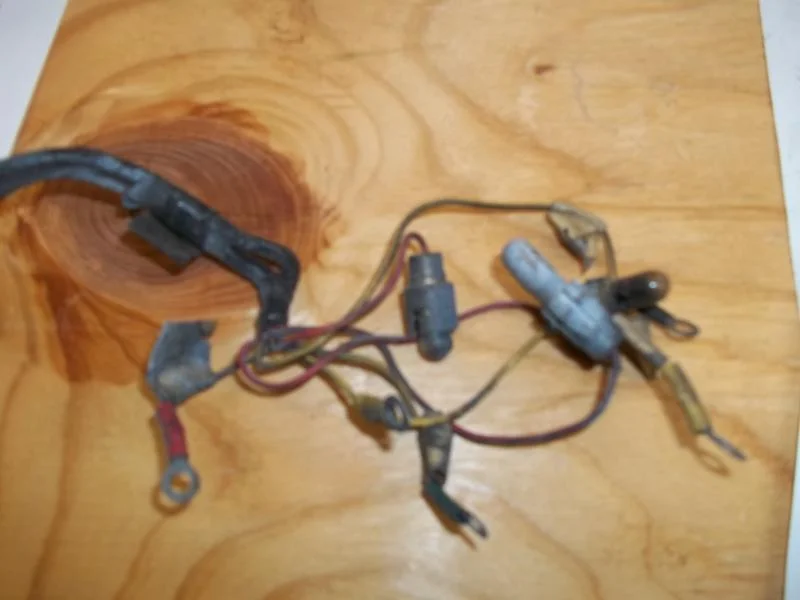

Well. I know you can cut out this:



[Gumby]

To be honest, it really depends on what you're keeping. If you're keeping the steering column from the 80, then you would keep the cruise control, maybe the air bag, the signals, the wipers, the lights and a bunch of stuff. I'm not. In fact I'm getting rid of just about everything that doesn't make it run.

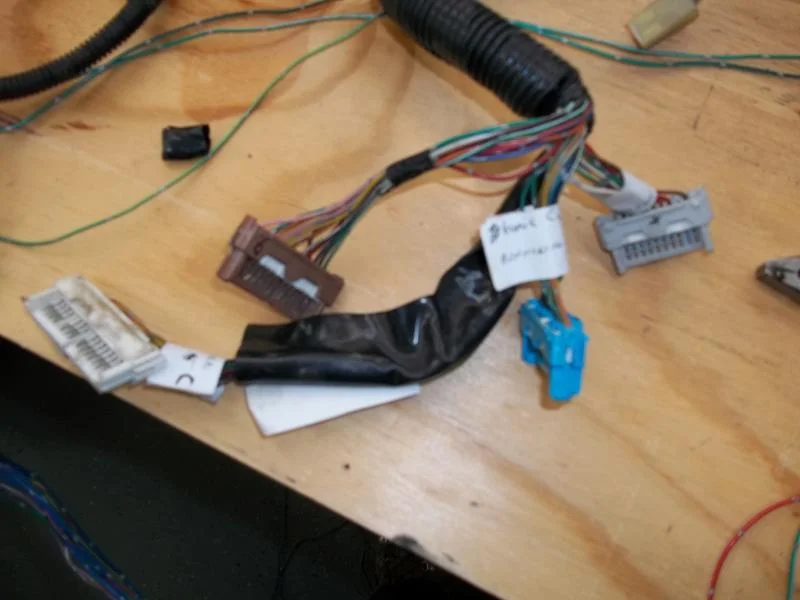

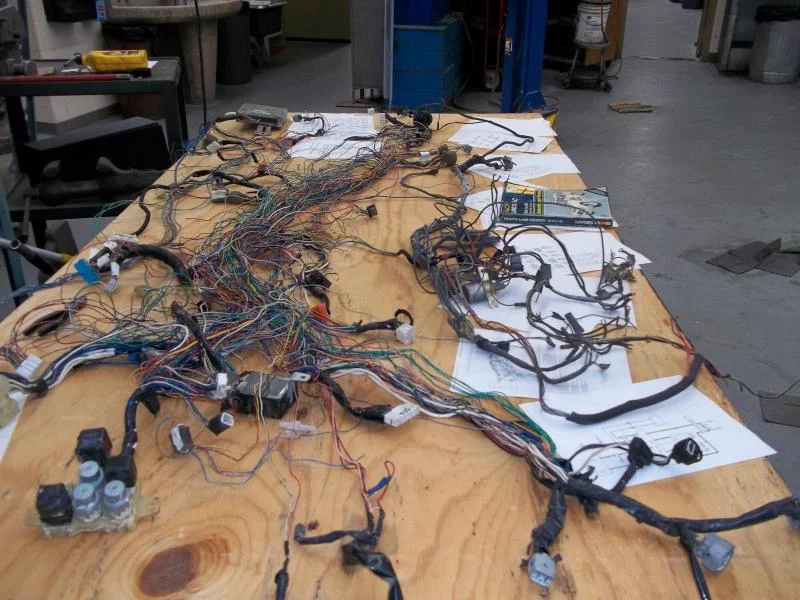

The top harness is what's still left of the underdash harness for the 1FZ

The bottom harness, mostly in black, is most of the entire harness for the LV

All I gotta do is put them together.



[Gumby]

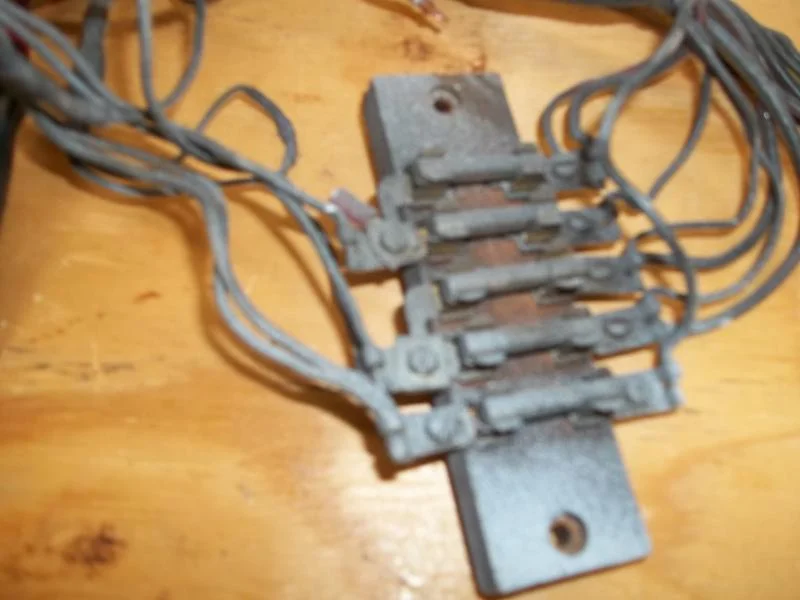

The smaller of the two 80 fuse boxes and the entire fuse system for the LV



[Gumby]

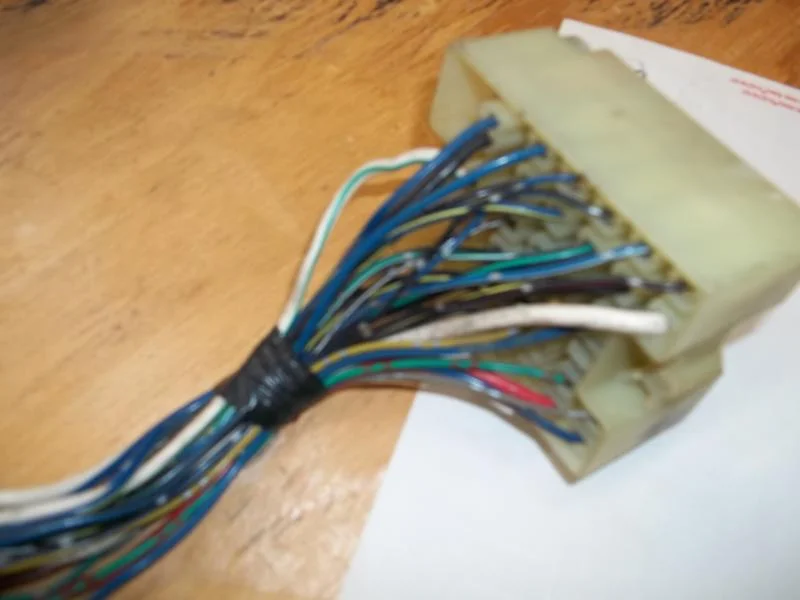

The entire gauge wiring for the LV and the forty plus wires for the cluster on the 80.
