3D Print and CAD File Repository - 40 Series

[EmanC]

There have been quite a few 3D printed parts coming up lately and would love to try and organize them into one location for easier finding. I'll try and link what I can find and will edit this accordingly.


Also, this is a good place to make requests. I'm willing to CAD up parts if I have a good reference.

40 Parts:

70-72 40 Series Knobs (STL + STEP)
https://forum.ih8mud.com/threads/40-series-3d-print-file-repository.1281295/post-14388325

Early Dome Light (SLDPRT)
https://forum.ih8mud.com/threads/40-series-3d-print-file-repository.1281295/post-14388327

Defrost Knob (STL + STEP)
https://forum.ih8mud.com/threads/40-series-3d-print-file-repository.1281295/post-14388339

75-84 License Plate Rear Dome Light Cover (STL)
https://forum.ih8mud.com/threads/fj40-license-plate-light-cover.1258279/

OEM Style Tach Bezel (STL)
https://forum.ih8mud.com/threads/3d-print-and-cad-file-repository-40-series.1281295/post-14393434

General Parts:
FJ40 Cookie Cutters (STL)
https://forum.ih8mud.com/threads/3d-print-and-cad-file-repository-40-series.1281295/post-14388353

Heater Hose Separators (STL + STEP)
https://forum.ih8mud.com/threads/40-series-3d-print-file-repository.1281295/post-14388335

Spark Plug Separators (STL)
https://forum.ih8mud.com/threads/3d-print-and-cad-file-repository-40-series.1281295/post-14395481

Holley Sniper Mount (STL)
https://forum.ih8mud.com/threads/3d-print-and-cad-file-repository-40-series.1281295/post-14431075



[EmanC]

Printing Supplies:

Holding for Future. Recommendations of filaments, resins, and printers people recommend.



[EmanC]

So after not being satisfied with the options for fog dash pulls I went down the rabbit hole of making custom knobs for a few of my planned upgrades.

Sharing what I've done here:

Files:

FJ40 Custom Dash Knobs by emancarrillo

Overview: These are modeled after the early style knobs. Some knobs are at half-height as I am planning on putting them under the dash and wanted them to be lower profile. Process for those who want to make custom knows: Download the blank STEP file and cut in your own icon, You can find good...

www.thingiverse.com

Overview:
These are modeled after the early style knobs. Some knobs are at half-height as I am planning on putting them under the dash and wanted them to be lower profile.

Process for most:
Just download the .STL file and upload to an on-demand print service like 3D Printing Service | Shapeways - https://www.shapeways.com/ I haven't done this, but I would wager that the High Detail Plastic would work. Will need ot be painted after though.

Or do what I did find a neighbor that has an SLA 3D Printer. Often referred to as a "Resin Printer" and have them printed that way. This is probably the cheapest way as most people with 3D printers love excuses to use them and show them off. Often only needing to pay for material costs. You can print them on a "normal" 3d printer, but the resolution will be poor and you will need a lot of sanding to make them work. Not recommended.

Process for those who know CAD:
Download the blank STEP file and cut in your own icon,
You can find good icons to use via Noun Project: Free Icons & Stock Photos for Everything - https://thenounproject.com/.
Either import directly or use it as a guide for your own line art.
I normally try and make the line width 0.75mm wide and 0.50mm deep.

Notes:
Tap the base hole as M5 and the set screw hole as M4.
I use this for the set screw McMaster-Carr - https://www.mcmaster.com/93038A125/

Post Process and Paint Fill Process:
After Tapping the Knobs. I use a spare M5 Screw in a drill to chuck the knob.
I then use Novus 7136 Plastic Polish Kit starting at 3 up to 1 to get the surface a bit shinier.

For the colored paint Fill, I use Enamel paint meant for miniature model painting. I like Humbrol but Testors work great as well.
For White is use a Presto! Multipurpose Correction Pen The tip fits perfectly into the recesses and makes filling white super easy.
If possible use an Ink Syringe with the enamel to fill otherwise I just use a paintbrush or needle to get it filled.
I try and dab most of the paint off. This leaves it pretty messy but it's just a thin layer to remove next.
After the paint semi sets up. I take some Goof Off paint remover and wipe the surface clean with a microfiber towel.
I repeat the paint application/wipe removal as needed till I'm happy with the fill.



[EmanC]

@Racer65 Has a an Early Light Dome Cover on his site

File:

Downloads

City Racer Drum Brake Booster Installation Guide City Racer Dual Diaphragm Disc Brake Booster Installation Guide City Racer Gas Door Lock Installation Guide City Racer LED Headlights Installation Guide City Racer Proportioning Valve Installation Guide FJ40 Electric Power Steering Installation...

www.cityracerllc.com

Photo:



[EmanC]

Heater Hose Spacers for two 5/8" lines

Files:

Two Line Heater Hose Separator by emancarrillo

Line separator for two 5/8" heater hoses. Print in Nylon or another high temp filament. 5/8" Hose Outer Diameter is .906 or 29/32" Narrow print is shown in Photo.

www.thingiverse.com

Notes:
Print in a high temp filamanent. Nylon, ASA, Etc.



[EmanC]

Early Style Heater Defrost Knob

Files (Step + STL)

FJ40 Defrost Knob by emancarrillo

Heater Knob for an 70's FJ40. Use an M3 screw to bolt to the lever arm.

www.thingiverse.com



[EmanC]

Cookie Cutters:

Files:

FJ40 Cookie Cutter by emancarrillo

Print out this cookie cutter to make your own FJ40 cookies. Few wall thickness options to try.

www.thingiverse.com

I haven't tried these yet, But the outline only one should work with no problem. Detailed ones I'm not sure about.



[EmanC]

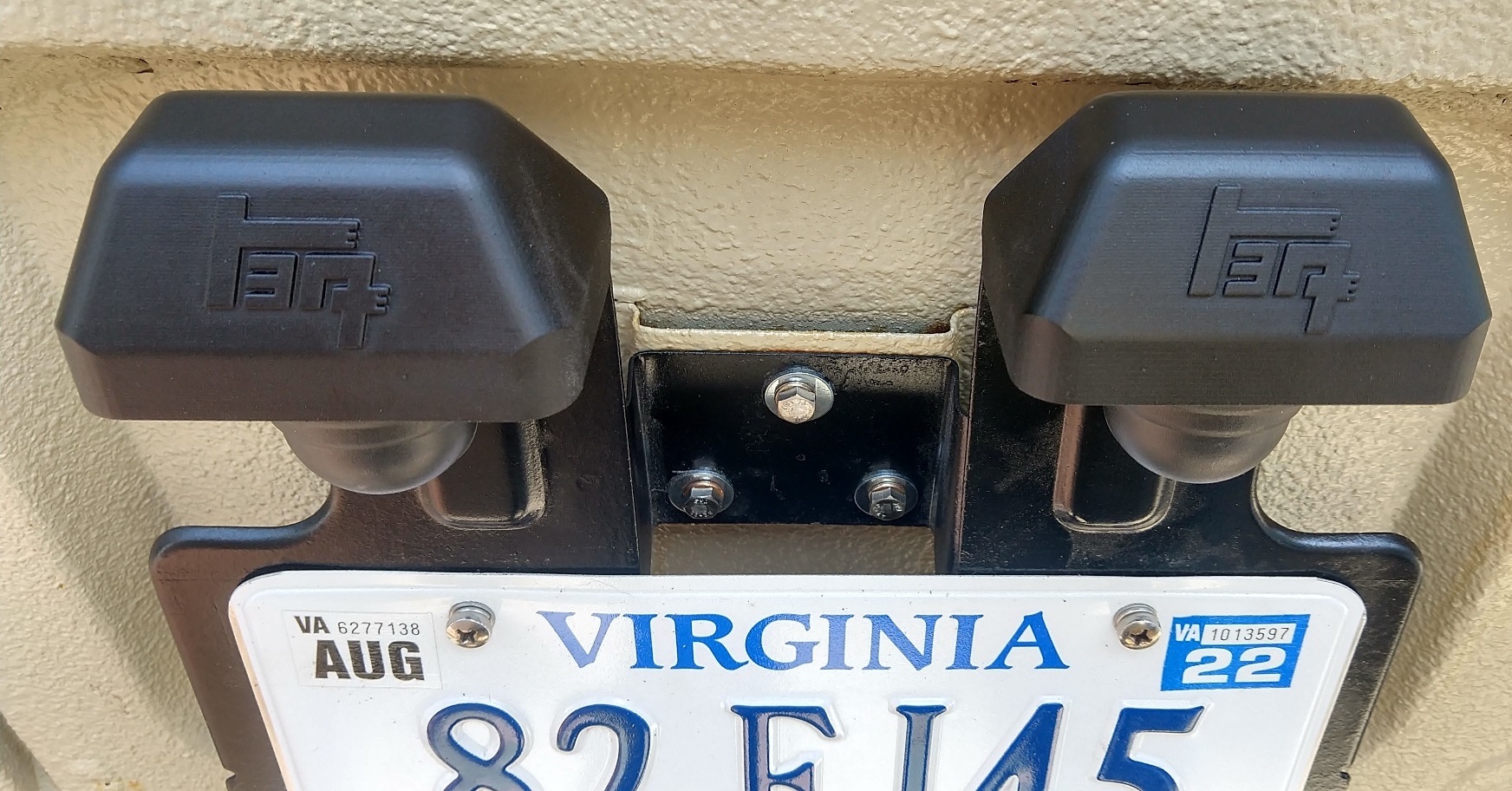

License Plate Rear Dome Light Cover - 1/75-84

Files: (STL)

FJ40 License Plate Light Cover

Morning all, I made a thing. I own solid modeling software and a 3D printer. And I'm licensed to use them. My old rear license plate bracket light covers were dead when I purchased the truck. And I wasn't going to spend $$$ on "new" ones. They're rain covers for Pete's sake. So, I...

forum.ih8mud.com

Photo:



[FJ40Savvy]

Thanks for sharing. A future reference place for 3D print files. I have plans to make and share when it is completed a wiper contact cover for early version wipers motors. I will load it here now.



[MOTOV8R]

FJ40 tach bezel and housing to fit FJ60 tach.

FJ40 OEM style tach bezel and housing by UTmotov8r

This is 2 pieces, the bezel and the housing. The housing is designed to fit an FJ60 tach. It attaches to the bezel by screws. You will need to remove the FJ60 tach from the housing and retain the clear front piece. It is located by slots in the printed housing but not secured. When attached...

www.thingiverse.com



[sogncab]

This should be a sticky in my opinion.

I'm real close to making my work pull the trigger on a 3D printer. It'd be handy for a bunch of things like jigs. There's a ton of miscellaneous vehicle widgets I'd make.



[EmanC]

Spark Plug Wire Separator for Two Wires

Files:

Spark Plug Wire Separator for Two Wires by emancarrillo

Spark Plug Wire Separator for Two Wires. Files for 8.0mm, 8.2mm, and 8.5mm diameters. Scale in height to your preferences. STL are 13mm (1/2") thick. Two versions are a narrow 3mm spacing and an 11mm spacing version. Print in a high temp filament. I print these in Taulman Bridge. Taulman 910 or...

www.thingiverse.com

Overview:
Simple print that helps organize your spark plug wires. I uploaded a few different sizes and widths.
Few cents to print out.



[EWheeler]

FJ40 tach bezel and housing to fit FJ60 tach.

FJ40 OEM style tach bezel and housing by UTmotov8r

This is 2 pieces, the bezel and the housing. The housing is designed to fit an FJ60 tach. It attaches to the bezel by screws. You will need to remove the FJ60 tach from the housing and retain the clear front piece. It is located by slots in the printed housing but not secured. When attached...

www.thingiverse.com

That is so bad ass! This is your design?



[MOTOV8R]

Yes, 42 revisions worth. Here’s the post where i first started working on this.

Unobtainium

Wild. They wouldn't even do in state for us but I get it, we have no relationship with them. Glad they went to a good home. They have evidently decided that what I did no longer meets the business model. Onward and upward I suppose. It was a lot of work but I really liked it.

forum.ih8mud.com

Theres someone on here who sells something similar but that came along after my post above and its not a great design. Its not mirrored from the rhd version and the dimensions don’t seem very accurate.



[EmanC]

Thanks to @EWheeler I've got an early style washer cap to reference the model. Will be making a normal cap version For those who have stabbed in a replacement motor and a reproduction version for those lucky enough to have the guts of the old mechanism.

There is a gasket inside the lid. My guess is a bead of RTV silicone the channel would work.



[B1oodyBuzzard]

I’d like to see the parking brake cover made. I haven’t gotten into printing…. Yet



[EmanC]

Saw this Holly Sniper mount posted


File here:

Family FJ Build : '76 40 Resto/Frame Off (a.k.a. the Japanese Baby Buggy)

It is OEM/factory. There's the D-strap up front that goes around the sheathing, that "double-C" clamp that pinches directly against the hardlines, then another D-strap that goes around the hoses near where the fuel line comes through. It's just left of the 8/9, but not listed as a specific...

forum.ih8mud.com



[red66toy]

Yes, 42 revisions worth. Here’s the post where i first started working on this.

Unobtainium

Wild. They wouldn't even do in state for us but I get it, we have no relationship with them. Glad they went to a good home. They have evidently decided that what I did no longer meets the business model. Onward and upward I suppose. It was a lot of work but I really liked it.

forum.ih8mud.com

Theres someone on here who sells something similar but that came along after my post above and its not a great design. Its not mirrored from the rhd version and the dimensions don’t seem very accurate.

Would it be possible to make it a column mounted pod to clamp on a early FJ40 steering shaft?



[MOTOV8R]

Would it be possible to make it a column mounted pod to clamp on a early FJ40 steering shaft?

It could be done. Not sure its worth the effort vs. just getting some aftermarket pod style tach.



[Skreddy]

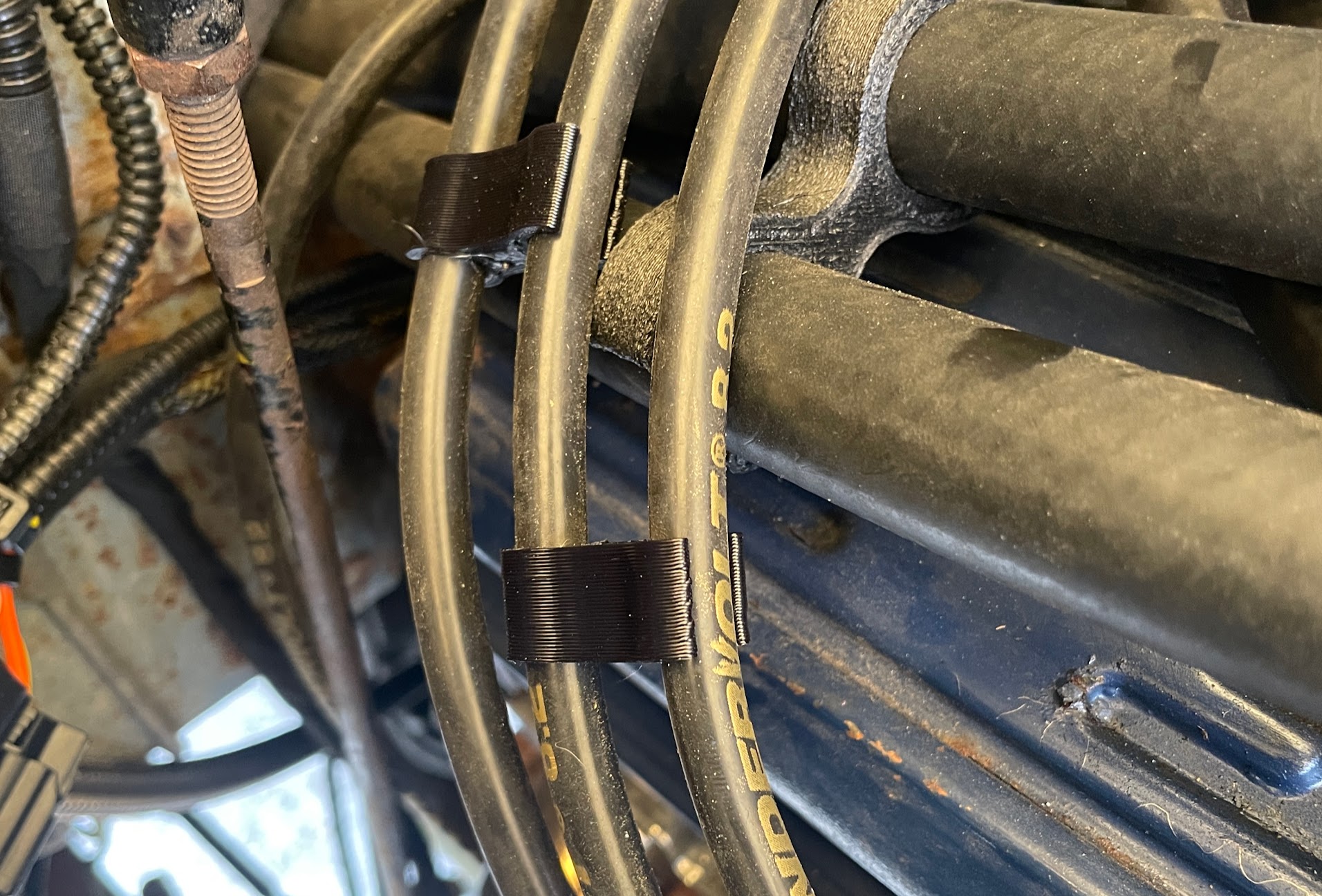

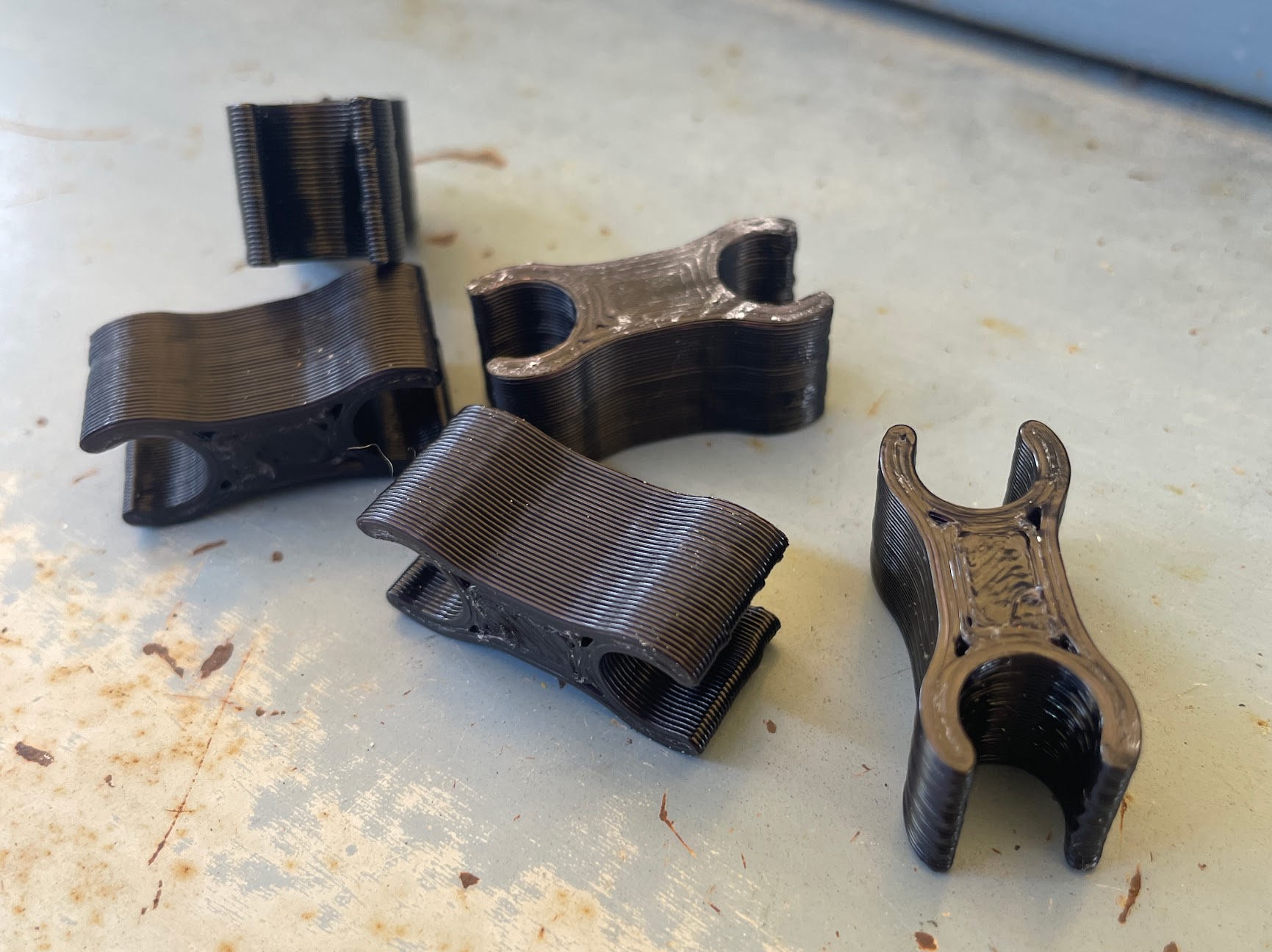

View attachment 2978200View attachment 2978199

Spark Plug Wire Separator for Two Wires

Files:

Spark Plug Wire Separator for Two Wires by emancarrillo

Spark Plug Wire Separator for Two Wires. Files for 8.0mm, 8.2mm, and 8.5mm diameters. Scale in height to your preferences. STL are 13mm (1/2") thick. Two versions are a narrow 3mm spacing and an 11mm spacing version. Print in a high temp filament. I print these in Taulman Bridge. Taulman 910 or...

www.thingiverse.com

Overview:
Simple print that helps organize your spark plug wires. I uploaded a few different sizes and widths.
Few cents to print out.

These would be great for aluminum fuel lines, say to feed a sniper…..
