Update Part 2

So last weekend we went down on Friday and picked up the 4.16 case, twisted TT rails and new flanges from Clutchee.

I got up Saturday Morning and was called to action with "I wanna put the new rails in the T-case"

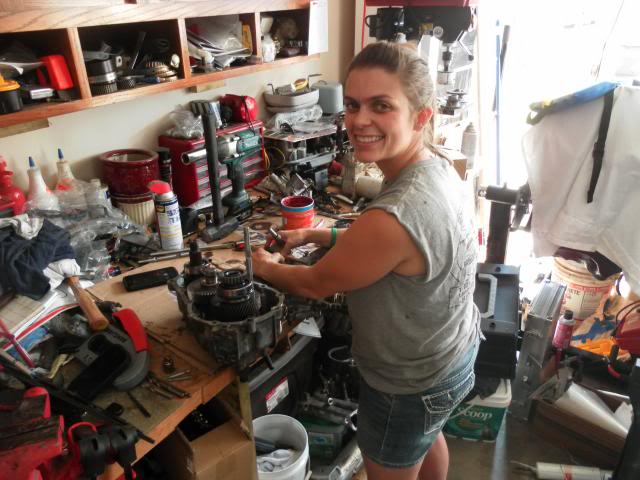

So I cleared off a spot on the bench and put the Mrs. to work.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1381_zpsf4b4a258.jpg.html

Now I am not braggin', but she did a pretty d*** good job getting things apart.

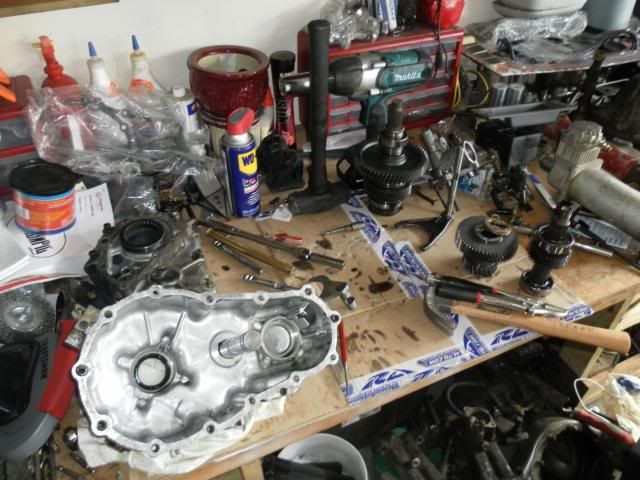

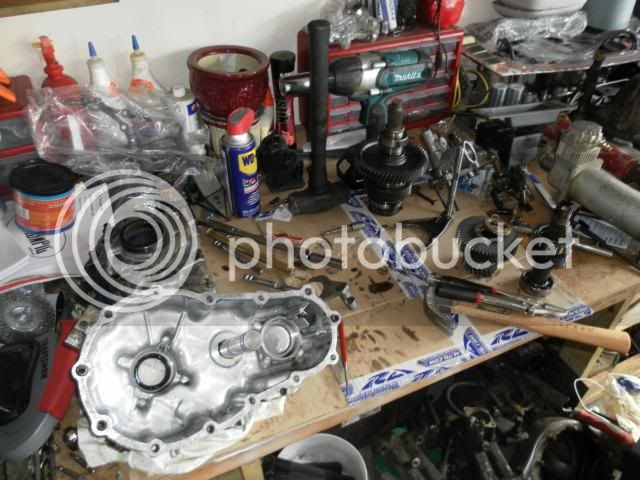

http://s84.photobucket.com/user/mrtucker80/media/SAM_1370_zpscc1ec7fd.jpg.html

Inside the case, gears and bearings were immaculate, did find this little bit of interest.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1373_zpsd7ed898d.jpg.html

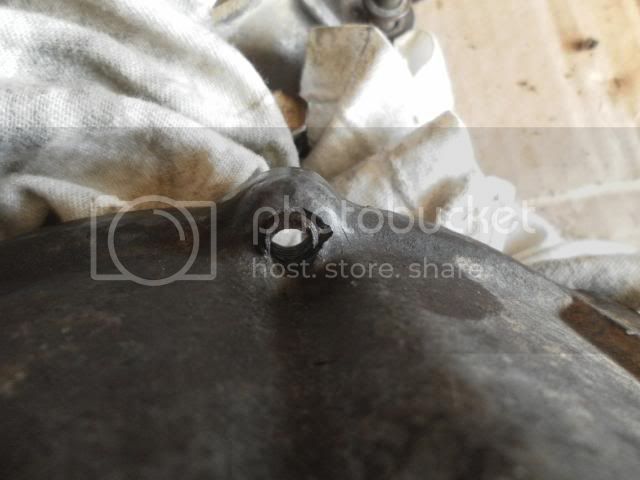

Yep, one of the case bolts had apparently broken off and had been drilled and helicoil'd I think. I broke the "second" bolt off in the same place and after a quick chase of the threads, I found a short bolt and loaded it and all it's friends up with anti-seize when I put it back together.

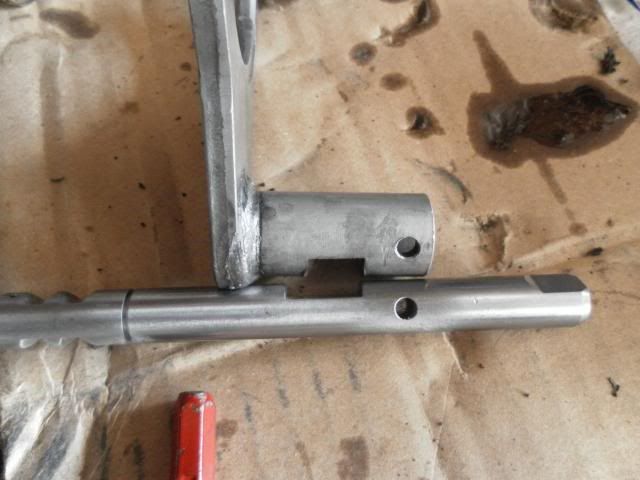

I did end up doing a little modding on the factory fork to match up to the new TT rail. Good, bad or indifferent, we will see how it all works out.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1375_zpsbc3525bf.jpg.html

So after I put it together for the second time I was satisfied we were good.

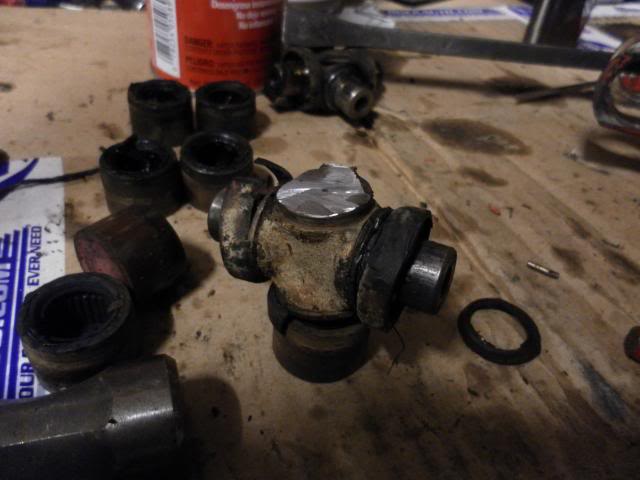

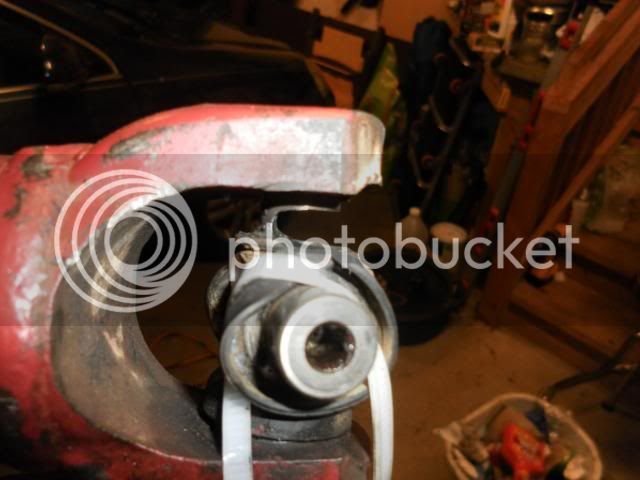

Then I went to work on disassembling the rear drive-shaft. I managed to get all but one of the old caps out with my new press, but one just would not give up. Well lets just say my grinder has saved the day a couple times now.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1383_zps9c32dbab.jpg.html

http://s84.photobucket.com/user/mrtucker80/media/SAM_1386_zps90488fcd.jpg.html

That little bas***d was just not going to go easily. Unfortunately for him I have more than one weapon in my arsenal.

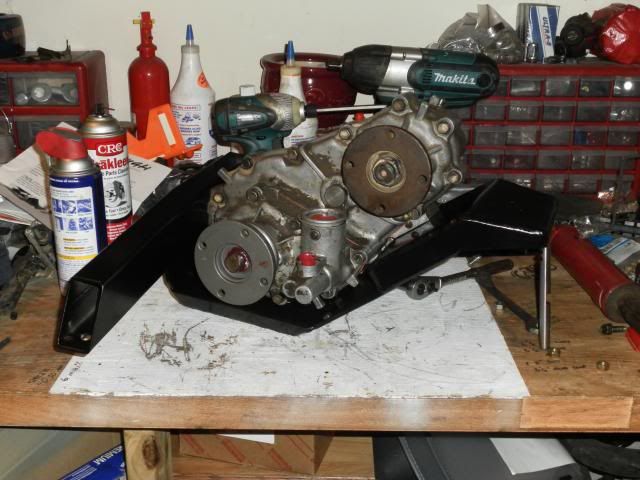

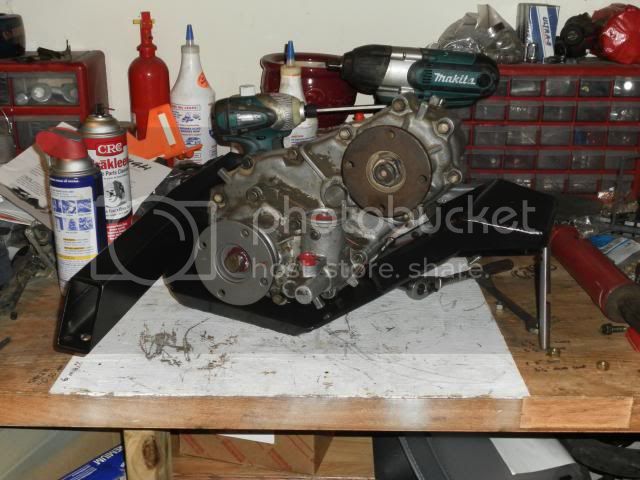

Then the Trail Tough cradle came in and after I picked up some new 10.9 hardware I got it all bolted in and ready to go.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1389_zpsc0e36dc5.jpg.html

It rained on Sunday so I took off that day. That should get me up to this weekends festivities, stay tuned.



[jynx]

That brings us to Today!!

Well now we are up to this weekends fun....

So the Mrs. had a birthday party to take little bit to yesterday (saturday) so I decided to get the rear springs in. Hannah helped me put the new Energy Suspension bushings in the new springs before they headed out. (see "Team work" a few posts up)

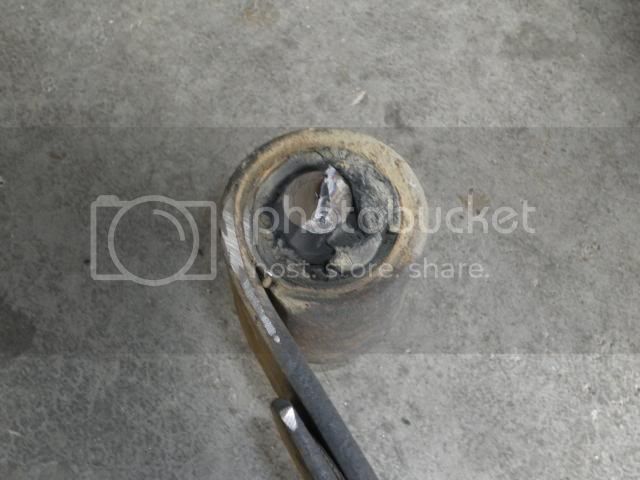

I got the shackle ends off with little issue, but on the frame ends of both springs the thru bolt had decided to marry itself to the bushing sleeve, which was formed into the bushing.... Enter the trusty grinder and the sawzaw and I finally got the rear springs off.

Good thing these are not going back on

http://s84.photobucket.com/user/mrtucker80/media/SAM_1395_zps8b0ecad9.jpg.html

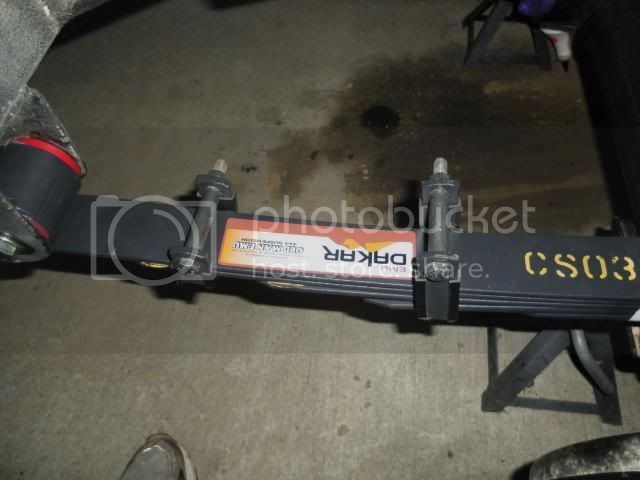

The new OME springs are "supposed" to be for spring under applications, so I had to swap the spring bolts, then out with the old and in with the new.

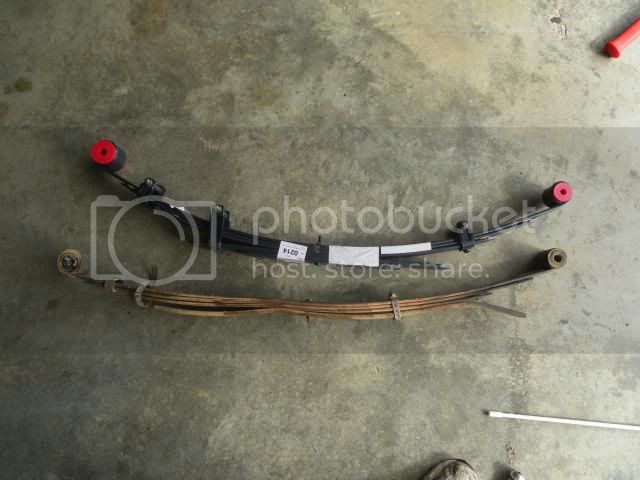

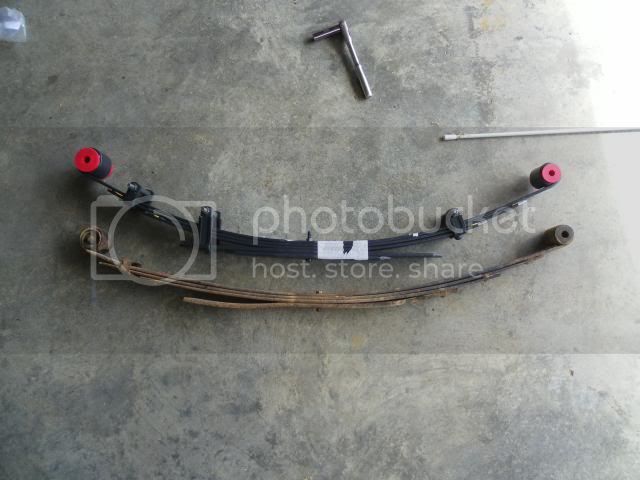

A little side-by-side.

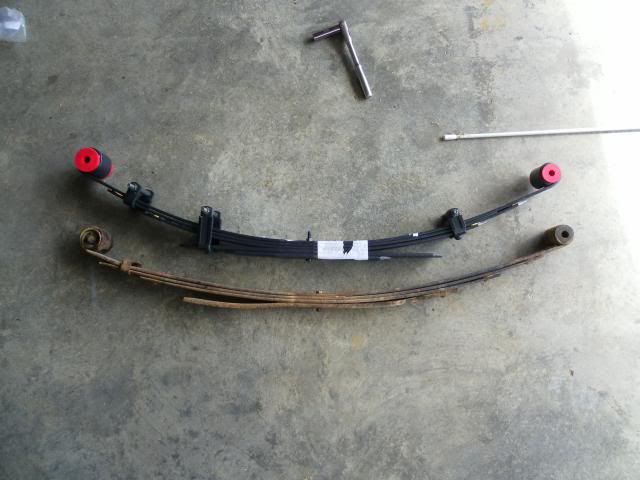

Passenger

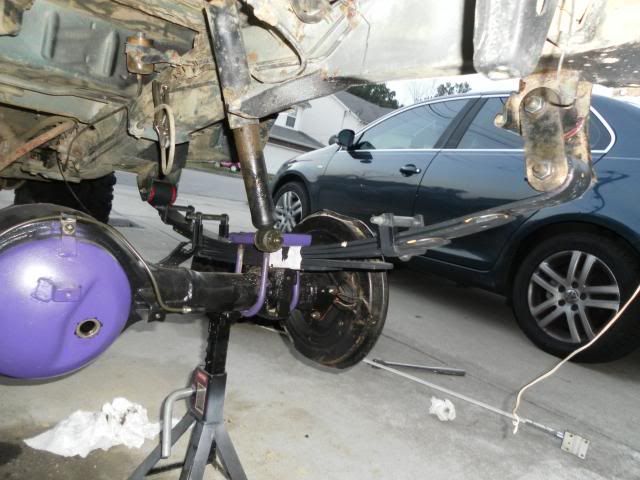

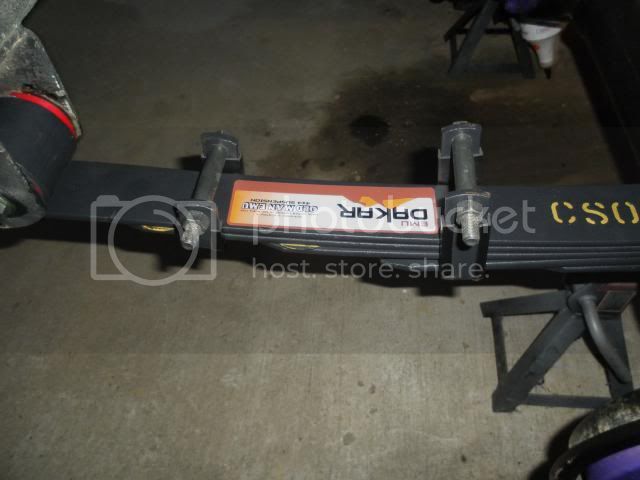

http://s84.photobucket.com/user/mrtucker80/media/SAM_1393_zps57fb82b8.jpg.html

Driver

http://s84.photobucket.com/user/mrtucker80/media/SAM_1394_zps16a92777.jpg.html

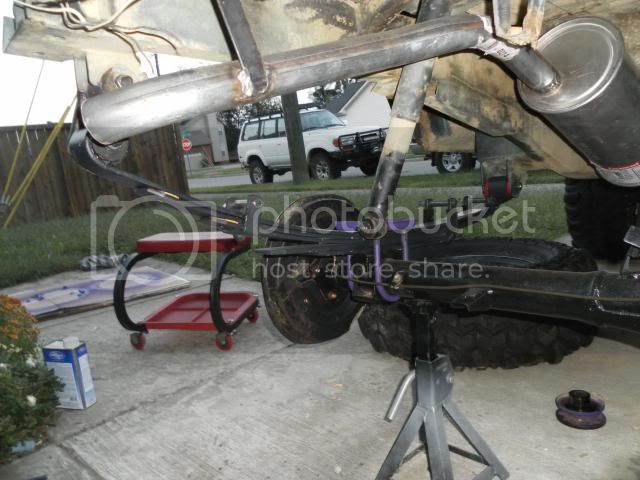

And back on all 4's yesterday afternoon.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1403_zps433670d4.jpg.html

Mrs. and I had dinner reservations for our 7 year anniversary, so I quit at 4 yesterday to get cleaned up.

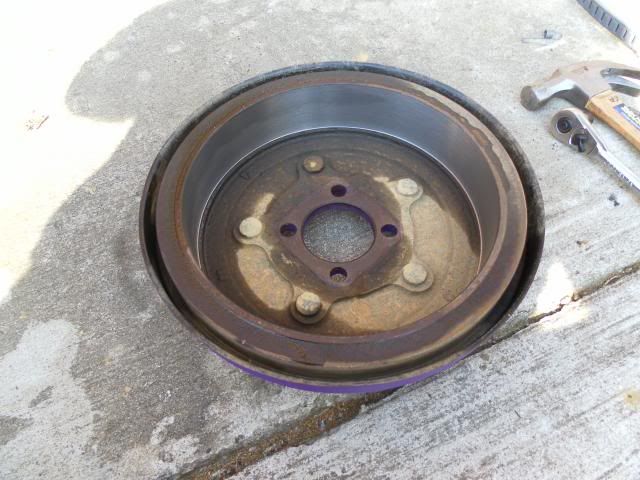

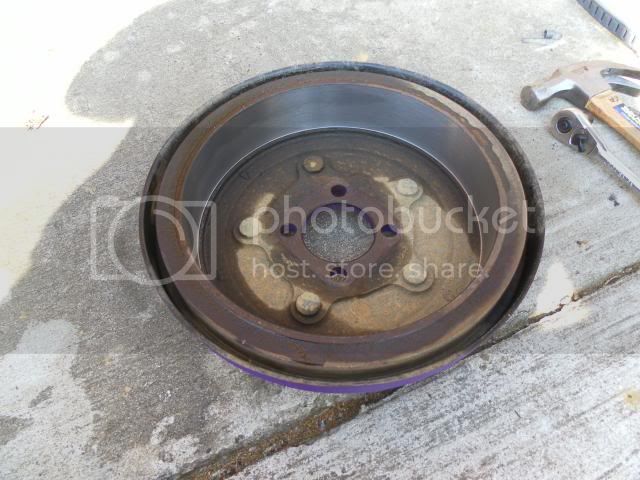

Today I started by pulling the drums and running down to O'Reileys to have them turned.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1407_zpsa37abd44.jpg.html

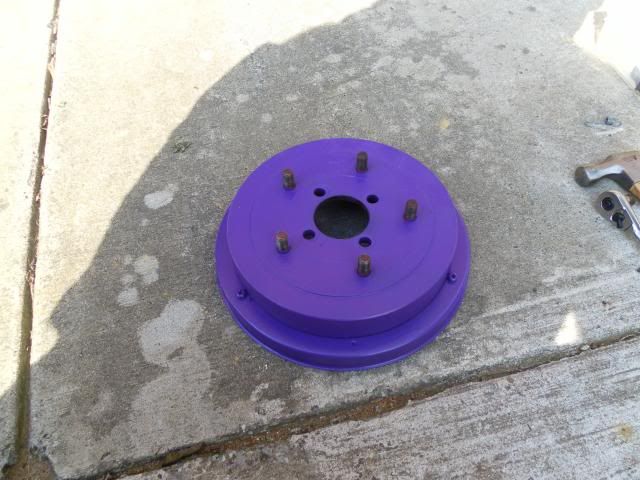

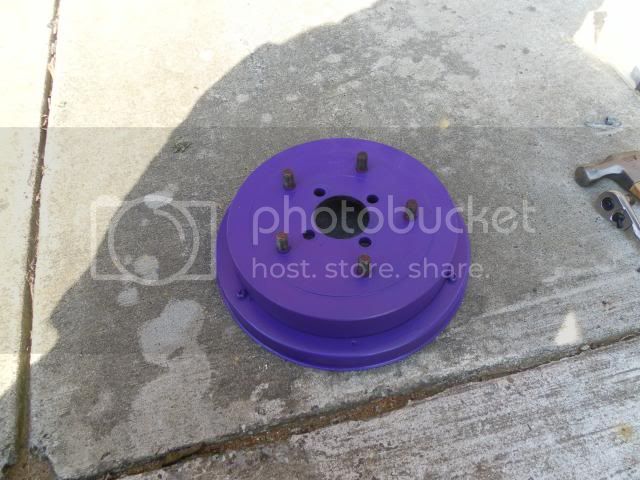

They weren't too bad, still have plenty of life in them. And then back to work and a quick coat of Mrs J's Favorite color.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1406_zps37c9d8bb.jpg.html

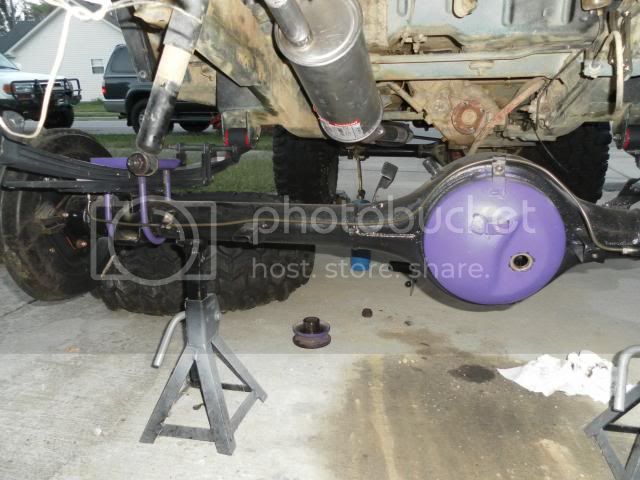

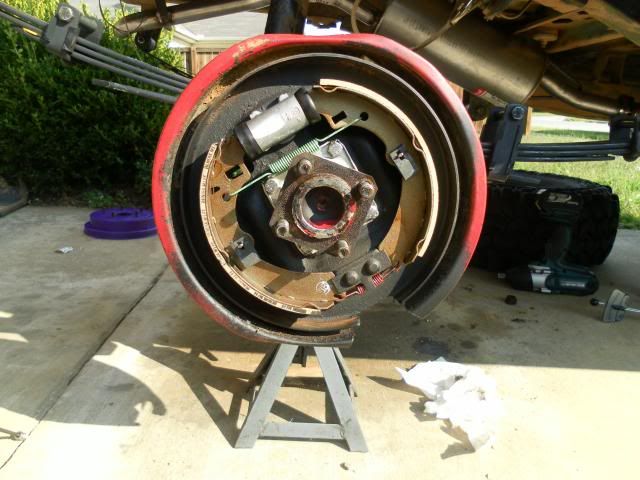

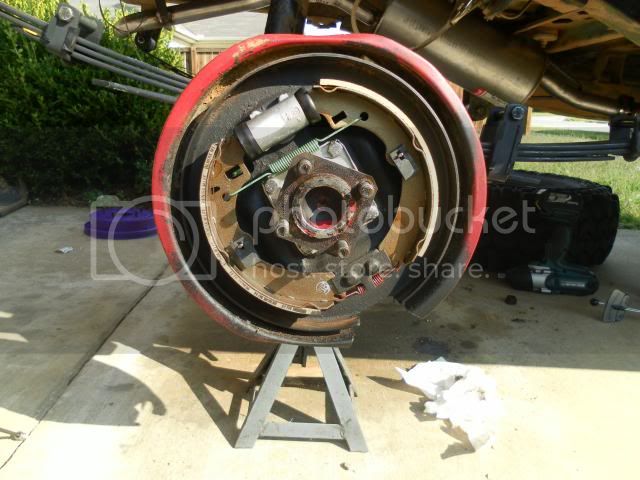

While that was drying I went ahead and rebuilt the rear brakes with new wheel cylinders, shoes and hardware.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1405_zpsd11da5b0.jpg.html

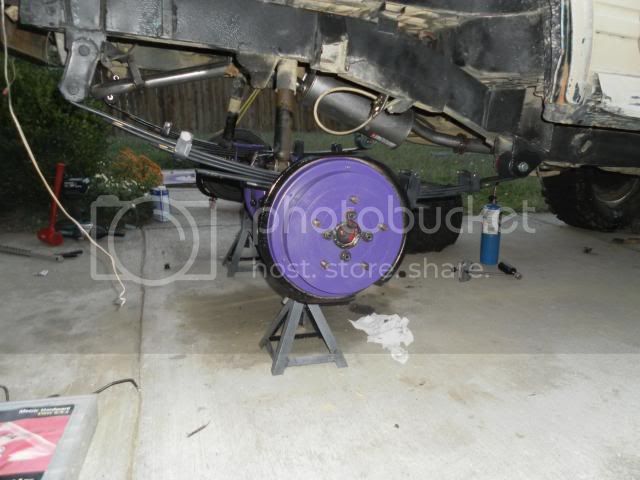

Then I threw those awesome drums on to finish up the rear brakes.

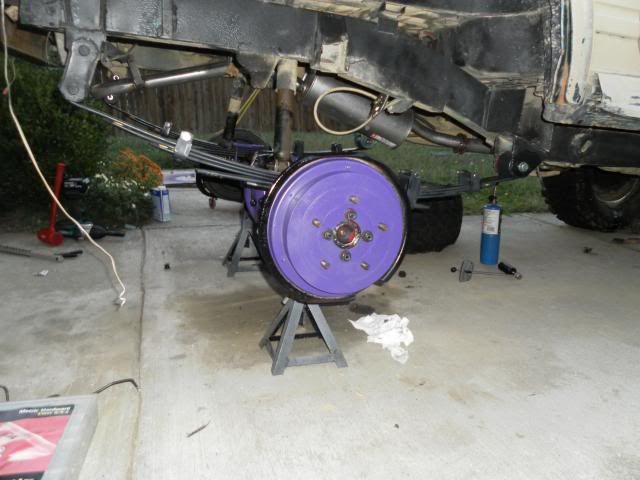

http://s84.photobucket.com/user/mrtucker80/media/SAM_1411_zpsfe9ff530.jpg.html

Drivers

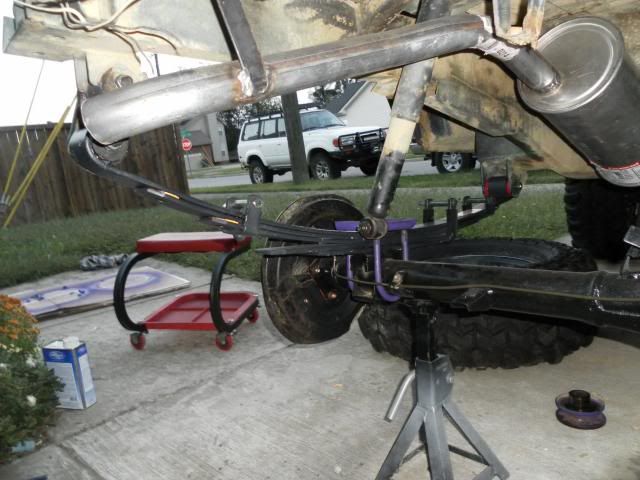

http://s84.photobucket.com/user/mrtucker80/media/SAM_1410_zps65a81bbc.jpg.html

Passenger

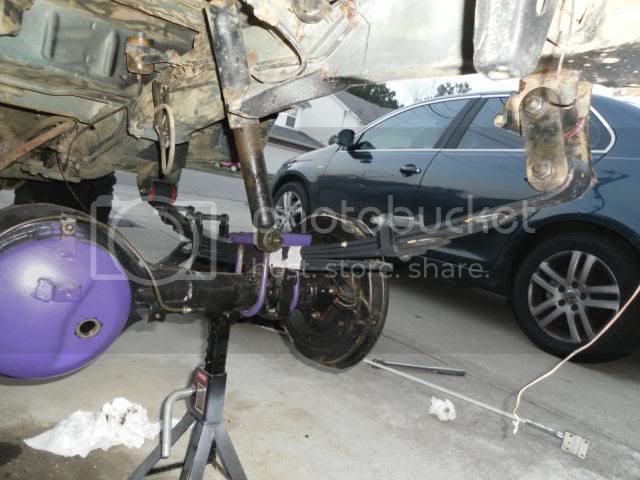

http://s84.photobucket.com/user/mrtucker80/media/SAM_1409_zpsf6f1f784.jpg.html

I also picked up some straight brake lines with ends already attached and started on the axle lines. I fubar'd up the short side, but the long side turned out OK.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1408_zps73412c6c.jpg.html

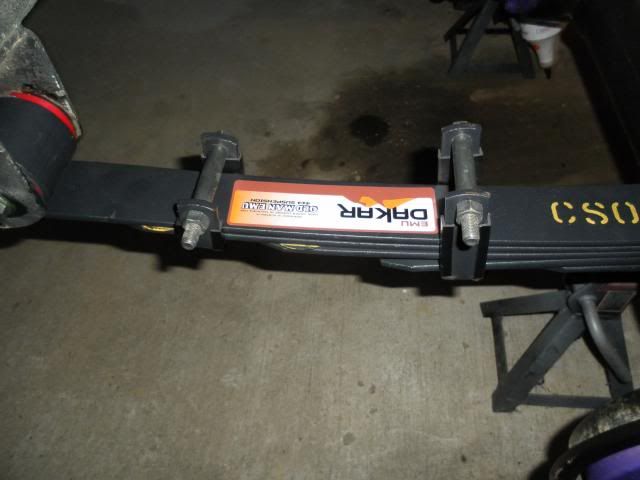

I threw the tires back on and filled the pumpkin and when I spun the tires I realized that this

http://s84.photobucket.com/user/mrtucker80/media/SAM_1413_zps95634568.jpg.html

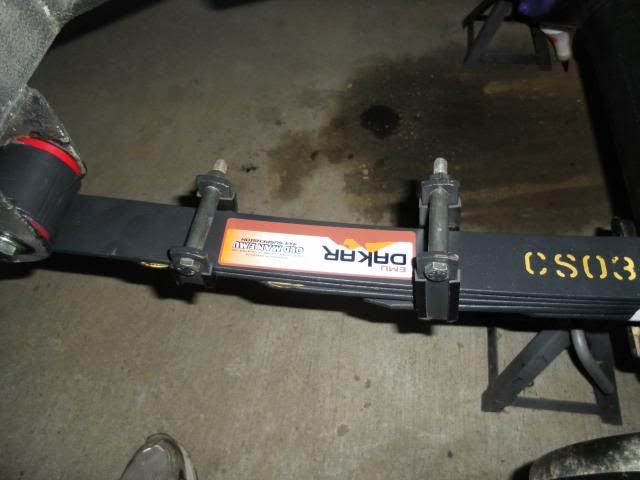

Had to be swapped to this

http://s84.photobucket.com/user/mrtucker80/media/SAM_1415_zpsdbd41a71.jpg.html

because the lugs were rubbing on the ends of the bolts. I also noticed that the tires are really close to the springs, so I think I am going to pick up a set of wheel spacers to throw on there too.

And then I rounded out the day fighting with rebuilding the drive-shafts. New joints on both ends, but I ended up pulling them apart several times because the needle bearings kept getting bumped and falling out of place.

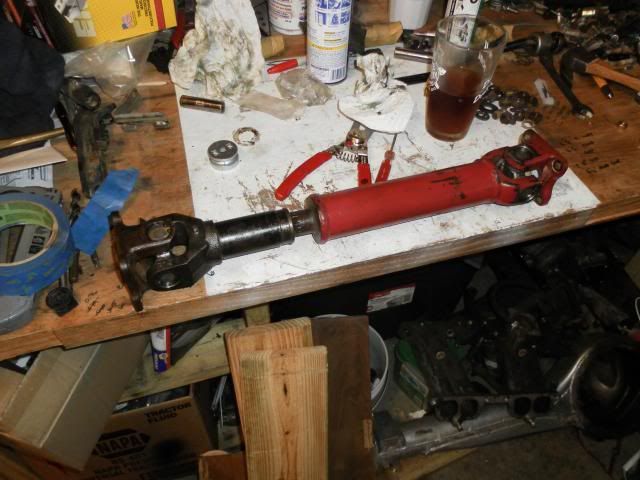

After about an hour and a half (but seemed like FOOREEVVEEER) I finally got the rear D-shaft all back together.

http://s84.photobucket.com/user/mrtucker80/media/SAM_1412_zpsf4b7ea4c.jpg.html

I did some measuring and decided that with the addition of the OME springs, I am going to have to pick up a set of D-shaft spacers to keep things from separating. I also think one of the rear shocks is shot, but that can probably wait until after ACC.

I wanted to get the case swapped today but my little D-shaft fiasco kinda zapped me, so that will probably be one night this week.

And with that I think you all are up to date on where we are.

This week I hope to finish up the new brake lines, get the t-case swapped and get things in place for me to be ready to go to work on the front-end next weekend. (Springs and knuckle rebuild)

Stay Tuned!!



[Hugh Heifer]

So what was the problem?



[Sam Stewart]

Looking good! Shocks are overrated by the way. I ran with 3 last time, Nick only had 1 on the Franken-80, and a number of other MUDders have lost/broken/etc shocks lately. I'd def let that wait til after.

Sent from another Galaxy



[jynx]

To-Do as of [STRIKE]9/29[/STRIKE] 10/14:

• [STRIKE]Rear brakes[/STRIKE] Just have to Finish the hard lines
• [STRIKE]Drive-shafts[/STRIKE] Rebuilt and waiting for the case swap
• [STRIKE]rear springs and bushings[/STRIKE] Done!
• Front axle service
• Install Front Springs and Bushings (New Addition)
• passenger door window regulator and handles
• finish passenger seat install
• re-wire propane solenoid
• relocate the propane tank and re-plumb it
• Finish painting
• Sliders - EOR at the end of October
• remove the air tank for now
• new battery and make sure the hold-down is solid
• Change oil and trans fluid and whatever other fluids don't get replaced by a rebuild or freshing up

I am getting there. I will probably pick up a Battery this week work on the solenoid wiring too.



[jynx]

So what was the problem?

What they don't come with worm gear clamps from the factory?!? What I am really curious about is how did he get that crazy bend on the rear of what looks to have once been an overload. I mean it takes some serious skill to put that kind of bend in a piece of spring steel.

Looking good! Shocks are overrated by the way. I ran with 3 last time, Nick only had 1 on the Franken-80, and a number of other MUDders have lost/broken/etc shocks lately. I'd def let that wait til after.

Sent from another Galaxy

Thanks, Yeah, that is back burner for now. They are just barely long enough with the OME springs, but will do for now.



[jynx]

Happy Anniversary Mrs. J! 7 years is a pretty good start.



[RSHARPfzj80]

Happy Anniversary Mrs. J! 7 years is a pretty good start.

Happy Anniversary guys!!! I've got 8 years under the old belt myself. Light some candles tonight for old times sake



[Hugh Heifer]

17 here!
Congrats!

Heifer-net



[jynx]

Thanks guys.



[jynx]

This Weekends To-Do List

Well this weekend I hope to:

• swap the t-case
• Install rear drive-shaft
• Finish rear brakes
• install new front springs
• rebuild the front knuckles
• remove the air tank
• remove the current propane mounts

That should get it in good shape to go to EOR next weekend for the slider installation. Now let's just hope I am "that" good....



[4xsteve]

Sorry buddy, gotta take this one....

Now let's just hope I am "that" good....

Care to comment Erin???

IH8MUD on Android



[jynx]

All I will say is just remember the last time you flew too close to the sun...



[Mrsjynx]

Sorry buddy, gotta take this one.... Care to comment Erin???

IH8MUD on Android

All I gotta say is if the tents a rocking, GO AWAY.



[Hugh Heifer]

Well this weekend I hope to:


[*]swap the t-case
[*]Install rear drive-shaft
[*]Finish rear brakes
[*]install new front springs
[*]rebuild the front knuckles
[*]remove the air tank
[*]remove the current propane mounts


That should get it in good shape to go to EOR next weekend for the slider installation. Now let's just hope I am "that" good....

It took me 4 hours to install a couple lights and bend my shifter so it does not hit my Tuffy. How do you get so much done??

Heifer-net



[jynx]

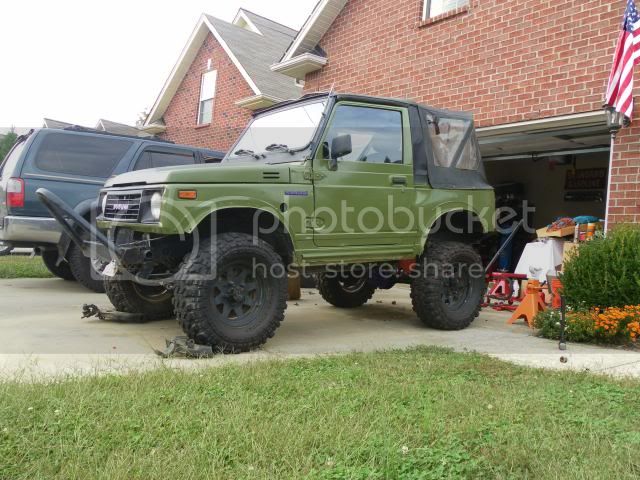

So for those who have been paying attention, see if you can see what's different today....



[Sam Stewart]

Turned it around? Painted it back tan? Took the front apart?

Sent from another Galaxy



[jynx]

Turned it around? Painted it back tan? Took the front apart?

Sent from another Galaxy

Yes, no, Yes!

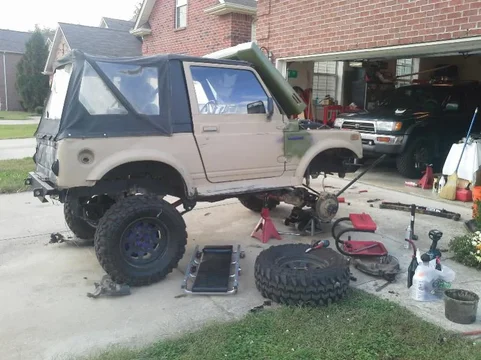

Swapped t-case in, finished rear brakes and installed drive-shaft. Picked up a new battery and took it up the street and pulled it in to start on the front end.
