Squirt (formally Brownie) gets a new Mom and Dad - Erin's Sami Build (1 Viewer)

[jynx]

I hope it is ok that I start this over here. All the hard parts look alot like Toyota, only smaller. Actually rumor has it that alot of the parts were made in the same AISIN factory in Japan. And Erin named it, so any heckling for that will need to be directed in her direction.

Any way, just getting it home turned out to be a bit of an adventure. We met the guy in Dunlap to test drive it. Specs were as follows:

1988 Suzuki Samurai
Spring over
Propane conversion
30x11.5-15 Super Swamper TSL SX on painted steel wheels
Sloppy shifter
"custom" bumpers
Viair OBA system

other than that pretty much stock.

It had some front end shimmy, but it didn't have a stabilizer, plus the SX's are Bias not radial, so not a big deal. Overall, it fit the bill and Erin liked it, so we did the dance and I paid the man.

So we started back over the plateau to McMinnville for the ride home. At speed the shimmy went away and so we were off. It topped out at 50 but overall it was a nice ride. We had a stop lined up in McMinnville in case we needed to park it, but all was well so we rolled on thru. Stopped in Woodbury for a drink and to get a plan on how to get thru Murfreesboro and then we we were back on the road. So I noticed that the rear had started whining, but since I had already planned to go thru everything when I got home I wasn't terribly worried. Wrong!!

So we roll up to a red light in the Boro and as I am pulling away I hear a POP!! and then a grind and then the rear started hanging up... it pretty much locked up right past the intersection. I was able to drag/ chirp/ crack/ bang it into the Walgreens parking lot on the corner. Erin took her mom and Hannah home and came back with my tools. So I got to start before I even got it home..

http://i84.photobucket.com/albums/k8/mrtucker80/Brownieinthelot_zps93a04385.jpeg

So, I pulled the shaft and it would roll backwards but would lock up going forward, so we called a roll back to get it on to the house.

So we got it home and after lunch I started digging in, but first here are a few shots of it.

http://i84.photobucket.com/albums/k8/mrtucker80/SAM_1230_zpsc6666aed.jpg

http://i84.photobucket.com/albums/k8/mrtucker80/SAM_1229_zps19bdfc52.jpg

Propane Regulator and Carb

http://i84.photobucket.com/albums/k8/mrtucker80/SAM_1232_zps55cad349.jpg

Dual Tanks

http://i84.photobucket.com/albums/k8/mrtucker80/SAM_1233_zpsb6797b36.jpg

Interior is nothing special.

http://i84.photobucket.com/albums/k8/mrtucker80/SAM_1236_zps6907f0a0.jpg

So that is how it sat this morning before I got started.

So while Erin and her mom went out, I got out the tools and the fun began.

Stay tuned....



[jynx]

On to the Carnage

So with my mind officially in work mode I started really crawling around under the rig and immediately saw the first thing to go on my shopping list.



Not sure how I missed this crazy wrapped spring, but I thought the hose clamps were a nice touch.

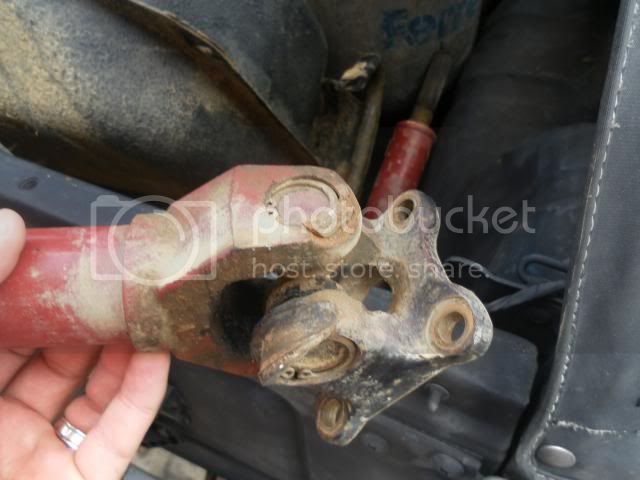

Next I took a look at the rear shaft I removed last night and I am not sure if the damage is from last night, but I suspect it has been some time in the making, so second thing is new axle end of the drive shaft.

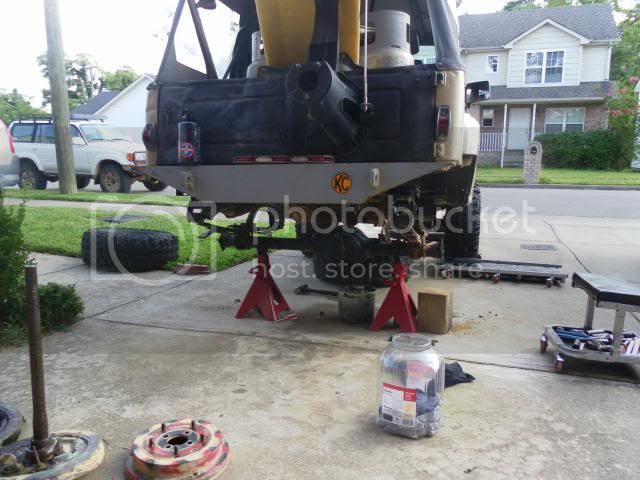

So then I jacked up the drivers side to start the business. I did get a little ray of sunshine in that I finally got to use this big a$$ slide hammer that I found several years ago while we were moving our office. I almost tossed it a couple times, but it made short work of pulling the axle shafts.

DS out, not a good sign.

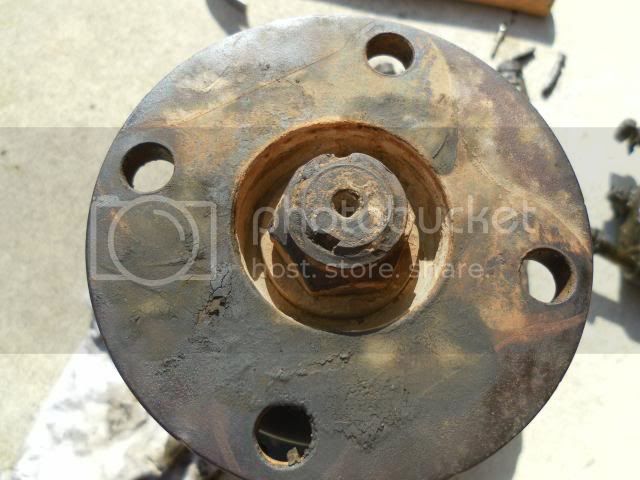

Note the nice coating of "swamp lube" all over the axle. Definitely been water in there for some time.

I pulled the drain plug to start draining the chunk and I it started globbing out... I stuck my finger up in there and could feel metal in the bottom and knew this was going to be a spectacular failure.

Both axles out getting ready for the revell.



Well there's your problem. Who put this in there.



What you are seeing is what the inner pinion bearing looks like after the ring and pinon have chewed on it for a little while.



The inner pinion bearing has completely disintegrated and left the pinion to roll around freely.

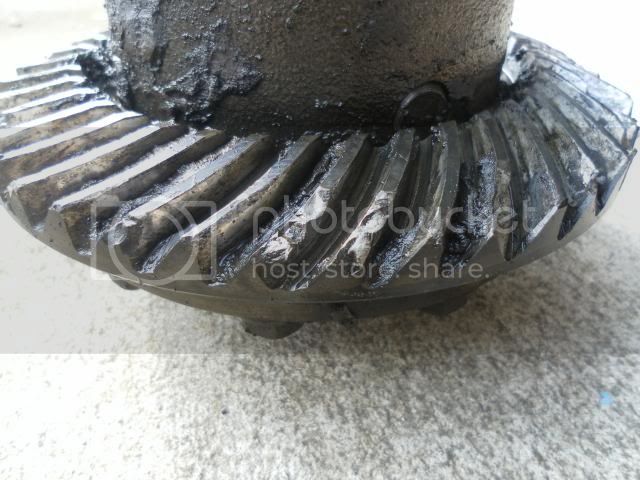

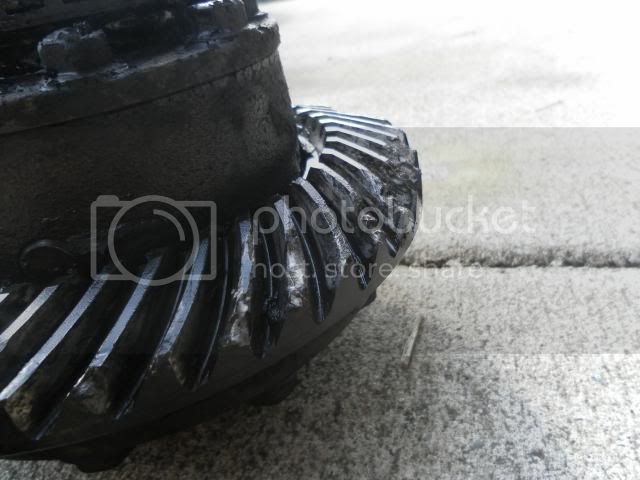

It chewed chunks off of about 3/4 of the teeth on the ring gear.





And there was actually pieces of the inner race missing when I got the whole diff torn down.

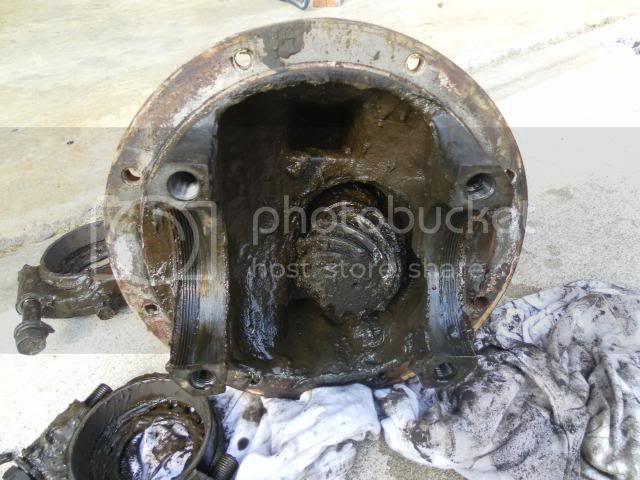

And this is the sludge that was left in the housing.



The un-staked pinion nut tells me somebody has been messing with this, that and what looked like clear silicone sealant that came off the housing.



Clearly routine maintenance was not a high priority.

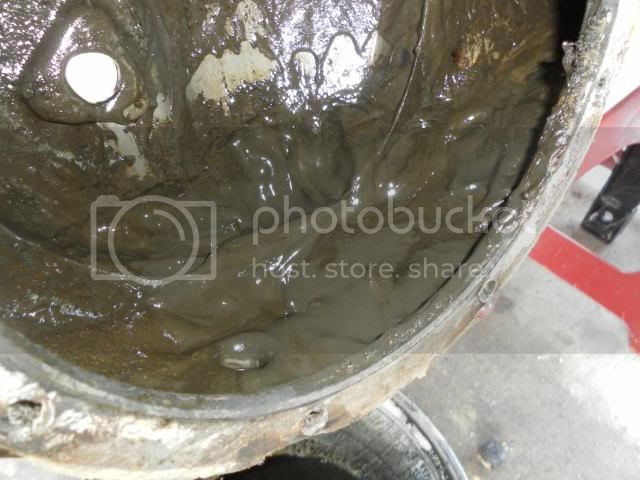

Look at how the "sludge" baked out in the sun. Looks like dried mud, which makes me wonder how long it had been in there and how much actual gear oil was left in the mix.





So that is how I spent my afternoon. I also pulled the tanks out and spent some time crawling around underneath it looking at all the stuff that needs to get yanked and trying to figure out how to clean up the wiring mess and generally making a plan of attack.
