Shocks FJ40 Outside Frame, rear shocks

Discussion in 'HardCore Corner' started by 64Rotorhead, Feb 13, 2018.

  1. 64Rotorhead

    64Rotorhead SILVER Star

    Messages:
    242
    Media:
    2
    Likes Received:
    222
    Joined:
    Apr 30, 2014
    Location:
    Montana
    I've seen a lot on here but not on this particular question. First off, I'm a newbie, first build.

    I've read a bit about designing for shock mounting, locations etc. This basic article was helpful: Everything you wanted to know about Shock Absorbers - 4x4Review Off Road Magazine I realize it gets way more complicated, thus the search for opinions here.

    Looking for opinions, and reasoning, about mounting rear shocks just outside the frame on an FJ40, SOA, to allow for a larger fuel tank in place of where the original rear crossmember/shock mounts would be? There would be another crossmember anyway for an anti wrap bar.

    It seems to me there would be room on an SOA to do this. Slightly raked as needed. Yes they would be more vertical instead of angled as original. Is the original angle necessary for lateral axle stability?

    This is outside the box thinking and I'm sure I'm probably missing something obvious.

  2. White Stripe

    White Stripe

    Messages:
    6,022
    Likes Received:
    4,099
    Joined:
    Jan 6, 2012
    If you are running full width 1 tons you would probably have the room. But the problem is that when its flexed out is that the tire that is stuffed tips inward a lot. My rear axle is 63" wide and Im not sure I could clear shocks like that, it would be tight.

    64Rotorhead likes this.
  3. 69LC

    69LC

    Messages:
    2,131
    Likes Received:
    1,254
    Joined:
    Jan 12, 2008
    Location:
    Allendale, MI near GVSU
    When I flipped my rear springs I figured out the extended and compressed lengths of the shocks and then ran them forward inside the frame rail. I welded new studs onto the spring plates and fabbed some upper mounts that tucked inside the frame rails. It’s worked well for 15 years.

  4. Bripars40

    Bripars40 SILVER Star

    Messages:
    757
    Likes Received:
    568
    Joined:
    Aug 21, 2016
    Location:
    Oklahoma
    Picture?

  5. 69LC

    69LC

    Messages:
    2,131
    Likes Received:
    1,254
    Joined:
    Jan 12, 2008
    Location:
    Allendale, MI near GVSU
    Not for a couple of days. I’m working in SoCal, fly home Thursday.

    Bripars40 likes this.
  6. 64Rotorhead

    64Rotorhead SILVER Star

    Messages:
    242
    Media:
    2
    Likes Received:
    222
    Joined:
    Apr 30, 2014
    Location:
    Montana
    Yes, pics would be great when you can.

    I'm wondering if they are mounted more outboard than original. If so, this might allow for more room for fuel tank where original tube crossmember was located.

  7. 69LC

    69LC

    Messages:
    2,131
    Likes Received:
    1,254
    Joined:
    Jan 12, 2008
    Location:
    Allendale, MI near GVSU
    I’ll get some pics in a couple of days. Hope you don’t mind rust.

  8. Bripars40

    Bripars40 SILVER Star

    Messages:
    757
    Likes Received:
    568
    Joined:
    Aug 21, 2016
    Location:
    Oklahoma
    It wouldn’t be a 40 without rust!

  9. 69LC

    69LC

    Messages:
    2,131
    Likes Received:
    1,254
    Joined:
    Jan 12, 2008
    Location:
    Allendale, MI near GVSU

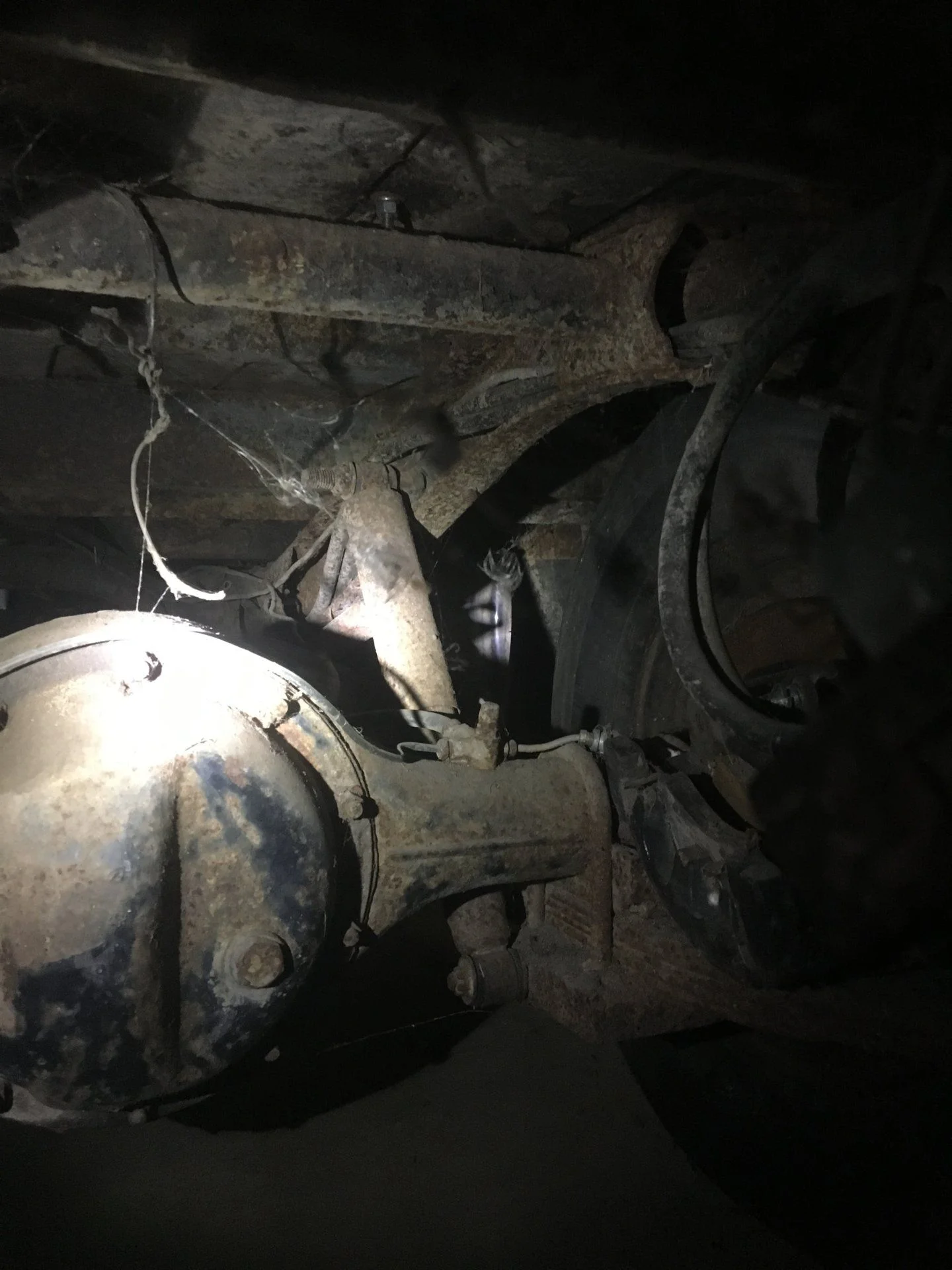

    As promised, rusty crusty forward shock mounting (cobwebs too)




    64Rotorhead and Bripars40 like this.
