Part Seldom Seen

[overton]

No longer available

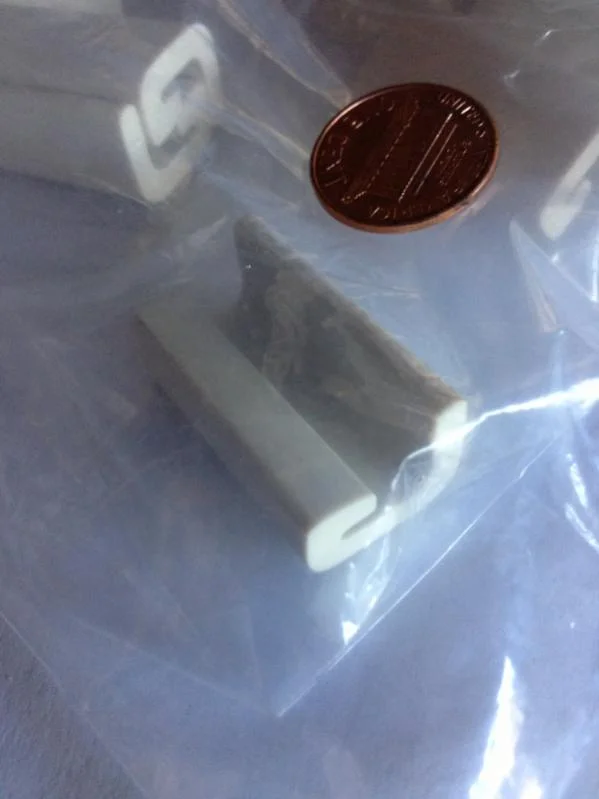

I am checking into having this part made - It is no longer available from Toyota. Anyone have a new one we could use for the mold?



[65swb45]

I am checking into having this part made - It is no longer available from Toyota. Anyone have a new one we could use for the mold?

I have one, but I haven't seen it in YEARS! I actually got it when I bought out Midwest Landcruiser in 1990. I'm gonna have to do some thinking to see f I can even remember where I last saw it! D'oh.



[overton]

please do!



[FJ40Jim]

The last brand new one (in your pic) was recently glued onto the new build. I don't want to try peeling it off the fresh paint.

How long would you need the original to get a clone made? Would the original be returned?



[overton]

I think I found one I can extract from my 83 - I'll let you know!
Thank Jim
G.



[overton]

I thought this Cushion was for the front of the roof where the hood rests against the top but that cushion is larger and a different part number. It appears this is for the drip rail of an earlier cruiser, perhaps in back. Does anyone have a picture of how this cushion was installed

Part number 63118-90300



[FJ40Jim]

Greg, I've installed 2 of those on 78-ish era FJ40 hardtops in the last couple months. Seemed to fit & work fine as a hood bumper.

What's not fitting/working about them?

Edit:
Parts catalog shows it fitting all through 1980:

Part 63118‑90300 (CUSHION, ROOF DRIP MOULDING, REAR) was found on the following models:
Date range Model Frames/Options Found in diagram
03/1969-06/1980 TOYOTA LAND CRUISER BJ40,FJ4*,55 61-53: ROOF PANEL & BACK PANEL
Model Dates: Matching Models: Model Options: Links to diagrams:
03/1978-06/1980 BJ40LV-KCJK CND, VAN, B, 4F, VKC, RB 61-53
03/1969-12/1974 FJ40LV-A USA, VAN, F, VLS 61-53
04/1972-12/1974 FJ40LV-AC USA, VAN, F, VKC 61-53
01/1975-01/1976 FJ40LV-KCJA USA, VAN, 2F, 4F, VKC, RB 61-53
02/1976-06/1980 FJ40LV-KCJA USA, VAN, 2F, 4F, VKC, RB 61-53

And a newer PN for 81-later:
63119‑90300



[lostmarbles]

I thought this Cushion was for the front of the roof where the hood rests against the top but that cushion is larger and a different part number. It appears this is for the drip rail of an earlier cruiser, perhaps in back. Does anyone have a picture of how this cushion was installed

Part number 63118-90300


View attachment 726990

When I search that part number, Toyota says its for Aug 80 to Oct 85 BJ40, BJ42 or FJ40 hardtop.

CUSHION, ROOF DRIP MOULDING, REAR



I haven't a clue exactly why it's needed there though.



[overton]

When I search that part number, Toyota says its for Aug 80 to Oct 85 BJ40, BJ42 or FJ40 hardtop.

CUSHION, ROOF DRIP MOULDING, REAR

View attachment 727062

I haven't a clue exactly why it's needed there though.

Yeah, not sure why you would a cushion there on back. I have not tried it on the front but I assume it may fit OK - It's just smaller than the typical front cushion.



[FJ40Jim]

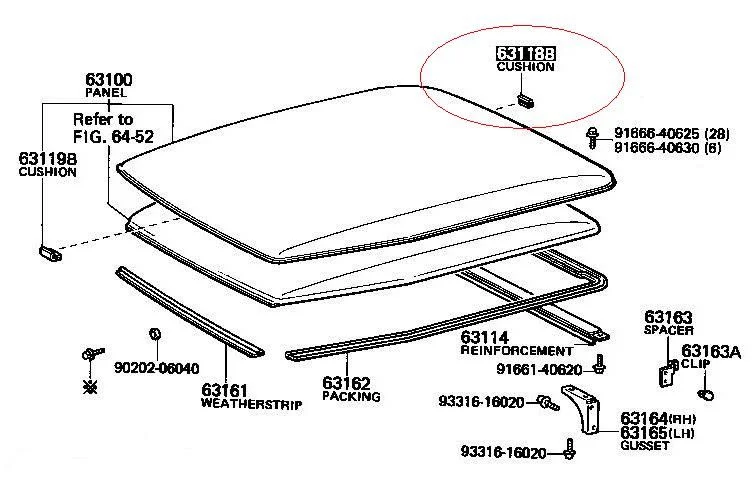

I really think the drawing and reference to "REAR" are compounded errors. Somebody mistakenly labeled it as rear, then the draftsman drew it on the rear.

Note how the hybrid parts drawing posted above shows both the 63118 and 63119 parts, at opposite ends of the HT. But the parts catalog says "roof cushion, E-80" and "roof cushion, 81-84".

The 81-84 style appears to clip across the bottom of the roof rail, and the E-80 version just snaps onto the front lip.



[skully3]

how about these? not sure how rare they are but I could see how they would go missing.



[PabloCruise]

how about these? not sure how rare they are but I could see how they would go missing.

I need to replace the eyelets that go underneath that plug.



[Folkert]

When I search that part number, Toyota says its for Aug 80 to Oct 85 BJ40, BJ42 or FJ40 hardtop.

CUSHION, ROOF DRIP MOULDING, REAR

View attachment 727062

I haven't a clue exactly why it's needed there though.

its for when you completely open the hood and let it rest against the roof... i got one, but havent installed it yet... dont see the reason for using one on the back though..

ow darn, now i see the older posts.. ehm, yes consider mine as not written ahum..



[Living in the Past]

I thought this Cushion was for the front of the roof where the hood rests against the top but that cushion is larger and a different part number. It appears this is for the drip rail of an earlier cruiser, perhaps in back. Does anyone have a picture of how this cushion was installed

Part number 63118-90300


View attachment 726990

Here is a picture of mine installed on amy 10/69 FJ40. This bumper was purchased last year from a dealer and the number that came up was the 63118 number for the front and not the 63119.



[Living in the Past]

how about these? not sure how rare they are but I could see how they would go missing.

I purchase a set of bucket seats out of what I was told was a 74. This was around 82. It still has the plugs but my kids like playing with when they were little. I installed head rests something in the eighties and stored the plugs away. Wasn't until last years I found them again. Thirty years and I still have the full set.



[DPV7070]

Here's a good one. I was going to try to make y'all guess what it is, but I'm in a good mood...

Usually, these go missing for us 69-9/72 guys. I'm going to have to fabricate one for my passenger side.

This little metal guy is going to be a project unto itself.

Side note, if anyone needs part numbers for these wipers I can hook you up. They were about $7.50 US ea. from a local deal. I think there were 44 left in the states. I bought 4.



[skully3]

I purchase a set of bucket seats out of what I was told was a 74. This was around 82. It still has the plugs but my kids like playing with when they were little. I installed head rests something in the eighties and stored the plugs away. Wasn't until last years I found them again. Thirty years and I still have the full set.

Is there a part # for these caps and are they still avail from toyota?



[overton]

I just got a 77 with original paint and look what seldom seen part it still has.



[platypusREX]

I bought one of those last year from Cruiser Solutions.

I am checking into having this part made - It is no longer available from Toyota. Anyone have a new one we could use for the mold?



[Weber Sarge]

Ok , I give and what is that sleeve , where does it go ?
Don't remember seeing one on my '77....
Sarge
