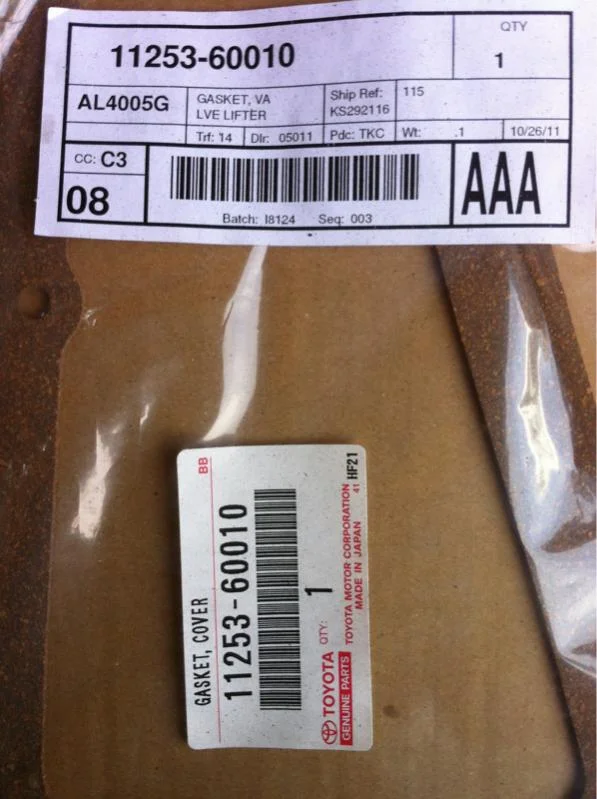

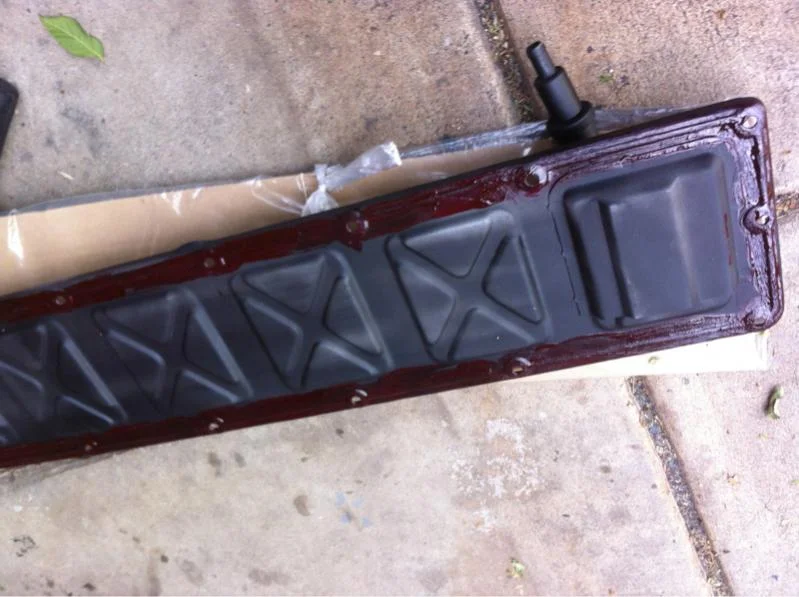

Got the side cover gasket installed



[broth9640]

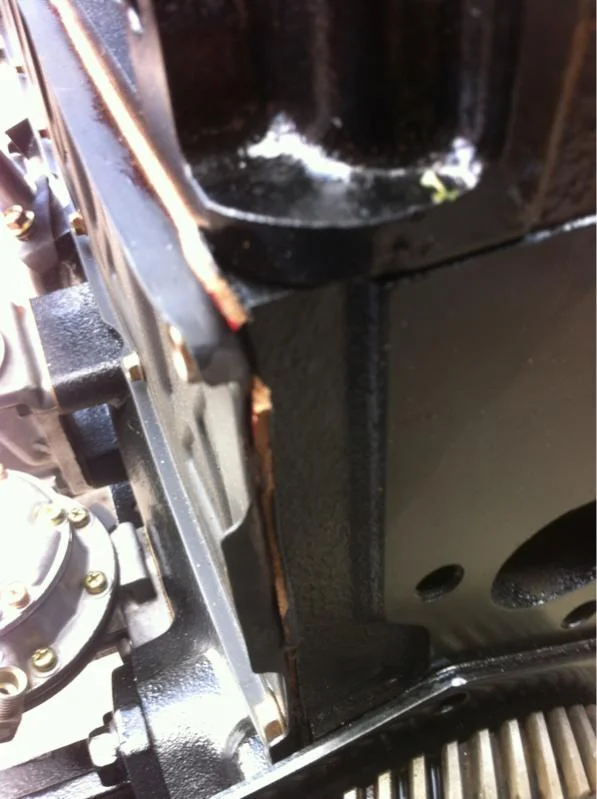

Wait ! Nope I mother truckin blew it! My inch torque wrench only goes to 120 inch lbs . I backed it off the lowest setting hoping it would give me 60 inch lbs. nope! Pissed! I guess I will be ordering a new one of these.



[broth9640]

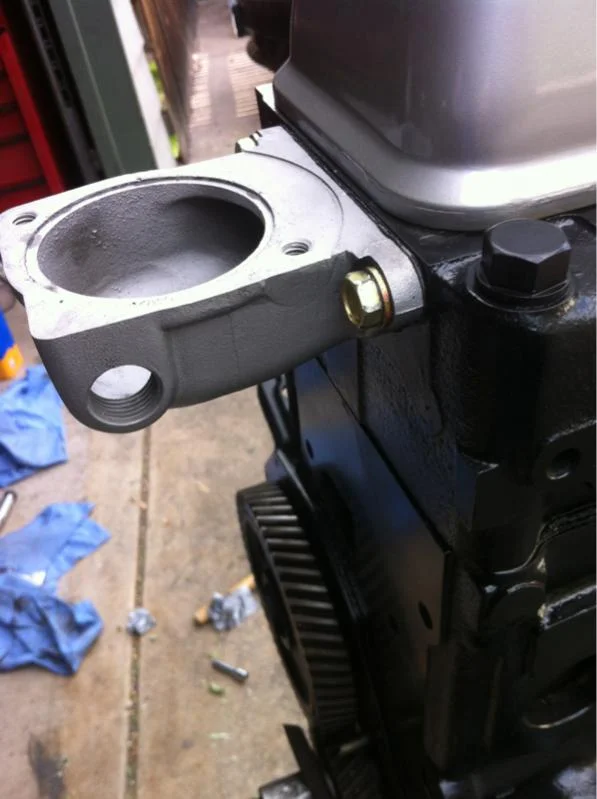

Thermo housing bolted back up.



[47coeman]

Almost to pretty to start up and get dirty



[broth9640]

Naaahhh! What would be the point of that? It's looking like this might be my daily driver.



[KY Longhunter]

Broth...slow down! your moving to fast for me...



[DanS HJ-45]

You are positively flying through this bud!

You will possibly get this truck driving before I get the head back on the 40! No joke.

Dan



[Rock Island]

Awesome work! Subscribed.



[broth9640]

Dan I highly doubt I will beat you to the road. What's holding you up? Still waiting on those precups? My build seems to be going at light speed compared to this time last year when I was deep into body work. Now it's all clean parts and I can see the finish line getting closer. My hope is to be on the road by August.



[DanS HJ-45]

Dan I highly doubt I will beat you to the road. What's holding you up? Still waiting on those precups? My build seems to be going at light speed compared to this time last year when I was deep into body work. Now it's all clean parts and I can see the finish line getting closer. My hope is to be on the road by August.

Yep. Precups arrive, then a day or two at the machine shop, followed by a day to put it back together. That's the plan at least.

....so you're planning to have it ready for the 40s only run then?? .

Dan



[broth9640]

Yep. Precups arrive, then a day or two at the machine shop, followed by a day to put it back together. That's the plan at least.

....so you're planning to have it ready for the 40s only run then?? .

Dan

40's only run? When and where is that? I guess I will have to scratch it sometime



[DanS HJ-45]

40's only run? When and where is that? I guess I will have to scratch it sometime

The day after the Rising Sun Rally. We took the 40 last year, no scratches. It's generally a mild enough trail for a completely stock ball and claw 40 to make it. Good times!

Dan



[broth9640]

Just ready through this and watched your video
http://www.risingsun4x4club.org/forum2/showthread.php?t=16394

Looks awesome! I am in if I can slap this puppy together in time. $$$$ will be the key factor



[broth9640]

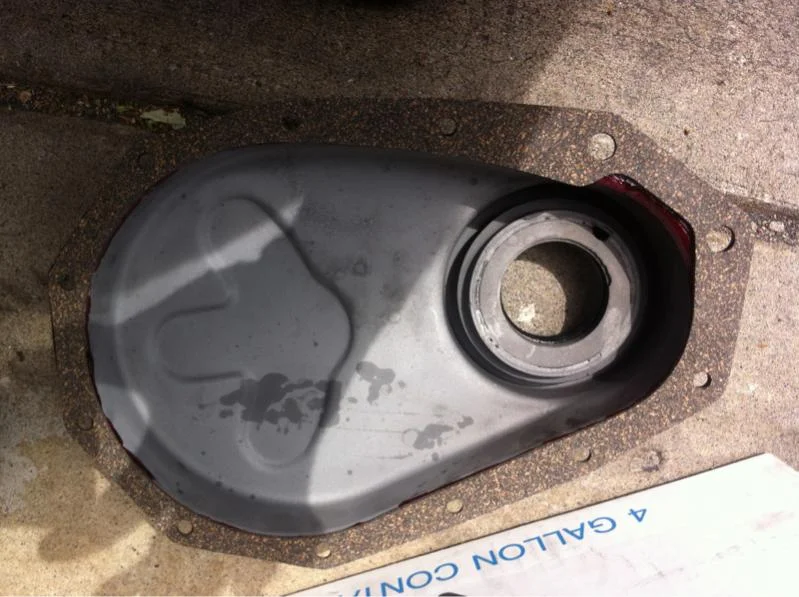

I got the timing cover back on with new seals and new bolts! I also replaced the side cover gasket since I over torqued it the first time .



[broth9640]

Crank shaft pulley installed. It called for over 250 foot lbs of torque! So I tightened it as much as possible and staked the nut. Once it's in the vehicle I will try a little body weight with the breaker bar to make sure it's as snug as possible .



[broth9640]

Pick up a new premium clutch kit from napa today. Not a bad price. 230.00 out the door and includes pilot and throw out bearing. Toyota wanted almost the same for just the pressure plate . Planning on getting this installed tomorrow



[zags]

looks great! Bolting the clean shiny stuff back together is definitely the best part!



[broth9640]

Engine installed! The last picture is of the aft drivers side engine mount. Somehow I managed to miss this when I did all my sandblasting and painting. So I had to take a break and clean and paint before I can be totally done with the engine install. New mounts took a bit to figure out since they were the new mount style instead of the old. Came out great. Clutch tomorrow along with tranny and transfer case cleanup . Then rebuild the parking brake . We'll see how far I get .



[KY Longhunter]

Crank shaft pulley installed. It called for over 250 foot lbs of torque! So I tightened it as much as possible and staked the nut. Once it's in the vehicle I will try a little body weight with the breaker bar to make sure it's as snug as possible .

Looks great!

I show that torque is 144 foot lbs on Crank Shaft Pulley, per FSM.

How did you torque it without everything moving? I suppose it takes 2 people...



[broth9640]

Sweet thanks for posting that. I thought that number seemed a bit high. I got my value from the FAQ torque guide.



Beer me.



Hugh Heifer's Avatar

Join Date: May 2006
Location: In the basement
Posts: 3,679
Garage

Max Ellery’s Land Cruiser Repair Manual 1969-1990 (FJ & RJ)
This manual is the most difficult to find specs in as they are not listed anywhere but in the procedures themselves which is great for using the manual step by step but it provides more torque specs then any other I have seen.

Here is the first half. (Although my boss rebuilds old Fords, I do not think he would appreciate what I did this afternoon at the office!)

General Maintenance
Oil Drain Plug w/new seal 29 f/lb
Spark Plugs 13 f/lb
Oil Filter 2/3rds turn past initial resistance (Use no tools)

2F & 3F Engines
Cylinder Head 90 f/lb (in sequence)
Rocker Assembly 12mm bolts 17 f/lb
Rocker Assembly 14mm bolts and nuts 25 f/lb
Intake Manifold 17mm bolts 51 f/lb
Intake Manifold 14mm bolts 37 f/lb
Intake Manifold Nuts 41 f/lb
Water Outlet Assembly 18 f/lb
Crankshaft timing gear thrust washers to block 9 f/lb
Timing Pulley Cover Bolts 14mm 18 f/lb
Timing Pulley Cover Bolts 10mm 43 i/lb (Note measurement is in inch pounds!)
Pulley Mount Bolt 253 f/lb
Power Steering Pulley Bolts 13 f/lb
Main Bearing Cap Bolts 19mm 99 f/lb
Main Bearing Cap Bolts 17mm 85 f/lb
Connecting Rod Cap Nuts 43 f/lb
Front End Plate Screws 18 f/lb
Front End Plate Bolts 22 f/lb
Flywheel to Crankshaft 64 f/lb

Fuel System
Fuel Inlet Pipe to Carb 11 f/lb
Fuel Pump to Block (w/ new gaskets) 13 f/lb

Lubrication System
Oil Pump 13 f/lb
Oil Outlet Pipe Union Bolts 33 f/lb
Union Nut 33 f/lb
Oil Pan Bolts 69 i/lb (Again in inch pounds!)
Oil Filter Bracket to Block 13 f/lb
Oil Cooler 47 f/lb

Ignition System
Spark Plugs 13 f/lb

Cooling System
Thermostat Water Outlet 13 f/lb

Charging System
Alternator Pulley Nut 45 f/lb

Clutch System
Reservoir Bleeder Plug 8 f/lb
Reservoir Tank 18 f/lb
Release Cylinder 9 f/lb
Flex Hose to Release Cylinder 11 f/lb
Pressure Plate retracting springs14 f/lb
Pressure Plate/Clutch Disc to Flywheel 14 f/lb

Manual Transmission
Reverse Restrict Pin Cover 14 f/lb
Selector Lever Shaft 27 f/lb
Rear Bearing Retainer Bolts to Transmission Case 13 f/lb
Lock Nut to Couter Gear 94 f/lb
Front Bearing Retainer w/ new gasket 12 f/lb

Xmsn Installation
Transmission to Clutch Housing 47 f/lb
Engine Rear Support Side Bolts 29 f/lb
Member Bolts 43 f/lb
Exhaust Pipe 46 f/lb
Starter (HJ and BJ models) 52 f/lb
Clutch Release Cylinder (HJ and BJ) 9 f/lb
Xfer Shift Lever to Xfer Case 18 f/lb
Front and Rear Drive Shafts 65 f/lb
