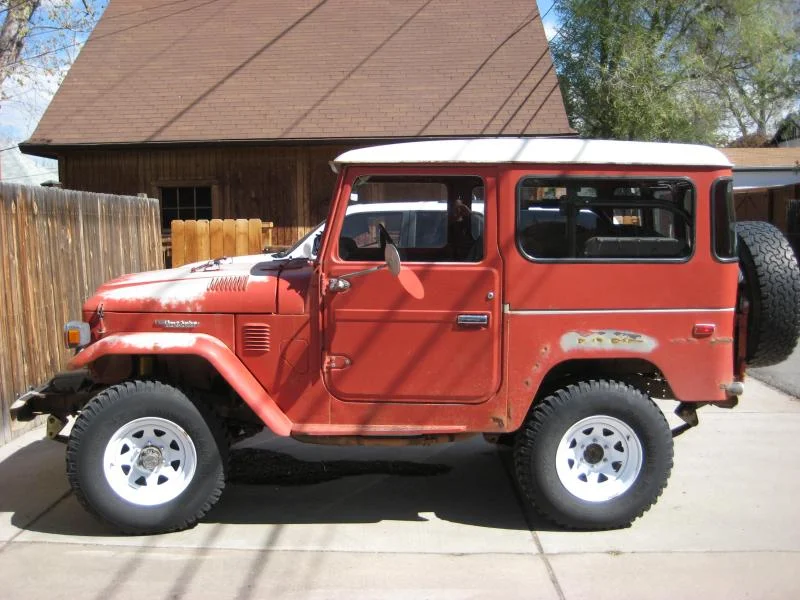

    Bought my FJ in Durango Colorado on May 2nd and drove it back to Denver. Here are a few pics from the drive.
    IMG_0244.jpg IMG_0252.jpg IMG_0613.jpg

    Last edited: Jul 18, 2011
  2. broth9640

    broth9640

    Messages:
    1,625
    Likes Received:
    411
    Joined:
    May 4, 2011
    Location:
    Denver

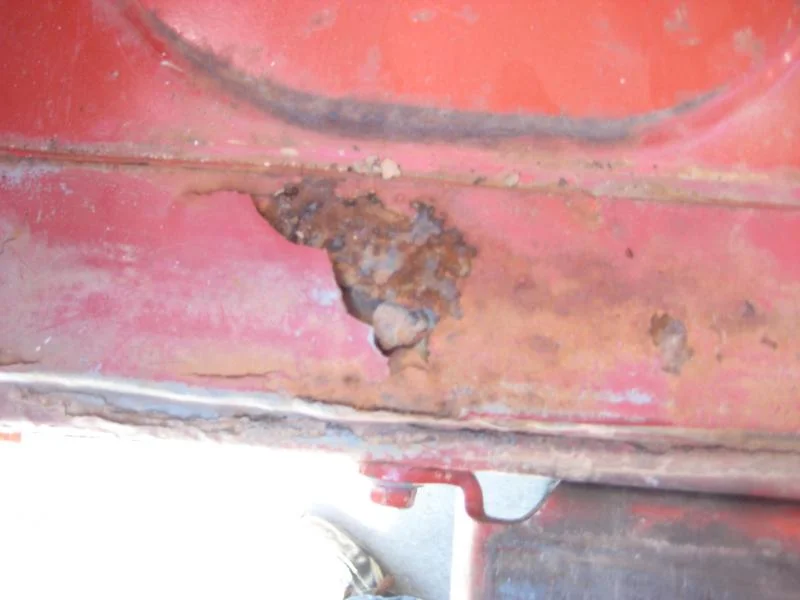

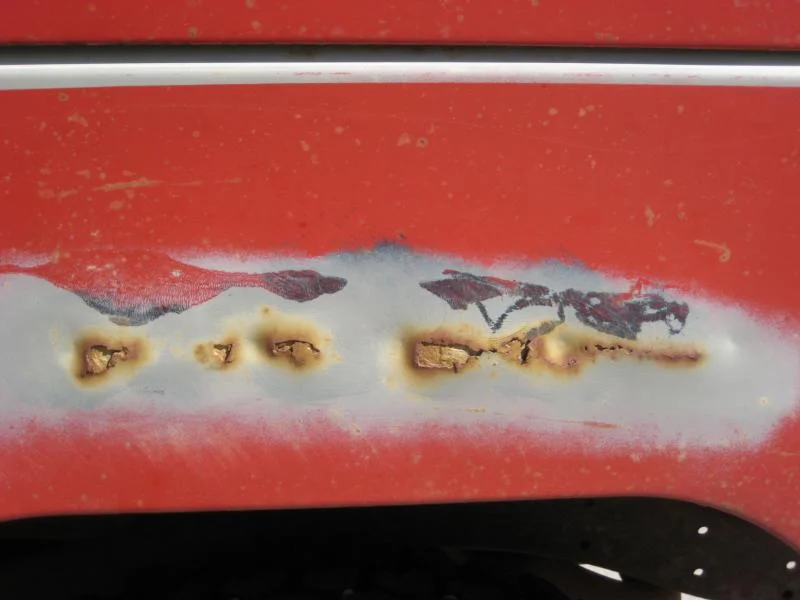

    Here is some close ups of the rust situation. After asking around on the forums I have decided to salvage the tub despite zero experience with a welder.
    IMG_0617.jpg IMG_0623.jpg IMG_0620.jpg

  3. broth9640

    broth9640

    Messages:
    1,625
    Likes Received:
    411
    Joined:
    May 4, 2011
    Location:
    Denver
  4. broth9640

    broth9640

    Messages:
    1,625
    Likes Received:
    411
    Joined:
    May 4, 2011
    Location:
    Denver

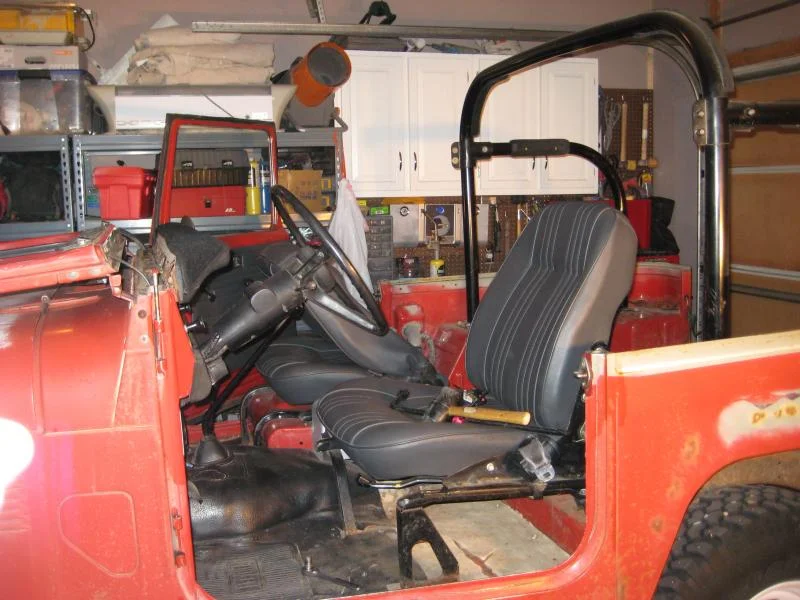

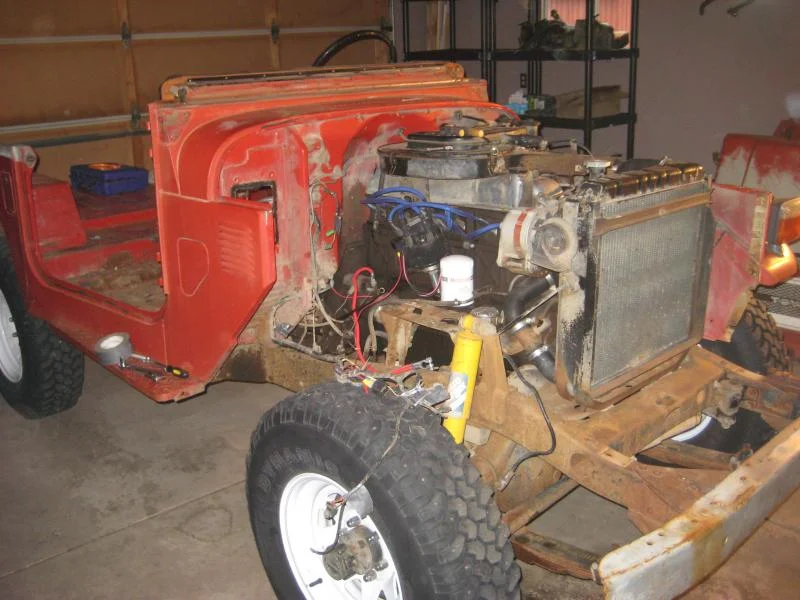

    I thought I would just drive this thing around for the summer before starting the restoration, but reading this forum got the best of me. The break down has begun!

  5. broth9640

    broth9640

    Messages:
    1,625
    Likes Received:
    411
    Joined:
    May 4, 2011
    Location:
    Denver
  6. Michael Hanson

    Michael Hanson

    Messages:
    7,825
    Media:
    3
    Likes Received:
    48
    Joined:
    Oct 30, 2007
    Location:
    Plano texas
    At least you will put Money back into the economy. mike

  7. broth9640

    broth9640

    Messages:
    1,625
    Likes Received:
    411
    Joined:
    May 4, 2011
    Location:
    Denver
    Day 2

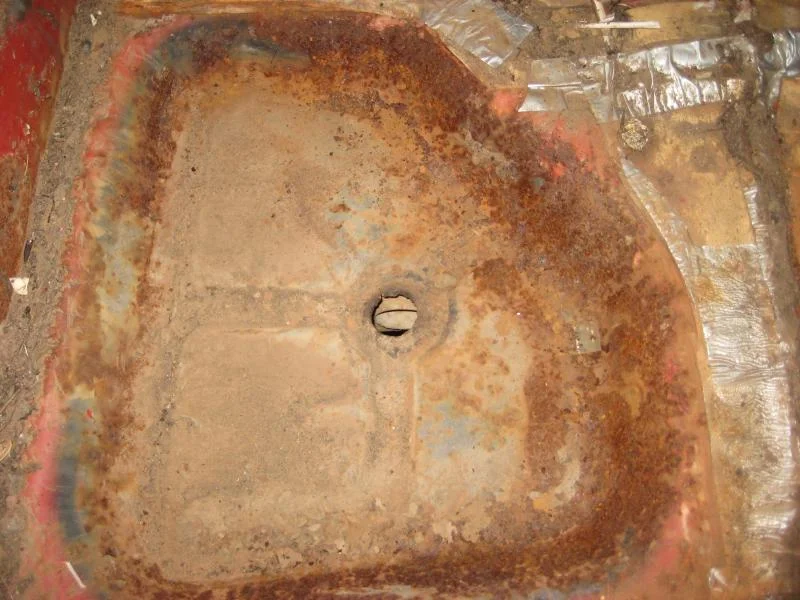

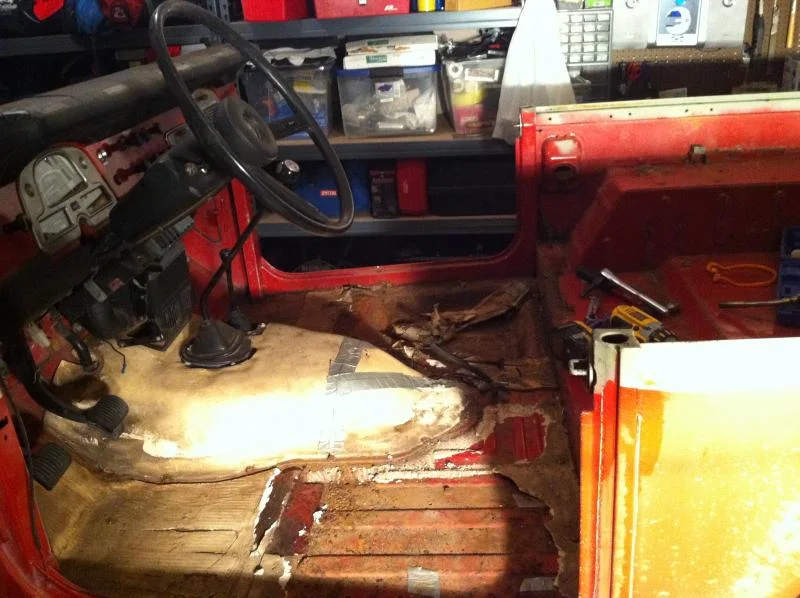

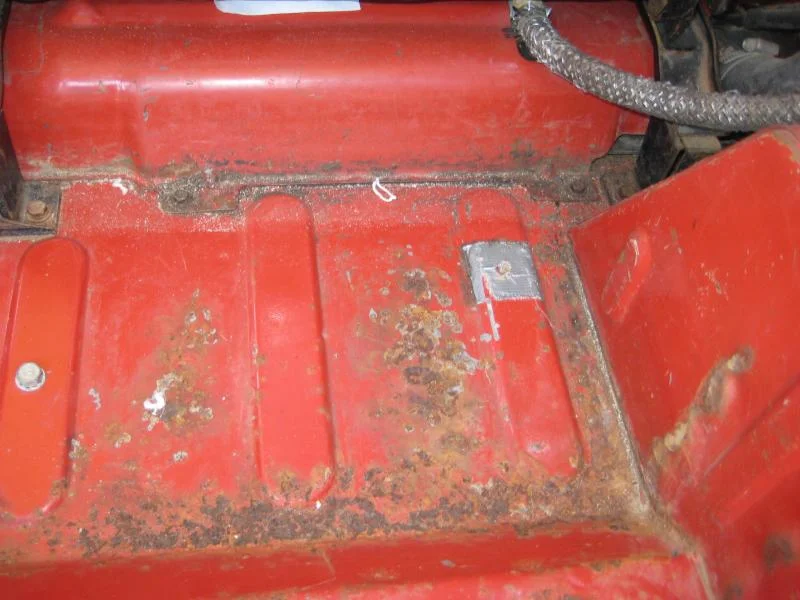

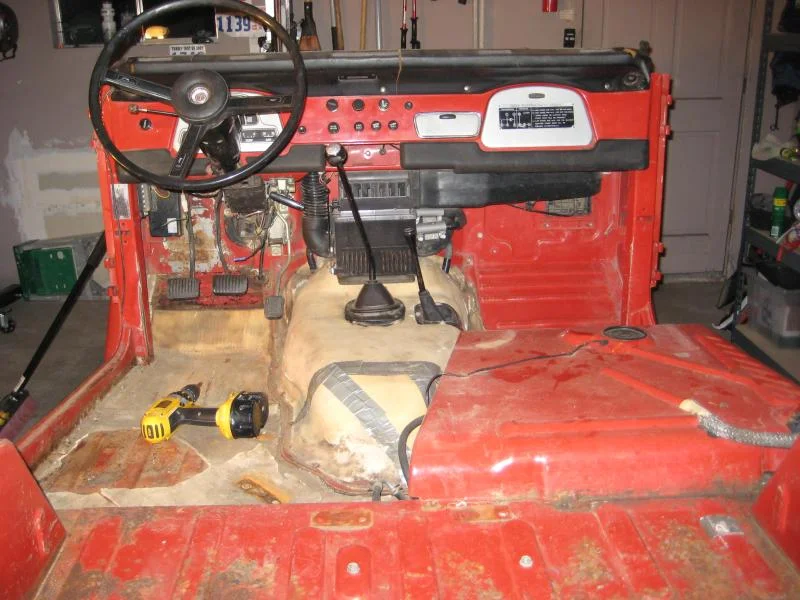

    A little bit of rust under the gas tank, but not too deep. Hoping that it comes back from the sand blaster looking good with no holes in the floor.:hmm:
    IMG_0664.jpg IMG_0261.jpg IMG_0674.jpg

    Last edited: May 11, 2011
  8. broth9640

    broth9640

    Messages:
    1,625
    Likes Received:
    411
    Joined:
    May 4, 2011
    Location:
    Denver

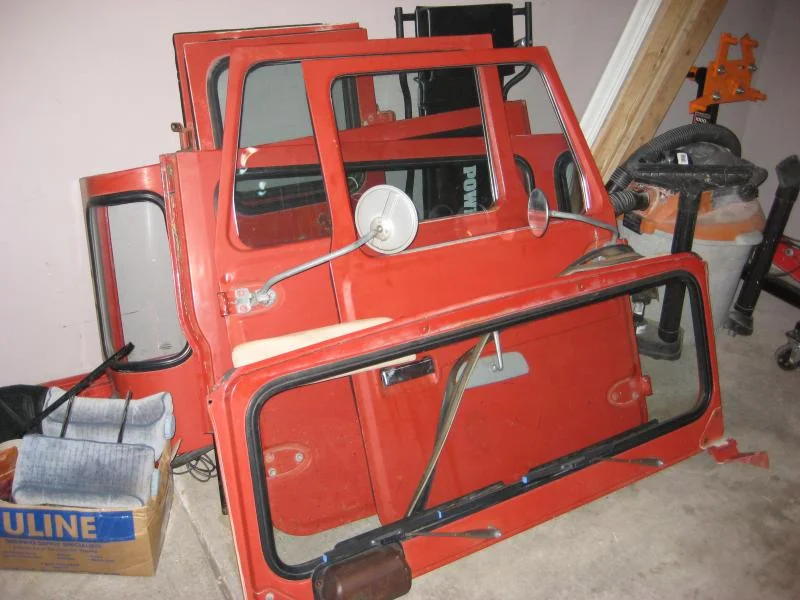

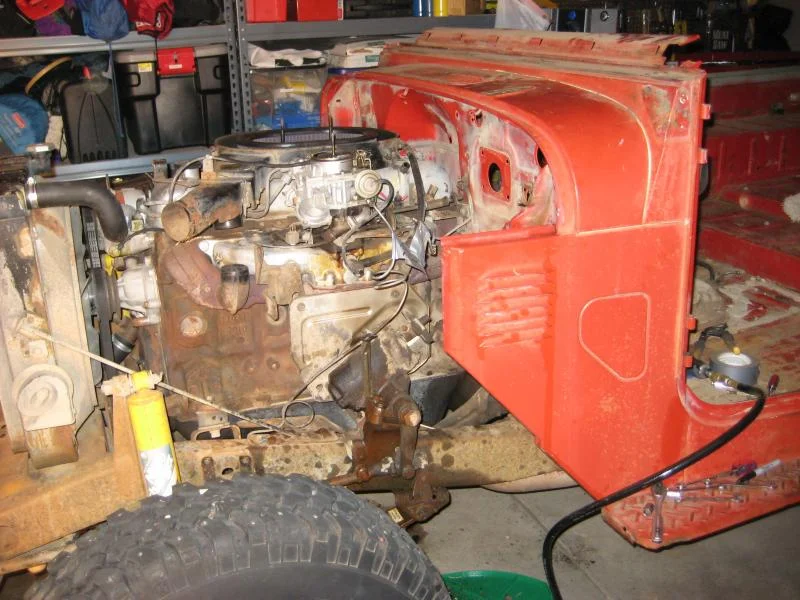

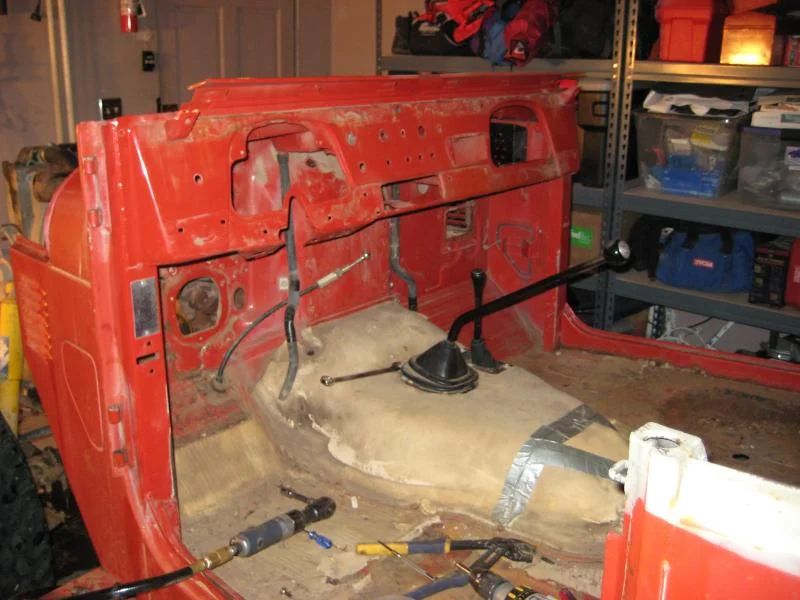

    Day 3: wiring harness,brakes,clutch, fenders, grill,hood,heater, steering, almost ready to pull the tub.
    IMG_0703.jpg IMG_0762.jpg IMG_0763.jpg

  9. broth9640

    broth9640

    Messages:
    1,625
    Likes Received:
    411
    Joined:
    May 4, 2011
    Location:
    Denver

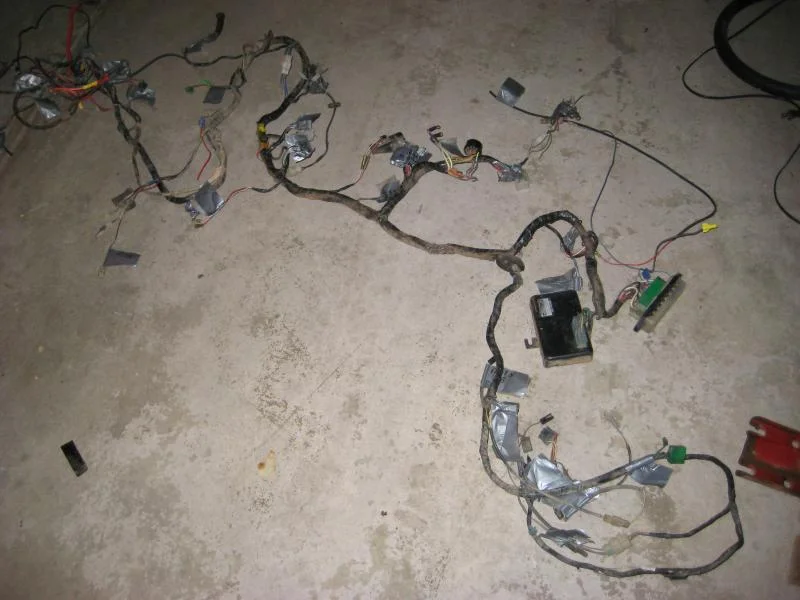

    Wiring Harness.....I am surprised that it is in such great shape. I am considering reusing it. Any thoughts on reusing V.S. a Painless Harness?

  10. ArkansasLarry

    ArkansasLarry

    Messages:
    110
    Likes Received:
    3
    Joined:
    Apr 19, 2011
    Location:
    Fort Smith, Arkansas
    Nice to see Wolf Creek, was there during spring break. Good luck with the build!

  11. peiserg

    peiserg

    Messages:
    211
    Likes Received:
    9
    Joined:
    Mar 5, 2008
    Damn, holmes, you have a LOT of work in front of you with that much rust...

    good to see another one getting saved.

    I did a frame-ON resto on my 9/75 fj40 about 4 years ago. Ran me about $15k and was money well spent.

  12. LSUfj

    LSUfj

    Messages:
    613
    Likes Received:
    19
    Joined:
    Nov 16, 2006
    Location:
    Fort Worth, TX
    As long as you enjoy welding you should have fun. I am going through the same steps with my 2/75. Looks like you'll have a lot of patching to do. If you need any tips for removing any panels, let me know. Most of this is still fresh in my mind. I would definitely recommend getting some good spot weld bits or pilot point bits and an air chisel for separating panels. It looks like you have original paint, so at least nothing is being hidden.

    Good luck!!

  13. antFJ

    antFJ SILVER Star

    Messages:
    3,906
    Likes Received:
    571
    Joined:
    Jan 25, 2007
    Location:
    Lincoln, CA
    i vote reuse the harness! mine looked like that with no cuts and missing connectors.. hell even if you have some missing ones you can get new ones from coolerman...

    take it apart section by section clean the wires rewrap them and make sure to clean the fusebox connections and you're good to go!

    keep it up!

  14. broth9640

    broth9640

    Messages:
    1,625
    Likes Received:
    411
    Joined:
    May 4, 2011
    Location:
    Denver
    LSUfj: Yes I will need a few tips on getting these panels apart. Enjoy welding? Well I am a newbie at it, but I have always wanted to learn. That is actually a big reason I decided to just go for it.

    antfj: I agree about reusing the harness. It is in great shape! I was totally shocked at how well this thing was wired. I used to own a jeep and that thing was a F&^%$ing rats nest. Coolerman? Is Coolerman a person or a website? Haven't heard of it. I will google it.

    I need some more input. I should have the tub off today. I plan on having the frame blasted and powder coated along with the leaf springs. I also plan on rebuilding the axles and painting them. Should I send the frame and springs off to powder coat before I have the tub blasted? I just hear a lot about flash rust and I would like the frame done before I put the tub back on for welding work. Dealing with the chassis could take a bit. Thoughts on the order of things?
