OEM Bottle Jack Restoration (1 Viewer)

[treerootCO]

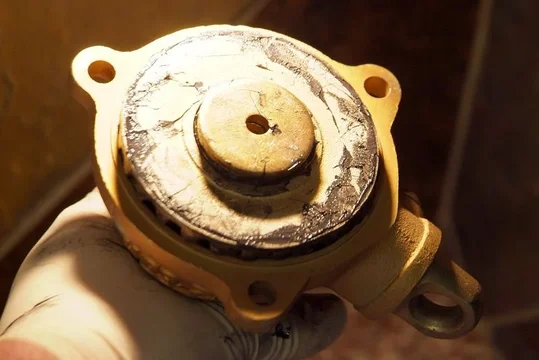

Decided to take the bottle jack to the next level

GOLD!!!!






#2 cad in case you were wondering
09110-35011 - TEQ - slotted head screws - 1965-68

Parts list:

• Jack body
• Jack base
• Jack screw top
• Lifting piston
• 3 long screws (base)
• 3 split washers (base)
• 2 small screws (no washers)
• 19 ball bearings
• 2 ball bearing races
• Lift screw
• Crank
• Retaining clip



[treerootCO]

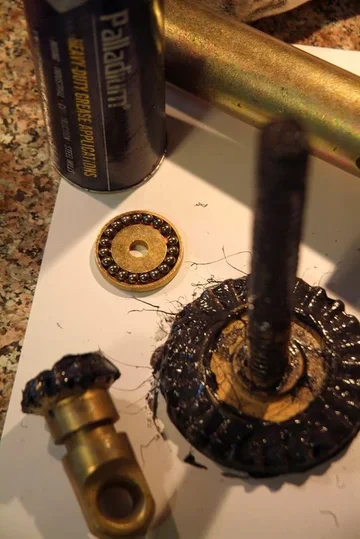

Disassembling the jack is pretty straight forward. I would recommend using JIS drivers for the later jacks with Phillips headed screws. One thing that has been mentioned but not documented is the retainer clip that prevents the screw top from coming out. In the parts picture, it is the clip above the ball bearings. Forcing the screw past the stop is the easiest way; however, it can also be removed through the base if you have the time.

Best Jack thread on mud:
https://forum.ih8mud.com/40-55-series-tech/741059-fj-series-oem-jack-reference.html



[Coolerman]

You almost had me...
It looks good! Put it on E-Bay and ask $500 for it...



[treerootCO]

I wonder what the market is at for gold jacks....hmmmmm



Why would I cad plate a bottle jack? Especially an early one at that....

Because it is awesome, it hopefully brightens someone's day, and... he has a few friends



[JohnnyC]

they would be nice painted rainbow and keep the gold one at the end

nice job... i thought maybe you found a jack from a Sheik



[simps80]

Very cool!!
that looks awesome



[erics]

, and... he has a few friends

View attachment 869711

they all look so happy... like "is that a roll of quarters in your pocket or are you happy to see me" happy



[DSRTRDR]

I agree on the rainbow

but I still wouldn't want them in the house



[Poser]

Very nice Mike man!



[bubfuji]

I wonder what the market is at for gold jacks....hmmmmm



Why would I cad plate a bottle jack? Especially an early one at that....

Because it is awesome, it hopefully brightens someone's day, and... he has a few friends

View attachment 869711
View attachment 869711

Hello,
Looking for a clean image of the toyota label (foil label) on the 1st jack in your picture. I am restoring this Jack model and would like to reproduce the label.
Eric



[B1oodyBuzzard]

Did you replace any seals for reassembly? if so who sells them? I have 1980 (green letter sticker) Thats kinda hard to turn.



[NW40]

Did you replace any seals for reassembly? if so who sells them? I have 1980 (green letter sticker) Thats kinda hard to turn.

@B1oodyBuzzard There are no seals in these mechanical jacks. Just steel gears, ball bearings, and heavy duty grease. No hydraulics to mess with. A surprisingly straightforward rebuild. Only thing you may have to replace are the ball bearings if they’ve worn down under heavy use, though mine were fine. Take a weekend and do it! I may post some rebuild pics soon to my build thread, if you want another reference.



[fjman]

I wonder what the market is at for gold jacks....hmmmmm



Why would I cad plate a bottle jack? Especially an early one at that....

Because it is awesome, it hopefully brightens someone's day, and... he has a few friends

View attachment 869711
View attachment 869711

So the really tall Jack... do you know specifically which year cruisers got that one? With my truck, taller is better!
