Locker switch (1 Viewer)

[xtiaan2000]

Anyone know a person who has hooked up their lockers to this switch?



[RocketCityCrzrs]

I've done a couple. What flavor locker?



[xtiaan2000]

I have Eaton/Harrop



[WarDamnEagle]

I hooked that switch up using the FZJ80 controller to a pair of TRD lockers that I retrofitted into a 1985 4Runner. Here's the thread, which at least will give you the wiring diagram for the switch:

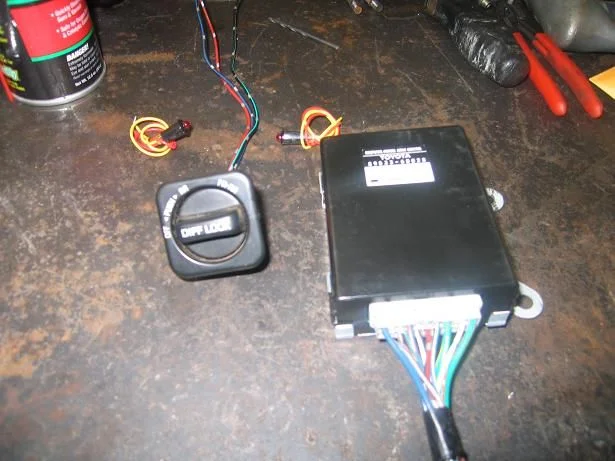

Wiring TRD elockers with an FZJ80 elocker ECU and switch

OK, I'm going to try to write this up as logically as possible for the FAQ. Please let me finish all the posts before you reply with comments. I decided to install TRD elockers front and rear with 4.56 gearing in my 1985 4Runner. Although there are many good ways to wire and control the...

forum.ih8mud.com



[xtiaan2000]

Thanks guys!



[WarDamnEagle]

Ran across this thread today that you might find handy as well.

Harrop E-Locker using OEM Switch and Dash Lights in a HDJ81 / FJ80

I decided to put this thread together for anybody wanting to wire Harrop E-Lockers into an HDJ81 or FJ80 using the OEM locker switch and locker dash lights. I found most of the info spread out over a couple of other 'Harrop" threads and wanted to put it all together in one place and add some...

forum.ih8mud.com



[PabloCruise]

Ran across this thread today that you might find handy as well.

Harrop E-Locker using OEM Switch and Dash Lights in a HDJ81 / FJ80

I decided to put this thread together for anybody wanting to wire Harrop E-Lockers into an HDJ81 or FJ80 using the OEM locker switch and locker dash lights. I found most of the info spread out over a couple of other 'Harrop" threads and wanted to put it all together in one place and add some...

forum.ih8mud.com

Good find!
