How To: HID+Projector Retrofit on a 100 Series. (1 Viewer)

[70 FJ40]

I am looking doing the retrofit for my 99 LC. I basically need to purchase the following kit and follow the process in this thread. Any other tip or tricks or coupons?

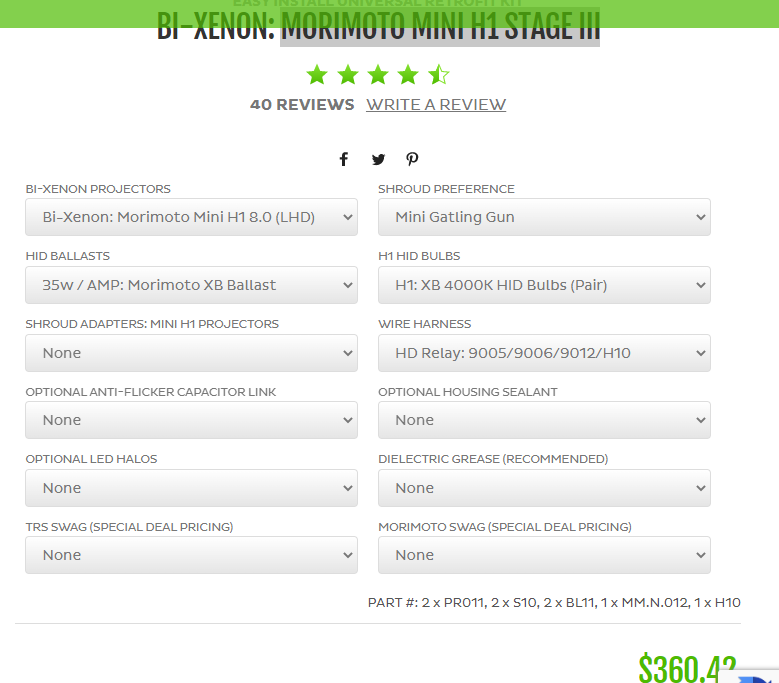

BI-XENON: MORIMOTO MINI H1 STAGE III​

B-RFK-MH1-TRS
View attachment 3013813

I'm wondering the same. I'm really tired of rhe poor light output from factory lights. Mine is a 01 LC glass lenses appear to be in great shape.



[zaks]

Hey guys, I'll bump this with the completion of my quad-projector retro for my '06. D2S's in the high/low beam spot, Mini H1's in the highs. LED strip along the outside of the high beam reflector housing that also function as indicators. LED bulbs in the signals (not 100% sold on those but happy for now). Overall, incredibly happy with how much light these things put out.


Low's only:

High and low both:

DRL's only (on whenever ignition is on, OEM setting)

Before you ask, no I did not attempt this myself, I had it done by Dan at RIHIDS in Woonsocket Rhode Island. Nice guy, does great work and would recommend to anyone in the area (or elsewhere for that matter) looking to have more light.

How exactly was this wired? i’m planning to do the same setup and want both highs and lows on when highs are on. Thanks!



[mkivtdi]

How exactly was this wired? i’m planning to do the same setup and want both highs and lows on when highs are on. Thanks!

I guess I'm reviving an old-ish thread, but there aren't many active ones!

I have Depo lights sitting in my garage for my LC and I'm planning to order the TRS retrofits...
But does anybody have a diagram or explanation of how to deal with the DRL/HighBeam situation? I figure if i'm going to open these headlights up, I might as well add a projector in the hi-beam slot, too?

Or does that make the situation overly complicated and to stick to the low-beam?



[Gnarwgn]

I guess I'm reviving an old-ish thread, but there aren't many active ones!

I have Depo lights sitting in my garage for my LC and I'm planning to order the TRS retrofits...
But does anybody have a diagram or explanation of how to deal with the DRL/HighBeam situation? I figure if i'm going to open these headlights up, I might as well add a projector in the hi-beam slot, too?

Or does that make the situation overly complicated and to stick to the low-beam?

Assuming you are working with 98-02 housings (with the glass lenses) I would suggest the morimoto 2-stroke for the high beam. The issue with more than 2 projectors is that it becomes more difficult to get alignment since they're really designed to align as pairs, not quads. The 2 stroke solves this because its designed to reflect, not project. So you get a nice bright reflected light output combined with your low beam projectors opened all the way up (because the solenoid gets activated when you flip to high). And the 2 stroke looks better when in DRL mode, IMO. Plenty of light on high, plenty of light on low. If you find yourself wanting more light - I think that's when you go to the hood mounted pods and/or light bars, and/or ARB style bumper mounted lights.



[mkivtdi]

Assuming you are working with 98-02 housings (with the glass lenses) I would suggest the morimoto 2-stroke for the high beam. The issue with more than 2 projectors is that it becomes more difficult to get alignment since they're really designed to align as pairs, not quads. The 2 stroke solves this because its designed to reflect, not project. So you get a nice bright reflected light output combined with your low beam projectors opened all the way up (because the solenoid gets activated when you flip to high). And the 2 stroke looks better when in DRL mode, IMO. Plenty of light on high, plenty of light on low. If you find yourself wanting more light - I think that's when you go to the hood mounted pods and/or light bars, and/or ARB style bumper mounted lights.

Yes, I've got an '00 but went with the DEPO one piece with integrated turn signal style housings.

I think I've read about the 2 stroke suggestions before, I think I'll go that way! Thanks, Gnar



[ScotyDosentKnow]

I guess I'm reviving an old-ish thread, but there aren't many active ones!

I have Depo lights sitting in my garage for my LC and I'm planning to order the TRS retrofits...
But does anybody have a diagram or explanation of how to deal with the DRL/HighBeam situation? I figure if i'm going to open these headlights up, I might as well add a projector in the hi-beam slot, too?

Or does that make the situation overly complicated and to stick to the low-beam?

I purchased everything to do a retrofit on their black friday sale, just havent gotten around to doing it yet. I emailed TRS and ended up purchasing this relay harness to use. Hopefully this is of some help!

HD Relay: 9005

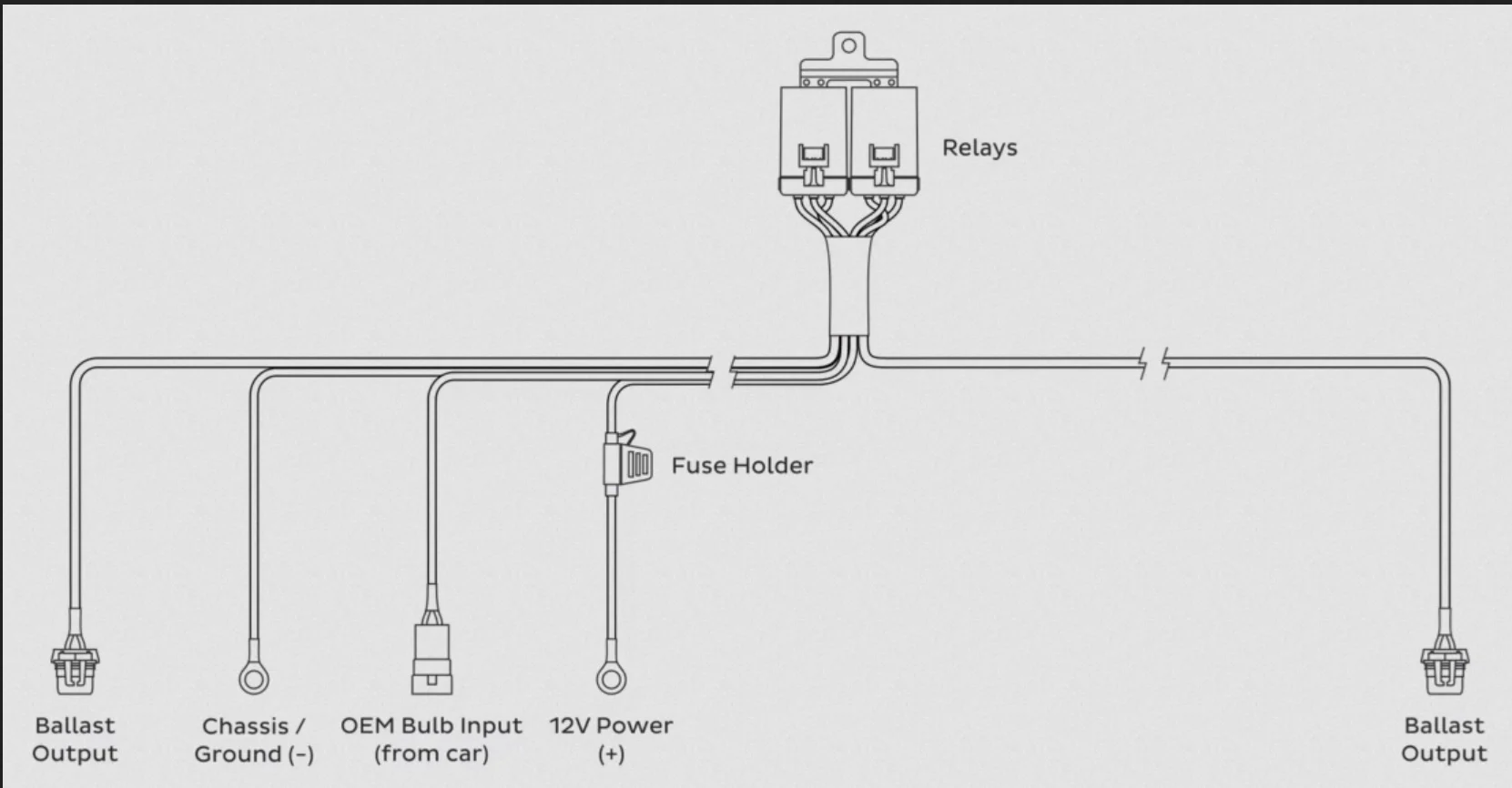

Plug n Play Power! The 9005 HD Relay Harness is amazing with its advanced dual-relay setup, OEM grade wiring, & easy six-connection setup. TRS

www.theretrofitsource.com



[mkivtdi]

I purchased everything to do a retrofit on their black friday sale, just havent gotten around to doing it yet. I emailed TRS and ended up purchasing this relay harness to use. Hopefully this is of some help!

HD Relay: 9005

Plug n Play Power! The 9005 HD Relay Harness is amazing with its advanced dual-relay setup, OEM grade wiring, & easy six-connection setup. TRS

www.theretrofitsource.com

Appreciate it! Which kit did you end up going with -- did you do halos on the shrouds?



[ScotyDosentKnow]

Appreciate it! Which kit did you end up going with -- did you do halos on the shrouds?

No not really into the halos look. Everything I ordered was basically Morimoto D2S, I copied what others have used previous



[skookum]

I purchased everything to do a retrofit on their black friday sale, just havent gotten around to doing it yet. I emailed TRS and ended up purchasing this relay harness to use. Hopefully this is of some help!

HD Relay: 9005

Plug n Play Power! The 9005 HD Relay Harness is amazing with its advanced dual-relay setup, OEM grade wiring, & easy six-connection setup. TRS

www.theretrofitsource.com

View attachment 3806589

@mkivtdi as well - I'm preparing to do this Depo 1-piece retrofit as well. Instead of adding a second projector to the high-beam housing, I want to run the bixenon shutter from my high beam switch, and run a separate auxiliary light into that reflector (along the lines of a Baja XL80 or Squadron). Any tips for how to handle the DRL delete in this case?



[pman]

@mkivtdi as well - I'm preparing to do this Depo 1-piece retrofit as well. Instead of adding a second projector to the high-beam housing, I want to run the bixenon shutter from my high beam switch, and run a separate auxiliary light into that reflector (along the lines of a Baja XL80 or Squadron). Any tips for how to handle the DRL delete in this case?

It depends on what year 100 you have. On 98-02 you can clip a wire and disable it. Google is your friend.

DRL Question on LC

Just got my '99 LC in January (only 50k miles - :) ). Is there any way to turn my DRL's off (besides turning the main headlights on)??? The only time that the DRL's won't come on when my car is running is when i have it in park with the parking brake set and i am turning the vehicle on. the...

forum.ih8mud.com



[Octous]

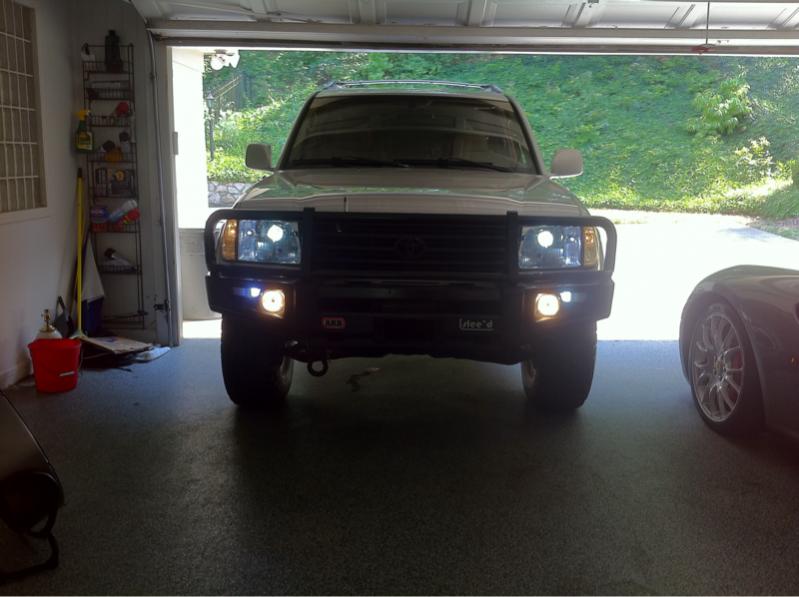

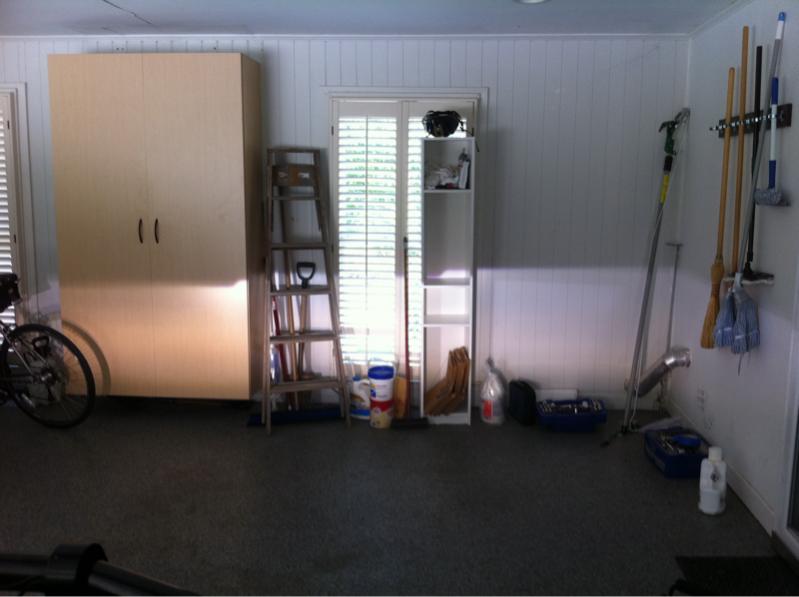

100% finished. First retro on a 2000 headlight that I know of. Excellent turnout, few speed bumps but managed to get it all patched up and can't wait for the first drive tonight

Sent from my iPhone using IH8MUD
View attachment 530138View attachment 530139View attachment 530140

It's been >10 years. How is the headlight mod holding up? I'm worried about all of the washboard road driving that I do and shaking the HID lenses to pieces.
