Hi there @medtro On my 98 LX a past owner (that I do not have the ability to contact) jumped the EFI fuse to the AC fuse to power the fuel pump. This enables the truck to run... which is great... but results in the AC receiving power when it should be off causing a parasitic draw. I did a bunch of searching and found this thread.


Based on what you know - would your kit solve for this issue? If so I would love to purchase one ASAP. Will also send you a DM. Thank you!


Hi there @medtro I missed your post #51 detailing how to test conditions. I followed your guide and I confirmed that I do need your kit! Thanks for making it so simple for everyone. Sending you a DM with my shipping details. Thanks!

Hello Medtro, I just started having this problem on my 98 Land Cruiser (325k) and fear it'll eventually happen on my 03 as well.
Please e mail me at wpbaldwin@gmail.com so I can make a purchase! Thank you!

medtro said:
This bypass kit bypasses the bad EFI relay circuit in the fuse box so that the immobilizer system gets adequate power supply for starting the car. I made this for myself after my new 30A replacement fuse - initial fix for crank but not start problem, failed to start after 4 days. Some members have showed interest in the kit and asked me to sell this kit.

This bypass kit is for you if:
  • You are told a new fuse box 82720-60023 will fix your intermittent starting problem but you don't want to spend $700 just for the part alone
  • You have intermittent starting problem and you replaced the 20A EFI fuse with 30A fuse or paper clip
  • You have intermittent starting problem and you have been tapping or removing/replacing relays and fuses in the fuse box
  • You want to have this kit in your glove compartment in case you run into this crank and non starting problem

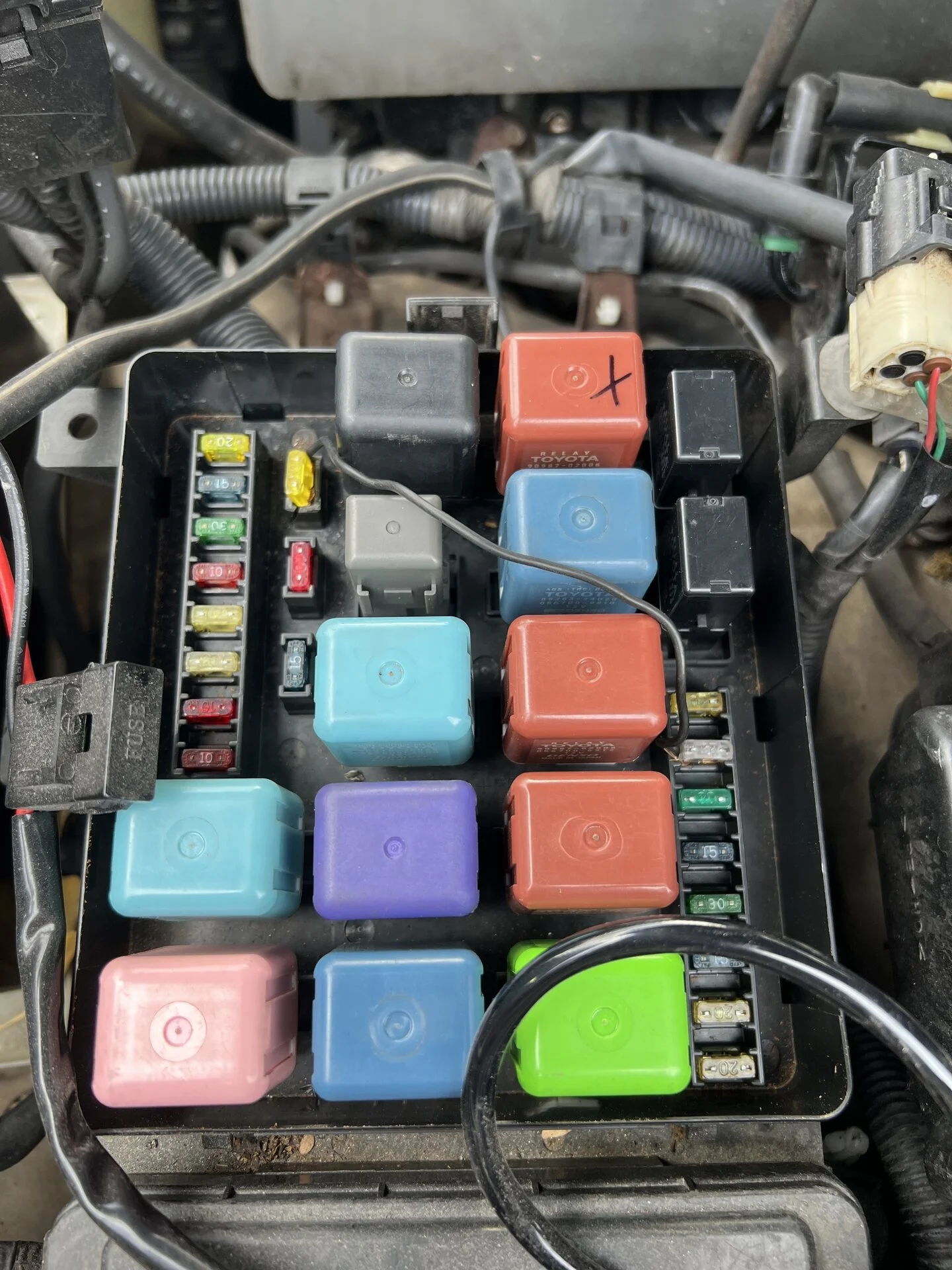

The kit is designed to connect to EFI fuse slot. It is 100% plug and play provided there is no damage to the EFI fuse slot. If your EFI fuse slot is melted or damaged, you will need to connect the kit to the battery.

Kit comes with relay, 20 AMP fuse and installation instructions. Fuse holder may not be the same as shown in picture. $135 shipped to 48 states. Please contact me for payment info or shipping cost outside 48 states.

View attachment 1839355
Click to expand...
would like to purchase a kit, have a 98 100. production date 5/98.
mikesyn@outlook.com
