Here are the pics from the first diff that got regeared at Cascade Cruisers bearing packing party.

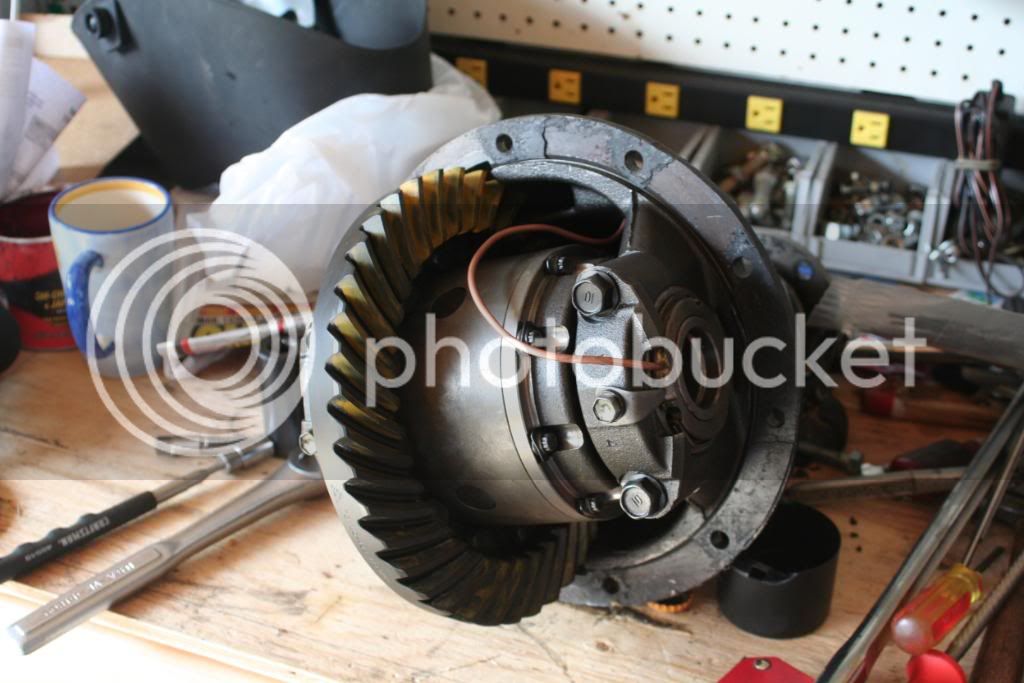

Carriers out.

ARB carrier with 4.11 still on.

Big tools get the job done.

If that one didn't do the job, there was an even bigger one!

Removed the pinion and driving out the races.

Clint had a howl in the rear diff after the ARB install even after taking it back to who set it up a couple times to fix it. Clint just lived with it and when the pinion bearing race was wiped down it became obvious why he was getting so much noise. Looks like the bearing was pounded into the race and left ridges for the rollers to slap against when spinning thus making a loud howling sound that got louder and increased in pitch the faster he went. The crush sleeve also looked "readjusted" from the hammer marks we could see on it.

Starting the reassembly and setup procedure.

That's all I got. I ended up wheeling around the property and after a few videos I ran out of battery life.



[chicago]

Diffs FRIGHTEN me!
That would be a awesome skill to learn for sure!
BIG BRASS KEHONES fellas!

Chicago



[Dirtgypsy]

Wow--ALmost rolling. Very nice work.

Getting closer for sure. Still sorting out rear shocks and time to do it! Thanks!!

Diffs FRIGHTEN me!
That would be a awesome skill to learn for sure!
BIG BRASS KEHONES fellas!

Chicago

And brass drifts Actually diffs really were not as bad as I thought just super time consuming. About 3 hours on each one!

Got some more time yesterday on the truck. Kept getting side tracked with the nice weather but did get to a few items:

Front ARB'd and patterned (thanks duane).

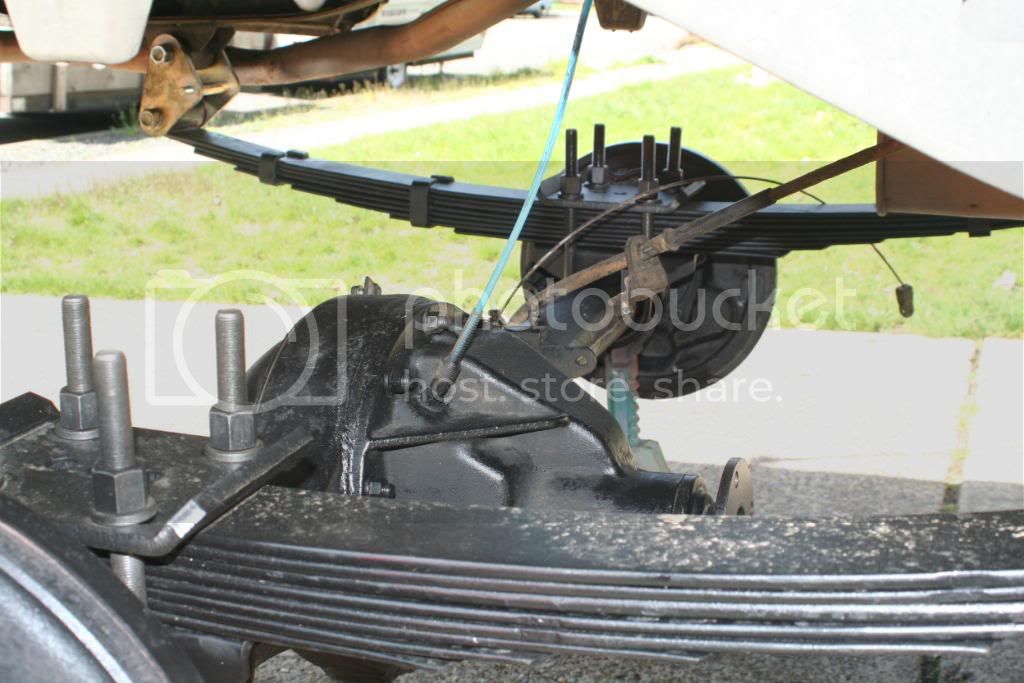

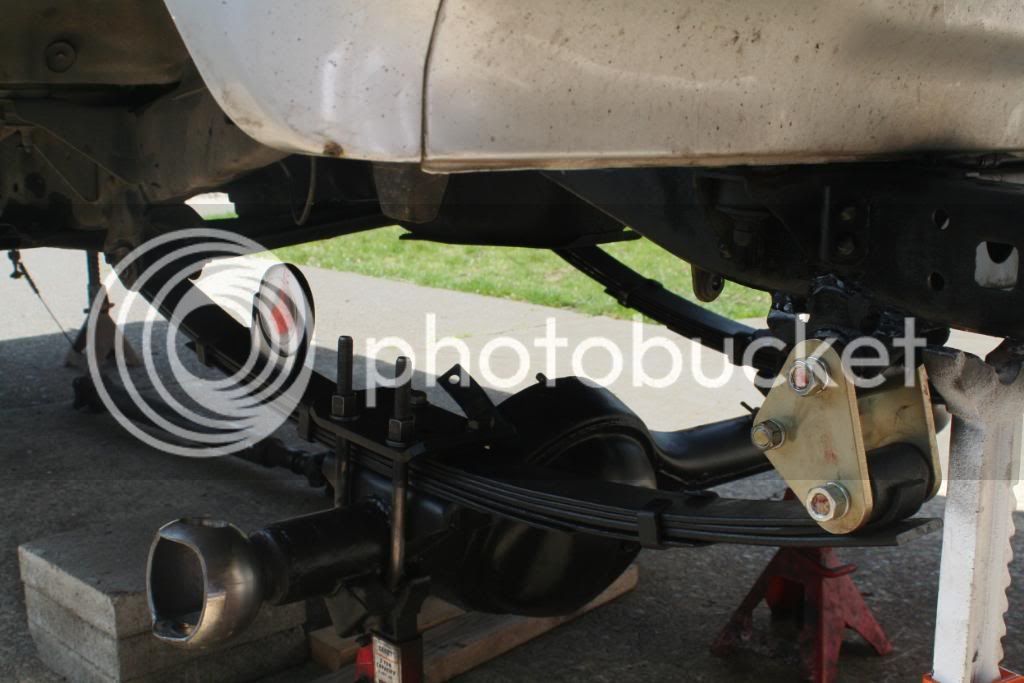

Rear Full Floater freshened up and diff installed:

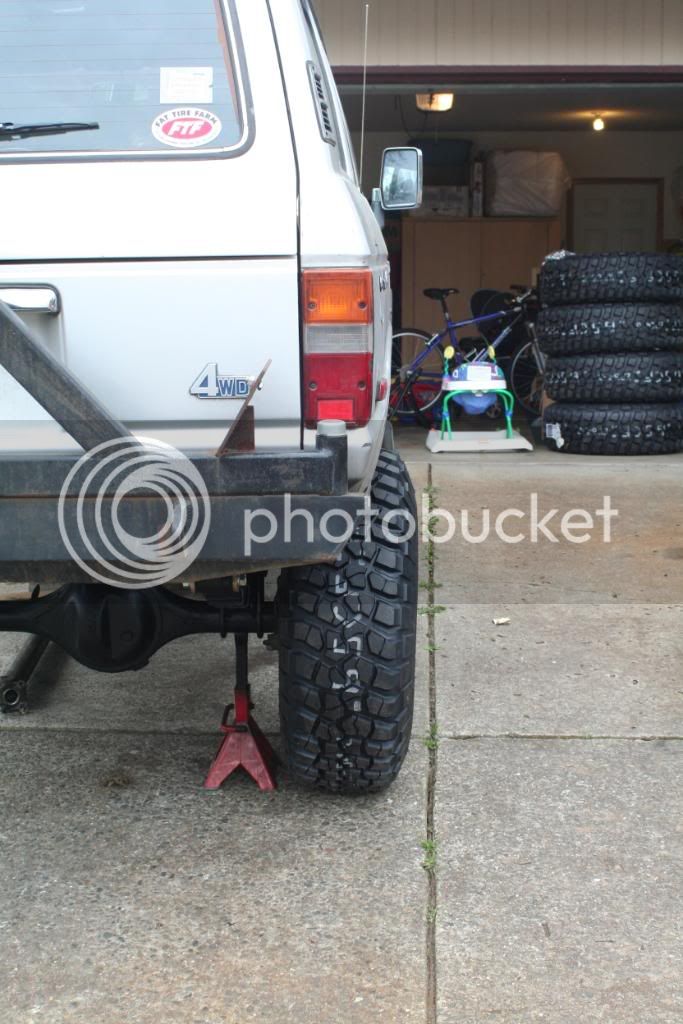

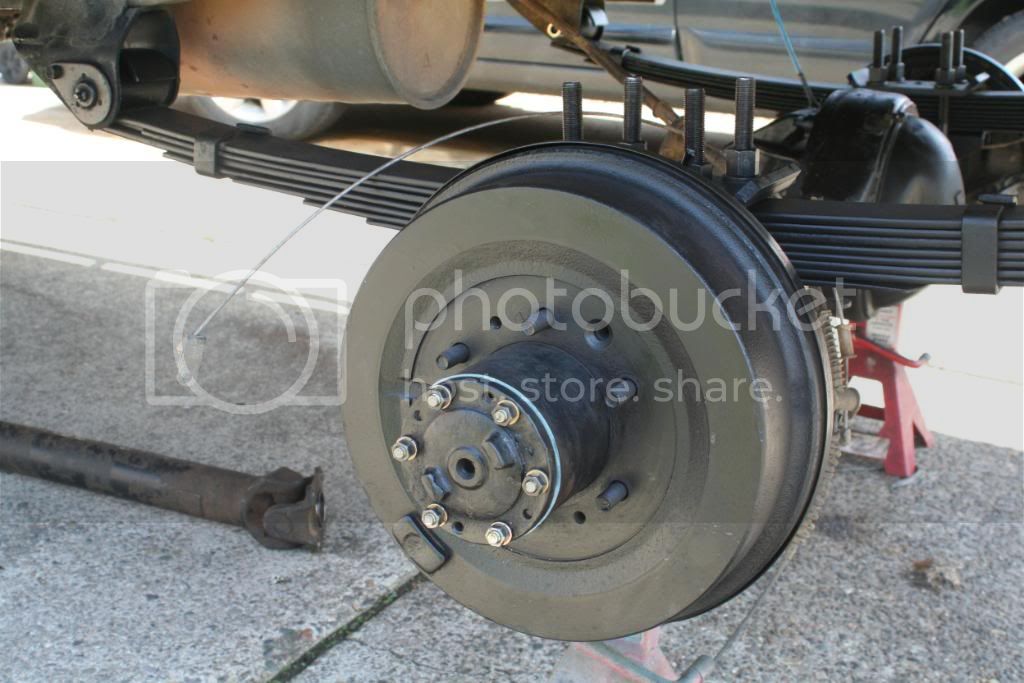

Rear ARB line installed and checking for parking brake fit:

Front housing in it's final spot ready for rebuild:

In case you guys are wondering how I am getting this done so fast I will let you in on a little secret. I have some help!!

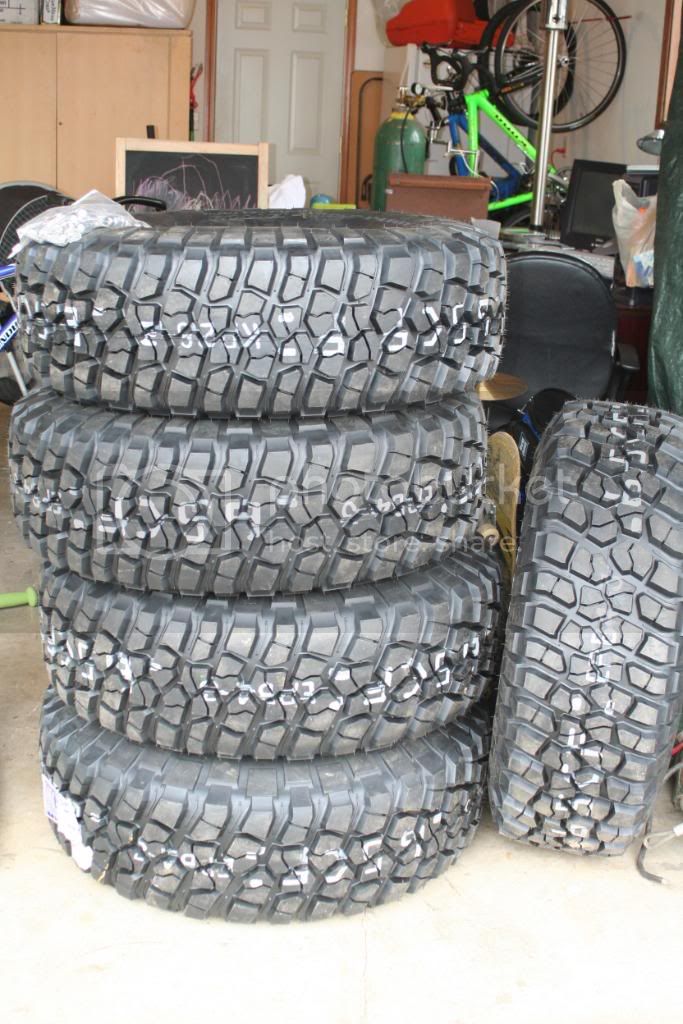

That's it for now. I was hoping to have more but it is what it is. Hope to have the front axle built by wed (pending brake parts and time) as well as the best stuff wheels and tires!!!!

I do have a request from you SOA peeps. I am having problems getting my rear shocks up. The angles are good but I only have about 1-2 inches of shock shaft showing on 12" travel shocks. I am not committed to using these but after reading that the last 5 SOA all used 12" shocks I am surprised mine are no where close to working. I have seen the upper shock mounts in previous threads but am looking for some more options. Any help is appreciated!!

Clint



[rookie54]

Are you talking about front or rear shocks? I'm currently a 40 guy but curious on SOA 60 stuff. I did the front shock tower extension on my lift to get full travel. Rear needed none to get full 10" travel. What shocks you using and do you expect to get full 12" travel and still have no rub/bind anywhere? Any need for limiting straps/bump stop modification?



[Cruiserdrew]

Are you talking about front or rear shocks? I'm currently a 40 guy but curious on SOA 60 stuff. I did the front shock tower extension on my lift to get full travel. Rear needed none to get full 10" travel. What shocks you using and do you expect to get full 12" travel and still have no rub/bind anywhere? Any need for limiting straps/bump stop modification?

I can sort of answer-You do need to extend the bump stops, a lot. I used the same combo of shocks-10 inch extension on the rear and 12 in the front.



[Dirtgypsy]

Are you talking about front or rear shocks? I'm currently a 40 guy but curious on SOA 60 stuff. I did the front shock tower extension on my lift to get full travel. Rear needed none to get full 10" travel. What shocks you using and do you expect to get full 12" travel and still have no rub/bind anywhere? Any need for limiting straps/bump stop modification?

I am not expecting to get a full 12" of travel. I found a great deal on a set of new 5 way Rancho shocks a while back while collecting parts and bought them. They are 12" travel and I was asuming that they would do the trick especially with what others in the SOA/ Buld up threads have been running. I was also lookign at extending the bump stops to limit up travel and considering the set up did not think I would need limiting straps.

I can sort of answer-You do need to extend the bump stops, a lot. I used the same combo of shocks-10 inch extension on the rear and 12 in the front.

Just eyeballing it tonight it looks like at least 4" bump stops??? I think at this point I am going to hold off for another week to mount the shocks/ tabs to flex it out and get better measurements.

Drew on your rear shocks did you use the stock upper? Can you post a pic? Also what did you use for the lower?

Thanks for the help.

Clint



[Cruiserdrew]

Just eyeballing it tonight it looks like at least 4" bump stops??? I think at this point I am going to hold off for another week to mount the shocks/ tabs to flex it out and get better measurements.

Drew on your rear shocks did you use the stock upper? Can you post a pic? Also what did you use for the lower?

Thanks for the help.

Clint

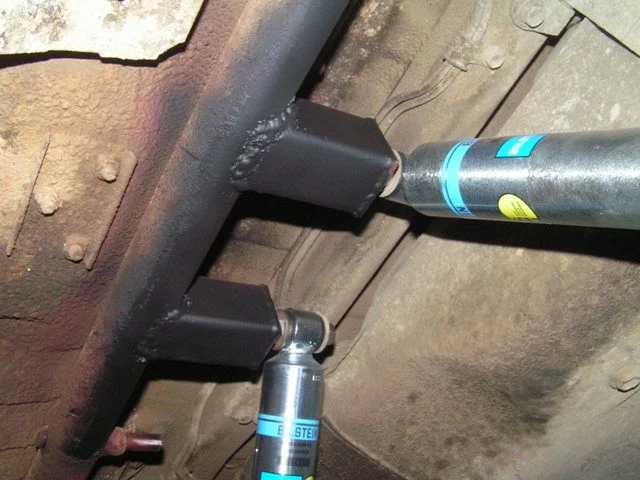

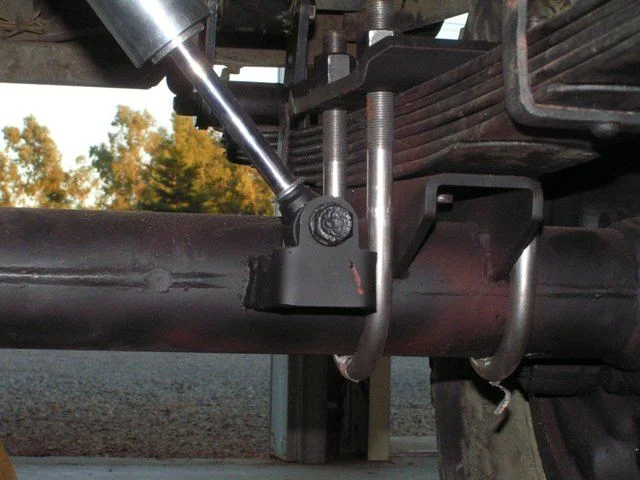

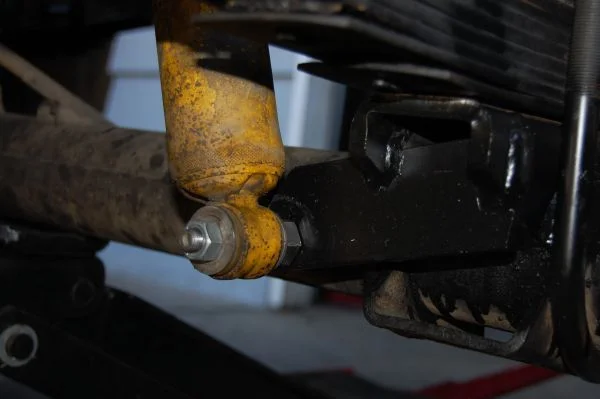

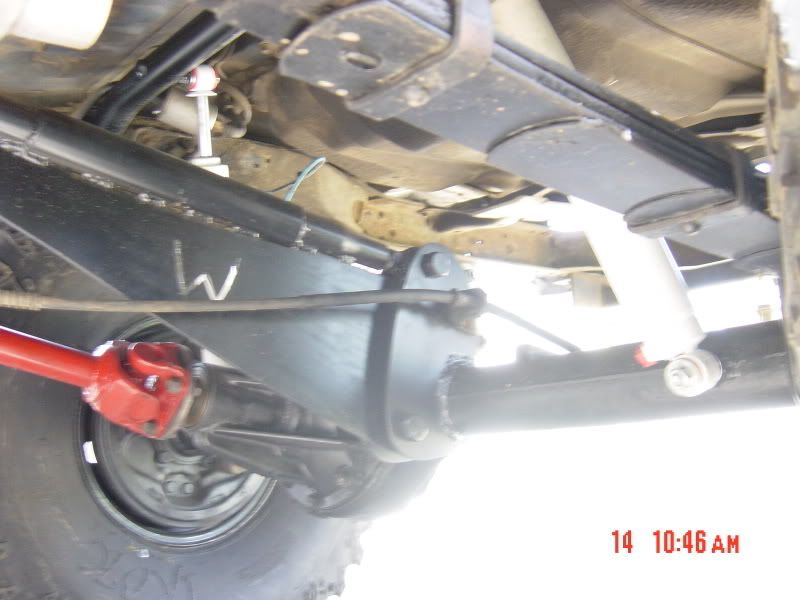

On the rear, I used the stock upper mounts. The lower mounts I bbuilt into the perch that worked OK, here is a pic:
