Last year early summer I changed out my Slee 6" to ~3" Dobinson coils. I chose the c97-144vt 3-3.5" in front and the c59-615v 4" flexi for the rear with plans to put spacers in the front to level it out once the springs settled to ride height. After some testing and measuring I realized I hadn't lost nearly any down travel in front or rear and I enjoyed how much better the truck drove on and off road. I like the very planted and understeery feel with the lowered height in front and decided I don't want to make it taller after all.

I measured my "actual lift height" according to the diagram posted in this thread from Toyota by measuring the coil spring bumper heights. By that scale it appears I have about ~2.75" lift in the front and ~3.7" in the rear according to the 1991-1992 years numbers. I would have guessed more like 3" front and 5" rear by the amount of stink it still has.

With all the spring options listed from multiple manufactures I don't see why there is such a big gap in free heights and not really many variances in options for ~2.5" rear coils. If I want a 1" lower spring than the 3" Flexi the free height of the coil drops by 3.6" in total.

Essentially I'm looking for a true 2.5-3" spring thats free height is as least as tall as my Slee 6". Like a 2" flexi, which would theoretically have a free height of 20.5" but there is nothing even remotely close from any company I can find.

Rear spring specs:
Slee 6" med/heavy- 20.25"/20.7" free height
Dob 4" Flexi- 22.6" free height (these only lowered my height by ~.5" from the Slee 6")
Dob 3" Flexi- 21.5" free height (these only lowered my height by ~.25-.5" from the 4" Flexi)
Dob 2" VT- 21.25" free height (have been told these will be around same height as a 3" Flexi on a light truck)
Dob c59-223v 1.75-2.5"- 17.7" free height (next closest in free height)

No intentions on adding a rear bumper swing out, roof rack, drawers, or fridge. Input appreciated.
Cruiser 1.jpg

The day I put the 3" front and 4" rear in it seemed pretty level.
Cruiser 6.jpg

Dropped down to 3" rear springs after the front settled down.
Cruiser 5.jpg

How it sits now. Kind of a bad angle, but it's pretty much sitting flat and not flexed or stuffed on any corner.
Cruiser 2.jpg

Cruiser 4.jpg


Tapage

Club 4X4 Panamá
Joined
Apr 4, 2003
Messages
23,565
Location
Panamá
You haven't extend your coil search to OME coils .? they have few options on 2" - 3" range different spring rates.

Joined
Dec 15, 2005
Messages
597
Location
Min Req: at least 35" tires, 1 locker, winch
You haven't extend your coil search to OME coils .? they have few options on 2" - 3" range different spring rates.
Yeah I have. This is as close as I can find:

OME 3040- 20.1" free height (3" lift 250lbs/in) I think these could provide as much lift as my current 3" 175/275lb flexi
OME 2860- 19.1" free height (0.5'-2.0" lift 220lbs/in) I doubt I can run my tires on this low of a lift.

You can run '6" lift shocks' on most 3-4" lift coils. I'm have to keep running a 29" length, 12" travel shock because I can use all the up travel it has and would over compress a shorter one.

EDIT:
In my searches I overlooked 2 options listed on the first page that could work in the parameters I was searching.

3" ICON 53006 ~20" free height (220/280lbs)
2" TJM 770RR80C- 20.3" free height (145/250lbs) Going to try these

Last edited:
Joined
Mar 25, 2014
Messages
55
Location
FL
Last year early summer I changed out my Slee 6" to ~3" Dobinson coils. I chose the c97-144vt 3-3.5" in front and the c59-615v 4" flexi for the rear with plans to put spacers in the front to level it out once the springs settled to ride height. After some testing and measuring I realized I hadn't lost nearly any down travel in front or rear and I enjoyed how much better the truck drove on and off road. I like the very planted and understeery feel with the lowered height in front and decided I don't want to make it taller after all.

I measured my "actual lift height" according to the diagram posted in this thread from Toyota by measuring the coil spring bumper heights. By that scale it appears I have about ~2.75" lift in the front and ~3.7" in the rear according to the 1991-1992 years numbers. I would have guessed more like 3" front and 5" rear by the amount of stink it still has.

With all the spring options listed from multiple manufactures I don't see why there is such a big gap in free heights and not really many variances in options for ~2.5" rear coils. If I want a 1" lower spring than the 3" Flexi the free height of the coil drops by 3.6" in total.

Essentially I'm looking for a true 2.5-3" spring thats free height is as least as tall as my Slee 6". Like a 2" flexi, which would theoretically have a free height of 20.5" but there is nothing even remotely close from any company I can find.

Rear spring specs:
Slee 6" med/heavy- 20.25"/20.7" free height
Dob 4" Flexi- 22.6" free height (these only lowered my height by ~.5" from the Slee 6")
Dob 3" Flexi- 21.5" free height (these only lowered my height by ~.25-.5" from the 4" Flexi)
Dob 2" VT- 21.25" free height (have been told these will be around same height as a 3" Flexi on a light truck)
Dob c59-223v 1.75-2.5"- 17.7" free height (next closest in free height)

No intentions on adding a rear bumper swing out, roof rack, drawers, or fridge. Input appreciated.
View attachment 2575751

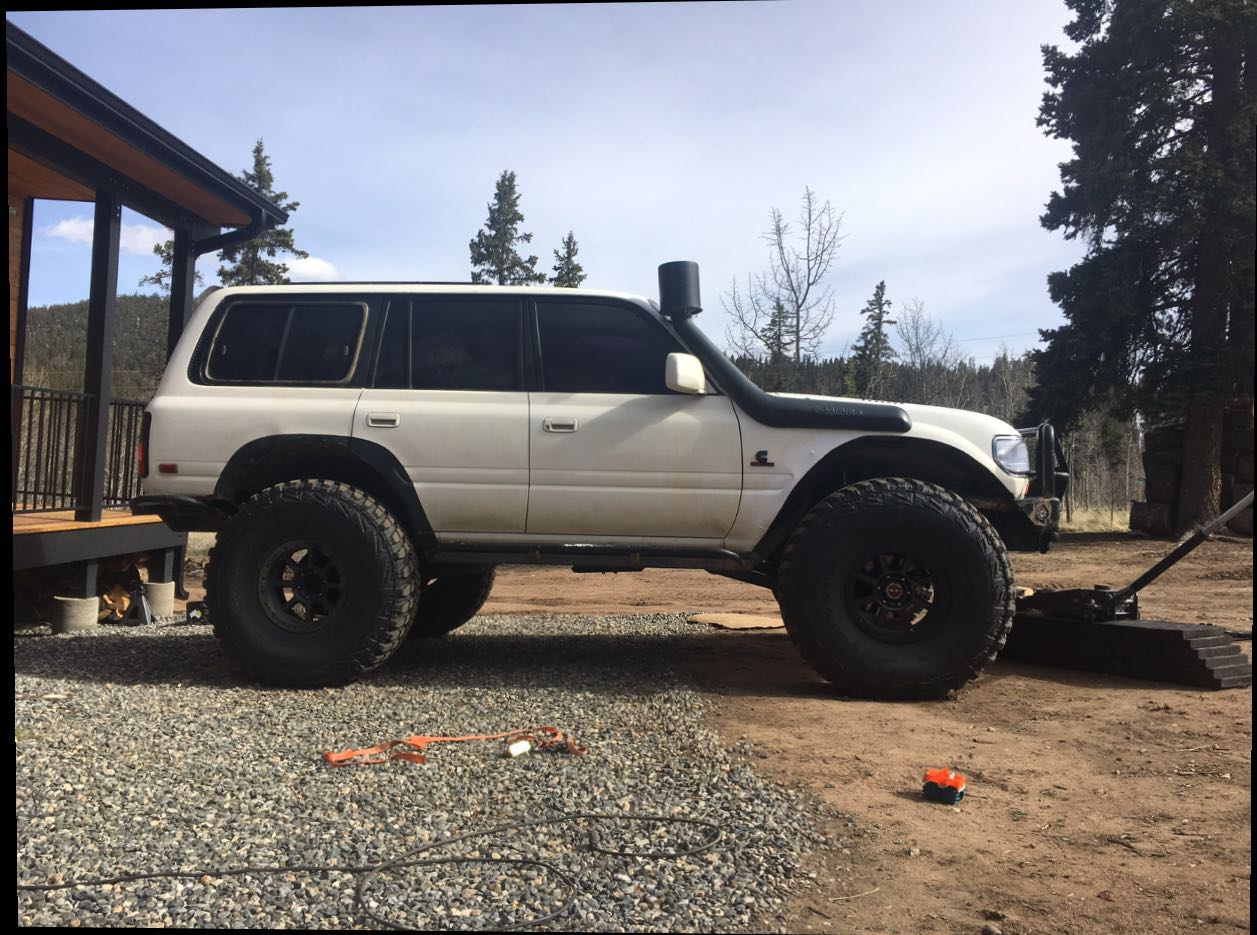

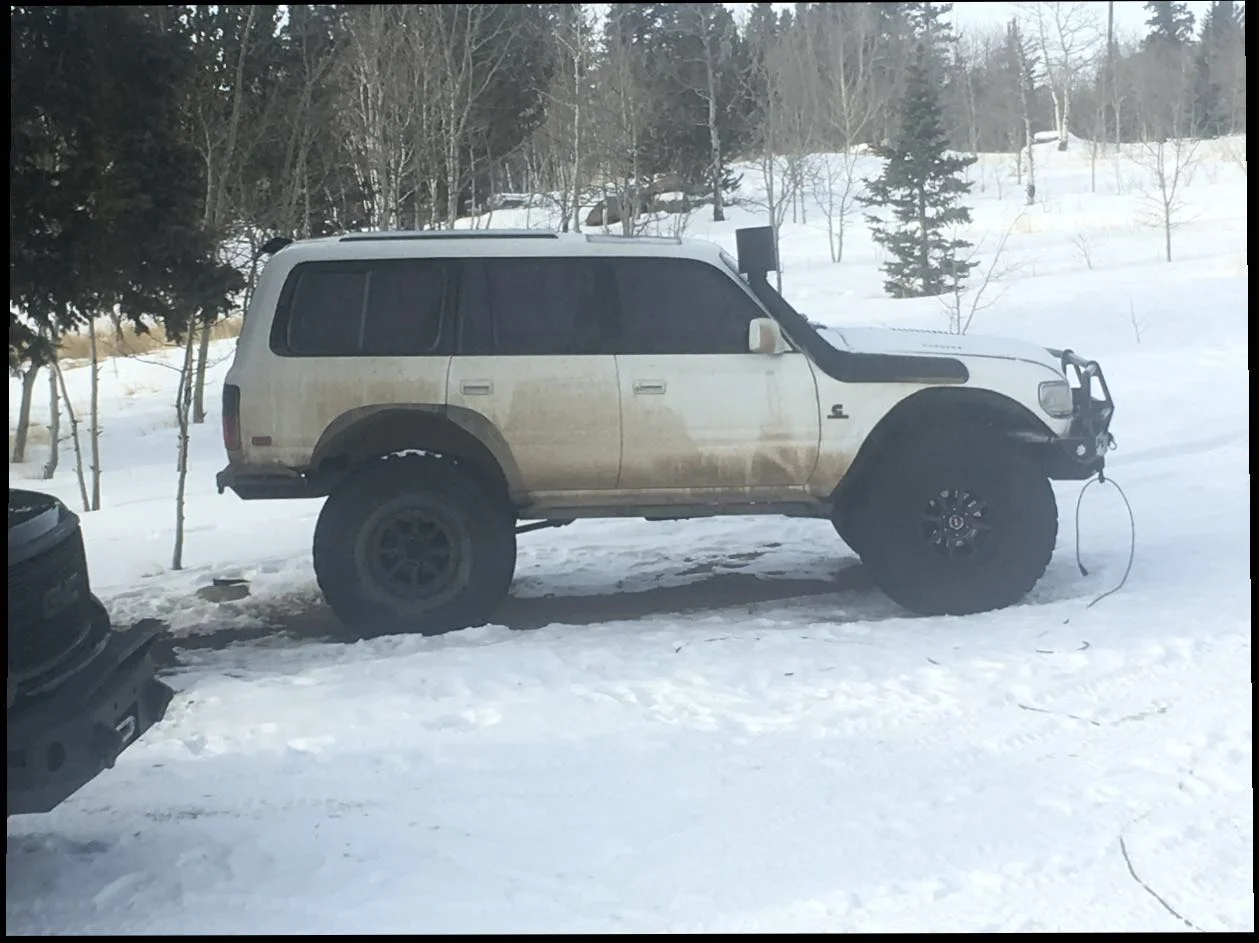

The day I put the 3" front and 4" rear in it seemed pretty level.
View attachment 2575760

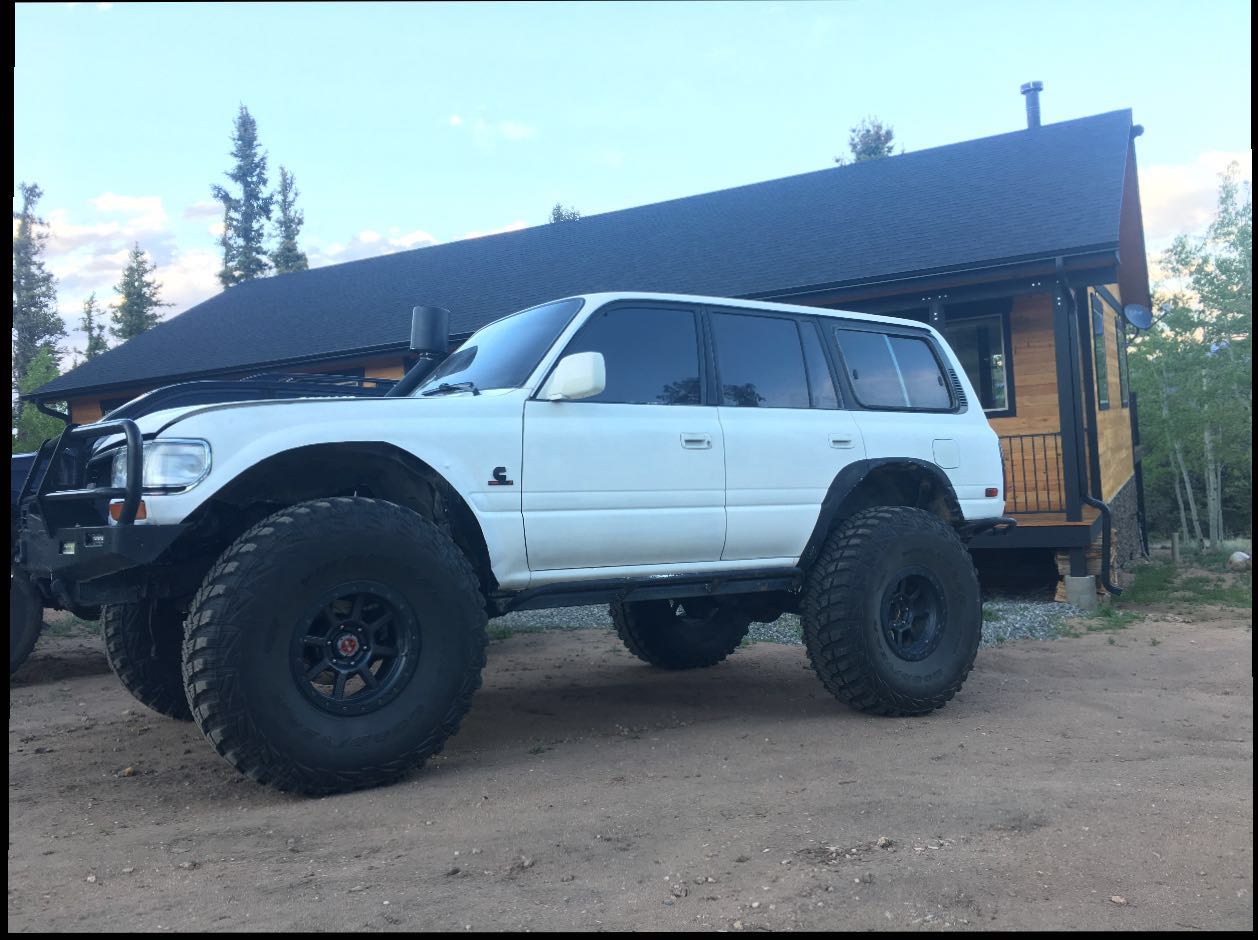

Dropped down to 3" rear springs after the front settled down.
View attachment 2575764

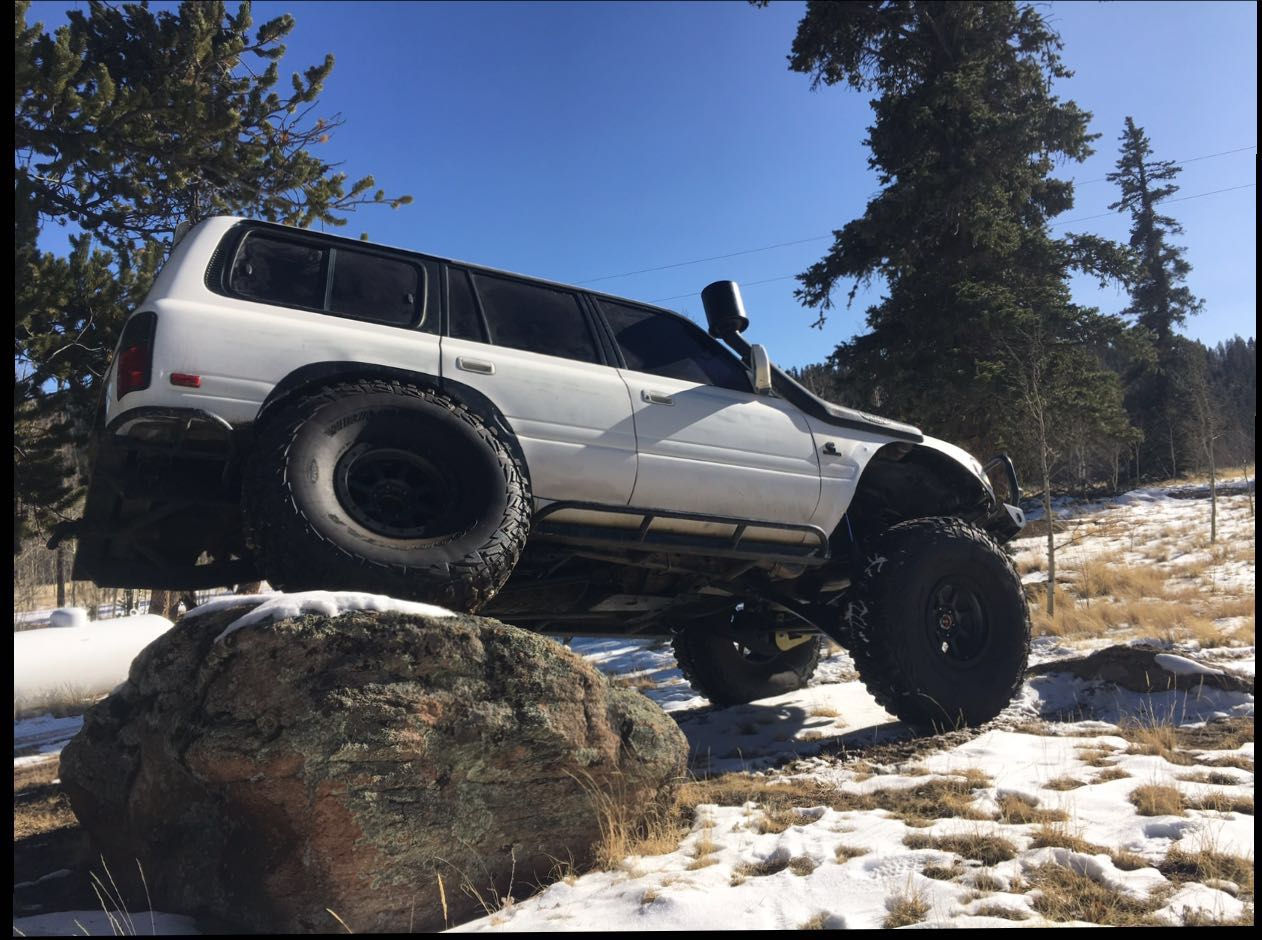

How it sits now. Kind of a bad angle, but it's pretty much sitting flat and not flexed or stuffed on any corner.
View attachment 2575765

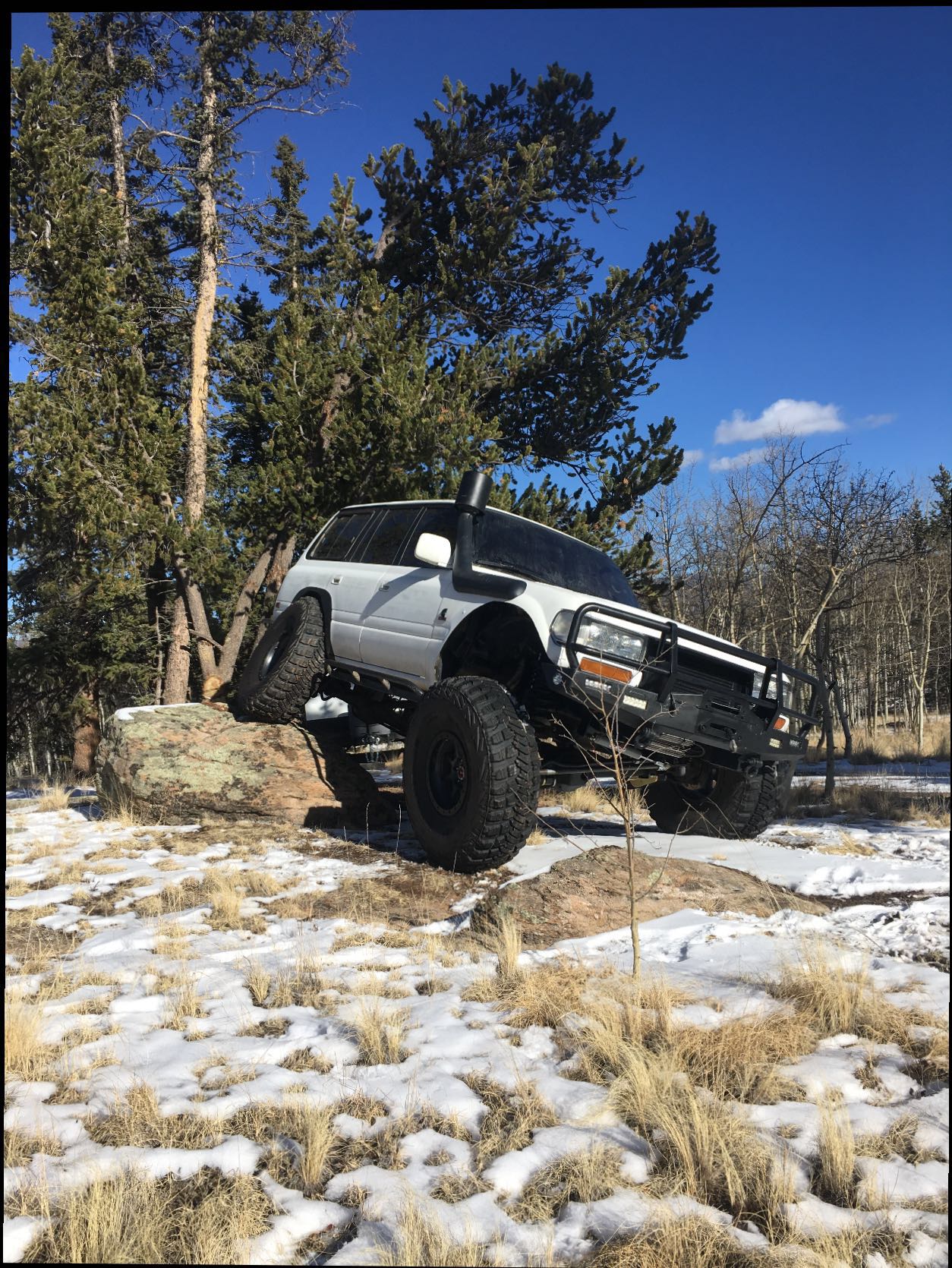

View attachment 2575766
Sweet set up for your toy! My buddy got this 4BT80 project we'll work on after we finished installing the bumpers from 4Wheelonline onto the current Silverado project. We'll definitely consider your set up here.

Joined
Apr 4, 2006
Messages
2,163
I've settled on Dobinsons shocks, but I'm still having trouble with some of the published spring rates (e.g. 850/medium duty vs 851/light duty but both are advertised with identical spring rate) - what are the softest coils that give a 2" lift on a lightweight (Slee front bumper, winch w/ synthetic rope, WK sliders single battery) 80? Trying to avoid a situation where an advertised 2" spring gives me 4" lift and the truck won't fit in the garage any longer...


crikeymike

Exit Offroad - Dobinsons Specialist
Supporting Vendor
Joined
Jun 6, 2005
Messages
947
Location
Jacksonville, Florida
I've settled on Dobinsons shocks, but I'm still having trouble with some of the published spring rates (e.g. 850/medium duty vs 851/light duty but both are advertised with identical spring rate) - what are the softest coils that give a 2" lift on a lightweight (Slee front bumper, winch w/ synthetic rope, WK sliders single battery) 80? Trying to avoid a situation where an advertised 2" spring gives me 4" lift and the truck won't fit in the garage any longer...
Remove the word "duty", and replace it with "load". Springs are all based on lift height and load rating.

A 2" spring for no weight and a 2" spring for 110lbs or whatever could have the same spring rate, but the heavier-rated coils will be taller in free height to still support that weight at the listed lifted height. If you put a 2" spring made for 110lbs, and you don't have 110lbs, you'll have more lift because you don't have the weight on the vehicle.

If you pick a 2" spring made for more weight than what you've got, and also if your baseline is way low (this happens all the time with 80 owners still running stock 20+ year old worn out suspension), your lift height will come up more. If you want 2" over where your truck is sitting right now, and that's your limit, you'll have to figure out current springs and rates of what you've got and do the math on the other options to get the correct lifted height.


GW Nugget

Do the best you can with what you have...
Joined
Jul 25, 2014
Messages
3,342
Location
Coalinga, CA
I've settled on Dobinsons shocks, but I'm still having trouble with some of the published spring rates (e.g. 850/medium duty vs 851/light duty but both are advertised with identical spring rate) - what are the softest coils that give a 2" lift on a lightweight (Slee front bumper, winch w/ synthetic rope, WK sliders single battery) 80? Trying to avoid a situation where an advertised 2" spring gives me 4" lift and the truck won't fit in the garage any longer...
2 post back...
The old school TJM 2" lift does well on lightly loaded 80s. Fronts are single rate.
Shoredreamer from memory had a set before he got heavy.

Jason Andrews just got a set 2" TJM 770RR80C- 20.3" free height (145/250lbs)​


With OME the 851, 850 & 850J are all 220# rate but have roughly 1 more turn plus .5mm thicker which make them approx 1" taller lift from each other.

Joined
Apr 9, 2017
Messages
1,575
Location
tejas

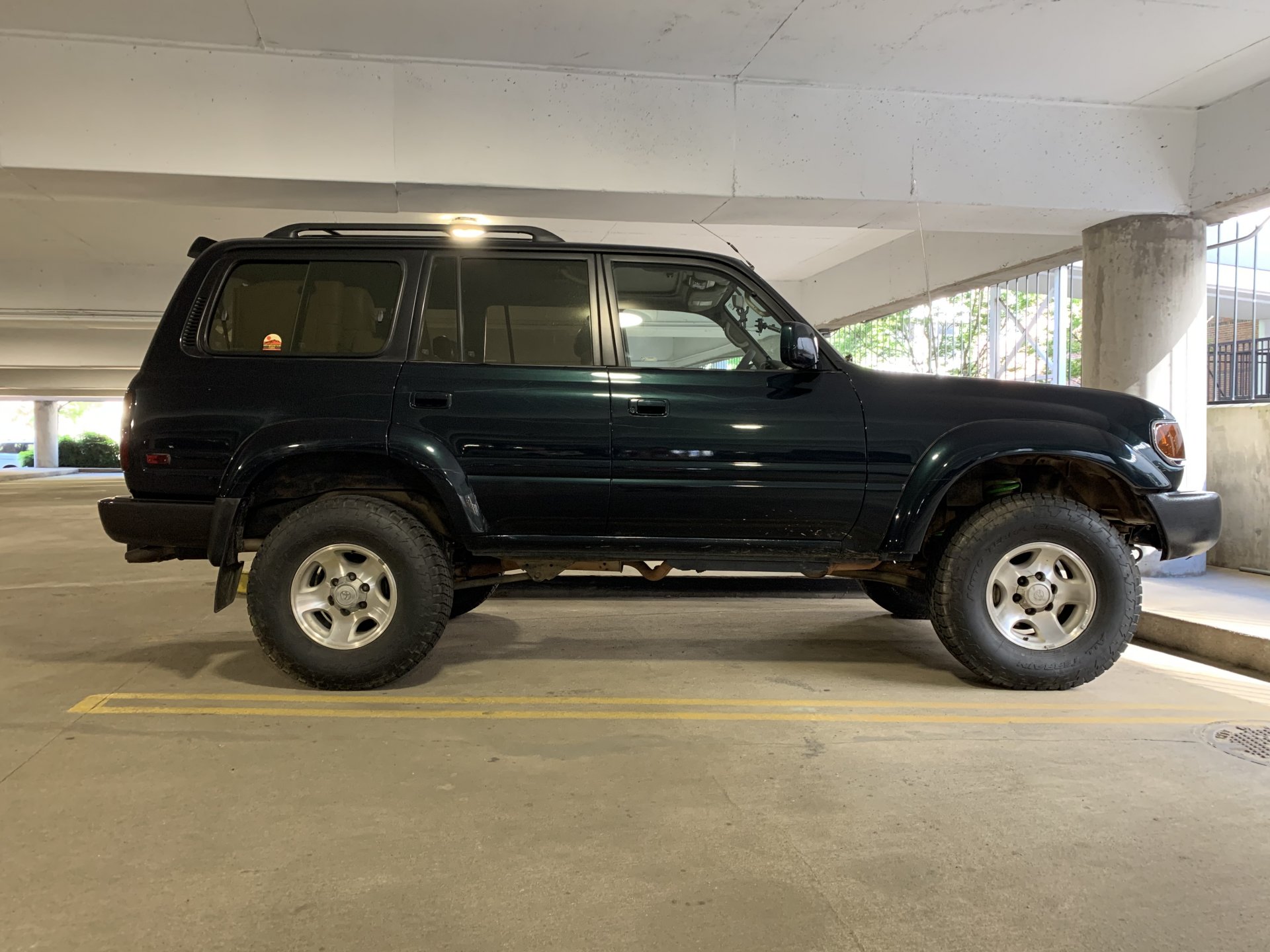

gents. anyone know which page the 97 lexus LX 450 coils are listed on? i read through this whole thing at one point but not sure where these would be at specifically.
also. i would like to compare the OEM to the dobinson mediums i have on there now so i can get a baseline understanding of the values involved with comparing coils. so if these dobinson mediums are somewhere specific i’d be grateful if anyone has a post or page number.
i’m basically trying to write down the values and see if i retained anything i read here where i first thrashed through it. also i’m not quite sure if these mediums are what i need on my rig or not actually.
thanks










Joined
Jul 24, 2020
Messages
11
Location
Birmingham
Not sure if this is the right thread to post this in but i'm looking at getting just a 2 inch Iron man 4x4 lift (stage 1) for my 80. Are the adjustable panhard rods totally necessary for that amount of lift? I've had a few folks tell me that without upgraded panhards their 80 had a "drifting'' feeling while cruising at highway speeds.


GW Nugget

Do the best you can with what you have...
Joined
Jul 25, 2014
Messages
3,342
Location
Coalinga, CA

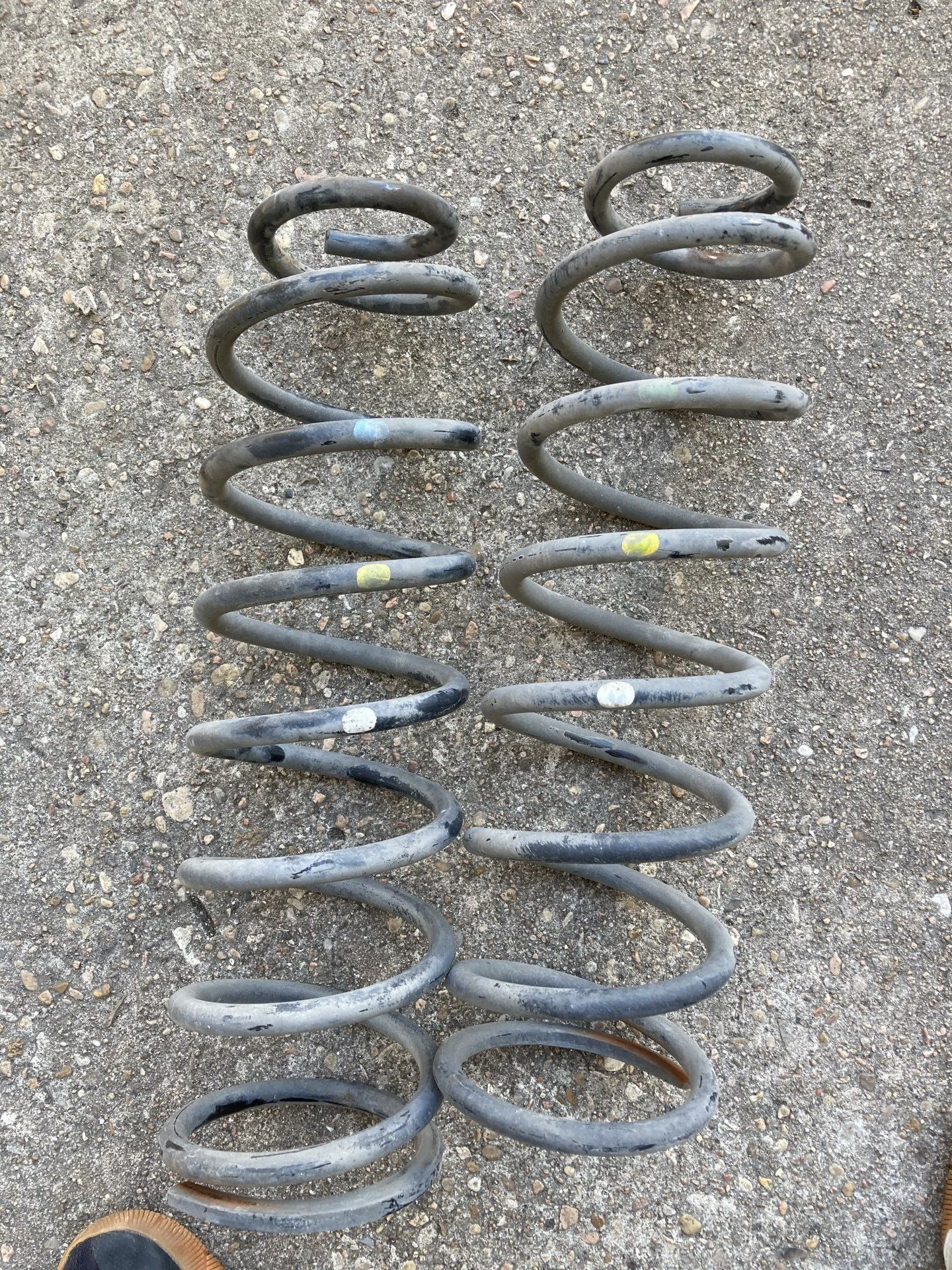

gents. anyone know which page the 97 lexus LX 450 coils are listed on? i read through this whole thing at one point but not sure where these would be at specifically.
also. i would like to compare the OEM to the dobinson mediums i have on there now so i can get a baseline understanding of the values involved with comparing coils. so if these dobinson mediums are somewhere specific i’d be grateful if anyone has a post or page number.
i’m basically trying to write down the values and see if i retained anything i read here where i first thrashed through it. also i’m not quite sure if these mediums are what i need on my rig or not actually.
thanks

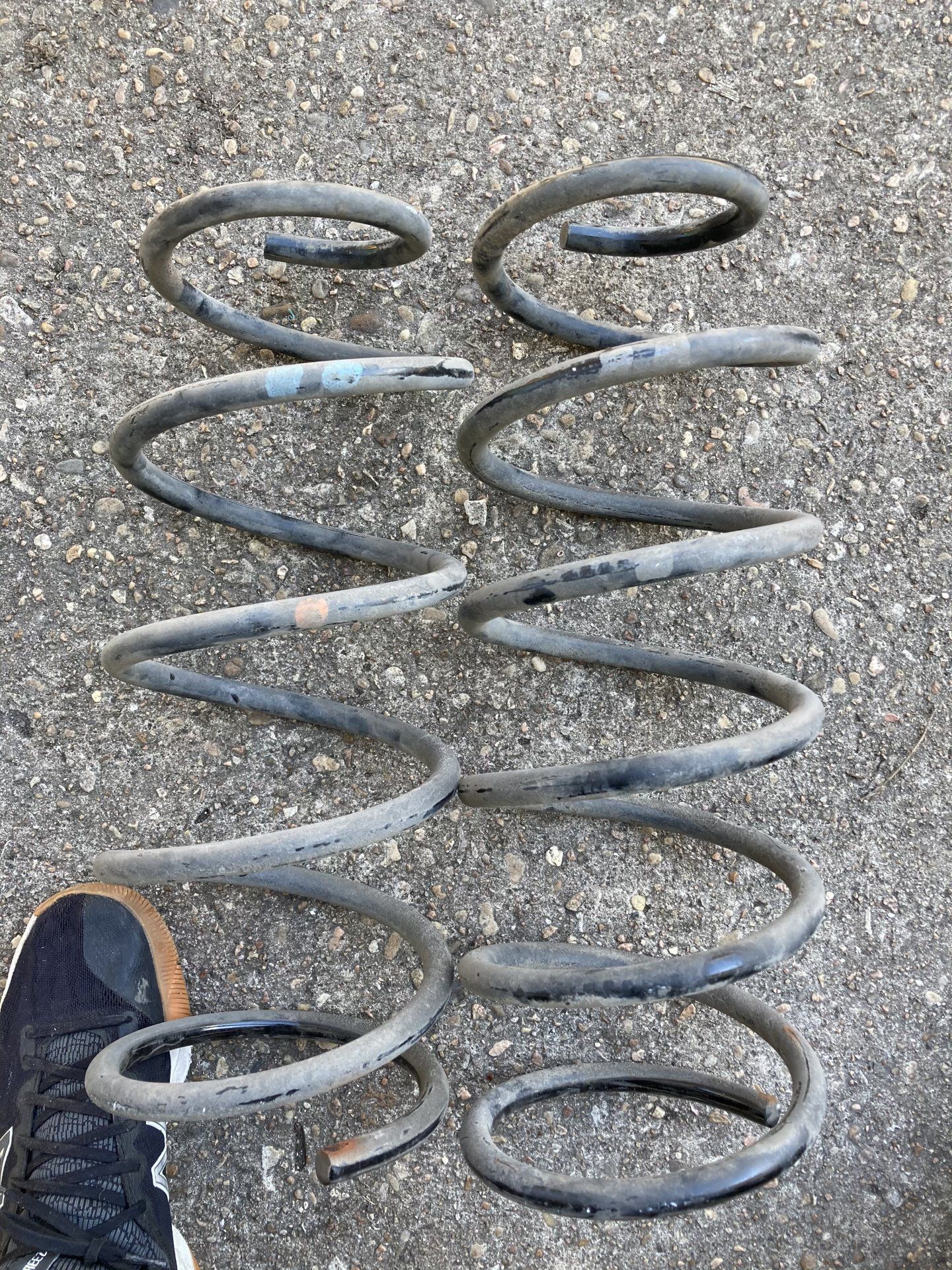

View attachment 2612140

View attachment 2612141

View attachment 2612142

View attachment 2612143

View attachment 2612144
Lx450 coils are said to be softer rate.
Check out post #1 & #3.

Joined
Apr 9, 2017
Messages
1,575
Location
tejas
Lx450 coils are said to be softer rate.
Check out post #1 & #3.

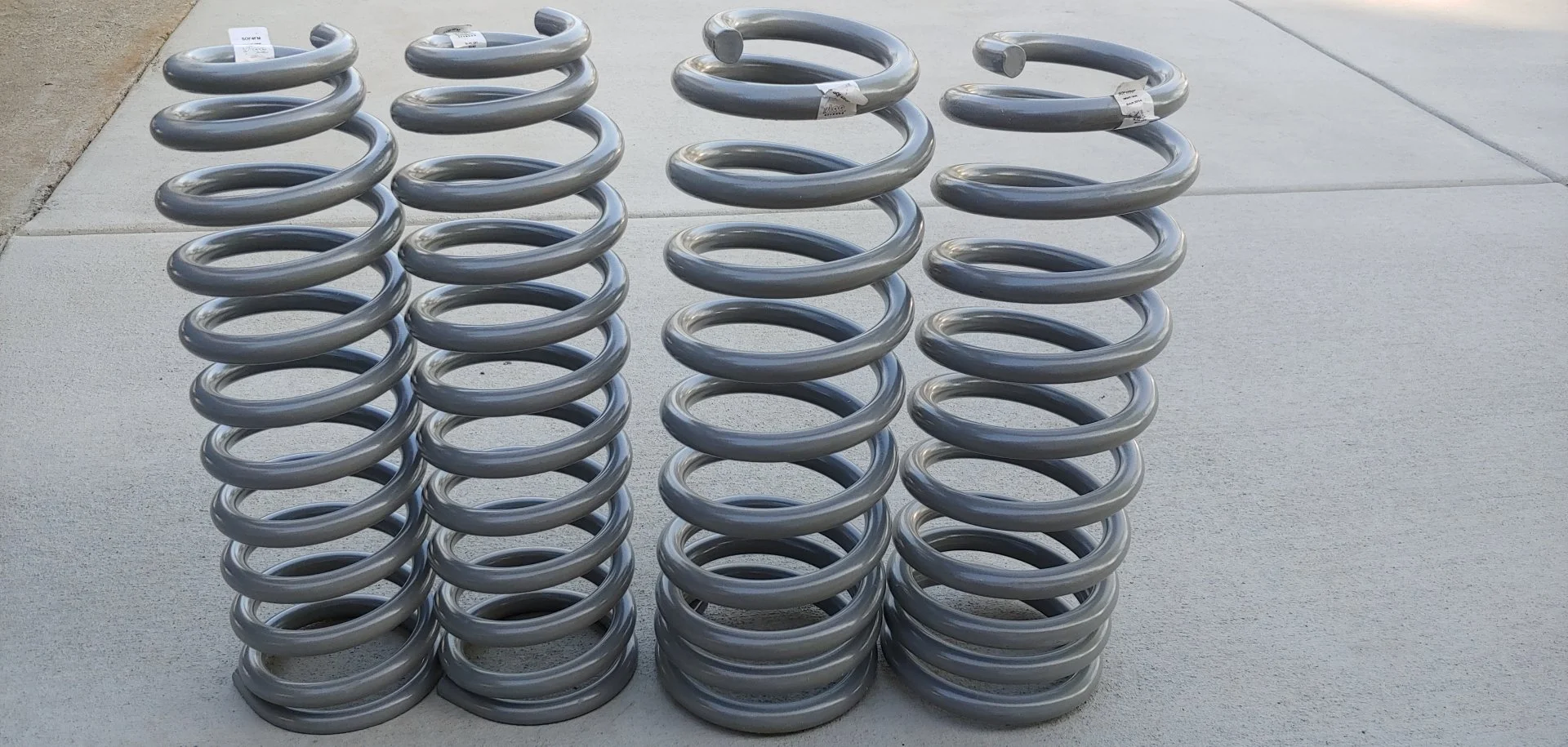

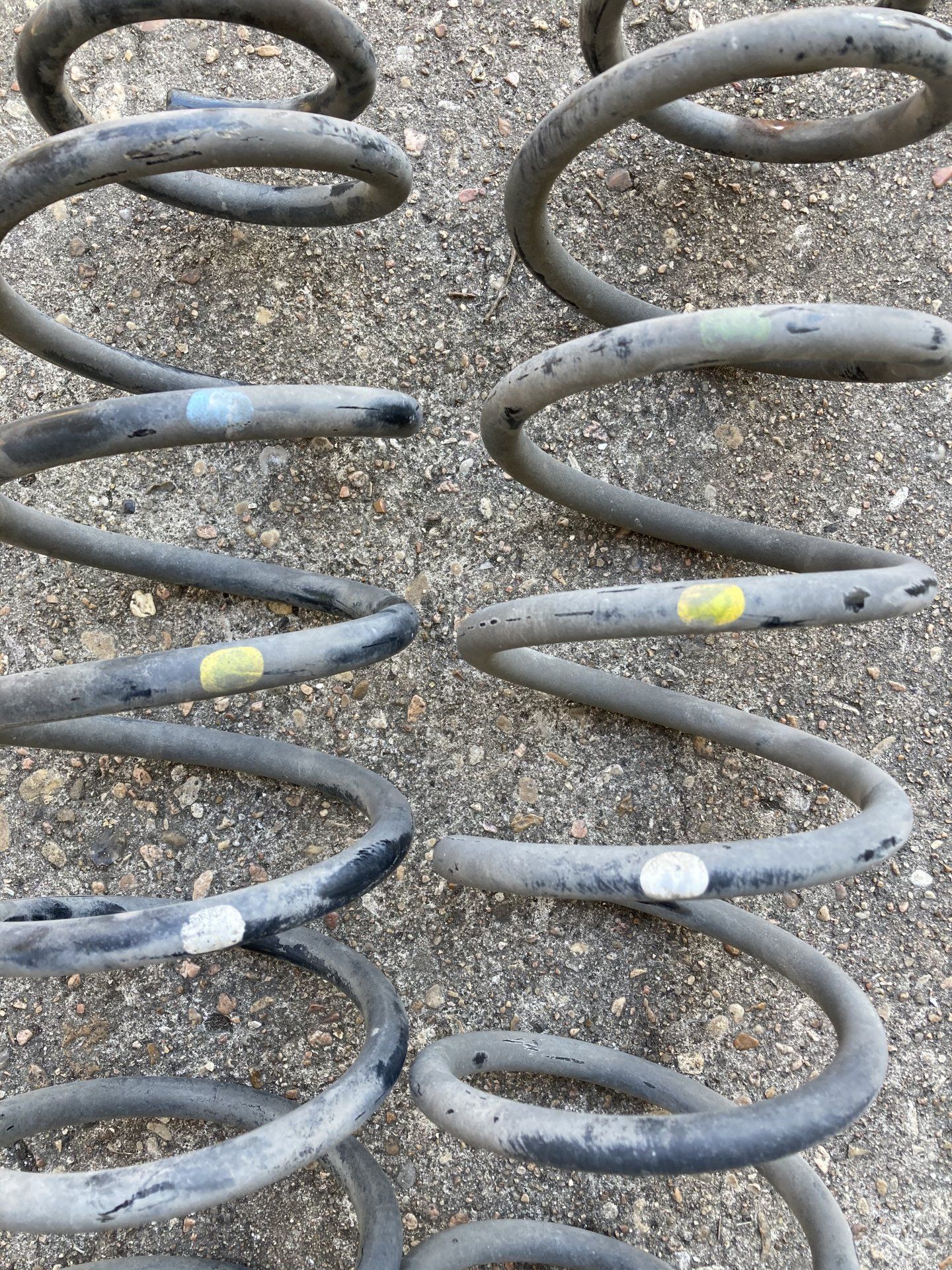

thanks a lot for that. i see it now. looks like the left is a larger diameter coil, taller and more windings. i couldn’t tell if they were supposed to be the same color or not.

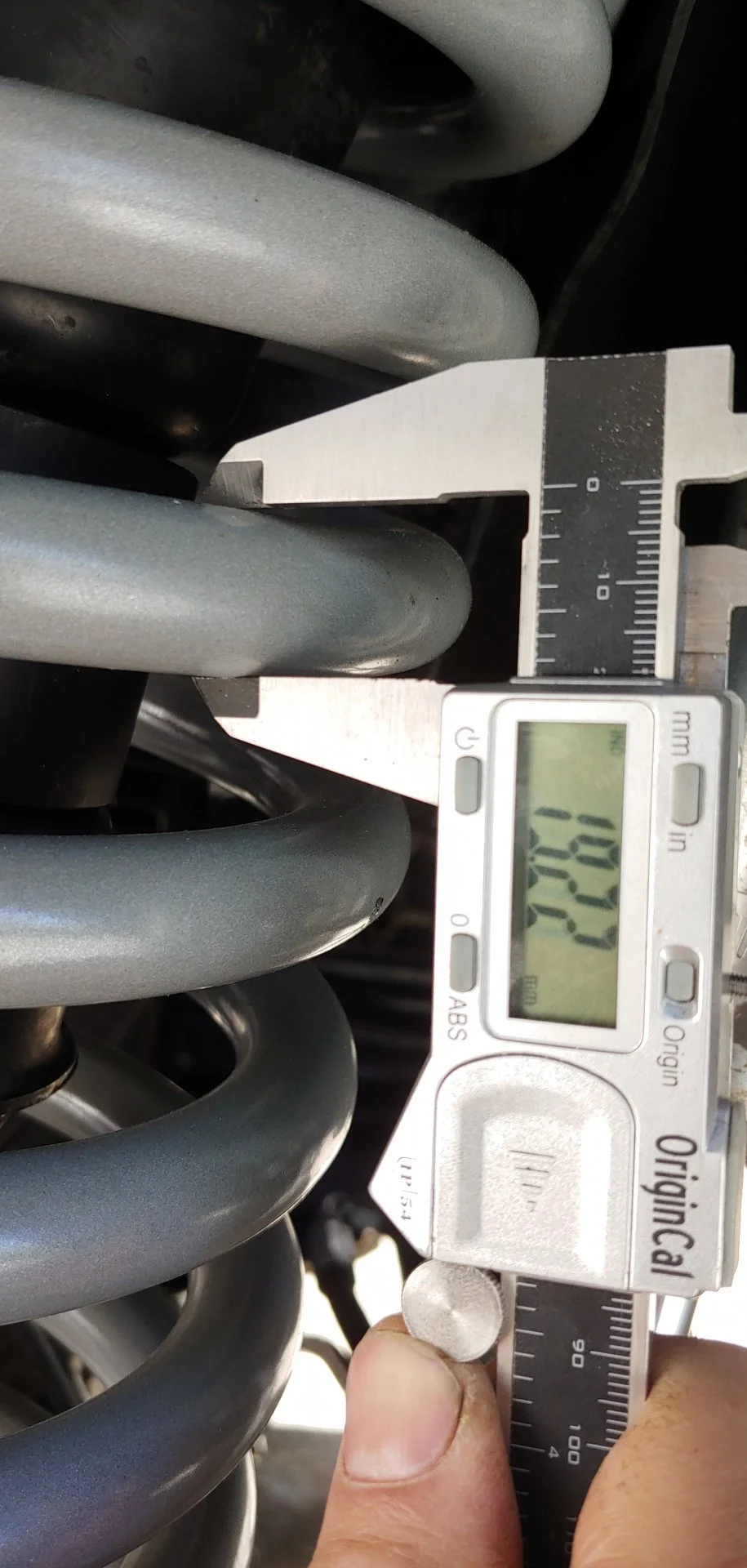

“20.25" .558" Blue/ Yellow/ White/ 8.75 wraps LF (96/97 LX450)
19.5" .555" Green/ Yellow/ White/ 8.25 wraps RF (96/97 LX450)”

i need to study up on the dobinson medium in post 3 but can i please ask if you have heard of guys without an aftermarket front or rear bumper moving up to a heavier set of coils? meaning they want a stiffer ride? or it feels like the medium coils have too much give?

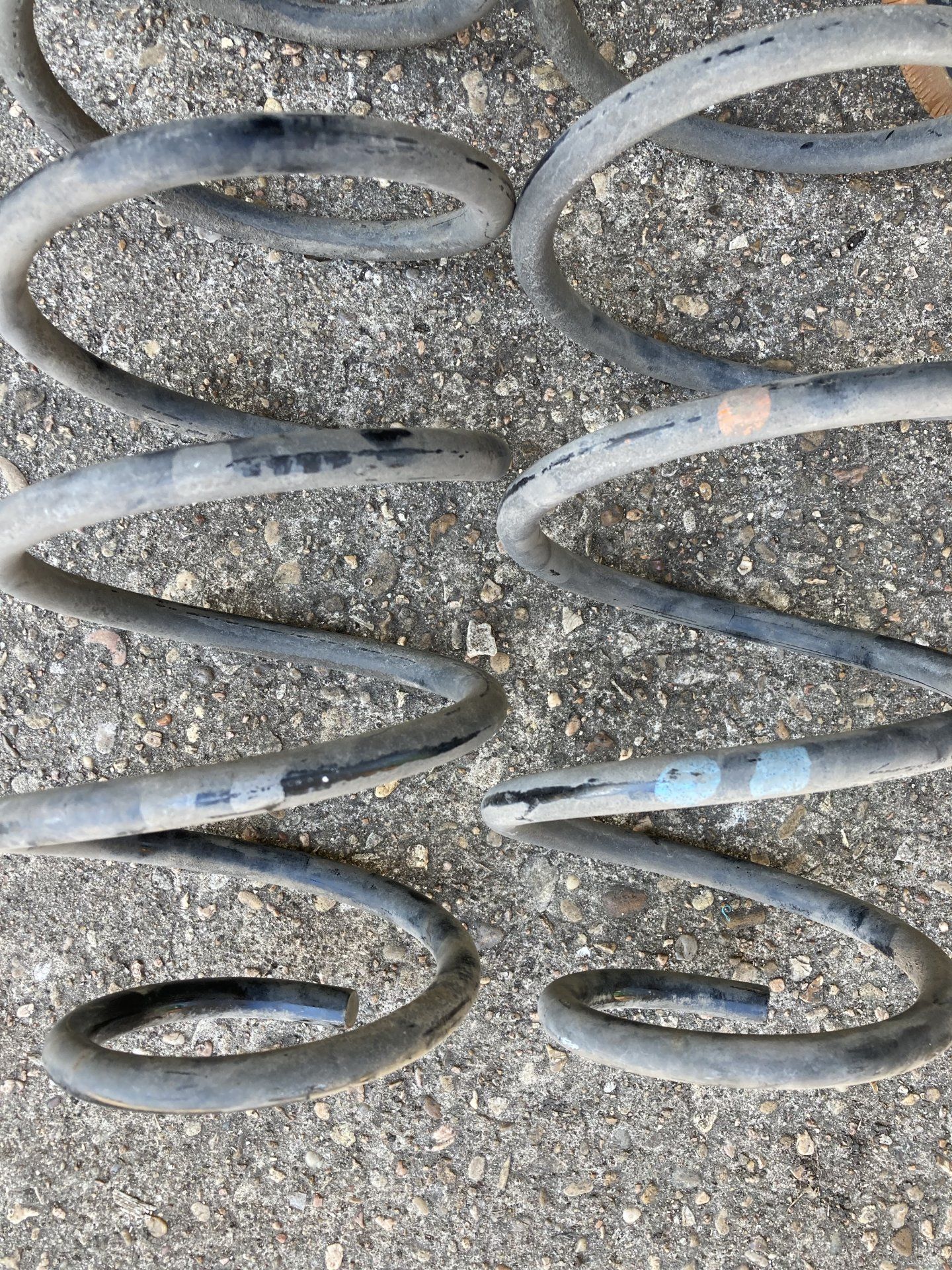

<edit: here are the/my LX450 rear coils for completeness. looks like there were two different sets of coils on the LX450 or something? or i am not understanding the rears exactly i guess?

“97 LX 450.
Color listed in order from bottom to top.

Rears have 6 coils
RR- 2 blue/ Red 5.5 wraps
LR- 2 White/ White 6.25 wraps.

18.5" .600 15.2mm 2 pink, yellow, 6.25 wraps (1997)
18.75" .610 15.5mm 2 green, green 6.25 wraps (1997)
>




Last edited:
