I don't know the coil rates of any of the 100 series or Sequoia you could possibly be most likely putting in a weaker spring and wasting your time since the vehicle that the coils came out of is lighter than a sequoia and a 100 series.

We, need to get off this thread because we're just chatting now this is a compiled spec and suspension thread thank you


alia176

SILVER Star
Joined
Aug 21, 2003
Messages
13,049
Location
Tijeras, NM
This thread is uber long and if someone could point me to the correct post, that'd be great. I'm looking for hub center to fender flare measurements for the 3" lifted *heavy* rigs.

Thanks.


GW Nugget

Do the best you can with what you have...
Joined
Jul 25, 2014
Messages
3,336
Location
Coalinga, CA
This thread is uber long and if someone could point me to the correct post, that'd be great. I'm looking for hub center to fender flare measurements for the 3" lifted *heavy* rigs.
Thanks.
Generally 20 year old stock rigs have a 20" center of hub to bottom of flare measurement.
A 3" lift is 23" +- some manufactures lifts are taller than advertised.
This info is on post #1.

Joined
Dec 27, 2019
Messages
32
Location
Seattle, WA
Hi! I'm new here... Been lurking for a while. 👋

Anyone have any idea what springs these might be? My Late 1992 HDJ81 came over from Japan with this 2" lift on it. Measured almost exactly 4" between front bump and spring follower. Has Bilstein F4-B46-1477-H1 shocks.



GW Nugget

Do the best you can with what you have...
Joined
Jul 25, 2014
Messages
3,336
Location
Coalinga, CA
Hi! I'm new here... Been lurking for a while. 👋

Anyone have any idea what springs these might be? My Late 1992 HDJ81 came over from Japan with this 2" lift on it. Measured almost exactly 4" between front bump and spring follower. Has Bilstein F4-B46-1477-H1 shocks.

Im sorry, I dont know of any company's that make a silver 2" lift coil.

Joined
Apr 8, 2018
Messages
154
Location
Montreal, QC Canada

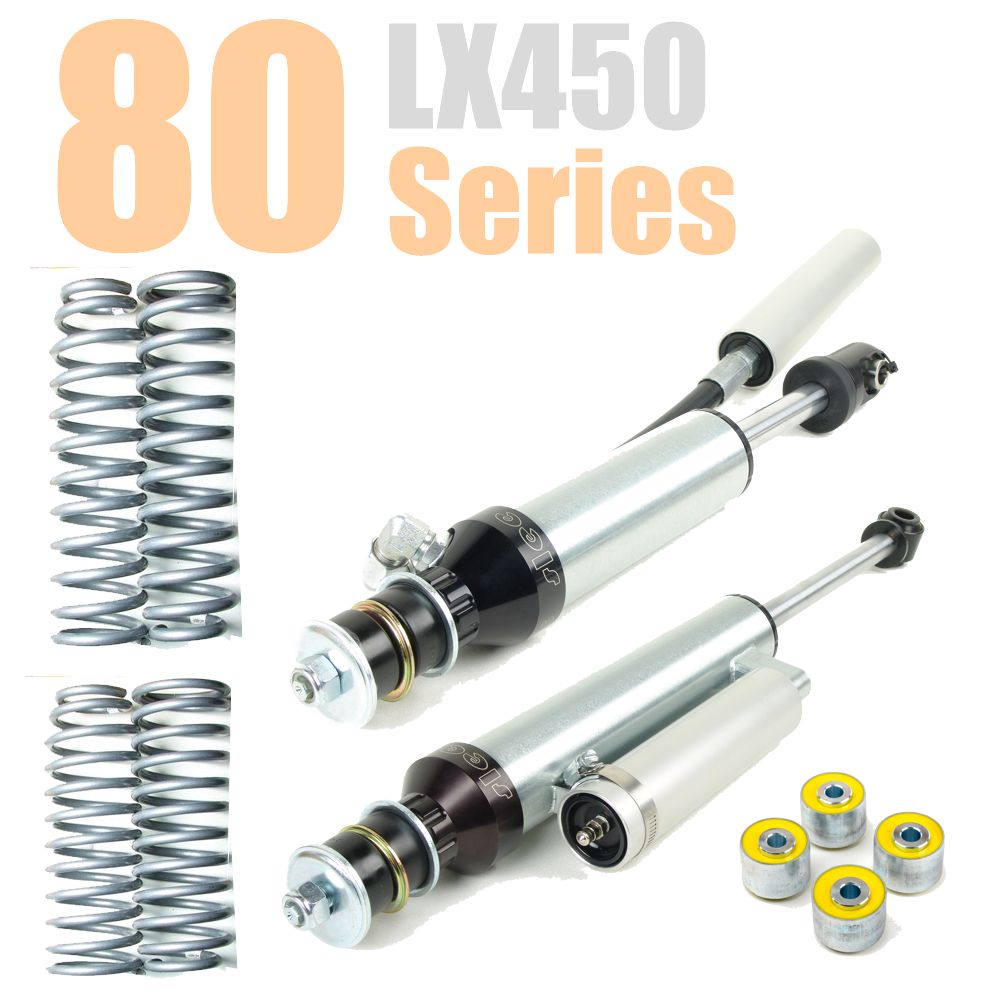

Recently swapped from 4" Tough Dog Coils to the 2" Dobinsons Tapered. While doing so I saw how much more droop I could gain from long travel shocks, mostly in the front. I have 45mm 9 stage adjustable Tough Dog Shocks currently, so I reached out to David from Dobinsons and he said the Remote Reservoir shocks will come available in 3 way adjustable in about 2 months for the 80 series. The lengths are as follows:

45-912 - 15.25"-26.50"
59-687 - 16.00"-26.80"

684 16.53"-28.90"
685 17.00"-28.90"

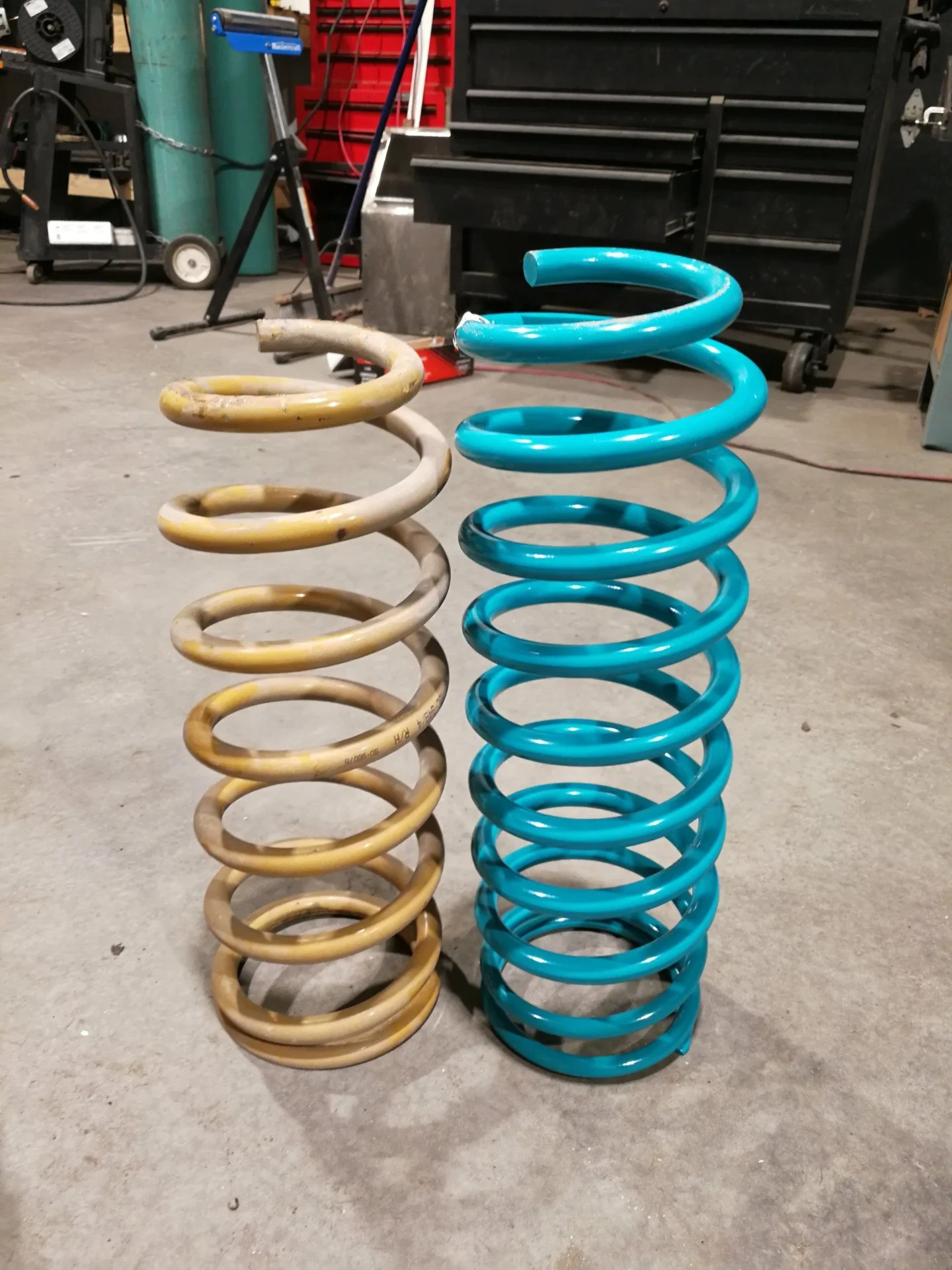

pics of old TD vs new Dobinsons:
View attachment 2201430
View attachment 2201432


Attachments

  • Brochure - MRR Adjustable Shocks.pdf
    1.7 MB · Views: 150

GW Nugget

Do the best you can with what you have...
Joined
Jul 25, 2014
Messages
3,336
Location
Coalinga, CA
Recently swapped from 4" Tough Dog Coils to the 2" Dobinsons Tapered. While doing so I saw how much more droop I could gain from long travel shocks, mostly in the front. I have 45mm 9 stage adjustable Tough Dog Shocks currently, so I reached out to David from Dobinsons and he said the Remote Reservoir shocks will come available in 3 way adjustable in about 2 months for the 80 series. The lengths are as follows:

45-912 - 15.25"-26.50"
59-687 - 16.00"-26.80"

684 16.53"-28.90"
685 17.00"-28.90"

pics of old TD vs new Dobinsons:
View attachment 2201430
View attachment 2201432
Will you tell us what are the fronts & rear shocks & what lift they are for?


Box Rocket

SILVER Star
Joined
Jan 2, 2003
Messages
4,849
Location
Syracuse, Utah
I have been playing with the stock OEM rear cone bumps up front.
The idea is to soften the hard hit when the front end bottoms out.
I call them poor boy air bumps.
I have been running a 1" hockey puck with stock front bump stops.
The rear cone bumps sit 1" higher than the stock OEM fronts with vehicle wieght on them.
After a few field tests in the whoops section, my zip tie's on the shock shafts moved down approx .25" more.
So that is now .75" taller than stock.
Here is my findings:

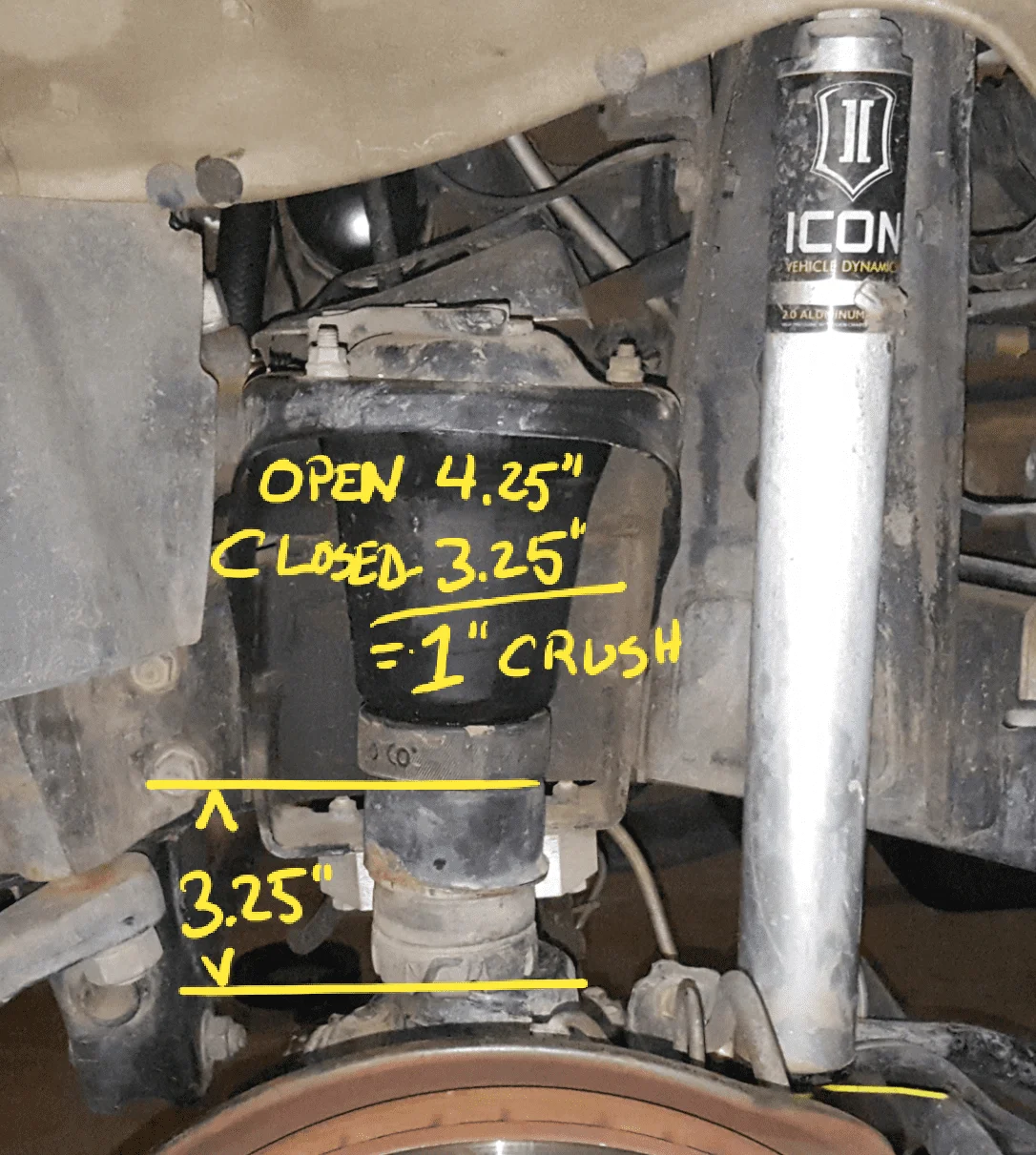

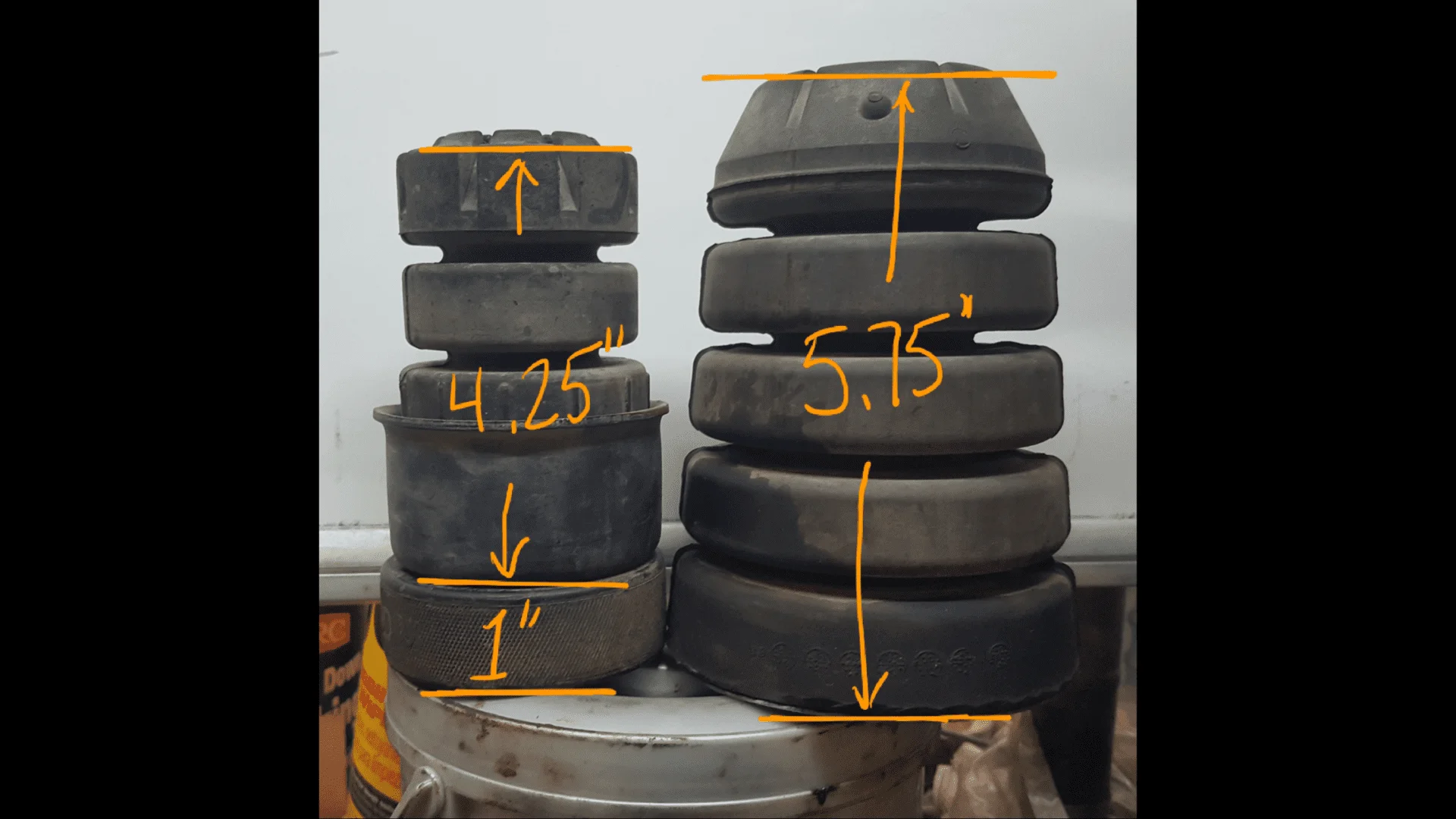

View attachment 2194920View attachment 2194922View attachment 2194923
View attachment 2194931
Making the rear cone bumps work up front could be a bit of improvement for sure, but the design of the bump itself is still fairly stiff. So far I've been really impressed with the Timbren bumps I'm using. They are closer to 2" of crush and from what I can tell are more "progressive" than the stock ones. They have definitely softened up the big bottom outs.

These are called the Active Offroad Bumpstops by Timbren.

The front ones are working well for me without modification. The rears come with a very tall steel tower. Proper height can vary from one truck to the next, but in checking for accurate height on my truck I removed ~1.75" from the tower to get them to the right height for my lift and 37's.
I take back the "no modification" comment. These come with a round cup that goes between the rubber bumpstop and the frame bracket. I trimmed the sides off the cups so that they don't make contact with the coils in the front and with the tire in the rear.

trimmed cups
Suspension by Adam Tolman, on Flickr

Suspension by Adam Tolman, on Flickr

Front timbren
Suspension by Adam Tolman, on Flickr

Not fully compressed rear.
37’s and bumpstops by Adam Tolman, on Flickr

This is the rear bump before cutting 1.75" out of the tower.
37’s and bumpstops by Adam Tolman, on Flickr


GW Nugget

Do the best you can with what you have...
Joined
Jul 25, 2014
Messages
3,336
Location
Coalinga, CA
Making the rear cone bumps work up front could be a bit of improvement for sure, but the design of the bump itself is still fairly stiff. So far I've been really impressed with the Timbren bumps I'm using. They are closer to 2" of crush and from what I can tell are more "progressive" than the stock ones. They have definitely softened up the big bottom outs.

These are called the Active Offroad Bumpstops by Timbren.

The front ones are working well for me without modification. The rears come with a very tall steel tower. Proper height can vary from one truck to the next, but in checking for accurate height on my truck I removed ~1.75" from the tower to get them to the right height for my lift and 37's.
I take back the "no modification" comment. These come with a round cup that goes between the rubber bumpstop and the frame bracket. I trimmed the sides off the cups so that they don't make contact with the coils in the front and with the tire in the rear.

trimmed cups
Suspension by Adam Tolman, on Flickr

Suspension by Adam Tolman, on Flickr

Front timbren
Suspension by Adam Tolman, on Flickr

Not fully compressed rear.
37’s and bumpstops by Adam Tolman, on Flickr

This is the rear bump before cutting 1.75" out of the tower.
37’s and bumpstops by Adam Tolman, on Flickr
Those are very nice bumps. Thank you for the share.
I'll add those to the 1st page.

Last edited:
Joined
Dec 27, 2019
Messages
32
Location
Seattle, WA

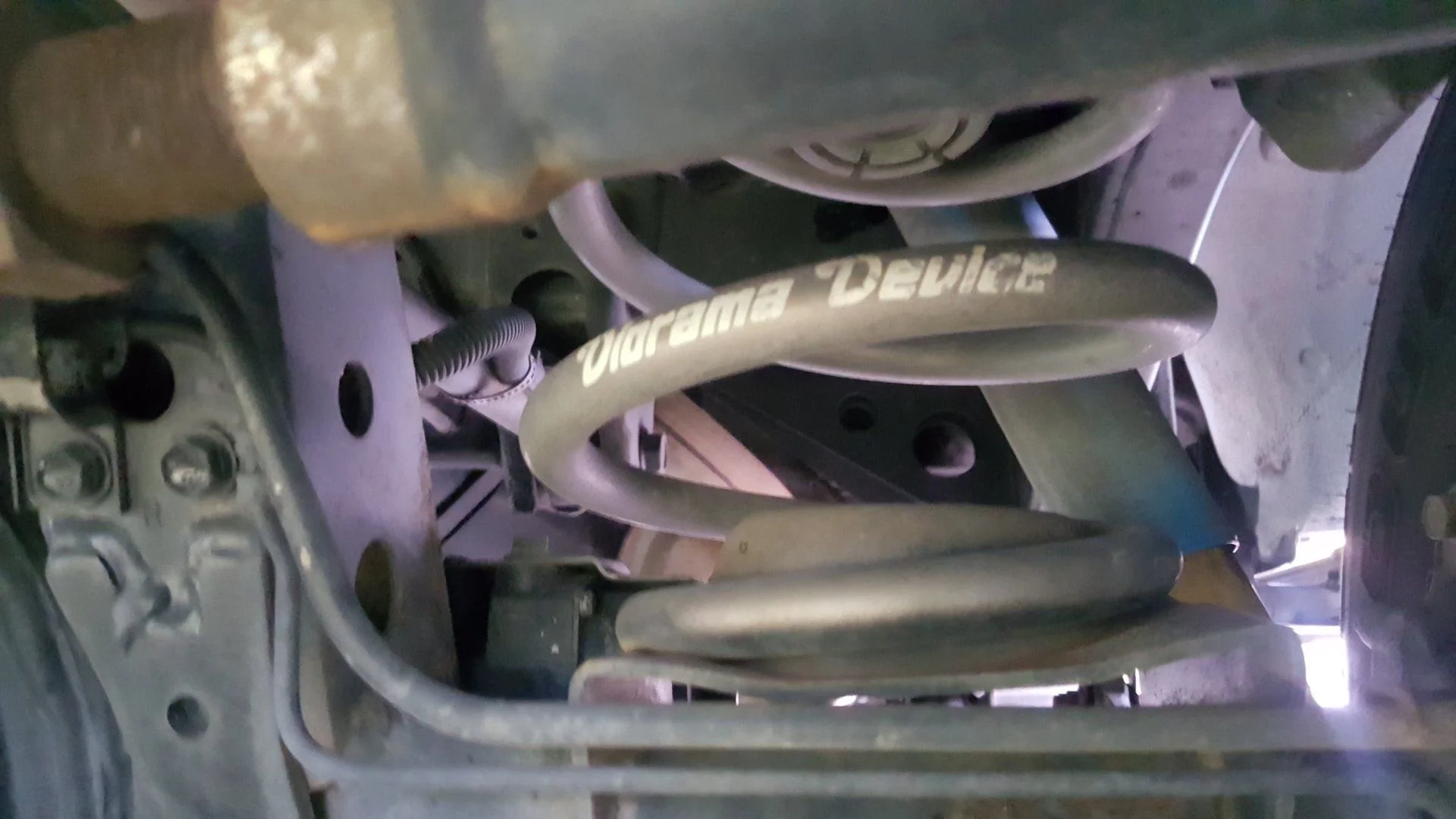

Well... I didn't give up. I kept on trying to figure out what these springs are and I noticed that on one spring there was some writing that looks like it has mostly disappeared from the other springs.

Exhibit A:


So I started trying to look around on the internet and for a while I found absolutely nothing. Then I stumbled upon this post in Russian:

Translation of pertinent bits:
The company is widely known in narrow circles. Diorama Device , arrived from Japan
Progressive winding (variable pitch), bar diameter 16 mm, total spring length 49.5 mm

I'm not sure if these are the exact springs as it looks like this person was probably installing them on a Prado, and mine don't appear to be progressive... I'm not versed enough on the differences to know if these springs could be interchangeable. These appear to be "Diorama Device" springs from Japan. I also found another russian website similar looking to ebay selling gold colored "Diorama Device" springs here(which also claim to be 2" lift springs from Japan): Пружины Diorama Device Toyota Land Cruiser HDJ81V (LegoCar) - GT и тюнинг в Находке

There's absolutely zero official info I can find online about these things other than they appear to have originated from Japan. So they seem to be quite the rare oddity.

Last edited:
Joined
May 26, 2019
Messages
3
Location
East TN
Well... I didn't give up. I kept on trying to figure out what these springs are and I noticed that on one spring there was some writing that looks like it has mostly disappeared from the other springs.

Exhibit A:
View attachment 2207634

So I started trying to look around on the internet and for a while I found absolutely nothing. Then I stumbled upon this post in Russian:

Translation of pertinent bits:
The company is widely known in narrow circles. Diorama Device , arrived from Japan
Progressive winding (variable pitch), bar diameter 16 mm, total spring length 49.5 mm

I'm not sure if these are the exact springs as it looks like this person was probably installing them on a Prado, and mine don't appear to be progressive... I'm not versed enough on the differences to know if these springs could be interchangeable. These appear to be "Diorama Device" springs from Japan. I also found another russian website similar looking to ebay selling gold colored "Diorama Device" springs here(which also claim to be 2" lift springs from Japan): Пружины Diorama Device Toyota Land Cruiser HDJ81V (LegoCar) - GT и тюнинг в Находке

There's absolutely zero official info I can find online about these things other than they appear to have originated from Japan. So they seem to be quite the rare oddity.

Here is all you need to know about them buddy. You have unicorn springs indeed! The menu on the left, click the third option from the top, copy and translate. That will tell you the history and concept. Cheers!



DIGLERZ

SILVER Star
Joined
Sep 18, 2012
Messages
161
Location
SoCal
Question for the experts...

I’m looking to replace a 4” TJM rear spring set up with one of the new “Flexy” options... I don’t have a heavily loaded rig however with bumper/spare/tools and 3 kids in the back it’s obviously getting heavy and I’m getting some decent sag with current set up..

Here’s the question am I better off with -

A. Dobinson 4” Flexy (Medium weight capacity as I understand)
B. Slinky 3” with some sort of spring spacer to net me the additional 1”.. (If I’m not mistaken the Slinky is available with a higher spring rate/load capacity)

Appreciate your input..

Thanks, Chris

Joined
Aug 24, 2019
Messages
708
Location
Roseville, CA
Is that a fact? I cant confirm or deny that. We would need an OG 80 owner to chime in.


It was OEM Springs used in their “small” lift kits. So I’m kinda right and kinda wrong at the same time lol.
