Building out the 78' Pig (1 Viewer)

[Showerhammer]

Next steps:

Install these hood latches.

Install ditch lights

Dreading this, fixing a leak in the 55 gallons gas tank. The first time I have filled up all 55 gallons and it leaks out the top. Dreading this one.



[scrapdaddy]

That tank leak might not be so bad. It looks like the float is held on by screws and I bet a gasket is leaking. Mine looks similar.



[Showerhammer]

Alright, after a new job, life and summer vacations are out of the way we are back.

Thanks to @greenbeast for selling me his '77 blue beauty donor pig.

The amazing thing is the owner previous to green east kept meticulous notes and detailed records and receipts of all the work done. Including travel logs.

Got him home safely from Colorado to Utah and parked next to his big brother.

I was calling him Old Blue but my daughter has named her Blue Belle, so he is now a she.

I have a rough vision of what I want out of the two. Expect more build posts in the coming days. First step, remove the blue bowtie, then get Blue Belle running.



[Showerhammer]

Old Man Tan update

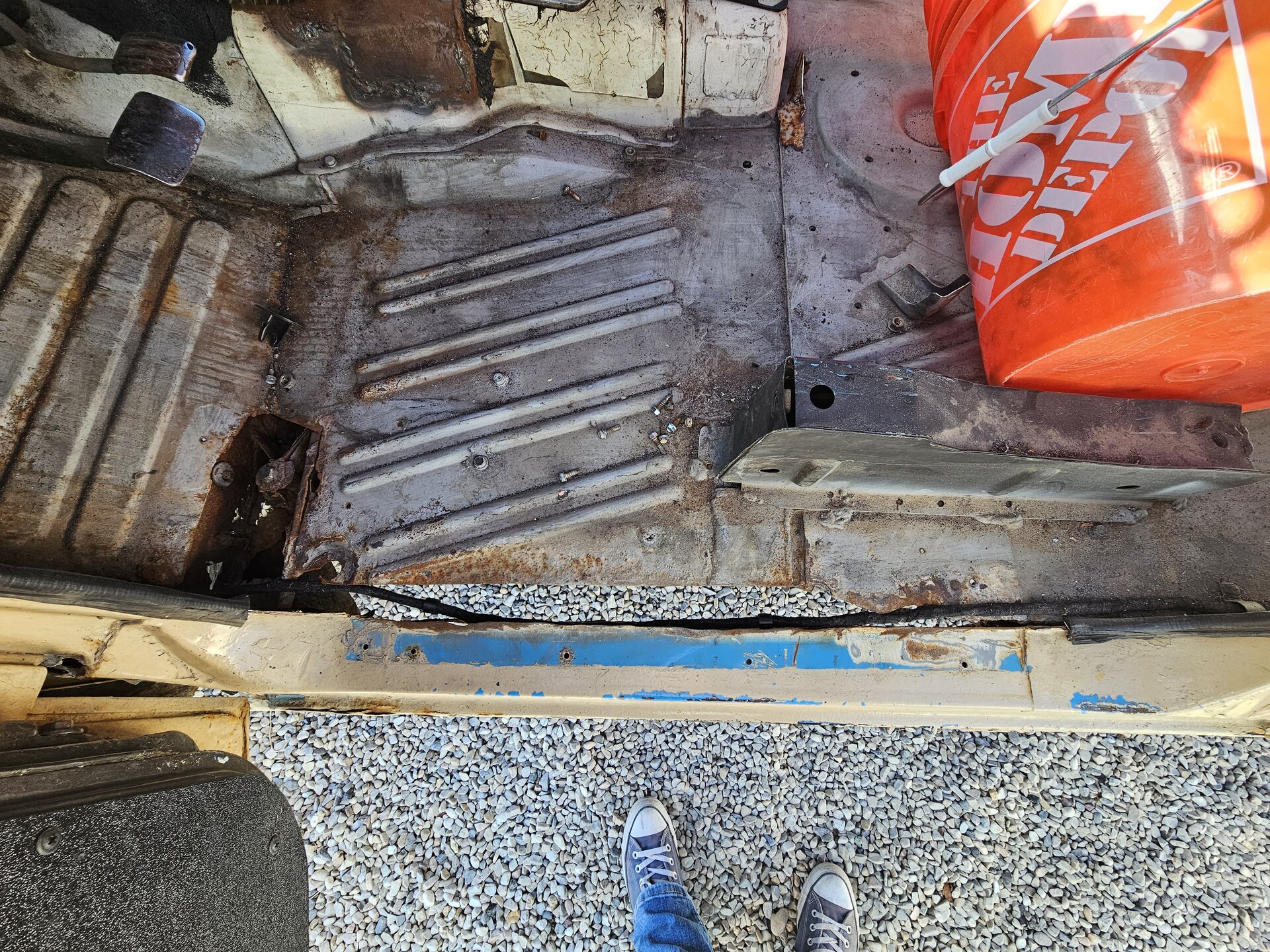

The last few weeks I have been slowly grinding and cutting away the floor. It is almost ready to start cutting and welding in the replacement parts. I buy more cleanup to do.

Home Depot buckets for the win for a temporary seat.

Blue Belle Updates
Removed the bow tie, she is looking better already. Waiting for a new starter solenoid to come in this afternoon. Luckily it is wired for two batteries and the solenoid was easy access.

Fingers crossed that is all that is needed to get her to turn over



[greenbeast]

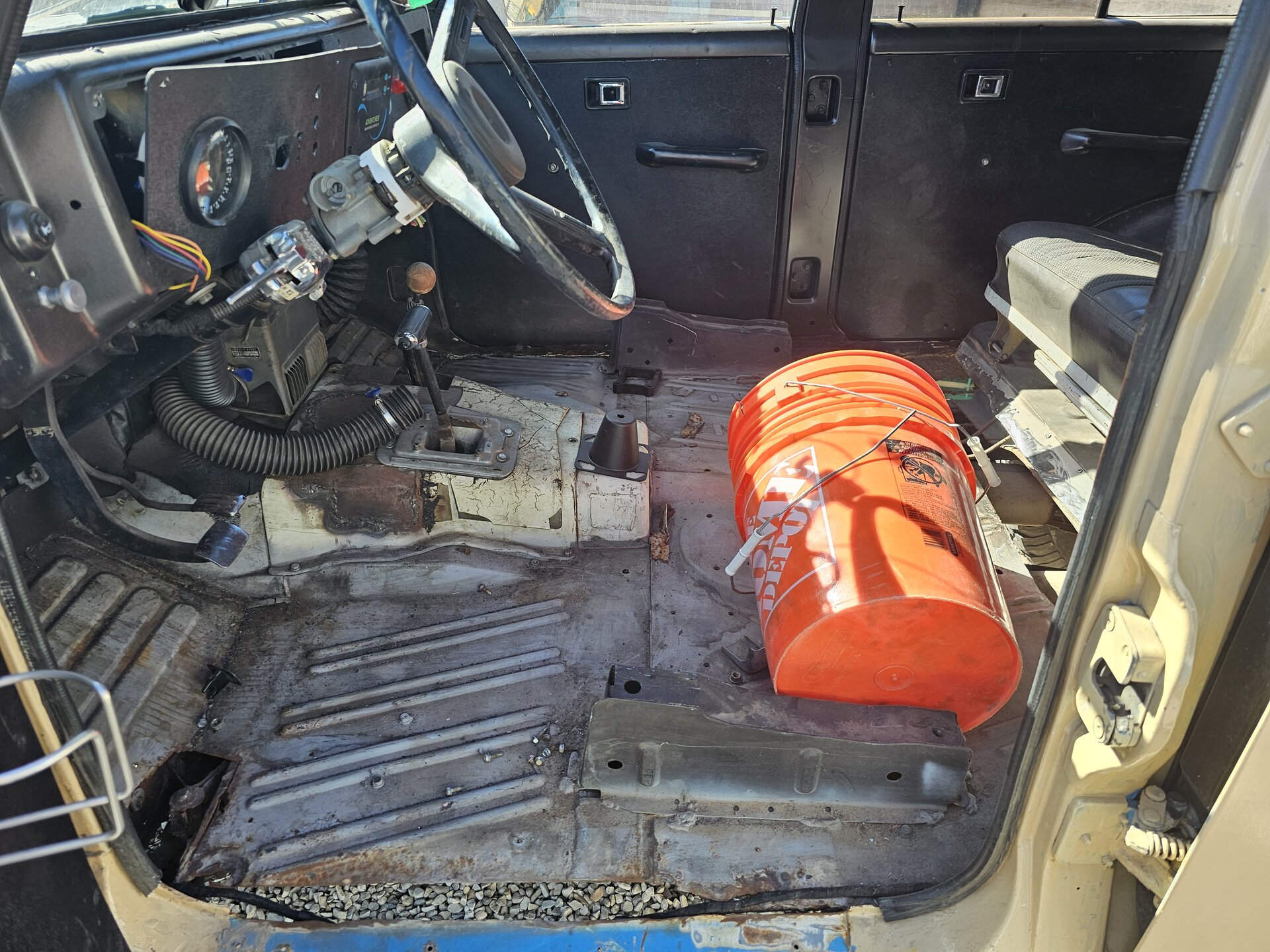

Old Man Tan update
The last few weeks I have been slowly grinding and cutting away the floor. It is almost ready to start cutting and welding in the replacement parts. I buy more cleanup to do.

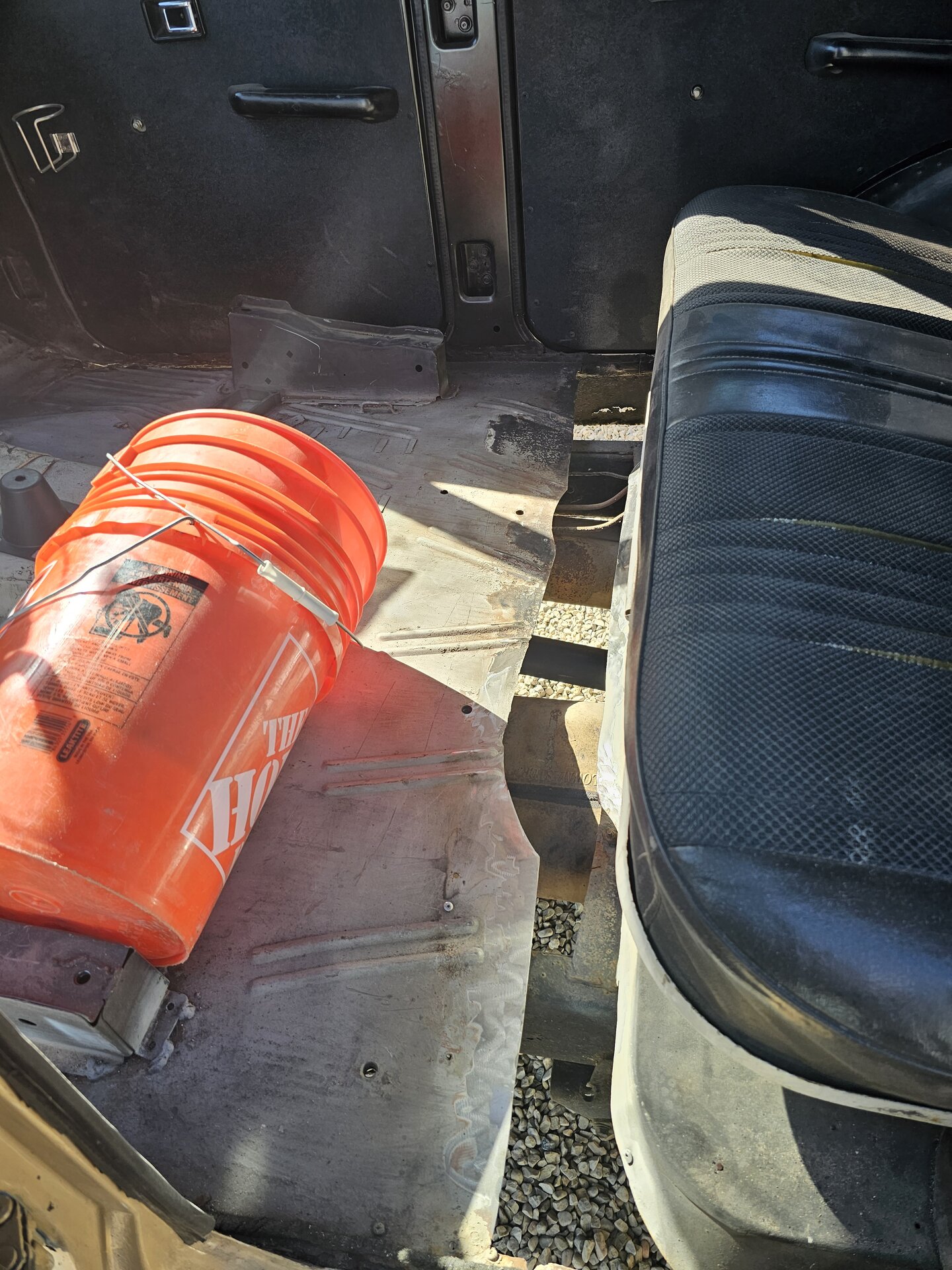

Home Depot buckets for the win for a temporary seat.
View attachment 3373919
View attachment 3373921View attachment 3373922View attachment 3373923
Blue Belle Updates

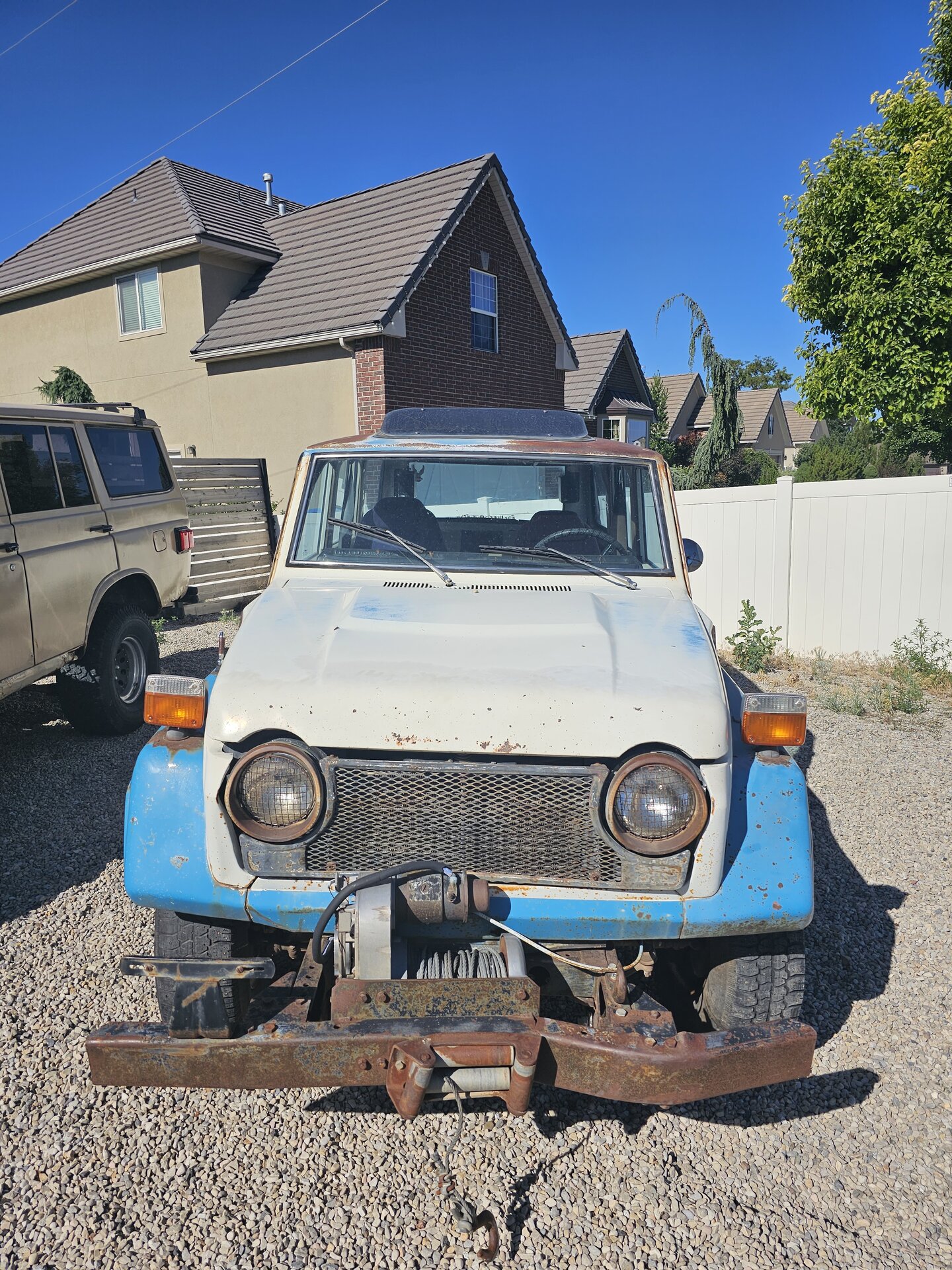

Removed the bow tie, she is looking better already. Waiting for a new starter solenoid to come in this afternoon. Luckily it is wired for two batteries and the solenoid was easy access.
View attachment 3373924

Fingers crossed that is all that is needed to get her to turn over

Was hoping for easy fix for you.



[Showerhammer]

Was hoping for easy fix for you.

Well, good news is the bow tie is gone.

There was a setup for two batteries. There was on solenoid that I replaced that was easy access. No luck.

So I removed the two battery setup and power to the winch, a Wern M5687 but no luck. Tomorrow or Monday I will work on the starter.



[scrapdaddy]

Hammer, You ever fix the leaking fuel float?



[Showerhammer]

Hammer, You ever fix the leaking fuel float?

I did, forgot to post. I ended up making a liquid gasket. I tried sloshing the crap out of it and no leakage so we are good there. I will post a picture tomorrow.



[1cogfrog]

Love the progress on both. Following!



[Showerhammer]

@greenbeast did not lie. Blue Belle runs like a bat out of hell.

I finally found the correct starter to purchase. Putting the part number on the actual starter pulled up the wrong screw pattern. So I just started looking up "Chevy Corvette Starter" then years 1955-1963. Finally found it for the 1963 Corvette.

The joy of havinga Toyota with a Chevy engine and transmission.

I driver her around the block, she runs like a champ. No issues shifting through the gears except my lack of driving a manual for 15 years.

Next step, basic maintenance of changing fluids, checking brakes, etc.

Fun side note, according to this letter I have an electric wench. I didn't know they had those back in the 80's.



[PabloCruise]

Alright, after a new job, life and summer vacations are out of the way we are back.

Thanks to @greenbeast for selling me his '77 blue beauty donor pig.
View attachment 3373722

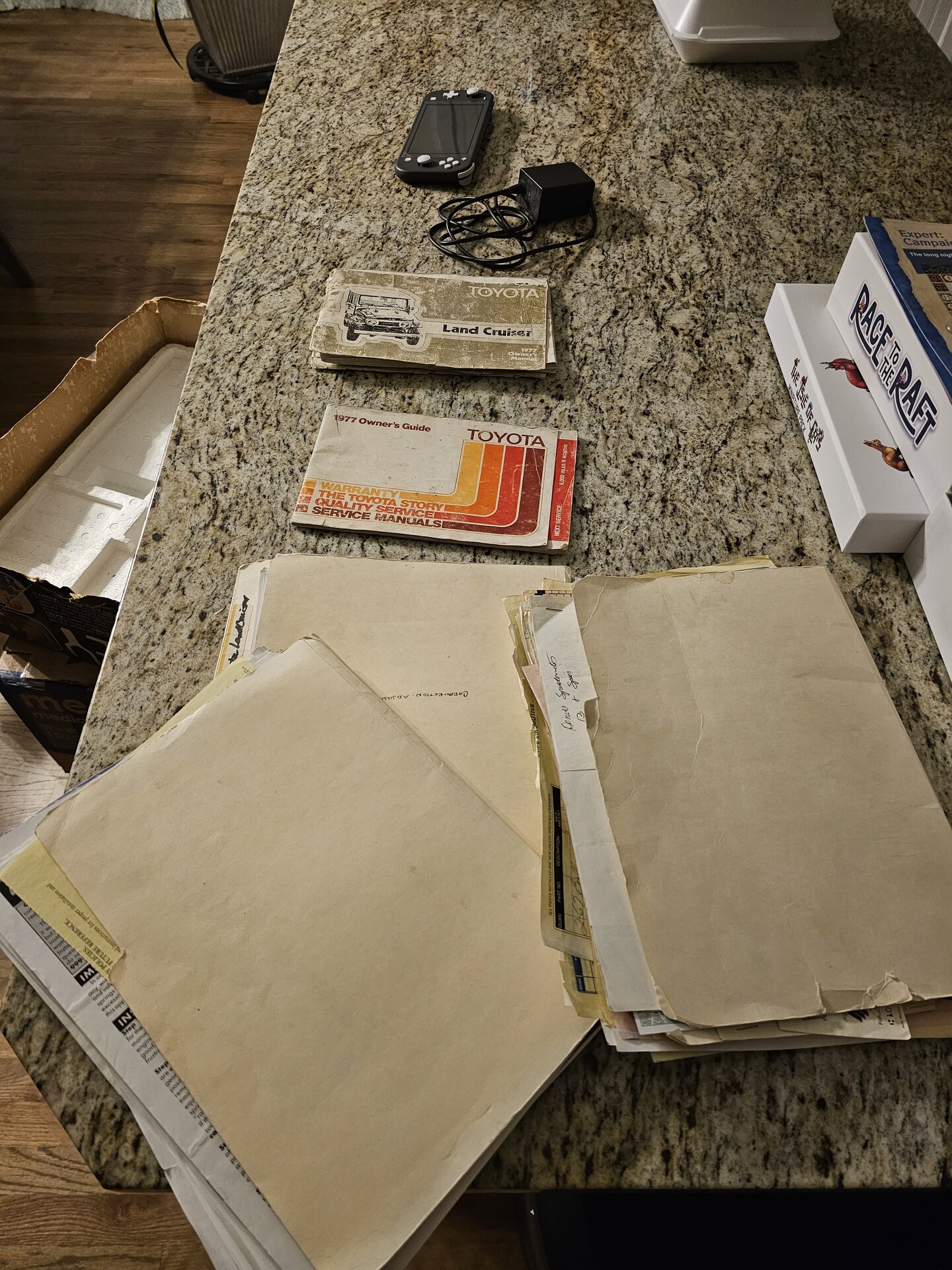

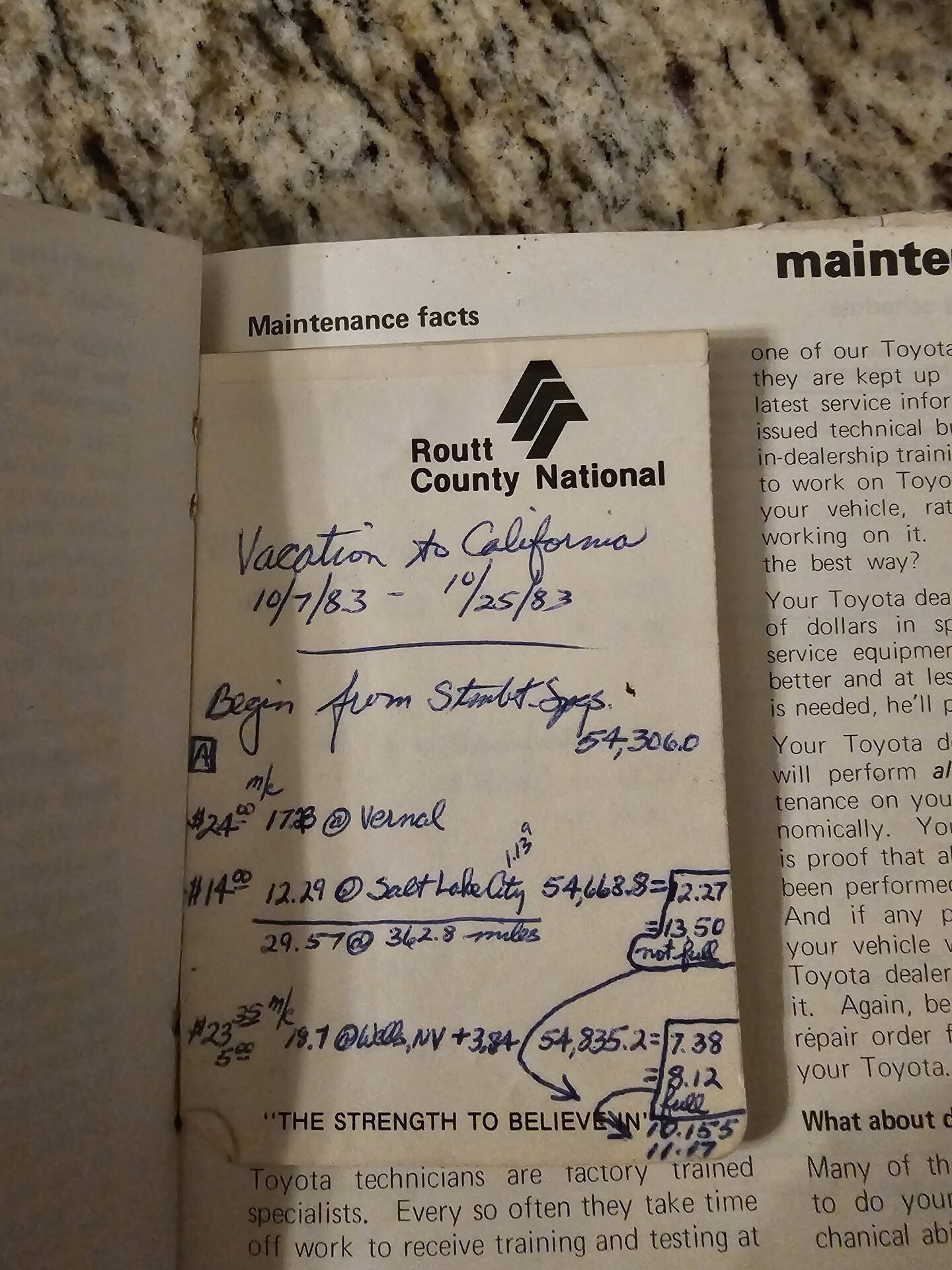

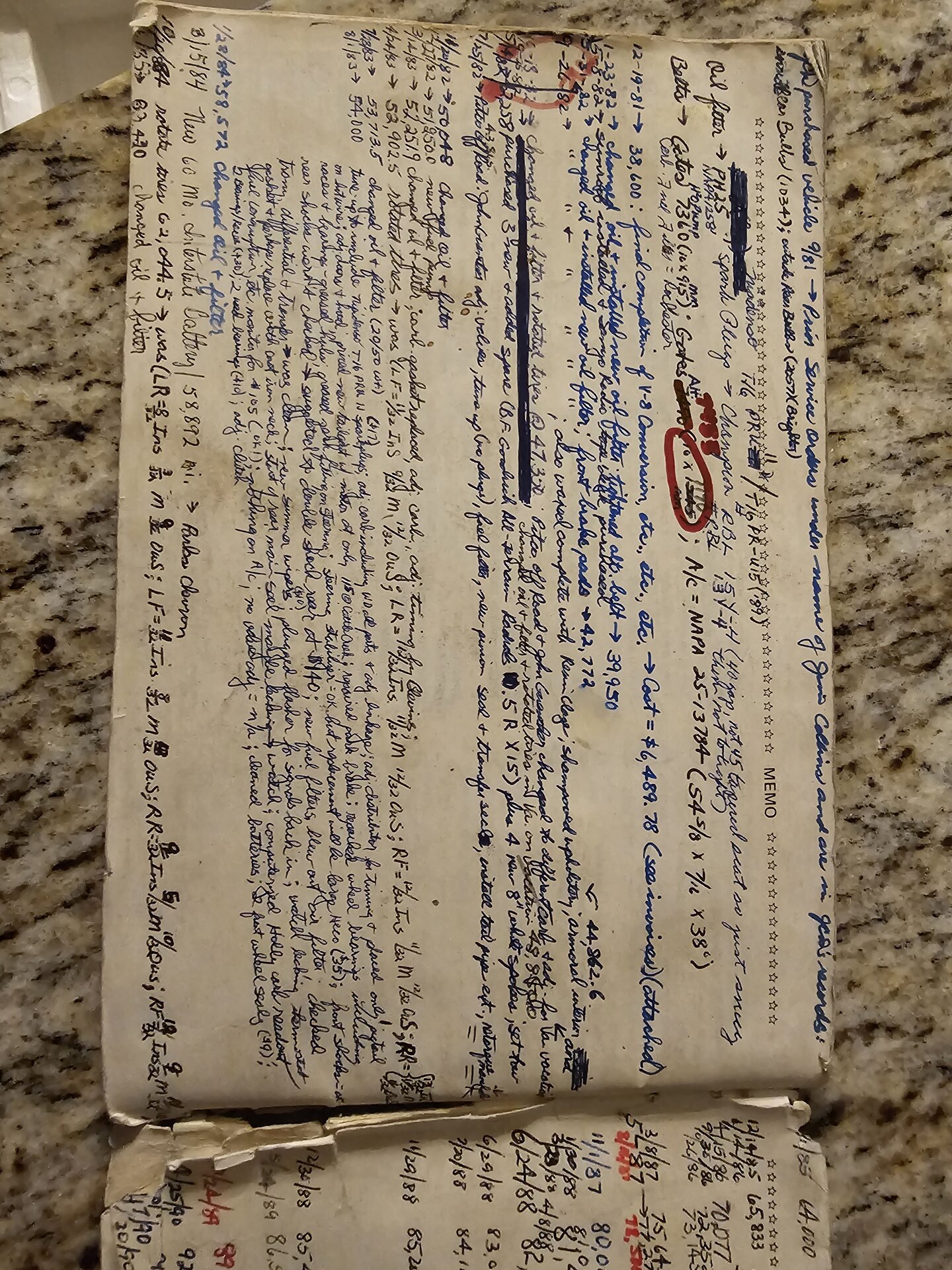

The amazing thing is the owner previous to green east kept meticulous notes and detailed records and receipts of all the work done. Including travel logs.
View attachment 3373724
View attachment 3373725
View attachment 3373723

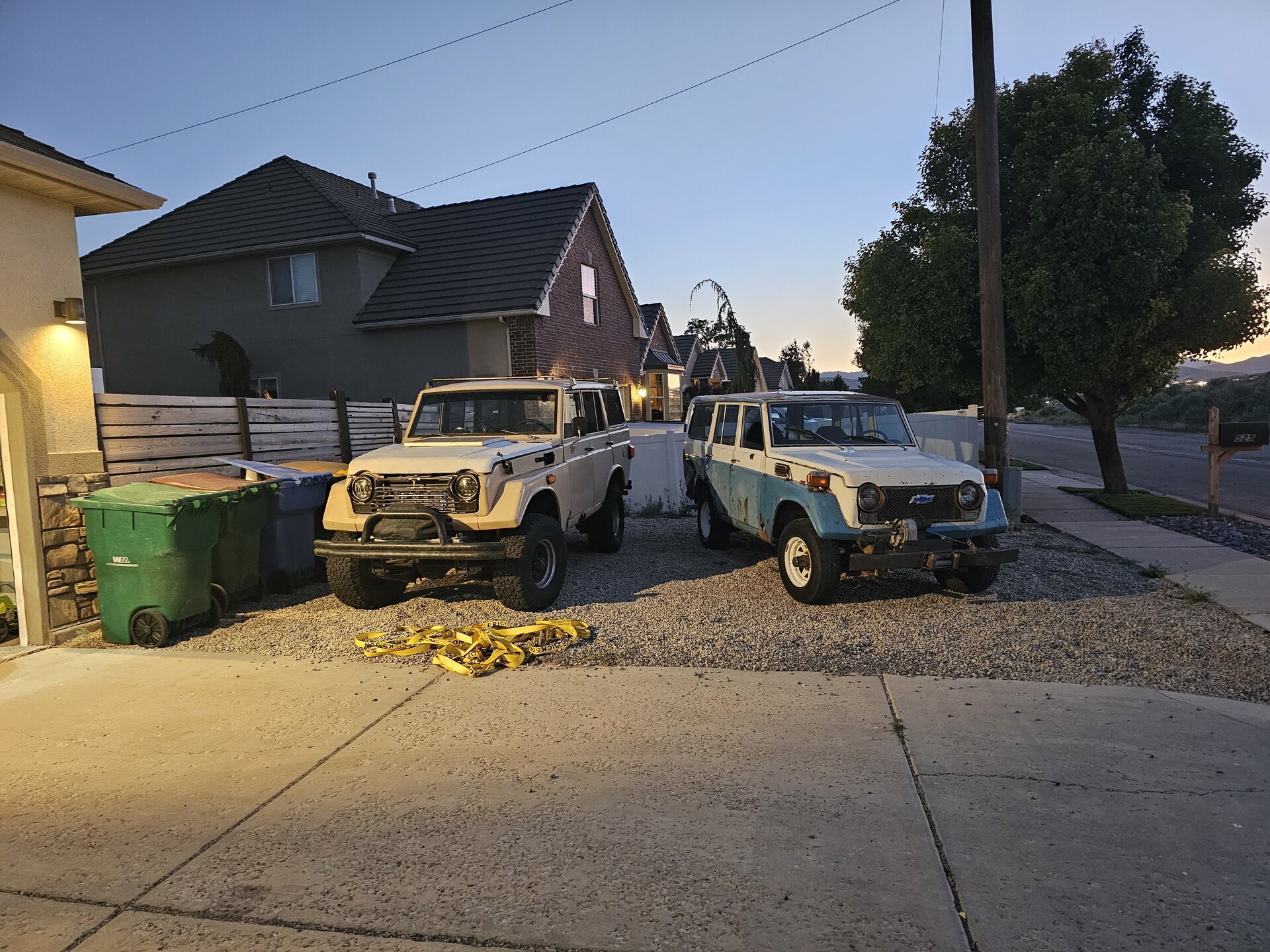

Got him home safely from Colorado to Utah and parked next to his big brother.

I was calling him Old Blue but my daughter has named her Blue Belle, so he is now a she.

I have a rough vision of what I want out of the two. Expect more build posts in the coming days. First step, remove the blue bowtie, then get Blue Belle running.

Wow, you got the other @greenbeast Pig!!!

It seems like you don't see too many '77 Pigs around. I wonder why?

I love all the records they kept!



[PabloCruise]

Well, good news is the bow tie is gone.

There was a setup for two batteries. There was on solenoid that I replaced that was easy access. No luck.

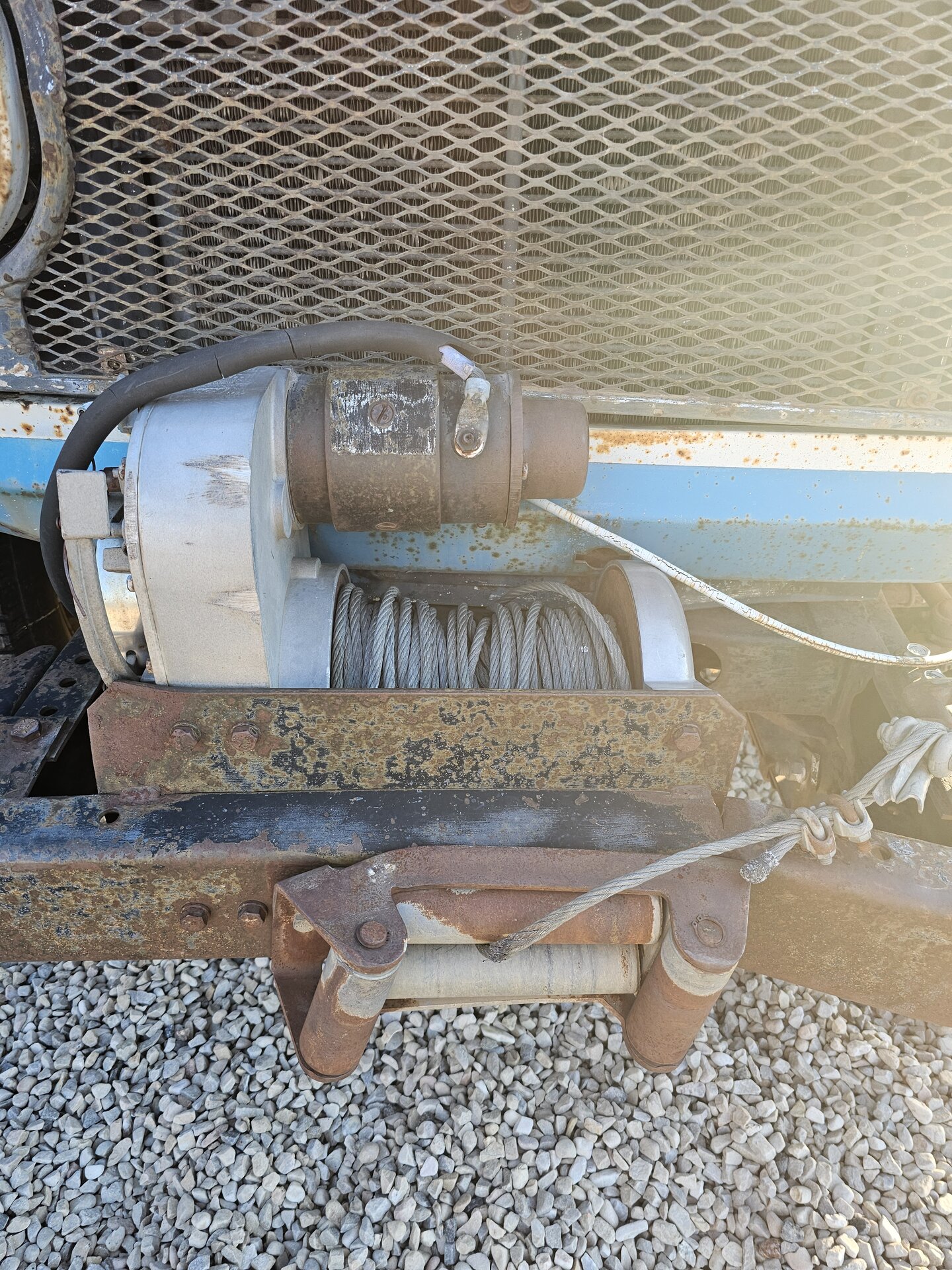

So I removed the two battery setup and power to the winch, a Wern M5687 but no luck. Tomorrow or Monday I will work on the starter.
View attachment 3374448

Someone did a real number on that front bumper!



[Showerhammer]

Front bumper is nothing when compared to the rear.

I thought I had a picture of the rear but will get one later.



[Showerhammer]

Blue Belle is running. Put a new starter in, cleaned the carburator and she purrs like a kitten.



Changed the oil, it was nice and black. Next steps. Remove rear window and motor, get that up and running then rebuild the rear wiring harness.



[RUSH55]

I was just thinking about this rig the other day.
If it wouldn’t be too much trouble, could you take some pics of the inside of the doors where the outer door skins wrap around and pinch to the inside? I’d like to see how Colorado has treated these areas on this rig.



[Showerhammer]

I was just thinking about this rig the other day.
If it wouldn’t be too much trouble, could you take some pics of the inside of the doors where the outer door skins wrap around and pinch to the inside? I’d like to see how Colorado has treated these areas on this rig.

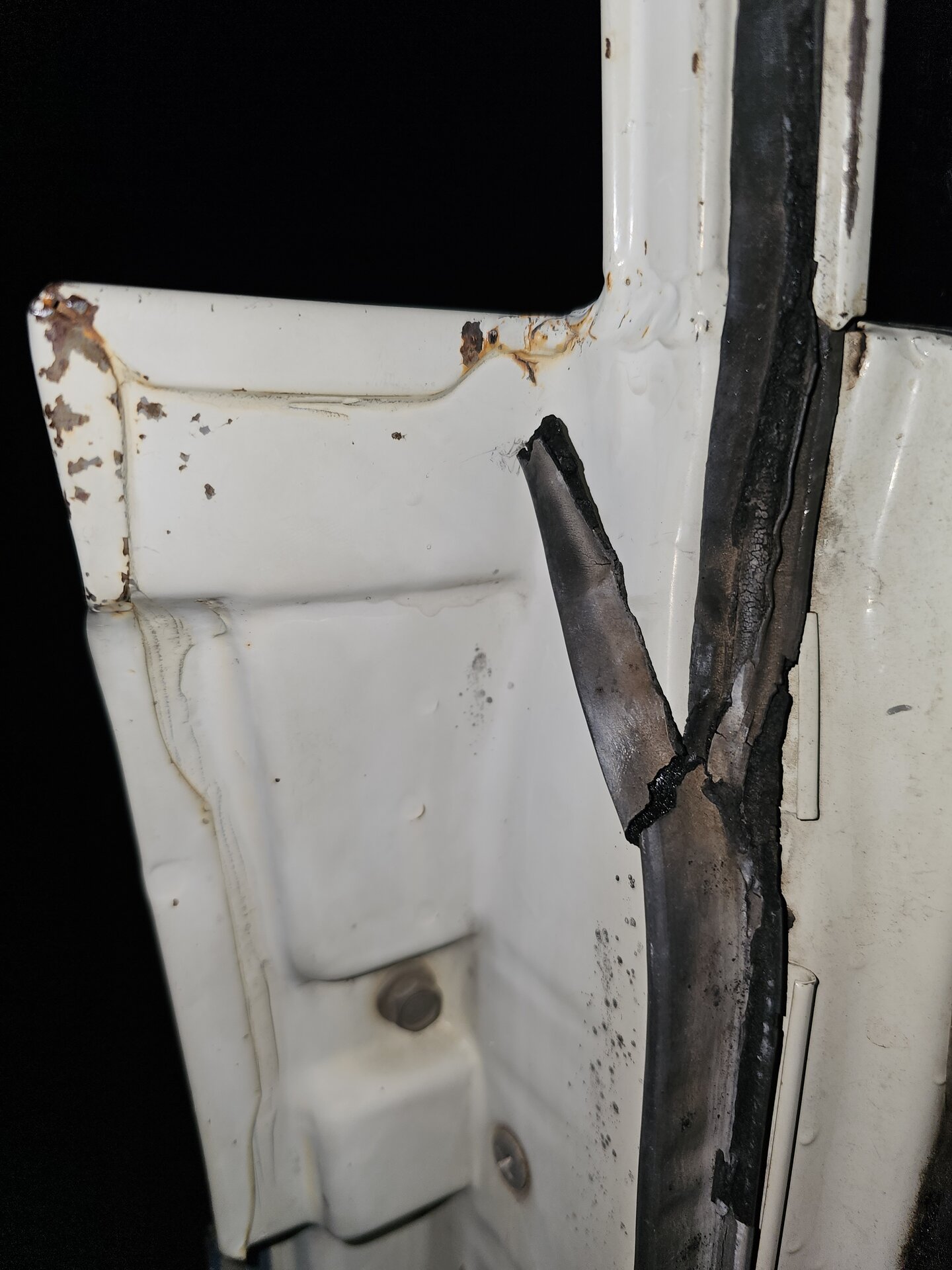

Those sections are actually doing really well, a bit of rust at the upper portion.



[Showerhammer]

In non-piggie news I got a killer deal on this guy. Winter project, a 1969 Rokon Trail Breaker.



[RUSH55]

Thanks for posting those pics @Showerhammer



[Showerhammer]

Thanks for posting those pics @Showerhammer

Anytime



[bobm]

Rokon originally made in Vermont now made in N.H. that one have the extra fuel cell wheels??
