I got a FJ40 rear sill from Dan. Great communication and parts!



[ThatDude]

Rear Sills

All sills include the cover piece except for the late model which doesn't have one and is a two piece construction. All sills include the captured nuts for the tire carrier and it's bump stop as well as the ambulance doors where applicable. The covers have holes for you to plug weld it on.

'58 - 12/74
01/75 - 08/76
09/76 - 12/78
01/79 - 12/84

Interesting notes:
The middle two years differ only in the type of tire carrier.
The sill has four body mounts from '58 through to 12/78 and then has just two.
There are other sills such as FST that would be different.
My sills are one piece with welded seams. The end horns are not welded on, they are part of the main channel.
Captured nuts are all metric M8
Sill dates are not exact... Toyota used up old parts later and used new parts early. If your rig is close to the change over make sure which one you need.

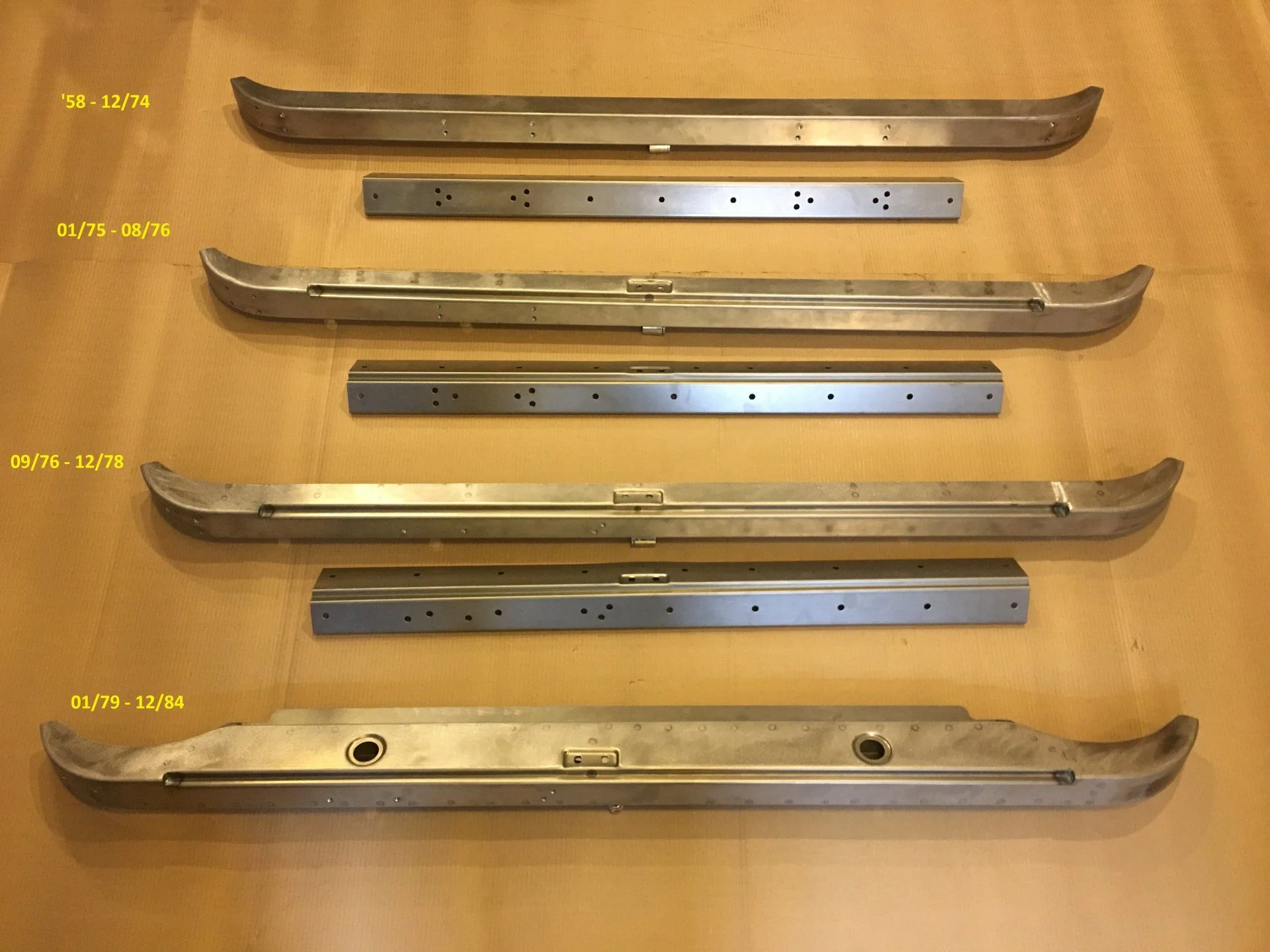

View attachment 1401681

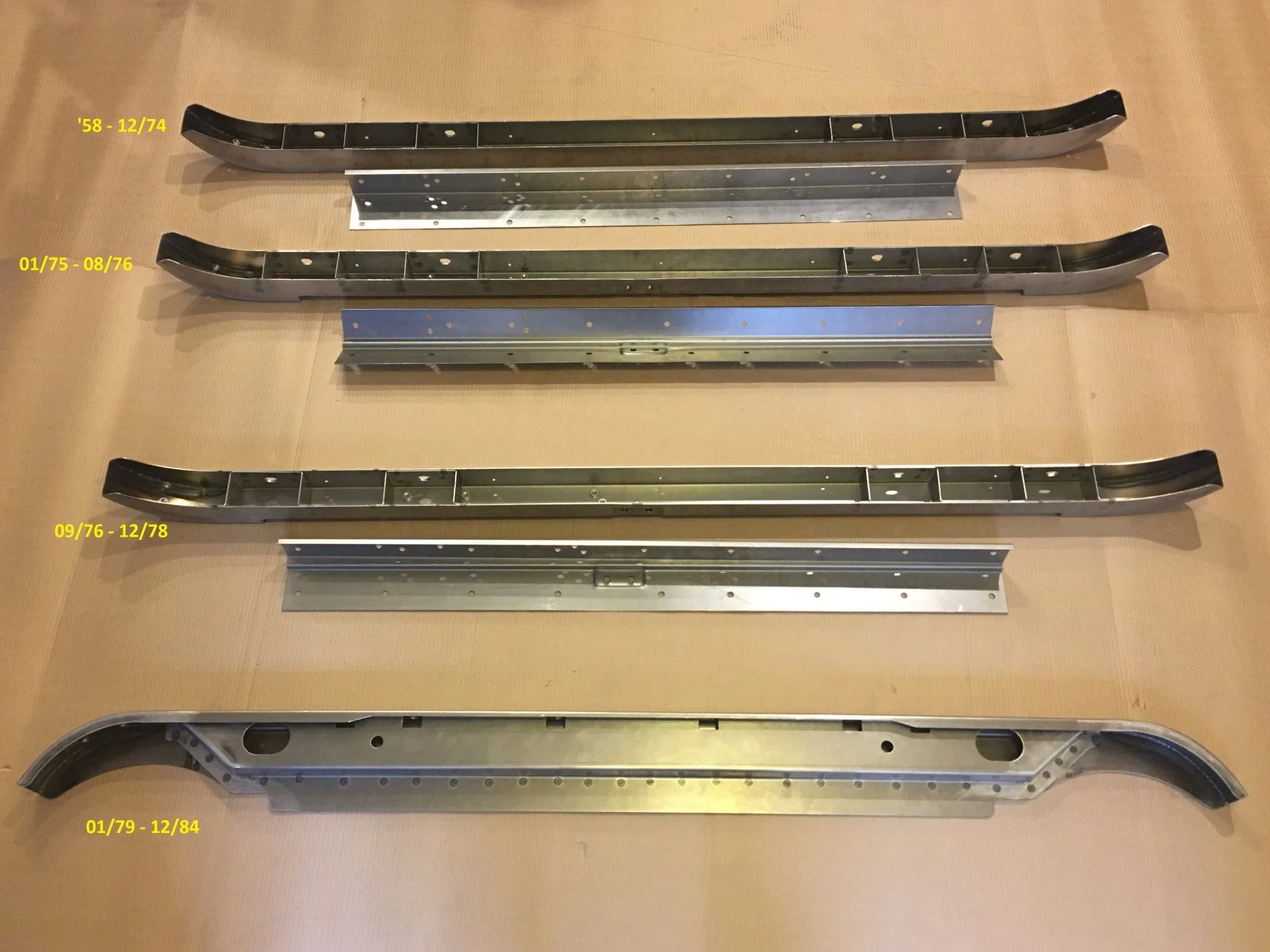

View attachment 1401688

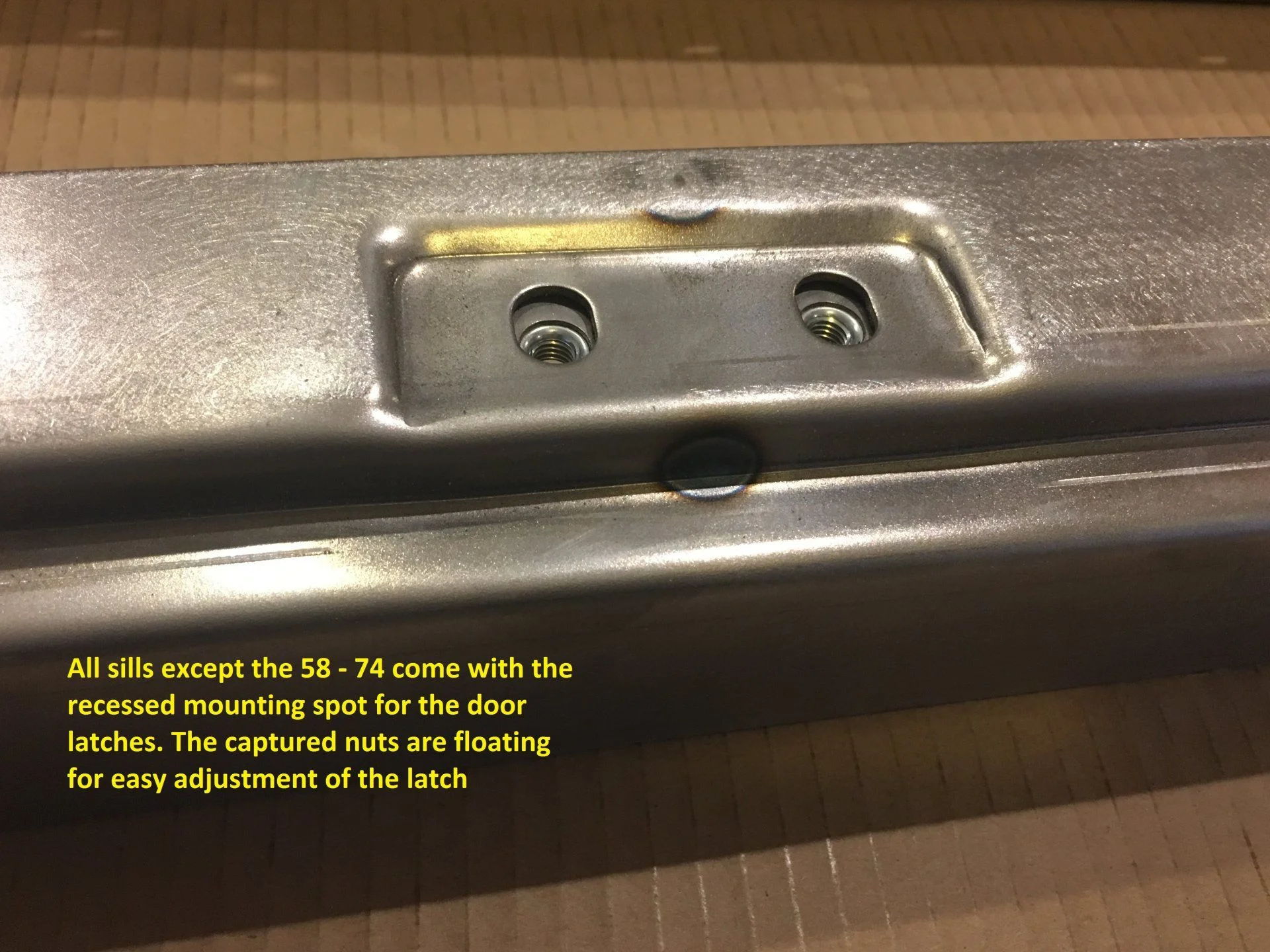

View attachment 1401683

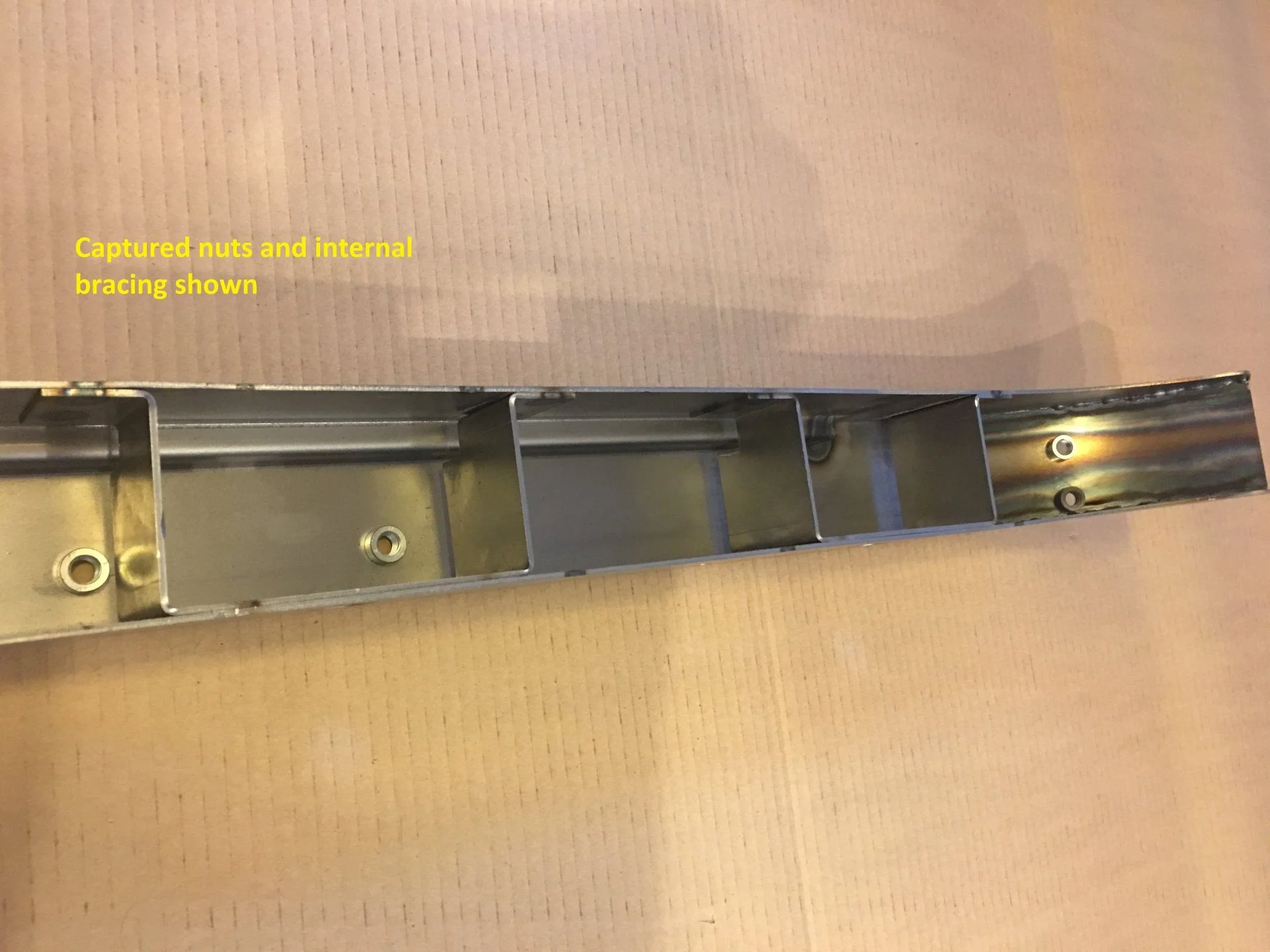

View attachment 1401693

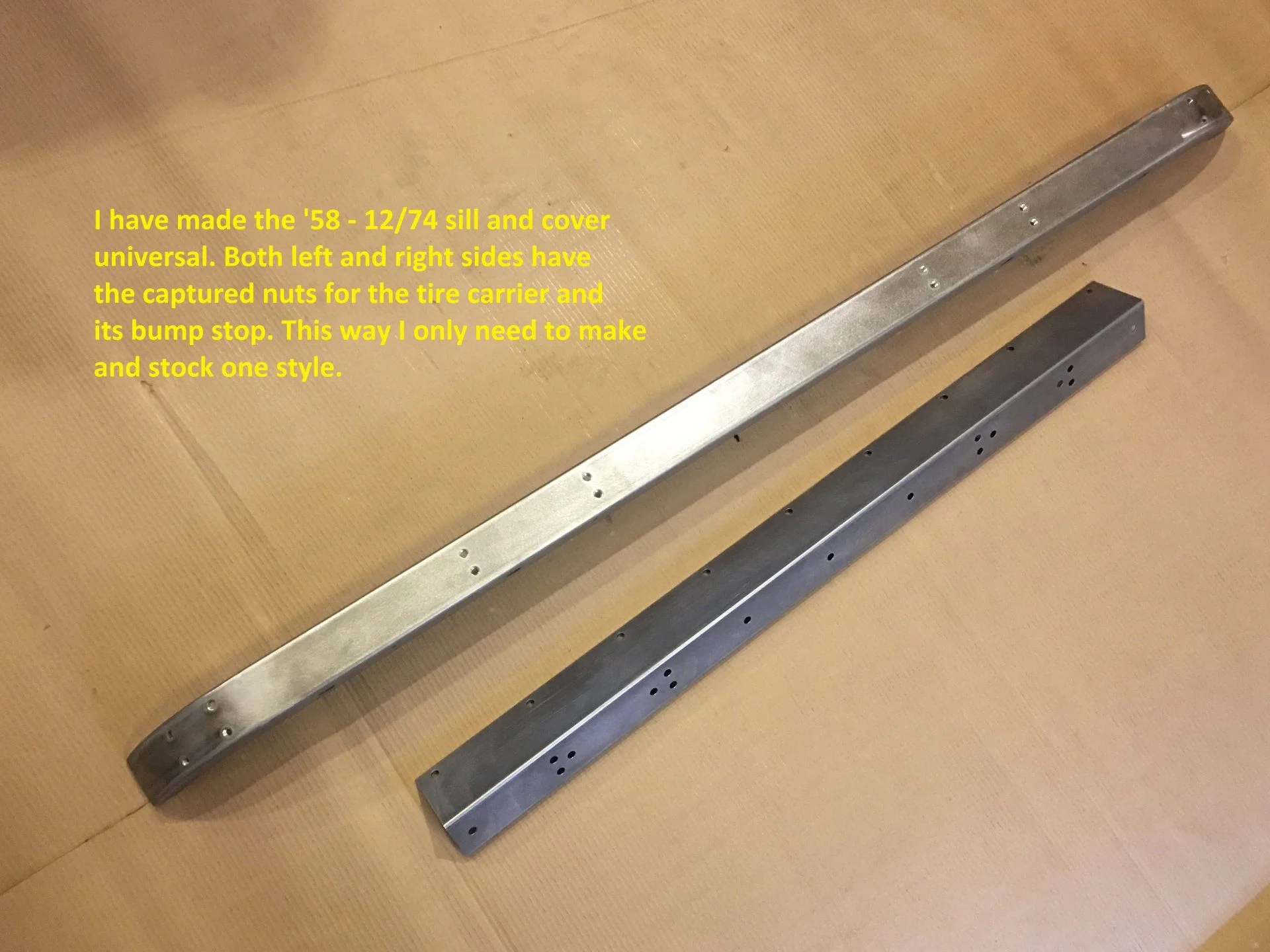

View attachment 1401689

Are these still available somewhere? I checked the 4 wheel auto site, nothing was showing like this

[EDIT] Changed the model in the search and started seeing many other items. Still no sill though



[kunzma]

Are these still available somewhere? I checked the 4 wheel auto site, nothing was showing like this

[EDIT] Changed the model in the search and started seeing many other items. Still no sill though

According to the first post in this thread you have to call the number on the website and talk to Dan.



[Varty Yo]

Calll and talk to Dan in person.



[kunzma]

TTT



[groundeater]

WoW Your work is superb !
