AVAILABLE 7X SERIES PARTS--USA MARKET (1 Viewer)

[OGBeno]

Sure.



[AlbertoSD]

Great initiative, Onur!

Thanks for doing this and congrats on the new rig, again!!!

-Alberto



[cruiserdan]

Fuel filter 13BT, H, 23303-54072
24v oil pressure sender for with gauge, 83520-60020
Windshield for fold-down frame, 56111-60230
Weatherstrip for above without moulding, 56121-90K01
Weatherstrip for with moulding (non-import, requires VIN and import papers) 56121-90K03
RH wiper blade, RHD, 85220-32120
LH wiper blade, RHD, 85220-22600
Rear wiper blade, 85220-22300
Locking fuel cap, 69058-60141
"Diesel" fuel cap, non-lock, 77310-35061
24v instrument panel bulb, 99134-12030 3watt
24v marker bulb, 90981-12012, 5watt
Washer jar, later style tall, 85315-60210
Fender apron seal (curtain between inner fender and frame) 53737-60040. Fits both sides needs to be trimmed to clear exhaust pipe.
13BT A/C compressor, less clutch, 88320-01011-84
13BT voltage regulator, 27700-57080
Parking brake lever, black, may need to swap switch, 46210-60230-C0
Boot for above, black, 46243-60060-C0



[cruiserdan]

RH headlamp assy, 12v round, 81110-90K01. every thing but the replaceable sealed beam is the same as 24v.
LH headlamp assy, as above, 81150-90K01

Foot notes:
These have GE sealed beams, not Koito. I was somewhat surprised.
Can be used in 24v trucks with a change to 24V sealed beams, Hellas, Lightmates, ETC.



[perrobravo]

Sway bar/stabilizer bushings (D type), 48815-30050
24v licence plate bulb, 90981-16016
Gage assy water temperature sender, 83420-20020

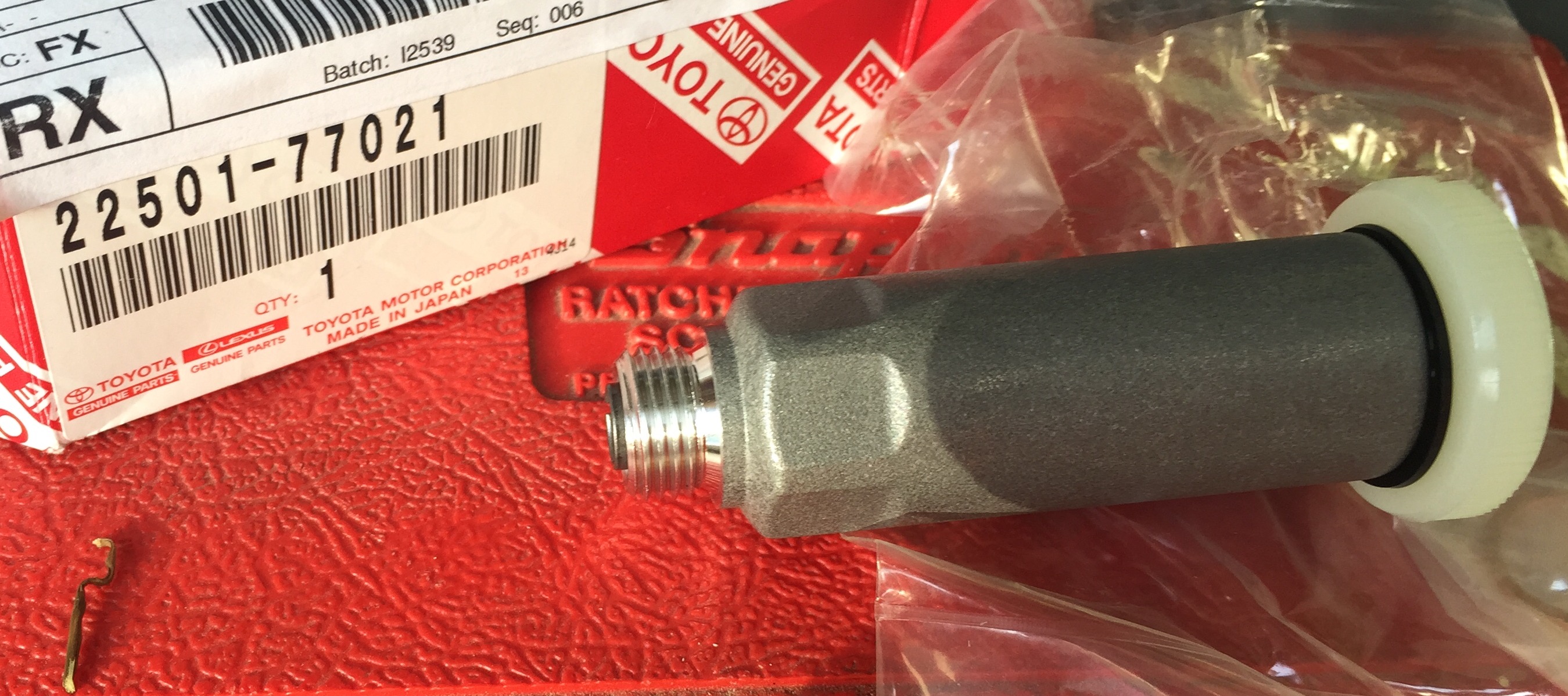

Priming pump, 22501-77021

Aspiring to be more like @beno , felt like a picture would help



[fireball]

Weatherstrip for above without moulding, 56121-90K03
Weatherstrip for with moulding (non-import, requires VIN and import papers) 56121-90K01

Dan, can you confirm those weatherstrip part numbers? When I search jp-carpart it shows the K03 for my BJ74. The K01 comes up for a Bj73....STD.
Also, I can't find a part number for trhe chrome moulding, I assume that isn't available?
Thanks!



[cruiserdan]

56121-90K01 has NO molding provision groove. This would apply to a "base model" truck.
56121-90K03 has a groove to accept chrome moldings.

As far as I have been able to determine all BJ74s were fancy enough to get chrome moldings. The moldings are not available and quite frankly are a pain in the ass to deal with when installing. When I replaced my windshield I went with the plain (90K01) weatherstrip.


I was backwards in my post #23 above (good catch) and I have corrected it.



[cruiserdan]

Early style chrome grille, steel, with black center mesh, 53101-90K01
"TOYOTA" emblem, 75311-90K00



[Gun Runner 5]

While it's been enjoyable to look at all of the neat parts, both in and out of bags, here is my question. If, heavens forbid, I wreck one of my 70 Series and need major components (hood, fenders, roof etc.) are those parts available?
Thanks



[OGBeno]

While it's been enjoyable to look at all of the neat parts, both in and out of bags, here is my question. If, heavens forbid, I wreck one of my 70 Series and need major components (hood, fenders, roof etc.) are those parts available?
Thanks

Some, yes.



[cruiserdan]

I was able to get a hood and both front lower fenders. One of the fenders was coded non-import and I had to provide vehicle import paperwork to get it released.



[OGBeno]

53801-90K04: RH FENDER: Available.
53802-90K04: LH FENDER: Available.



[Gun Runner 5]

53801-90K04: RH FENDER: Available.
53802-90K04: LH FENDER: Available.

I guess I better just drive carefully.



[cruiserdan]

53801-90K04: RH FENDER: Available.
53802-90K04: LH FENDER: Available.

The 53802-90K04 was coded non-import. That code has been pulled...

Hood, 53301-60151. Requires different washer nozzles. I'm trying to find my invoice for that part number.


EDIT...85381-12050 nozzles required for this hood.



[OGBeno]

The 53802-90K04 was coded non-import. That code has been pulled...

Hood, 53301-60151. Requires different washer nozzles. I'm trying to find my invoice for that part number.


EDIT...85381-12050 nozzles required for this hood.

As always, CDan has hands up high skirts.... er, I mean, places.



The FST hood is not available unfortunately. Though I guess holes could be drilled to accept the catches.



[OGBeno]

Oil cooler gasket:

Glove Compartment (the actual box that gets screwed into place):



[cruiserdan]

109 bucks list for that glove box liner....



[OGBeno]

I've paid way more for much less...



[rick_d]

so they used to have boatloads of gloveboxes at ens for nothing.
beno/cdan
any of these good us numbers?
53303-60060, right apron w snorkel

53301-60150 hood (old stock around?)

53301-60081 w hood orn

53301-60380 latest narrow front end



[portugie joe]

I'm looking for suspension seats for my bj74
