Builds 1975 Red (green) Money pit

[Tommy Shumpert]

Can’t upload photos for some reason…..



[Tommy Shumpert]

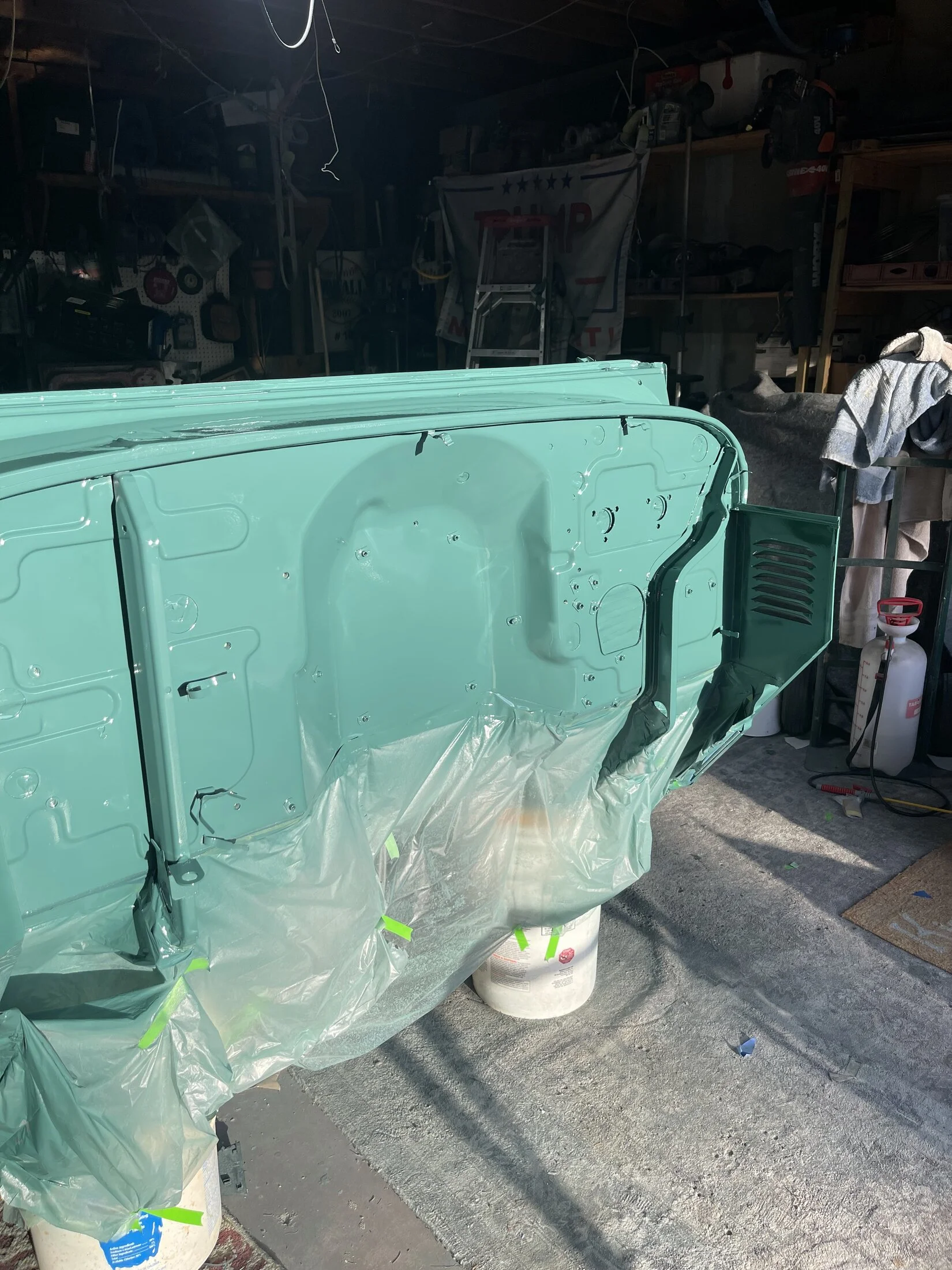

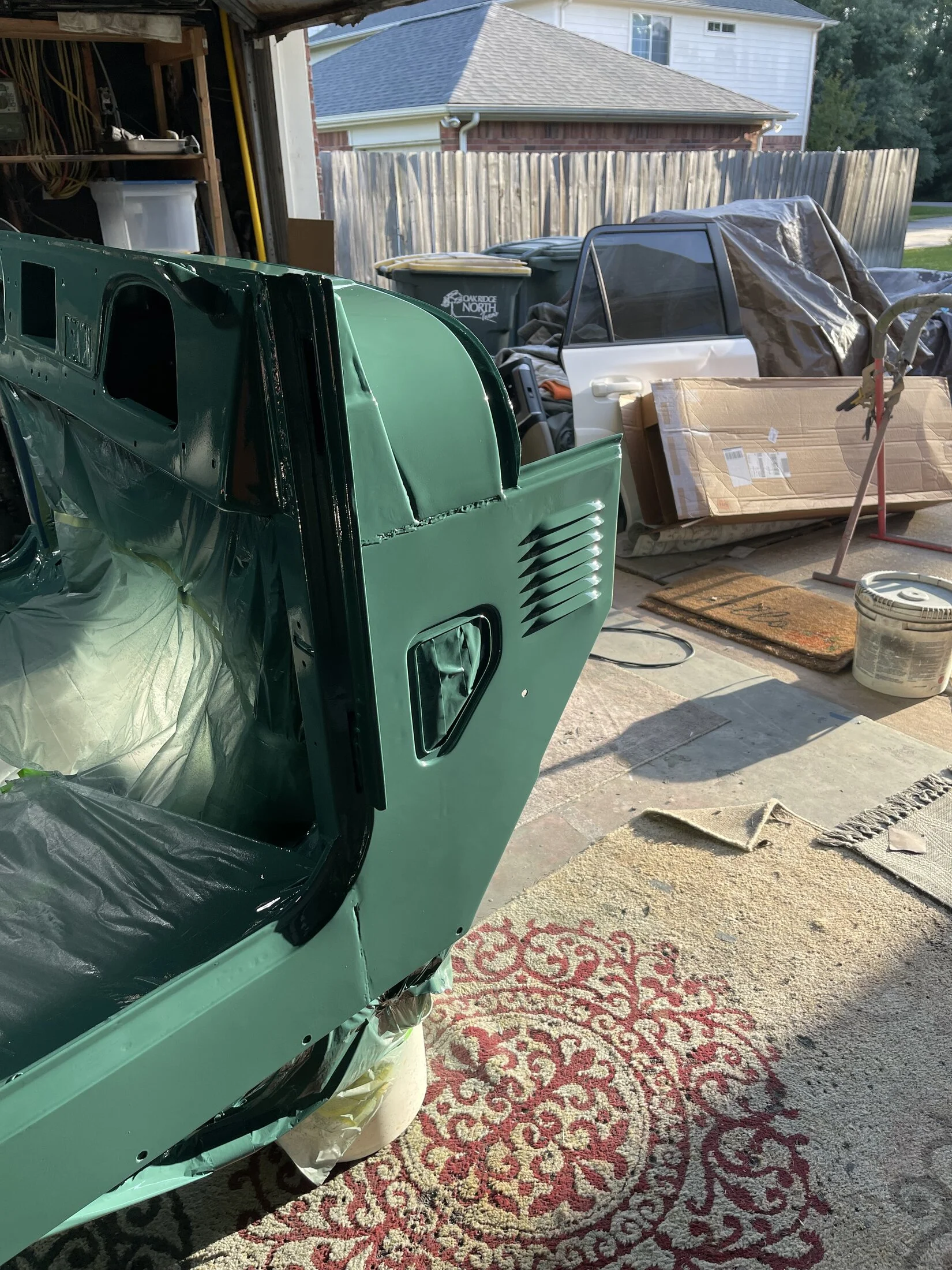

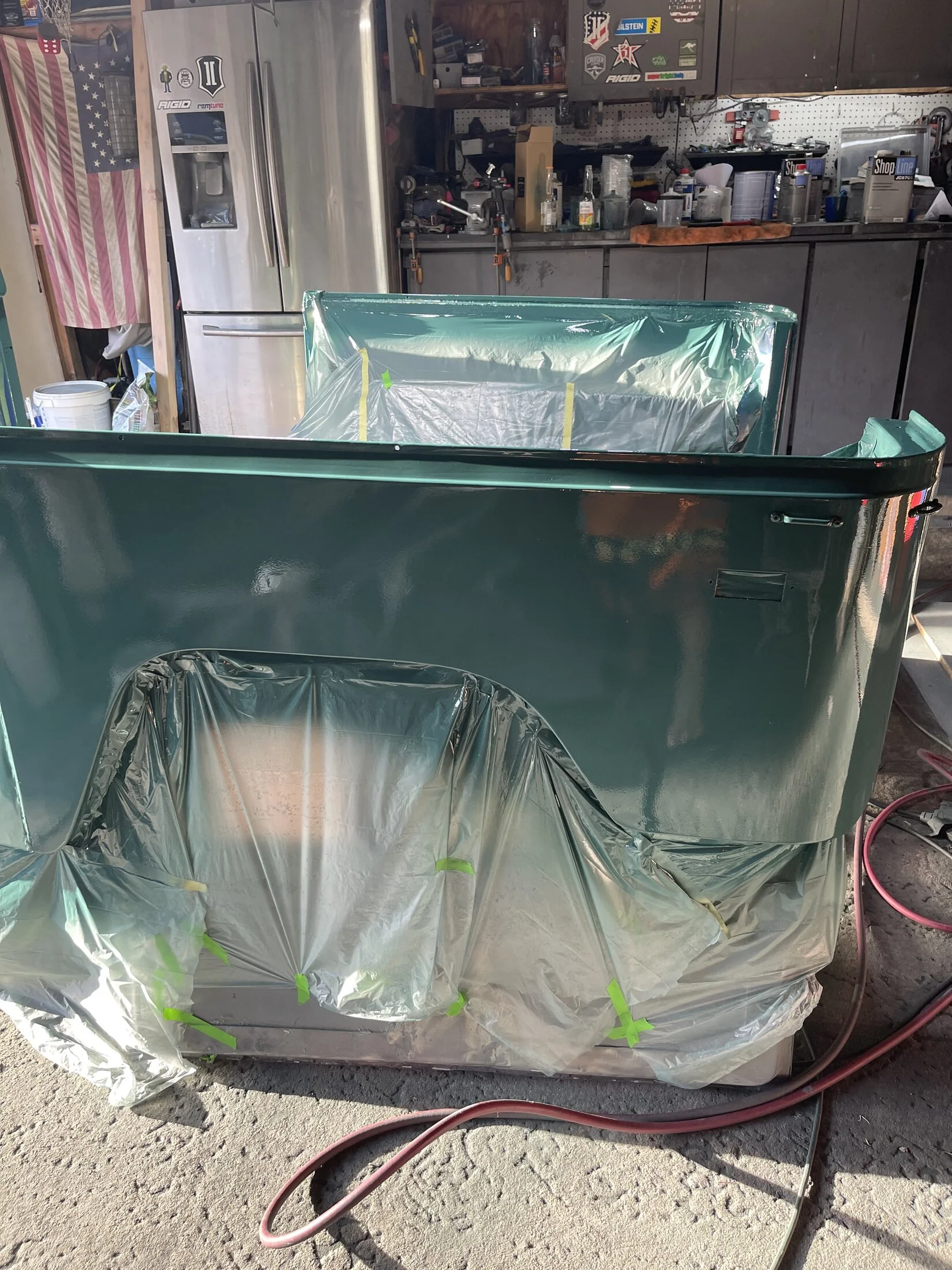

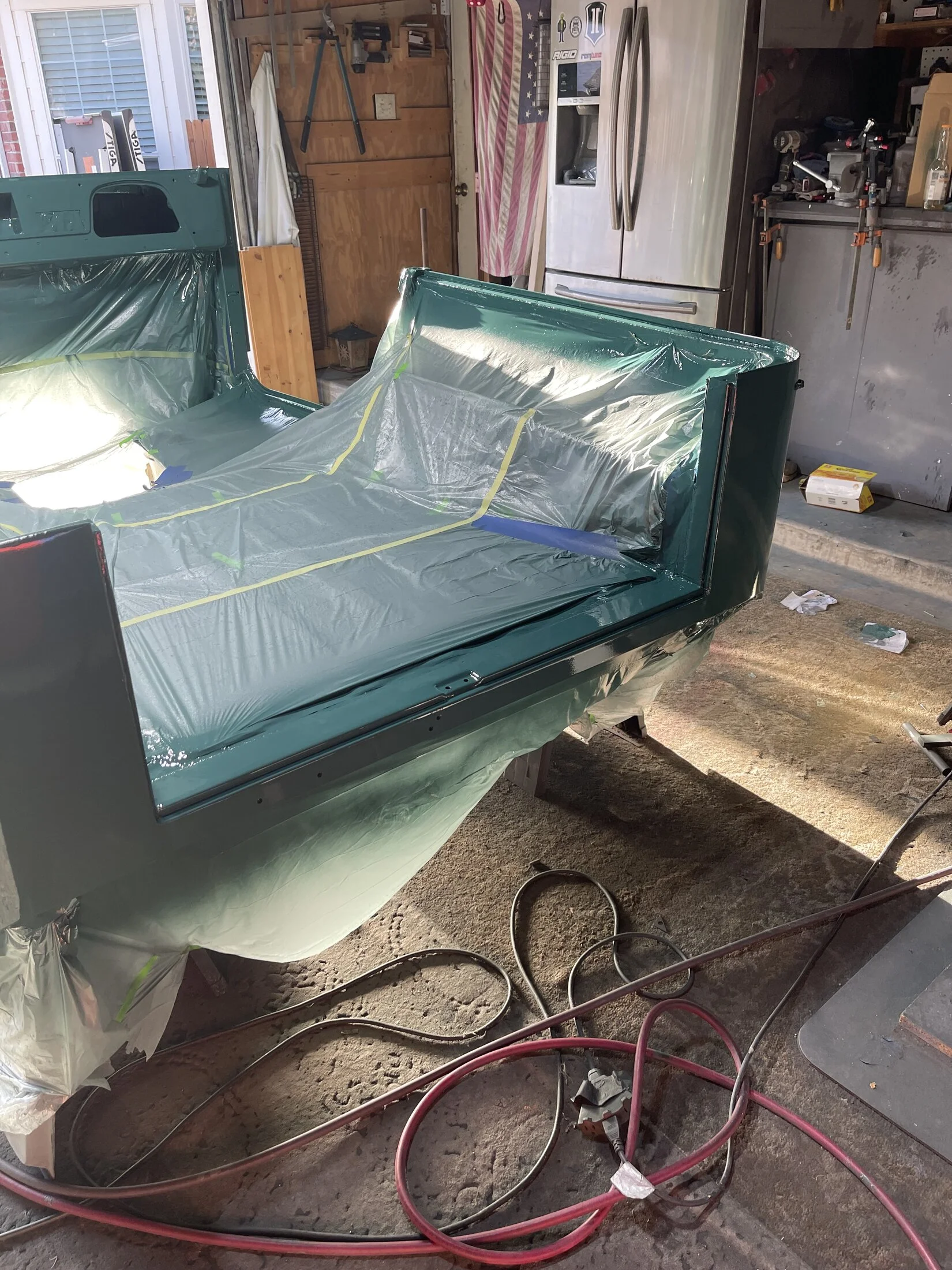

Well she is finally Rustic Green. Wow. 8 hours later.
Sprayed Eastwood 2k primer, sanded down with 420 , then 400. Sprayed Eastwood Epoxy primer over for sealer(reduced).
3 base coats of PPG shopline
3 coats PPG Shopline Clearcoat.



[Tommy Shumpert]

Have just a few specs of dirt, but can buff out.

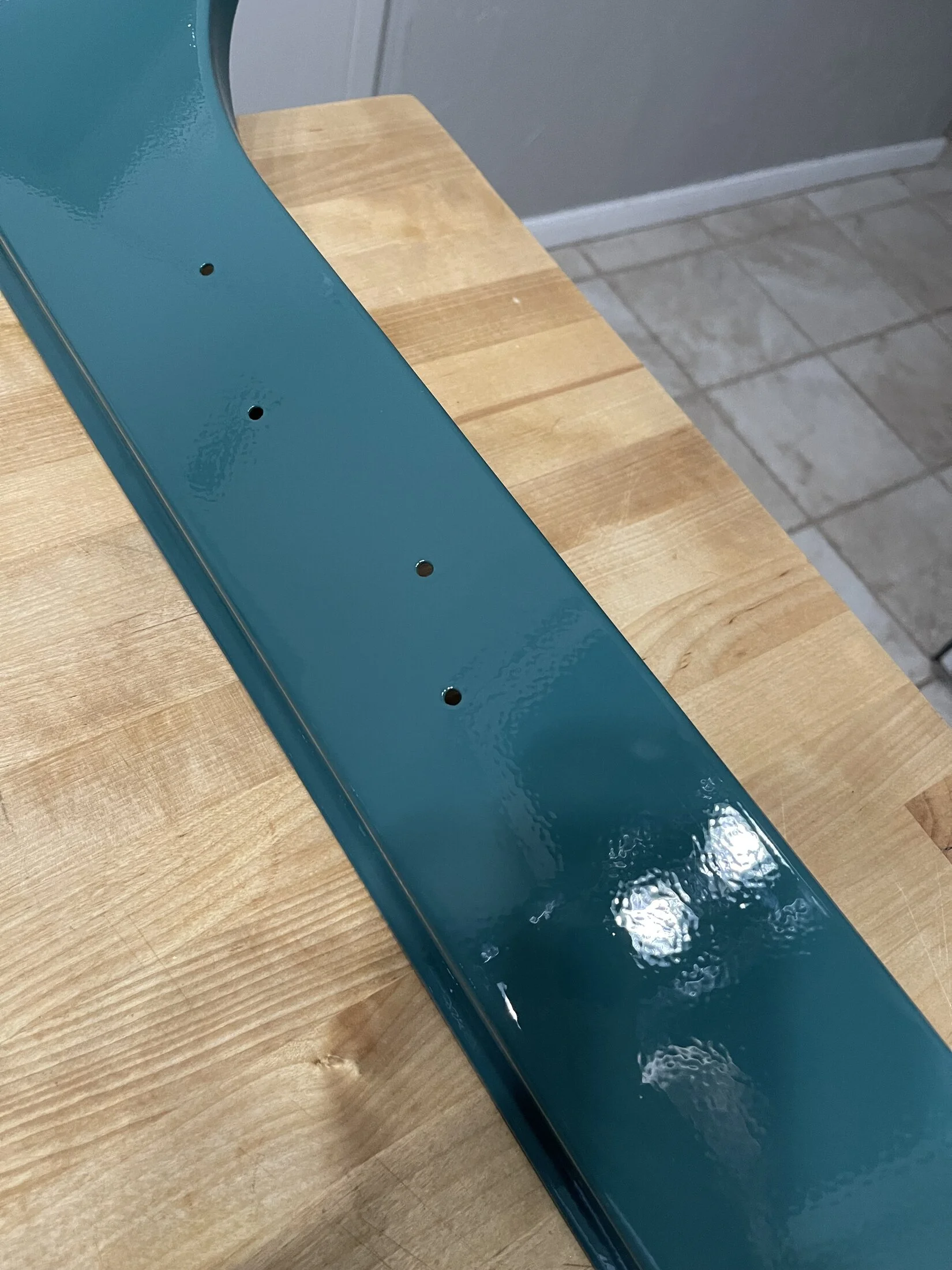

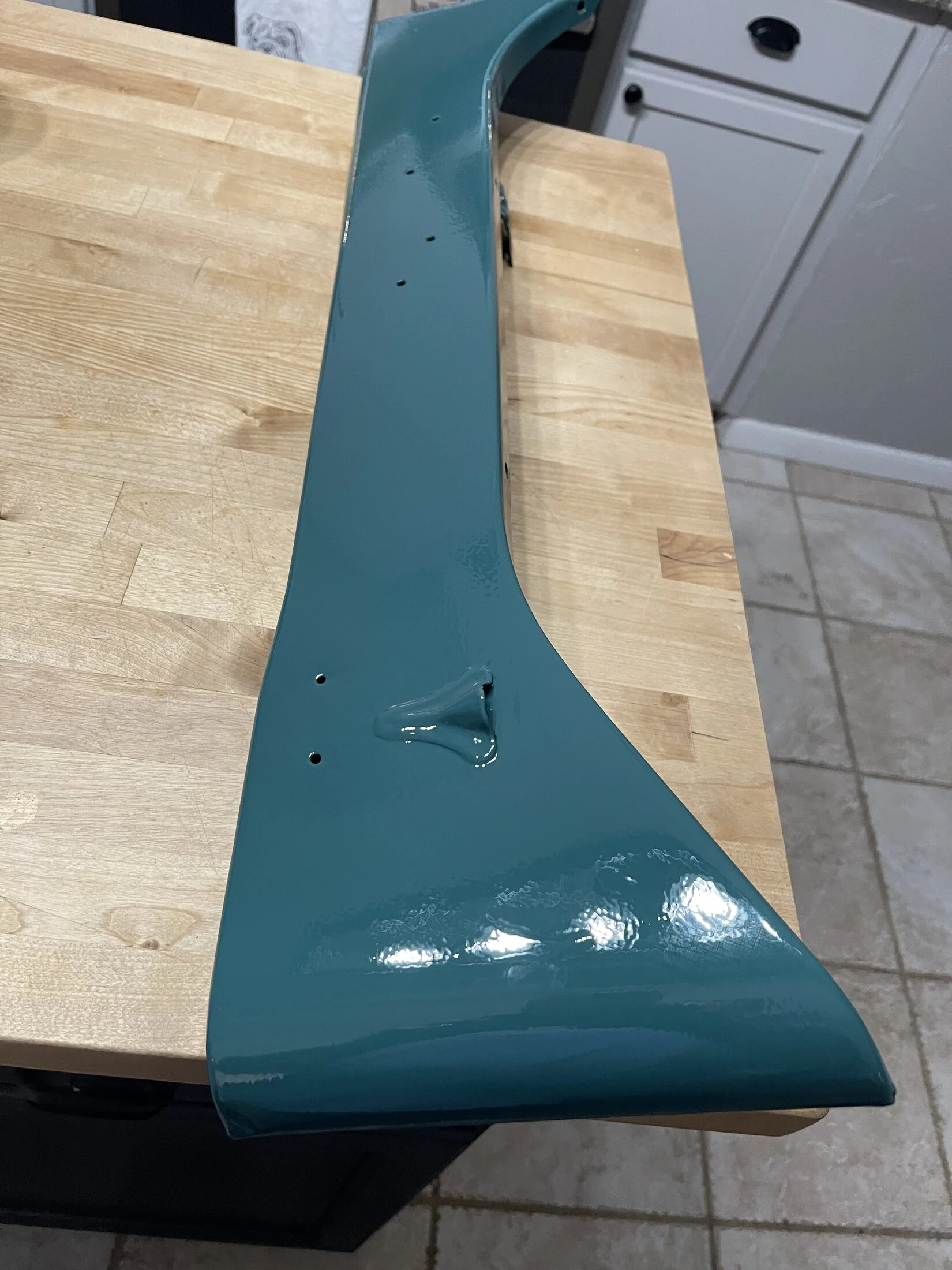

The pics make it look a lot lighter. Couple small parts.



[rlong]

Looks great!



[Tommy Shumpert]

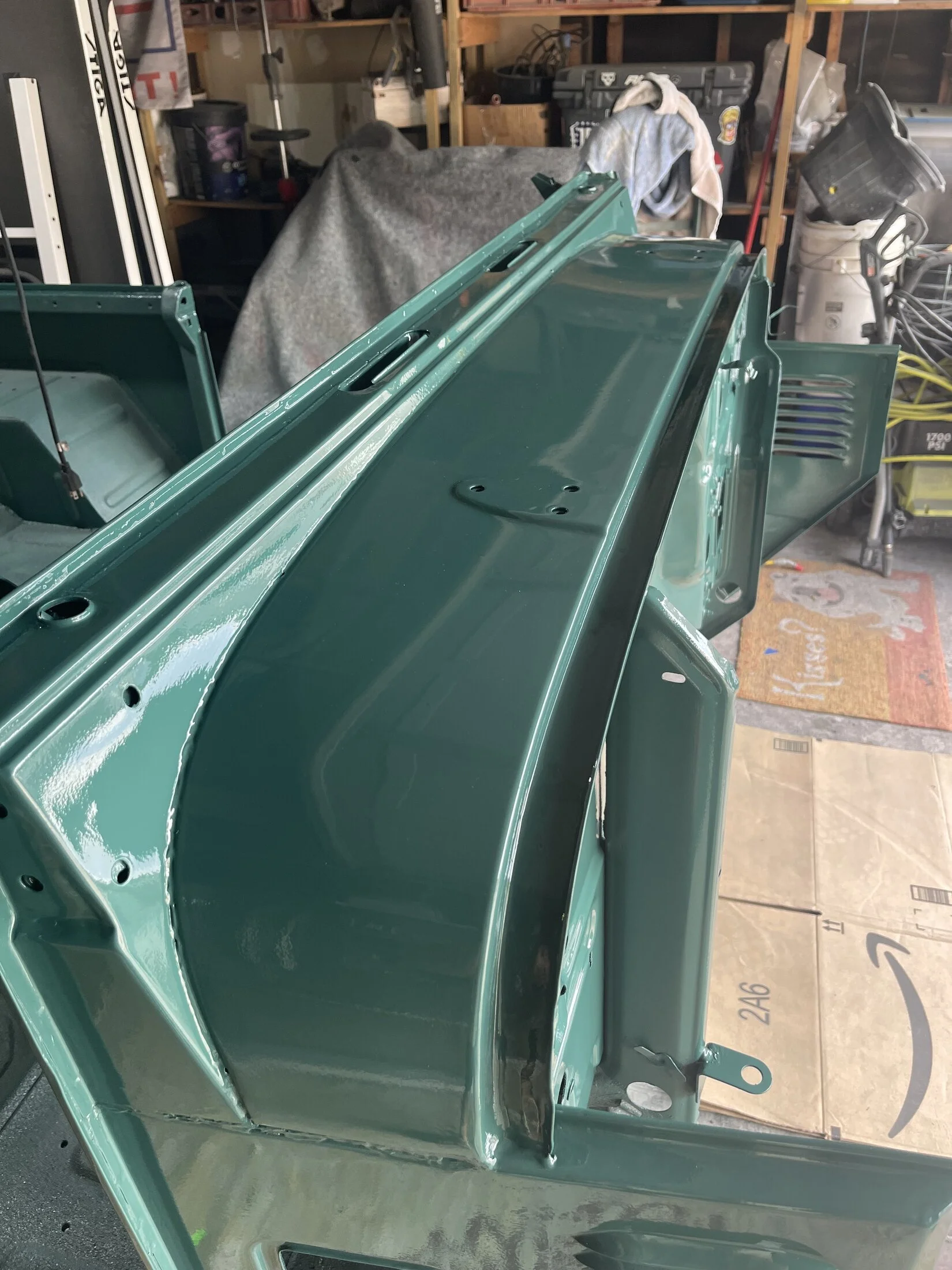

Little better pic. Plan on putting it on the frame Sunday.



[Chilkoot]

Does this mean you rename the thread to 1975 Green Money Pit?

Jokes aside the new paint looks great!



[Tommy Shumpert]

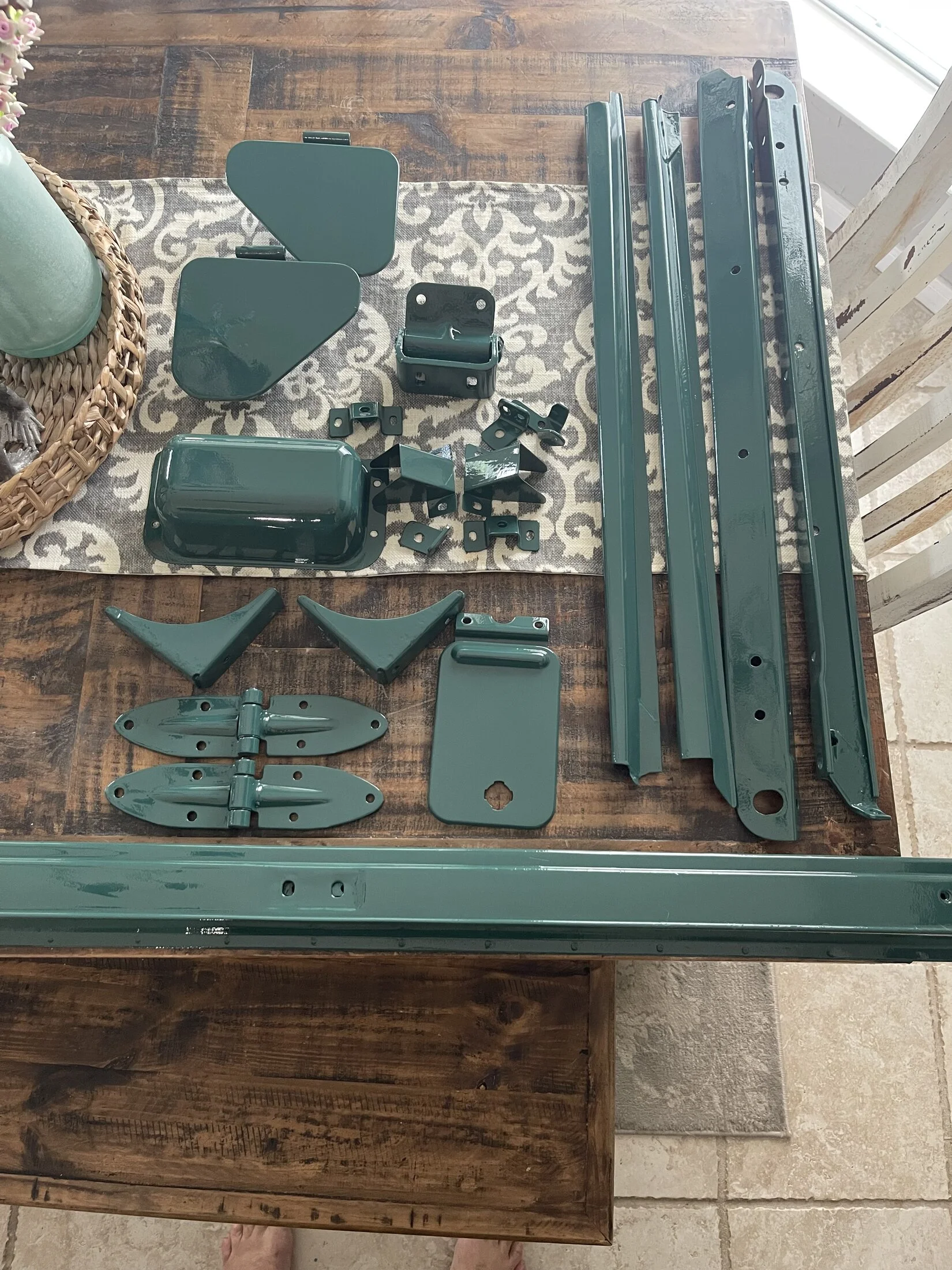

Few more bits done.



[newmexicokid]

So nice.



[Tommy Shumpert]

Does this mean you rename the thread to 1975 Green Money Pit?

Jokes aside the new paint looks great!

lol right



[Tommy Shumpert]

So nice.

Thanks



[Tommy Shumpert]

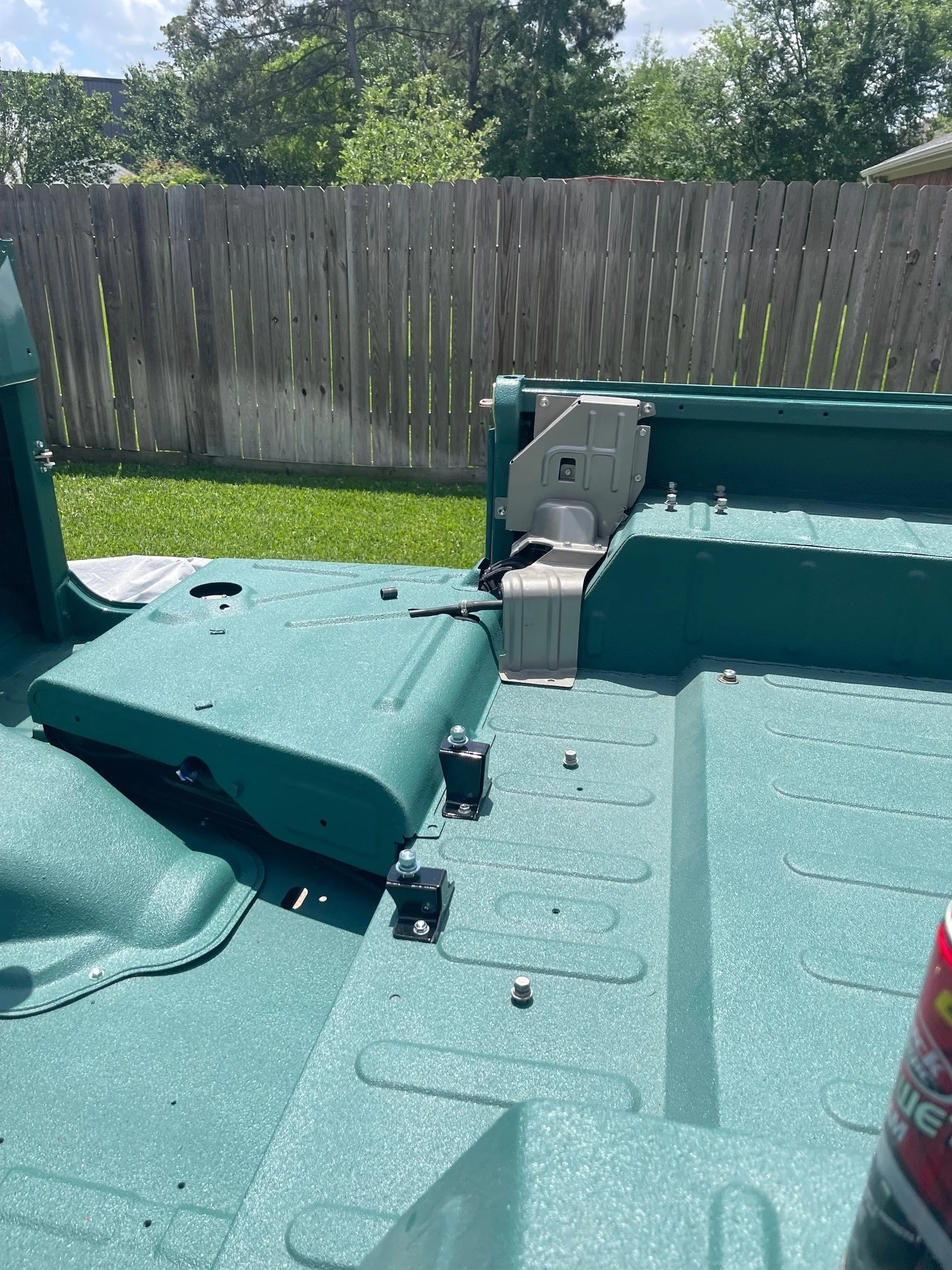

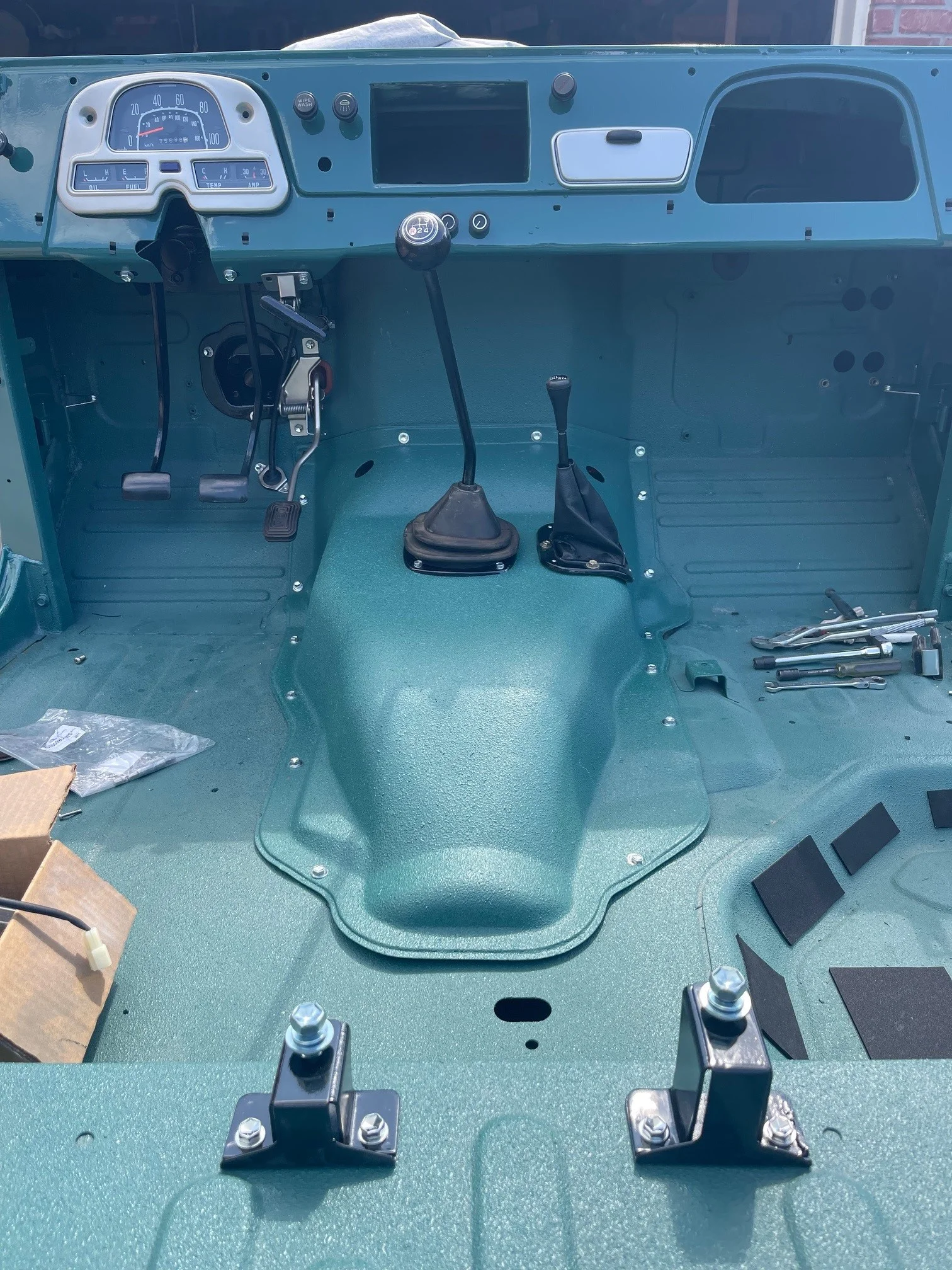

I got a few more parts together this weekend. One bummer is the new rear panel behind the gas tank did not have to bolt holes for the gas tank. I will probably put in a few insert nuts.

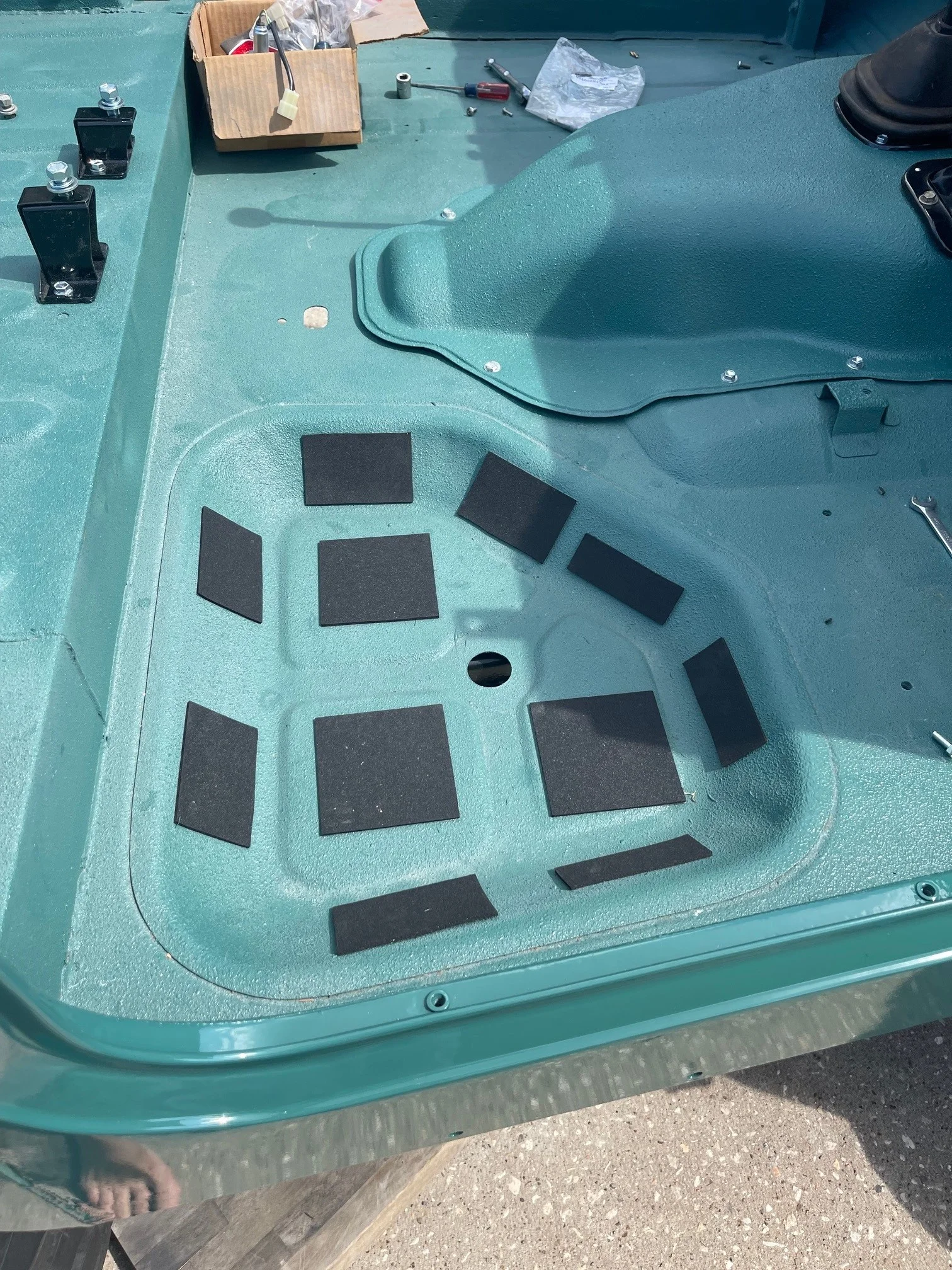

Found some thin neoprene pads to go under tank, it worked great.

Started on the wiring harness. ugh......I ended up rehabbing a 77 harness I purchased a while back so a few plugs are not correct. dang it.



[RevISK]

looking good Tommy!



[Tommy Shumpert]

looking good Tommy!

Thanks. Slowly but Shurley



[Tommy Shumpert]

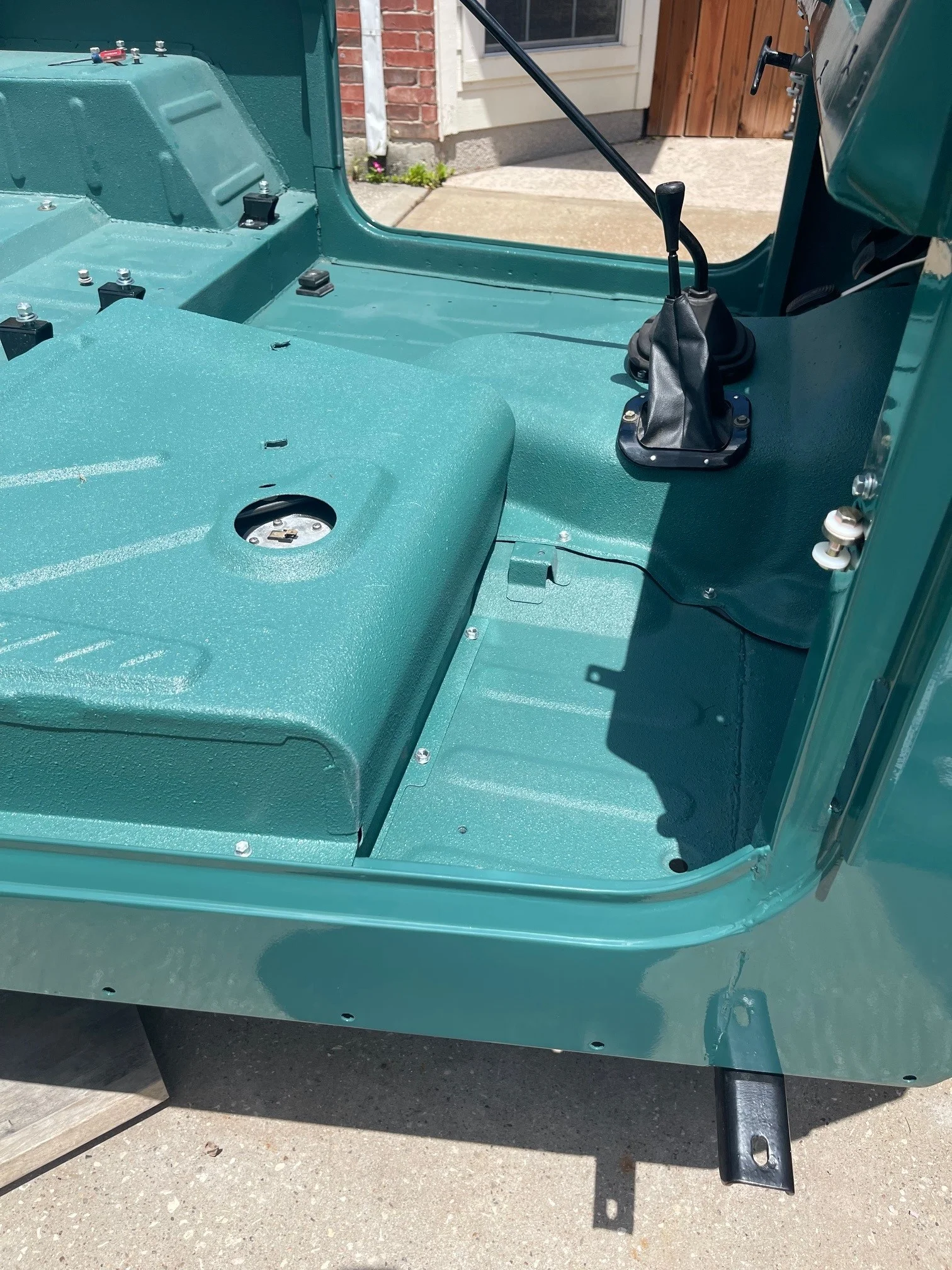

Anyone know where I can get the round cover over the gas sending unit?



[Tommy Shumpert]

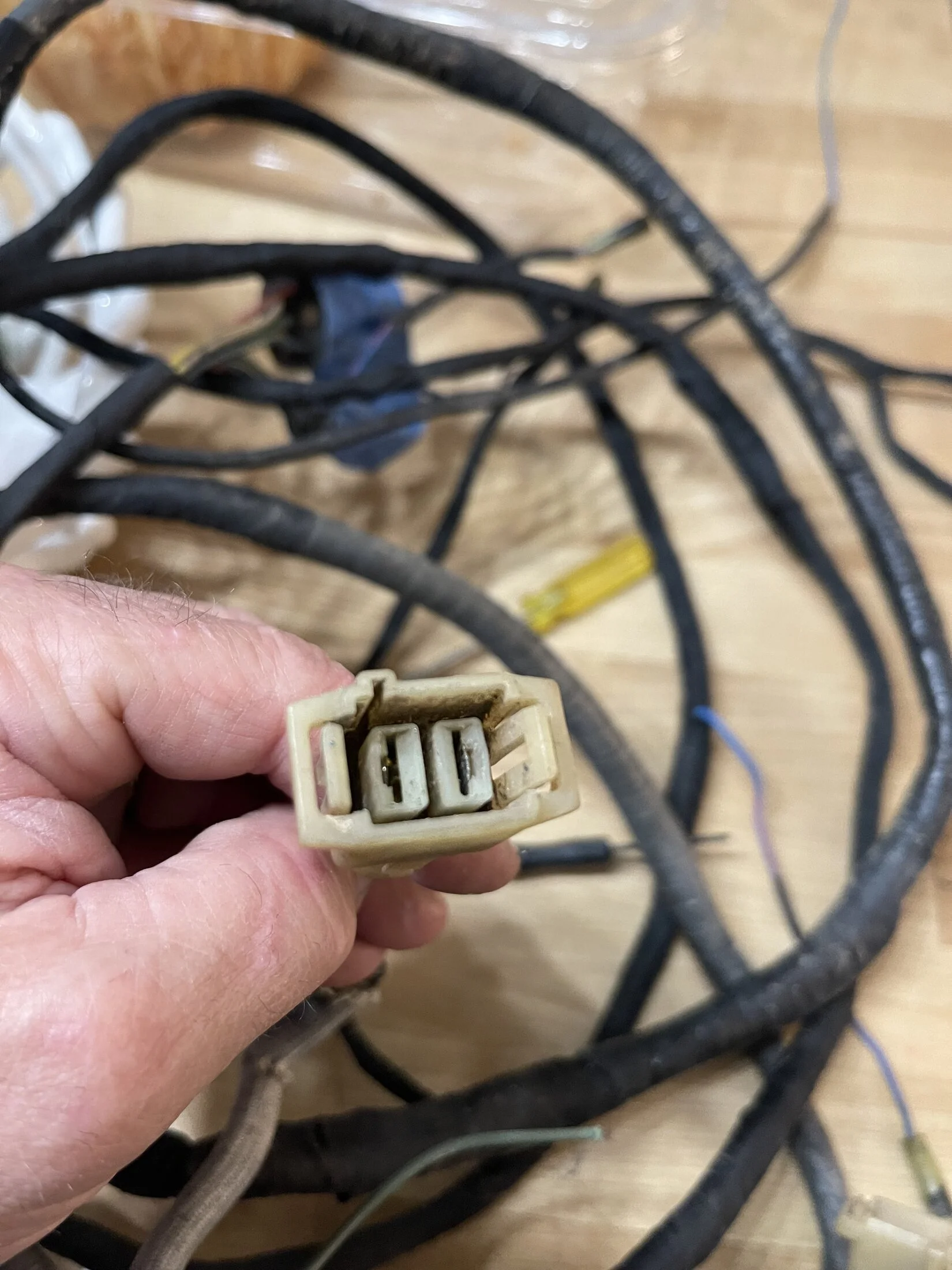

Hazard switch connection on my "new" harness(77) is a lot smaller than the one on the switch. Anyone know the conversion?



[Tommy Shumpert]

Anyone know where I can get the round cover over the gas sending unit?



[mrboatman]

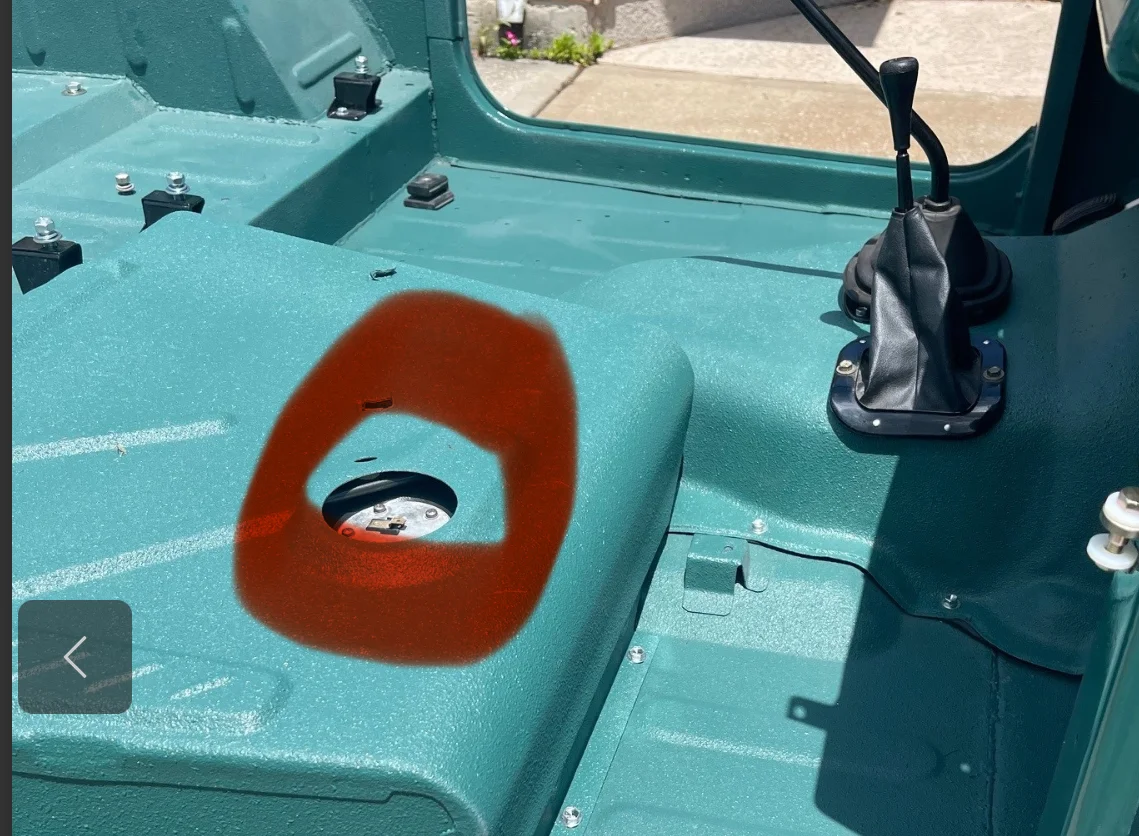

View attachment 3896272

Take a look at this thread Wanted - Gas tank cover grommet - https://forum.ih8mud.com/threads/gas-tank-cover-grommet.1117661/
Or @ToyotaMatt

Fuel / GAS / PETROL Tank SENDING UNIT Service COVER Access Hole , Plug / BODY Grommet Part# 90950-01164 - VintageTEqParts.com

Fuel / GAS / PETROL Tank SENDING UNIT Service COVER Access Hole Plug / BODY Grommet Part # 90950-01164 HIGH...

vintageteqparts.com



[Tommy Shumpert]

Take a look at this thread Wanted - Gas tank cover grommet - https://forum.ih8mud.com/threads/gas-tank-cover-grommet.1117661/
Or @ToyotaMatt

Fuel / GAS / PETROL Tank SENDING UNIT Service COVER Access Hole , Plug / BODY Grommet Part# 90950-01164 - VintageTEqParts.com

Fuel / GAS / PETROL Tank SENDING UNIT Service COVER Access Hole Plug / BODY Grommet Part # 90950-01164 HIGH...

vintageteqparts.com

Thank you very much!



[Tommy Shumpert]

Received my Sniper kit this weekend from @FJ60Cam. Waiting on the Carb from Holley. I went with the in-tank fuel pump, more work but I hear it's worth it.



[Tommy Shumpert]

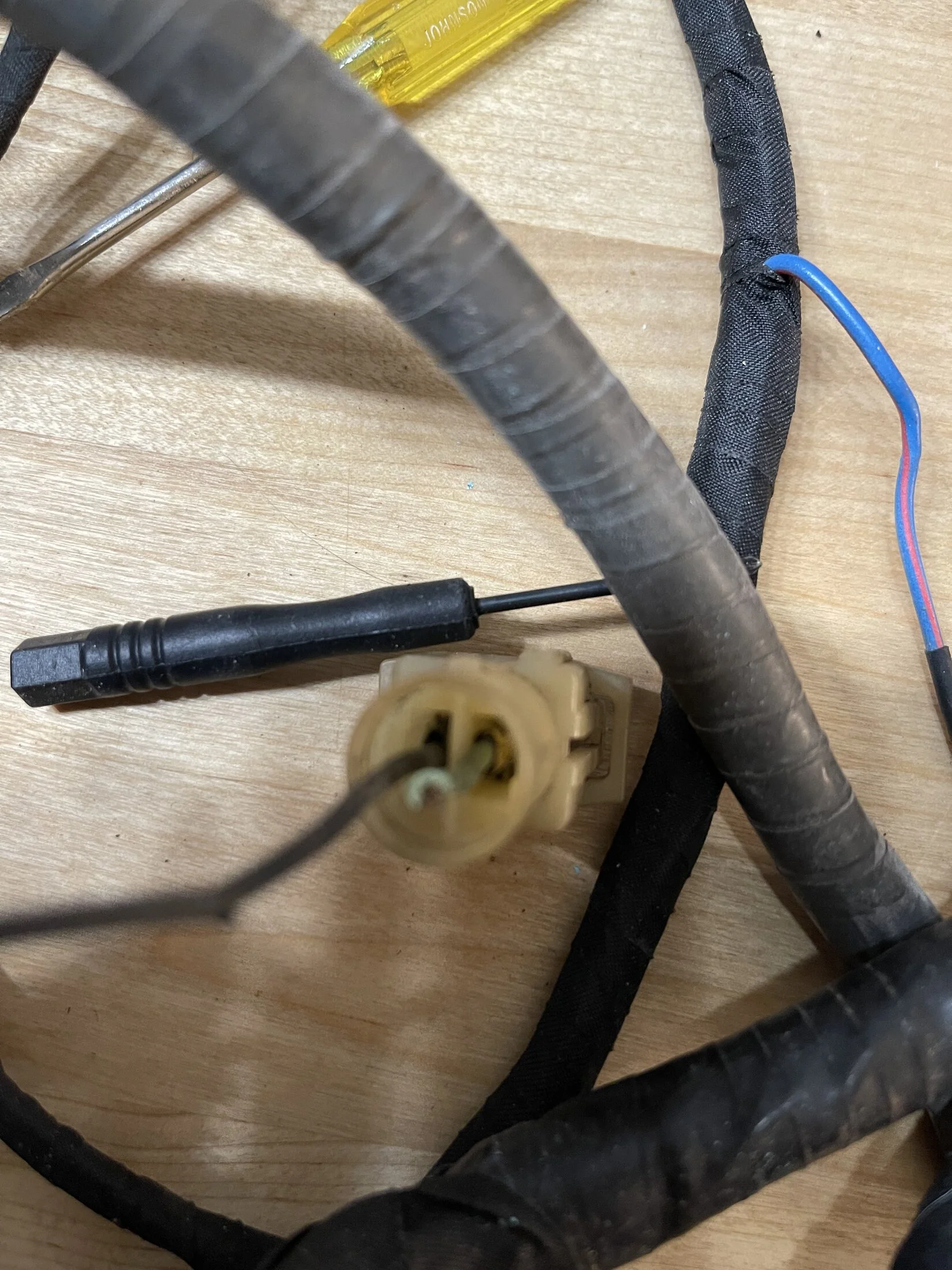

How the heck do you remove the connector on this plug? It is the side marker light plug.
Thanks
