Reversal of a Shackle Reversal (1 Viewer)

[TuckerHudson]

I need to have my mechanic help to "reverse" an existing shackle reversal. I know it will require 4 perches but I don't have a good idea of how to show the steps required or welding spots. I have to get this step done to install a new OME suspension.

Does anyone have detailed videos or pics for a properly done reversal of a reversal?

Thanks.



[B y r o n]

There are several kits that are commonly used to do a shackle reversal. Do you know whos' kit was used? If not several photos to show the front and rear spring attachments will help others to identify. From there a plan can be made to reverse the process.

Check out post #8 in this thread for where the original components go.



[TuckerHudson]

There are several kits that are commonly used to do a shackle reversal. Do you know whos' kit was used? If not several photos to show the front and rear spring attachments will help others to identify. From there a plan can be made to reverse the process.

There are several kits that are commonly used to do a shackle reversal. Do you know whos' kit was used? If not several photos to show the front and rear spring attachments will help others to identify. From there a plan can be made to reverse the process.

Thanks



[TuckerHudson]

Thanks

I’ll take shots tomorrow.



[pb4ugo]

For Sale - Camin, Ca. 40/45 Spring hangers

Used 1961-1978 spring hangers $25.00 each plus shipping.

forum.ih8mud.com

You'll probably need a couple of these.



[brian]

depending what rivet holes have been removed or filled in the frame, its pretty cut and dried to figure out where the oe brackets go.



[White Stripe]

You could just take a leaf or 2 out of the ome front springs.



[TuckerHudson]

depending what rivet holes have been removed or filled in the frame, its pretty cut and dried to figure out where the oe brackets go.

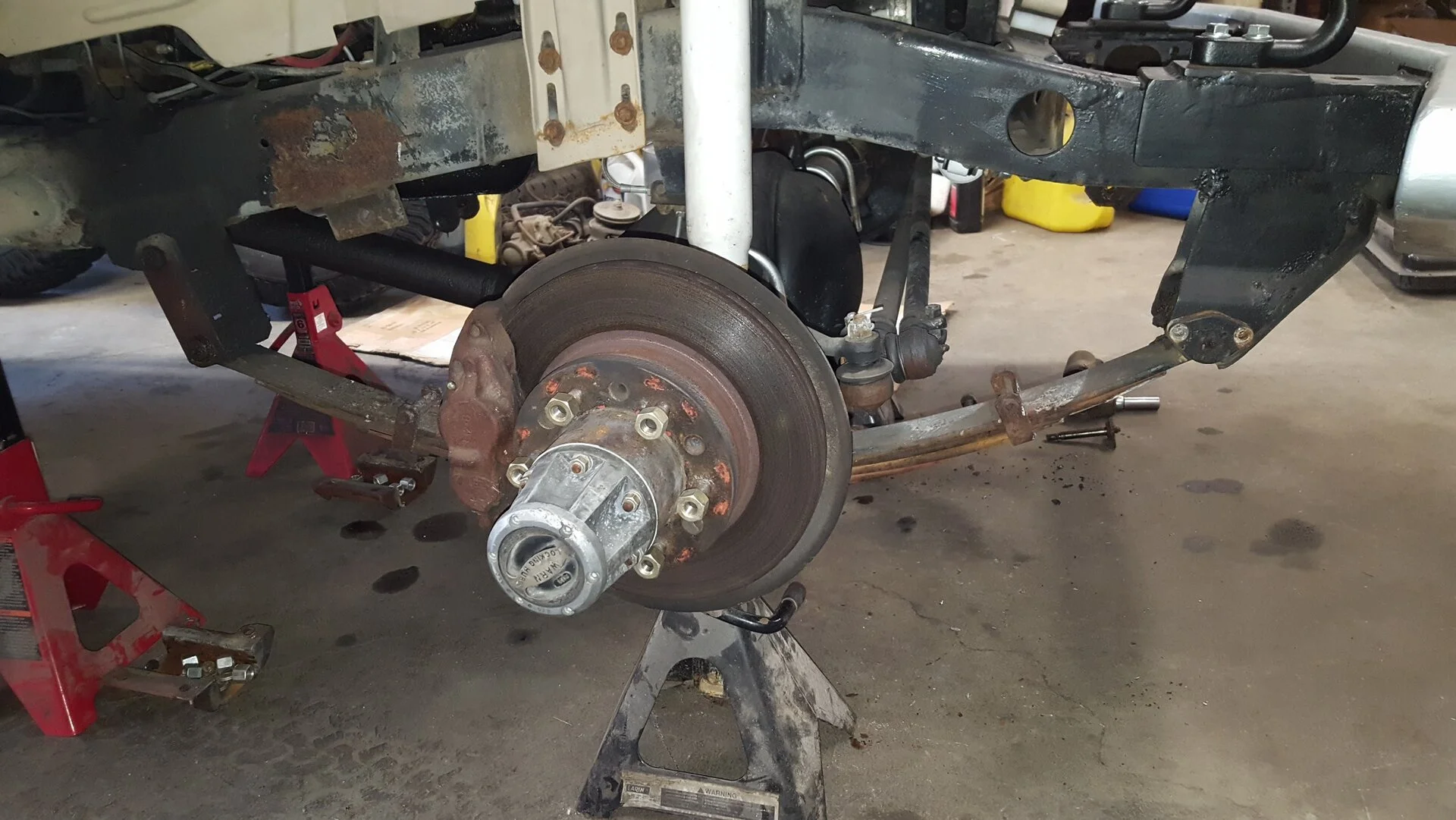

View attachment 3484624

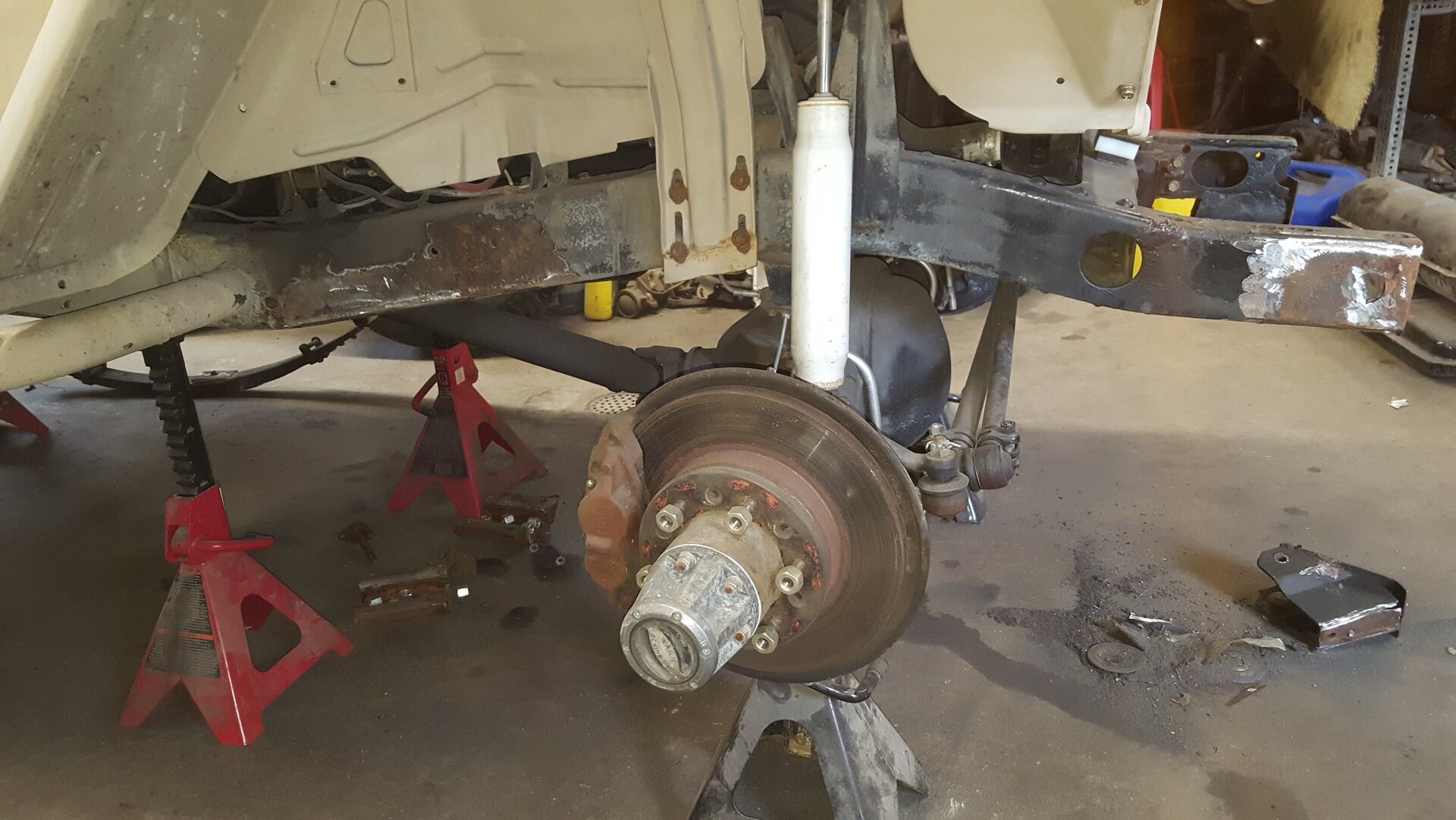

View attachment 3484625

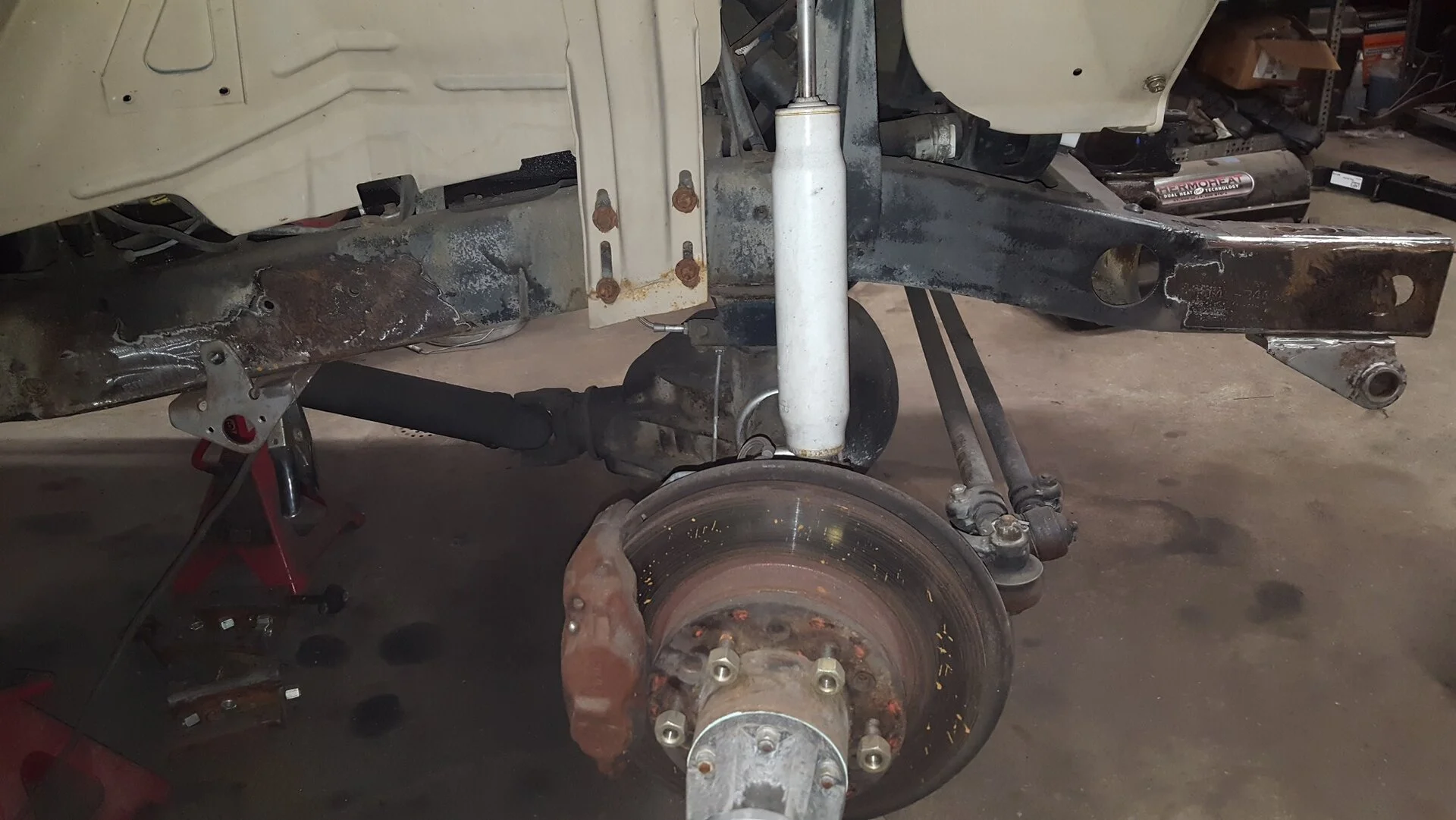

View attachment 3484627

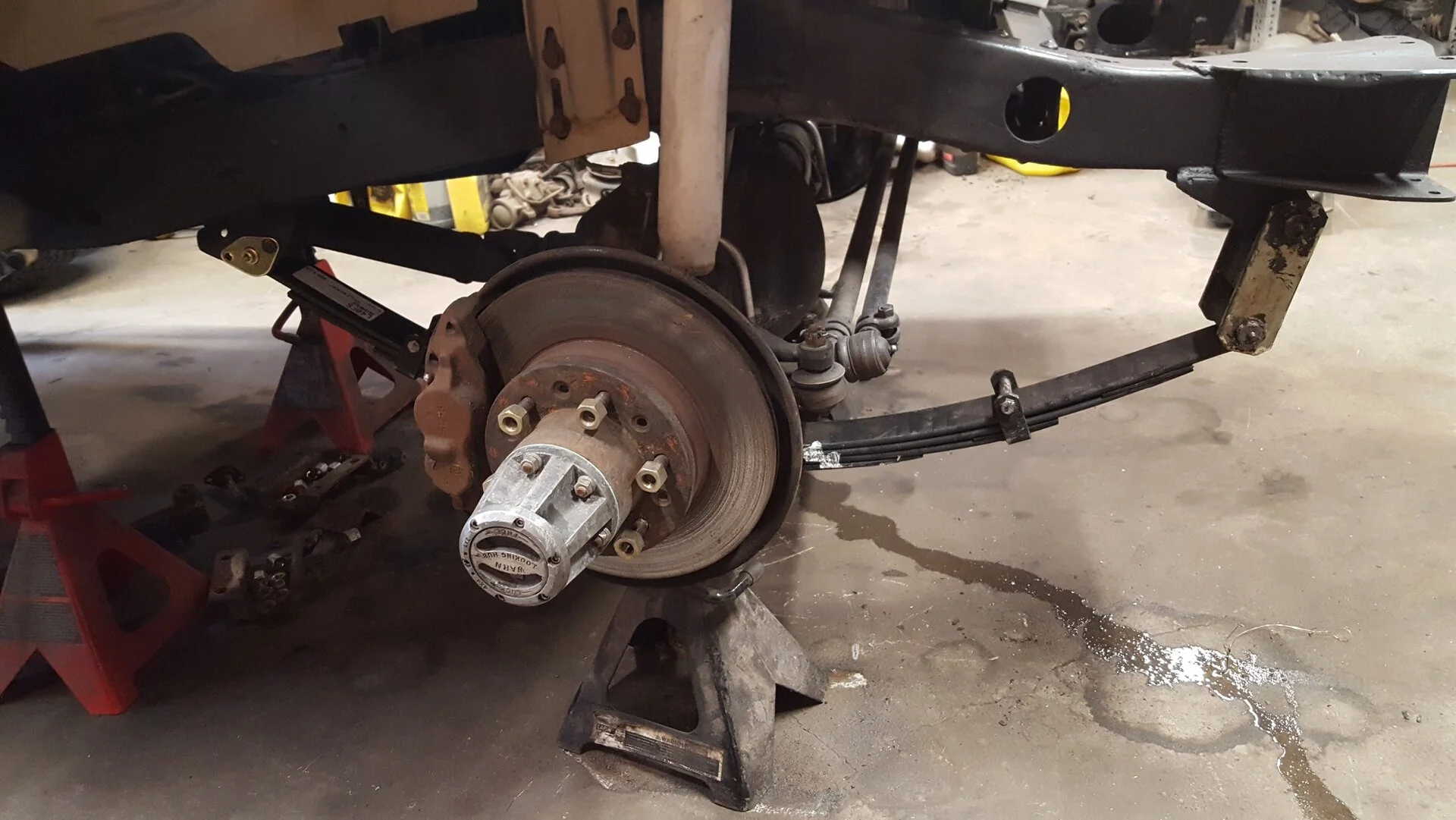

View attachment 3484628

thank you.



[TuckerHudson]

There are several kits that are commonly used to do a shackle reversal. Do you know whos' kit was used? If not several photos to show the front and rear spring attachments will help others to identify. From there a plan can be made to reverse the process.

Check out post #8 in this thread for where the original components go.

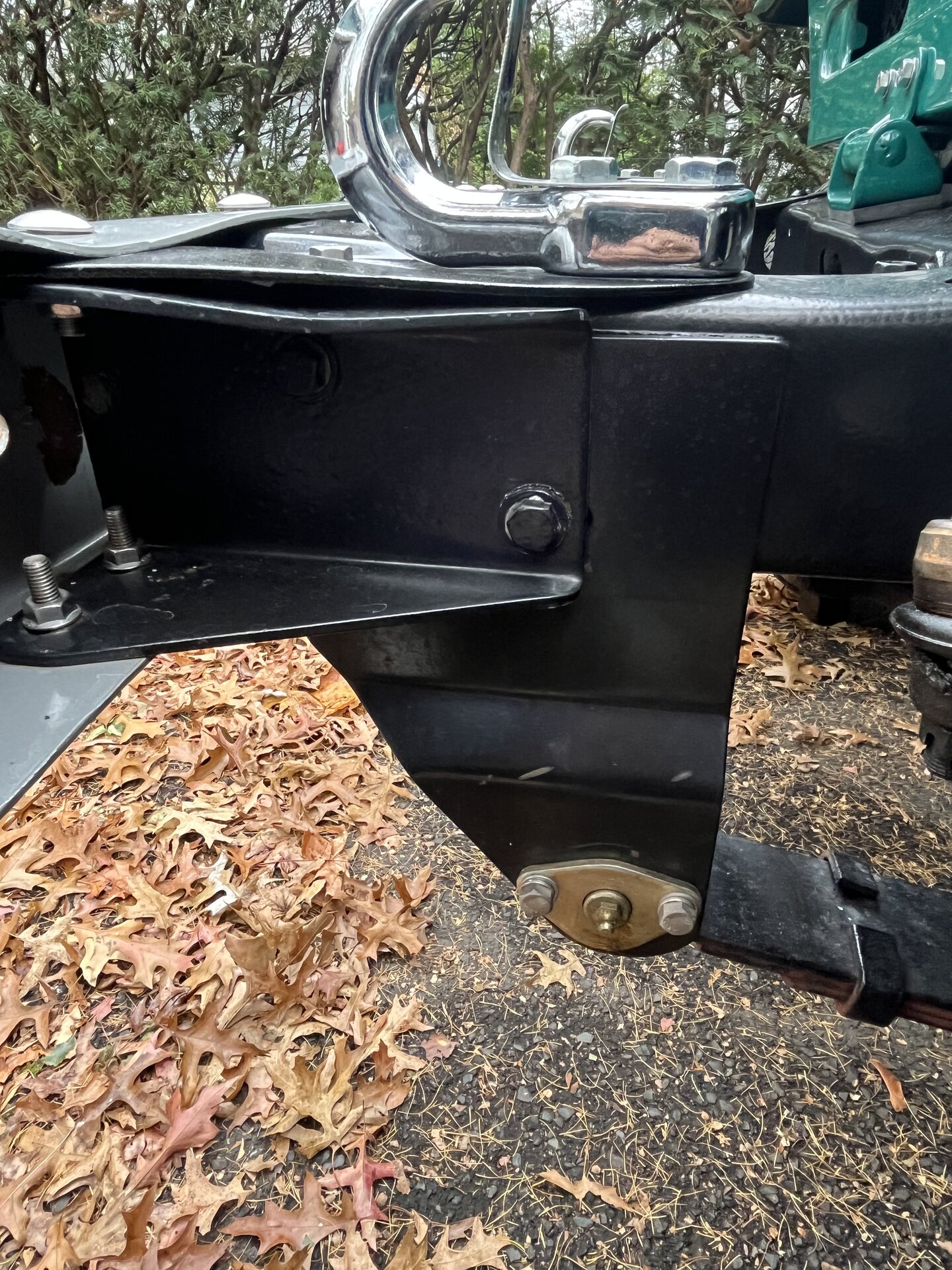

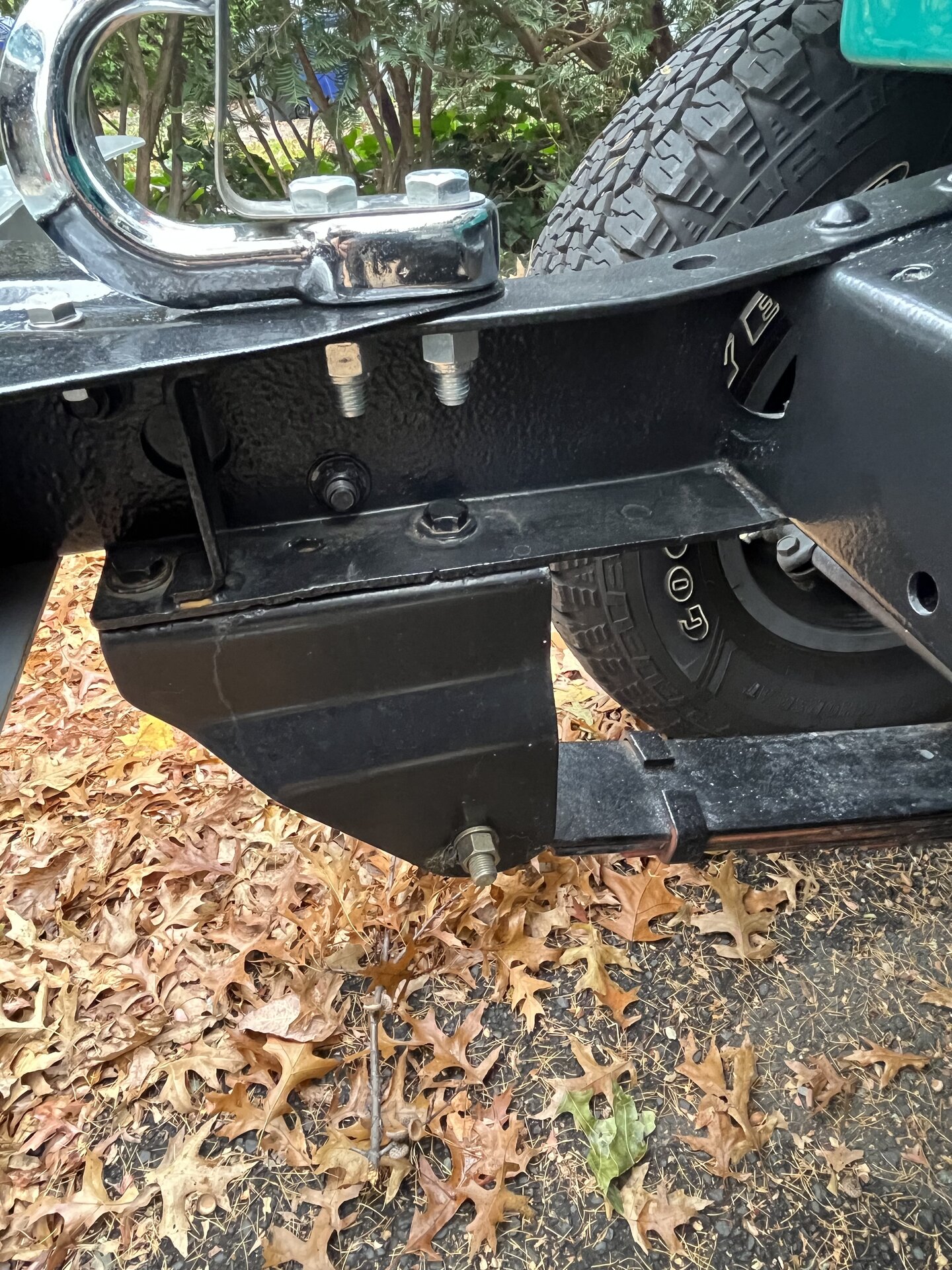

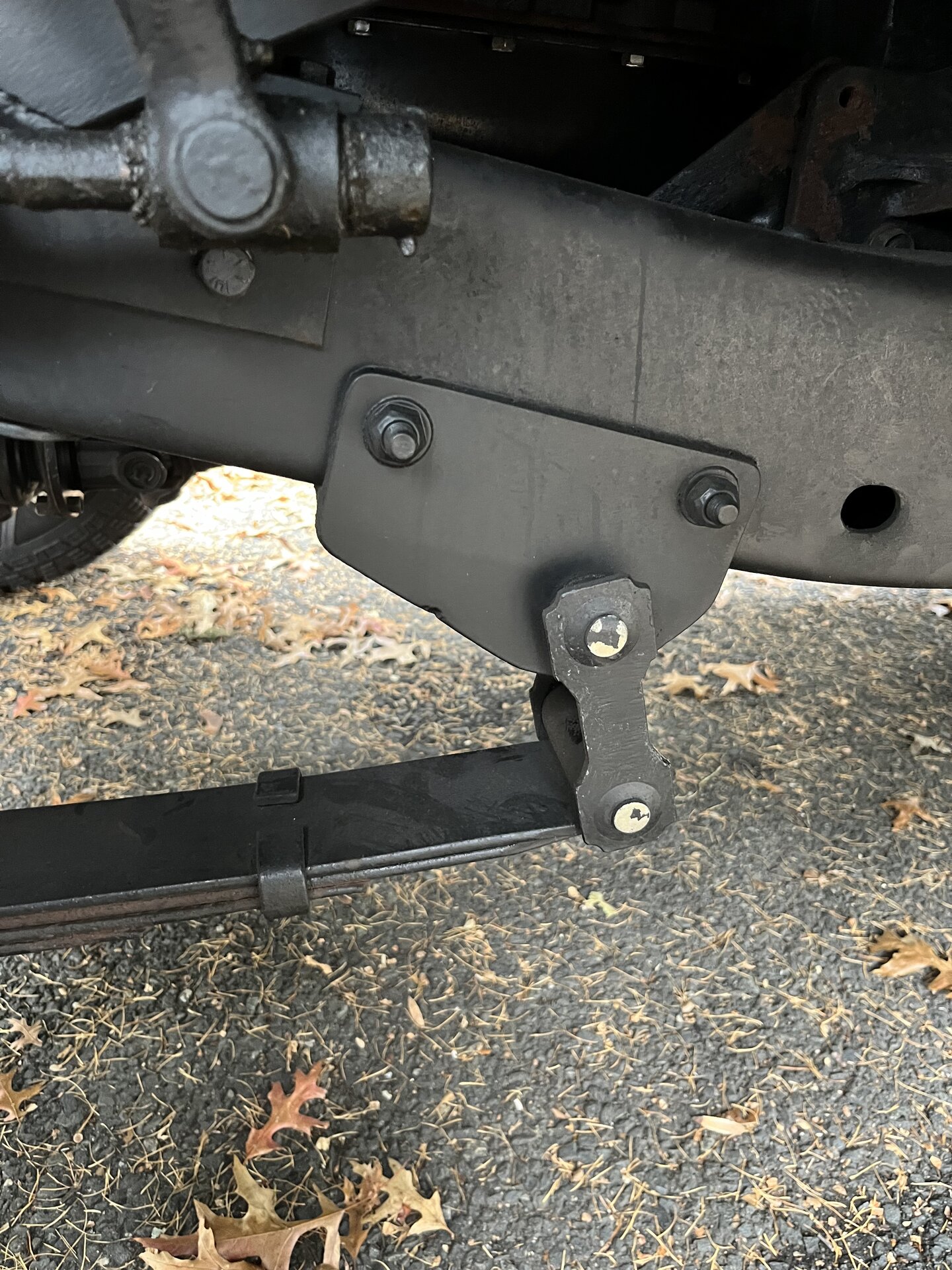

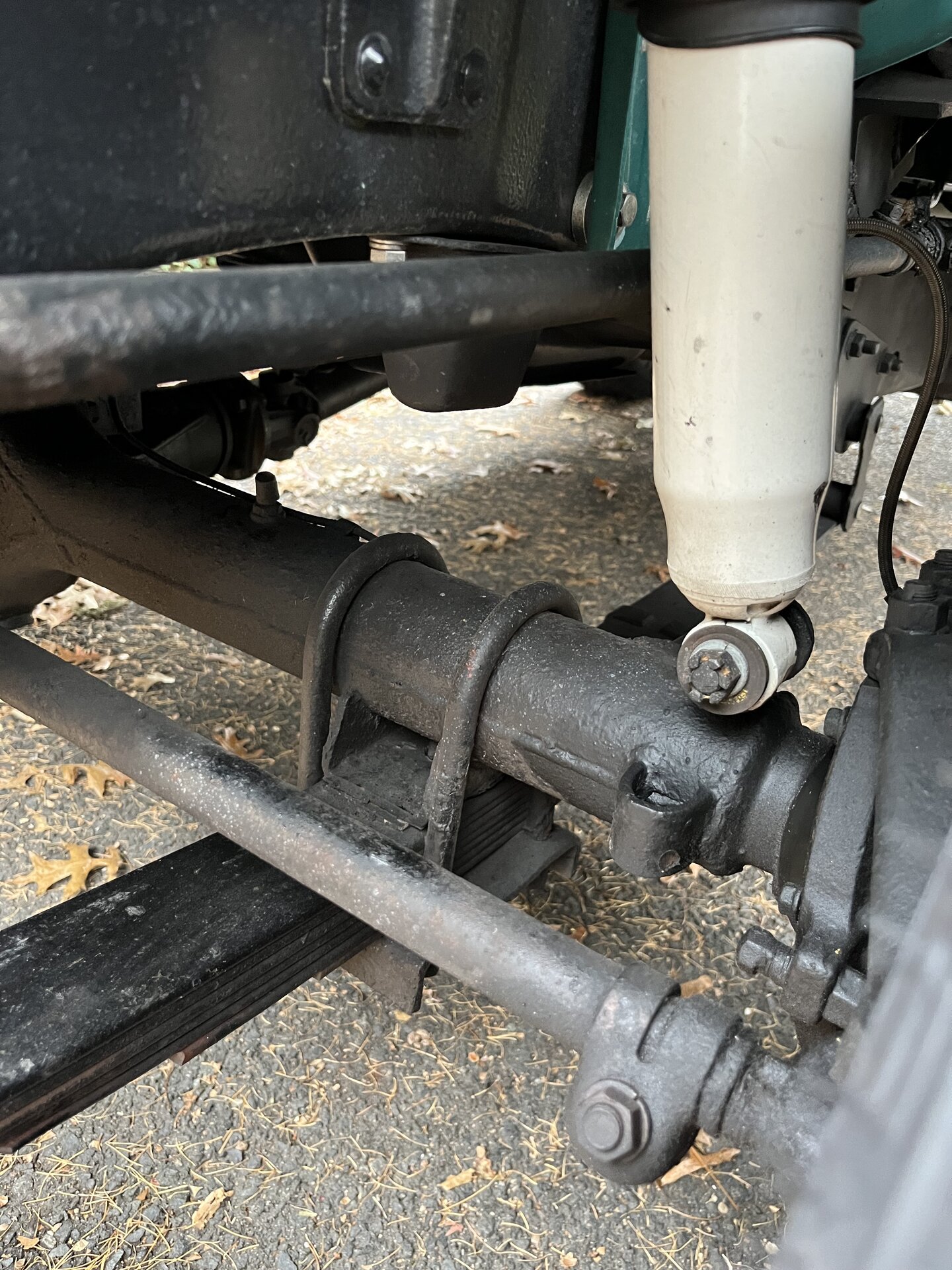

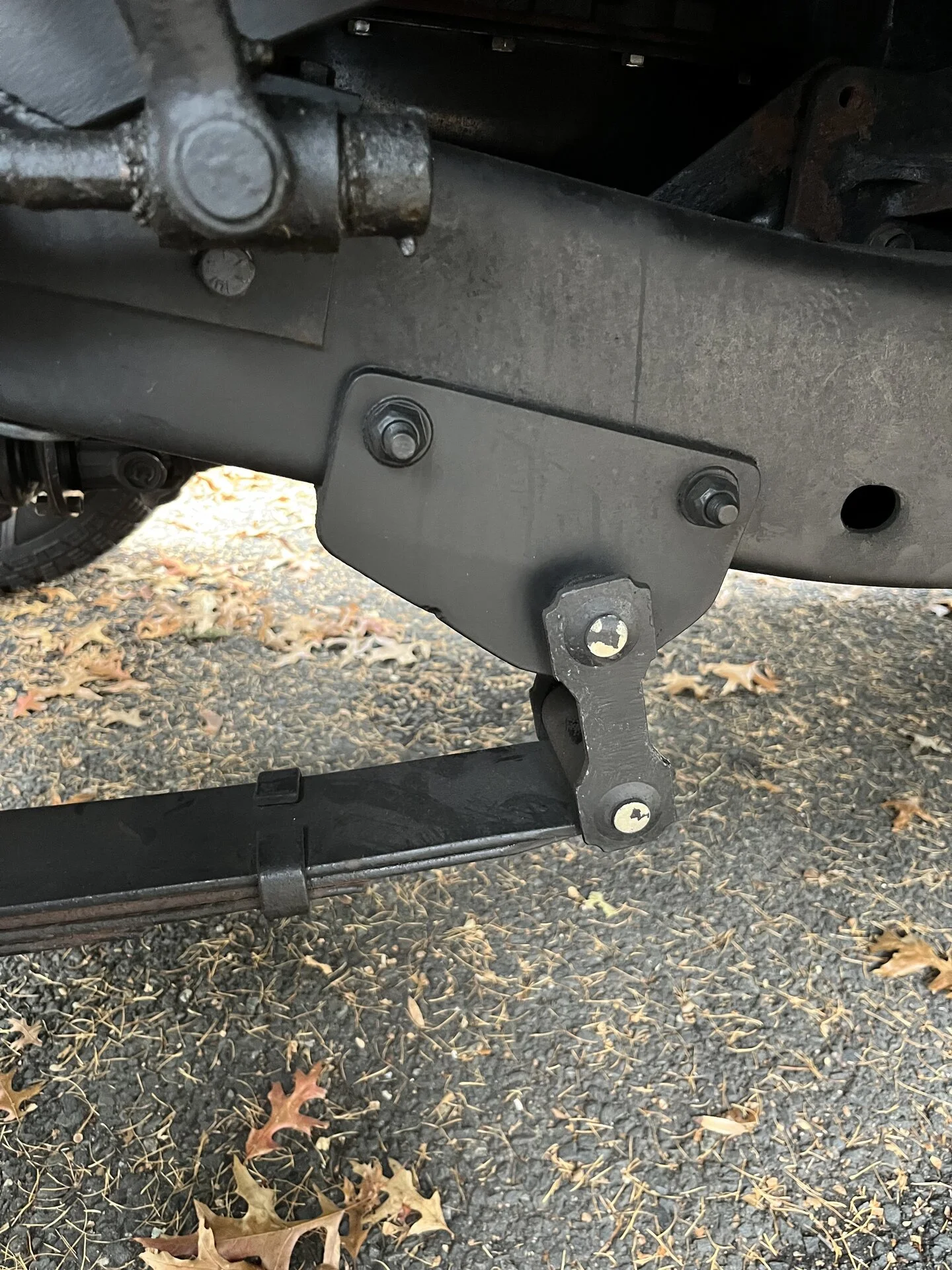

Here are the pictures:



[brian]

you should be in good shape, those used existing rivet holes to be fastened on. remove the bits and line up the holes in the frame and oe brackets and have at it.



[TuckerHudson]

you should be in good shape, those used existing rivet holes to be fastened on. remove the bits and line up the holes in the frame and oe brackets and have at it.

Thanks - were these welded and bolted or just bolted. I have no welding experience and my wife already has me to go!



[brian]

looks like your are just bolted, i may have had the same same kit from a po and it was welded on, the oe brackets from oem were just riveted.



[TuckerHudson]

looks like your are just bolted, i may have had the same same kit from a po and it was welded on, the oe brackets from oem were just just riveted.

Safety issues when just bolted?



[brian]

with grade 5 or 8.8 hardware no, assuming the holes in either the brackets you are using or the frame have not been egged out from the prior removal process. when bolting you will need to ensure the mating surface area of the frame and brackets are flat, as you will be depending on the surface shear strength. me? i would like to see them welded on, but i can weld. but bolting is of little difference from the rivets that were originally there if everything is flat and smooth.



[pb4ugo]

I would use either grade 5 or grade 8 fine thread bolts. Fine thread gives more metal to metal contact between the nut and bolt. After its assembled you could find a local welding shop to weld the brackets in place, if your concerned.



[TuckerHudson]

I would use either grade 5 or grade 8 fine thread bolts. Fine thread gives more metal to metal contact between the nut and bolt. After its assembled you could find a local welding shop to weld the brackets in place, if your concerned.

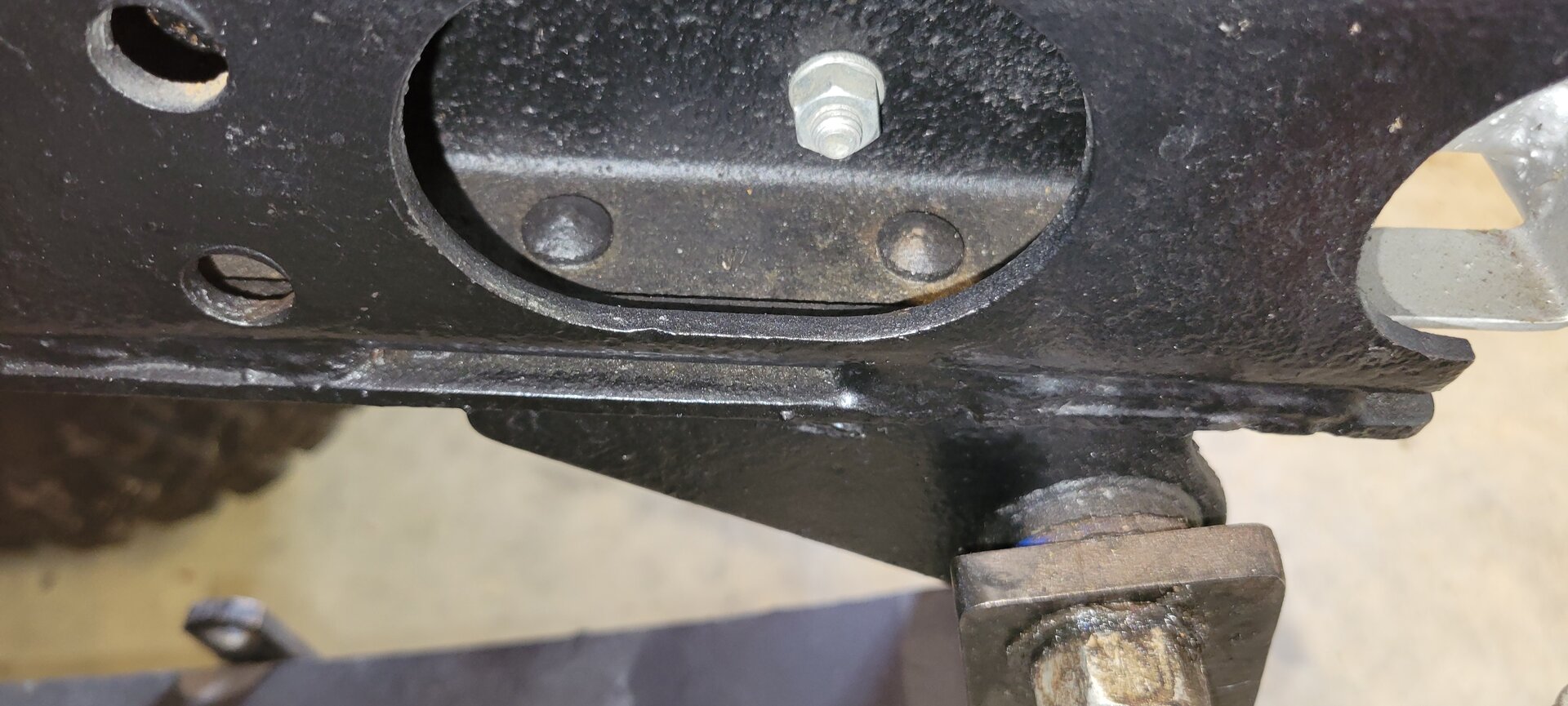

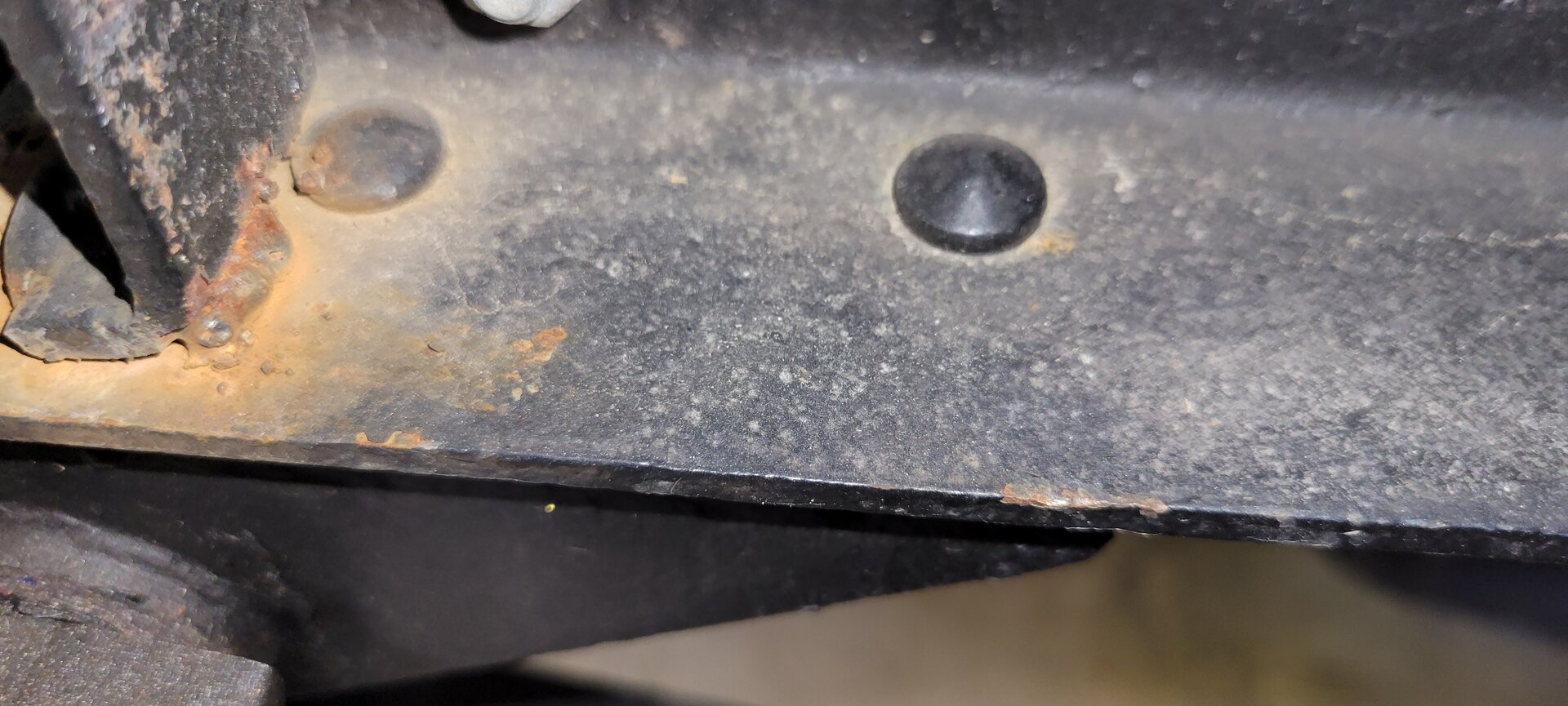

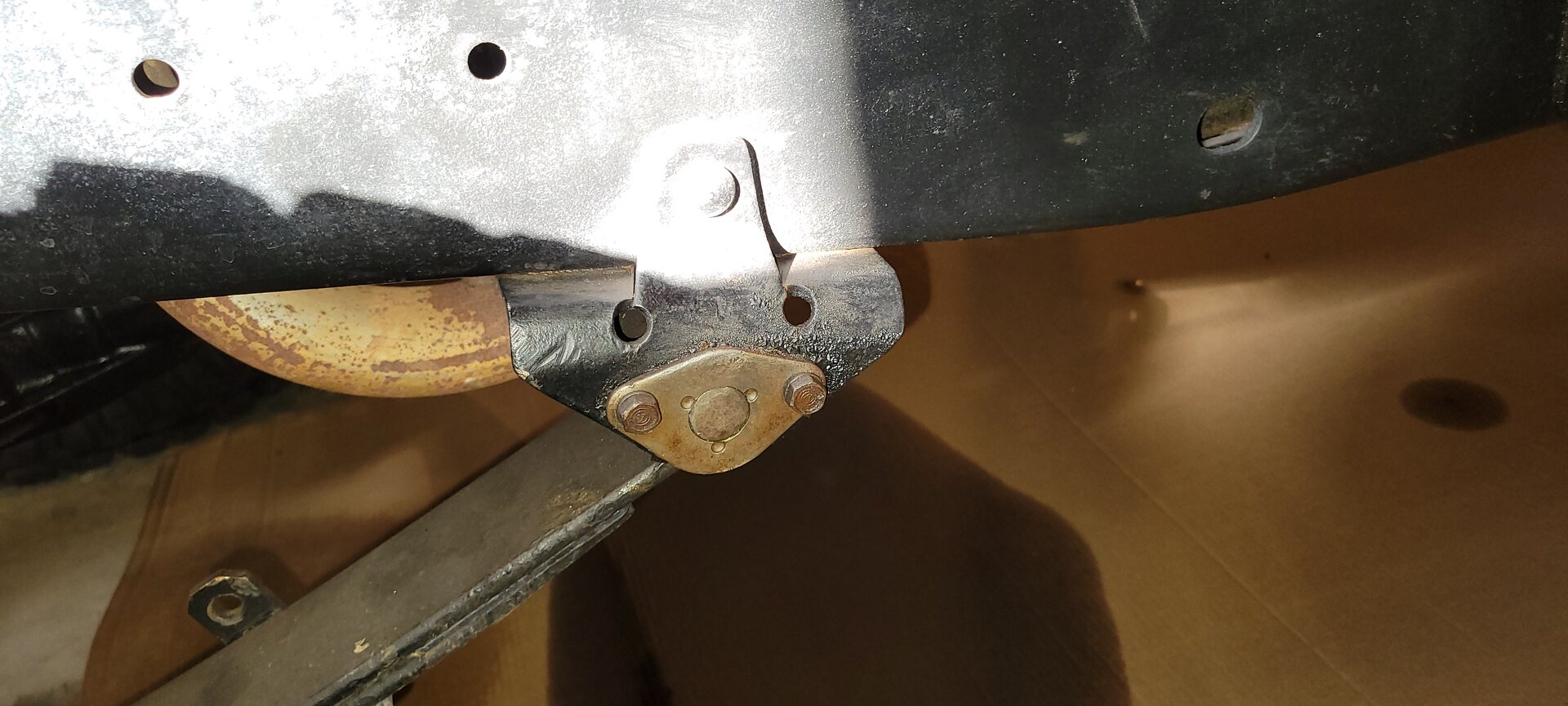

View attachment 3484930View attachment 3484931View attachment 3484932

tx helpful.



[msahr]

I'm reversing a reversal as well. I was missing a spring hanger for the front and the shackle hangers were looking a little wonky so I ordered a set of both from BTB products. The spring hangers look alright but they omitted the 2 holes in the hanger on the bottom. The plan was to bolt them on then have a friend weld them.

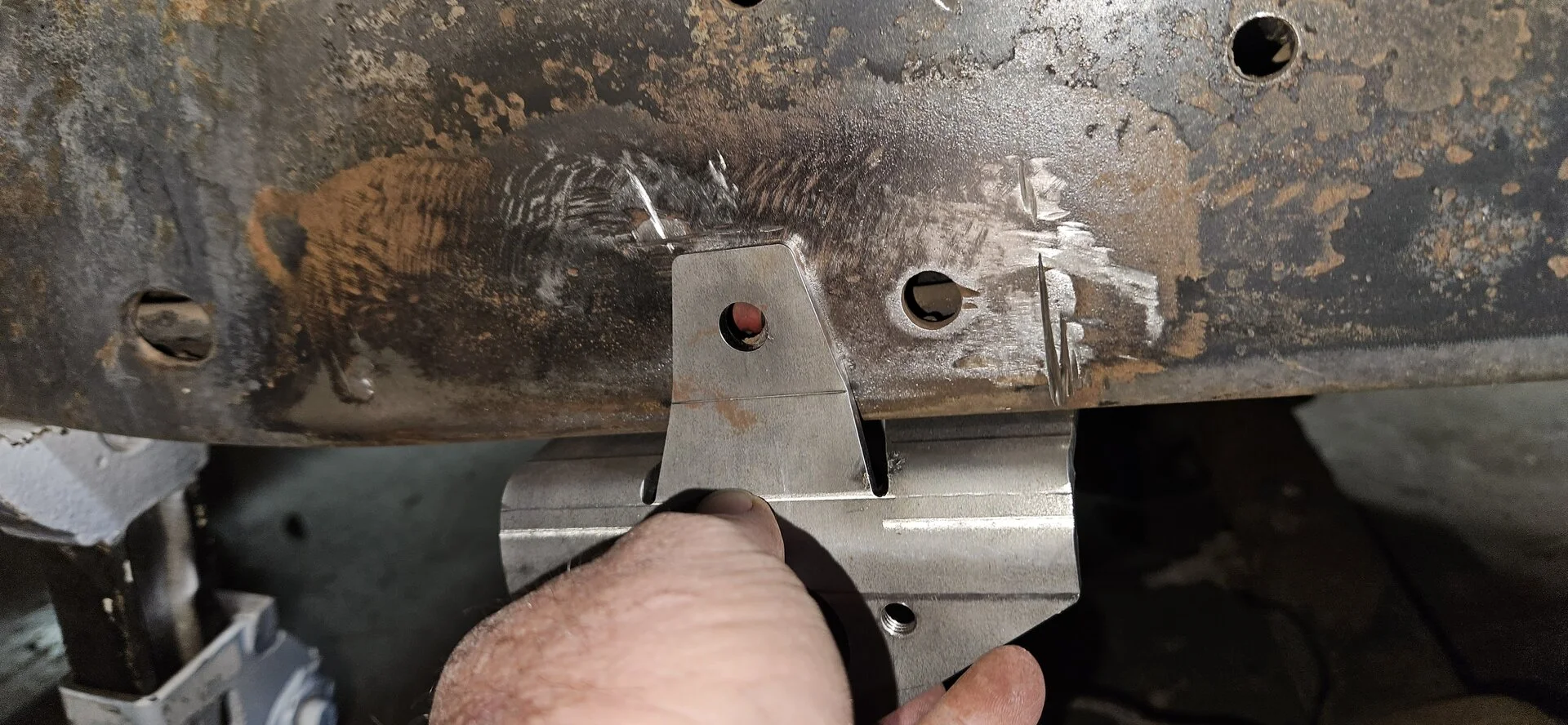

This is what I have now



[msahr]

Question on this, is which hole is the correct one? I guess just measure off the old hanger and figure it out that way. Then drill holes in the new hangers.



[B y r o n]

Maybe check out post #6 in this thread.
