Fj60 in dash ARB switch panel with air gauge (1 Viewer)

[orangefj45]

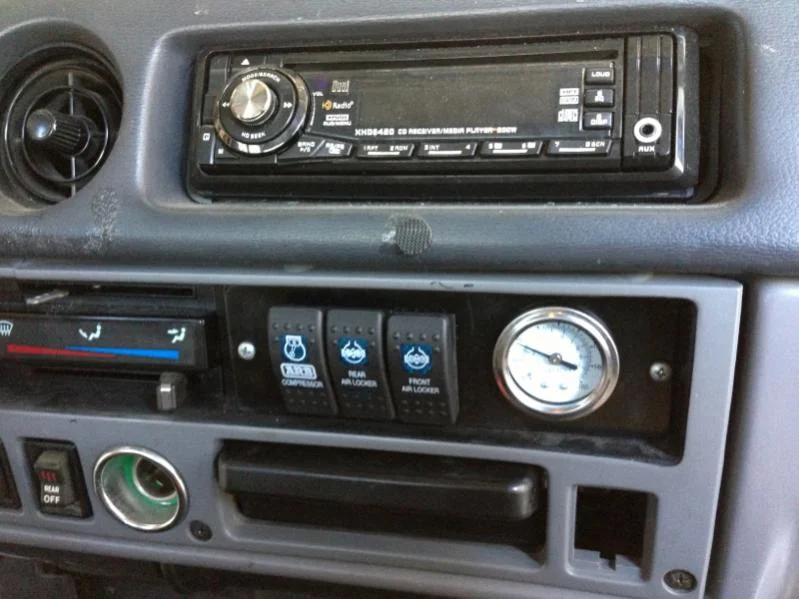

We've done quite a few ARB locker installs along with a variety of compressors. Over the years we've made a few different panels to mount the switches in the dash. Finally came up with a simple design that works. I'm sure we're not the first to think of this ......

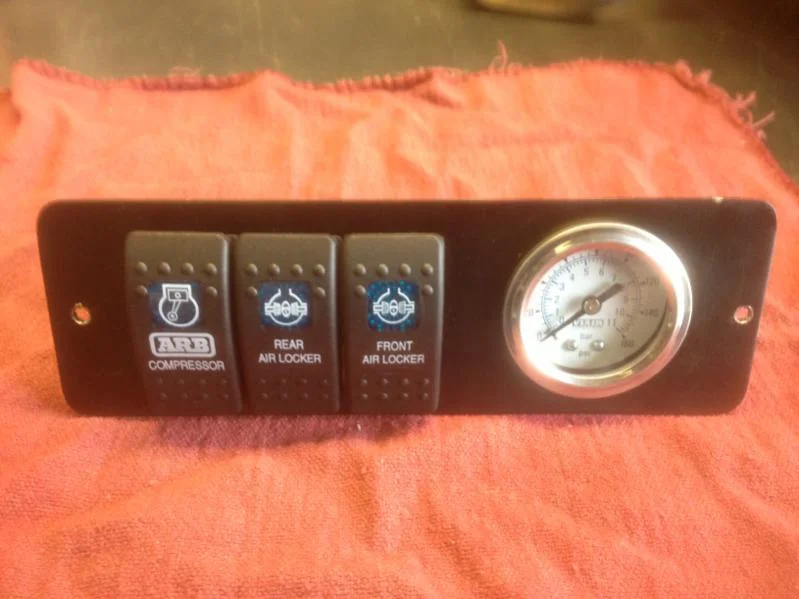

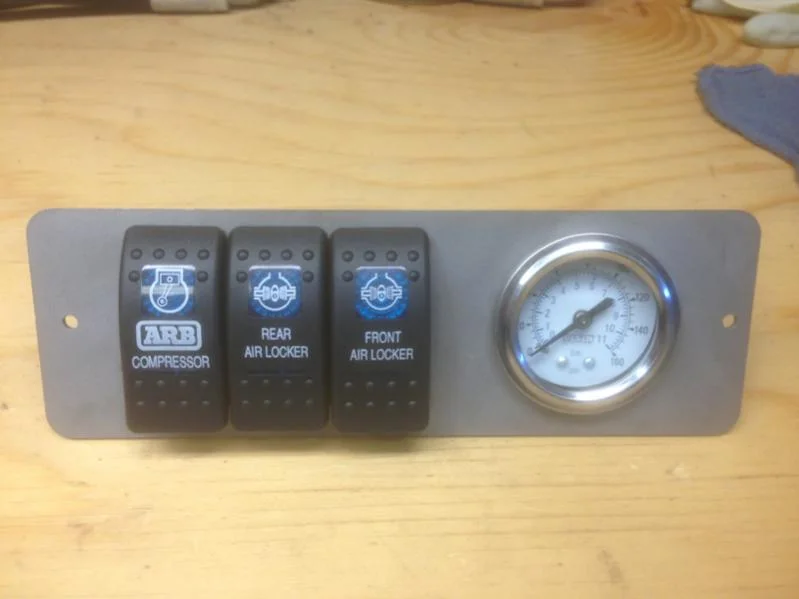

The panel is designed to use 3 of the switches and has a spot for an air pressure gauge. I had the panels cut locally on a water jet. They're powder coated semi gloss black. I've got the air gauges on hand as well.
Very simple install .......
Georg @ Valley Hybrids



[kreiten]

looks really clean, I like it!!!



[Major Nelson]

I'm so going to need one of these some day soon!



[orangefj45]

Thanks. They're very easy to install.


We're going to sell the panels for $18. The air gauges are $12.

Georg @ Valley Hybrids



[gregnash]

Very nice Georg. What size is the air gauge? Thinking I may buy one and put a vacuum gauge in it!



[torfab]

Sweet!



[orangefj45]

The hole for the gauge is 1.625" so 1 5/8"

Georg @ Valley Hybrids



[orangefj45]

Sweet!

I'll send you one next time you need something Tor.



Georg @ Valley Hybrids



[KWalkerM]

Crap. Another thing Im gonna buy from you...just got onboard air and that would be kind of nice to have plus de cluttering my switch panels



[scrapdaddy]

Georg,

Question: I got my Puma in the back of the 55, would I need to run another air line up to the pressure gauge or ? I have both lockers, could you tap into the air line, running to the front locker?

Thanks,

Ron



[NolanFJ60]

Damn! I like that a lot. I may just have to upgrade....



[Big Cruiser Guy]

That looks dynamite.
Do you anticipate a smaller one that would fit in the ashtray space? I'm jut looking for space for 3-4 of those exact switches.



[AdventureToolCompany]

Well thought out and nicely made!



[Bomar]

Sweet panel



[orangefj45]

Georg,

Question: I got my Puma in the back of the 55, would I need to run another air line up to the pressure gauge or ? I have both lockers, could you tap into the air line, running to the front locker?

Thanks,

Ron

thanks Ron!
how's the 55 doing? if you want to run the air pressure gauge in the cab, then you'll need to draw "signal" ( aka pressure ) from the tank or line going to the arb solenoid(s). the line going to the front locker would only be under pressure when the locker is engaged.
but the air gauge only requires a very small air line, so it's really no big deal. I stock the fittings and line as well.....
hth
georg @ valley hybrids



[orangefj45]

That looks dynamite.
Do you anticipate a smaller one that would fit in the ashtray space? I'm jut looking for space for 3-4 of those exact switches.

iirc the switches are too tall to fit where the ashtray usually resides. but in the current panel location there's enough room for at least one more switch, possibly up to 3 if you eliminate the air gauge.

georg @ valley hybrids



[Spike Strip]

So that'll be $30 (plate 'n gauge) + shipping (So Cal) to your Paypal?



[orangefj45]

So that'll be $30 (plate 'n gauge) + shipping (So Cal) to your Paypal?

Yup! Plus your uncle Obama's cut. Shipping outta be $6.
Georg @ Valley Hybrids



[Stumpalama]

Nice job... Looks similar to mine in my 40: https://forum.ih8mud.com/showpost.php?p=3501670&postcount=17

Bump for a cool product from a great 'mud vendor.



[Spike Strip]

Georg, sorry for the multiple posts but I now see you've got the fittings and line, also. Can you post a price for the panel, gauge, fittings, 8 ft of line and I will PP tonight.

Thanks much. And very nice setup.
