Stumpalama said:
My previous post wasn't worded quite right. I meant that the aftermarket soft door uppers are not designed to fit in the hard top opening. They just pressure fit against the soft top. In order to get aftermarket uppers to work properly with the FST top opening,the upper frame has to be modified to match the contour of theb-pillar.

I made a set of 1/8" steel doors that fit my STC door tops. I have a spare set of STC door tops that I am looking at modifying to fit the FST opening.

You are the only option for recovering the door frame. I have alot of marine upholsterers around here, but I want to support our Mud Vendors who support us. ;)
Click to expand...


This makes more sense now. Wasn't aware the Bestop door uppers didn't conform to the FST frame. I swear when I had mine 5 years ago they fit. Going to have to do some thinking on this.

Got any photos of standard, full length, and full length OEM bikini tops?

For full length do they utilize OEM bows or more like set up in post #14?

Thnx

Guys, self serving request but something that would help Marshall I think, can y'all post pics of his tops installed. I'm definitely buying one but would love to see some......esp, say Capri blue with his grey soft top!:p

Wife might be less apprehensive all I have to show her is the black top/ green 40 posted earlier.

Thanks!

Marshall, Have you completed your soft top discussed on this thread page 7? I would like to see pictures of yours with zip out windows. What colors in new materials you mentioned?

It's in design right now. I've been swamped with work in the shop and haven't had the time to wrap my head around it. But it will be done in the next few weeks

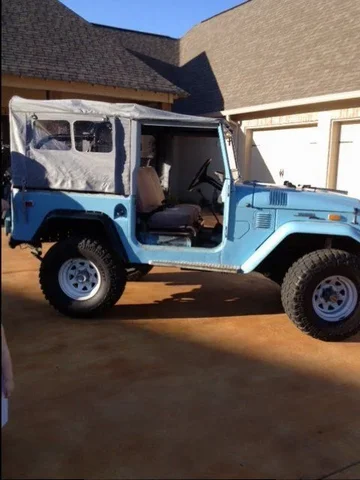

I hope Marshall won't mind, here are some pictures of my top sitting on my capri blue 40. I went with Grey/Grey.

The material, look, durability, and comms with Marshall were all beyond expectations. I am just waiting on hardware from his vendor so I can get it snugged down.

Very happy and very impressed.

image.jpg image2.jpg

Trollhole said:
It's in design right now. I've been swamped with work in the shop and haven't had the time to wrap my head around it. But it will be done in the next few weeks
Click to expand...
Reading through this thread and you are clearly slammed and doing good work. I sent you an email earlier today and would love to hear from you when you have a chance. I'm looking for a full length bikini for my '76 FJ40. Thanks.

Trollhole, I sent a PM asking about price on Bimini top in tan PVC canvas? and estimated delivery time?

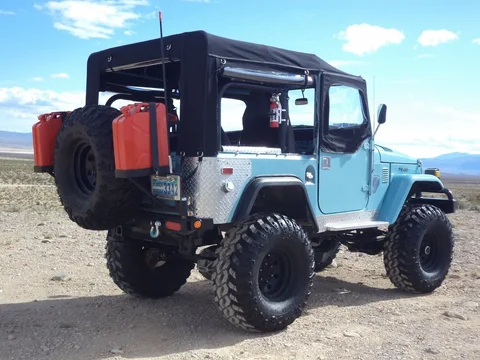

I was finally able to shoot some paint on the Aqualu half doors and bows and install the long awaited soft top and soft upper half doors. I'm very pleased with how everything turned out. Nice work Trollhole!


Front.JPG Side.JPG Back Side.JPG

Sin City 4x4 said:
I was finally able to shoot some paint on the Aqualu half doors and bows and install the long awaited soft top and soft upper half doors. I'm very pleased with how everything turned out. Nice work Trollhole!


View attachment 889444 View attachment 889445 View attachment 889446
Click to expand...

That looks really good! Did you alter the upper door frame to fit the contour of the b-pillar, or are you just running them as they were originally constructed?
If they are unaltered, how do they fit and seal?

The Bestop uppers are unaltered aside from being re-skinned by Trollhole. They seal fine and fit really tight against the B-pillar.

Good deal. That's good to know. I have kayline door tops and was thinking I'd have to alter the frame to match the contour of the b pillar. I guess I need to just try it out first.

Trollhole said:
New THC tops. I have contracted with a local marine products manufacturer to make a top for me.
In Stock Inventory with no wait. Black Canvas with oem windows. Contact me if your interested.

Soft Top Specs: FJ/BJ 40
  • 18oz Cotton Duck Canvas in Black, Tan, OD Green and Gray.
  • Sumbrella Edging
  • 1" Nylon Straps that are sewn to a reinforced layer for the hold down straps
  • 316 stainless steel D-rings
  • Polyester welded to PVC core for the windshield, and door channels. This is 10 times stronger than canvas over rope core.
  • Sewn together with 100% PTFE (PolyTetraFlouroEthylene) fiber. This thread will not break due to exposure to sunlight, weather or water for the life of the fabric sewn.
  • #10 YKK zippers. Overkill for this soft tops but I wanted a big zipper.
  • Reinforced windshield corners
  • Crystal Clear 40 gauge vinyl window material. Super thick and made to last. In clear or light smoke.
  • Available in two window configurations. OEM 7 window and Trollhole style (+25$). I designed the Trollhole style several years ago with single side windows instead of the two small windows as well the windows are the same length as the windshield and door windows. (I like this style especially on a lifted cruiser where seeing out the rear windows is import so you can see the vehicles beside you and behind you)
  • 2 week turnaround to shipping on most orders. Shipped out of Greenville, SC.
  • International shipping available.
  • $960 +shipping. Or $1275 + shipping in PVC with black cotton lining. Shipping is usually around 40-50 shipped in the lower 48. Price doesn't include the hardware kit. It's $80. (See bottom of this post for the hardware kit specs)


FJ45 Troopy Top
  • 18oz Cotton Duck Canvas in Black, Tan, OD Green and Gray.
  • Sumbrella Edging
  • 1" Nylon Straps that are sewn to a reinforced layer for the hold down straps
  • Polyester welded to PVC core for the windshield, and door channels. This is 10 times stronger than canvas over rope core.
  • Sewn together with 100% PTFE (PolyTetraFlouroEthylene) fiber. This thread will not break due to exposure to sunlight, weather or water for the life of the fabric sewn.
  • #10 YKK zippers. Overkill for this soft tops but I wanted a big zipper.
  • Reinforced windshield corners
  • Crystal Clear 40 gauge vinyl window material. Super thick and made to last. In clear or light smoke.
  • Available in two window configurations. OEM 7 window and Trollhole style. I designed the Trollhole style several years ago with single side windows instead of the two small windows as well the windows are the same length as the windshield and door windows. (I like this style especially on a lifted cruiser where seeing out the rear windows is import so you can see the vehicles beside you and behind you)
  • 2 week turnaround to shipping on most orders. Shipped out of Greenville, SC.
  • International shipping available.
  • Canvas $1635 + Shipping or $1850 + Shipping for PVC with black cotton lining
Duster
  • 18 Ounce marine treated (dry treated) and water resistant canvas
  • Black, Tan, OD Green, White, Gray
  • Crystal Clear 40 gauge vinyl window material. Super thick and made to last. In clear or light smoke.
  • Canvas $135+ Shipping or $175 + shipping PVC with black cotton lining
Standard Bikini Top
  • Black, Tan, OD Green, White, Gray
  • 18 Ounce marine treated (dry treated) and water resistant canvas
  • Canvas $90+ Shipping or $125 + shipping for PVC with black cotton lining
Full Length Bikini Top
Canvas $130 + Shipping or $165 + shipping for PVC with black cotton lining Fit's over a family cage like Redline's or Metal Tech's Utilizing Bestop channel 51209-01 (http://www.jeep4x4center.com/bestop-...-51209-01.html) 18 Ounce marine treated (dry treated) and water resistant canvas Black, Tan, OD Green, White, Gray

OEM TYPE full length bimini
Canvas $250 + Shipping or $295 for PVC with black cotton lining A full length bikini that utilizes OEM windshield and over door channels 18 Ounce marine treated (dry treated) and water resistant canvas Black, Tan, OD Green, White, Gray

Colors

Canvas



For an additional $60 I can do other colors as well. Red, Hot Pink, Forest Green, Hunter Green, Navy, Linen, Blue, and Yellow.

PVC with black cotton lining



For an additional $100 I can make it in Bone White, Buckskin, Beige, Dark Blue, Cadet Blue, Maroon, and Beechwood,

Trail Covers https://forum.ih8mud.com/trollholes-cruisers/790879-fj40-trail-covers-stock.html

How to order: Send an e-mail to me (Marshall) at M@trollhole.com. Include in your email what options you want below.

  • Fabric Type: Canvas or PVC with black cotton lining
  • Fabric Color: Black, Tan, OD Green, Gray
  • Strap Color: Black, Tan, Gray
  • Window color: Clear or Smoke
  • Window style: 7 Window OEM style or Tall Window Trollhole style
  • Hardware kit: Just state if you want me to include it in the order.
Include your full name and shipping address and if different Paypal address. You don't have to have a paypal account but this is how I send you an invoice. You can pay with CC without a paypal account. Or you can arrange to pay me by check.

Hardware. Ignore any of this information below if your ordering the hardware from me. Hardware is available from www.odcloth.com on their hardware page. They're a mom and pop operation but are really good about getting orders shipped immediately. The twist fasteners they sell are a black finish over brass. Do a "send money" to odcloth@aol.com for the amount of $78. That amount is for fasteners, footman loops and shipping. In the paypal notes put: $35 ---14 each - 6:00) Single Height Stud, 10 for $25.00 $5 ---2 each -10:00) Double Stud Height10 for $25.00 $12 ---16 each -Center) Oval Pronged Back Grommet w/ Clinch Plate: 10 for $7.50 $14.40 ---12 each - #6 from Left, Current Production Cadmium finish, 10 for $12.00. balance = shipping
Click to expand...
I need to order a top can you call us at 706-207-4140. I have several questions.
Thanks,
Bobby
CCOR
706-207-4140

Need to discuss options for Bimini top or full soft top (if you finished new version) I have sent 2 PMs.

Looks great, really need the same thing on my Aqualu build with the same half doors but I will be making my own frames.
