I look at this thread every few days, and I am in awe of how this whole project developed.
I salute you, sir.
Great work.
I salute you, sir.
Great work.
Follow along with the video below to see how to install our site as a web app on your home screen.
Note: This feature may not be available in some browsers.
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Thanks Brett. Exactly the type of info I have been needing.

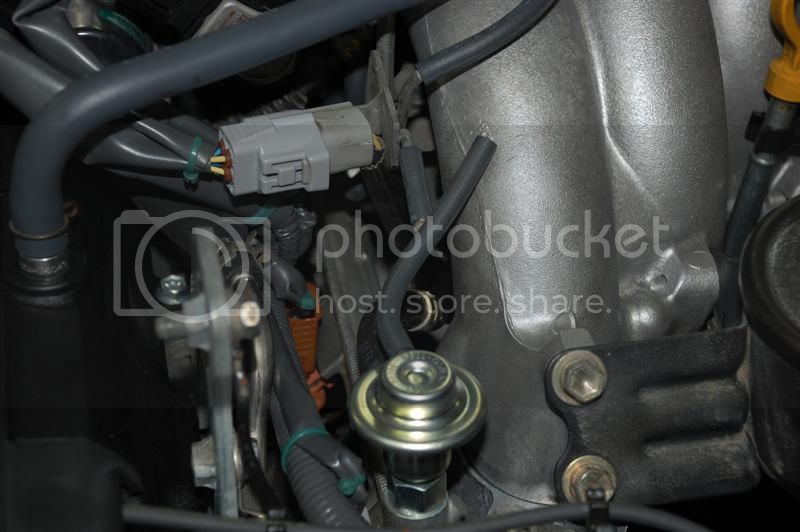

I measured black/red from injector to injector and saw zero ohms. Granted, not under load, but should be good.
I thought about the harness, and I will go down that road once I get the engine put back together with the injectors swapped (1 with 2, 3 with 6, others same as before) and reinstalled.
I probably should have checked further with the electrical, but I thought my "ticking the s*** out of the injector with 9V" while it was running would have caused #2 to cough, spit, fart, or something...
I have checked the inlet sock for #2 and #6 and they look like really fine screens and I don't see how they could be plugged up.
My thoughts were to check the electrical part while she was running by using the ol' #11 exacto knife blade trick on the oscilloscope. I can do #1 and #2 and compare.
(The #11 exacto blade trick is that the thin long point of that blade will make a small hole through the insulation and allow you to touch the copper wire inside to take a voltage measurement)
I think for a noid you might need to load the circuit to make sure the transistor is healthy. I have lots of ideas if needed to test that portion of the circuit. I just hope it doesn't come to it....
I've worked on FI systems and installed a couple of megasquirt units. I've run into very similar issues. The final solution was found by using a scope, you cab get a 4 channel USB scope using windows 7/xp.
$29 at http://www.dataq.com/products/startkit/di145.html
I would check the trigger signal going to ecm for the crank position, the capture the signal from each injector (or one that is working vs N2 cylinder). Injection firing is not sequencial and are typically fired in "batches". Swapping injector plugs will either cause the issue to stay with the same injector position or migrate.
Also, how does the ODB knows the injector has not been fired? It is using the injector coil feedback? If so, it would again point out to a wiring issue.
Btw, the one major problem I resolved was because of a positive wire was damaged. A simple
Shaved wire.
