Where did you mount your trailer brake controller?

Discussion in '200-Series Cruisers' started by Dan Higgins, Aug 7, 2016.

  1. cru1s3r

    cru1s3r

    Messages:
    69
    Media:
    8
    Albums:
    3
    Likes Received:
    49
    Joined:
    Mar 16, 2017
    Location:
    Bend, OR
    OK, so I’ve got my Tekonsha brake controller, and am ready to start the hunt for the under-dash connector plugged into the dummy port. Before I go destroying anything in the process of removing plastic, does anybody havce any tips on how to NON-DESTRUCTIVELY remove the plastic under-dash panels?

    Thanks!

  2. weaselox

    weaselox

    Messages:
    9
    Media:
    14
    Likes Received:
    5
    Joined:
    Mar 6, 2017
    Location:
    Virginia
  3. Sandroad

    Sandroad SILVER Star

    Messages:
    1,782
    Likes Received:
    533
    Joined:
    Jan 31, 2009
    Location:
    Michigan
    Photos and details on this thread helped me.

    Trailer Brake Controller Connector

    Looks like @weaselox beat me to it. Must be a good thread!

  4. cru1s3r

    cru1s3r

    Messages:
    69
    Media:
    8
    Albums:
    3
    Likes Received:
    49
    Joined:
    Mar 16, 2017
    Location:
    Bend, OR
    Thanks guys. Fingers crossed I don't break off any of the tabs this weekend when I pull those covers off...

  5. cruiseroutfit

    cruiseroutfit Supporting Vendor Moderator

    Messages:
    7,101
    Likes Received:
    3,190
    Joined:
    Jan 9, 2003
    Location:
    Utah
    Running the RedArc controller in the Expedition Overland 200 Series, installation was cake in fact we did it in a hotel parking lot in Chile :cool:

    I can snap some pics in the morning. It does use the provided Toyota pigtail. I suppose they could make a true plug and play but it takes 5 minutes to connect the few wires. Hardest part is mounting the controller hidden under the dash and that is not tough either. If I end up towing much with my 200, it will now with a RedArc setup.

    kevinfoutch likes this.
  6. TonyP

    TonyP SILVER Star

    Messages:
    2,009
    Likes Received:
    2,118
    Joined:
    May 5, 2014
    Location:
    Utah
    Yeah, I'd like to see pics.

  7. ohsix

    ohsix

    Messages:
    18
    Likes Received:
    4
    Joined:
    Feb 28, 2017
    Location:
    Midland
    Has anyone used the Tekonsha wireless controller? It requires mounting a box to the trailer which is not feasible if you're pulling many different trailers. I will likely only pull one trailer with my 200, so I'm looking into this system for my vehicle and trailer.

  8. cruiseroutfit

    cruiseroutfit Supporting Vendor Moderator

    Messages:
    7,101
    Likes Received:
    3,190
    Joined:
    Jan 9, 2003
    Location:
    Utah
    Cool, we'll be back to them in a few minutes and I'll snap up pics.

  9. cruiseroutfit

    cruiseroutfit Supporting Vendor Moderator

    Messages:
    7,101
    Likes Received:
    3,190
    Joined:
    Jan 9, 2003
    Location:
    Utah
    Here the switch is. The module is small (4"x2"x1"?) and is hard mounted above the pedals, sorry no pics as I don't want to pull it back apart.


    Plug on back is a simple Cat5 style setup, cord is ~3ft long as I recall

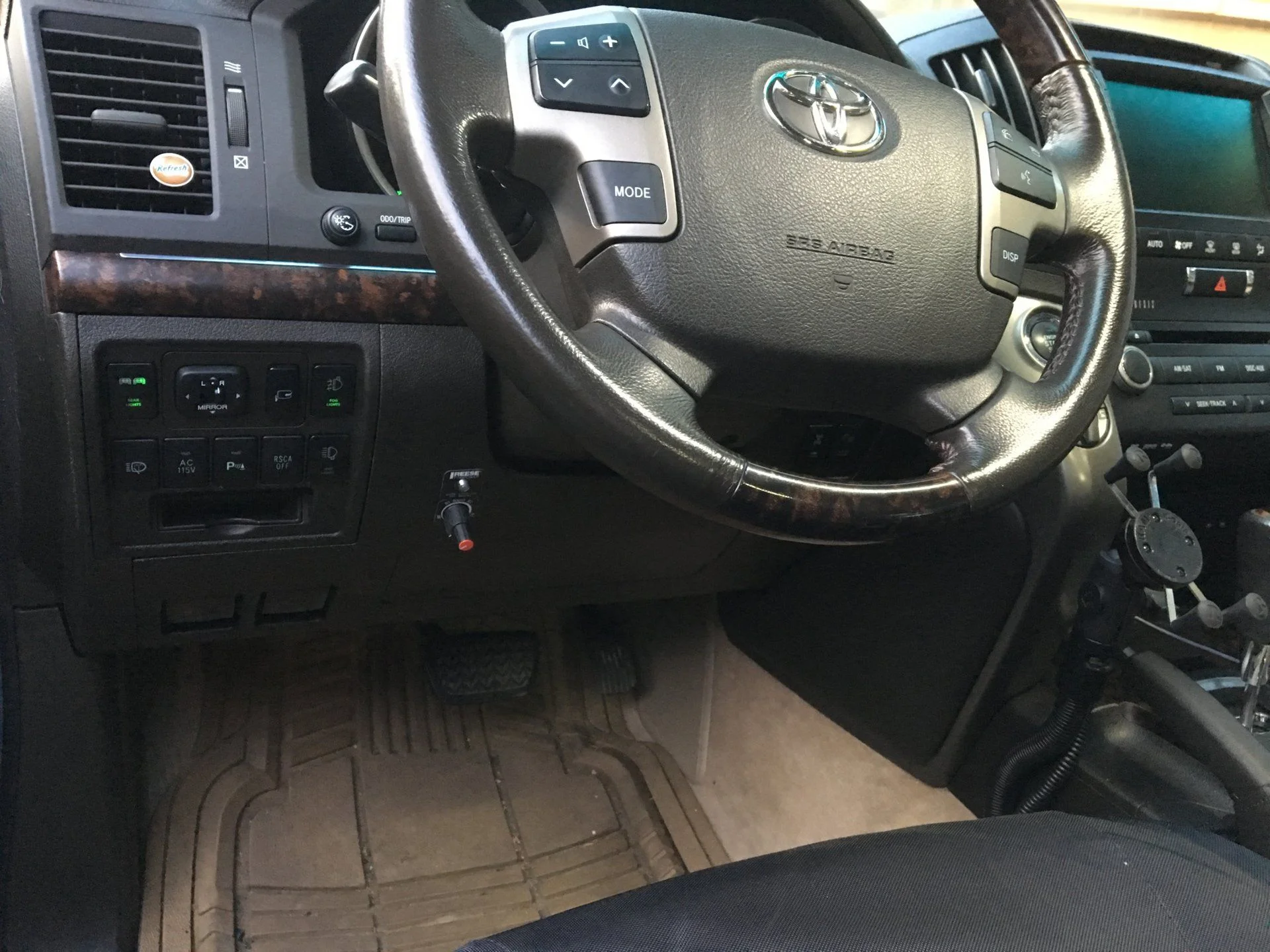

    While mounted in dash in looks like this, nice and clean.


    kevinfoutch and TonyP like this.
  10. cruiserdan

    cruiserdan SupportingVendor Emeritus Moderator

    Messages:
    21,641
    Likes Received:
    5,035
    Joined:
    Mar 27, 2003
    Location:
    Surrounded by Cruisers from all over the world
    Here is an alternate mount in the Hema 200. This is a RHD 2011. 20171013_104050.jpg

    cruiseroutfit likes this.
  11. fireball

    fireball SILVER Star

    Messages:
    2,045
    Media:
    23
    Albums:
    2
    Likes Received:
    998
    Joined:
    Jul 17, 2013
    Location:
    Central PA
    It is just an adjustable dial, correct? Does it have a "push to activate" manual feature like the Tekonsha?

  12. cruiserdan

    cruiserdan SupportingVendor Emeritus Moderator

    Messages:
    21,641
    Likes Received:
    5,035
    Joined:
    Mar 27, 2003
    Location:
    Surrounded by Cruisers from all over the world
    I have not towed with it. The vehicle is static display and cannot be operated on a US road. The dial does have a momentary push-in feature that temporarily back-lights the dial. I presume that would be manual brake application.

  13. fireball

    fireball SILVER Star

    Messages:
    2,045
    Media:
    23
    Albums:
    2
    Likes Received:
    998
    Joined:
    Jul 17, 2013
    Location:
    Central PA
    Thanks for the info Dan. Surely there is an exemption to drive and tow with these vehicles if it is done so to provide helpful research and info to the Mud community! :)

  14. TonyP

    TonyP SILVER Star

    Messages:
    2,009
    Likes Received:
    2,118
    Joined:
    May 5, 2014
    Location:
    Utah
    Yes, it's a manual override feature. Press button to activate the brakes.

    You can look over the manual here:

    Tow-Pro Elite Electronic Brake Controller

    I think $371 kangaroo bucks (or $290 freedom bucks) is a little steep but for the simplicity and compactness of the unit, it's not terribly priced.

  15. cruiserdan

    cruiserdan SupportingVendor Emeritus Moderator

    Messages:
    21,641
    Likes Received:
    5,035
    Joined:
    Mar 27, 2003
    Location:
    Surrounded by Cruisers from all over the world

    Regrettably the EPA does not think like that...:crybaby:

  16. milkyxj

    milkyxj

    Messages:
    138
    Media:
    1
    Likes Received:
    151
    Joined:
    Sep 10, 2007
    Location:
    Anchorage, AK
    Crab Sack and kevinfoutch like this.
