Got the o-rings today!!
Got the o-rings today!!
- Thread starter
- #89
Back at it last weekend
Ok, where was I?

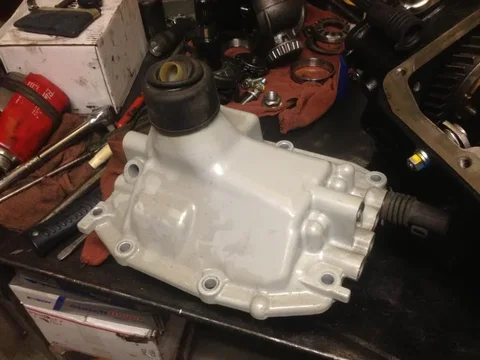

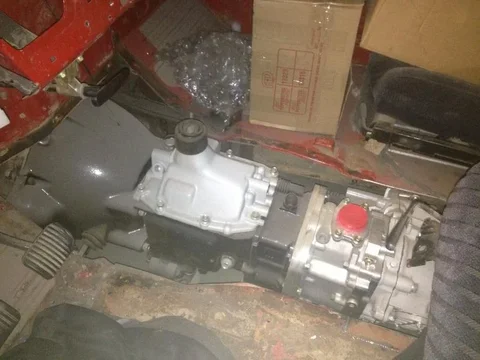

Oh yes, O-rings and T-case rebuild kit. While I was waiting for these to come in I robbed the 40 series top plate assembly off of my stalled and re-directed 45 build. I replaced it with the brand new one as I have to cut the red cover anyway for the toybox.
I apologize to all those who are forever searching for that cover.
Ok, where was I?
Oh yes, O-rings and T-case rebuild kit. While I was waiting for these to come in I robbed the 40 series top plate assembly off of my stalled and re-directed 45 build. I replaced it with the brand new one as I have to cut the red cover anyway for the toybox.
I apologize to all those who are forever searching for that cover.
- Thread starter
- #90

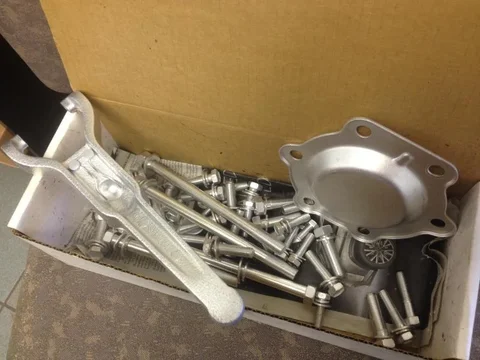

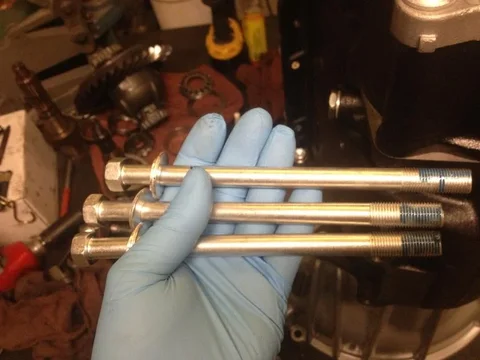

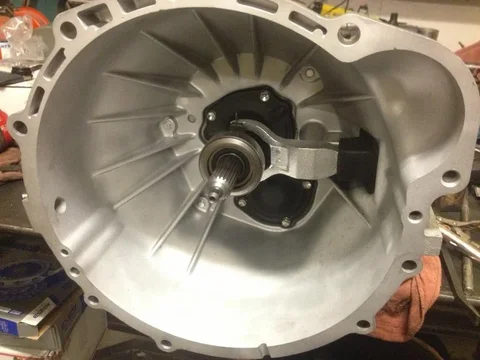

I also picked up the bolts and bits for the plater. So that meant I could mount the bell housing and the front t-case.

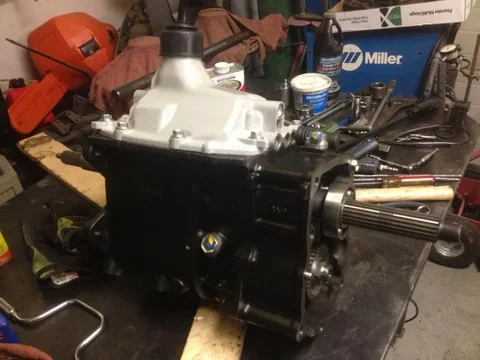

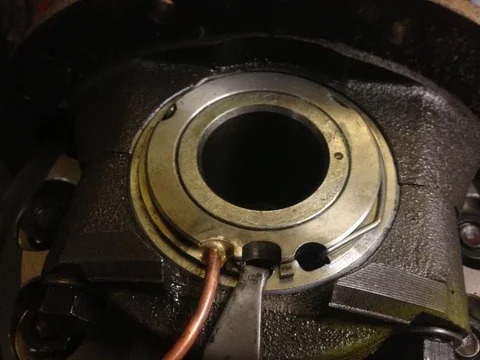

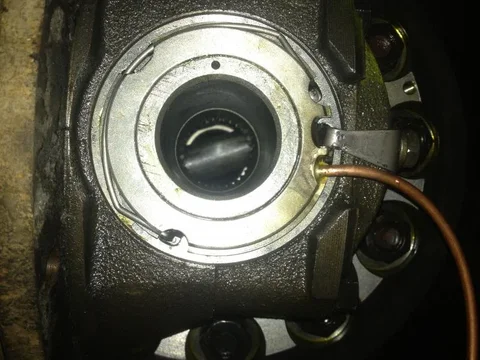

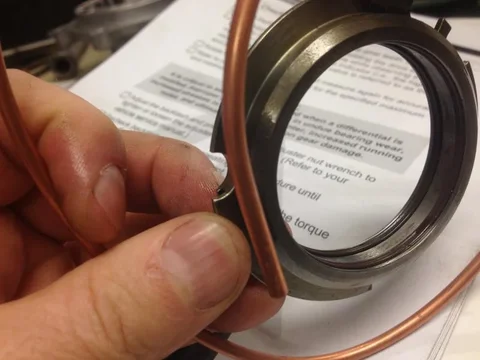

installed the 5th gear oiler
installed the 5th gear oiler
- Thread starter
- #91

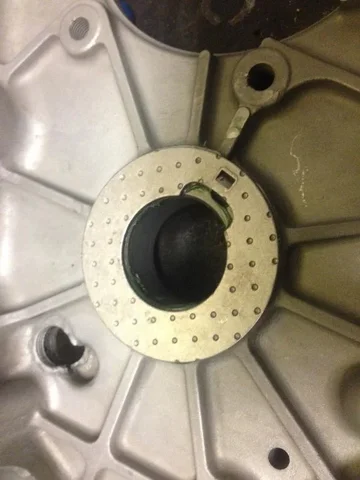

Bearing and seal

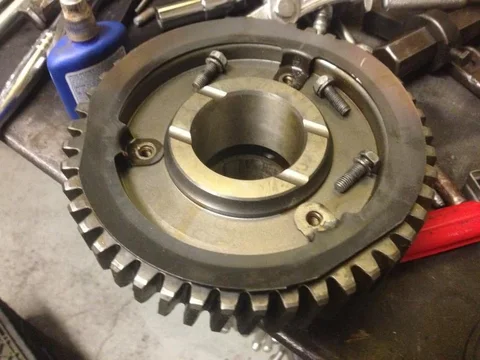

You have to rob this slinger thing off of the stock gear and use it on the idler for the 4:1 set
Don't forget this tin piece either. I'm not sure what it does but I think it helps prevent oil from exiting the case through the breather..... but I dunno.
You have to rob this slinger thing off of the stock gear and use it on the idler for the 4:1 set
Don't forget this tin piece either. I'm not sure what it does but I think it helps prevent oil from exiting the case through the breather..... but I dunno.
- Thread starter
- #92

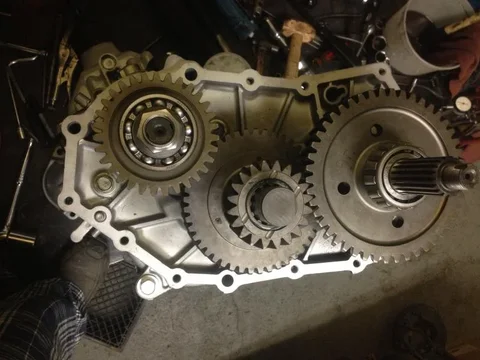

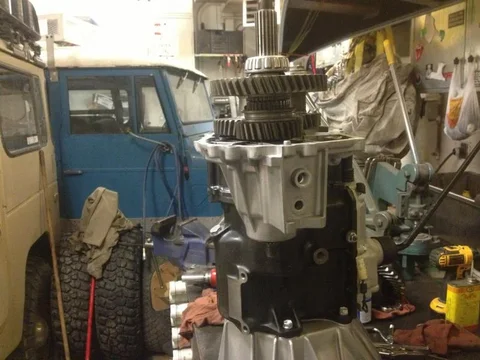

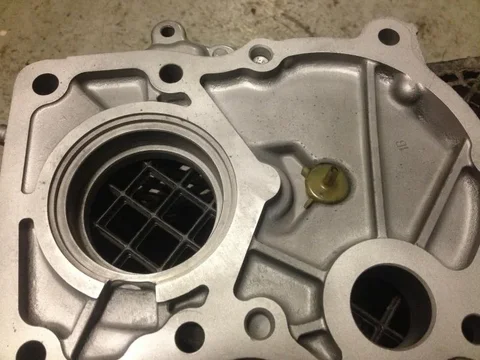

Random shots of fitting the gears. And the mess I call my garage.
- Thread starter
- #93

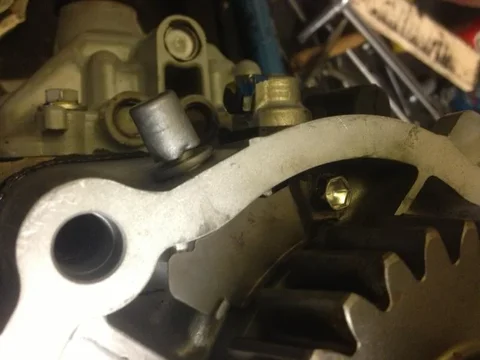

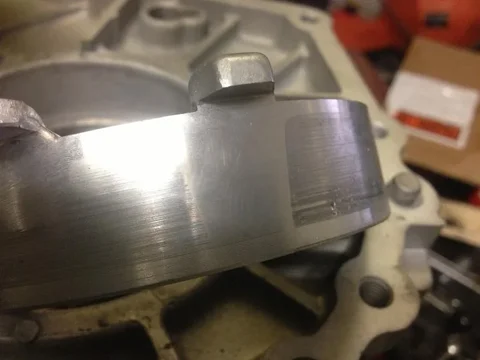

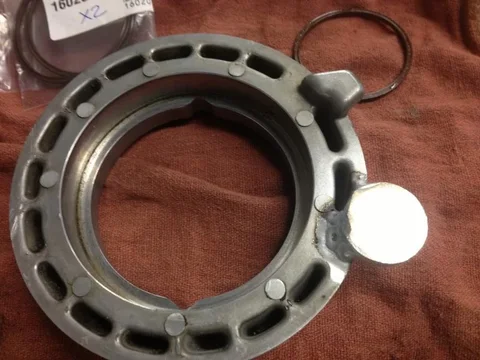

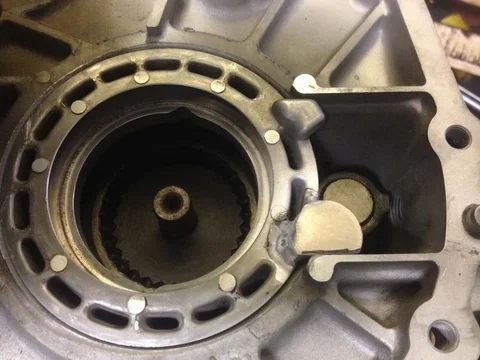

I think I posted a pic of the bearing holder thing and the ear that was broken off. It was scored pretty good by being able to rotate back and forth so I had to weld on another ear.
And shape it to fit
And shape it to fit
- Thread starter
- #94

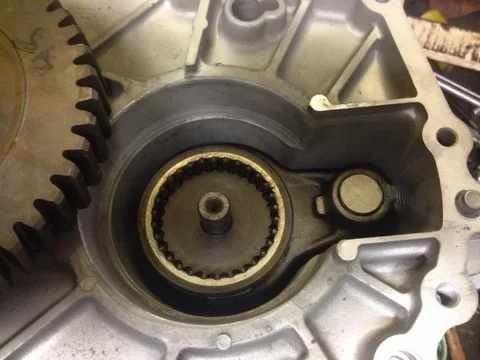

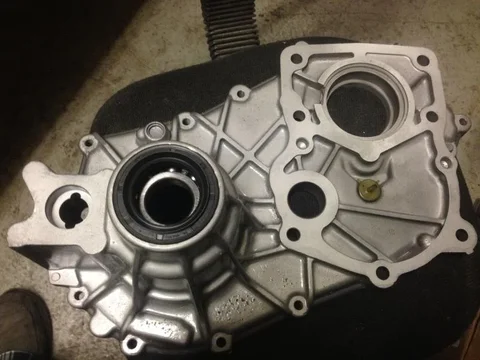

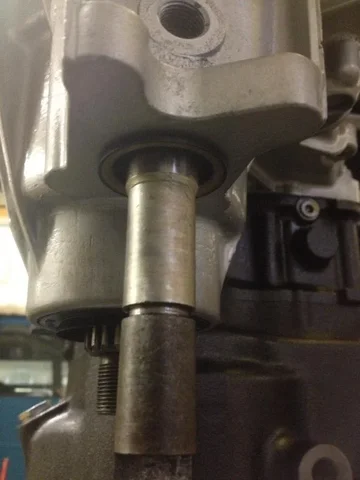

With that fixed and ready the front output shaft went in with the 2to4 shift fork and gear.
And the seal

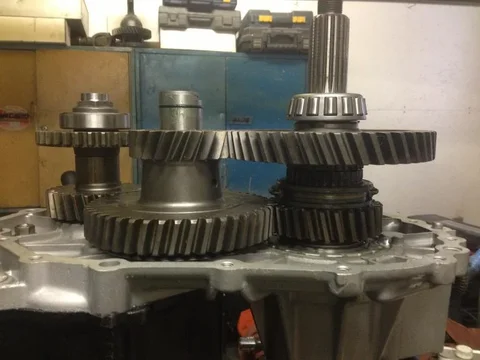

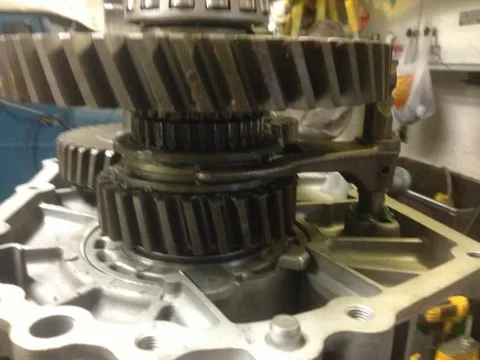

All the gears in. If the rear output shaft won't go in all the way you probably have to wiggle the 2to4 lever to drop the last 5mm.
And the seal
All the gears in. If the rear output shaft won't go in all the way you probably have to wiggle the 2to4 lever to drop the last 5mm.
- Thread starter
- #95
Another angle

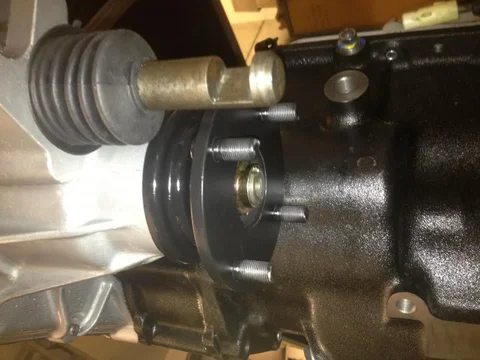

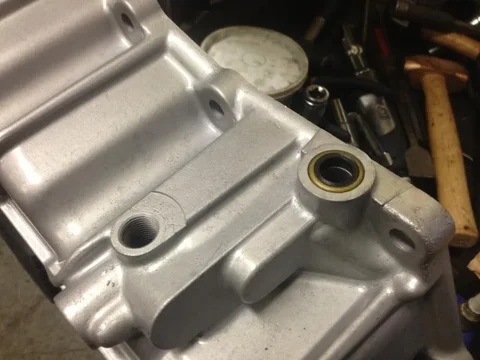

new hi-low shift lever seal

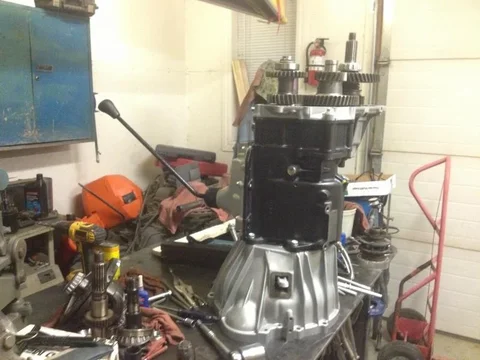

I've done this a little differently than the FSM suggests. I already put the rear o-ring on the idler shaft as you can see above. I am also building this with the tranny standing upright. That means I need to be extra careful with both the o-ring as it enters the rear case and the rear thrust washer to make sure it stays keyed in place. I also had to wiggle the hi-low shift lever into position at the same time.
Thrust washer glued in place with grease.
new hi-low shift lever seal
I've done this a little differently than the FSM suggests. I already put the rear o-ring on the idler shaft as you can see above. I am also building this with the tranny standing upright. That means I need to be extra careful with both the o-ring as it enters the rear case and the rear thrust washer to make sure it stays keyed in place. I also had to wiggle the hi-low shift lever into position at the same time.
Thrust washer glued in place with grease.
- Thread starter
- #96

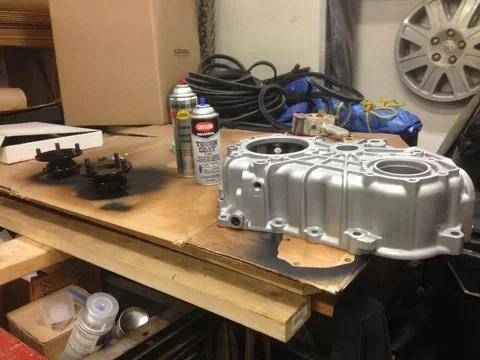

Forgot to mention I clear coated the case and did the companion flanges in black
I like shinny bolts
I like shinny bolts
- Thread starter
- #97

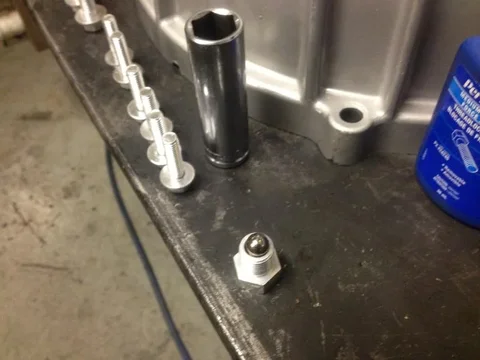

installed ball and spring for the shift forks

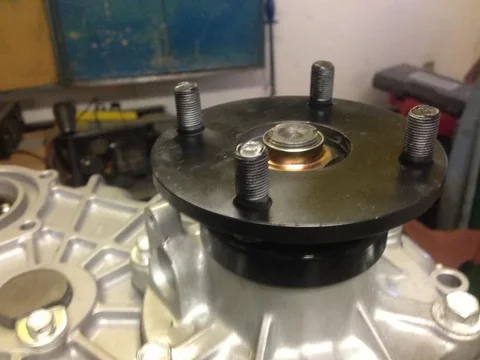

torqued the output flanges

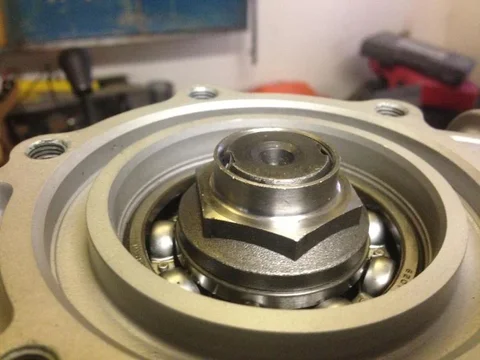

and the tranny output - staked all nuts
torqued the output flanges
and the tranny output - staked all nuts
- Thread starter
- #98

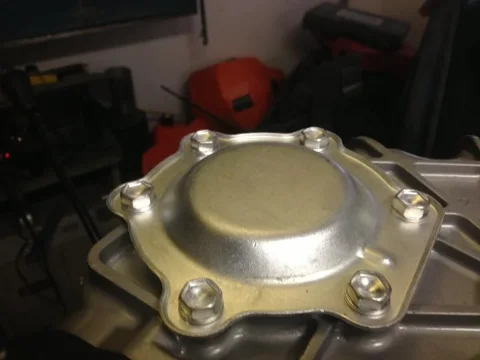

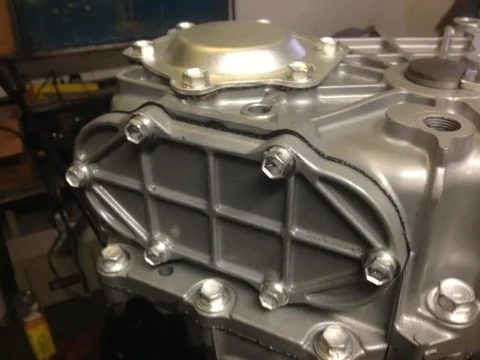

covers
boot
boot
- Thread starter
- #99

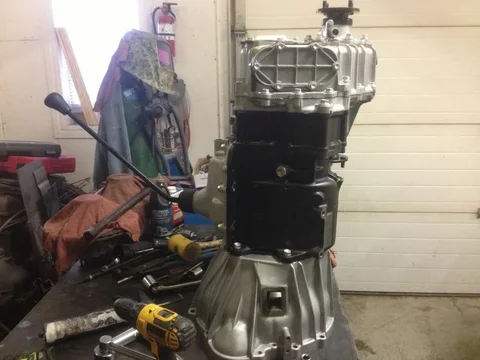

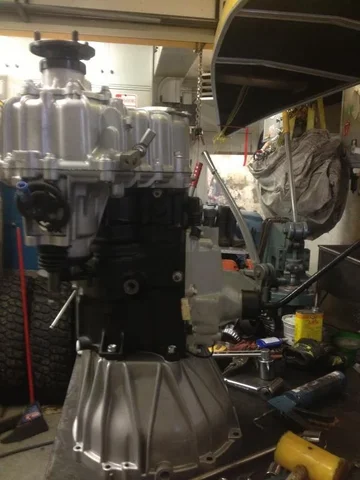

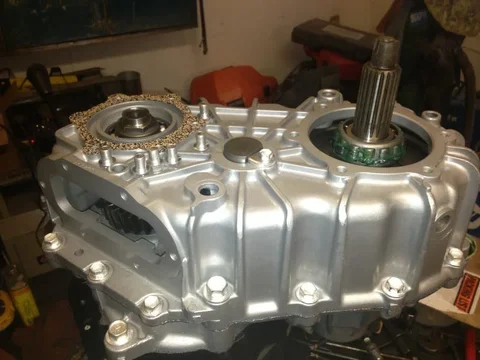

gear boxes done
- Thread starter
- #100
Now for something completely different. But similar.
Much better
installed
Much better
installed
