In your PM you said:
"The installer jacked the bumper up as high as it would go, but there's not much vertical play in the mounting plate. There's about an inch of gap between the bumper and most of the body - I was expecting closer to the 1/2" that ARB recommends, but I can probably hide it with some well-placed weatherstripping."
About an inch on clearance, maybe a tad more is correct for this bumper. Sounds like they jacked it too high trying to meet a statement that has nothing to do with my design. Loosen all the bolts and let it down slightly and that should take care of this. In pic below you can see the tabs are about 1/8"-3/16" above the bumper. You'll be close on bumper to main body of the light as well. maybe the same gap as tabs.
Your side view looks good.
Sensor (from PM)
I'd have to take a swing at it myself. The retainer and sensor have to be perfectly lined up. The sensor snaps into place when installed correctly. You can hear it "click" when engaged. I test this on every bumper before and after powdercoating. A 1/16" rotated the wrong direction and it won't "click" into position. It took me a few tries until I understood the mesh up to get it correct and it still takes me a time or two to get them right especially when you can't see the fit up. The sensor will go in regardless of clocking, but unless it is perfectly lined up it won't "click"
Back to the fish now!
J
- Joined
- Jun 21, 2011
- Threads
- 233
- Messages
- 21,821
- Location
- Redding, California
- Website
- trail-tailor.com
- Thread starter
- #1,104

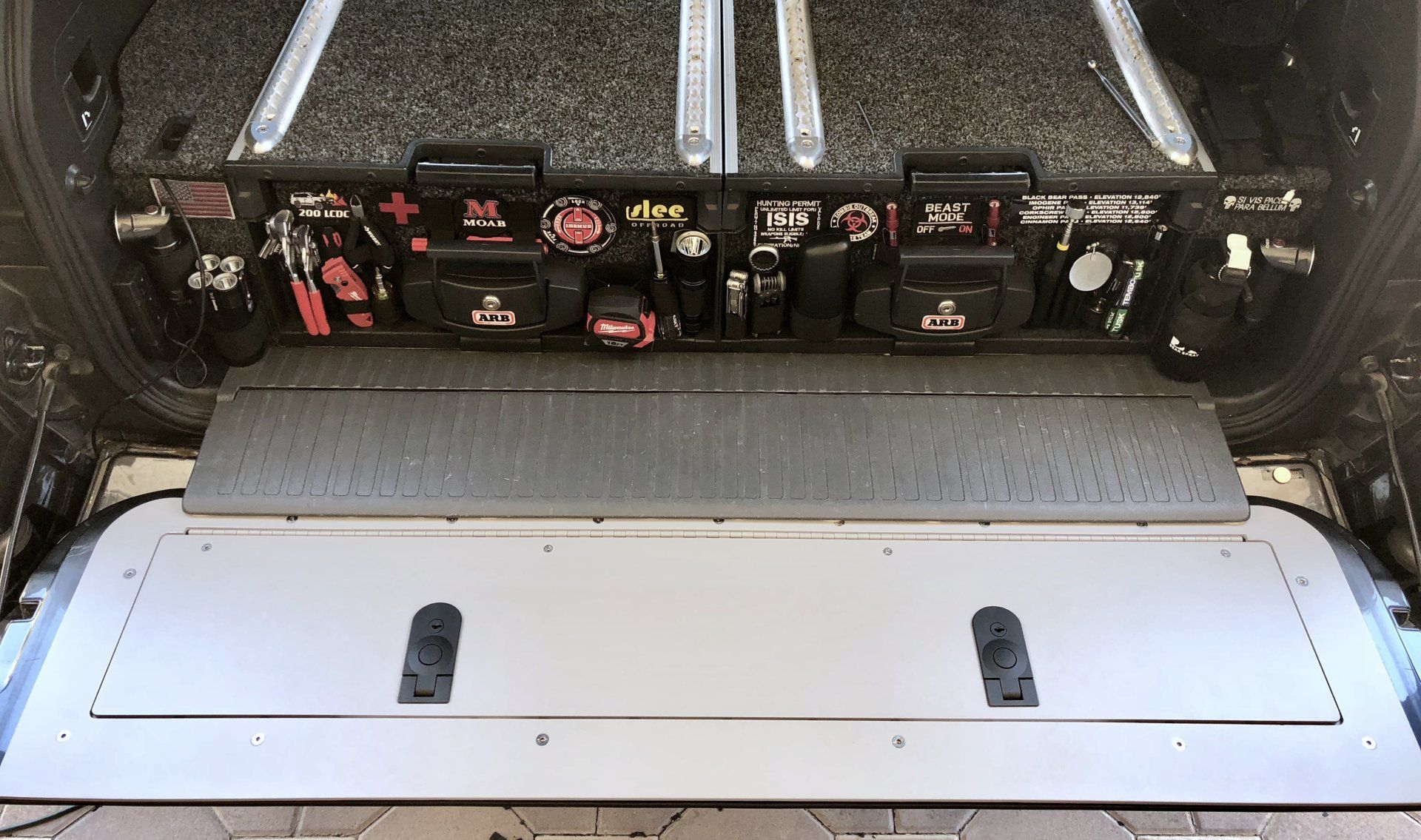

Finally COMPLETE!
If you’re curious about the inside...
...you’ll have to wait til Telluride!
View attachment 1749343
Someone send me a pic of the lid from Telluride...
To be fair, it didn't come with any instructions, so they were guessing at what the gap should be and using the other vendors as their reference point.
I'll take a look and if it's not raining tomorrow I'll break out the jack and try to shift it. It feels like it almost needs to pull forward by 1/8", as the lens is pretty flat and sliding down doesn't seem like it would open up the gap, but perhaps I'm wrong on the angle and a slight drop will resolve it.
I'll try to fiddle with the sensor - as the grommet fit in the hole seems to small for the sensor portion but I'll try a bunch of adjustments. Again that part is less important to me as I don't really use them anyway. It just seems weird that the grommet only seems to fit into the hole in one way, but the sensor seems to get blocked by the tabs.
I'll let you know how it goes
I'll take a look and if it's not raining tomorrow I'll break out the jack and try to shift it. It feels like it almost needs to pull forward by 1/8", as the lens is pretty flat and sliding down doesn't seem like it would open up the gap, but perhaps I'm wrong on the angle and a slight drop will resolve it.
I'll try to fiddle with the sensor - as the grommet fit in the hole seems to small for the sensor portion but I'll try a bunch of adjustments. Again that part is less important to me as I don't really use them anyway. It just seems weird that the grommet only seems to fit into the hole in one way, but the sensor seems to get blocked by the tabs.
I'll let you know how it goes
- Joined
- Jun 21, 2011
- Threads
- 233
- Messages
- 21,821
- Location
- Redding, California
- Website
- trail-tailor.com
- Thread starter
- #1,106
Fair enough on instructions, I told your installer to let me know if they had any questions. Not a word from them during the install. As the designer/fabricator it's seems pretty simple to line up the bolts/holes to match the factory frame plates and tighten. I take for granted how easy it is for me in my day to day workings some times where others may struggle with the simplest of tasks for me and others. I tried to make these bumpers install as easy as possible since the entire bumper unit is one piece and not multiple puzzle pieces like most other offerings. I install these without the use of jacks, just me for non-winch applications and I borrow my machinist next door to stab a bumper equipped with a winch for less than 5 minutes.
I've installed a few of these now and they've all been within the same consistency on all counts (gen 1 & 2).
Maybe I should only sell to customers that I do the install on moving forward. I'll ponder this idea further.
Even if I had instructions they would be pretty brief.
1) remove bumper per FSM instructions
2) fit bumper by lining up frame mount holes, adjust to your liking side to side and torque to FSM specs
3) replace sonar retainers and sensors making sure they are aligned properly
Winches and lighting install per their instructions.
