The official part number request thread

[CharlieS]

As I recall, those numbers on diagrams are a key to a table that contains the part number and description. It takes a little but of sleuthing, or access to systems that are more user friendly to get to a part number sometimes.



[cruiserdan]

The 5 digit identifier shown in the illustration is the Part Name Code. That refers to the accompanying text for complete part numbers.



[mbennett22]

12263 is not a complete Toyota pert number. Correct numbers will be at least ten digits with a dash in the middle. Plus the above diagram is for a 2014.

@mbennett22 the correct number for your 2009 is 12263-38010

If you want to do the T as well that is 12233-38010
Drivers side hose 12262-38020
Hose to intake tube 12262-38050

Hey bloc, do you have the part number for the Pcv valve hose. Just checked all the hoses and they are all rock hard.



[bloc]

Hey bloc, do you have the part number for the Pcv valve hose. Just checked all the hoses and they are all rock hard.

What’s your chassis build date?



[mbennett22]

What’s your chassis build date?

Its a 2009



[bloc]

Its a 2009

There will be a more specific build date on the VIN placard in the driver's door frame that includes day/month/year. Some of these part numbers change in the middle of a year model run; the PCV hose for a 2009 is one example.



[mbennett22]

There will be a more specific build date on the VIN placard in the driver's door frame that includes day/month/year. Some of these part numbers change in the middle of a year model run; the PCV hose for a 2009 is one example.

Oh okay, looks like it is 09/08



[bloc]

Oh okay, looks like it is 09/08

In that case your PCV hose should be 12261-38020



[bloc]

For @linuxgod from the SQoD thread, stock splash guard part numbers. Should bolt up to all years of LC and LX.. though the stock parts for an LX may have come with extra sound deadening materials.

Left side: 51409-60080
Right side: 51408-60030
Foam seal for radiator airflow control is sold separately: 88578-60391
Center "spine" between left and right: 51405-60250
Composite guard under engine (should include the small oil drain cover door): 51420-60070

See the following thread for bolt locations and part numbers. Note there are two different M8 bolts depending on location

Thread 'Stock skid plate / splash guard bolt locations & part numbers'

Jul 19, 2022

It seems this comes up pretty often, and having just removed my stock skids it was easy to take the picture I had been thinking of for a while.

You'll need three part numbers to attach the stock splash guards.

12x M8 large washer bolt, these go into the purple locations on the diagram
90119-08862

8x M8 small washer bolt, these go into the red locations on the diagram
90119-A0169

6x M6 flanged bolt, these go into the yellow locations. Note that my diagram only shows 4, 2 more go through the plastic wings into the bumper support.
90109-06375

Top of the picture is the front of the...

• bloc
• Replies: 41
• Forum: 200-Series Cruisers

•



[Sajan]

hi all,
i noticed the front molding (which is in need of a replacement on both sides) is sticking up. how do these attached?
is this the piece that holds the molding down? 75561A

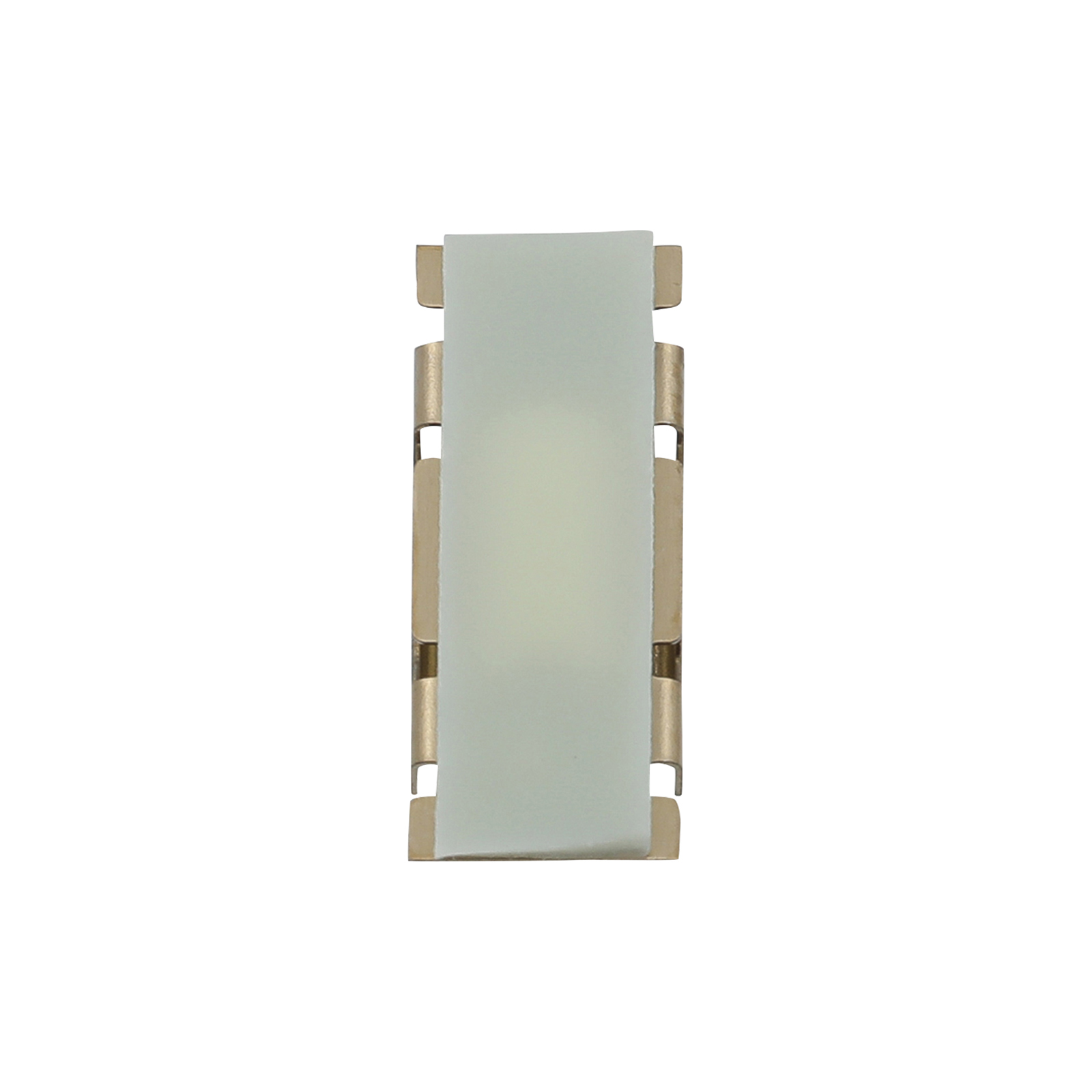

Roof Drip Side Finish Molding Clip #75561-52040 | Autoparts.toyota.com

Ensure your vehicle's performance and aesthetic with our Roof Drip Side Finish Molding Clip. Shop Genuine Toyota parts now!

autoparts.deserttoyota.com

has anyone replaced these? looks like the windshield area has 4 rivets? my glass was replaced once by safelite. who knows what they did...

i have the prinsu roof rack installed...i've watched a few videos and no one really mentions or goes over the 4 rubber pieces (75551 + 75555 + 75553A)...
anyone have a picture of how their roof looks with the rack? curious how the pieces all look.



[bloc]

hi all,
i noticed the front molding (which is in need of a replacement on both sides) is sticking up. how do these attached?
is this the piece that holds the molding down? 75561A

Roof Drip Side Finish Molding Clip #75561-52040 | Autoparts.toyota.com

Ensure your vehicle's performance and aesthetic with our Roof Drip Side Finish Molding Clip. Shop Genuine Toyota parts now!

autoparts.deserttoyota.com

has anyone replaced these? looks like the windshield area has 4 rivets? my glass was replaced once by safelite. who knows what they did...

i have the prinsu roof rack installed...i've watched a few videos and no one really mentions or goes over the 4 rubber pieces (75551 + 75555 + 75553A)...
anyone have a picture of how their roof looks with the rack? curious how the pieces all look.

View attachment 4108179

The molding clip holds an area at the very rear of the windshield molding. The clips themselves are glued down to spots in the lowerred slot.. the manual calls for Flexible Epoxy in that spot, but windshield techs usually just use their black urethane.



[Sajan]

The molding clip holds an area at the very rear of the windshield molding. The clips themselves are glued down to spots in the lowerred slot.. the manual calls for Flexible Epoxy in that spot, but windshield techs usually just use their black urethane.

Got it. looks like I can see the remaining of the clip that someone broke off..the white rectangular piece is still glued onto the roof.
Can I use this instead of the epoxy? https://www.3m.com/3M/en_US/p/d/v000056294/

And I am missing 1 rubber trim on each side. Will grab those too on the current 25% off sale..

found a good shot of how the rubber pieces are laid out.



[bloc]

Got it. looks like I can see the remaining of the clip that someone broke off..the white rectangular piece is still glued onto the roof.
Can I use this instead of the epoxy? https://www.3m.com/3M/en_US/p/d/v000056294/

And I am missing 1 rubber trim on each side. Will grab those too on the current 25% off sale..

found a good shot of how the rubber pieces are laid out.

View attachment 4108368

I don’t think that tape will work, given the heat it will gage to deal with sitting on top of the roof. I got some stuff from a company called total boat. Wasn’t expensive.



[mgeebs]

Anyone able to tell me the part number for the second row middle head rest on a 2016+ in Terra? I can't figure it out from the parts diagrams.



[kris9884]

I've been looking at ordering OEM Tokico from Toyota and been shopping different dealer sites like Serra, Amayama, Toyotapartsdeal, partsoq etc and trying to find the best deal *shipped*. Just looking for front and rear struts/shocks, not replacing the springs. I'm getting conflicting info depending on driver/passenger side so, could someone post the right part numbers for the front and rears for a 2013 LC? Pic for attention:



[Sajan]

Thanks bloc! How did you get the last 5 from the parts diagram? I have it pulled up for my vehicle year but don't see the last 5 in the diagram anywhere.

Toyota parts deal translates them

2018 Toyota Land Cruiser Parts - ToyotaPartsDeal.com

www.toyotapartsdeal.com

try this site..

TOYOTA LAND CRUISER 200URJ200L-GNTEKA - TOOL-ENGINE-FUEL - VENTILATION HOSE | Japan Parts EU

TOYOTA LAND CRUISER 200URJ200L-GNTEKA , VENTILATION HOSE

www.japan-parts.eu

i think the 5 digit codes are location/name of a part....but then that translates to the actual part number which can be the same for multiple diff 5 digit codes.

for example, 75551 (molding RH) and 75552 (Molding LH) both equals 75551-60110 for the actual part.



[Sajan]

I've been looking at ordering OEM Tokico from Toyota and been shopping different dealer sites like Serra, Amayama, Toyotapartsdeal, partsoq etc and trying to find the best deal *shipped*. Just looking for front and rear struts/shocks, not replacing the springs. I'm getting conflicting info depending on driver/passenger side so, could someone post the right part numbers for the front and rears for a 2013 LC? Pic for attention:

48510-69395 front
48530-69495 rear



[bloc]

Anyone able to tell me the part number for the second row middle head rest on a 2016+ in Terra? I can't figure it out from the parts diagrams.

I don't see an obvious "terra" color.. Did toyota call it Chocolate?

This is for the center second row headrest on a 2016



[MCtree]

Hi @bloc ,

Would you be so kind as to tell me if there is a part number for the bracket that holds the windshield washer fluid input nozzle to the side of the engine bay?
Mine is missing.

Or is it just a screw of some sort?



[GrouchyTech]

Hi @bloc ,

Would you be so kind as to tell me if there is a part number for the bracket that holds the windshield washer fluid input nozzle to the side of the engine bay?
Mine is missing.

Or is it just a screw of some sort?

View attachment 4110734

Swing by your dealer and ask if they’ll give you just 1 or 2 clips.
