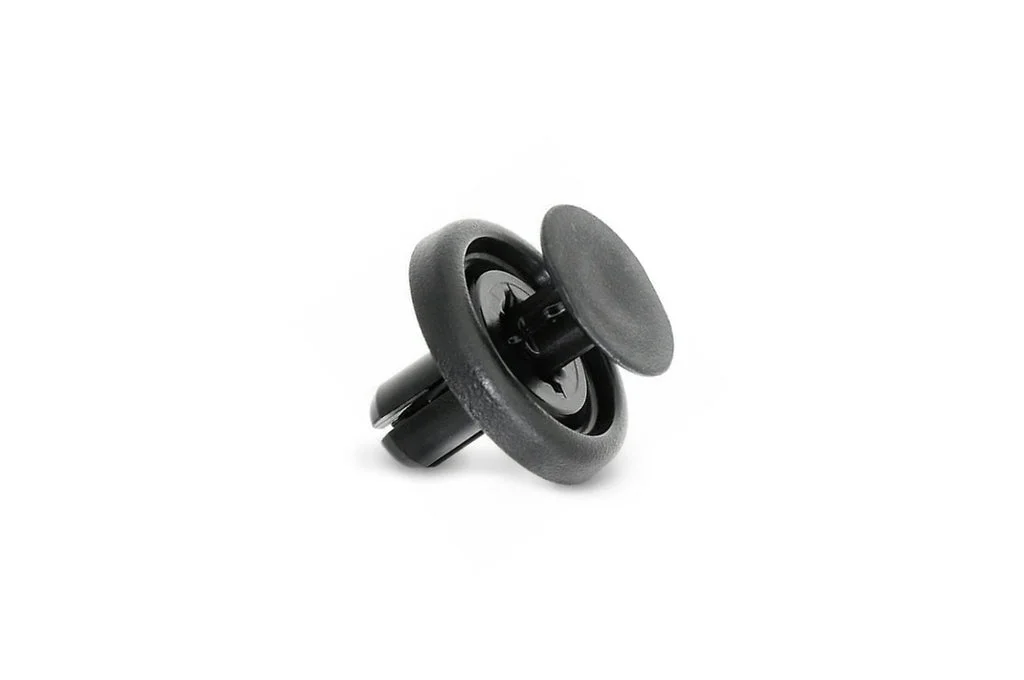

Oh! Wow. It’s not a metal bolt!
I assumed it was.
I actually have some of those clips here, I think.
Thanks!
Thank you!Or, more specifically, 90467-07217
Pfffft... the only thing my dealer parts guy would ever give me is a dirty look.
Likely taking the GOBI rack off; would like to add back the side roof rails (black finish) so the car doesn't look naked. Looking for the full lists of parts, bolts, trim pieces, etc. eBay pictures for reference; would like the whole suite of OEM parts so I don't have replace something that starts to rust in a couple years. Thanks in advance.
Bringing over from the cowl leak thread:
Dealer VIN entry says both fit for me on my USDM 2016.
55708-60101 ("Cold Spec") currently $640
55708-60091 currently $356
Can anyone confirm the cheaper option fits?
Dealer VIN entry says both fit for me on my USDM 2016.
55708-60101 ("Cold Spec") currently $640
55708-60091 currently $356
Can anyone confirm the cheaper option fits?
- Thread starter
- #527
I'll admit to being a bit confused by the cowl part number situation myself. Maybe one of the OG's can help.
- Thread starter
- #529
Does anyone have a recommendation on a USB cigarette lighter style adapter that works in the 12V port that’s ju tea below the cigarette lighter? I find every one I’ve tried is far too long and pops out of that socket. I can’t really figure out WTF Toyota designed that for but it seems to be ever so slightly too shallow and too small
This one works for me. Stays put and fits behind the flap on my 2016
So you can leave this plugged in and fully close the flap on the socket and the door?
It closes behind the storage panel door if you remove the socket cap - should've clarified.
Weird, I have the same one (and like 4 other different ones) and it doesn't seem to insert but maybe 1", which means it barely makes a connection and any vibration causes it to fall out. It fits fine in the cigarette lighter socket but the lower 12V port is useless. Maybe it's some weird 2013 thing? I'll have to take a pic or video but it definitely bottoms out for me too soon.
Hey fellas trying to find the part number for these bumper bolts. There are two bolts on each of the driver and passengers side behind the wheel wells. Had ordered 90109-06330 but those ones are too large.
M6 x 1.0 10mm head.

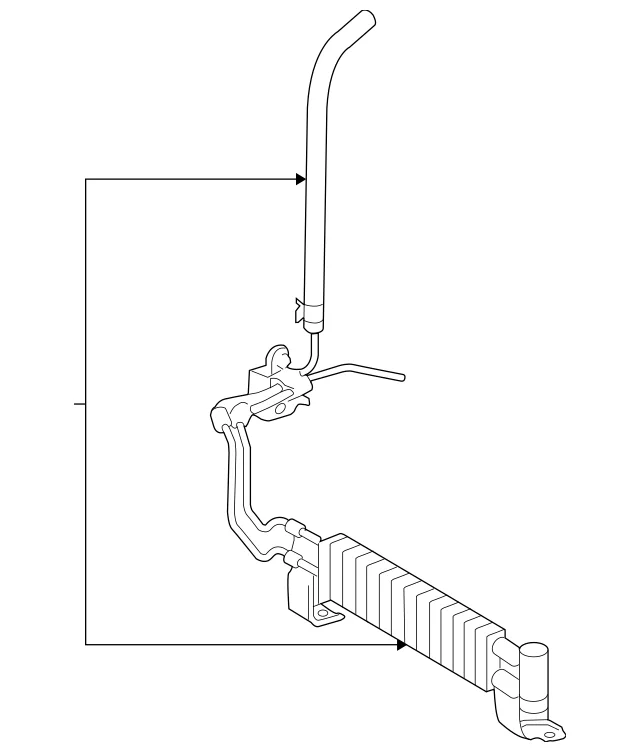

Hi, I'm looking for a return hose for '11 LX570, that goes to the power steering reservoir. Went to a Toyota dealership and they said it sold only with a radiator and costs over 700. I prefer to buy an OEM part rather than aftermarket. Does anybody know the part number? I'll try to take a picture of mine later. Thanks.
- Thread starter
- #539
Should be 90159-60496
If they're like mine they aren't M6.. more of a thick screw thread vs bolt.
I remember those panels being a bitch to find in the diagrams. Turns out they are in the "rear floor panel & member" section and not at all obvious when glancing at them.
My diagrams show that hose only coming with the cooler as well. I'd maybe head to the local parts store and see what kind of transmission cooler hose they have. Note that while your stock spring clamps are probably the best option for a factory hose, if the new one has even a slightly different wall thickness they probably won't work. Get some good screw clamps to go with the hose.
If you find a size that works well please post..
