Great Build!

The only thing I can add is...why didn't I get candy and a t-shirt from Radius Fabrication!

Oh, I got the candy and the shirt



[thatcabledude]

View attachment 3213935

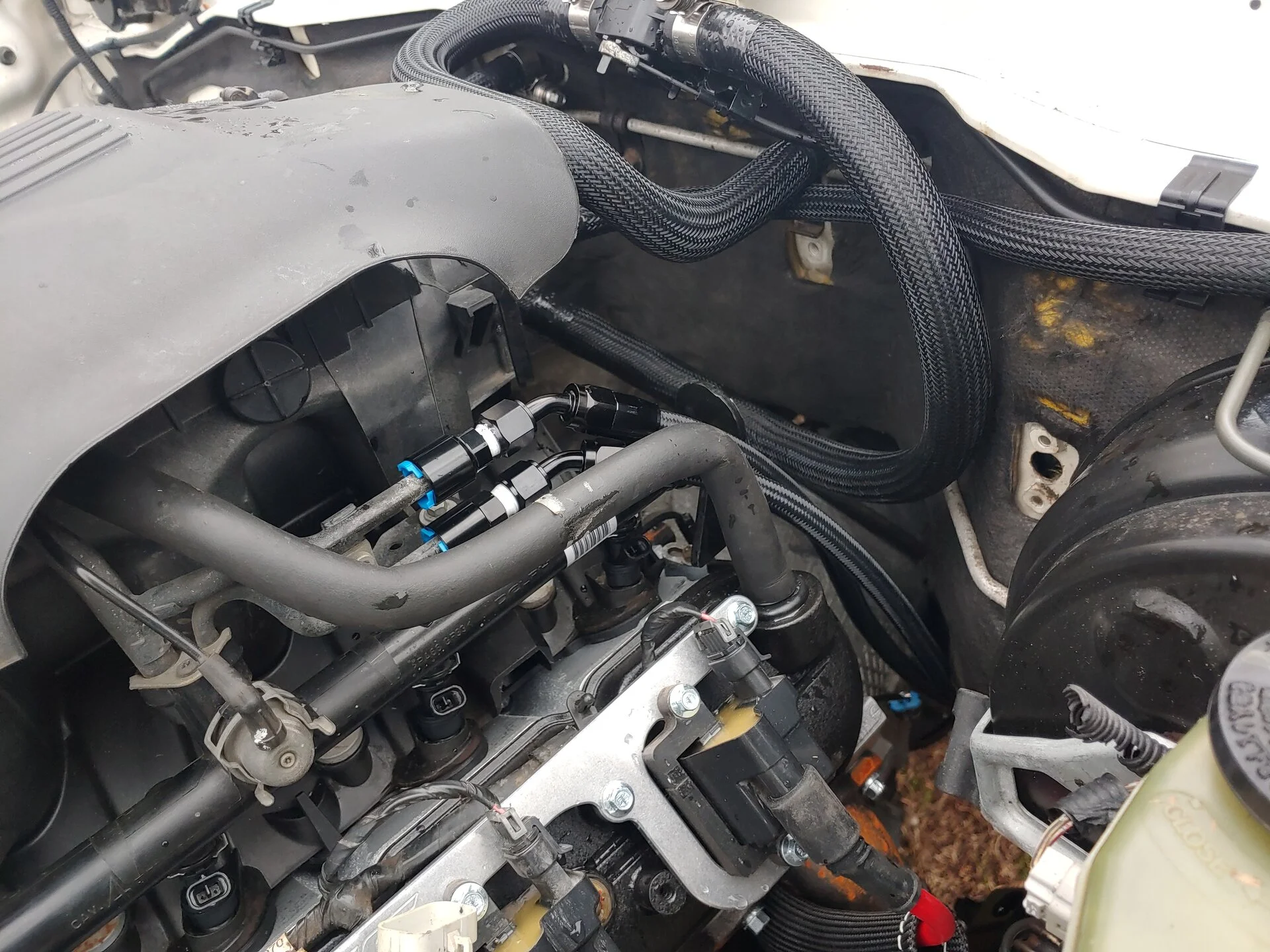

Slight problem I see here. You have the fuel rails with the regulator and return line AND a fuel filter with built in regulator and return.



[White Sheep]

Slight problem I see here. You have the fuel rails with the regulator and return line AND a fuel filter with built in regulator and return.

So just take the fuel filter off?



[thatcabledude]

So just take the fuel filter off?

Yeah. Well, swap it for a filter that’s just a filter.



[White Sheep]

Yeah. Well, swap it for a filter that’s just a filter.

Ok. I had a feeling. I bought this one first

https://a.co/d/gLYQJSd

Then second guessed myself. Guess I'm putting this one back on.



[thatcabledude]

Ok. I had a feeling. I bought this one first

https://a.co/d/gLYQJSd

Then second guessed myself. Guess I'm putting this one back on.

That looks like it will do it.



[ceylonfj40nut]

Are you able to remove your AC compressor as it sits?



[thatcabledude]

It's starting to look like a LC again. Hood is on, but even with the hood raisers it's hitting the front part of the intake. .gonna have to figure that out.

Nothing drastic needed. I’ll detail what to do with a couple pics when I’m around my truck later. The cover sits way higher than it needs to.

Put the hammer away.



[thatcabledude]

Are you able to remove your AC compressor as it sits?

Not super fun, but doable from below and through wheel well.



[White Sheep]

I started early on a long weekend because this is my last one for a few weeks due to training. Stayed the night in @fourtrax garage trying to get done as much as possible.

Connected the wiring harness, but I'm missing something . I have the PSI standalone wiring harness, but I don't seem to have these two plugs. Need to call them in the morning.

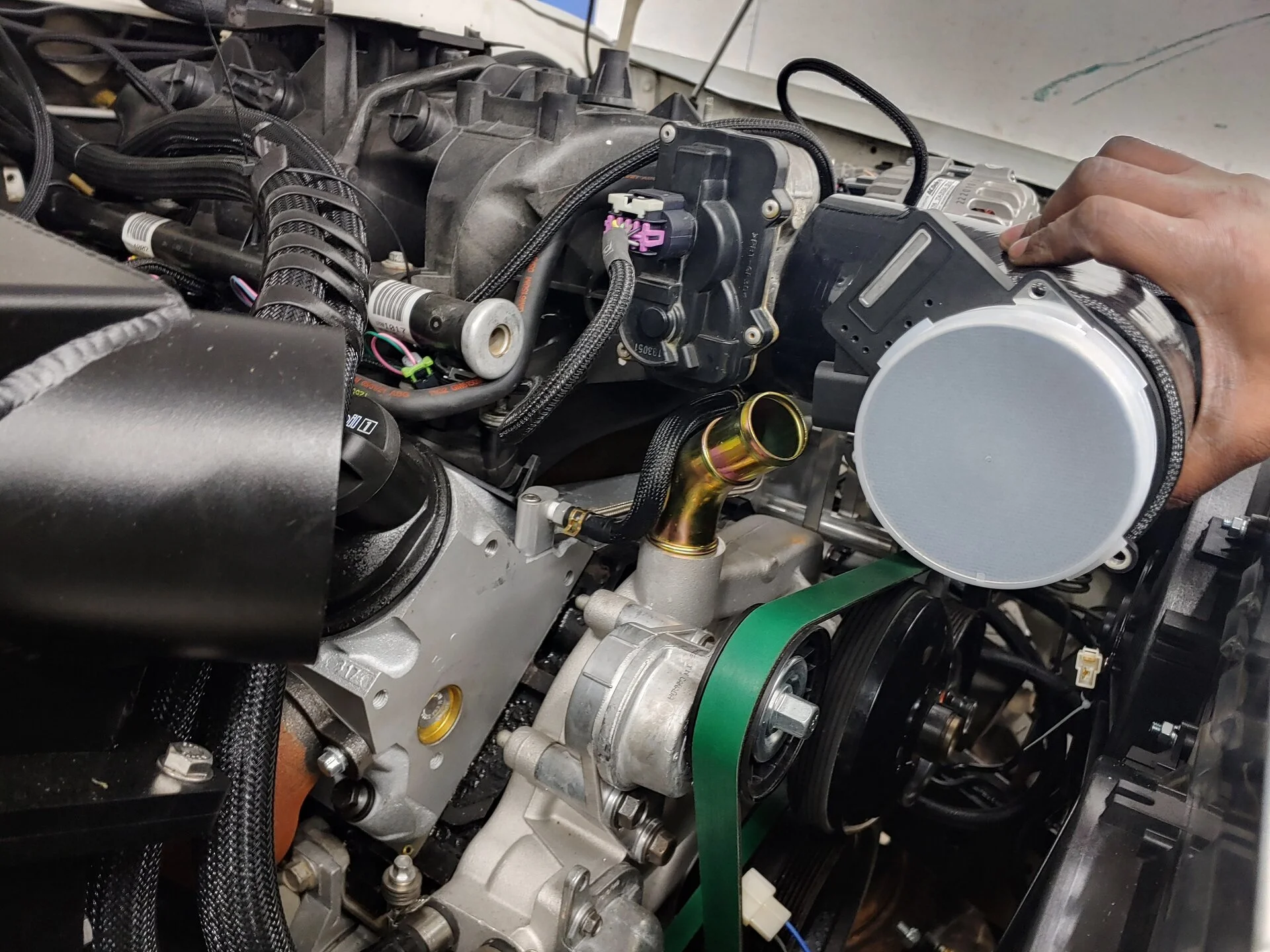

I installed the ARB diff breathers. Was going to do it anyway, but did it now because after the lift, the factory ones no longer reached. I also mocked up the intake tubes, and like @thatcabledude said, the water pump spout interferes.

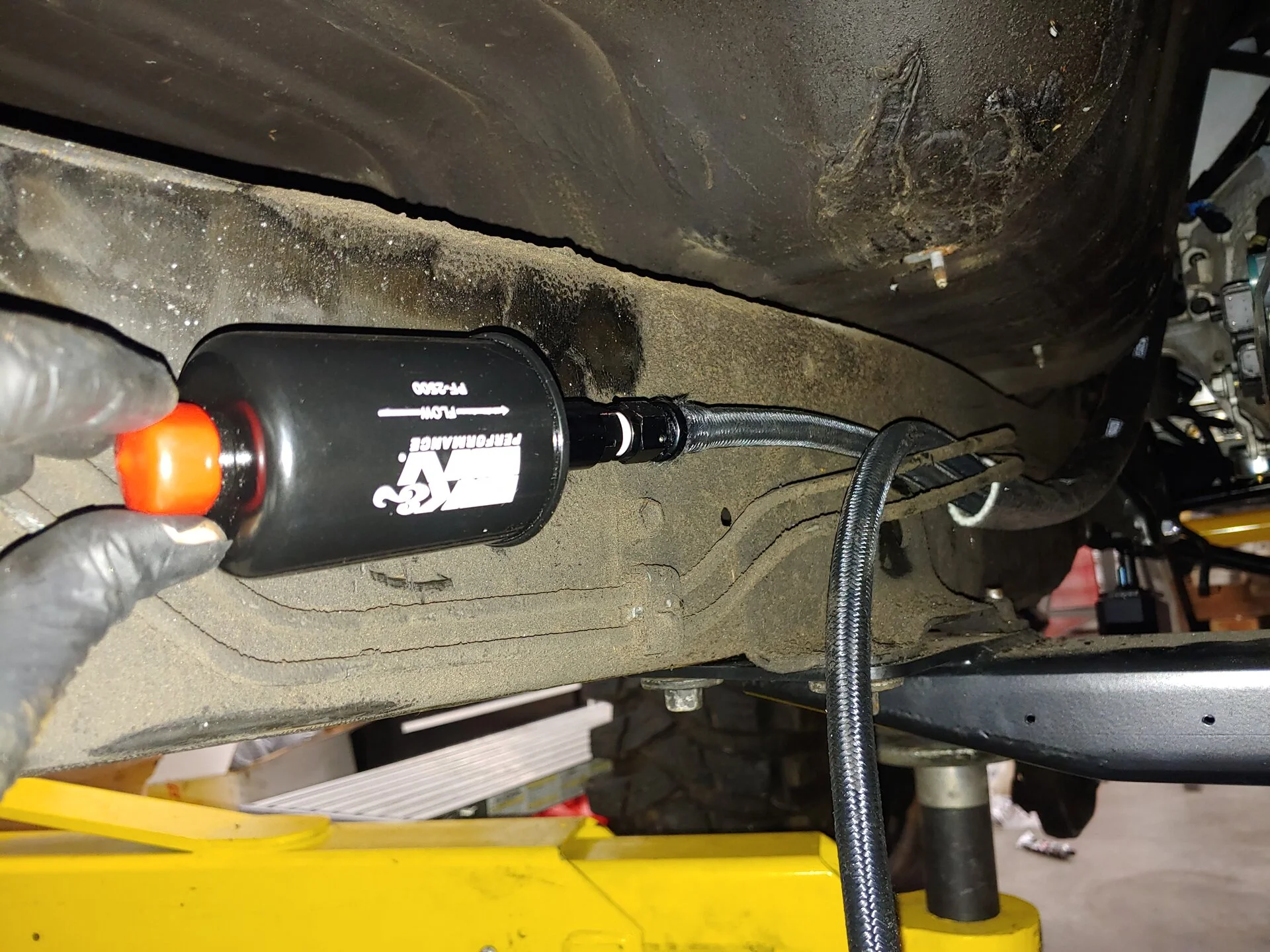

Oh, and changes the fuel filter due to the conversation above.



[White Sheep]

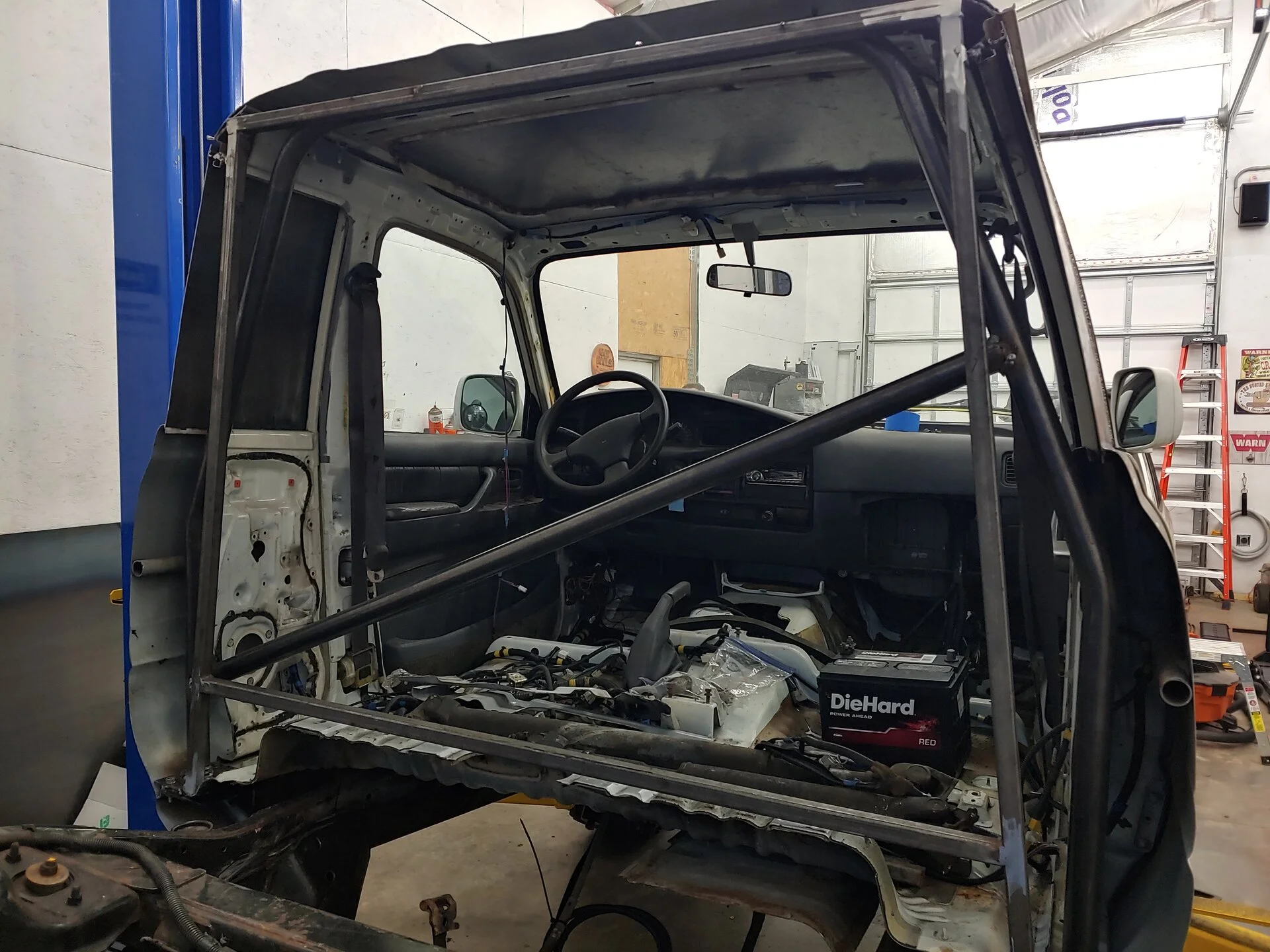

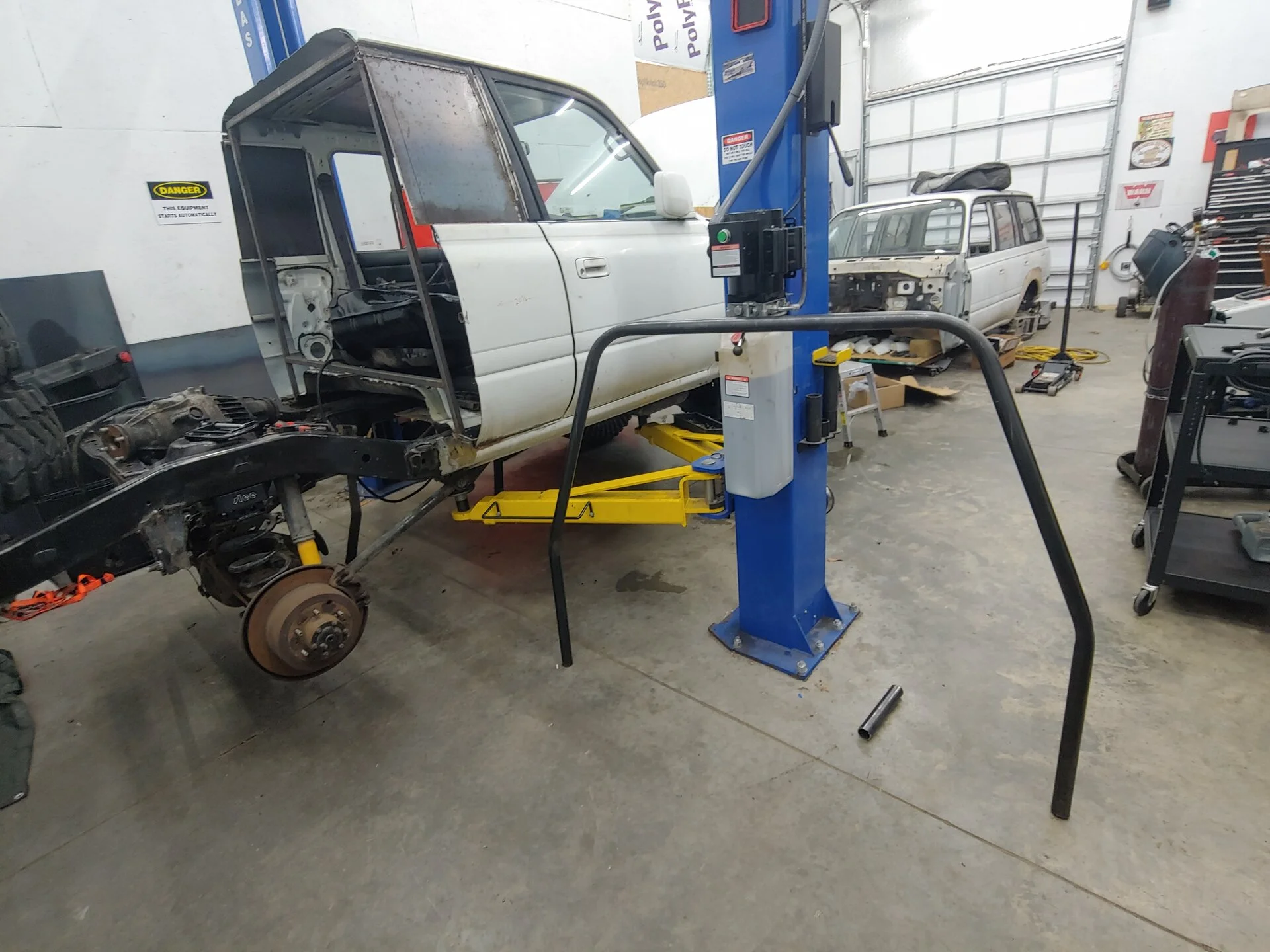

A few weeks ago @fourtrax recommended adding a roll bar for stronger support and structure. So we've been doing a little bit of bending and welding.

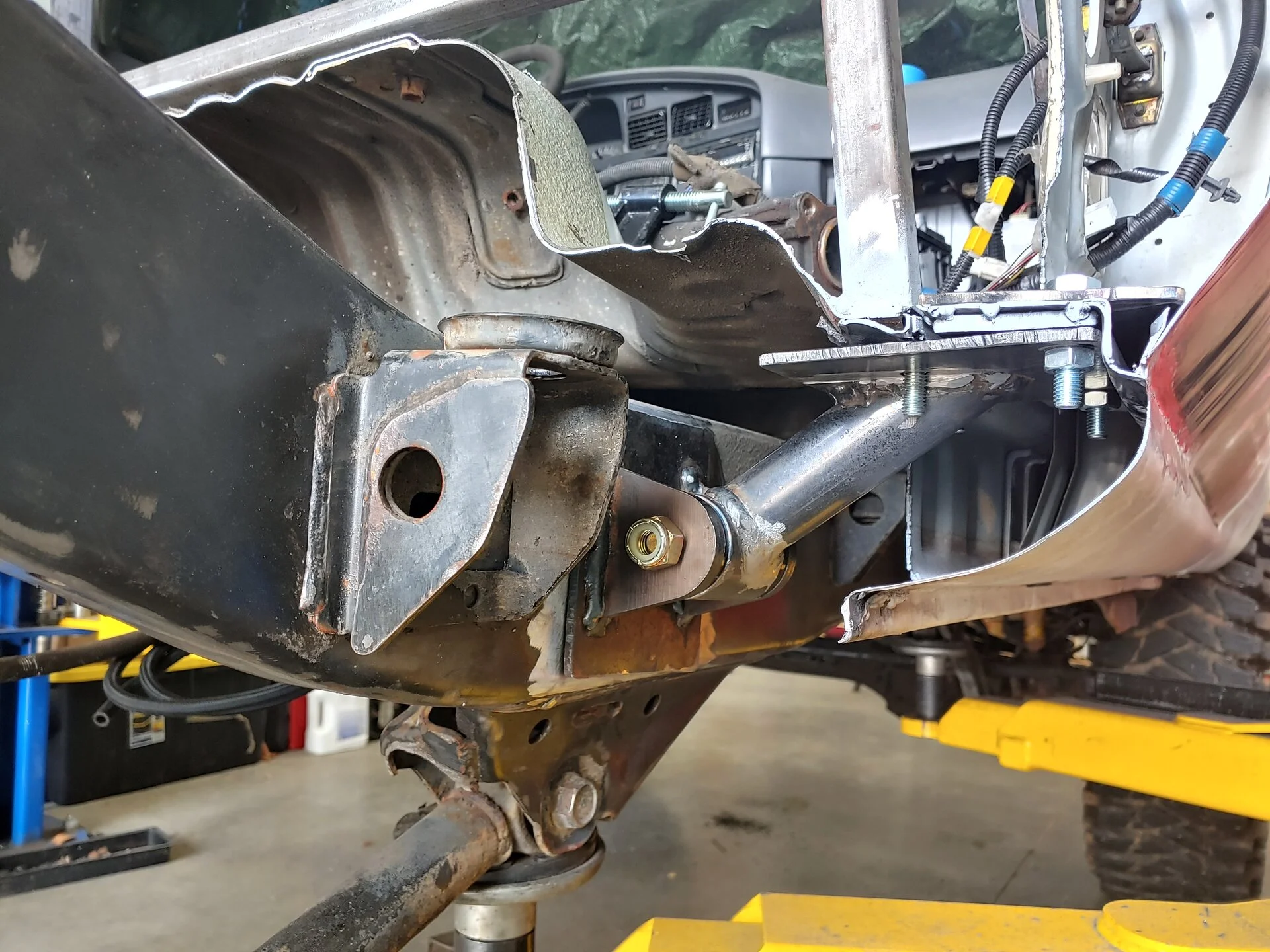

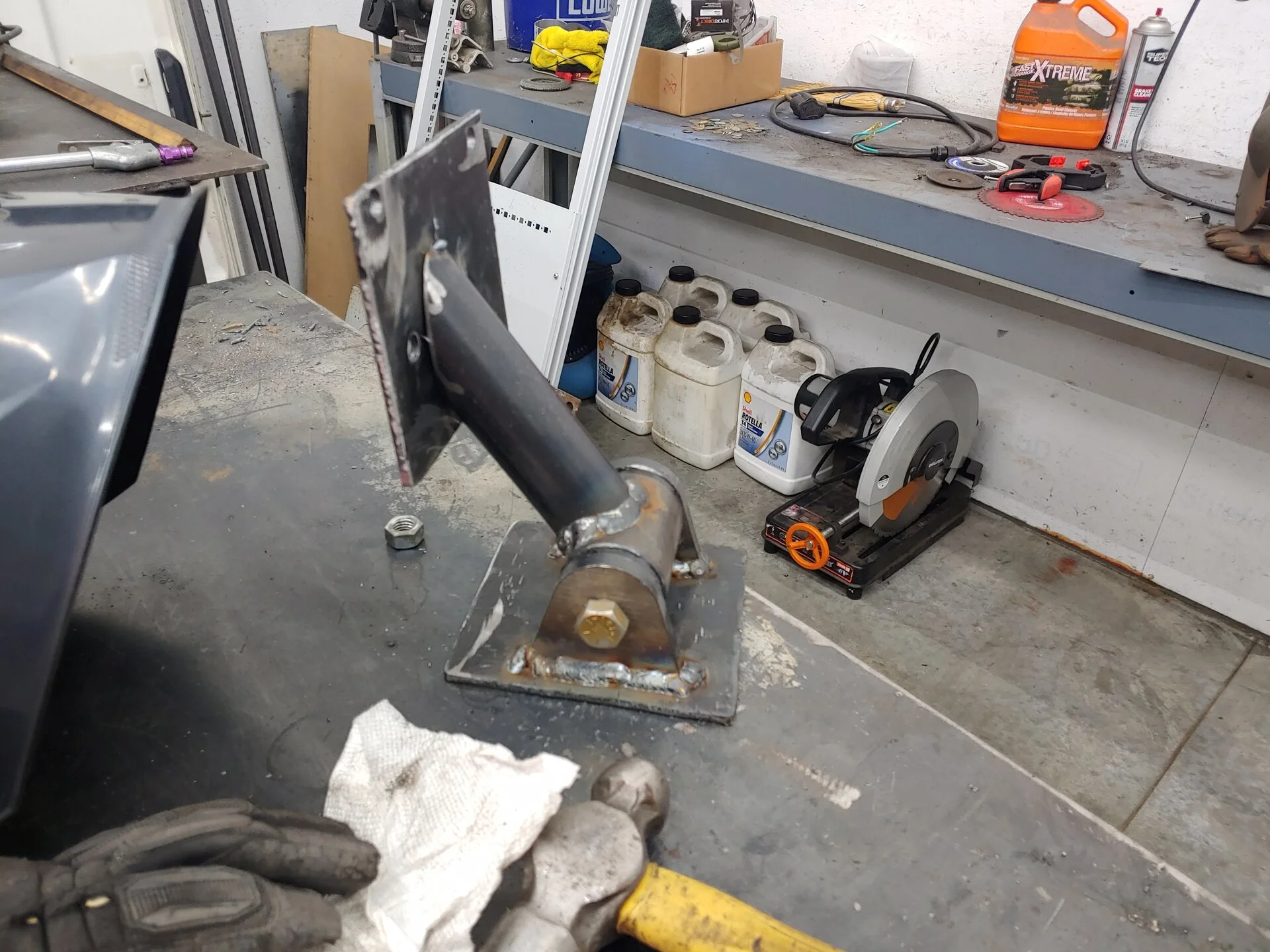

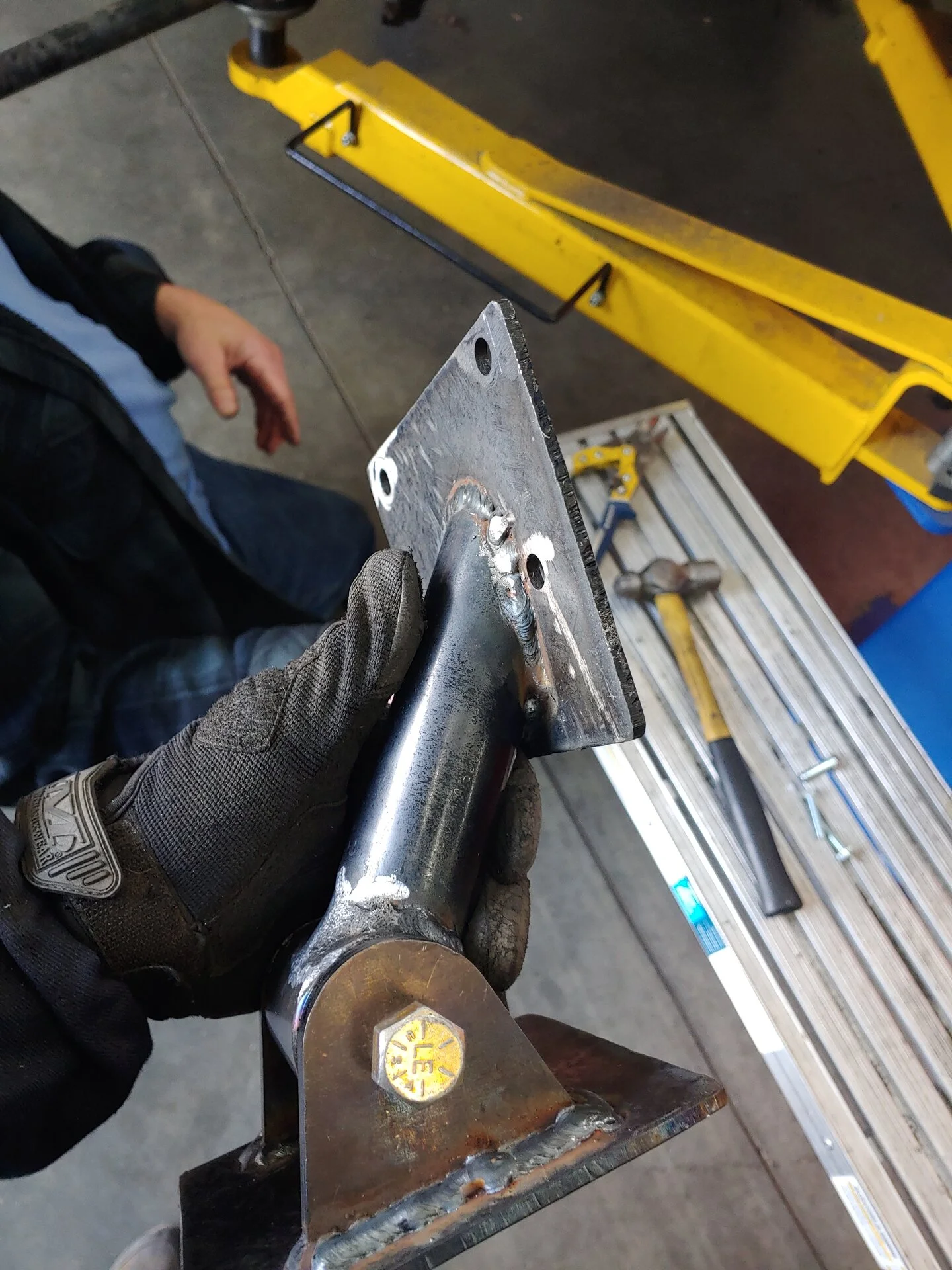

Bought a few pieces off the internal and @fourtrax came up with this brace.

All tried in quite nice



[White Sheep]

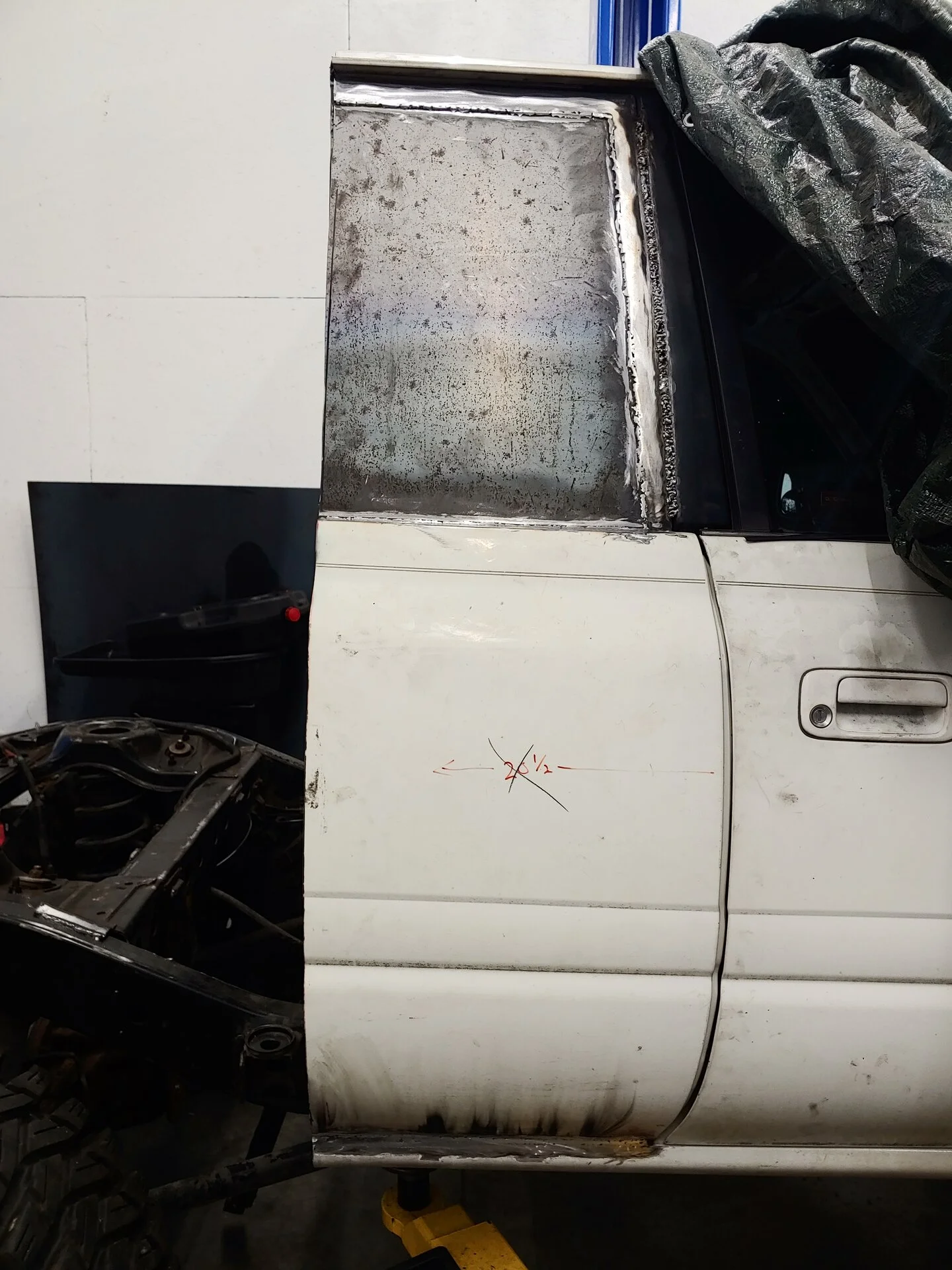

During the time I was watching the master at work, I mocked up the hoses for the A/C, and did a little welding and grinding on the LC.



[thatcabledude]

Nothing drastic needed. I’ll detail what to do with a couple pics when I’m around my truck later. The cover sits way higher than it needs to.

Put the hammer away.

Ok, so what you need to do is whack a solid
1/2” to almost 3/4” off this:

Remove that threaded brass insert. The bit of plastic post that remains could still have a hole in the center. If not, drill one. Heat the brass insert just a little and tap it back into the hole.

It will now sit a lot lower. Take your time and clearance what now touches the TB and alternator.

See the difference:



[White Sheep]

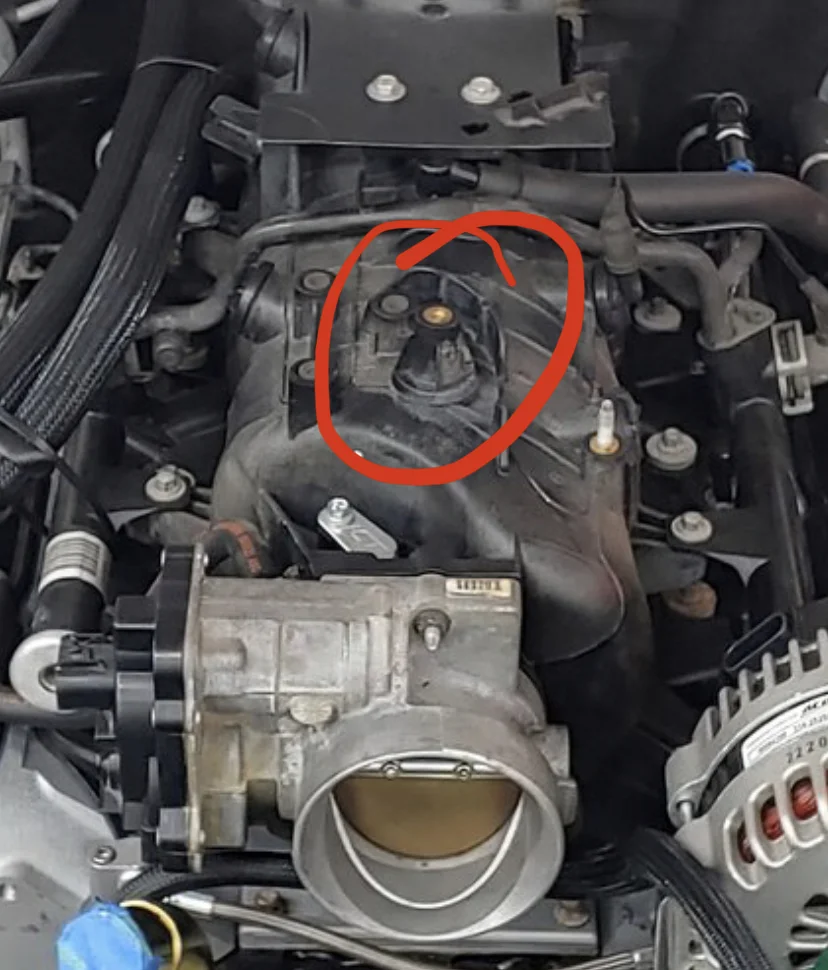

Ok, so what you need to do is whack a solid
1/2” to almost 3/4” off this:
View attachment 3233380

Remove that threaded brass insert. The bit of plastic post that remains could still have a hole in the center. If not, drill one. Heat the brass insert just a little and tap it back into the hole.

It will now sit a lot lower. Take your time and clearance what now touches the TB and alternator.

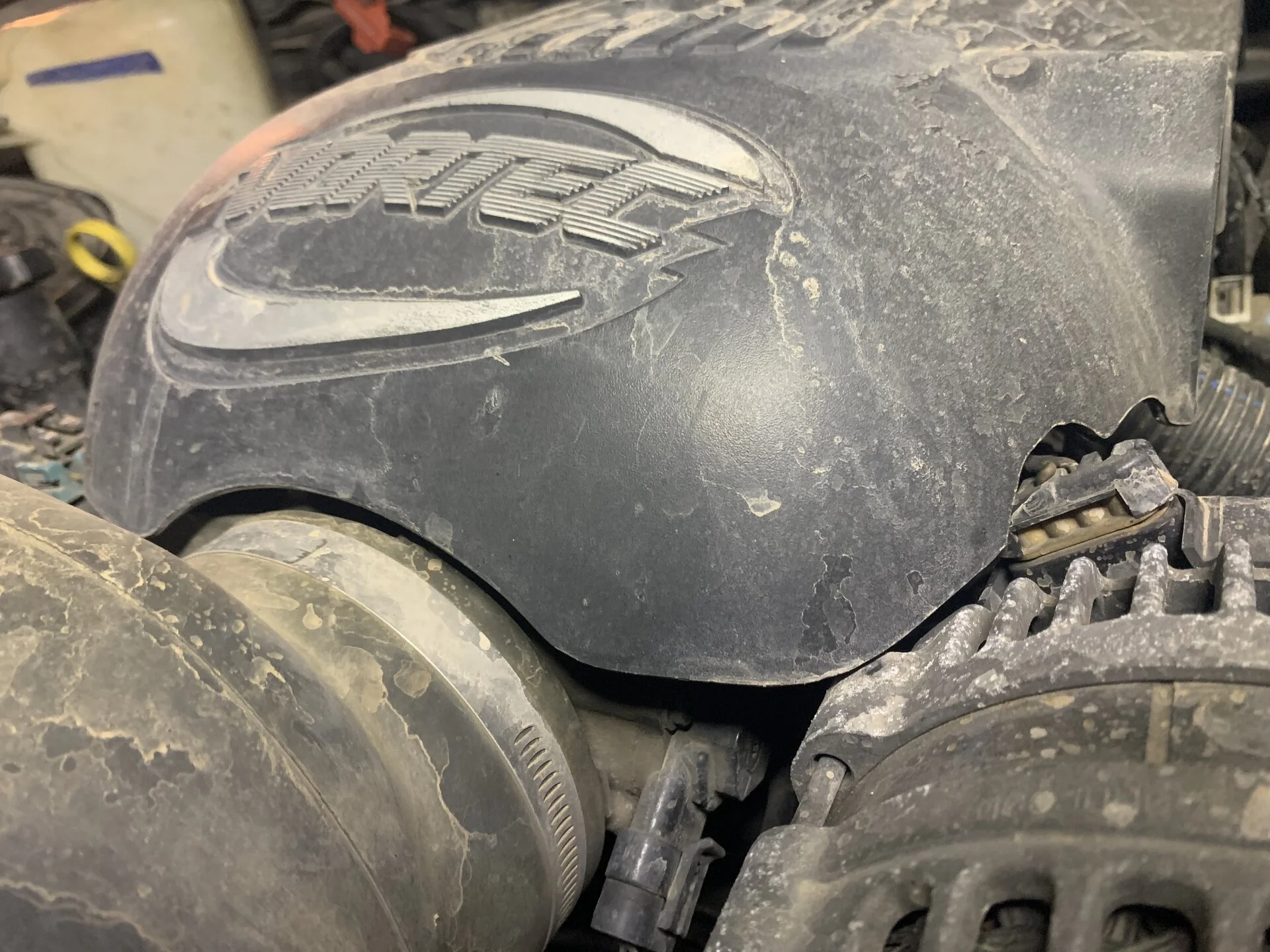

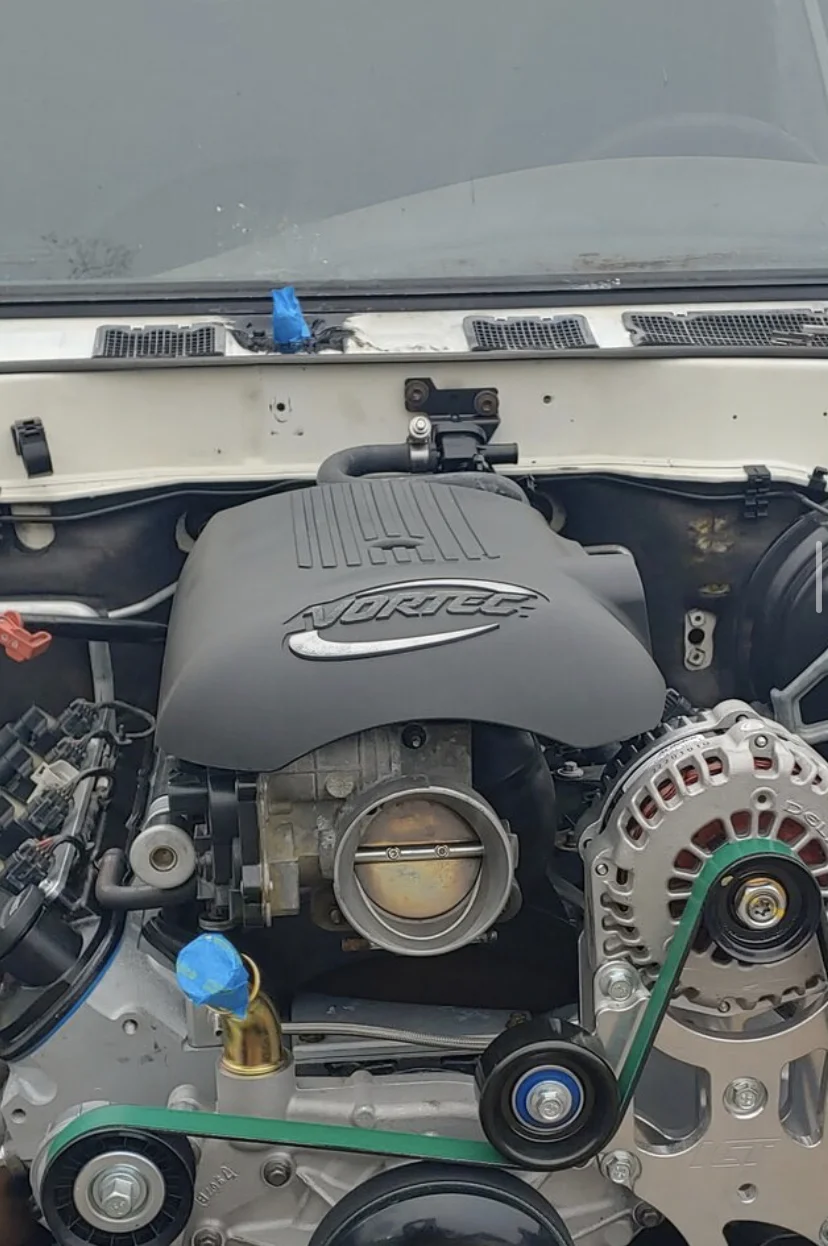

See the difference:

View attachment 3233399

View attachment 3233393

Good s***. Awesome sauce. Thanks for the info.



[White Stripe]

A few weeks ago @fourtrax recommended adding a roll bar for stronger support and structure. So we've been doing a little bit of bending and welding.

View attachment 3233248

Bought a few pieces off the internal and @fourtrax came up with this brace.

View attachment 3233249View attachment 3233250View attachment 3233251

All tried in quite nice

View attachment 3233257
View attachment 3233258

Make sure to run the fuel lines outside of the frame rails. Avoids proximity to exhaust heat.



[White Sheep]

Make sure to run the fuel lines outside of the frame rails. Avoids proximity to exhaust heat.

Ok. I put the DEI sleeve over it, but I can move it to the other side.



[GLTHFJ60]

We did a rollbar on Adam's too, but integrated with the bed since his cab is smaller. Good move for sure.



[mattimooseprime]

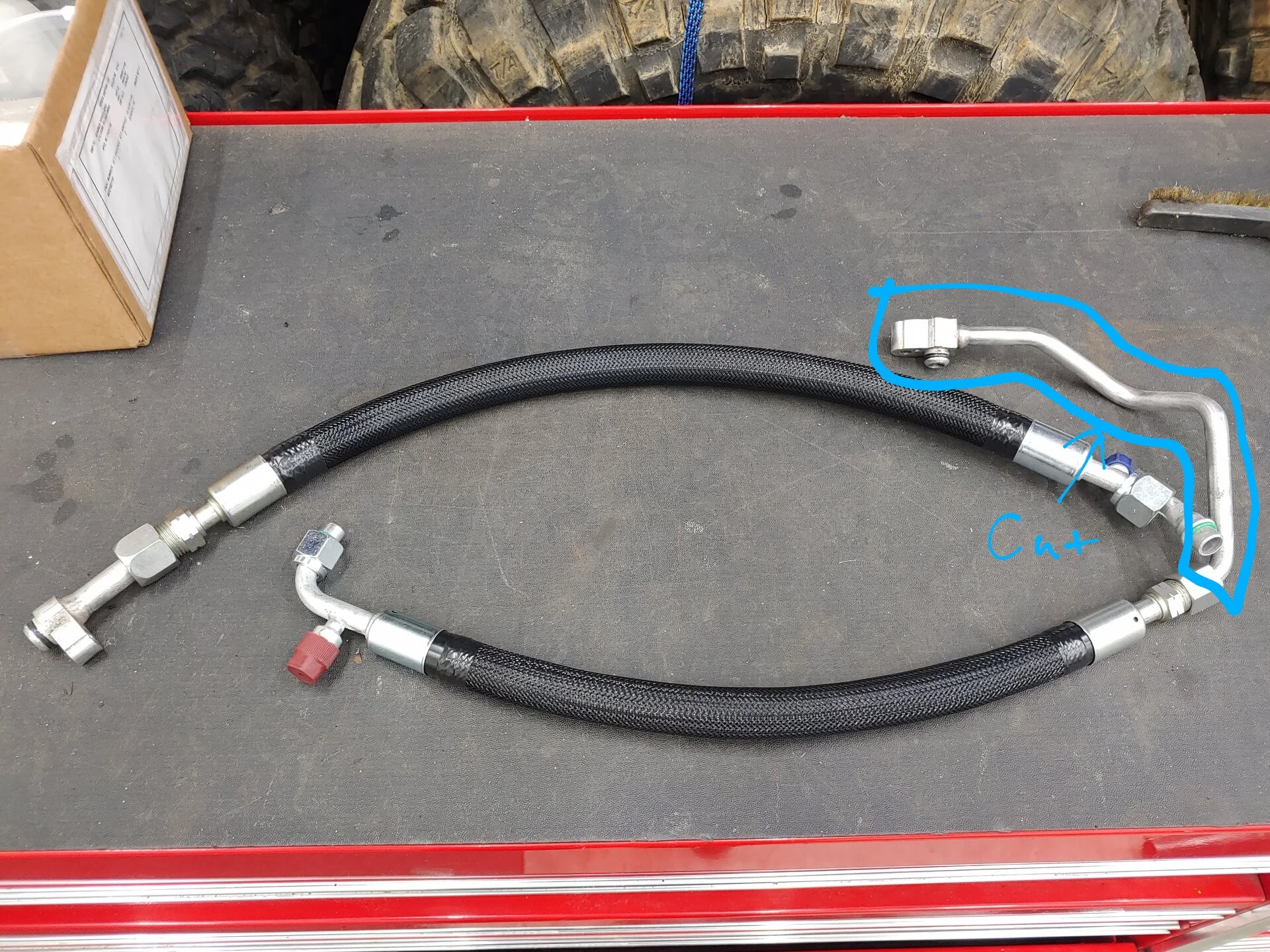

During the time I was watching the master at work, I mocked up the hoses for the A/C

View attachment 3233275

Can you run me through how you did that? I need to make lines for my swap and I really don't understand what I need or how to find it.



[White Sheep]

Can you run me through how you did that? I need to make lines for my swap and I really don't understand what I need or how to find it.

Sure. Bought this list of parts from Cold Hose (everyone recommends this place):

# 8 90 Degree O-ring Fitting R-134a 16mm Discharge Port.
# 10 45 Degree O-ring Fitting R-134a 13mm Suction Port.
# 10 (1/2") Standard Barrier A/C Hose (Ordered 3').
# 8 (13/32") Standard Barrier A/C Hose (Ordered 3').
14.5MM Tube to #10 Hose Straight Compression Fitting.
12mm Tube to #8 Hose Straight Compression Fitting.

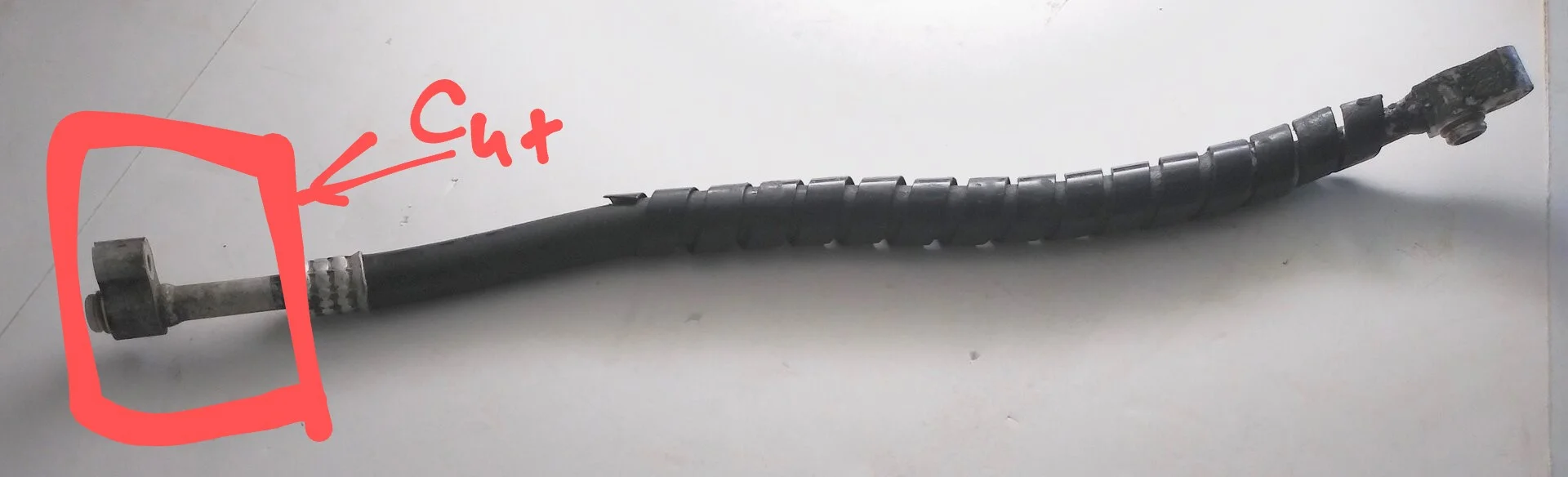

LS Swap AC Compressor adapter fittings for Denso 10S17F & 10S20F (I think cold hose sells these or you can find on ebay/Amazon).

You will cut these parts and reuse off your existing AC hoses.

Does this help?



[cruisermatt]

Those plugs on the transmission are for the gear position. Park/neutral safety, reverse lights, 1-4th indicator, nothing to do with the engine harness or management.

You will wire that to the original 80 body harness to make everything in the 80 work. A plug and play solution for this is on my list but is way down there.
