**** OEM Tool Roll & Bag/Kits **** (1 Viewer)

[JohnnyC]

*****UPDATED INFORMATION****

see quote below from 'wscbill' .... detailed list is attached

Here's some additional information and details on tools and tool kits. This guide covers Land Cruiser tool kits through 1984, and includes criteria to help identify the kits and the tools included with each of the kits.



View attachment 768799



Using the previous information in this thread as a starting point, the inventory provides additional detail on the tools that make up these kits. The results are based on a survey of IH8Mud Forums/Classifieds, eBay listings, other internet resources, review of Toyota brochures and parts lists, and first-hand research. This is a work in progress, so please post suggestions, corrections, and additional information.



Tool kits are categorized by the size, material and marking of the tool box, roll or bag; there are seven basic styles:


Metal Tool Box – probably not provided with U.S. Land Cruisers
Large Tool Roll, 23mm – fits 2-piece, 23mm lug wrench
Large Tool Roll, 21mm – fits 1-piece, 21mm lug wrench
Medium Tool Roll, Canvas – same tools as medium vinyl roll
Medium Tool Roll, Vinyl – same tools as medium canvas roll
Zipper Bag, TEQ logo & Toyota Motor – fewer tools than tool rolls, cast jack handle
Zipper Bag, Toyota Motor – fewer tools than tool rolls, stamped jack handle
The Zipper Bag, TEQ logo & Toyota Motor is broken down further to correspond with various tool changes; the designation refers to the bag logo and color of the jack handle:


Zipper Bag, TEQ Yellow
Zipper Bag, TEQ Brown
The guide attempts to provide sufficient description to identify specific tool variants, using objective criteria. Identifying which tool is in a particular kit is not always straightforward, some tool variations are subtle, and most tools are not marked with a part number.



There are many reasons why kits may not exactly match the guide. Changes to tools (like other parts changes) did not necessarily correspond to model year changes, and new stock was phased in as old stock was depleted. Given the number of individual tools in a kit, it is not unusual to find kits composed of various combinations of prior, current, and/or later tools. It is not uncommon for one or more tools in a kit to become lost and later be replaced. Some kits have been pieced together from one or more other kits and/or loose tools.



Despite these limitations, I hope you will find this to be a useful reference.

This is the newly modified list originaly from tim stevens during the time of the LCML.... thought it was a great resource and thought we might want to:

1) expand on it for more complete coverage for all years
2) post pictures of complete kits and tools to go with part numbers

I will update this 1st post with most current information collected


(month/year)..............Picture Posted

Early-19??
- Metal Tool Kit............(post #11)
- pliers
- screwdrivers (3)
- open-end wrenches (5, with clip)
- adjustable wrench
- grease pump (gun)
- grease pump nozzel
- lug nut wrench/pry-bar
- spark plug wrench

Early-1967

- Large roll-up canvas w/strap......(post #7 and #12)
- jack handle (yellow)
- pliers
- screwdrivers (3)
- hammer
- open-end wrenches (6, with clip)
- adjustable wrench
- grease pump (gun)
- grease pump nozzel
- lug nut wrench/pry-bar
- spark plug wrench
- feeler gauges
- spark plug gap tool
- small wrench for igintion
- file
- small test light
- operation manual



1968-1970

- roll-up canvas w/strap
- jack handle (yellow)
- pliers
- screwdrivers (3)
- hammer
- open-end wrenches (6, with clip)
- adjustable wrench
- grease gun
- lug nut wrench/pry-bar
- spark plug wrench
- feeler gauges
- spark plug gap tool
- small wrench for igintion
- file
- small test light

1971-1972 (month/year)

- roll-up vinyl w/strap
- jack handle (yellow)
- pliers
- screwdrivers (3)
- hammer
- open-end wrenches (6, with clip)
- adjustable wrench
- grease gun
- lug nut wrench/pry-bar
- spark plug wrench



1973-07/80

- pouch w/handle
- jack handle (yellow)
- pliers
- screwdriver (handle with 2-ended insert)
- open-end wrenches (2, with plastic clip)
- adjustable wrench
- lug nut wrench/pry-bar
- spark plug wrench
- pry bar
- wheel cap installation tool
- grease attachment? (BJs only)


08/80-10/84

- gray, mini-duffel bag w/handle & zipper
- jack handle (brown)
- pliers
- screwdriver (handle with 2-ended insert)
- open-end wrenches (2, with plastic clip)
- adjustable wrench
- lug nut wrench & handle
- spark plug wrench & handle
- pry bar
- wheel cap installation tool
- grease attachment (BJs only)



[JohnnyC]

'Timothy Stevens'

'Timothy Stevens'

....I do have some knowledge to
share. Here is a (long) look at the contents of the FJ40/FJ55/BJ40/BJ42
tool kits (from research for a possible TT article). For those of you
uninterested in the factory tools/parts, look no further and delete this
message. However, I hope that some of you may find this helpful. I'm
sure that there are typos in this. Cope. -))


Tool Kit Information

1969 - 1984 North American Toyota Land Cruisers


03/69-03/72 (month/year)

- pouch (roll-up w/strap)

- jack handle (yellow)

- pliers

- screwdrivers (3)

- hammer

- open-end wrenches (6, with clip)

- adjustable wrench

- grease gun

- lug nut wrench/pry-bar

- spark plug wrench


03/72-07/80

- pouch (fold-up)

- jack handle (yellow)

- pliers

- screwdriver (handle with 2-ended insert)

- open-end wrenches (2, with plastic clip)

- adjustable wrench

- lug nut wrench/pry-bar

- spark plug wrench

- pry bar

- wheel cap installation tool

- grease attachment? (BJs only)


08/80-10/84

- gray, mini-duffel bag w/handle & zipper

- jack handle (brown)

- pliers

- screwdriver (handle with 2-ended insert)

- open-end wrenches (2, with plastic clip)

- adjustable wrench

- lug nut wrench & handle

- spark plug wrench & handle

- pry bar

- wheel cap installation tool

- grease attachment (BJs only)

For those who really want the details and may want to buy replacement
parts:

Dates Models Part # (updated #) (size)

Complete Tool Set
03/69-03/72 FJ40/55 09101-60020 (09101-60050)
04/72-01/79 FJ4_/55 09101-60050 (09101-60110)
01/79-07/80 FJ4_/55 09101-60110 (09101-60111)
03/78-01/79 BJ40 09101-60060 (09101-60120)
01/79-07/80 BJ40 09101-60120 (09101-60121)
08/80-05/82 BJ42 09101-60122 (09101-60240)
05/82-10/82 BJ42 09101-60240
10/82-08/83 BJ42 09101-60232
09101-60242
08/83-10/84 BJ42 09101-60230
08/80-05/82 FJ40 09101-60112 (09101-60241)
05/82-10/82 FJ40 09101-60241
10/82-09/83 FJ40 09101-60231

Jack Assembly
03/69-03/72 FJ40/55 09110-35050
04/72-01/79 FJ4_/55/BJ40 09110-35011 (09110-60010)
01/79-07/80 FJ4_/55/BJ40 09110-60010
08/80-08/83 BJ42/FJ40 09110-60010 (09110-60040)
08/83-10/84 BJ42/FJ40 09110-60040 (09113-60040)

Jack Handle
03/69-03/72 FJ40/55 09113-35040
04/72-01/79 FJ4_/55/BJ40 09113-35011 (09113-60010)
01/79-07/80 FJ4_/55/BJ40 09113-60010
08/80-08/83 BJ42/FJ40 09113-60010 (09113-60040)
08/83-10/84 BJ42/FJ40 09113-60040

Tool Bag
03/69-03/72 FJ40/55 09120-60010
04/72-07/80 FJ4_/55/BJ40 09120-60050
08/80-10/84 BJ42/FJ40 09120-60050

Pliers
03/69-01/79 FJ4_/55/BJ40 09130-00020
01/79-07/80 FJ4_/55/BJ40 09130-00030
08/80-05/82 BJ42/FJ40 09130-00030 (09130-00022)
05/82-10/84 BJ42/FJ40 99913-12000

Screw Driver(s)
03/69-03/72 FJ40/55 09135-00030 (09135-11750) small -
03/69-03/72 FJ40/55 09135-00060 (09135-00120) large -
03/69-03/72 FJ40/55 09135-00090 (09135-12100) +
04/72-07/80 FJ4_/55/BJ40 09135-00010 +/-
08/80-10/84 BJ42/FJ40 99915-10700 +/-

Hammer
03/69-03/72 FJ4_/55 09137-00010 (09137-45320)

Open-end Wrench (Spanner) Set
03/69-08/69 FJ40/55 09140-00031 (09140-00040)
08/69-03/72 FJ40/55 09140-00040 (09140-00050)
04/72-01/79 FJ4_/55/BJ40 09140-22010 (09140-00070)
01/79-07/80 FJ4_/55/BJ40 09140-27010
08/80-10/84 BJ42/FJ40 09140-27010

Open-end Wrenches (Spanners)
03/69-08/69 FJ40/55 09141-00010 (09141-00011) 8x9
03/69-08/69 FJ40/55 09141-00060 17x19
03/69-08/69 FJ40/55 09141-00080 21x23
08/69-03/72 FJ40/55 09141-00011 (09141-00110) 8x10
08/69-03/72 FJ40/55 09141-00100 21x23
03/69-03/72 FJ40/55 09141-00040 (09141-12140) 12x14
03/69-01/79 FJ4_/55/BJ40 09141-00030 (09141-00120) 10x12
03/69-01/79 FJ4_/55/BJ40 09141-00050 (09141-00130) 14x17
01/79-07/80 FJ4_/55/BJ40 09141-00032 10x12
01/79-07/80 FJ4_/55/BJ40 09141-12020 14x17
08/80-10/84 BJ42/FJ40 99914-11012 10x12
08/80-10/84 BJ42/FJ40 99914-11417 14x17

Adjustable (Monkey) Wrench
03/69-07/80 FJ4_/55/BJ40 09145-00030 (09145-32250)
08/80-10/84 BJ42/FJ40 99911-10250 (99911-10250)

Lug (Hub) Nut Wrench
03/69-03/72 FJ40/55 09150-00021 (09150-30011)
04/72-01/79 FJ4_/55/BJ40 09150-30011 (09150-40010)
01/79-07/80 FJ4_/55/BJ40 09150-60010
08/80-10/84 BJ42/FJ40 09150-60010

Spark Plug Wrench
03/69-03/72 FJ40/55 09155-00020 (09155-36010)
04/72-01/79 FJ4_/55 09155-36010
01/79-07/80 FJ4_/55 09155-44020
08/80-09/83 FJ40 09155-44010

Grease Gun (Pump)
03/69-03/72 FJ40/55 09170-00010 (09170-00030)

Grease Gun Attachment
10/82-10/84 BJ42 09173-00020

Pry Bar for Wheel Covers
01/79-07/80 BJ40 09183-00010
08/80-10/84 BJ42/FJ40 09183-00030

Wheel Cap Installation Tool
08/80-10/84 BJ42/FJ40 09183-60010

Notes:
- All info from the Toyota factory parts lists. Typos and errors are
mine.
- Want info on TLCs earlier than '69? Get yourself a parts list from
Toyota.. I suspect that kits were similar to the '69 version. The
pouch was the military-style roll-up kind, with sized pockets for
each tool.
- Parts numbers are continually updated. Your local parts person
should be able to use these to at least begin to look. I believe that
some, many, or all tools are still available from Toyota (but not
necessarily in the older, high-quality versions).
- In general, the earlier the TLC tool kit, the better equipped it was.
Earlier tools were often better in quality than later ones.
- I do not believe that the inspection lights were included in the tool
kits. They are still available from Toyota, I think.
- Kits obviously did not contain the jack extension rods. They did
hold the jack handle.
- From '79 onward, the kit was strapped above the right-rear wheel well
in USA FJ40s (and in other countries?). The jack handle extensions
(and engine crank) were stored on clips over the left-rear wheel well.
I believe that before that, the tool kit was in a lockable box under
the driver's seat, right? A large black rubber band was used to hold
the kit down. I believe that these are still available from Toyota.
- And yes, I have too much free time. (Seriously, the factory parts
list is a treasure trove of information.) Now don't bug me anymore.
-))



[Living in the Past]

I believe the pouch is incorrect. The one from 73 to 80 were zipper and the later were fold up. I do know my 70 tool kit also included feeler gauges, spark plug gap tool, small wrench for igintion, file and a small test light. Same with my 63 set. The owner's manual went in a pocket in the roll up kits.



[Fast Eddy]

This was posted by Isotel in this FS thread from the '66 service manual.

I'd love to know what vehicle this one came out of. It's just like the ones from an fj40, but it's deeper.



[SouthBostonFJ40]

I had this in my picture folder. I know I got it on Mud, but can't remember who to give credit to...



[JohnnyC]

I believe the pouch is incorrect. The one from 73 to 80 were zipper and the later were fold up. I do know my 70 tool kit also included feeler gauges, spark plug gap tool, small wrench for igintion, file and a small test light. Same with my 63 set. The owner's manual went in a pocket in the roll up kits.

yes i believe it went:

Early tool Rolls from the original Bj - 1968?
1968?-1970 Canvas Roll
1971 -1972 Vinyl Roll

I updated the 69-71 kit on the 1st post LITP



[3_puppies]

pics of a mid 60's tool roll



[Living in the Past]

yes i believe it went:

Early tool Rolls from the original Bj - 1968?
1968?-1970 Canvas Roll
1971 -1972 Vinyl Roll

I updated the 69-71 kit on the 1st post LITP

I believe those extra small parts I mentioned are just called adjust kit, engine like in the list above. I do know they were all in the blue pouch.



[Living in the Past]

I had this in my picture folder. I know I got it on Mud, but can't remember who to give credit to...

On the FJ25 list the adjustable wrench is called a monkey wrench.



[ClemsonCruiser]

I had this in my picture folder. I know I got it on Mud, but can't remember who to give credit to...

pretty sure it was Rick D. that had those reproduced a while back.



[JohnnyC]

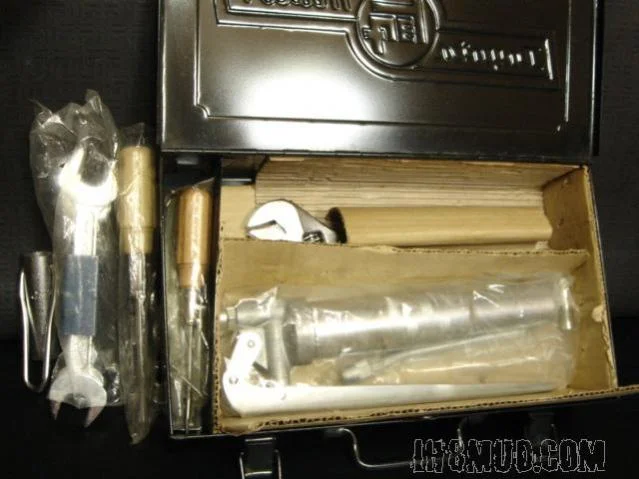

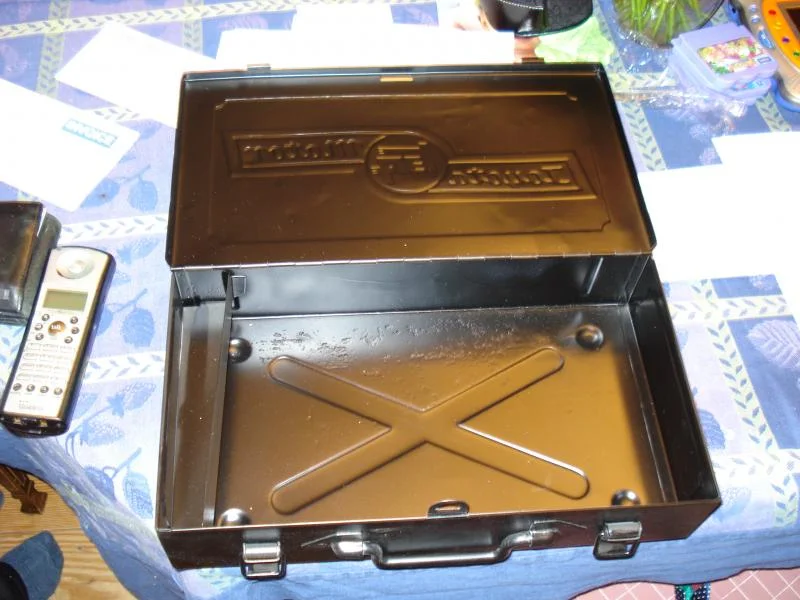

larger metal tool kits...pics from MOT i think



[JohnnyC]

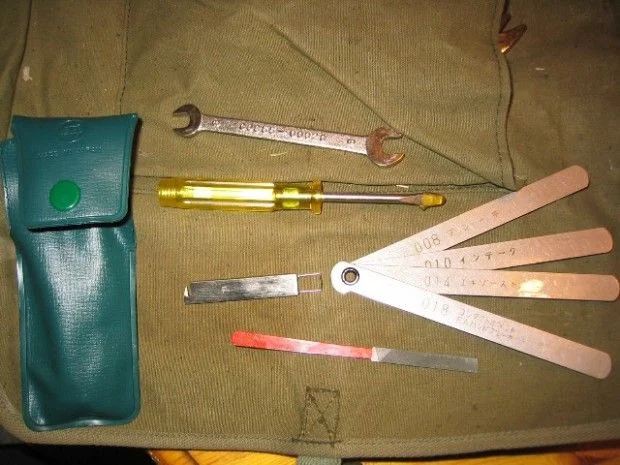

the Adjust kit

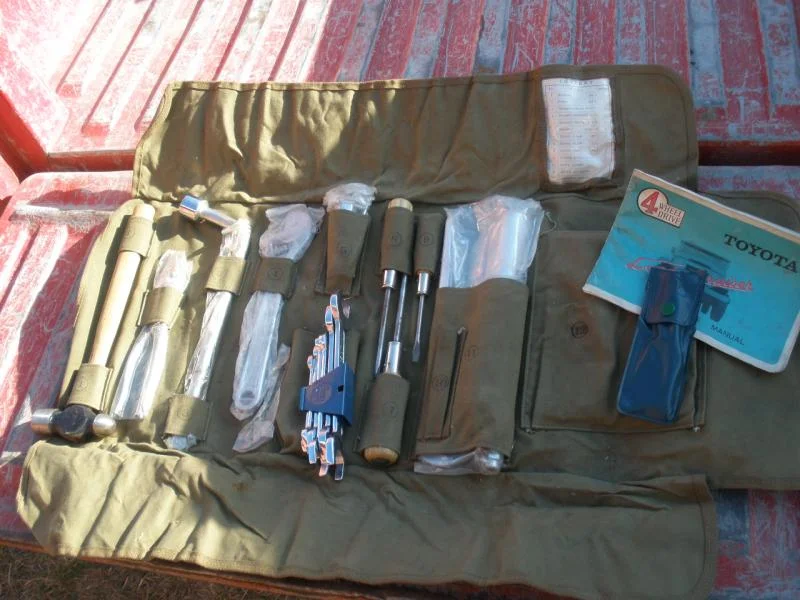

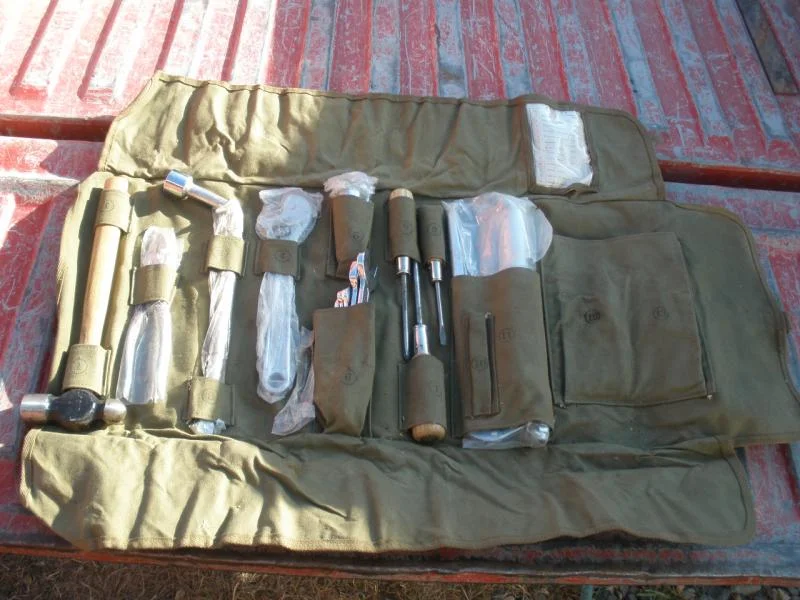

and a few more of the roll referenced in post #7...this is landpimps kit i think?

and a pic from 'wesintl' of the adjust kit as well

more from 'wesintl' here: https://forum.ih8mud.com/40-55-series-tech/76169-early-oem-tool-kit-2.html



[JohnnyC]

another great tool roll thread:
https://forum.ih8mud.com/40-55-series-tech/410762-tool-bag-thread.html



[JohnnyC]

interesting pictures of factory literature

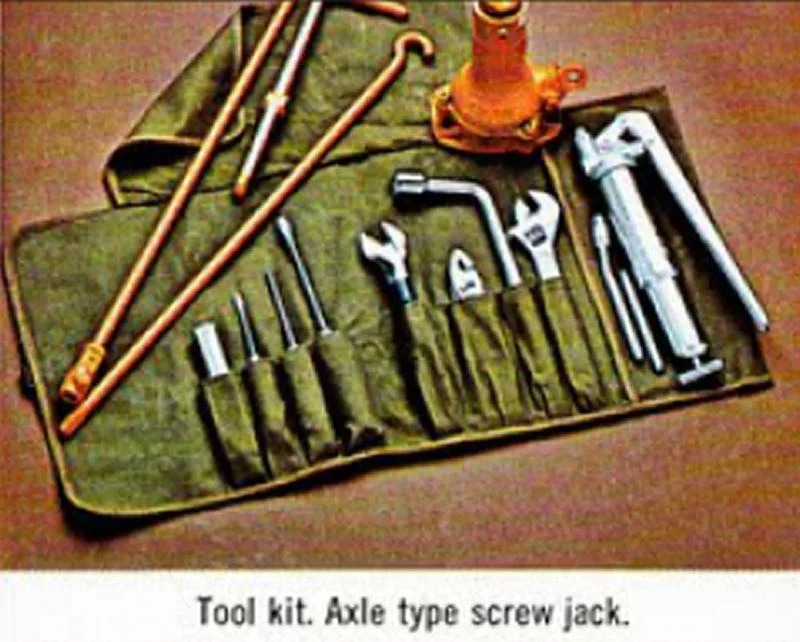

1st pic 1972 canvas tool roll

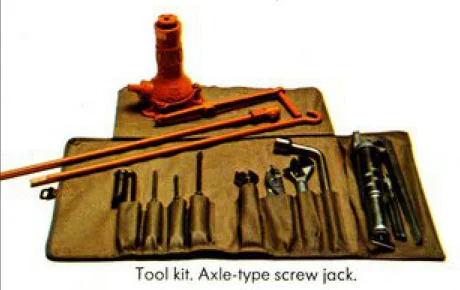

2nd pic 1973 vinyl tool roll



[Awl_TEQ]

larger metal tool kits...pics from MOT i think

I wondered what was in these boxes originally. I had pictured a socket set in where that screwdriver is.



[sggoat]

Since this is looking at tools for the 40, can anyone tell me what these are for? Came with my 77 40.



[Fast Eddy]

Jack crank handle and maybe an engine crank handle, but I've only ever seen one-piece engine cranks. That brown color is usually fj60 jack parts.



[sggoat]

I think you are correct on the jack parts. Can't figure out how an engine crank would work-no holes in the frame, plus there is no way to let go of the handle if the engine started.
thanks--



[Weber Sarge]

The engine cranks work just like the old tractors/generators/welders - the tip of the shaft has a pin that fits into a slot in the crank nut . As the engine starts, that slot has a counter-clockwise spiral cut into the inside that pushes the shaft out of engagement with the crankshaft nut and allows the engine to spin free of the starting handle/crank .
I learned at a young age to look for crud inside that nut , it can defeat the cam slots and cause the handle to remain engaged when the engine starts - bad for the guy trying to hang onto that handle .....
Sarge



[78fj40mg]

pics of a mid 60's tool roll

This one is a very complete tool set, I really like it!!
