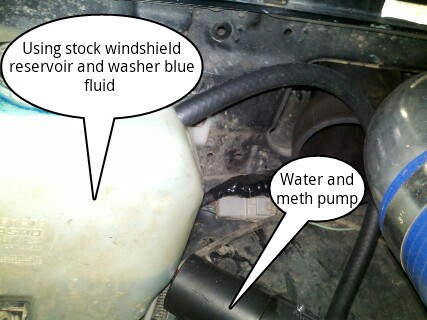

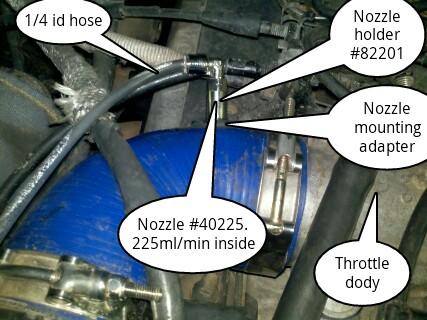

All the parts numbers are from Snow performance,I installed it because i like to see my EGT low 1200 to 1300 under boost I have the smc control and pump all other parts are from Snow performance the control works with a map sensor it has 2 settings start and maximun i hope you can understand the installation with the pics



[TRDCRUISER95]

some more pics (sorry about the spelling)



[landtank]

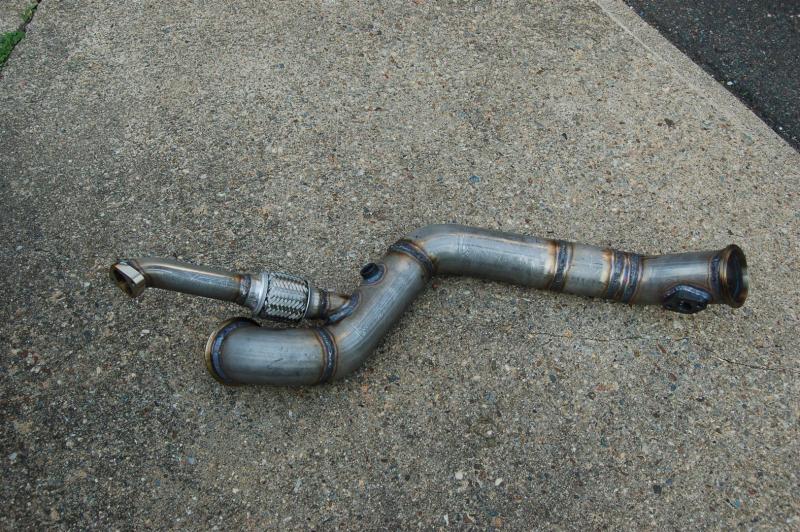

I picked up the down pipe from the welder today. Here is a couple of shots of it on the drive way.



[landtank]

and here it is installed. While it was close I was able to use 3" mandrel bent pipe through out the exhaust.

I'll have more time this weekend to finish things off and post more pictures.



[cruiserdan]

Wow. Nice.



[TRDCRUISER95]

Landtank are you going to install a 3 inche flex pipe ?



[landtank]

no I'm not



[krzyabncanuck]

Very nice.



[turbocruiser]

Looking great Rick, can't wait for the first road test!



[VanGo]

Exceptional.



[94SRUNNER]

Taking shape nicely Rick!!!



[concretejungle]

Rick, i would be a huge help if you had any photos of your motor with the upper intake off showing your wiring harness routing. I'm doing that now and it's a PITA and trying to look at Jason's harness on his truck with the supercharger and everything in place is damn near impossible.



[landtank]

I have the pulled motor on a stand in the garage. When I get home Ill post up some pics.



[kidglove13]

Work of Art
Should be a nice seat of the pants feeling when done for sure



[concretejungle]

I have the pulled motor on a stand in the garage. When I get home Ill post up some pics.

Thanks!! This is the one place i did a horrible job of documenting. By the time i got to the wiring, i was just unplugging and pulling!



[NKP Garage]

Looking great!



[Dusty]

top notch work

the exhaust is so long you probably will be ok without the flex pipe.

Rick ill be surprised if you can keep the egt less than 1500'. mine runs 1700' on hard long climbs. she doesn't seem to care....



[p8nt]

I picked up the down pipe from the welder today. Here is a couple of shots of it on the drive way.

That there is real purdy!



[Tapage]

no I'm not

in my case ( my 1HD-T which have much more vibrations than 1FZ-FE ) was a must ..



[landtank]

top notch work

the exhaust is so long you probably will be ok without the flex pipe.

Rick ill be surprised if you can keep the egt less than 1500'. mine runs 1700' on hard long climbs. she doesn't seem to care....

I didn't take any chances. That down pipe is SS-321 and the materials alone was a little over 600.00. Then add the 195.00 for a professional to weld it and it better hold up.
