What size tires are those? They look nice.
Looking for new rims, need ideas
- Thread starter dcducks1
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Thank you. They're 31x10.5
I wish someone like FJCO would make factory-looking hubcap rims in 16x7 or 16x8. I would be all over 5 of those ASAP.
Check out Nomad wheels...they come in 16x7 and 16x8... I've been following Shannon Campbell on YouTube and he is building a FJ40, thats when I first saw these wheels made by Nomad, they look sick, and they make a stainless optional hubcap that is held on by two counter sunk screws:
504 Field – Nomad Wheels - https://www.nomadwheels.com/collections/504-field?srsltid=AfmBOop4NPVLYdn6riQoAqMZMlMOtW9uNOUkPJ9k4_EtNduLakDMWb4J
“Fifteen52” in 16” w/an easy mod to add clips/caps for a stock look. 17” available. Four color options.
Pic(s) 285/75 16 tire. Mounted using a 2 3/4” lift.
Pic(s) 285/75 16 tire. Mounted using a 2 3/4” lift.
These turned out really well and it was straightforward, it was time consuming to get the 30 holes drilled and tapped for the clips.
We went “round n round” on the selection but, the juice was certainly worth the squeeze..
Do you have a link for these rims and clips? These and the Nomads @rustED71 look pretty close to perfect. Only fifteen52 rims I'm seeing for the Cruiser in 16" seem to be the 5 spoke.
Last edited:
- Joined
- Jul 22, 2012
- Threads
- 639
- Messages
- 17,541
- Location
- Winter Park, Florida
- Website
- www.cruisermatts.com
I'm a dealer for Nomad, they are super nice
AgreedWe went “round n round” on the selection but, the juice was certainly worth the squeeze..
Analog HD _ Peak Grey | Off-Road Truck Wheels | 52OFFROAD
Fifteen52's Analog HD takes the classic steel wheel design and adds a modern touch, casting it in lighter aluminum and updating the classic style to fit a wide range of modern and vintage off-trucks. Available in 16" and 17" with select bolt patterns like: 6x139.7, 5x127 and 5x150. Also...
fifteen52.com
Clips were an EBay purchase. Although I think there are other vendors.
https://www.ebay.com/itm/2866206304...pid=5337589904&customid=&toolid=10001&mkevt=1
With all of the riveted rims being decommissioned, harvesting the clips from them is also an economical option.Analog HD _ Peak Grey | Off-Road Truck Wheels | 52OFFROAD
Fifteen52's Analog HD takes the classic steel wheel design and adds a modern touch, casting it in lighter aluminum and updating the classic style to fit a wide range of modern and vintage off-trucks. Available in 16" and 17" with select bolt patterns like: 6x139.7, 5x127 and 5x150. Also...fifteen52.com
Clips were an EBay purchase. Although I think there are other vendors.
https://www.ebay.com/itm/2866206304...pid=5337589904&customid=&toolid=10001&mkevt=1
Something else to consider. You might find a design that you like but their color is off. You can always change the wheel color.
Factory color was flat black but I chose to go with Rustoleum Gray Hammered as it was close to the factory gray.
Factory color was flat black but I chose to go with Rustoleum Gray Hammered as it was close to the factory gray.
Maybe 16" Split Rims with hub caps an idea ?
I used ProComp 7069-5183 wheels which have a -47mm offset, 15x10, 6 on 5.5 pattern. I didn't use any spacers as the disc's had a thicker flange than the drum brakes. The clearance I had was just enough to clear the tie rod ends.
The studs were simply a replacement that I found and were longer than the factory studs. I then turned the threads off the last 1/2" or so and rounded the ends on a small lathe I have. I think this is the place I bought them from.
I forgot to mention. The factory lug nuts are 21mm and you can't get a lug wrench on them with these wheels. I bought some lugs that are 19mm with full seat contact as you can see in the photo.
Dayyumm.

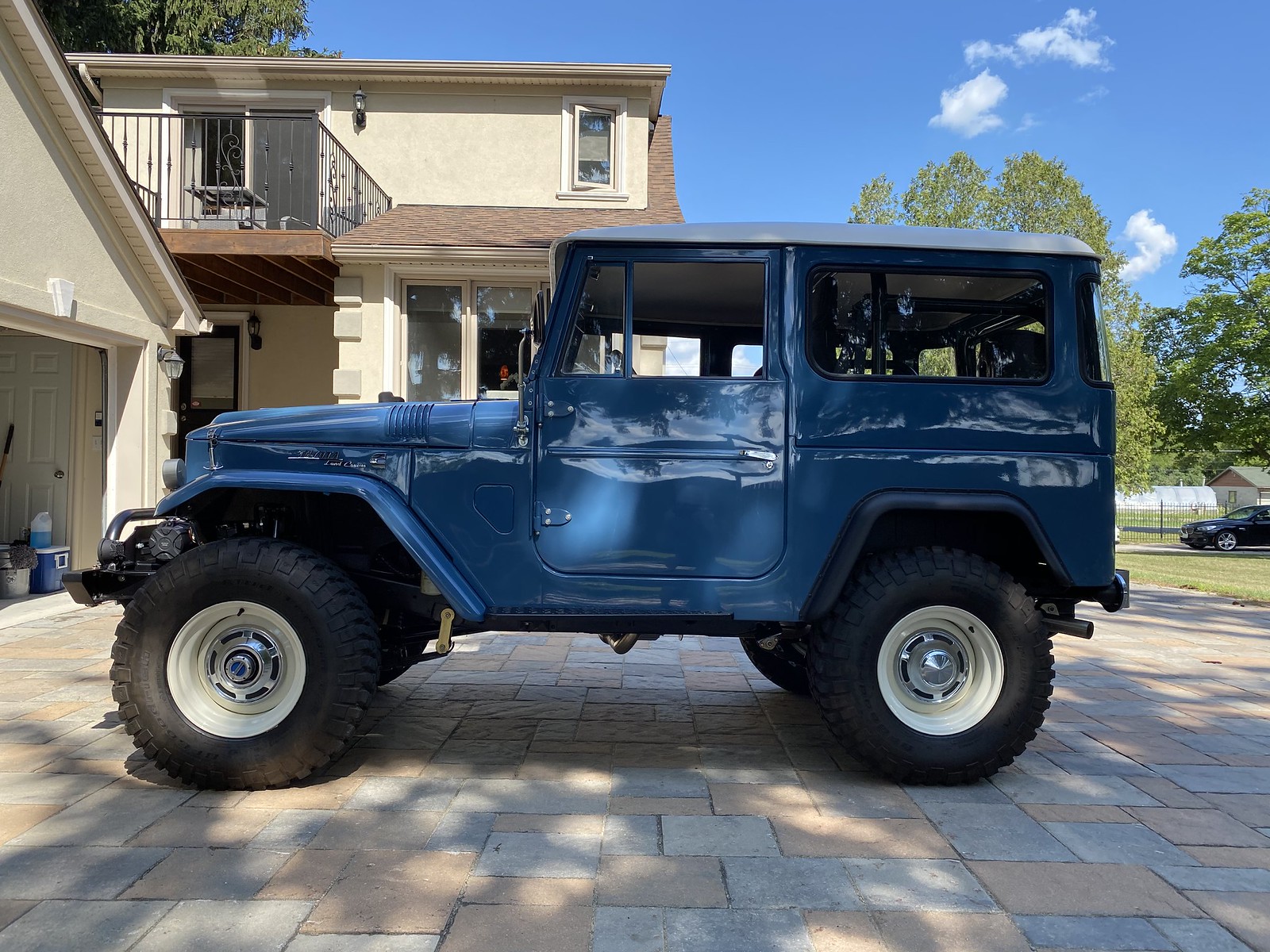

My 2 builds ... completely 2 different looks
IMG_9472 by Steve Heck, on Flickr
IMG_7106 by Steve Heck, on Flickr
IMG_9472 by Steve Heck, on FlickrIMG_7106 by Steve Heck, on Flickr
My 2 builds ... completely 2 different looks
The white wheels with the caps looks incredible.
