home made roof racks? (3 Viewers)

[robbs6940]

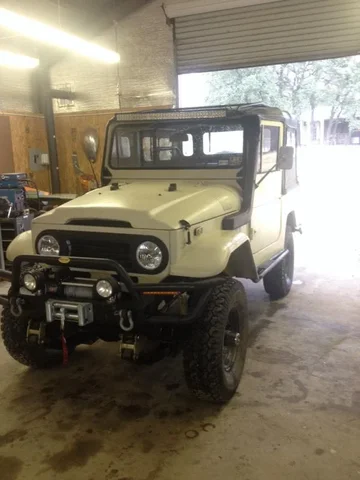

plain and simple rack for fj40

My dad designed this and had it fab'd at local weld shop eons ago. the mounts are 4"x4" aluminum feet welded at an angle to the legs and bent to contour the roof. Through bolted with 8mm bolts (four per leg). Rubber/nylon conveyor belt (grocery store check out conveyor) used as a mat b/t roof and mounts. This is and old pic. Rack is not mounted now (will not clear low garage), but I can get pics off-body if anyone interested. Note the open front and rear..useful for kayak/small john boat/deer stands/ladders/etc.



[R33F]

Need Measurements

Hi guys,
I was hoping that some one can help me with some measurements.
I am having a guy in Los Angeles build me a full length roof rack for my 94 FJ80.

I am currently living and working in China and won't be back home in the states until June, so I cannot do the measurements myself.

He is asking me for the following:

Rain gutter to rain gutter for mount placements =
Front to back =
Side to side =

Any help with this is greatly appreciated!

Thanks,
Greg



[nakman]

80 series is about 52" gutter to gutter. 60 series closer to 54". keep in mind there's a taper, will be wider in the front, so slotted attachments are generally needed. or custom drilling on location



[R33F]

80 series is about 52" gutter to gutter. 60 series closer to 54". keep in mind there's a taper, will be wider in the front, so slotted attachments are generally needed. or custom drilling on location

Nakman thanks for your reply!
I really appreciate it!

Greg



[fjeng]

Here is mine I built


...via IH8MUD app



[outbackoffroadgear]

Here is one of my roof racks I built for my 4x4 van RV



[waxwrapped]

That is an epic van



[Brake Weight]

I like it as well. I've been eyeballing a SAS kit for the Ford E-250 off and on for several years now. It's not too bad on a price, but I would not really use it enough to warrant spending that much coin. eBay has some from time to time.



[stevefrommelb]

I definately wouldn't put the mesh on my racks if i did it again.

It has a fair bit of weight in it, but I have seen heavier racks. My mates ARB rack is def. heavier than mine. But as I have read in some other posts here the rack is much stronger than the gutters (in my opinion; and some other peoples opinion to).

So yeah; keep it as light as you can. Put rubber in your gutters to save metal on metal, and don't put a mesh (its really anoying when tying things down)



[98 SNAKE EATER]

Here's a slideshow of the one I just built for my 80



[myquestoyota]

Looks nice snake, you should have finished the with a drone shot video of it on the trail.



[mongoose2231]

i was thinking about something along these lines. I have 2 sets of fj cruiser roof rack cross bars. was thinking about making use of them.



[cruiserpilot]

View attachment 877157View attachment 877158View attachment 877159View attachment 877160View attachment 877161View attachment 877162

Here is mine I built


...via IH8MUD app

I saw this on a different thread, this is genius! Could you please repost link to the thread.



[TRAIL TAILOR]

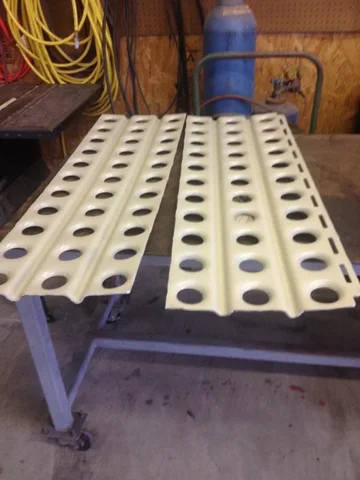

Here is the start of mine. Almost finished.

J



[cruiserpilot]

That is a really nice design. Well done!



[TRAIL TAILOR]

That is a really nice design. Well done!

If your talking to me.. HA! THANKS.

J



[cruiserpilot]

Yup,



[CMSmooth]

Here is a design I've started for a rack for my LX450. Yes, the design will appear familiar as it was inspired by others on this site. First two pics are my first go, with and without lights. Second set is the same, but I extended the frame in the front to create a platform to better support and protect the front light bar, added a couple cross bars and also added a lower side between the gap, but am still debating that. Frame is build with 1.125" aluminum stock. Four of the crossbars extend past the basket, and will be used for mounting with Thule/Yakima towers. Also, not draw in is an expanded aluminum floor. Powder coated in black when complete. Anyway, any feedback would be much appreciated. Thanks in advance.



[TRAIL TAILOR]

Very nice, I am jealous of you guys that are CAD/SolidWords savvy... I stumble and fudge it up too much... So, I just go the build stuff.. HA! (I keep trying though)

J



[98 SNAKE EATER]

Very nice, I am jealous of you guys that are CAD/SolidWords savvy

Same here

This was my professional rendering before building my rack lol
