H55F + split case + tc mounted ebrake =?
- Thread starter JohnnyC
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
If I am not mistaken you have to swap the 40 series top cover over to the 60 series tranny.
I installed a SBC, H55f, 38mm split case with parking brake and it all comes in through the stock holes on my 77 FJ40. I used the Toyota split case parking brake as well. Cruiser Outfitters should have all the parts to make that work.
Not your exact set but incase it provides any sort or comparison for you. SBC conversion with engine place per Downey instructions. Behind that a NV4500, AA's latest adapter which is longer than the original, one piece TC. I had to remove the parking brake assembly to get it all installed because I did want to cut out the looped crossmember. Once the trans and TC were installed I installed the parking brake which barely cleared the crossmember. Suspension is OME 2 - 2-1/2 lift, rear axle on jack stands so springs are under load.

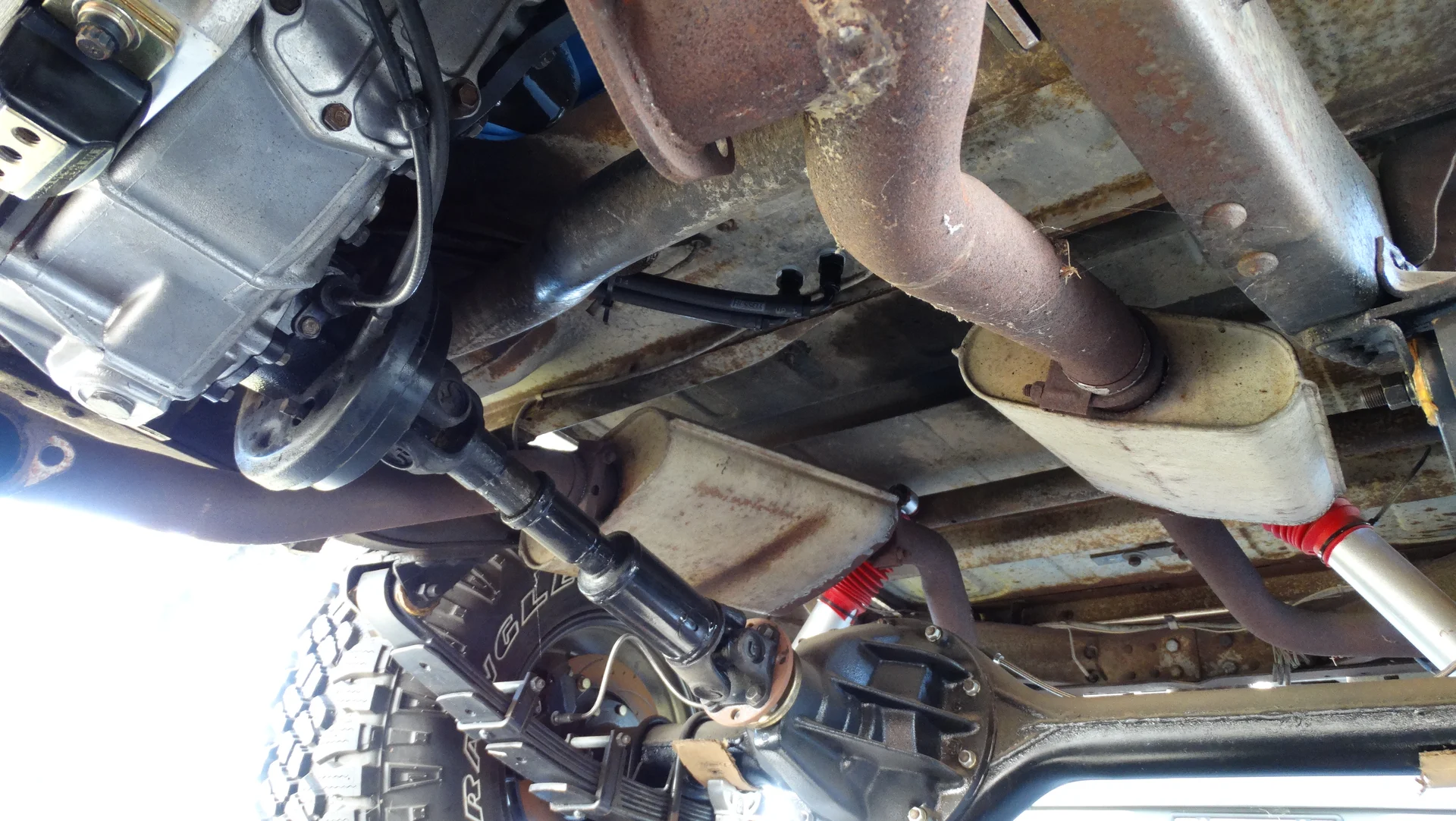

Angles are different so can't tell if #cruiseroutfit example is shorter or longer. No shims or rotation of axle housing and no vibration issues. This photo was taken in Dec. 2014 and still running the same setup except exhaust was updated after this photo.
Angles are different so can't tell if #cruiseroutfit example is shorter or longer. No shims or rotation of axle housing and no vibration issues. This photo was taken in Dec. 2014 and still running the same setup except exhaust was updated after this photo.
- Joined
- Jul 22, 2012
- Threads
- 640
- Messages
- 17,864
- Location
- Winter Park, Florida
- Website
- www.cruisermatts.com
Yes, he is getting an 40 top cover. The donor transmission is out of an actual 81-84 40 series and already has the correct one.
I think mine is a tad shorter. We didnt do the install on this 40, but we built the trans/tc, front disc axle, etc. So when the customer wanted to sell, I snatched it up as a fun "ranch" Cruiser. I may move the rear axle back similar to what I did decade ago in my blue 72 with the 2F/H55F
- Joined
- Apr 21, 2005
- Threads
- 116
- Messages
- 26,174
Not sure how I would like a H42 with 10% overdrive in all gears. Tire sizes would be what I would tire first. Diffs and transfer are a lot more work to change if you not happy. With a F 2F engines how strong the engine is and type of usage plays into it as well. Do not believe @JohnnyC is planning on switching to a V8.
- Thread starter
- #28
No v8 … all my friends had them growing up … I like being the oddball
I believe my tranny is an h42 (I think) with 3 speed TC with the lower low range than the 4TC. … I am liking the idea of the 3.70’s as that would free up some $$$ for my other plans
Great suggestion @jim land
So many ideas to contemplate
I believe my tranny is an h42 (I think) with 3 speed TC with the lower low range than the 4TC. … I am liking the idea of the 3.70’s as that would free up some $$$ for my other plans
Great suggestion @jim land
So many ideas to contemplate
- Joined
- Jul 22, 2012
- Threads
- 640
- Messages
- 17,864
- Location
- Winter Park, Florida
- Website
- www.cruisermatts.com
the nice things about a split case are the oil capacity, they are far less leak prone, bigger gears and bearings, and better case design that dissapates heat faster. They run a lot quieter. They are worth it in my opinion.
- Joined
- Apr 21, 2005
- Threads
- 116
- Messages
- 26,174
I wouldn't assume you have the lower range gear like the three unless you know it was changed. Up to 4/75 the four speed used the same input gear and high range output gear as the three. The low range gears are the same as 4/75 plus gears mated to a four speed in one piece transfer cases. Would check your.datr stamped into the housing.No v8 … all my friends had them growing up … I like being the oddball
I believe my tranny is an h42 (I think) with 3 speed TC with the lower low range than the 4TC. … I am liking the idea of the 3.70’s as that would free up some $$$ for my other plans
Great suggestion @jim land
So many ideas to contemplate
I agree they are worth adding. Just not sure I would want the 10% OD on all high range gears in an H42. Taller tires and higher diff gears like 3.70:1 think a H41 first gear might not be as bad on pavement.
- Joined
- Jul 22, 2012
- Threads
- 640
- Messages
- 17,864
- Location
- Winter Park, Florida
- Website
- www.cruisermatts.com
It's situationally dependent of course. The vehicle that the combo I described is going into has lower axle gears (4.56 I think)

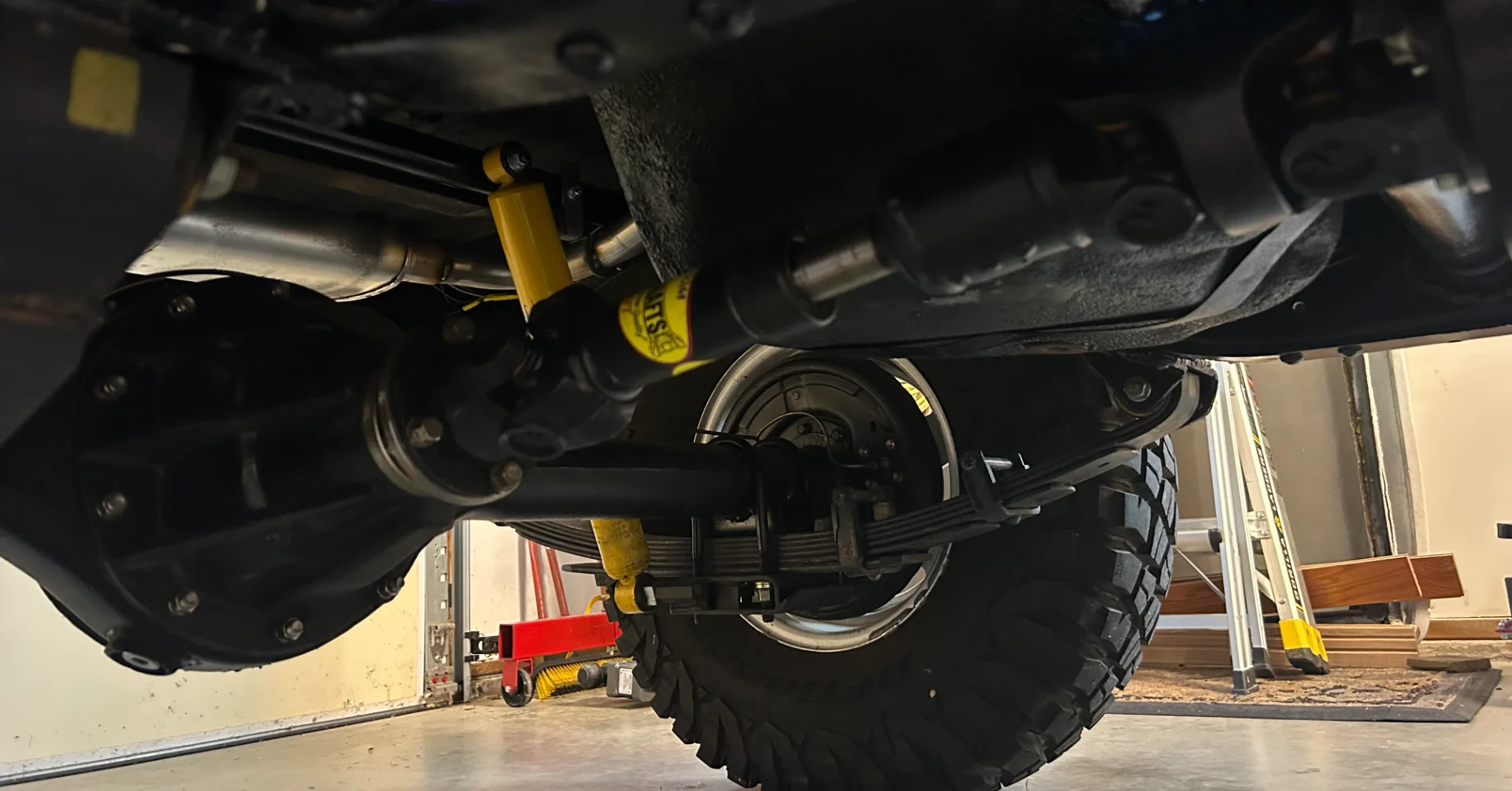

Since we’re sharing pics of our junk, here’s mine.
