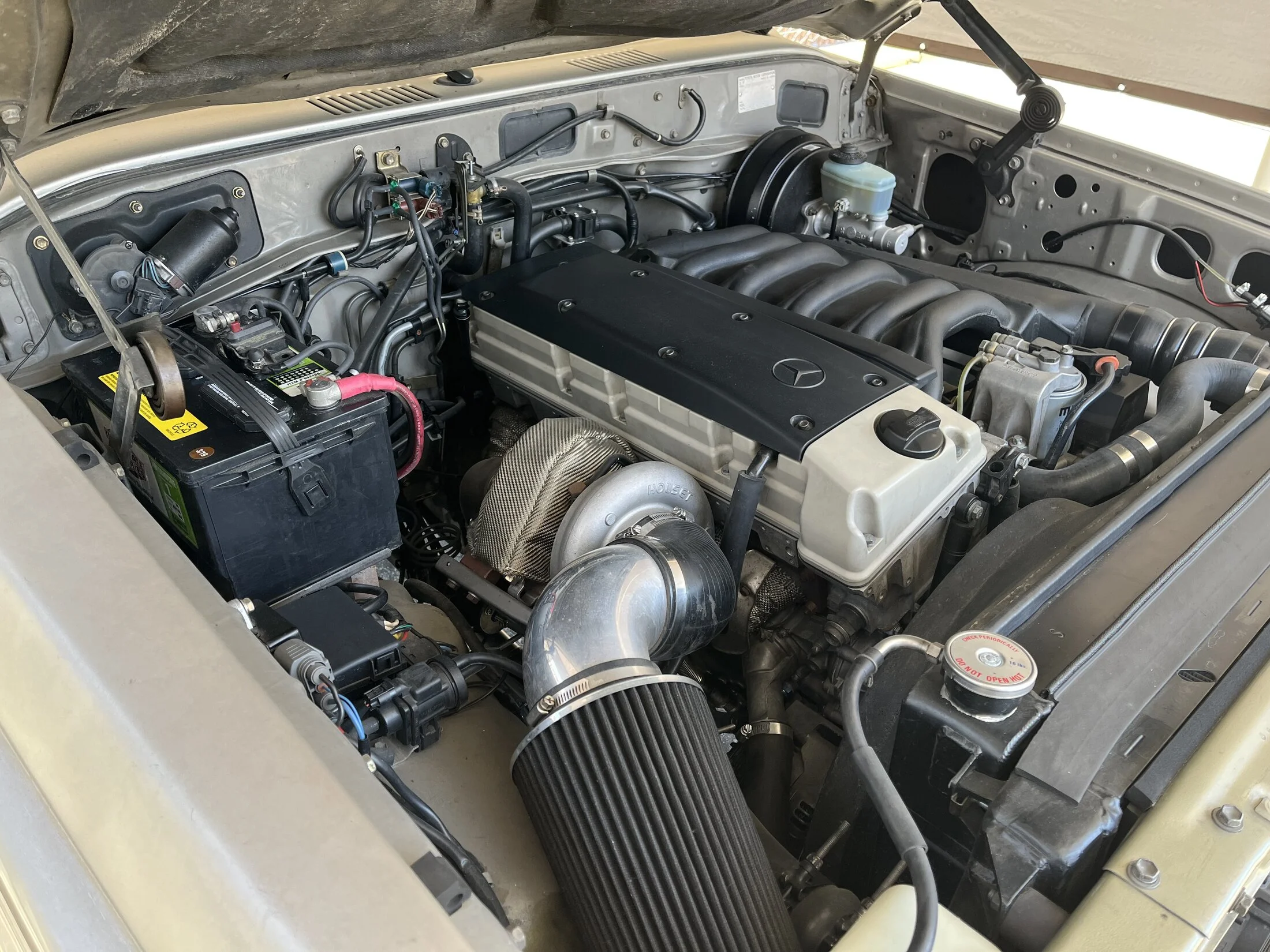

That thing is sweet. Looks like it could have rolled out of the factory like that. I thought I would have enough room but nice to confirm.
FJ60 om606 swap
- Thread starter frontviewmirror
- Start date
-
- Tags
- diesel engine swap fj60 h55 om606
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

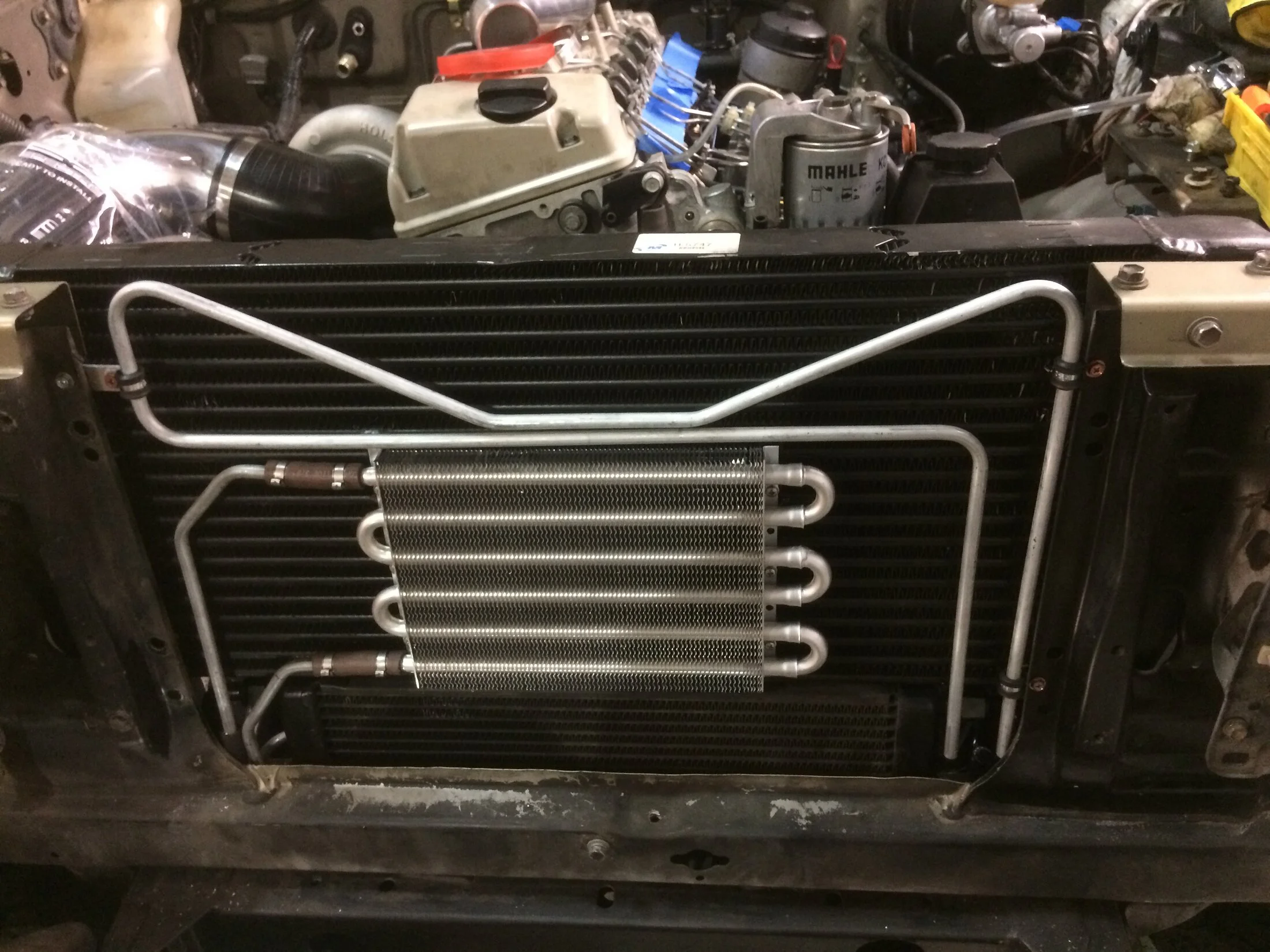

Thank you. Let me know if you need any measurements for the motor mounts or anything else.
- Thread starter
- #24
So I have been communicating with Luke, and Rebecca, at DieselPumpUK. After initially being told that they were going to be making these adapters, they have since said that “it does not make engineering sense to produce this kit as the cast iron housing makes the task not viable.” Is this what you have been told also? It has me very confused. They instead suggested using their bj73 kit and the associated bellhousing + clutch parts but those seem to be nearly unobtainable here in the US. Big bummer at the moment.
That is news to me. I haven’t heard from DPUK since Luke and I spoke last, back in mid February.
- Thread starter
- #26
Might want to check in, I am really scrambling to get this figured out as I want to get this done before August. I have asked for an explanation and maybe they will change their minds.
- Thread starter
- #27
Does anyone know of a source for the bj73 (3b?) bellhousing and associated parts? Am I correct in assuming that I would need a release fork, slave cylinder, throwout bearing, and pilot bearing from what I have? I can’t seem to find anything. It also seems weird that he describes his bj73 kit as using a 10 spline input shaft when from what I have read a 3b truck would have a 27 spline shaft.
Well, his kit includes a throwout bearing to suit the pressure plate and clutch supplied and uses an oilite bush on the flywheel in lieu of a pilot bearing.
I did find it odd at first that the description states BJ73 and uses a 10 spline but the product video does feature an h55f with 10 spline shaft which is what we need anyway.
I sent an email yesterday so we’ll see what comes of it.
Thinking out loud here and going off of what TT said, a 2H/12HT bell housing might work. Comparing photos of the 3B and 2H/12HT housing they do look nearly identical but I’d want to confirm before trying to source one from AUS or CAN. There are also some differences between 3B housings. BJ60 and BJ7x. Whatever bell housing we end up going with will probably need the complementary clutch fork, collar and clutch slave as the clutch fork from the product video looks different compared to the FJ60 one I sent Luke. Then we’d need to make sure the hydraulics work.

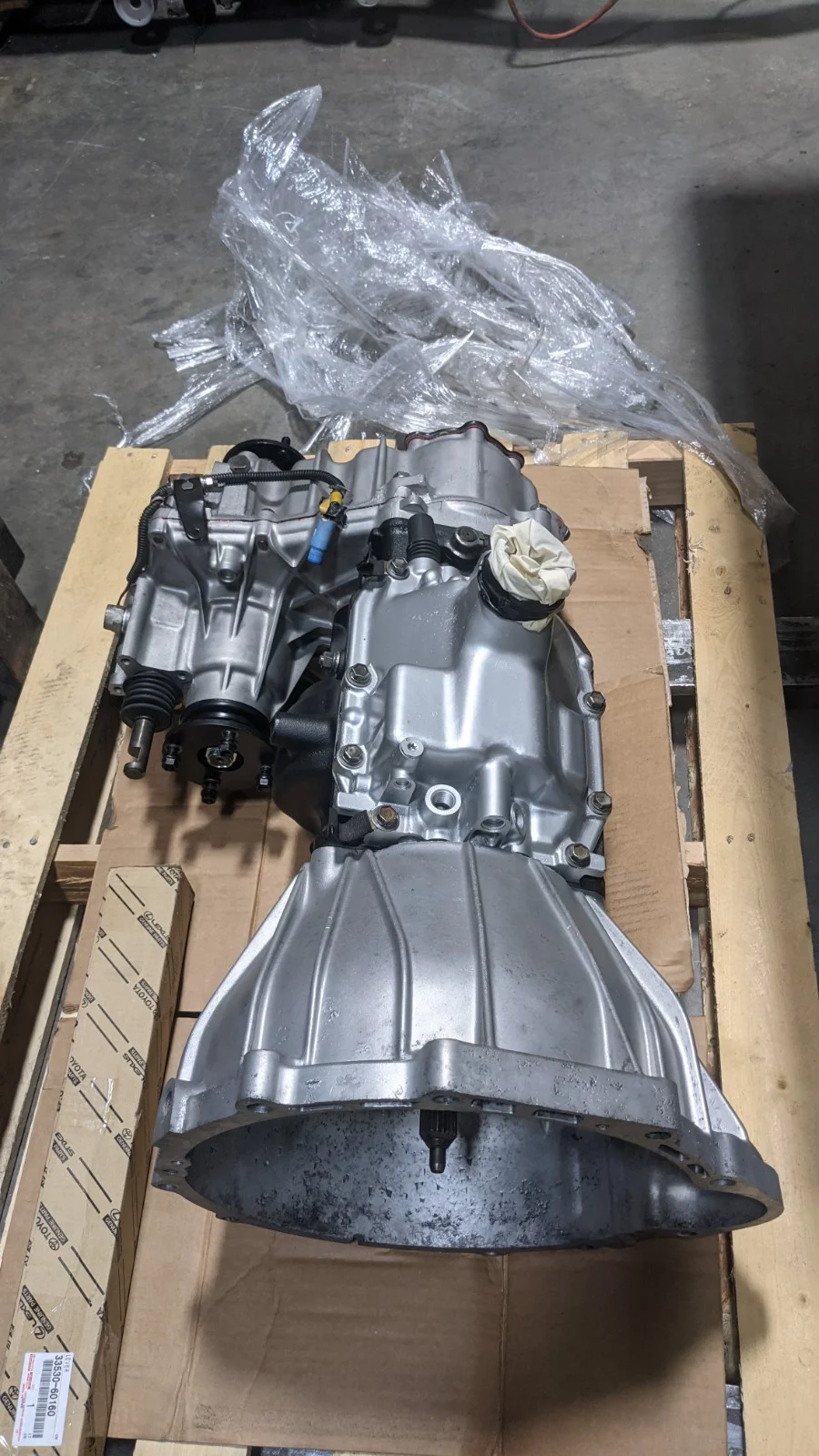

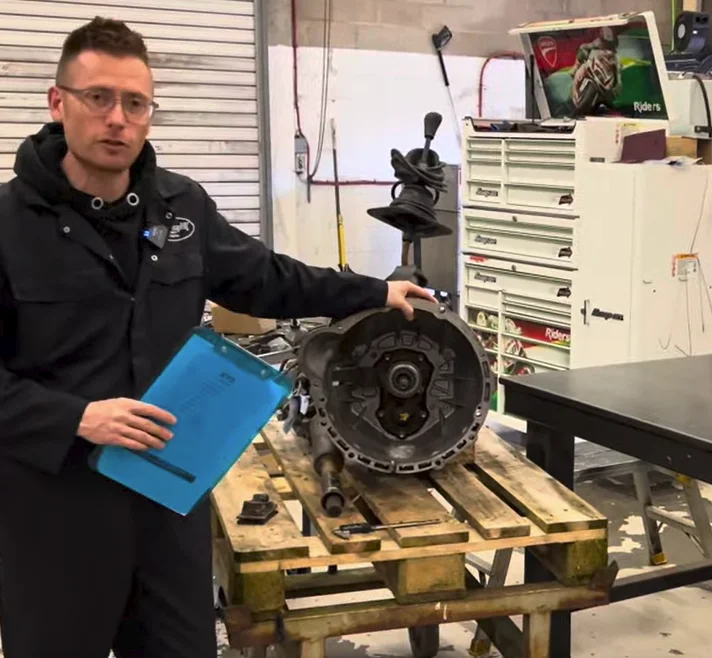

Here’s the product video. Maybe some of the sleuths on mud can ID the bell housing and clutch fork.
1990+ BJ73’s with the 2.5L VM motors used an H55F with 10 spline shaft
- Joined
- Jun 21, 2011
- Threads
- 233
- Messages
- 21,803
- Location
- Redding, California
- Website
- trail-tailor.com

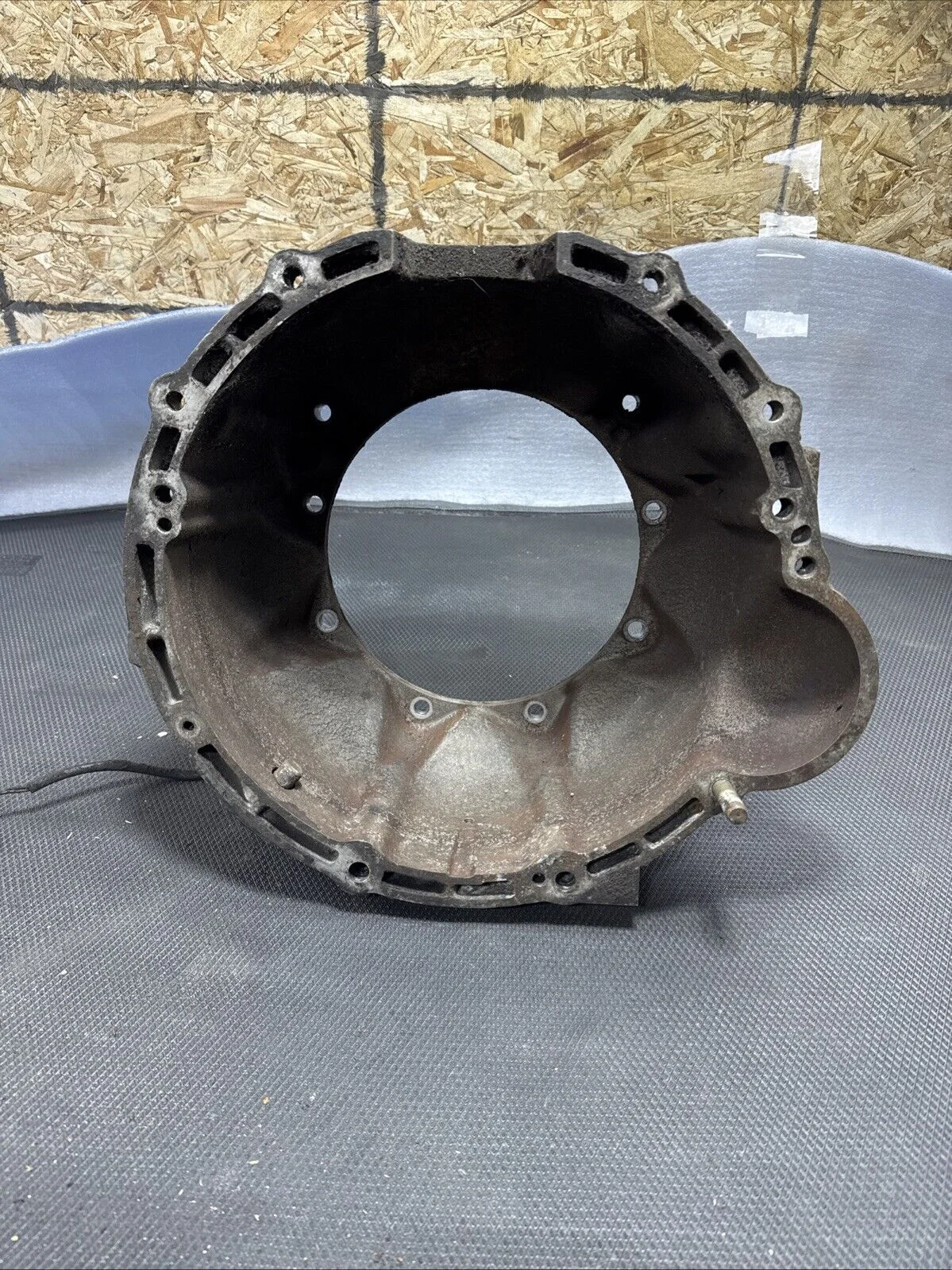

I'm pretty sure I have an newer 3B bellhousing (aluminum). I'll look tomorrow.
All 2H, 3B, 2F have the same bolt pattern on the engine and transmission side alike. The difference was the internals/shaft of each model.
I should have an early and late 2F (stamped 2F or 3F) bellhousing as well. If I have time I will confirm patterns and depths of each as well for you.
Early 2F housings must be opened up for the H55F to fit. Older 2F housing (stamped 3F) bolt right up to the H55F.
Jason
TT
All 2H, 3B, 2F have the same bolt pattern on the engine and transmission side alike. The difference was the internals/shaft of each model.
I should have an early and late 2F (stamped 2F or 3F) bellhousing as well. If I have time I will confirm patterns and depths of each as well for you.
Early 2F housings must be opened up for the H55F to fit. Older 2F housing (stamped 3F) bolt right up to the H55F.
Jason
TT
Last edited:
- Thread starter
- #31
Aha, so that is what we are looking for. Just did a quick search and it seems like those are even more obscure (just used in European market trucks)
, and I can’t seem to find much on the bell housing. Thanks for figuring that out. Anyone else around here dealt with these?

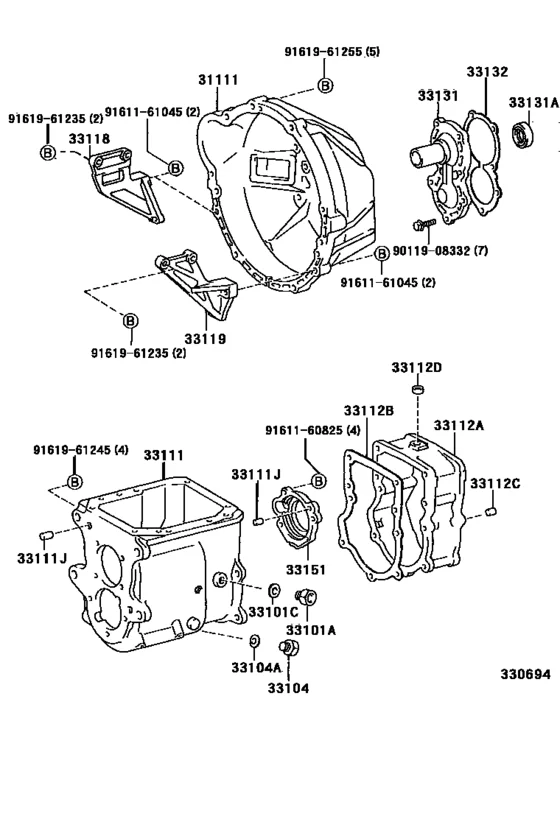

I found parts diagrams for the 1990+ VM powered BJ73. Part number 31111-60160, clutch housing.Aha, so that is what we are looking for. Just did a quick search and it seems like those are even more obscure (just used in European market trucks)
