part number 45460-69135 tube is 42" with center of end at 48" with +/- 1" play
part number 45450-69085 tube is 30 1/4"" with center of end at 38" with +/- 1" play
so unless you go with 60 PS box, this relay rod won't work in your application.
hope this helps

Doing some steering reseach, see this thread for some add'l info:

https://forum.ih8mud.com/showpost.php?p=5484342&postcount=151

Well, well, well!

I think I have some good news for those following the latest about how make a relay rod/drag link using factory parts...

I found some part numbers for BJ-70 parts (thanks cruiser_guy ) that yielded a passenger side relay rod end with tube assembly and a driver side relay rod end (connects to pitman arm) with tube assembly.

So I ended up with an extra tube assembly once I put both ends on the same tube.

Part number 45045-60H01 buys you the PS end w/ tube
Part number 45044-60H03 buys you the DS end w/ tube (left hand threads)

NOTE: the "H" in the part number denotes an assembly vs individual part.

The tube measures 30 3/8 inches
PS end measures about 2 1/2 inches if screwed all the way in
DS end measures about 4 1/2 inches if screwed all the way in
This should yield a relay rod assembly of about 37 3/8 inches.
I need an assembly measuring about 37 7/8 inches

This should work!!!



[Delancy]

Doing some steering reseach

Is there anything I can measure to aid in research?

Limited time left to do so....



[PabloCruise]

Is there anything I can measure to aid in research?

Limited time left to do so....

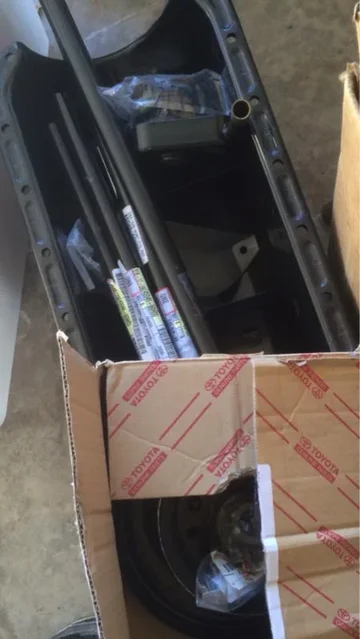

View attachment 852459

Thanks for asking! Did you end up getting a 70 series tie-rod, w/ ends?

Why limited time?



[Delancy]

No, they're OE 55 rods and ends. Have for the '72, too, so must still be available.

I can't recall exactly the parameters we were discussing with the 70 rods, but saw you're post and figured I'd measure, if need be.

Still have the '72s in my possession, so no big deal to measure.....I'd forgotten I had for it when I posted "limited time" as those depicted are headed your general direction for re coating.



[PabloCruise]

Thanks, I was looking for reassurances that the 70 tie rod and TREs will be the ticket for a 40 series axle housing w/ 60 knuckles and steering arms.



[Delancy]

Thanks, I was looking for reassurances that the 70 tie rod and TREs will be the ticket for a 40 series axle housing w/ knuckles and steering arms.

Gotcha.

Can't recall why we discussed the viability, can you?

40=55 in every respect up front....



[tucker74]

Gotcha. Can't recall why we discussed the viability, can you? 40=55 in every respect up front....

Almost - the double ended drag link is 55 specific and hard to find, I'd think if you were going to a 60 PS box the 70 series relay rod would be needed to eliminate the center arm no?

Tucker



[Delancy]

I'd think if you were going to a 60 PS box the 70 series relay rod would be needed to eliminate the center arm no?

Ah-ha.

That's what the conversation was regarding, now I recall.

When we were discussing, was looking at having custom links made for the 60 box and outers and that's when crushers brought up that 70 rods may work and run the larger TREs, eliminating the reducers at the gearbox.



[Delancy]

Reiterating my piss poor choice in a resto candidate, once again.

Although I'm not discouraged, I've come to grips with the fact that this will take me many years to complete.

Since the discussion continued into the extent to which the rot had continued to increase the time spent, I didn't take but one pic, since the wheels were turning....



[Delancy]

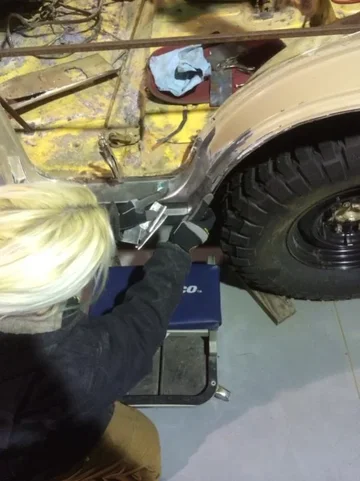

Hand formed.
