Cabin air filter conversion - LC100 to LX470

[l3n0x]

So my 2006 LC did not come with a cut out in the air box or a clip in door either. I do have the clips to retain a door. So I am planning to cut into my air box in order to install filters. Does anyone know the part number for the door? Toyota is telling me I have to go to Lexus and Lexus is telling me they can't find it without a VIN # (Which I don't have, as mine is a LC). They are telling me if I can provide a Part # they can get it for me. I obviously don't want to cut into my air box until I have the door in hand.

Thanks in advanced

The small door is: 88891-60060 - COVER, COOLER, NO.1

(the big front panel, precut for the door is 88891-60040, and strangely also called COVER, COOLER, NO.1 - it's so cheap, it's probably easier to buy this & swap it instead of cutting - at least that's what I did + it also adds a chance to clean out the space next to the condenser)



[06LCTrekto500K]

Awesome! Thank you for the part #'s and advice! Headed to the dealer in the morning.



[nothappening]

Hey guys, I got my door off and will need to do a little vacuuming as there is some debris. I saw someone mention of A/C Cleaner from Home Depot (I assume a spray of some kind), another user mentioned using bleach and a brush. I don't want a strong chemical smell, does anyone have an alternative that is relatively odor free to clean in there?

edit: I also have the Toyota A/C Refresher kit, which I saw someone mentioned spraying the foam directly in there rather than through the condensate drain. Is that a good idea? It sounds really messy to me. Anyway, I appreciate any ideas.



[chetekei]

[Deleted]



[Matanda]

Had same issue with mine here in NZ while retrofitting my 2001 VX LTD. After sourcing the new cover and two filters I found the filter slot was only half the depth of everone elses on these write ups. Took to the filters with a hacksaw cut them in half so they now fit. A little Heath Robinson but after the cover is clipped on no-one else but you and me and all the other retrofit fiends will know.

Thanks for this. Works on my RHD HZJ105. The Air Conditioning was spewing dust onto the cabin. Made worse by manual wind up windows. Previous owner had left a random air filter there that did not fit in the space.

A link to someone who had a similar issue:
Trying (unsuccessfully) to install Cabin Air Filter into RHD HZJ105 Landcruiser

EDIT:

Before

After

The cover will not fit because of the tab at the top and you will have to shave off a bit at the top right of the filter as shown.
Hardly the neatest job but read @TLEXAS' last paragraph



[TLEXAS]

Thanks for this. Works on my RHD HZJ105. The Air Conditioning was spewing dust onto the cabin. Made worse by manual wind up windows. Previous owner had left a random air filter there that did not fit in the space.

A link to someone who had a similar issue:
Trying (unsuccessfully) to install Cabin Air Filter into RHD HZJ105 Landcruiser

EDIT:

Before

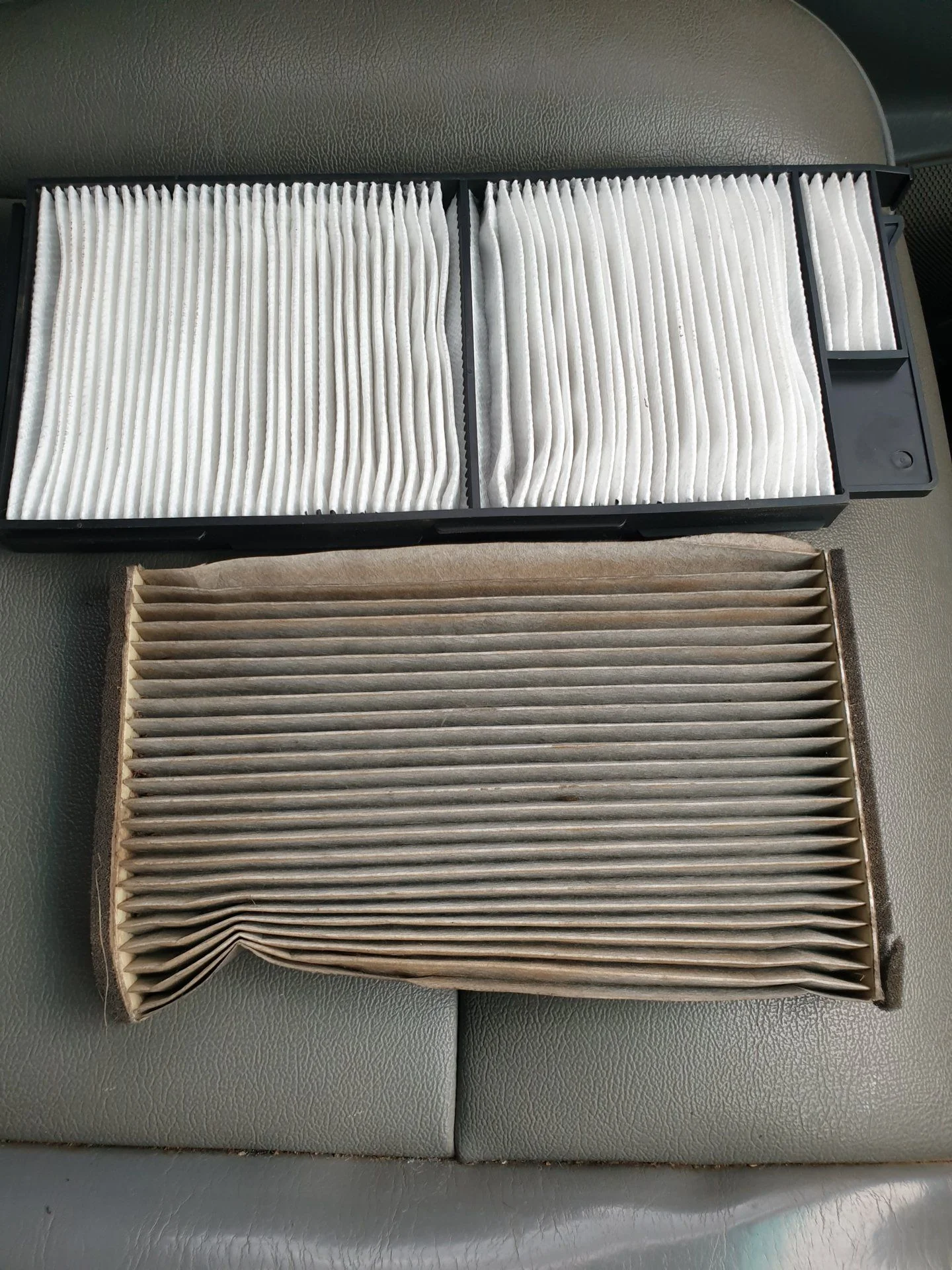

View attachment 2111726
After

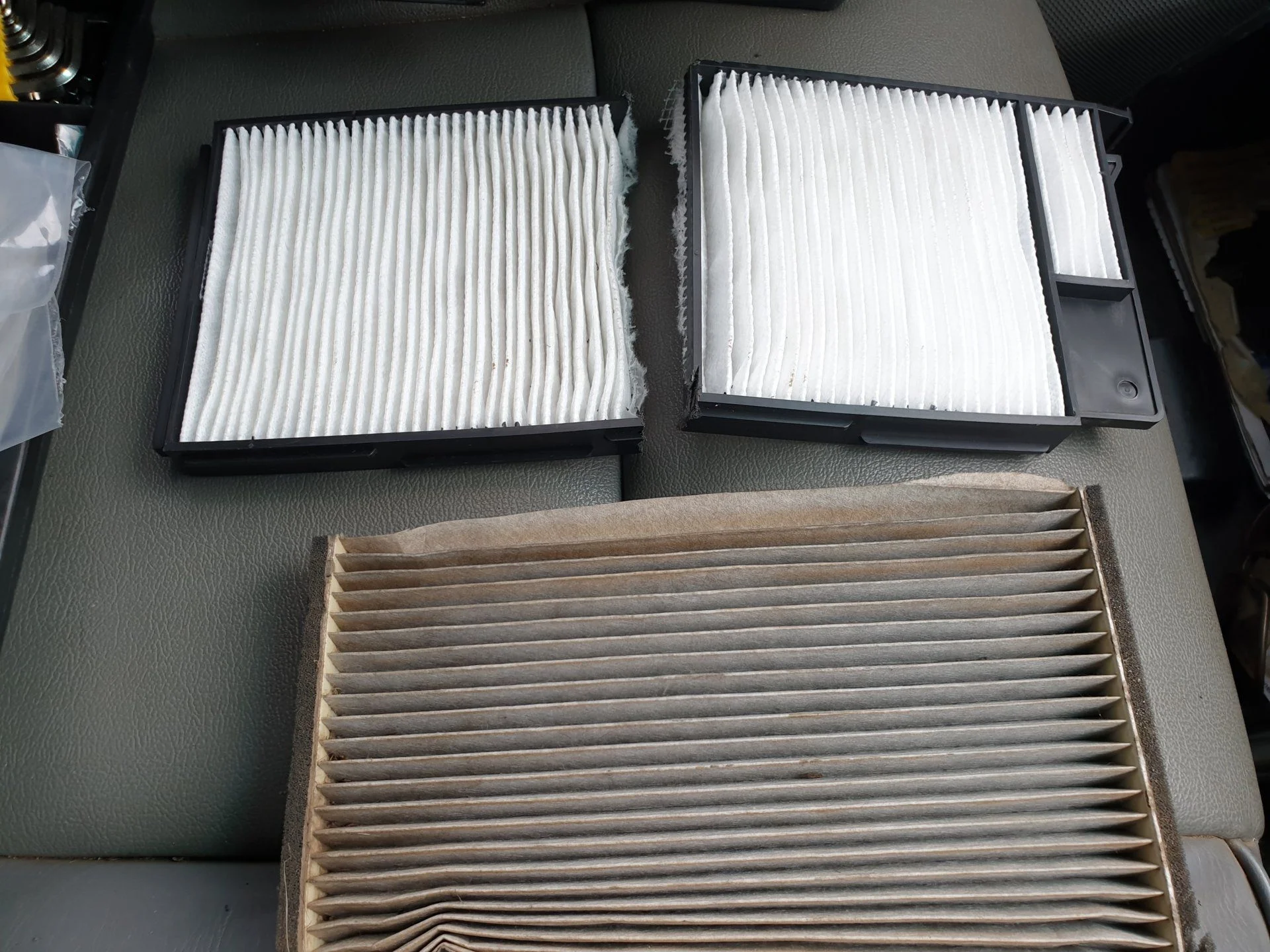

View attachment 2111727

The cover will not fit because of the tab at the top and you will have to shave off a bit at the top right of the filter as shown.
Hardly the neatest job but read @TLEXAS' last paragraph

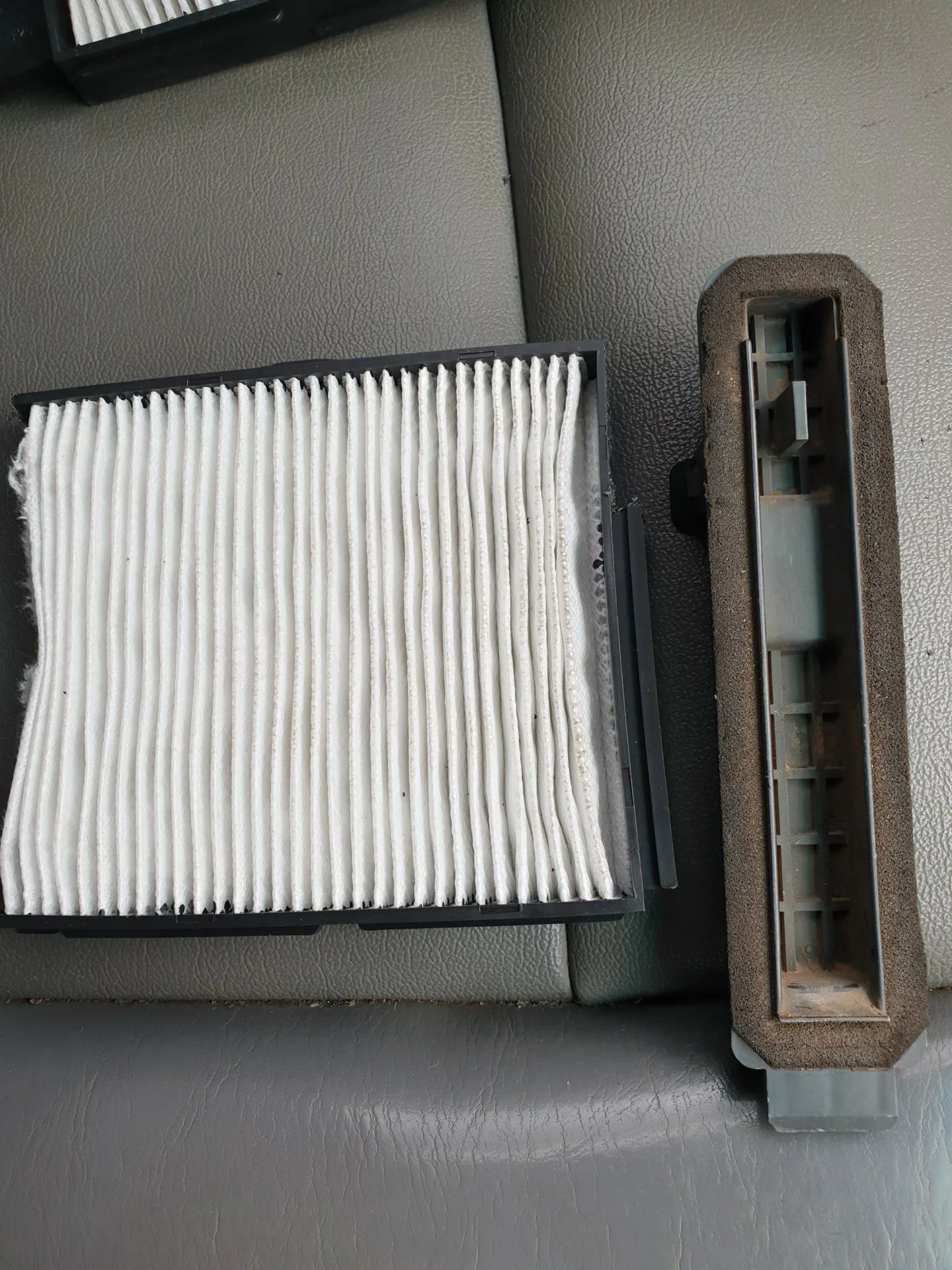

View attachment 2111741
